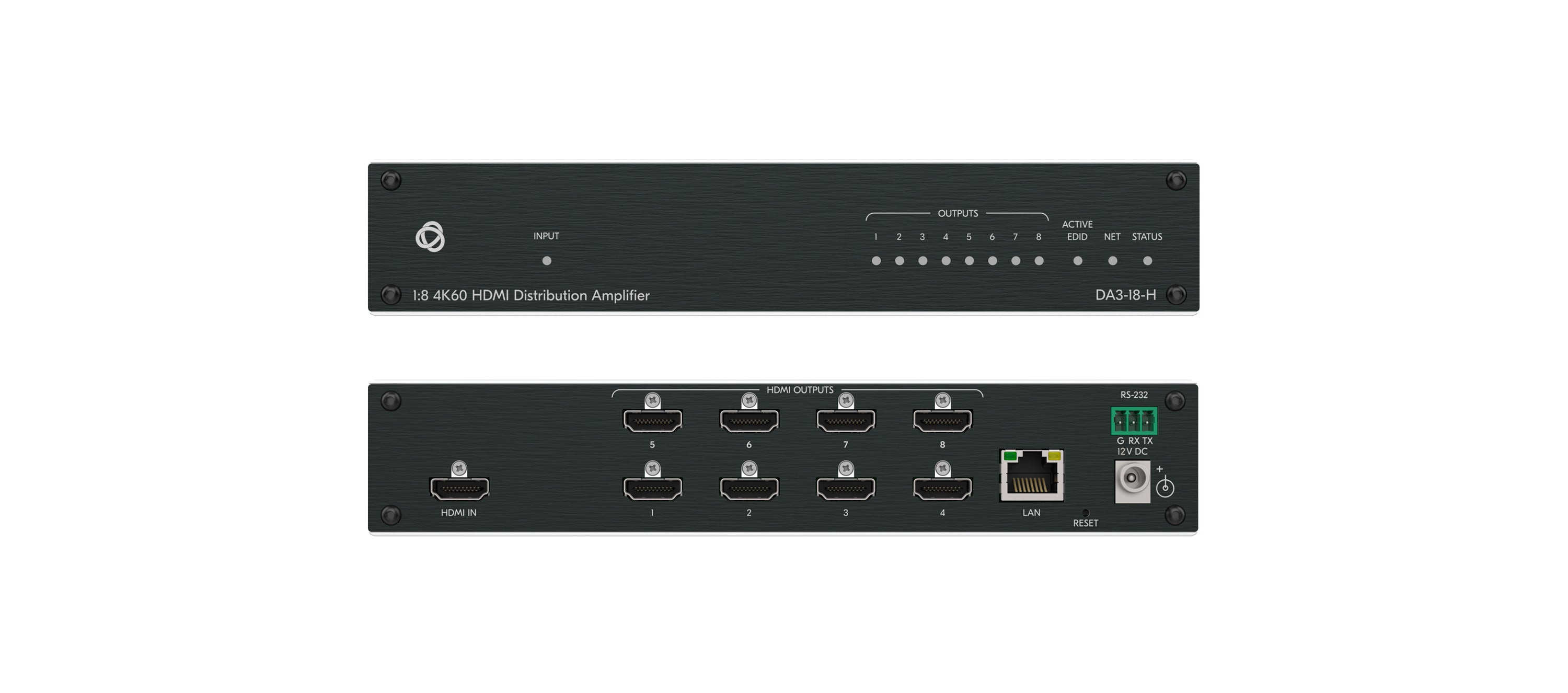

Kramer DA3-18-H 1:8 4K HDR HDMI Distribution Amplifier

The DA3-18-H is a high-performance 1:8 distribution amplifier engineered for 4K HDR HDMI signals. It ensures signal integrity by re-clocking and equalizing the input for eight identical, high-resolution outputs. Supporting HDCP 2.2 content protection, this unit features intelligent EDID handling and automatic output scaling, which seamlessly downscales 4K sources to 1080p for compatibility with older displays. Users can force RGB color format to enhance picture quality and manage HDCP authorization for specific content requirements. The integrated CEC mediator allows for individual output control, while RS-232 and CEC command gateways provide flexible, sophisticated system integration. Built with a compact, rack-mountable half-19" 1RU enclosure, it is ideal for professional corporate, educational, and retail environments demanding reliable signal distribution.

Input	1 HDMI
Outputs	8 HDMI
Max Resolution	4K@60Hz (4:4:4)
HDCP Compliance	2.2
Enclosure Size	Half-19 inch 1RU
EDID Handling	Intelligent, user-selectable
Output Scaling	Automatic 4K to 1080p
Control Ports	RS-232, CEC
