Extron 60-1608-01 DA HD 4K Plus

Overview

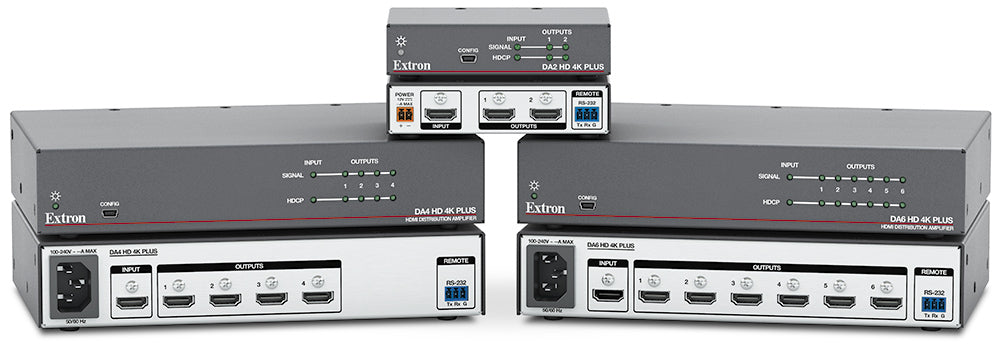

The Extron DA HD 4K PLUS Series are HDCP 2.3 compliant distribution amplifiers for HDMI signals at resolutions up to 4K/60 @ 4:4:4 chroma sampling.  They support data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC control, along with integrator-friendly features such as automatic input cable equalization, automatic color bit depth management, and selectable output muting.  They also feature Extron EDID Minder® and Key Minder® technologies to maintain continuous EDID communication between connected devices and ensure simultaneous distribution of HDCP-encrypted content.  The DA HD 4K PLUS Series distribution amplifiers are available in sizes from two to six outputs, and are ideal for applications that require reliable distribution of a single HDMI source signal to multiple displays.

Key Features

• Supports computer and video resolutions up to 4K/60 @ 4:4:4
• Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC control
• HDCP 2.3 compliant
• Automatic input cable equalization
• EDID Minder^® automatically manages EDID communication between connected devices
• Key Minder^® continuously verifies HDCP compliance
