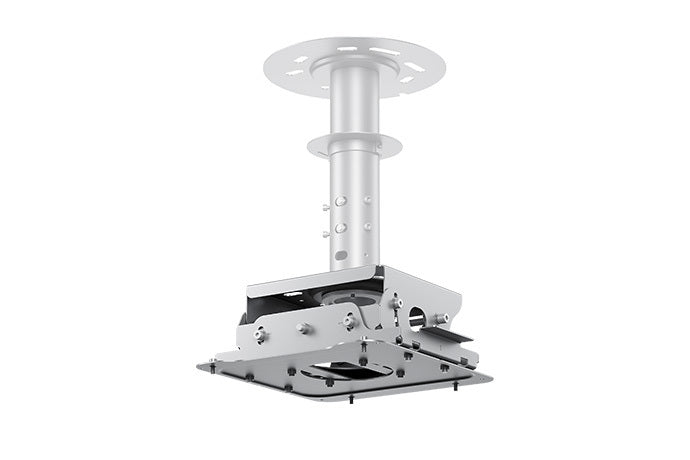

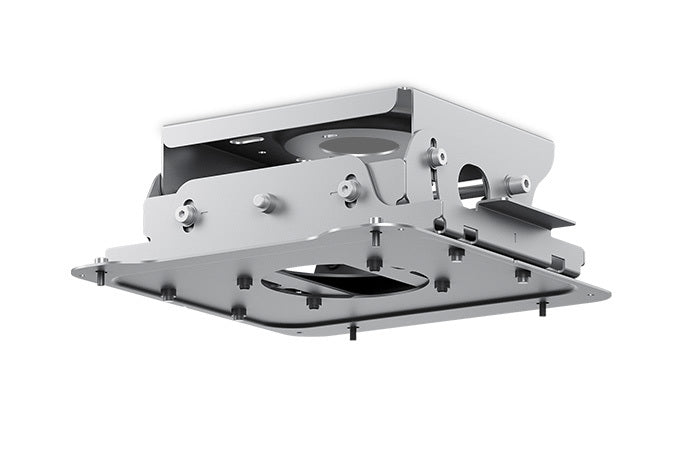

Epson ELPMB67 Adjustable Ceiling Mount for Pro Series Projectors

Simplify projector installations with the versatile Epson ELPMB67 ceiling mount. Designed for flexibility, it supports vertical, horizontal, and rotational tilt adjustments to accommodate a range of applications. The forward and backward slide capability compensates for lenses lacking zoom, such as ultra-short throw lenses. It supports 360-degree directional mounting and includes M6 bolt holes for easy truss mounting via clamps. Pair with the ELPFP15 suspension adapter for high-ceiling applications.

This durable mount supports up to 88 lb (40 kg) and features two handling grips for convenient lifting with the projector attached. It is RoHS compliant and recyclable, reflecting Epson's commitment to sustainability.

Key Features

Brand	Epson
Model	V12HA54010
Product Name	ELPMB67 Adjustable Ceiling Mount for Pro Series Projectors
Weight Capacity	88 lb / 40 kg
Unit Weight	12.6 lb / 5.7 kg
Tilt Angle (Vertical)	+5 to -15 degrees
Tilt Angle (Horizontal)	+5 to -5 degrees
Horizontal Rotation Angle	+5 to -5 degrees
Forward/Backward Slide	+/- 36 mm
Mounting Holes	M6 bolt holes
Directional Mounting	360-degree
Compatibility	Epson Pro Series and Large Venue Projectors
Material	Metal
Color	Black
UPC	010343889822
Shipping Weight	14.5 lb

Compatibility

Large Venue Projectors: EB-PQ2213B 13,000-Lumen 4K 3LCD Laser Projector, EB-PQ2220B 20,000-Lumen 4K 3LCD Laser Projector, EB-PQ2216B 16,000-Lumen 4K 3LCD Laser Projector - Black, EB-PQ2216W 16,000-Lumen 4K 3LCD Laser Projector - White, EB-PQ2010B 10,000-Lumen 4K 3LCD Laser Projector - Black, EB-PQ2010W 10,000-Lumen 4K 3LCD Laser Projector - White, EB-PQ2008B 8,000-Lumen 4K 3LCD Laser Projector - Black, EB-PQ2008W 8,000-Lumen 4K 3LCD Laser Projector - White, EB-PU2116W 16,000-Lumen 3LCD Laser Projector with 4K Enhancement, EB-PU2120W 20,000-Lumen 3LCD Laser Projector with 4K Enhancement, EB-PU2216B 16,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement, EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement, EB-PU2113W 13,000-Lumen 3LCD Laser Projector with 4K Enhancement, EB-PU2213B 13,000-Lumen 3LCD Laser Projector with 4K Enhancement, EB-PU1008B WUXGA 3LCD Laser Projector with 4K Enhancement, EB-PU1008W WUXGA 3LCD Laser Projector with 4K Enhancement, EB-PU2010B WUXGA 3LCD Laser Projector with 4K Enhancement, EB-PU2010W WUXGA 3LCD Laser Projector with 4K Enhancement, EB-PU1006W WUXGA 3LCD Laser Projector with 4K Enhancement, EB-PU1007B WUXGA 3LCD Laser Projector with 4K Enhancement, EB-PU1007W WUXGA 3LCD Laser Projector with 4K Enhancement, Pro L1490U WUXGA 3LCD Laser Projector with 4K Enhancement and Lens, Pro L1490UNL WUXGA 3LCD Laser Projector with 4K Enhancement, Pro L1495U WUXGA 3LCD Laser Projector with 4K Enhancement and Lens, Pro L1495UNL WUXGA 3LCD Laser Projector with 4K Enhancement, Pro L1505UHNL WUXGA 3LCD Laser Projector with 4K Enhancement Without Lens, Pro L1715SNL SXGA+ 3LCD Laser Projector Without Lens, Pro L1750UNL WUXGA 3LCD Laser Projector with 4K Enhancement Without Lens, Pro L1755UNL WUXGA 3LCD Laser Projector with 4K Enhancement Without Lens, Pro L1505UH WUXGA 3LCD Laser Projector with 4K Enhancement With Lens, Pro L1500UHNL WUXGA 3LCD Laser Projector with 4K Enhancement Without Lens, Pro L1500UH WUXGA 3LCD Laser Projector with 4K Enhancement With Lens, Pro L1100U Laser WUXGA 3LCD Projector w/ 4K Enhancement & Standard Lens, Pro L1200U Laser WUXGA 3LCD Projector w/ 4K Enhancement & Standard Lens, Pro L1300U Laser WUXGA 3LCD Projector w/ 4K Enhancement & Standard Lens, Pro L1405U Laser WUXGA 3LCD Projector w/ 4K Enhancement & Standard Lens, Pro L1505U Laser WUXGA 3LCD Projector with 4K Enhancement & Standard Lens, Pro L1100UNL Laser WUXGA 3LCD Projector with 4K Enhancement without Lens, Pro L1300UNL Laser WUXGA 3LCD Projector with 4K Enhancement without Lens, Pro L1405UNL Laser WUXGA 3LCD Projector with 4K Enhancement without Lens, Pro L1200UNL Laser WUXGA 3LCD Projector with 4K Enhancement without Lens, Pro L1505UNL Laser WUXGA 3LCD Projector with 4K Enhancement without Lens, Pro G7400U WUXGA 3LCD Projector w/ 4K Enhancement & Standard Lens

Downloads

• Product Specifications PDF

Frequently asked questions What is the weight capacity of the ELPMB67 ceiling mount? The mount supports up to 88 lb (40 kg). Does the mount allow for tilt adjustments? Yes, it offers vertical tilt (+5 to -15 degrees), horizontal tilt (+5 to -5 degrees), and horizontal rotation (+5 to -5 degrees). Can this mount be used with ultra-short throw projectors? Yes, the forward and backward slide capability compensates for lenses that lack zoom, such as ultra-short throw lenses. Is the mount compatible with truss mounting? Yes, it has two M6 bolt holes for easy truss mounting via clamps (not included).
