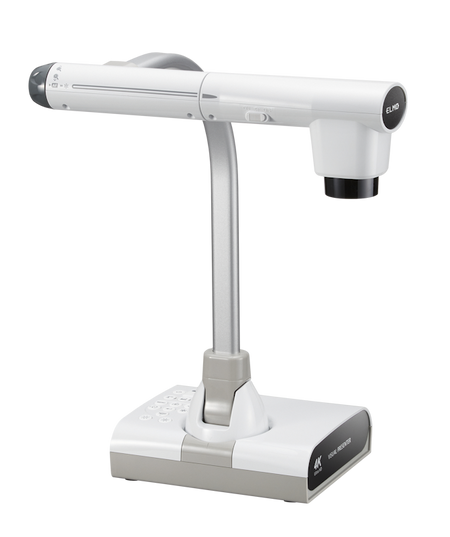

ELMO TT-12S Document Camera
Couldn't load pickup availability
Designed for educational environments seeking dependable visual clarity, the ELMO TT-12S delivers professional live imaging and robust flexibility for modern classrooms. Featuring crisp 4K Ultra HD resolution at 30fps and Full HD at 60fps, it ensures that instructional materials, texts, and physical objects are captured with precision.

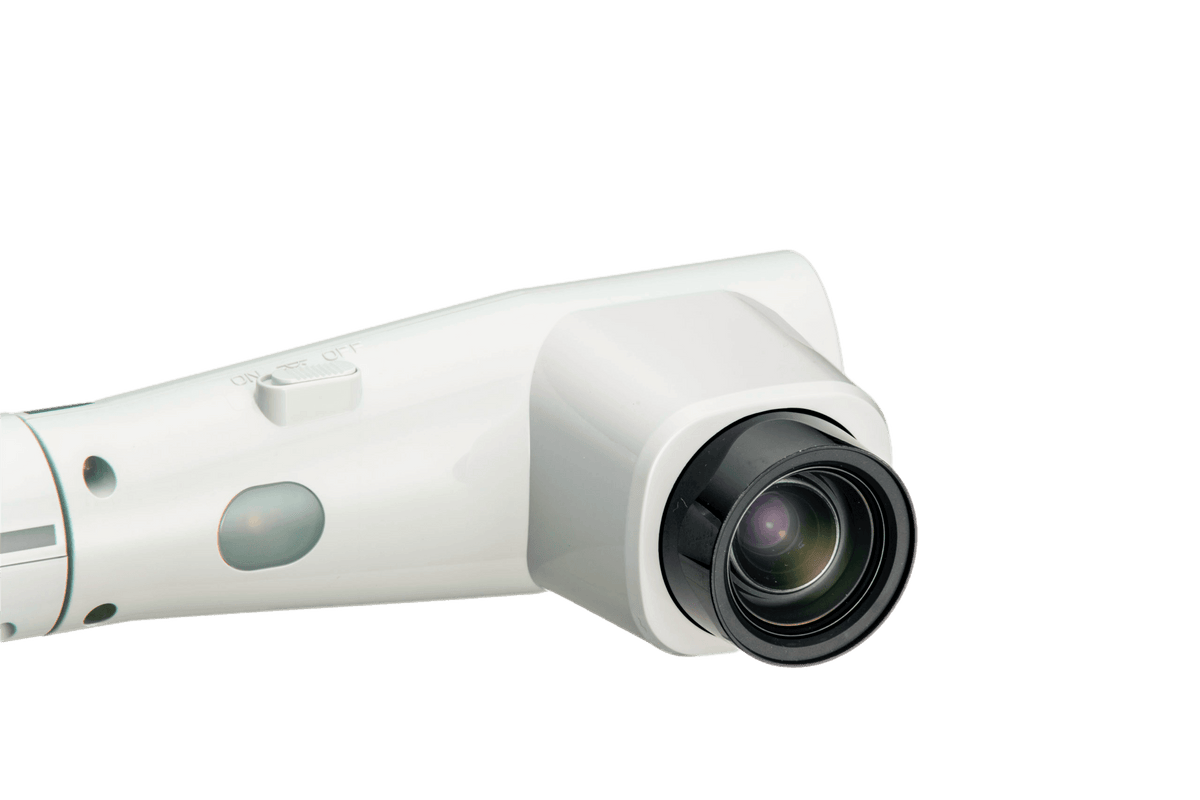

Equipped with an adjustable arm and rotating camera head, the unit allows seamless presentation from multiple angles. It features a combined 192x zoom, consisting of 12x optical zoom and 16x digital zoom, alongside versatile classroom tools such as picture comparison, highlight, mask, and microscope modes.
Comprehensive connectivity options include simultaneous HDMI and USB outputs for direct connection to displays or computers, as well as an HDMI passthrough input. An integrated microphone and support for USB flash drive storage provide direct onboard recording and playback capabilities.
Key Features
| Brand | ELMO |
| Model | TT-12S |
| Product Type | Document Camera |
| Weight | 6.6 lbs |
| UPC | 084041042795 |
| Image Sensor | 13M 1/2.3" |
| Optical Zoom | 12x |
| Digital Zoom | 16x |
| Total Zoom | 192x |
| Lens / Aperture | F=3.2-3.64 |
| Auto Focus | Auto (One-push / Zoom Sync), Manual |
| Shooting Area | Max. 16.9 x 10.2 in (16:9), Max. 16.9 x 12.6 in (4:3) |
| Focal Range | Wide: 2.0 in to infinity, Tele: 7.9 in to infinity |
| Simultaneous Output | USB / HDMI |
| Built-in Microphone | Yes |
| Recording Media | Internal Memory, USB Flash Drive |
| Video Resolution | Up to 4K Ultra HD @ 30fps, 1080p @ 60fps |
| Image Rotation | 0° / 90° / 180° / 270° |
| Input Ports | 1 x HDMI Type A (Passthrough), 1 x USB 2.0 Type A |
| Output Ports | 1 x HDMI Type A (Passthrough), 1 x USB 2.0 Type-C |
| Lighting | LED |
| Power Supply | 12V DC Jack |
| Power Consumption | 12W |
| Dimensions (Setup) | 13.7 in W x 14.8 in D x 17.0 in H |
| Dimensions (Folded) | 7.6 in W x 11.5 in D x 18.7 in H |
Highlights
192x Zoom in 4K Ultra HD
The TT-12S offers 192x digital zoom at 4K resolution, capturing video in True 4K Ultra HD at 30fps or Full HD at 60fps without any loss of quality.
Simple and Straightforward Connectivity

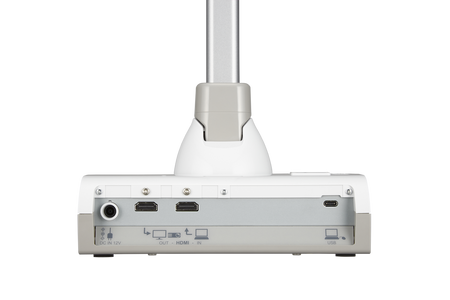

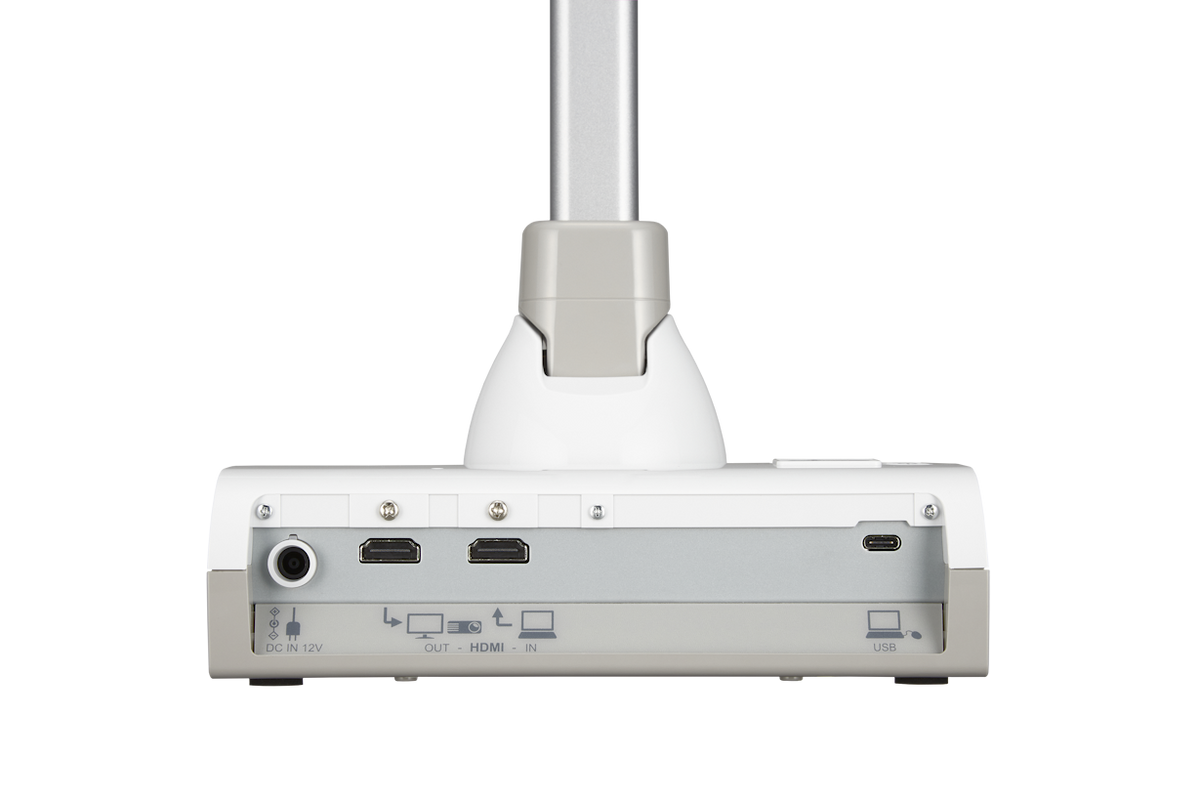

The TT-12S comes with 4K Ultra HD HDMI and USB outputs for easy connection to existing technology as well as a HDMI input for seamless passthrough of a computer.

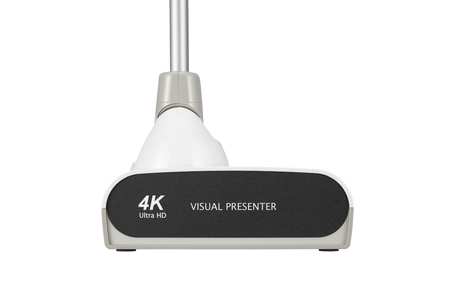

4K Ultra HD Resolution
Razor Sharp and Crystal-Clear Imaging with 4K Ultra HD Resolution
Flexible

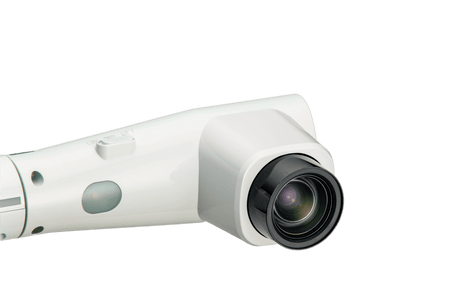

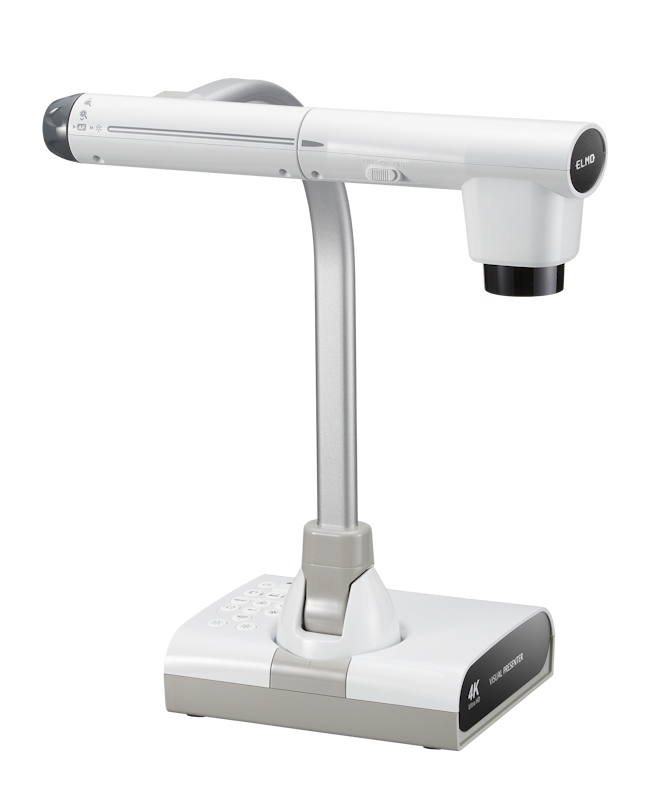

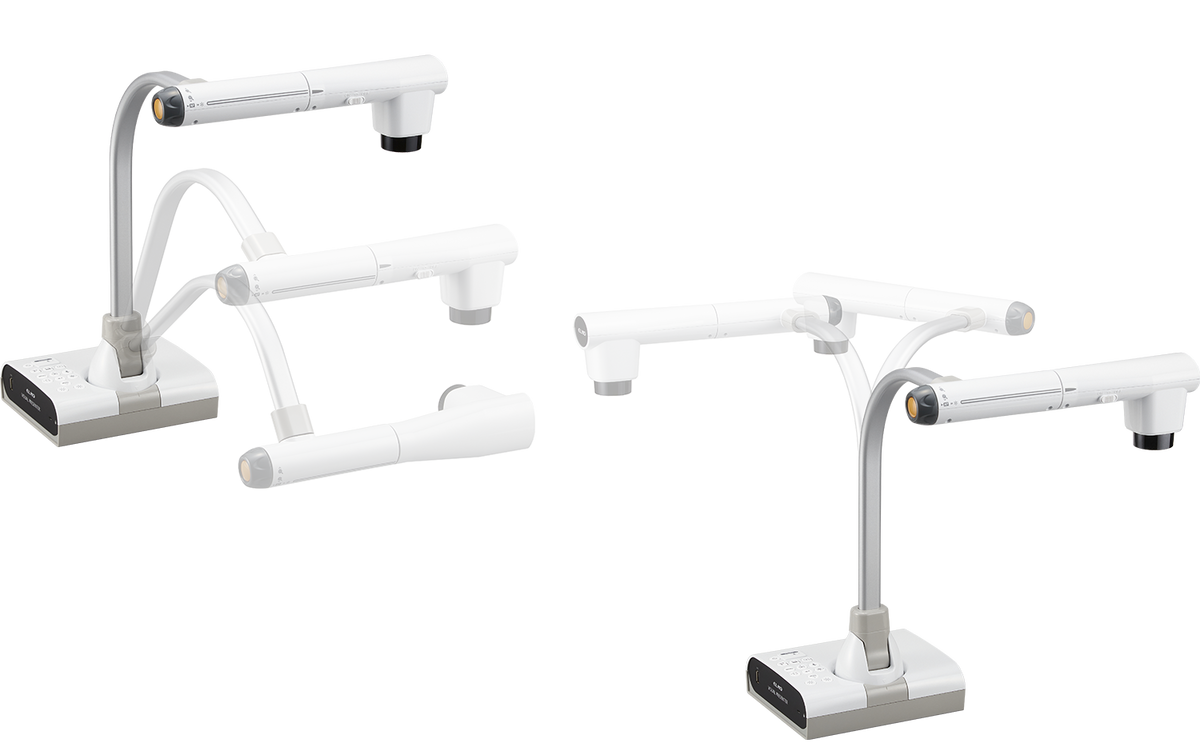

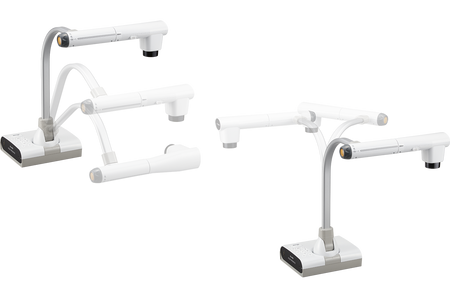

The TT-12S is equipped with an adjustable arm and rotating camera head allow users to position the camera from multiple angles when displaying documents, physical objects, demonstrations, or student work.
Compatibility
This item requires the use of the following item to work properly: 2 Pin Plug (5ZA0000232), US plug (MX-P, MX-P2, and MX-P3), US Plug (TT-12W, MA-1 and MO-2), AC Adapter (MX-P, MX-P2, and MX-P3), AC Adapter (TT-12W, MA-1 and MO-2)
What's included
- AC Adapter
- Power Cord
- USB Cable
- Quick Start Guide
- HDMI Lock x2
- Cable Tie x2
