Home » DaLite Myriad Conceal Electric Screen
DaLite

DaLite Myriad Conceal Electric Screen

SKU: DL100292L
(0)
$12,620.80

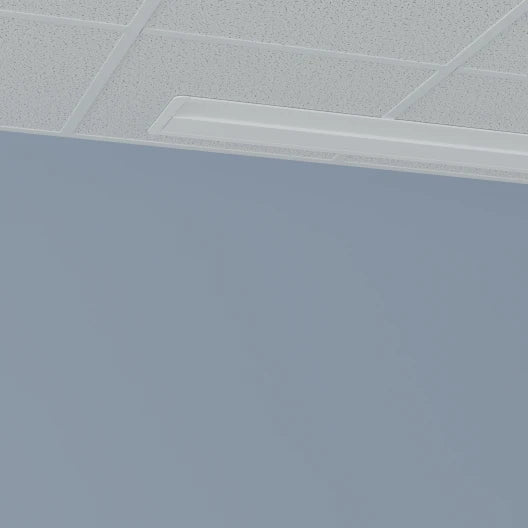

The Da-Lite Myriad Conceal is a premium ceiling-recessed electric projection screen engineered for large venues, boardrooms, lecture halls, and houses of worship. Designed with integrated ceiling trim to cleanly mask rough ceiling openings, it eliminates the need for extra finish carpentry while supporting a streamlined two-stage installation process.

Equipped with advanced surface options including HD Progressive 16K-ready materials and Parallax Ambient Light Rejection technology, this screen delivers outstanding optical clarity and contrast. Tensioned configurations incorporate the TruGuide Electric Screen Tensioning System to ensure an exceptionally flat, uniform viewing area across standard and wide aspect ratios.

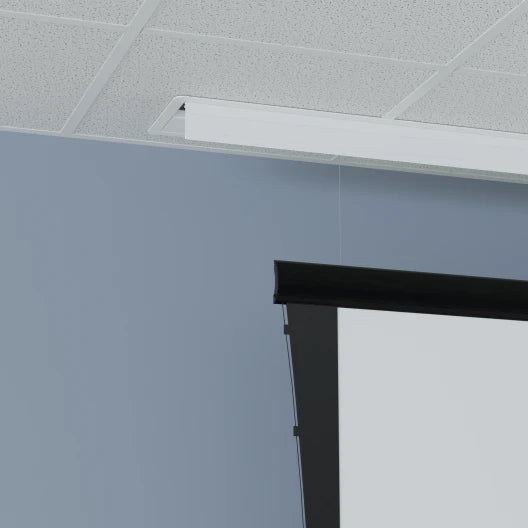

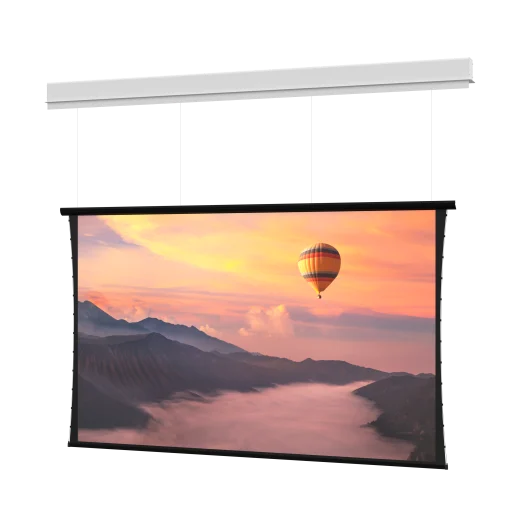

Featuring Da-Lite's innovative SightLine thin-cable drop system, the screen surface suspends seamlessly with up to 16 ft of variable drop distance, removing unsightly black borders and freeing overhead space for AV gear. Standard low-voltage controls, a 3-button Decora wall switch, and projector trigger inputs ensure flexible integration into any modern control environment.

Key Features

Brand DaLite
Manufacturer Legrand AV
Product Type Ceiling-Recessed Electric Projection Screen
Screen Formats 16:9 HDTV, 16:10 Wide
Width Range 14 ft - 16 ft
SightLine Cable Drop Up to 16 ft adjustable
Tensioned Black Drop 12 in
Non-Tensioned Black Drop 2 in
Case Rating UL Plenum Rated
Case Finish White powder-coated aluminum (black available upon request)
Control System Low Voltage Control (LVC) with Decora-style 3-button wall switch
Control Interfaces Dry contact, 5-12V projector trigger
Surface Options HD Progressive 16K ready, Parallax ALR, Parallax Stratos 1.0
Estimated Shipping Weight 120 lb
UPC N/A
Warranty 5-Year Limited Warranty

Highlights

  • SightLine Cable Drop: Tensioned with SightLine; Non-Tensioned with SightLine
  • Standard Black Drop: Tensioned; Non-Tensioned

Warranty

  • Includes a comprehensive five-year manufacturer's warranty

Frequently asked questions

What is the benefit of the SightLine cable drop feature?

SightLine utilizes thin suspension cables that replace standard black drop borders, providing up to 16 ft of vertical adjustability and leaving open space above the screen for cameras, speakers, or architectural elements.

How does two-stage installation work on the Myriad Conceal?

The two-stage installation allows the screen case to be installed during the rough-in construction phase, while the delicate screen surface assembly can be installed later during final finishing.

What control options come standard with this screen?

It includes standard Low Voltage Control (LVC), a Decora-style three-button wall switch with motor limit adjustments, and connections for dry contact and 5-12V projector triggers.

Is the ceiling case plenum rated?

Yes, the aluminum case is UL Plenum rated and features built-in trim to cleanly conceal the ceiling rough opening.
