DaLite Myriad Conceal Electric Screen

SKU: DL100228L
(0)
$12,011.20

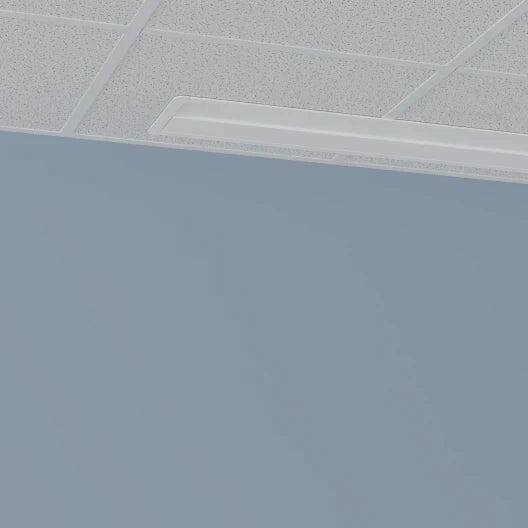

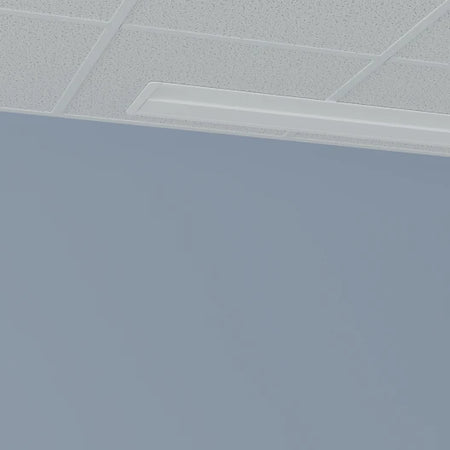

The DaLite Myriad Conceal is a premium ceiling-recessed electric projection screen engineered for large-venue installations including conference centers, lecture halls, and boardrooms. Designed with built-in ceiling trim to neatly conceal rough ceiling openings, it streamlines integration without requiring additional trim work. A two-stage installation architecture allows the robust UL plenum-rated aluminum case to be mounted during rough construction, with the surface assembly added during finishing.

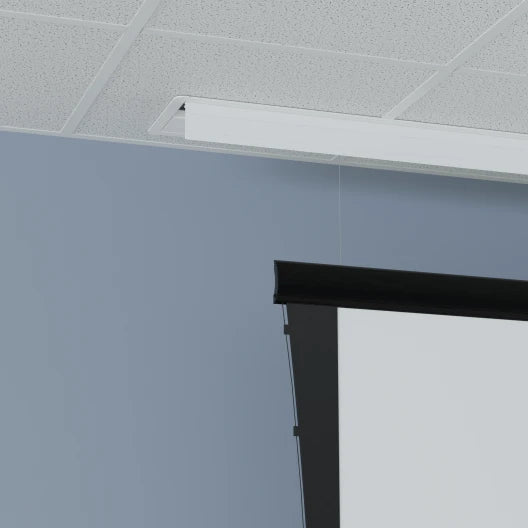

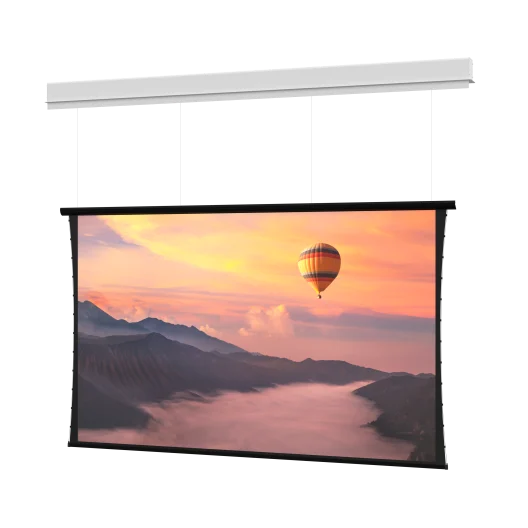

Featuring the innovative SightLine thin-cable drop system, the screen eliminates traditional black border drop above the viewing area with up to 16 ft of variable cable suspension. This open space above the viewing surface accommodates architectural aesthetics, cameras, and audio equipment. Standard black drop models are also offered, alongside seamless surface options including 16K-ready HD Progressive and Parallax Ambient Light Rejection materials.

Standard integrated Low Voltage Control, a Decora-style three-button wall switch, dry contact closure, and a 5-12V projector trigger provide flexible automation and control compatibility. TruGuide tensioning ensures an impeccably flat projection surface across wide-format HDTV and 16:10 aspect ratios, supported by smart maintenance anchor points and a comprehensive five-year warranty.

Key Features

Brand DaLite
Product Type Ceiling-Recessed Electric Projection Screen
Manufacturer Legrand AV
Case Type UL Plenum Rated Aluminum Case
Standard Finish White powder-coated aluminum (black available upon request)
SightLine Cable Drop Range Up to 16 ft fully adjustable

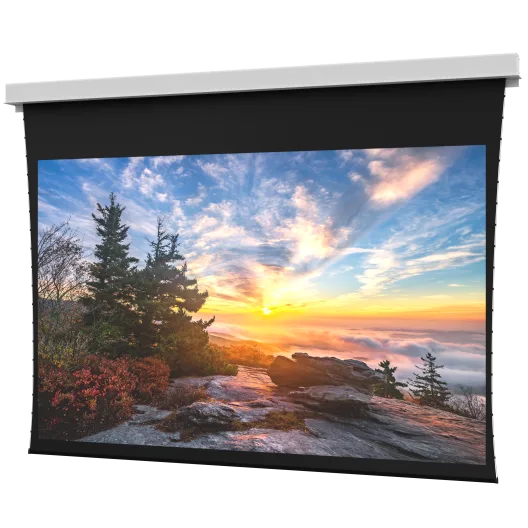

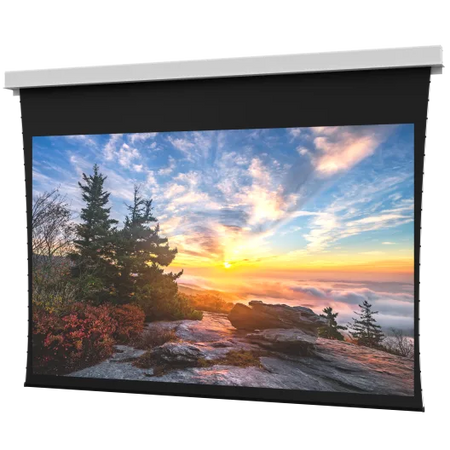

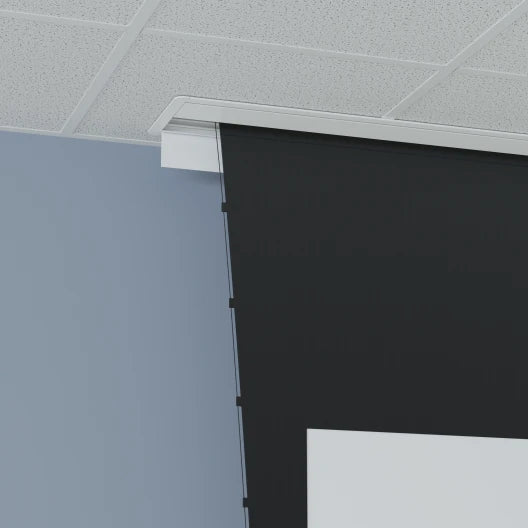

Standard Black Drop (Tensioned) 12 in.
Standard Black Drop (Non-Tensioned) 2 in.
Screen Formats 16:9 HDTV, 16:10 Wide
Available Widths 14 ft to 16 ft
Tensioning System TruGuide Electric Screen Tensioning System
Screen Surface Features Seamless, black-backed front projection surfaces
Control System Low Voltage Control (LVC) standard with 3-button Decora wall switch
Control Interfaces Dry contact interface, 5-12V projector trigger
Warranty 5-year comprehensive warranty
Weight 185 lb
UPC 717068294514

Highlights

  • SightLine Cable Drop: Tensioned with SightLine, Non-Tensioned with SightLine
  • Standard Black Drop: Tensioned, Non-Tensioned

Warranty

  • Includes a comprehensive five-year manufacturer's warranty

Frequently asked questions

What is the SightLine cable drop feature on the Myriad Conceal?

SightLine replaces the traditional upper black drop border with thin suspension cables adjustable up to 16 ft, allowing variable vertical placement and leaving open space above the screen for speakers or cameras.
Does the Myriad Conceal require separate ceiling trim work?

No, the case is built with integrated ceiling trim that conceals the rough opening, eliminating the need for extra trim work post-installation.
What control options come standard with the screen?

It includes integrated Low Voltage Control (LVC), a Decora-style 3-button wall switch, motor limit adjustments, a dry contact interface, and a 5-12V projector trigger.
Can the screen case and surface assembly be installed separately?

Yes, the two-stage installation design allows the screen case to be installed during the rough-in phase and the screen surface assembly during the final finishing phase.
