Home » DaLite Myriad Conceal Electric Screen
DaLite

DaLite Myriad Conceal Electric Screen

SKU: DL100212L
(0)
$9,609.00

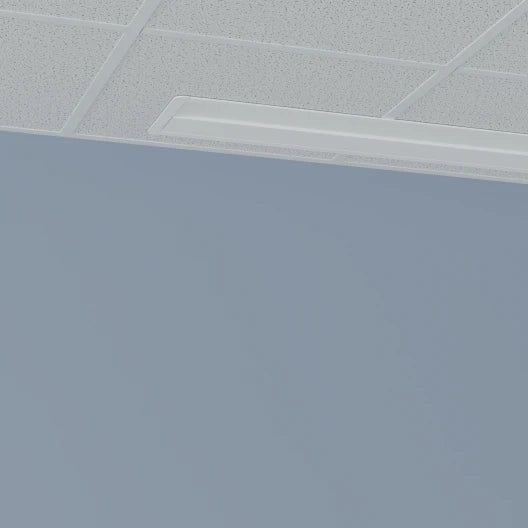

The DaLite Myriad Conceal is a ceiling-recessed electric projection screen engineered for large meeting spaces, conference centers, lecture halls, houses of worship, and hotel ballrooms. Designed with built-in ceiling trim to seamlessly conceal the rough ceiling opening, it eliminates the need for additional trim work post-installation. A two-stage installation design allows the screen case to be mounted during rough-in construction while the screen surface assembly is installed during final finishing.

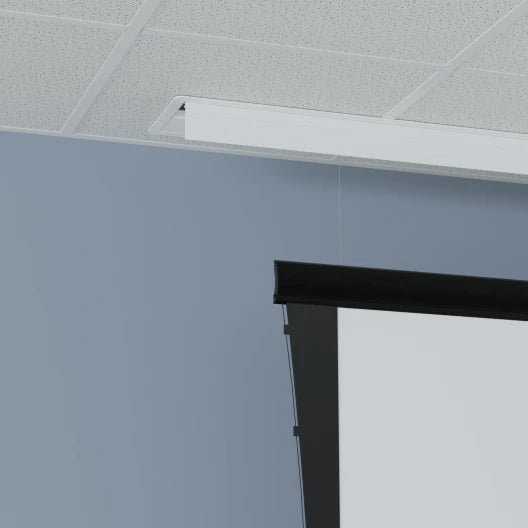

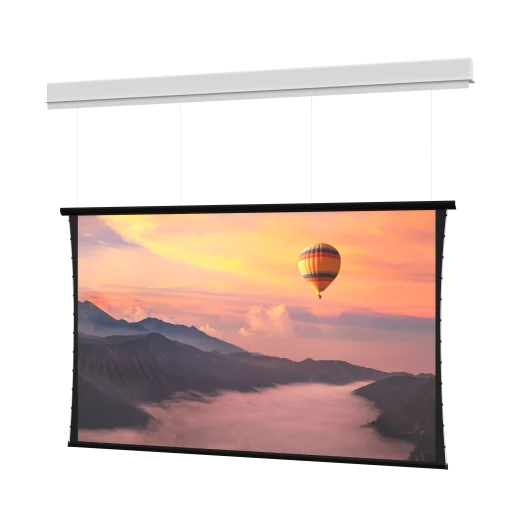

Featuring the innovative SightLine cable drop option, the screen surface is elegantly suspended using ultra-thin aircraft cables that provide up to 16 ft of variable drop without standard black borders. This flexible cable design preserves architectural sightlines and allows usable space above the viewing surface for camera or speaker integration. Standard configurations also offer traditional black drop options across multiple viewing surface formats.

Housed in a UL Plenum-rated, powder-coated aluminum case with an integrated closure door, the system ensures both safety and aesthetic integration. High-performance front projection surface options include seamless HD Progressive 16K-ready materials and Parallax Stratos 1.0 Ambient Light Rejection surfaces. Control is supported via an included standard Low Voltage Control interface and a Decora-style 3-button wall switch with 5-12V projector trigger connectivity.

Key Features

Brand DaLite
Manufacturer Legrand AV
Product Type Ceiling Recessed Electric Screen
Case Material Powder-Coated Aluminum
Case Rating UL Plenum Rated
Case Finish Standard White (Black available upon request)
Case Door Standard Closure Door
SightLine Cable Drop Range Up to 16 ft fully adjustable
Standard Black Drop (Tensioned) 12 in
Standard Black Drop (Non-Tensioned) 2 in
Available Aspect Ratios 16:9 HDTV, 16:10 Wide
Width Range 14 ft - 16 ft
Surface Compatibility HD Progressive 16K Ready, Parallax Stratos 1.0 ALR
Screen Surface Construction Seamless with standard black backing
Tensioning System TruGuide Electric Screen Tensioning System (on tensioned models)
Low Voltage Control (LVC) Standard integrated
Wall Switch Decora-style three-button wall switch with motor limit adjustment
Control Interfaces Dry contact interface, 5-12V projector trigger
Weight 120 lb
UPC 848248028723
Warranty 5-Year Comprehensive Warranty

Highlights

  • Configurations: SightLine Cable Drop: Tensioned with SightLine, Non-Tensioned with SightLine; Standard Black Drop: Tensioned, Non-Tensioned
  • Case: UL Plenum rated case; Standard white powder-coated aluminum finish; available in black upon request; Standard closure door
  • Screen Drop: Tensioned models standard with 12” (30.5 cm) of black drop; Non-tensioned models standard with 2” (5 cm) of black drop; SightLine models (tensioned and non-tensioned) include 16’ (5 m) cable of fully adjustable cable drop
  • Screen Control: Standard Low Voltage Control (LVC); Decora-style, three-button wall switch with motor limit adjustment and third-party control connections on the back: Dry contact interface, Projector trigger (5-12V)
  • Screen Surfaces: Standard black backing retains projected brightness on front projection surfaces; Seamless surfaces in all models; Parallax Stratos 1.0 surface for standard throw projectors (1.0:1 or greater); In tensioned models, TruGuide™ Electric Screen Tensioning System provides optimal viewing surface smoothness
  • Smart integrated anchor points for roller suspension allows for easy maintenance

Warranty

  • Includes a comprehensive five-year manufacturer's warranty

Frequently asked questions

What is the SightLine cable drop feature?

SightLine is a suspension system using thin cables that accommodate variable drop distances up to 16 ft between the ceiling and viewing area, eliminating standard black borders.
How does the two-stage installation process work?

The two-stage installation design allows the screen case to be installed during the rough-in construction stage, while the screen surface assembly is added during the finishing stage.
What control options are included with the screen?

The screen includes standard Low Voltage Control (LVC), a Decora-style 3-button wall switch, dry contact connections, and a 5-12V projector trigger interface.
Is the screen case rated for ceiling plenum spaces?

Yes, the aluminum case is UL Plenum rated and features an integrated trim that conceals the rough ceiling opening.
