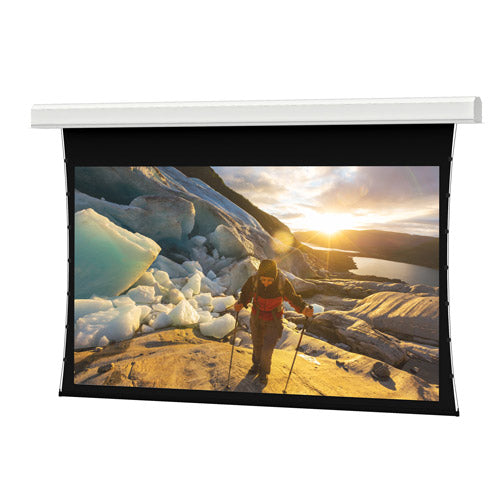

Da-Lite 14088 Tensioned Advantage 135x216 Inch Ceiling Recessed Electric Screen

The best ceiling projector screen for a conference room is usually a recessed electric screen with tab tensioning, a flat projection surface, and a finish that blends into the ceiling. For professional spaces, shoppers typically want a screen that disappears when not in use, installs cleanly during construction, and stays wrinkle free over time. The Da-Lite 14088 Tensioned Advantage is designed for that type of application. It is a ceiling recessed electric screen with a low-profile housing that conceals the rough opening, so the installation looks built in instead of added on later. Its TruGuide electric tensioning system keeps the viewing surface flat, which matters for detailed presentations, video, and 4K-class content. The HD Progressive 1.1 surface is intended for front projection and supports strong brightness and color accuracy. This type of screen is best for boardrooms, training rooms, lecture spaces, and high-end media environments. The main tradeoff is that recessed screens require planning, ceiling space, and professional installation, so they are better for permanent AV projects than simple retrofit setups.

The cleanest way to hide a projector screen in the ceiling is to use a recessed in-ceiling electric screen. With this design, the screen housing is installed above the finished ceiling line, so only the opening and screen are visible during use. When retracted, the screen is largely concealed for a more architectural look. The Da-Lite Tensioned Advantage series is built specifically for that purpose. Its low-profile case is designed to cover the rough opening, which helps avoid the need for additional trim work. It also uses a two-stage installation method, so the housing can go in during construction and the screen assembly can be added later. That makes it practical for projects where the AV schedule and the construction schedule are different. This approach is ideal for conference rooms, classrooms, and custom media spaces where appearance matters. The main limitation is that recessed screens need enough ceiling cavity depth and coordination with electricians, contractors, and AV installers. For finished rooms without ceiling access, a wall-mounted or surface-mounted motorized screen may be easier.

Yes, a projector screen can be installed in the ceiling if the room has enough structural support and space above the ceiling for a recessed housing. In many commercial AV projects, an in-ceiling motorized screen is the preferred option because it saves wall space and creates a more polished appearance. The Da-Lite 14088 is made for ceiling recessed installation and operates on 120V power with low voltage control. It is not a portable screen or a simple wall-hung model. It is a large-format electric screen intended for permanent installation in professional environments. The housing can be installed first, then the screen assembly can be added later, which is especially useful in new construction and renovation projects. This setup works best in conference rooms, auditoriums, training spaces, and dedicated presentation rooms. The tradeoff is that ceiling installation is more complex than using a fixed frame or wall-mounted electric screen. Buyers should confirm ceiling cavity dimensions, structural requirements, and projector throw distance before choosing a recessed model.

A recessed in-ceiling motorized projector screen is an electric screen that retracts into a housing mounted above the ceiling line. Instead of seeing a case mounted on the wall or ceiling, the screen stays hidden until it is lowered for use. This makes it a common choice for high-end conference rooms, lecture halls, and custom media spaces. The Da-Lite Tensioned Advantage 135x216 model fits that category. It combines a ceiling recessed housing, electric operation, and a tensioning system that keeps the screen surface flat. That flatness is important for image uniformity, especially on a very large screen. Its HD Progressive 1.1 surface is suited to front projection, making it a strong match for business presentations, video playback, and large-format display needs. This kind of screen is best for buyers who want a permanent, integrated AV solution with a clean architectural finish. It is less ideal for temporary installations or smaller rooms where a fixed frame or surface-mounted screen would be easier and less construction-intensive.

Choose a recessed electric screen when you want the screen hidden when not in use, and choose a fixed frame screen when maximum simplicity and constant readiness matter more than concealment. Both can deliver excellent image quality, but they solve different room design problems. A recessed electric model like the Da-Lite 14088 is ideal for multi-use spaces such as conference rooms, boardrooms, and training areas. It retracts into the ceiling, preserves the room’s clean appearance, and works well where the wall may also be used for whiteboards, displays, or architectural finishes. Its tensioned design helps maintain a flat projection surface, which is important on a large 135x216 inch screen. A fixed frame screen is often preferred in dedicated theaters or rooms where the screen remains visible full time. It avoids motors and moving parts and can be simpler to install. The tradeoff is that it is always exposed. If your room needs a polished, hidden AV solution, a recessed electric screen is usually the better fit.

Tab tensioning matters because large motorized screens can develop edge curl, waves, or slight surface inconsistencies over time if they are not kept under even tension. On a very large screen, those issues become more visible and can affect how sharp and uniform the projected image looks. The Da-Lite 14088 uses the TruGuide electric tensioning system to keep the screen surface taut and aligned. That is especially important with a 135x216 inch viewing area and a 255 inch diagonal, where surface flatness has a direct impact on presentation readability, video quality, and viewer confidence in the room’s AV setup. Smooth Roll Technology also helps maintain consistent screen operation as the material raises and lowers. This feature is most valuable for conference rooms, lecture spaces, and media environments where professional image presentation matters. The tradeoff is that tensioned screens are generally more specialized than non-tensioned options, but for large-format installations, the flatter surface is often worth it.

A 135x216 inch screen is very large, so it is best suited to bigger rooms where viewers sit at multiple distances and need easy readability. Whether it is too large depends on ceiling height, wall width, seating layout, and the projector’s brightness and throw distance. In a typical small conference room, this size would usually be excessive. In a large boardroom, training room, or presentation space, it can be appropriate. This Da-Lite model has a 255 inch diagonal, which places it firmly in the large venue category for business and presentation use. Buyers should make sure the projector can fill a 216 inch wide image from the planned mounting position and still deliver enough brightness for the room’s ambient light conditions. The larger the screen, the more important projector lumen output becomes. This size benefits organizations that need visibility for large audiences, detailed graphics, or split-screen content. The main limitation is that it requires careful room and projector planning, so it is not a one-size-fits-all choice.

This screen is best matched with a front projector that is properly sized for a large-format installation and calibrated for the room’s ambient light. The HD Progressive 1.1 surface has a 1.1 gain profile, which is a good general-purpose choice for color accuracy and balanced brightness in controlled or moderately controlled lighting conditions. Because the screen is 135x216 inches, the projector needs enough brightness to maintain a clear, impactful image across a very large surface. In many commercial settings, that points buyers toward higher-output laser projectors rather than entry-level models. The projector also needs the correct throw distance to produce a 216 inch wide image and enough resolution to keep text, charts, and video looking sharp at scale. This combination is well suited to conference AV, higher education, training, and presentation environments. The main planning point is that a large professional screen should be paired with a projector chosen for room size, screen width, and viewing conditions, not just resolution alone.

Low voltage control is useful because it makes a motorized screen easier to integrate into professional AV systems, wall keypads, and room automation setups. Instead of relying only on a basic switch, low voltage control supports cleaner system design and more flexible operation in conference and presentation environments. The Da-Lite 14088 uses low voltage control with 120V operation, which is a practical combination for commercial installations. In real-world use, that can help integrators coordinate screen movement with projector power, room presets, or control panels. For example, a meeting room can be set up so the screen lowers as part of a presentation mode sequence. This matters most in boardrooms, classrooms, divisible spaces, and integrated AV environments where ease of use is important. The tradeoff is that fully benefiting from low voltage control often requires planning with an AV installer or control system designer. For simple standalone installations, the feature may be underused, but in managed spaces it adds real operational value.

Before buying a ceiling recessed electric screen, check five things: available ceiling cavity space, structural support, projector throw distance, projector brightness, and control or power requirements. These factors determine whether the screen will fit the room physically and perform well visually. For the Da-Lite 14088, buyers should also account for its large 135x216 inch size, 255 inch diagonal, 120V power requirement, and substantial shipping weight of 688 pounds. Because it is a recessed, permanent-installation product, it is best planned as part of a coordinated AV and construction workflow. Its two-stage installation design helps with project timing, since the housing can be installed first and the screen assembly added later. This screen is best for larger conference rooms, training centers, lecture spaces, and custom media environments where a hidden, professional screen solution is desired. The key limitation is complexity. If the room is already finished and ceiling access is limited, a surface-mounted motorized screen may be more practical than a recessed model.
