Da-Lite DL100132L Myriad Tensioned Reveal 208" Screen
Free shipping on all projectors!
Add to cart for discounted pricing!
Tax-Exempt Purchasing Available in cart
Regular price
$7,910.40
Couldn't load pickup availability
Frequently Asked Questions
What is the best electric projector screen for a large conference room or auditorium?
The best electric projector screen for a large venue is usually a tensioned model with a screen surface matched to the room’s lighting. For conference centers, lecture halls, and houses of worship, a tensioned electric screen helps keep the viewing area flat, which improves image uniformity and sharpness across a very large surface. If the room has ambient light, an ambient light rejecting material is also important.
The Da-Lite DL100132L Myriad Tensioned Reveal is designed for that type of use. It combines a 208-inch diagonal 16:10 format with the TruGuide electric tensioning system for surface smoothness and a Parallax Stratos 1.0 ambient light rejecting surface for better contrast in brighter rooms. It also includes low voltage control and a wall switch for flexible operation.
This type of screen is best for buyers who need a permanently installed, professional-grade electric projection screen. The main tradeoff is that it is a large, made-to-order installation product, so it is better suited to dedicated commercial spaces than casual home use.
How much do electric projection screens usually cost?
Electric projection screens vary widely in cost depending on size, tensioning, screen material, and control features. Smaller non-tensioned motorized screens for basic rooms are usually the entry point, while large venue screens with tensioning and ambient light rejecting materials are at the premium end of the category.
A screen like the Da-Lite DL100132L Myriad Tensioned Reveal sits in the specialized large-venue segment. Its cost reflects several advanced features: a 208-inch size, a tensioned design for better surface flatness, ambient light rejection for brighter spaces, and built-in low voltage control for integration with room systems. Those are the kinds of features that matter in lecture halls, conference rooms, and worship spaces where image consistency and professional installation are important.
For shoppers comparing options, the key is to budget based on use case rather than screen size alone. If you need a very large image, cleaner edges, better flatness, and performance under room lighting, an electric tensioned screen generally costs more than a basic motorized model, but it addresses problems simpler screens often cannot.
What is a tensioned electric projector screen, and is it worth it?
A tensioned electric projector screen uses a motorized roller plus side-tensioning to keep the screen surface flatter than a standard non-tensioned motorized screen. In practical terms, that means fewer waves or edge curl issues over time and a more uniform image, especially on larger screens.
For a large-format installation, tensioning is usually worth it. The Da-Lite Myriad Tensioned Reveal uses the TruGuide electric screen tensioning system to maintain surface smoothness across its 208-inch viewing area. That matters because very large screens can show imperfections more easily, and those imperfections can distract from text, graphics, and high-resolution video.
Tensioned screens are most valuable for boardrooms, higher education, training rooms, houses of worship, and any setting where presentation quality matters. The main tradeoff is cost and installation complexity compared with basic motorized screens. If the screen will be used often, remains installed long term, or needs to support premium projector performance, a tensioned design is generally the better investment.
Is an ambient light rejecting projector screen better for bright rooms?
Yes, an ambient light rejecting projector screen is often the better choice for bright rooms because it helps preserve contrast and image punch when the space is not fully dark. Instead of treating all incoming light the same, an ALR surface is designed to support the projected image while reducing the visual impact of ambient room light.
This Da-Lite screen uses a Parallax Stratos 1.0 ambient light rejecting surface, which is intended to deliver high contrast and vivid images in spaces with more lighting than a dark theater. That makes it a strong fit for conference centers, lecture halls, and worship spaces where lights may stay on for note-taking, audience safety, or mixed-use events.
The tradeoff is that ALR surfaces are most effective when paired with the right projector placement and room layout. They are usually chosen for performance rather than price simplicity. If your room cannot be fully light controlled and image clarity matters during presentations, an ALR electric screen is often the smarter choice than a standard matte white surface.
Who should choose a 208-inch projector screen?
A 208-inch projector screen is best for large rooms where the audience sits far enough away that a smaller screen would make content harder to read. That typically includes auditoriums, large training spaces, conference centers, lecture halls, and houses of worship. It is especially useful when the content includes text, spreadsheets, worship lyrics, or detailed graphics that need to remain visible to viewers in the back of the room.
The Da-Lite DL100132L uses a 16:10 widescreen format, which is a practical shape for business presentations, education content, and mixed media because it aligns well with many laptops and presentation systems. Its large size also makes sense for higher-lumen projectors typically used in commercial installations.
The main consideration is room planning. A screen this large needs suitable wall or ceiling mounting space, the right projector throw distance, and enough viewing distance so the image feels comfortable rather than overwhelming. For small rooms, a 208-inch screen is usually excessive. For large venues, it can be the right scale for clear communication.
What aspect ratio is best for presentations: 16:10, 16:9, or 4:3?
For many presentation spaces, 16:10 is one of the most practical aspect ratios because it balances modern widescreen content with extra vertical space for documents, slides, and spreadsheets. It is a common choice in education and business environments where laptops and presentation software often output in widescreen formats but users still benefit from a slightly taller image than 16:9 provides.
The Da-Lite Myriad Tensioned Reveal in this configuration uses a 16:10 format, making it well suited for conference and lecture applications. That ratio can help reduce scaling compromises when showing presentation decks, browser-based content, and mixed media.
By comparison, 16:9 is often preferred for cinema-heavy use and standard video playback, while 4:3 is generally more relevant for legacy systems. The best choice depends on the primary content source. If your room is used mainly for meetings, education, training, and data-rich presentations, 16:10 is often the most versatile option.
Can this electric projection screen be mounted on a wall or ceiling?
Yes, this model is designed for both wall and ceiling mounting. That flexibility is important in commercial installations because room structure, sightlines, and projector position often determine the best placement. A screen that supports both options gives installers more ways to align the image properly without compromising audience visibility.
The Da-Lite Myriad Tensioned Reveal also includes adjustable brackets, which can simplify installation planning in larger rooms. Its integrated anchor point design supports roller suspension for easier maintenance, which is a practical advantage for facilities teams managing high or hard-to-reach installations.
This setup is best for permanent professional environments rather than portable use. Buyers should still confirm that the mounting surface can support the screen and that there is enough case clearance for operation and service access. In large venue projects, proper mounting and projector alignment are just as important as the screen material itself for getting a clean final result.
Does this screen work well with modern control systems and projector triggers?
Yes, this screen is built for flexible control integration. It includes standard low voltage control and a Decora-style three-button wall switch, giving users both simple local operation and better compatibility with integrated room control setups. It also supports third-party dry contact interface connections and projector trigger input in the 5 to 12 volt range.
That matters in conference rooms, lecture spaces, and worship facilities where users often want the screen to lower automatically when the projector powers on, or where a control system manages multiple AV devices together. This can make operation more consistent for presenters and reduce setup mistakes.
The screen is a strong fit for buyers planning a professional AV installation rather than a basic plug-and-play room. The tradeoff is that fully integrated control benefits are best realized when the rest of the system is designed to support them. For simple spaces, the included wall switch may be all that is needed, but larger venues usually appreciate the added control options.
What are the advantages of a motorized screen over a fixed frame screen?
A motorized screen is usually better when you want the screen to disappear when not in use, share the wall with other functions, or maintain a cleaner multipurpose room appearance. It is a common choice for conference rooms, lecture halls, and worship spaces where the screen may only be needed during presentations or events.
This Da-Lite model adds tensioning, which helps narrow one of the traditional performance gaps between motorized and fixed frame screens by keeping the surface smoother. For many commercial buyers, that provides a strong balance of professional image quality and room flexibility. The white powder-coated case also supports a neat installed look.
A fixed frame screen still has advantages in dedicated spaces because it remains permanently exposed and often represents the simplest path to a consistently flat surface. The tradeoff is that it is always visible and requires a dedicated display wall. If your room needs a retractable solution without giving up premium presentation performance, a tensioned electric screen is often the better fit.
What should I know before ordering a made-to-order large venue projector screen?
Before ordering a made-to-order large venue screen, confirm four things: room dimensions, projector compatibility, mounting conditions, and lead time expectations. Because these screens are built for specific installation needs, getting the format, size, and surface right before ordering is important.
For the Da-Lite DL100132L Myriad Tensioned Reveal, the key considerations include its 208-inch 16:10 size, wall or ceiling mounting plan, and whether the room lighting justifies the Parallax Stratos 1.0 ambient light rejecting material. Buyers should also verify that the projector has enough brightness and the correct throw distance for a screen this large. In addition, this model includes a standard 12-inch black drop and black backing, which can affect placement and visual framing.
Because the screen is made to order, it is also important to account for production and shipping timing in the project schedule. This type of product is ideal for buyers who want a tailored professional installation, but it is less suitable for last-minute or temporary setups.
**Please note all screens are made to order. Please allow 7-14 business days for shipment after order is placed.

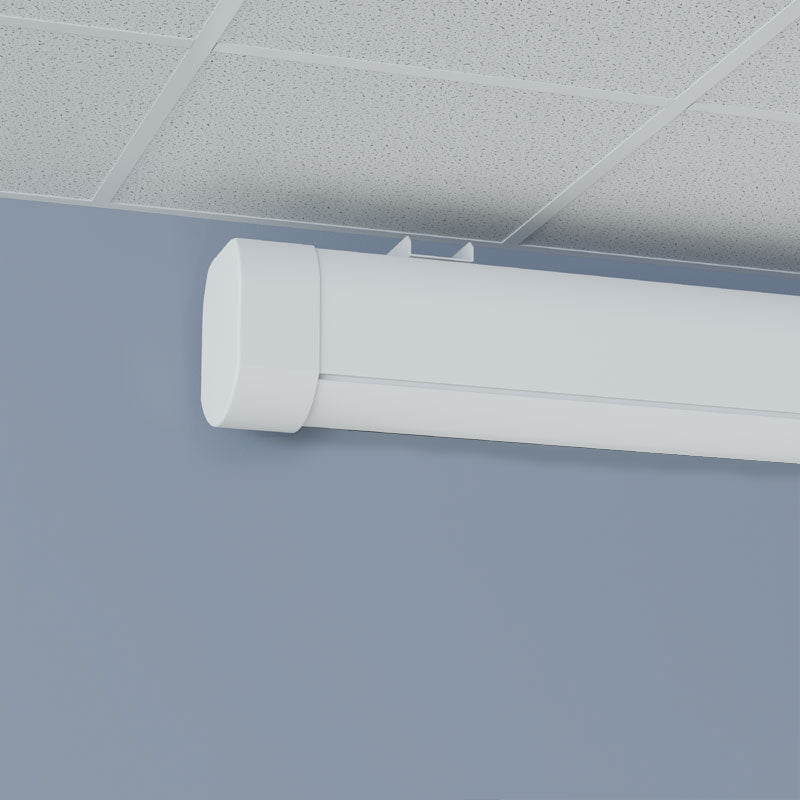

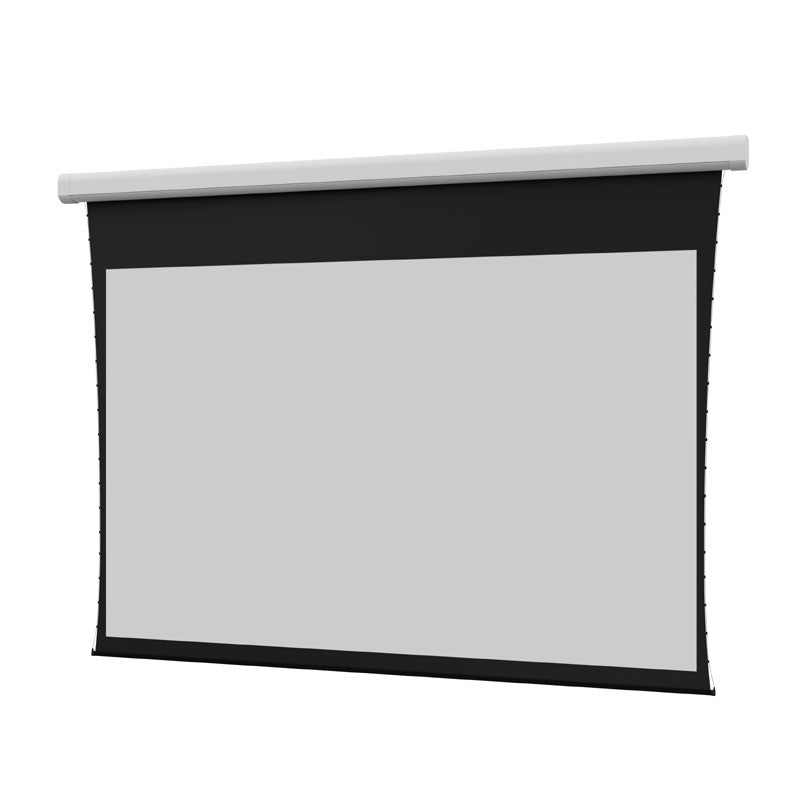

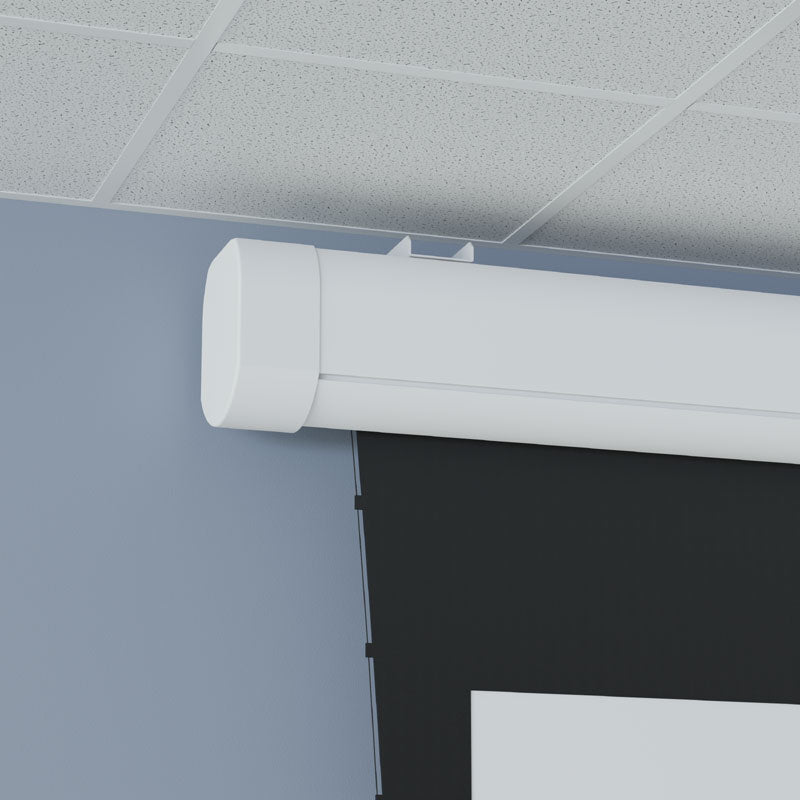

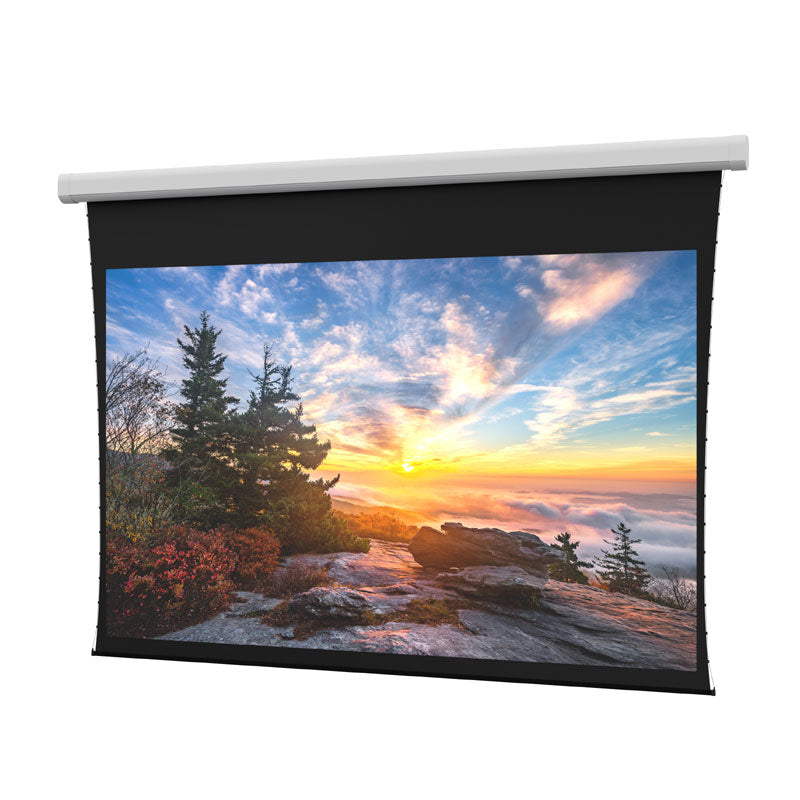

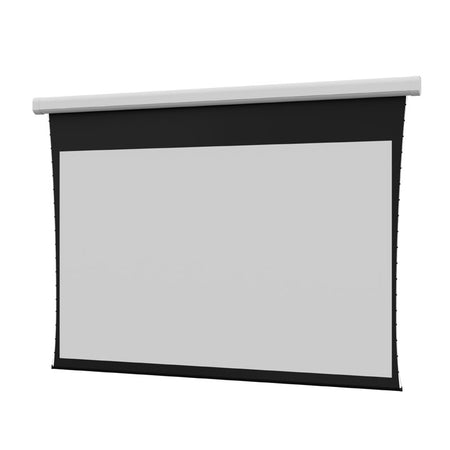

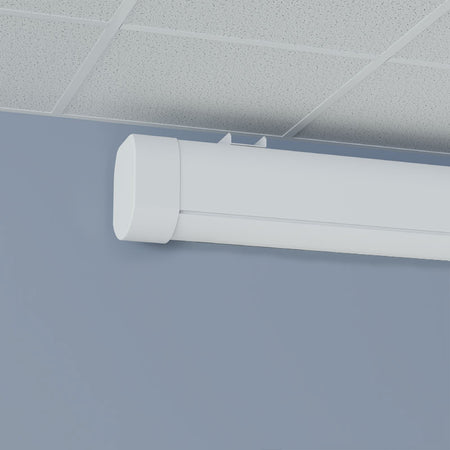

The Da-Lite Myriad Tensioned Reveal is a wall and ceiling mounted electric projection screen designed for large venues such as conference centers, lecture halls, and houses of worship. It features the TruGuide Electric Screen Tensioning System for optimal surface smoothness and a Parallax Stratos 1.0 ambient light-rejecting surface that delivers high contrast and vivid images even in well-lit rooms.
Built with a white powder-coated case and adjustable brackets for easy installation, this screen includes a standard Low Voltage Control (LVC) and a Decora-style wall switch for flexible operation. The 208-inch diagonal, 16:10 widescreen format provides a generous viewing area, while the black backing retains projected brightness for a superior front projection experience.
Key Features
- All sizes standard with 12" of black drop
- TruGuide™ Electric Screen Tensioning System provides optimal viewing surface smoothness
- Tensioned products are available with HD Progressive 16K ready and Parallax® Ambient Light Rejection screen surfaces
- Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexibility

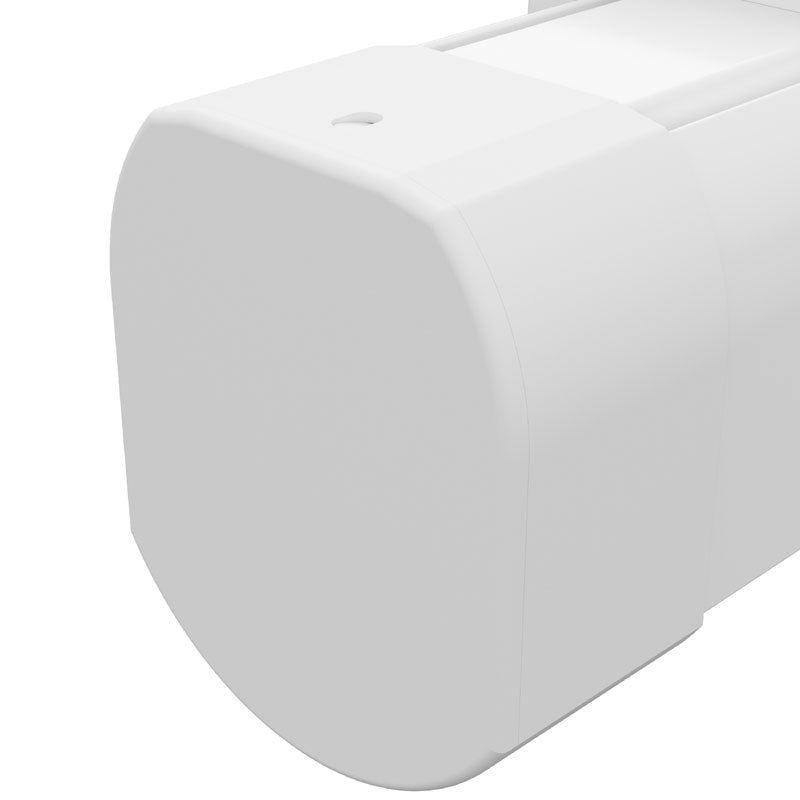

- White powder-coated case for a clean aesthetic (available in Black as special order)

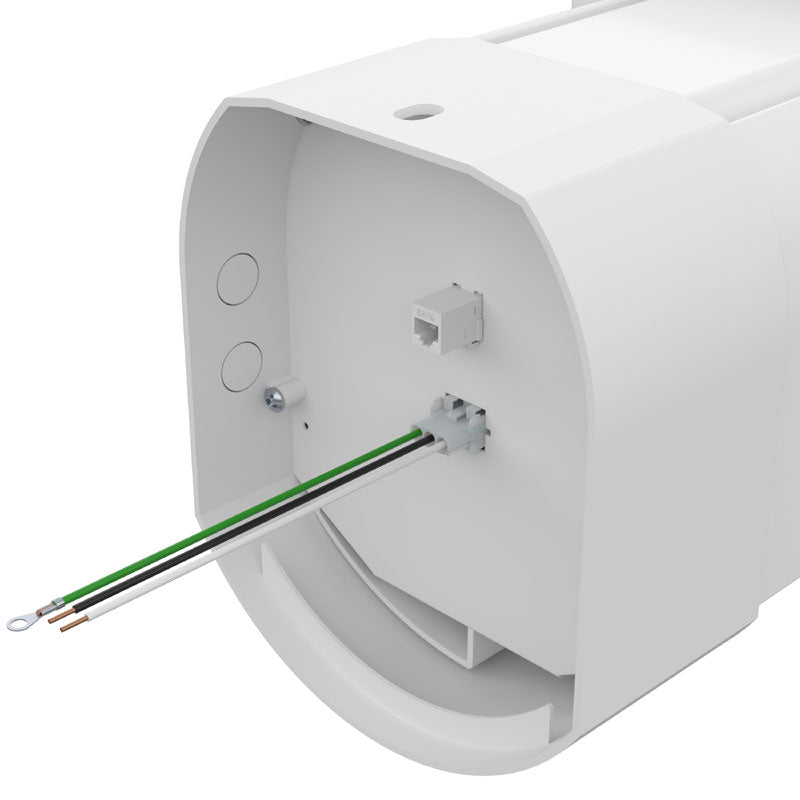

- Convenient push button on end cap allows access to wiring
- Decora-style, three-button wall switch with motor limit adjustment and third-party control connections for dry contact interface or projector trigger (5-12V)
- Standard black backing retains projected brightness on front projection surfaces
- Seamless surfaces in all models
- Smart integrated anchor points for roller suspension allows for easy maintenance
- Support includes a comprehensive five-year warranty to keep you confident in your purchase
