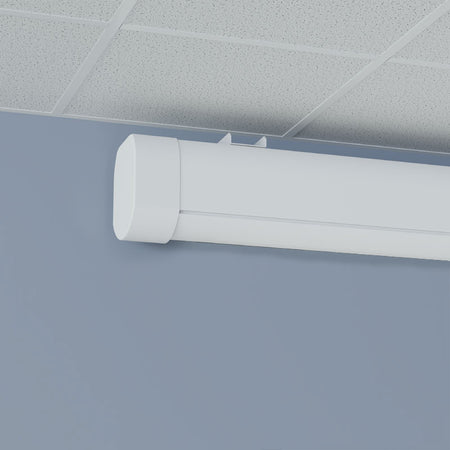

Da-Lite DL100138L Myriad Tensioned Reveal 208" Screen

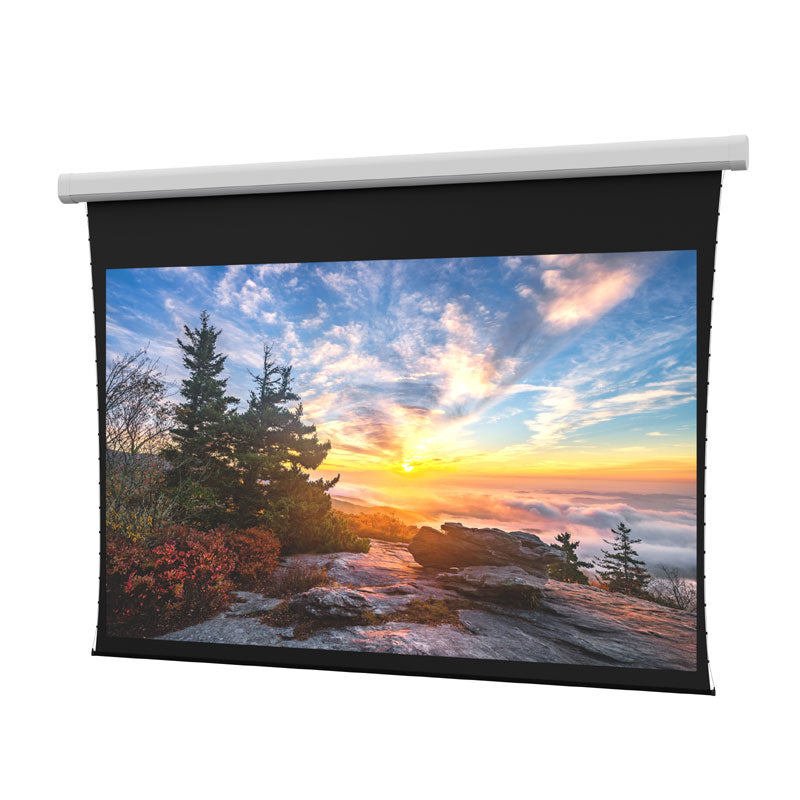

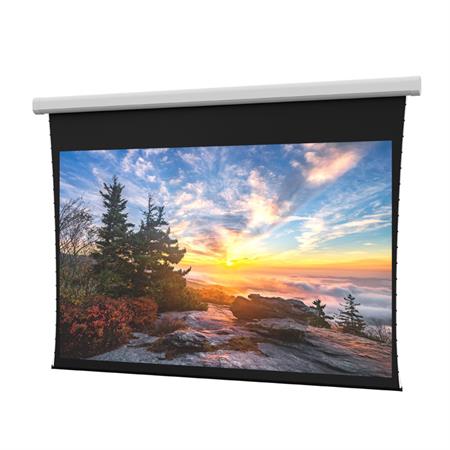

For a large venue, the most important factors are screen size, surface flatness, mounting flexibility, control options, and how well the material performs under ambient light. A motorized screen used in conference centers, lecture halls, or houses of worship needs to stay smooth across a wide viewing area, because waves or edge curl become more visible as screen size increases. The Da-Lite DL100138L Myriad Tensioned Reveal is built for that type of use. It has a 208-inch diagonal 16:10 image area with a tensioned design using the TruGuide tensioning system to help maintain a flat viewing surface. It can be mounted on a wall or ceiling and uses low voltage control integration, which is useful in commercial AV installations. Its Da-Mat front projection surface has 1.0 gain and a 120-degree viewing cone, which makes it a practical choice when you want balanced brightness and wide audience coverage. This type of screen is best for buyers who need a professional electric screen for larger rooms rather than a compact residential setup.

A 208-inch screen is typically right for large rooms where viewers sit far enough back to take in a very large image comfortably. This screen has a 176-inch viewable width and 110-inch viewable height in a 16:10 format, so it is intended for lecture halls, training rooms, sanctuaries, and other large venues rather than small offices or living rooms. To decide if it fits, check three things: wall or ceiling space, ceiling height, and audience distance. You also need to account for the housing and the included 12-inch black drop, which can help position the image lower for better sightlines. If the room is shallow or the front row is too close, the image may feel oversized. If the room is very bright, projector brightness also becomes critical with a screen this large. This size works best for organizations using larger format projectors and serving bigger audiences. It is less ideal for compact spaces where a smaller electric screen would be easier to place and view.

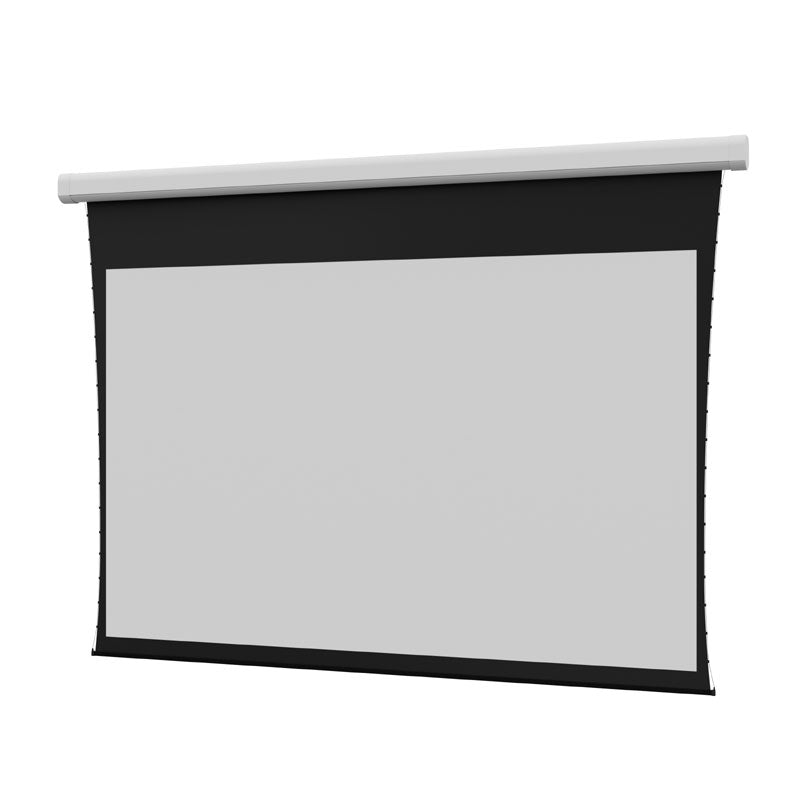

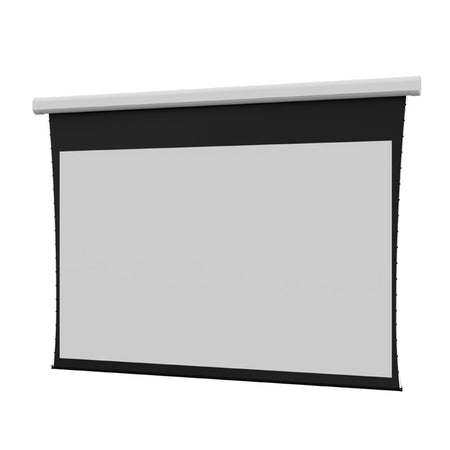

A tensioned electric projector screen uses side tensioning to help keep the material flat, while a non-tensioned screen simply rolls up and down without that added support. The main benefit of a tensioned design is a smoother image surface, which matters more on larger screens and in professional installations where image uniformity is important. The Da-Lite Myriad Tensioned Reveal uses the TruGuide tensioning system, which is designed to improve surface flatness across its very large 208-inch viewing area. That can help reduce visible ripples, edge curl, and distortion that are easier to notice on big screens, especially with detailed content like presentations, spreadsheets, and high-resolution video. A non-tensioned screen can still work well for smaller or lower-demand applications, but a tensioned model is usually the better fit for large venue environments, ultra short throw or short throw applications, and installations where a clean, stable image is a priority. The tradeoff is that tensioned models are generally more specialized and intended for permanent AV setups.

Yes, this screen is specifically suited for those environments. The Da-Lite DL100138L Myriad Tensioned Reveal is designed for large venue use, which includes conference centers, lecture halls, and houses of worship. Its 208-inch diagonal size and 16:10 format make it especially practical for presentation content, educational material, and mixed-use video. The tensioned screen surface helps maintain a smoother image across a large viewing area, which is important when audiences are spread across a room and need clear sightlines. The screen can be mounted on a wall or ceiling, and it includes low voltage control integration for professional AV systems. The Da-Mat surface offers a 1.0 gain and a 120-degree viewing cone, providing balanced brightness and wide visibility for audiences seated off center. This model is best for permanent installations where dependable operation and a professional appearance matter. It is less appropriate for portable use or small rooms that do not need such a large viewing surface.

Yes, a 1.0 gain screen is often a good choice when you want neutral image performance and accurate color without narrowing the viewing angle. A 1.0 gain surface reflects light evenly rather than boosting brightness in a more directional way, so it is commonly used for presentations, classrooms, and general video applications. This model uses the Da-Mat screen surface, which has a unity gain of 1.0 and a 120-degree viewing cone. That combination supports broad audience coverage and good color reproduction in controllable ambient light. In practical terms, it works well when the room lighting can be managed, such as dimmed front lighting or reduced daylight. It is not a high-gain specialty surface meant to overcome strong uncontrolled ambient light. This is a strong fit for buyers who want a balanced front projection screen for mixed content in large rooms. If the room is extremely bright, projector output and light control become more important than gain alone.

Yes, this screen is listed as suitable for short throw and ultra short throw applications, in addition to standard throw use. That makes it more flexible than many large venue electric screens, especially for installations where projector placement is constrained by ceiling structure, room depth, or audience sightlines. The key reason this matters is screen surface consistency. Short throw and ultra short throw projectors can make surface imperfections more noticeable, so a tensioned screen is often preferred. The Myriad Tensioned Reveal uses the TruGuide tensioning system to help maintain a smooth viewing surface across its large 208-inch image area. That is helpful when using projection systems that cast light at steeper angles. This screen is best for buyers who want a large electric projection screen that can support different projector types in a permanent installation. As with any short throw or ultra short throw setup, final performance will still depend on projector placement, room geometry, and image alignment.

For business presentations and education, 16:10 is often one of the most practical aspect ratios because it provides more vertical space than 16:9. That extra height is useful for spreadsheets, presentation slides, software interfaces, and lecture content, where you want room for menus, charts, and text without shrinking everything too much. This screen uses a 16:10 widescreen format with a 176-inch width and 110-inch height. That makes it well suited for conference centers, training spaces, and lecture halls using presentation-focused sources. A 16:9 screen is more centered on standard video and home theater content, while 16:10 often better matches business and educational display needs. If your primary use is movies or consumer streaming, 16:9 may feel more familiar. If your use is mixed or presentation-heavy, 16:10 is frequently the better fit. This model is especially attractive for organizations that prioritize readable content for large audiences.

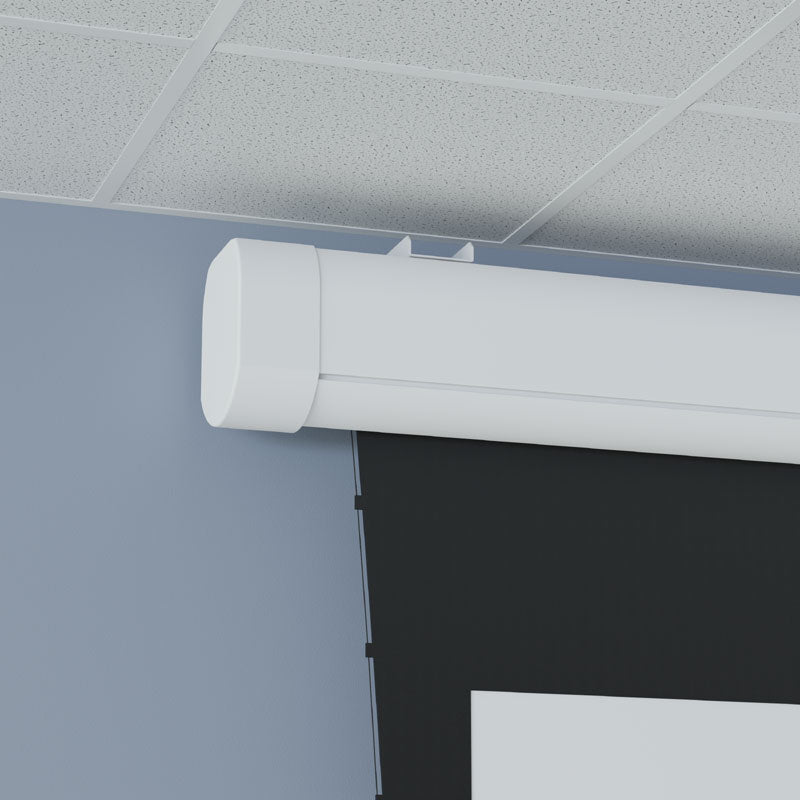

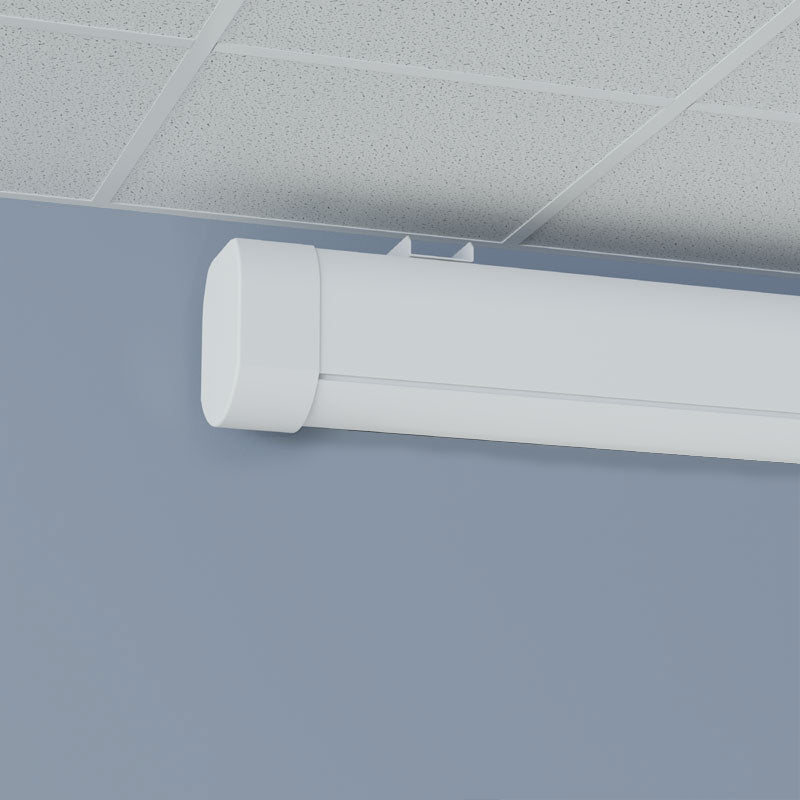

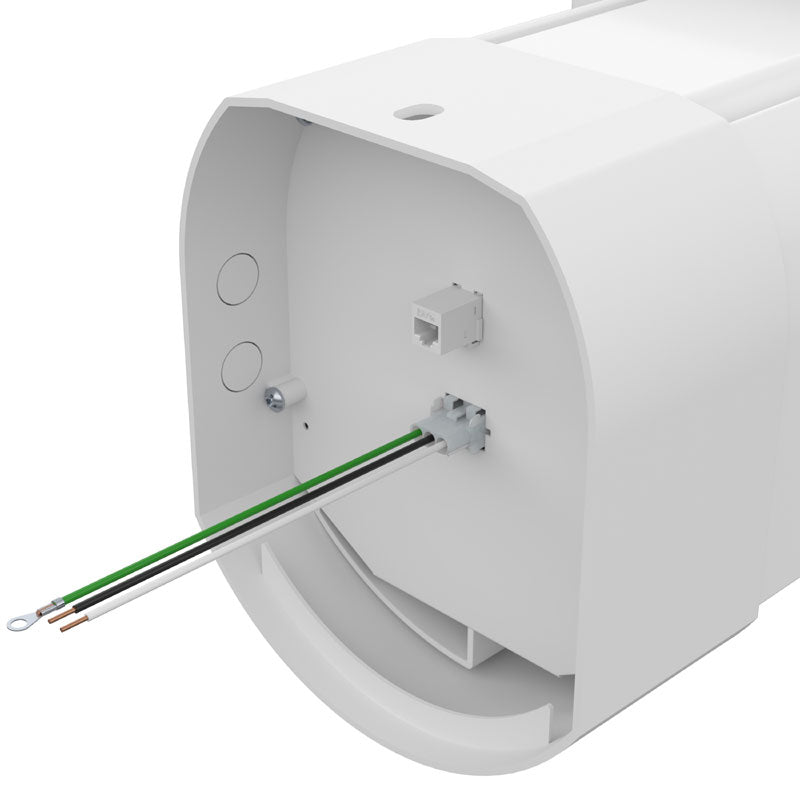

This screen is designed for wall or ceiling mounting, which makes it suitable for permanent AV installations in commercial, educational, and worship environments. A fixed installation is usually the best approach for a screen of this size because it allows proper placement, clean cable management, and reliable integration with the rest of the room’s AV system. The Da-Lite Myriad Tensioned Reveal also includes LVC low voltage control, which is useful when integrating the screen into a professional control system. That can simplify automated raise and lower functions in larger rooms where the screen is part of a coordinated presentation setup. The included 12-inch black drop can also help position the image at a better viewing height without changing the mounting location. This is a good fit for buyers planning a dedicated projection system rather than a temporary or portable setup. Because it is a made-to-order electric screen, it is best suited to projects where installation planning is part of the buying process.

For long-term use, a practical screen material is one that balances image quality, durability, and ease of cleaning. In shared spaces like schools, conference venues, and houses of worship, maintenance matters because the screen may be used frequently and exposed to dust or occasional marks. This model uses the Da-Mat front projection surface, which is designed for good color reproduction in controllable ambient light. It is also flame retardant, mildew resistant, and cleanable with mild soap and water. Those traits make it a sensible choice for professional environments where reliability and routine upkeep are important. The 1.0 gain and 120-degree viewing cone also make it versatile for broad audience seating without creating a narrow sweet spot. This type of material is best for organizations that want a neutral, easy-to-live-with surface rather than a highly specialized screen finish. It is a strong option when balanced performance and straightforward maintenance are more important than maximum brightness enhancement.

Before ordering a made-to-order electric projection screen, confirm the room dimensions, mounting method, aspect ratio, projector compatibility, and control requirements. Because these screens are often built for specific installations, it is important to verify all measurements and system details before purchase. For this model, key specifications include a 208-inch diagonal image size, 16:10 format, wall or ceiling mounting, front projection use, and low voltage control integration. It is intended for large venue applications and includes a 12-inch black drop, which can affect final image placement. Since it is made to order, lead time should also be part of your project planning. This helps installers coordinate delivery with construction, AV wiring, and projector setup. This type of screen is ideal for buyers who already know their room needs and want a permanent, professional solution. It is less suited to impulse purchases or spaces where the final installation details are still uncertain.
