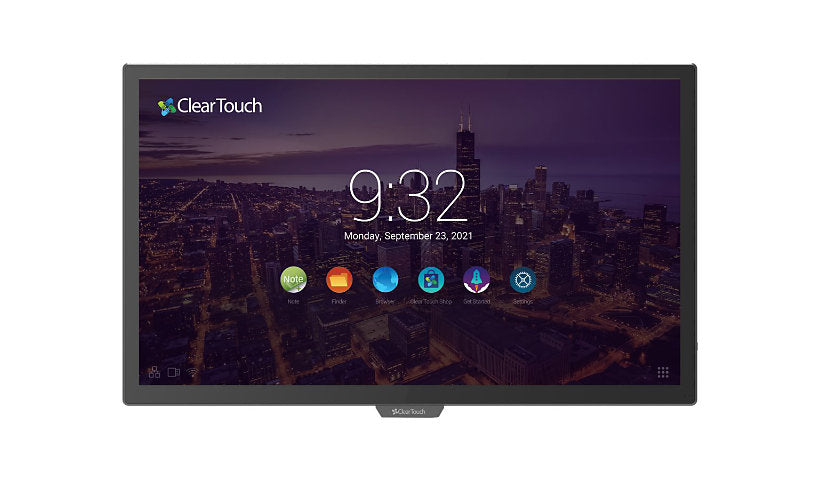

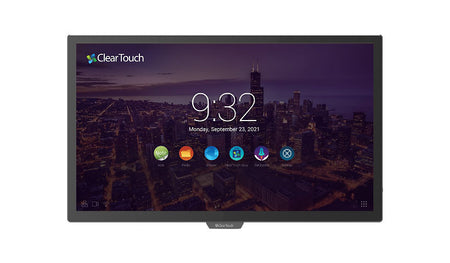

Clear Touch CTI-7086XE-UH20 86" Interactive Display
Free Shipping on all projectors!
Check for in Cart discounts!!!
Tax-Exempt purchasing available in cart
Regular price
$10,156.65
Couldn't load pickup availability
Frequently Asked Questions
What is an interactive flat panel display, and who is it best for?
An interactive flat panel display is a large touchscreen designed for collaboration, teaching, and presentations. Unlike a standard commercial display, it lets multiple users write, annotate, navigate content, and interact directly on the screen. That makes it a strong fit for classrooms, conference rooms, training spaces, and other environments where people need to present and work together in real time.
The Clear Touch CTI-7086XE-UH20 is an 86 inch interactive flat panel display with 4K UHD resolution, an IPS panel, and projected capacitive touch technology. It supports 20 simultaneous touch points, along with palm rejection and pressure sensitivity, so writing and gesture input feel more natural. Built-in Android 8.0, 4 GB of RAM, and 32 GB of storage also allow basic operation without requiring a separate PC for every task.
This type of display is best for organizations that want an all-in-one collaboration screen with touch interactivity, integrated audio, and commercial connectivity. It is less ideal if you only need passive digital signage or basic video playback, where a non-touch display may be more cost-effective.
What is the difference between an interactive flat panel and a smart TV?
The main difference is that an interactive flat panel is built for collaboration and commercial use, while a smart TV is built primarily for media viewing. An interactive flat panel includes professional touch technology, device connectivity for presentations, and mounting and control features suited to schools and businesses.
The Clear Touch CTI-7086XE-UH20 illustrates that difference clearly. It uses projected capacitive touch with 20 touch points, supports palm rejection and pressure sensitivity, and includes four HDMI inputs, USB-C with Power Delivery, VGA, LAN, RS-232, multiple USB ports, and dedicated touch-in connections. It also has a commercial 86 inch 4K IPS panel and built-in 2.1 audio with a subwoofer for larger rooms.
A smart TV may offer streaming apps, but it usually does not provide the same multi-user touch accuracy, wired integration, control options, or installation support expected in classrooms and meeting spaces. If the goal is collaborative instruction, whiteboarding, annotation, or team presentations, an interactive flat panel is the more appropriate category.
Which is the best interactive flat panel for classrooms or meeting rooms?
The best interactive flat panel depends on room size, the number of users, and how much collaboration you need. For most classrooms and medium to large meeting rooms, a strong choice is a display that combines true 4K resolution, reliable multi-touch performance, broad connectivity, integrated audio, and standalone operation without always needing an external computer.
The Clear Touch CTI-7086XE-UH20 fits that profile well. It offers an 86 inch 4K UHD IPS screen, 20-point projected capacitive touch, Android 8.0, 4 GB of RAM, and 32 GB of onboard storage. That combination supports clear visuals, responsive writing, and flexible day-to-day use. It also includes four HDMI inputs, USB-C with Power Delivery, VGA, LAN, RS-232, and multiple USB ports, which is useful when different devices need to connect quickly.
This model is especially well suited for users who want a large collaborative display for instruction, annotation, and presentations. A possible tradeoff is that an 86 inch panel requires adequate wall space, proper mounting support, and enough viewing distance to be used comfortably.
How do I choose the right size interactive display for a classroom or conference room?
Choose the size based on room depth, seating layout, and how much on-screen detail people need to read. Larger rooms generally benefit from 75 inch to 86 inch interactive displays because text, diagrams, and shared content remain more visible to participants farther from the screen.
The Clear Touch CTI-7086XE-UH20 uses an 86 inch screen with 4K UHD resolution, which makes it well suited for medium to large classrooms, boardrooms, and training spaces. The 3840 x 2160 resolution helps preserve clarity for spreadsheets, lesson content, and video. Its wide 178 degree viewing angles also help users see the display from off-center seats.
This size is a strong choice when multiple people need to collaborate or when the display replaces a front-of-room whiteboard and presentation screen. The tradeoff is space and installation requirements. At 77.2 inches wide, 44.7 inches high, and 157.63 pounds, it needs a properly sized wall or cart and a mount that supports its 800 x 600 mm VESA pattern.
Is a 4K interactive display worth it for teaching, training, or presentations?
Yes, a 4K interactive display is usually worth it when you regularly show detailed content such as documents, diagrams, spreadsheets, video, or split-screen materials. Higher resolution improves text sharpness and image clarity, which matters most on large screen sizes where lower-resolution panels can appear less crisp at close range.
The Clear Touch CTI-7086XE-UH20 has a 3840 x 2160 4K UHD panel with IPS technology, a 16:9 aspect ratio, and wide 178 degree viewing angles. On an 86 inch display, that resolution helps content remain readable for both presenters standing near the screen and audiences seated farther away. It is particularly beneficial in classrooms, conference rooms, and training spaces where visual clarity supports participation and reduces eye strain.
The main limitation is that 4K value depends on the source material. If you mostly display simple low-resolution content, the advantage will be less dramatic. But for modern laptops, video conferencing, data presentation, and digital lesson materials, 4K is a meaningful upgrade.
What touch technology is best for an interactive display: projected capacitive or infrared?
Projected capacitive touch is often preferred when you want precise, smooth, tablet-like interaction. It is especially useful for annotation, finger gestures, and environments where writing accuracy and a natural touch feel matter. Infrared touch can still be effective, but projected capacitive systems are generally chosen for more refined touch performance.
The Clear Touch CTI-7086XE-UH20 uses projected capacitive, or PCAP, touch technology. It supports 20 simultaneous touch points and includes palm rejection and pressure sensitivity. Those features make it well suited for collaborative teaching, whiteboarding, and group interaction, because users can write or manipulate content with fewer unintended touches.
PCAP is a strong fit for schools and meeting rooms that want a responsive experience similar to premium touch devices. One practical consideration is that buyers should confirm their preferred stylus and software workflow, since touch hardware and app behavior can vary by platform. For users focused on touch precision and a more natural writing experience, this panel’s PCAP design is a major strength.
Can this 86 inch interactive display be used without a separate computer?
Yes, this interactive display can be used without a separate computer for many everyday tasks. It has a built-in Android 8.0 operating system, a quad-core processor, 4 GB of RAM, and 32 GB of internal storage, which allows users to access the interface, run supported applications, and work with basic presentation or collaboration functions directly on the panel.
That is useful in classrooms and meeting rooms where users want faster startup, fewer cables, and less reliance on an external PC for simple sessions. It can help with annotations, content display, and routine collaboration workflows. The integrated platform is especially helpful for organizations that want an all-in-one front-of-room solution.
The tradeoff is that a built-in Android environment is not the same as a full Windows or macOS workstation. If your workflow depends on specialized desktop software, advanced video conferencing tools, or enterprise applications, you may still want to connect an external computer through one of the display’s HDMI or USB-C inputs.
What devices can connect to this interactive flat panel display?
This interactive flat panel supports a wide range of source devices and peripherals, making it practical for mixed-use classrooms and conference rooms. It includes four HDMI inputs, one HDMI output, one VGA input, one USB-C port with Power Delivery, three USB 3.0 ports, three USB 2.0 ports, two touch-in ports, LAN, RS-232, audio input, line-out, and SPDIF output.
In real-world use, that means you can connect laptops, desktop PCs, media players, document cameras, and other presentation sources while also supporting touch control, external audio routing, and networked management. USB-C with Power Delivery is especially useful for newer laptops because it can simplify connection and reduce cable clutter.
This is a strong fit for environments where multiple presenters or instructors rotate through different devices. Buyers should still verify their exact connection needs, especially if they rely on legacy adapters, advanced conferencing peripherals, or room control systems. Overall, the connectivity is broad enough for most professional collaboration setups.
Does this interactive display have built-in sound for larger rooms?
Yes, this model includes built-in 2.1 audio that is stronger than the basic stereo speakers often found in displays. It has two 10 watt main speakers plus a 15 watt subwoofer, for 35 watts total output. That makes it suitable for everyday presentations, classroom instruction, training sessions, and video playback in many meeting and learning spaces.
For buyers comparing interactive displays, built-in audio matters because it can reduce the need for external speakers in standard rooms. The Clear Touch CTI-7086XE-UH20 offers enough onboard reinforcement for clear speech and more balanced sound than many flat panels with only small stereo drivers.
The limitation is that very large rooms, high-noise environments, or events requiring more volume and wider coverage may still benefit from an external audio system. For typical conference rooms and instructional spaces, though, the integrated speaker and subwoofer setup should meet the needs of many users without adding extra equipment.
What should I check before installing an 86 inch interactive display on a wall or cart?
Before installation, check the display’s weight, dimensions, VESA pattern, power requirements, and the load rating of the wall mount or mobile stand. You should also confirm that the wall structure or cart is appropriate for a commercial display and that cable access and viewing height are planned in advance.
For the Clear Touch CTI-7086XE-UH20, the panel weighs 157.63 pounds, measures 77.2 inches wide by 44.7 inches high by 3.3 inches deep, and uses an 800 x 600 mm VESA mounting pattern. It runs on AC 100 to 240 volts and has an operational power consumption of 550 watts. Those specifications are important when choosing a compatible mount, planning electrical service, and ensuring safe handling during installation.
This display is best installed in environments that can support a large, front-of-room collaboration screen. The key tradeoff is that bigger displays offer better visibility, but they also require more planning for wall reinforcement, lift support, and ergonomic placement.
The Clear Touch CTI-7086XE-UH20 86" Interactive Flat Panel Display delivers an ultra-high-definition visual platform designed for high-impact presentations and team collaboration. Equipped with a 4K UHD IPS panel and projected capacitive touch technology, it provides 20 simultaneous touch points, pressure sensitivity, and palm rejection for natural, fluid writing and annotation.
Powered by an integrated quad-core processor running Android 8.0 alongside 4 GB of RAM and 32 GB of internal storage, this display offers an intuitive interface and fast operation without requiring a dedicated external computer. An integrated 2.1 audio configuration with dual 10W speakers and a 15W subwoofer ensures clear, powerful sound reinforcement across meeting rooms and instructional spaces.
Extensive connectivity options include four HDMI inputs, USB-C with Power Delivery, VGA, multiple USB 2.0 and 3.0 ports, LAN, and dedicated touch-in interfaces for straightforward device integration. Constructed for demanding commercial environments, the unit supports standard 800 x 600 mm VESA mounting for versatile wall or mobile stand installation.
Key Features
| Brand | Clear Touch |
| Model | CTI-7086XE-UH20 / 7086XE |
| Product Type | Interactive Flat Panel Display |
| Screen Size | 86" |
| Display Resolution | 3840 x 2160 (4K UHD) |
| Touch Technology | Projected Capacitive (PCAP) |
| Touch Points | 20 |
| Display Technology | IPS LED-backlit |
| Aspect Ratio | 16:9 |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1200:1 |
| Response Time | 8 ms |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° Horizontal / 178° Vertical |
| Operating System | Android 8.0 |
| Processor | ARM Cortex-A73 Dual-Core + ARM Cortex-A53 Dual-Core |
| RAM | 4 GB |
| Storage Capacity | 32 GB |
| Built-in Speakers | 2 x 10 W main channel, 1 x 15 W subwoofer (35 W total) |
| Video Inputs | 4 x HDMI, 1 x VGA, 1 x USB-C (Power Delivery) |
| Video Outputs | 1 x HDMI |
| Audio Ports | 1 x Audio input, 1 x Audio line-out, 1 x SPDIF output |
| USB Ports | 3 x USB 3.0, 3 x USB 2.0, 2 x Touch-In |
| Network / Control | LAN, RS-232 |
| VESA Mount Pattern | 800 x 600 mm |
| Dimensions (W x H x D) | 77.2" x 44.7" x 3.3" |
| Weight | 157.63 lbs |
| Power Supply | AC 100-240 V (50/60 Hz) |
| Power Consumption | 550 W (Operational) / 0.5 W (Standby) |
| Warranty | 3-Year Limited Warranty (with registration) |
Highlights
- PCAP technology with 20 simultaneous touch points for enhanced interactivity
- Stunning 3840 x 2160 resolution and 1.07B display colors for vibrant visuals
- Built-in Android 8.0 for intuitive user interface and familiar functionality
- Capacitive Recognition for precise touch input and smooth operation
Warranty
- 3-year manufacturer's warranty with product registration
