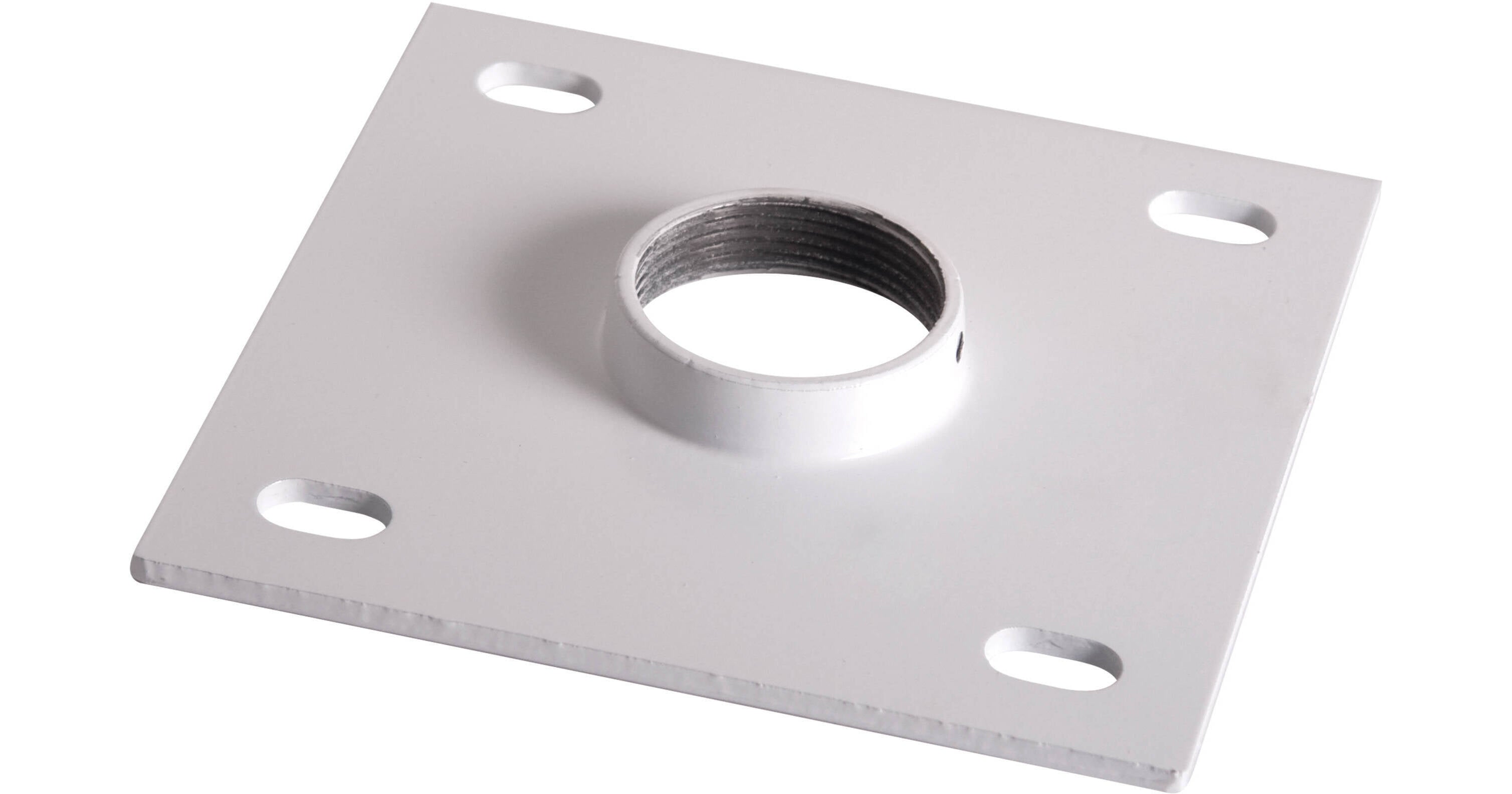

Chief CMA115W Ceiling Plate
Chief CMA115W Ceiling Plate
Chief

Chief CMA115W Ceiling Plate

SKU: CHCMA115W
(0)
Free shipping on all projectors!
Add to cart for discounted pricing!
Tax-Exempt Purchasing Available in cart
$64.95

Frequently Asked Questions

A ceiling plate is the structural base that attaches mounting hardware to the ceiling. In projector and display installations, it is typically used to connect an extension column or threaded pipe so the equipment can hang at the correct height. This makes it an important part of a ceiling projector mount system, especially when you need a clean, compact attachment point. The Chief CMA115W is designed for that role. It has a 1.5-inch NPT female threaded opening, which allows it to work with standard 1.5-inch NPT pipe and compatible extension columns. Its 6 x 6 inch footprint is useful when space is limited, but it still supports up to 500 pounds, which is far more than most projector applications require. This type of hardware is best for professional AV installs, conference rooms, classrooms, and other setups where stability matters. The main tradeoff is that a ceiling plate is only one part of the mounting system, so you still need compatible pipe, extension hardware, and the correct fasteners for your ceiling structure.
The safest way to anchor projector mounting hardware to a ceiling is to attach it to a structural surface, such as wood joists, concrete, or other properly rated building structure, using the correct hardware for that material. A ceiling plate provides the mounting surface, but the bolts or anchors must be chosen based on the ceiling type and local installation requirements. The Chief CMA115W uses a 4 x 4 inch mounting pattern and is designed for 0.38-inch mounting bolts. That means the plate itself is ready for heavy-duty AV applications, but the installer still needs to select the proper anchors or lag bolts for the actual ceiling construction. For example, wood framing, concrete, and steel all require different fastening methods. This approach is best for commercial AV, education, and residential theater installations where long-term stability is critical. One important limitation is that the plate does not eliminate the need for proper site evaluation. The load rating of the plate is up to 500 pounds, but the real-world safe load depends on the building structure and the hardware used to secure it.
Common ceiling mounting hardware types include ceiling plates, projector mounts, extension columns, threaded pipe adapters, suspended ceiling kits, and specialty brackets for angled or structural ceilings. Each part serves a different purpose. The ceiling plate anchors the system to the ceiling, the extension column creates drop length, and the projector or display mount attaches the equipment itself. The Chief CMA115W fits into the ceiling plate category. It is a flat 6 x 6 inch metal plate with a 1.5-inch NPT threaded opening, so it is meant to support extension systems rather than act as the projector mount by itself. That makes it a good choice when you already know you need a threaded ceiling interface for a projector or display support system. This style of hardware is ideal for installers building a modular setup with adjustable drop lengths. The tradeoff is that it is not an all-in-one mount. Shoppers who want a complete projector ceiling mount will usually need to pair a plate like this with an extension column and a compatible projector or display mount.
When choosing heavy-duty ceiling mounting hardware, focus on four things: structural load rating, compatibility with standard mounting components, mounting pattern, and the strength of the installation surface. A high weight capacity is important, but it only matters if the plate also fits your pipe or extension system and can be anchored correctly to the building structure. The Chief CMA115W checks several of those boxes. It supports up to 500 pounds, uses a standard 1.5-inch NPT female thread, and has a 4 x 4 inch mounting pattern that accepts 0.38-inch bolts. Those specifications make it suitable for robust AV installations where you want a compact but strong ceiling interface. This type of hardware benefits commercial AV integrators, schools, conference spaces, and anyone installing larger equipment with extension columns. The key limitation is that heavy-duty hardware does not automatically mean universal fit. You should still confirm ceiling type, compatible pipe or column size, and whether your projector or display system needs additional mounting components.
Yes, a 1.5-inch NPT ceiling plate is a common and practical standard for professional AV installations because it works with widely used threaded pipe and extension systems. In many projector and display setups, that standard thread size makes it easier to build a secure ceiling assembly with the drop length and positioning you need. The Chief CMA115W uses a 1.5-inch NPT female thread, which means it is designed to connect with standard 1.5-inch NPT pipe and compatible extension columns. That is especially useful for installers who want flexibility in choosing fixed or adjustable extension lengths without switching to proprietary ceiling hardware. This is a strong option for classrooms, boardrooms, digital signage, and other environments where modular AV mounting matters. The tradeoff is that it is best suited to systems already built around 1.5-inch NPT components. If your existing hardware uses a different thread size or a direct-mount approach, you may need adapters or a different ceiling plate.
The most important compatibility check is the connection type between the ceiling plate and the rest of the mounting system. For many AV installations, that means confirming the thread size, usually 1.5-inch NPT, and then verifying the extension column or pipe is designed for that standard. You should also check the mounting pattern, hardware size, and overall weight requirements for the full assembly. The Chief CMA115W is built with a 1.5-inch NPT female threaded opening, so it is compatible with standard 1.5-inch NPT pipe and matching extension columns. It also uses a 4 x 4 inch mounting pattern with 0.38-inch mounting bolts. Those details make it a straightforward match for many professional ceiling extension systems. This is most helpful for buyers assembling a modular projector ceiling mount or display support setup. The limitation is that compatibility does not depend on the plate alone. Your final system also has to match the projector mount, drop length, ceiling type, and total load path from the ceiling structure to the equipment.
A compact 6 x 6 inch ceiling plate is often better when the installation area is tight, when you want a cleaner visual footprint, or when the ceiling structure only gives you limited usable space. In many AV setups, a smaller plate can still provide more than enough strength if it is properly designed and attached to the right structure. The Chief CMA115W is a good example of that type of hardware. Its 6 x 6 inch footprint keeps the installation compact, but it still supports up to 500 pounds and provides a standard 1.5-inch NPT threaded opening for extension hardware. That combination makes it practical for projector and display extension systems where space is constrained but stability is still essential. This style is especially useful in conference rooms, classrooms, and finished spaces where appearance matters. The tradeoff is that a larger plate may offer more mounting flexibility in unusual structural conditions. If your ceiling layout requires wider anchor spacing or special reinforcement, a larger plate or different mount design may be a better fit.
Yes, a ceiling plate like this can support more than projectors as long as the connected hardware is compatible and the overall system stays within structural and load limits. In AV applications, ceiling plates are often used as the base for display extension systems, signage supports, and other suspended equipment that uses standard threaded pipe connections. The Chief CMA115W is designed to support projector and display extension systems. Its 1.5-inch NPT female thread allows it to connect with standard pipe or compatible extension columns, and its 500-pound load capacity gives it the strength needed for many professional AV configurations. The metal construction and white finish also make it suitable for visible installations where a clean appearance matters. This is a good option for integrators and facility teams that use standardized AV ceiling hardware across multiple applications. The limitation is that it is not a universal hanger for every ceiling object. It is intended for structured AV mounting systems, not for casual ceiling hooks or unsupported hanging applications.
The Chief CMA115W is designed to use a 4 x 4 inch mounting pattern with 0.38-inch mounting bolts. It also includes a 1.5-inch NPT female threaded opening for connecting standard 1.5-inch NPT pipe or compatible extension columns. In practical terms, that means you need the correct bolts or anchors for your ceiling structure and the matching threaded extension hardware for the rest of the mount assembly. Included accessories support secure assembly, including a hex wrench, security screw, security spinner, security hex key, and socket set screw. Those parts help with fastening and tamper-resistant installation, but they do not replace the need for the correct structural anchors or lag bolts required by your specific ceiling type. This hardware setup benefits professional installers and experienced buyers who want a modular ceiling mount foundation. The main limitation is that installation hardware is not one-size-fits-all. Wood, concrete, and steel ceilings need different anchoring methods, so it is important to choose fasteners based on the building surface rather than the plate alone.
Yes, the Chief CMA115W is well suited for commercial and larger AV installations where you need a strong, compact ceiling plate for an extension-based mounting system. Its 500-pound weight capacity, metal construction, and standard 1.5-inch NPT threaded opening make it appropriate for professional environments that prioritize structural reliability and component compatibility. It is particularly useful in conference rooms, classrooms, training spaces, worship facilities, and other commercial settings where projectors or displays are suspended using extension columns. The 6 x 6 inch footprint helps in locations where ceiling space is limited, while the 4 x 4 inch mounting pattern and 0.38-inch bolt requirement support secure attachment when installed correctly. This product is best for buyers who need a ceiling plate as part of a larger AV mounting system. The main tradeoff is that it is not the complete mount by itself. You will still need compatible pipe or extension columns, the equipment mount, and proper structural anchoring to create a finished projector or display installation.

The Chief CMA115W is a durable 6x6" ceiling plate engineered for robust AV installations where space is constrained or a compact footprint is required. Designed for fast and straightforward mounting, it provides an ideal foundation for supporting projector and display extension systems.

Equipped with a standard 1.5" NPT threaded opening, this plate seamlessly integrates with standard 1.5" NPT pipes as well as Chief CMS fixed and adjustable extension columns. The threaded configuration enables secure extension connections to achieve precise display elevation and drop lengths.

Constructed from sturdy metal with a clean white finish, the plate features a 4x4" mounting pattern utilizing 0.38" hardware. It supports a substantial weight capacity of up to 500 lbs, ensuring reliable structural support for professional AV equipment configurations.

Key Features

Brand Chief
Model Number CMA115W
UPC 841872045481
Product Type Ceiling Plate
Material Metal
Color White
Weight Capacity 500 lb
Product Dimensions 6 x 6 x 0.7 in.
Product Weight 1.95 lb
Package Weight 1.95 lb
Pipe Fitting 1.5" NPT Female Thread
Mounting Pattern 4 x 4 in.
Hardware Requirement 0.38" Mounting Bolts

Highlights

  • Attractive Solution for Basic Installs
  • Fast and Easy Installation
  • 4x4" Mounting Pattern
  • Uses 0.38" Mounting Bolts

Warranty

  • Limited 10-Year Manufacturer Warranty

What's included

  • Chief CMA115W 6x6" Ceiling Plate with 1.5" NPT Opening (White)
  • 6" Flat Ceiling Plate CMA-115
  • 3/32" Hex Wrench
  • 10-24 x 1/4" Button Head Security Screw
  • Security Spinner
  • 5/32" Security Hex Key
  • #10-24 Socket Set Screw
  • Limited 10-Year Manufacturer Warranty

Downloads

Frequently asked questions

What is the weight capacity of this ceiling plate?

The Chief CMA115W supports a maximum weight capacity of up to 500 lbs.

What pipe size is compatible with the mounting opening?

It is designed to fit standard 1.5" NPT threaded pipe connections and Chief CMS extension columns.

What are the dimensions and mounting pattern of the plate?

The overall plate measures 6 x 6 x 0.68 inches and features a 4 x 4 inch mounting hole pattern.

What hardware size is required to secure the plate?

The plate uses 0.38-inch mounting bolts through its slotted surface mounting holes.
