AVPro Edge TAA 70M 10Gbps HDBaseT HDMI Extender Kit
Regular price
$782.00
Couldn't load pickup availability
Frequently Asked Questions
What is an HDBaseT HDMI extender kit, and when do you need one?
An HDBaseT HDMI extender kit sends HDMI video, audio, and control signals over a single category cable instead of relying on a long HDMI cable. It is typically used when the source and display are too far apart for a reliable direct HDMI run, especially in conference rooms, classrooms, control rooms, and other commercial AV spaces.
The AVPro Edge TAA 70M 10Gbps HDBaseT HDMI Extender Kit is built for that kind of installation. It can carry HD and UHD content over Cat 5e, 6, 6A, or 7 cable, with support for up to 70 meters at 1080p and up to 40 meters for 4K/HDR. It also handles bidirectional IR and RS-232, so installers can extend control signals along with video.
This type of kit is best for users who want a clean, long-distance AV connection with fewer cables and better installation flexibility. It is less ideal if you only need a very short connection, where a direct HDMI cable may be simpler.
Is HDBaseT better than HDMI for long-distance video runs?
For long-distance installations, HDBaseT is usually the better choice. Standard HDMI works well over short runs, but signal reliability becomes harder to maintain as cable length increases. HDBaseT is designed specifically to extend AV signals farther using structured cabling that is often easier to route through walls, ceilings, and equipment racks.
This extender kit is a good example of why HDBaseT is commonly chosen in professional environments. It supports uncompressed transmission up to 10.2 Gbps and can extend 1080p up to 70 meters and 4K/HDR up to 40 meters over a single Cat cable. It also adds practical installation benefits such as Power over HDBaseT, bidirectional IR, RS-232 control, EDID management, and HDCP 2.2 support.
HDMI is still perfectly fine for short point-to-point connections. HDBaseT becomes the stronger option when distance, cable management, control integration, and commercial reliability matter more than the simplicity of a direct patch cable.
Does an HDMI extender actually work for 4K video?
Yes, an HDMI extender can work very well for 4K video, but only if the extender and cabling support the required bandwidth and format. Not all extenders handle 4K the same way, so buyers should check both maximum resolution and color format support instead of looking only for the word 4K.
This kit supports up to 4K60 at 4:2:0 and 4K30 at 4:4:4, along with HDR formats and HDCP 2.2 compliance. That makes it a practical choice for many commercial AV systems using 4K sources and displays. It also supports a wide range of audio formats including Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos, which matters in systems where both video and multichannel audio need to arrive intact.
The main tradeoff is distance. With this model, full HD can run up to 70 meters, while 4K/HDR is rated up to 40 meters. For buyers planning a longer 4K run, confirming cable quality and actual resolution requirements is important.
How do you connect an HDBaseT HDMI extender kit?
An HDBaseT HDMI extender kit is typically connected in a simple point-to-point layout. You connect the HDMI source to the transmitter, run a single Cat cable from the transmitter to the receiver, and then connect the receiver to the display with HDMI. If needed, you can also connect IR or RS-232 control lines to extend remote control or automation signals.
With this AVPro Edge kit, the process is designed for professional installations. The package includes the transmitter, receiver, 48V power supply, IR emitter, IR eye, RS-232 cables, and mounting brackets. It supports Cat 5e, 6, 6A, or 7 cabling, which gives installers flexibility depending on the project. Power over HDBaseT can also simplify placement because only one side needs local power in many setups.
This type of system is best for users who want a cleaner install than multiple long cables. The key is using quality terminated cable and matching the installation to the intended resolution and distance.
What should you look for in an HDBaseT extender for conference rooms or control rooms?
For conference rooms and control rooms, the most important things to look for are reliable signal extension distance, 4K support, HDCP compliance, control pass-through, and installation flexibility. In these environments, the goal is not just getting a picture on the screen, but making sure the system behaves predictably with different sources, displays, and control systems.
This extender kit checks the core boxes for professional use. It supports up to 10.2 Gbps transmission, 4K60 4:2:0 and 4K30 4:4:4 video, HDR, and HDCP 2.2. It also includes bidirectional IR and RS-232, which helps when displays or sources need remote control or integration with room automation. EDID management is another important feature because it helps maintain compatibility between newer and older equipment.
It is a strong fit for fixed commercial installations that need dependable performance over category cable. Shoppers who need longer 4K distances or newer higher-bandwidth formats should compare specifications carefully before choosing.
What resolution and distance can this HDBaseT extender support?
This HDBaseT extender supports up to 4K at 60Hz with 4:2:0 chroma, up to 4K at 30Hz with 4:4:4 chroma, and VESA resolutions up to 2560x2048. In terms of distance, it is rated for up to 70 meters, or 230 feet, at 1080p and up to 40 meters, or 131 feet, for 4K and HDR content.
Those specifications make it well suited for many boardrooms, training rooms, command centers, and digital signage applications where the source equipment is located away from the display. It supports uncompressed transmission up to 10.2 Gbps, which helps preserve image quality within its rated performance range.
The most important tradeoff is that higher resolutions reduce maximum distance. That is normal for HDBaseT extenders in this class. Buyers should plan around their actual source format, cable quality, and installation path rather than relying only on the maximum published distance.
Does this extender support HDR, HDCP 2.2, and surround sound audio?
Yes, this extender supports HDR formats, HDCP 2.2, and a broad range of audio formats commonly used in modern AV systems. That makes it a practical option for installations where content protection, high dynamic range video, and multichannel audio compatibility all matter.
Supported audio formats include PCM 2.0, LPCM 5.1 and 7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos. On the video side, HDCP 2.2 support is important for many 4K sources, and HDR compatibility helps preserve the intended look of supported content on compatible displays.
This is especially useful for commercial presentation spaces, executive meeting rooms, and control environments that use a mix of newer and legacy AV gear. As always, overall system performance still depends on the source, display, and installed cable, but the extender itself supports the standards most buyers look for in a professional 4K-capable HDBaseT solution.
Why do bidirectional IR and RS-232 matter on an HDMI extender?
Bidirectional IR and RS-232 matter because they let you extend control signals along with video and audio. In a professional AV system, the display is often far from the source equipment, so users may still need to send commands back and forth for power, source switching, volume, or device automation.
This extender kit includes both bidirectional IR and bidirectional RS-232 support, which gives installers flexibility for traditional remote control and for integration with control processors or automation systems. That can reduce the need for separate control wiring and simplify overall system design, especially in conference rooms, training spaces, and secure facilities.
These features are most valuable when the AV system is more than just a single source and display. If you only need basic video extension, they may be more capability than necessary. But for commercial users who want centralized equipment racks and dependable room control, IR and RS-232 pass-through are significant practical advantages.
What does Power over HDBaseT mean, and why is it useful?
Power over HDBaseT, often called PoH, means the extender can send power over the same category cable used for signal transmission. In practice, that reduces the number of local power connections needed and can make installations cleaner and easier to plan.
On this kit, PoH helps with flexible power placement between the transmitter and receiver. That is useful in rooms where one side of the system is easy to power, while the other side is mounted behind a display or in another less accessible location. Fewer power adapters at endpoints can also simplify service and reduce visible clutter.
PoH is especially helpful for permanent commercial AV installations where neat cable routing and reduced hardware at the display end are priorities. The tradeoff is that installers should still follow the manufacturer’s guidance for cable type, distance, and power setup to make sure the system performs as intended.
Who is this TAA-compliant HDBaseT extender best suited for?
This TAA-compliant HDBaseT extender is best suited for commercial, institutional, and government-related installations that need dependable HDMI extension over structured cabling and may have sourcing requirements tied to TAA compliance. It is a strong fit for conference rooms, data centers, classrooms, control rooms, and similar professional environments.
Its feature set is geared toward that market. It supports up to 70 meters at 1080p, up to 40 meters for 4K/HDR, uncompressed transmission up to 10.2 Gbps, HDR, HDCP 2.2, EDID management, and bidirectional IR and RS-232. Those are the kinds of features that matter when different devices must work together reliably and when source equipment is installed remotely in racks or cabinets.
This kit is less about casual home use and more about stable infrastructure for mission-critical AV systems. Buyers who need a compact, professional-grade HDMI extension solution with control integration and TAA compliance will benefit the most.

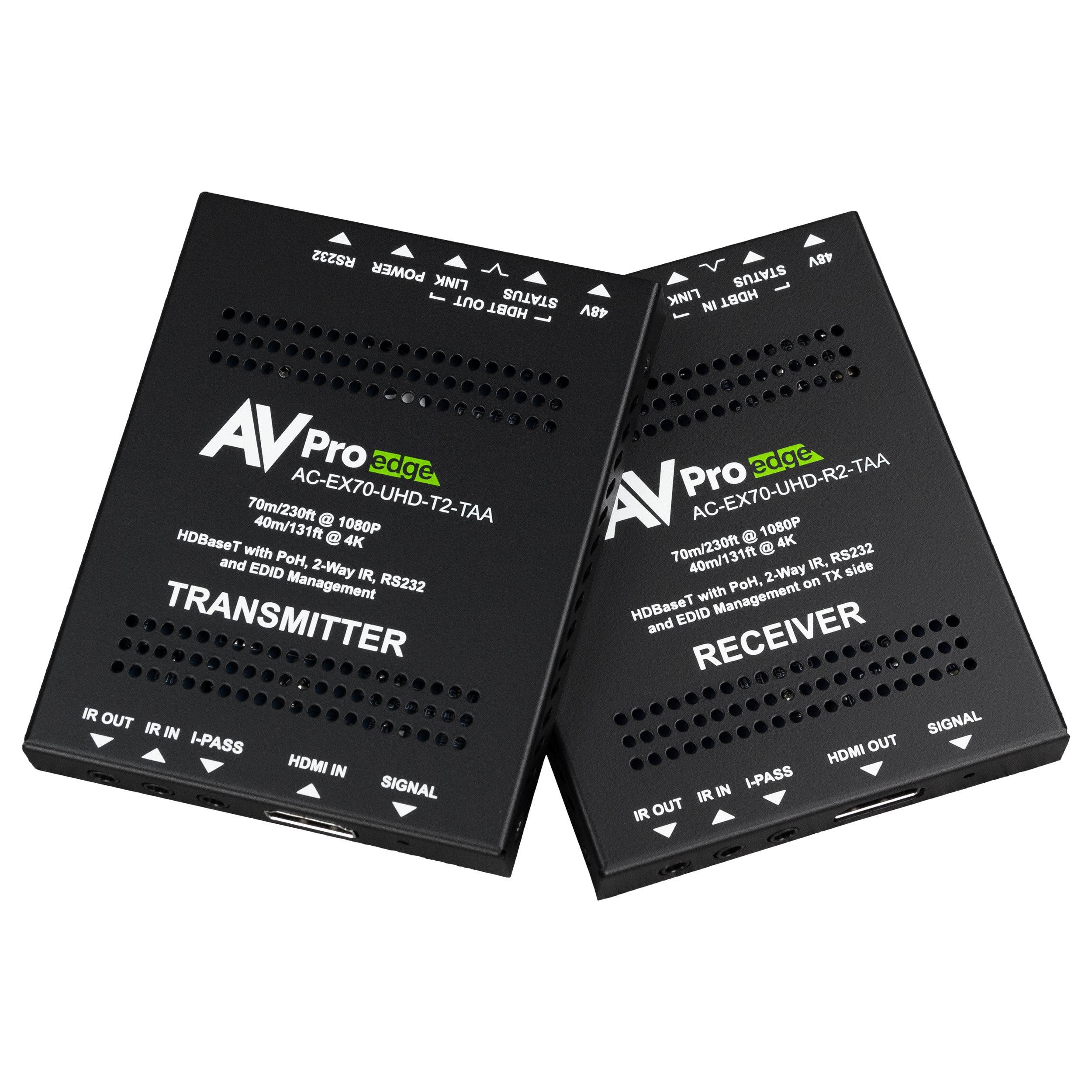

The AVPro Edge AC-EX70-UHD-KIT-TAA is a TAA-compliant HDBaseT extender kit designed to reliably transmit HDMI HD and UHD signals up to 70 meters over a single category 5E, 6, 6A, or 7 cable. This compact solution maintains signal fidelity for uncompressed delivery up to 10.2 Gbps, making it ideal for mission-critical commercial environments like data centers, conference rooms, and control rooms. It supports 4K60 4:2:0 and 4K30 4:4:4 video resolutions, alongside HDR formats and comprehensive EDID management for seamless compatibility with legacy and modern displays. Bidirectional control via IR and RS-232 simplifies installation by consolidating wiring, while Power over HDBaseT (PoH) allows for flexible power placement. The kit includes the transmitter and receiver chassis, power supply, mounting brackets, and necessary control cables for a complete, professional-grade setup.
| Compatible Resolutions | Up to 4K 60Hz 4:2:0, 4K30 4:4:4, and VESA up to 2560x2048 |
| Transmission Distance | Up to 70m (230ft) for 1080p; 40m (131ft) for 4K/HDR |
| Audio Formats | PCM 2.0, LPCM 5.1/7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos |
| Control Options | Bidirectional IR and RS-232 |
| Power | Power over HDBaseT (PoH) |
| Compliance | TAA Compliant, HDCP 2.2 |
| Inclusions | Transmitter, Receiver, 48V Power Supply, 1x IR Emitter, 1x IR Eye, RS-232 cables, Mounting brackets |
