AVPro Edge TAA 40M 18Gbps HDBaseT HDMI Extender Kit
Regular price
$1,163.00
Couldn't load pickup availability
Frequently Asked Questions
What is an HDBaseT HDMI extender, and when would you use one?
An HDBaseT HDMI extender sends HDMI video, audio, and control signals over a single category cable instead of a short passive HDMI cable. It is typically used when the source and display are too far apart for reliable direct HDMI, such as in conference rooms, classrooms, digital signage, residential AV racks, or equipment closets.
The AVPro Edge TAA 40M 18Gbps HDBaseT HDMI Extender Kit is designed for higher-performance installations that need full-bandwidth 4K60 4:4:4 video, HDR metadata, and control features like bidirectional IR and RS-232. It includes both a transmitter and receiver, so it is a complete point-to-point extension solution. It also supports Power over HDBaseT, which means only one side needs local power.
This type of extender is best for installers and buyers who want cleaner cable runs, longer distances, and more dependable signal delivery than standard HDMI alone can usually provide. The main tradeoff is that you need compatible category cabling and proper installation practices to get the expected performance.
Is HDBaseT better than HDMI for long-distance video runs?
For long-distance runs, HDBaseT is usually the better choice. Standard HDMI works very well over short distances, but signal reliability becomes harder to maintain as cable length increases, especially with 4K60 and HDR content. HDBaseT is built specifically to extend AV signals over copper cabling more reliably in professional installations.
This extender kit supports up to 4K 60Hz 4:4:4 at distances up to 131 feet, and up to 1080p at distances up to 230 feet. That makes it a strong option when the display is across the room, in a ceiling mount location, or in another part of the building. In addition to video and audio, it also carries control signals such as IR and RS-232, which standard HDMI does not extend by itself.
HDMI is still simpler and often less expensive for short, direct connections. HDBaseT is the better fit when distance, cable management, and installation flexibility matter more than keeping the connection as basic as possible.
Does an HDMI extender actually work for 4K video?
Yes, a properly designed HDMI extender can absolutely work for 4K video, but performance depends on the extender's bandwidth, compression method, cable quality, and distance. Many lower-spec extenders only support reduced color formats or lower frame rates, which can matter in professional AV environments.
This AVPro Edge kit is built for full 18 Gbps HDMI transport and supports UHD 4K60 4:4:4, along with HDR10, HDR10+, and Dolby Vision metadata. It uses proprietary Invisible Compression Technology to maintain what the manufacturer describes as perfect-to-the-pixel image fidelity while extending the signal over copper cabling. For 4K, the maximum specified distance is 131 feet.
That makes it a good choice for installations where image quality is critical, such as boardrooms, premium home AV systems, training rooms, and signage applications. The limitation is that real-world results still depend on using the correct cabling and following proper installation practices. An extender is only as reliable as the total signal path.
What should I look for in the best HDMI extender for a professional AV installation?
The best HDMI extender for a professional AV installation should match the signal format you need, the distance you need to cover, and the control features your system requires. The most important specs to check are bandwidth, supported resolution, HDR compatibility, maximum distance, EDID handling, and whether the extender can pass control signals like IR or RS-232.
For example, this model supports the full 18 Gbps needed for 4K60 4:4:4 video, not just lower-bandwidth 4K formats. It also supports HDR10, HDR10+, and Dolby Vision metadata, which matters if your source content or display depends on HDR. Features like downscaling can also be valuable when mixing newer sources with older displays. Power over HDBaseT helps reduce installation complexity because only one end requires power.
This type of kit is best for buyers who want a dependable, install-friendly solution rather than a basic consumer extender. A simpler extender may be enough for short runs and lower resolutions, but professional systems usually benefit from stronger format support and better control integration.
How far can this HDBaseT extender send HDMI over copper cable?
This HDBaseT extender is rated for up to 131 feet at 4K 60Hz 4:4:4 and up to 230 feet at 1080p. Those distances make it well suited for installations where the display is mounted far from the source, such as projectors in classrooms, conference room displays, or AV systems with centralized equipment racks.
The key point is that distance and video format are linked. Higher-bandwidth signals like 4K60 4:4:4 require more from the cabling and hardware, so the maximum distance is shorter than it is for 1080p. If your system only needs Full HD, you can extend farther. If you need top-tier 4K image quality, you should plan around the 131-foot specification.
This is a strong fit for users who need predictable performance over structured cabling without relying on long passive HDMI cables. As with any HDBaseT system, the actual result depends on cable quality, termination quality, and the overall installation environment.
Does this extender support HDR formats like HDR10 and Dolby Vision?
Yes, this extender supports HDR10, HDR10+, and Dolby Vision metadata, which is important for installations that need modern HDR video performance rather than basic 4K compatibility alone. Some extenders can pass 4K resolution but do not reliably preserve all HDR information, which can limit picture quality or create compatibility issues with displays.
With this kit, the supported HDR formats make it a good match for premium flat panels, projectors, and content sources that are designed to take advantage of high dynamic range. It is especially useful in AV systems where color detail, contrast, and source-to-display consistency matter.
This feature benefits users building higher-end conference rooms, home theaters, or commercial display systems that need to preserve the original signal characteristics. The main tradeoff is that HDR support does not replace the need for compatible source devices, displays, and cabling. Every part of the signal chain must support the desired HDR format for the system to perform as expected.
Can this HDMI extender work with older 1080p displays and newer 4K sources?
Yes, this extender can help bridge newer and older equipment because it includes downscaling support. That means a 4K source can be adapted for use with a legacy display that only supports 1080p, which is helpful in upgrades where all displays have not been replaced yet.
This is especially useful in schools, offices, and commercial environments where a system may include a mix of newer and older displays. Instead of replacing every screen at once, an installer can often keep the existing display in service while still using newer source equipment. The kit also includes EDID management, which helps source devices and displays communicate supported formats more reliably.
This type of compatibility feature is best for phased upgrades and mixed-resolution environments. The tradeoff is simple: if the display is 1080p, you will not see native 4K on that screen. Downscaling improves compatibility, not resolution. It is a practical integration feature rather than a performance upgrade for older displays.
What control features does this HDBaseT extender support besides video and audio?
In addition to HDMI signal extension, this kit supports bidirectional IR and RS-232 control. That means it can help carry remote control and serial control signals between the source and display ends of the installation, which is important in integrated AV systems where devices need to be managed from a distance.
Bidirectional IR is useful when users want remote-control functionality from either end of the link. RS-232 is commonly used in professional environments for display control, projector commands, automation systems, and centralized equipment management. The extender also includes EDID management, which helps maintain reliable communication between source devices and displays.
These features make the kit a better fit for commercial AV, education, training rooms, and custom-installed systems than a basic video-only extender. If you only need a simple short-run HDMI connection, these control features may be unnecessary. But for installations where equipment is hidden in racks or located far from the screen, integrated control support can save time and reduce system complexity.
What does Power over HDBaseT mean, and why does it matter?
Power over HDBaseT, or PoH, means the extender can deliver power over the HDBaseT link so that only one end of the system needs a local power supply. In practical terms, that simplifies installation because you do not have to place power adapters at both the transmitter and receiver locations.
This matters most in clean, professional installations where one device may be behind a wall display, above a ceiling-mounted projector, or in another hard-to-access area. Reducing the number of required power connections can speed up installation, improve cable management, and make service easier later. In this kit, PoH is part of the design goal of minimizing installation complexity while still supporting full-bandwidth 18 Gbps signal extension.
PoH is especially valuable for integrators, facility managers, and anyone planning a neat permanent install. The main consideration is that the system still needs to be wired exactly as specified, and the powered end must be set up correctly. It is a convenience and installation benefit, not a substitute for proper planning.
Who is this 18Gbps HDBaseT extender kit best suited for?
This extender kit is best suited for professional AV installations that need reliable 4K60 4:4:4 signal extension, HDR support, and integrated control features over copper cabling. It fits environments such as conference rooms, classrooms, digital signage systems, training spaces, government projects, and other structured AV installations where source devices and displays are separated by meaningful distance.
Buyers who benefit most are those who need more than a basic HDMI extension. This model supports 18 Gbps bandwidth, HDR10, HDR10+, Dolby Vision metadata, downscaling for legacy displays, EDID management, bidirectional IR, RS-232, and Power over HDBaseT. It is also described as TAA compliant, which can matter in procurement-sensitive environments.
It may be more capability than a simple home setup or a short cable run requires. If your source and display are close together and you do not need control integration or longer distance, a direct HDMI connection may be enough. But for serious installations where signal integrity and system flexibility matter, this type of extender is a strong match.

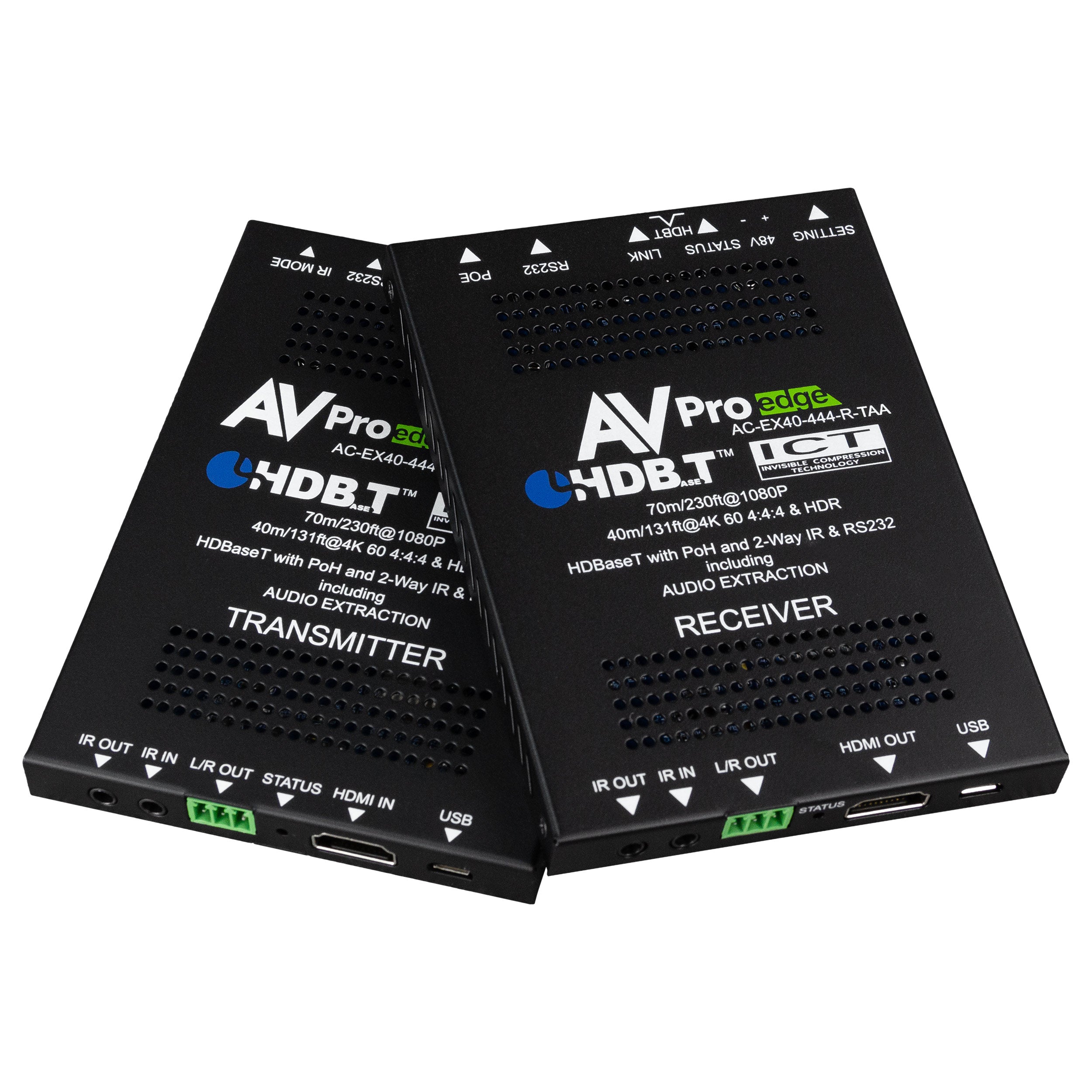

The AVPro Edge 40M 18Gbps HDBaseT Extender Kit provides high-bandwidth, artifact-free HDMI extension for professional installations. Utilizing proprietary Invisible Compression Technology (ICT), this kit supports UHD 4K60 4:4:4 video signals and full HDR metadata over copper cabling. The set includes both transmitter and receiver units, offering downscaling for legacy displays, EDID management, and bidirectional IR and RS-232 control. Power over HDBaseT (PoH) simplifies installation by requiring power at only one end. Built for reliability and performance, it maintains perfect-to-the-pixel image fidelity for demanding audio-video environments.
| Video Resolution | Up to 4K 60Hz 4:4:4 |
| Bandwidth | 18 Gbps |
| HDR Support | HDR10, HDR10+, Dolby Vision |
| Max Distance (4K) | 131 Feet |
| Max Distance (1080P) | 230 Feet |
| Power Consumption | 12 Watts Max |
| Unit Dimensions | 5.05 x 3.62 x 0.47 inches |
| Unit Weight | 0.29 lbs |
