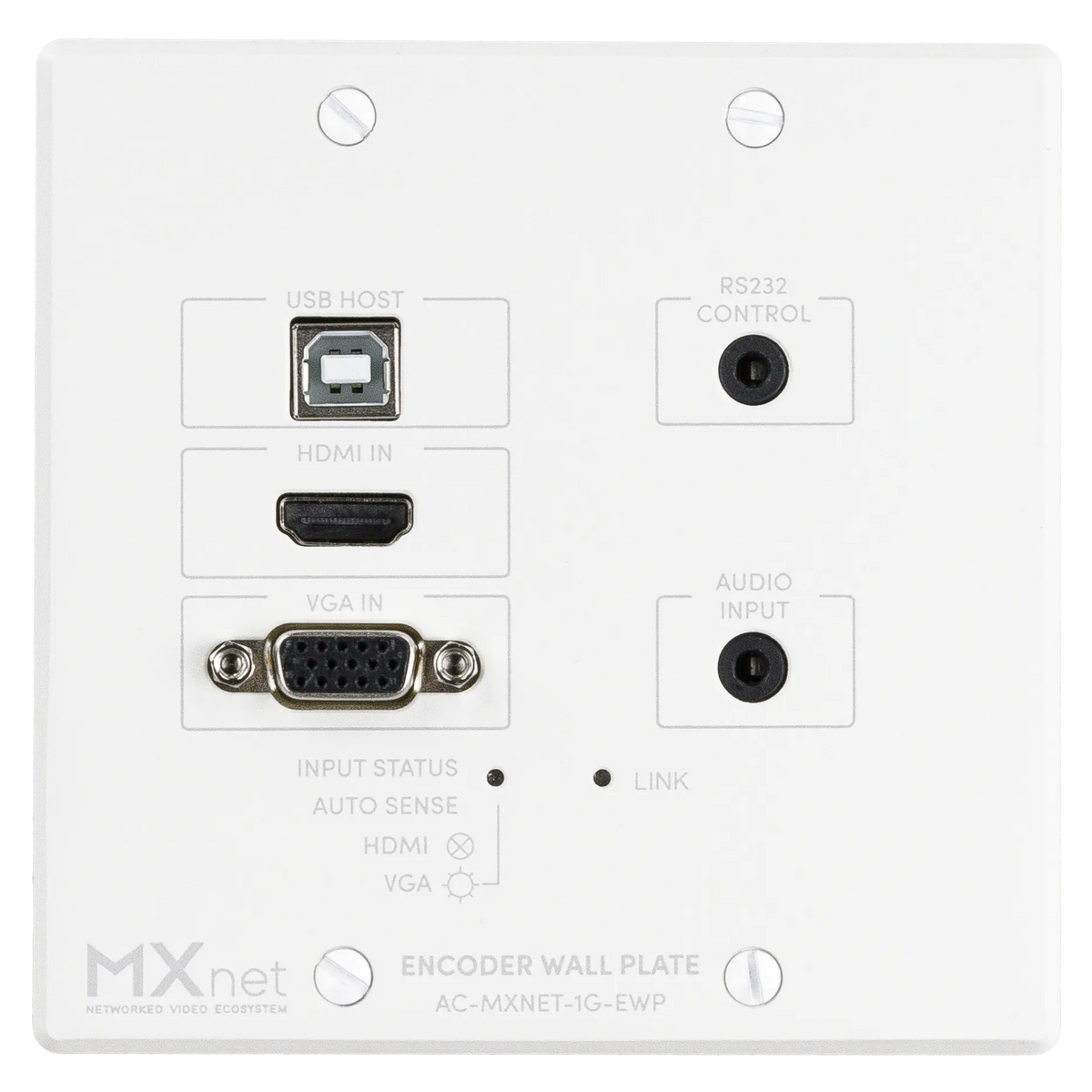

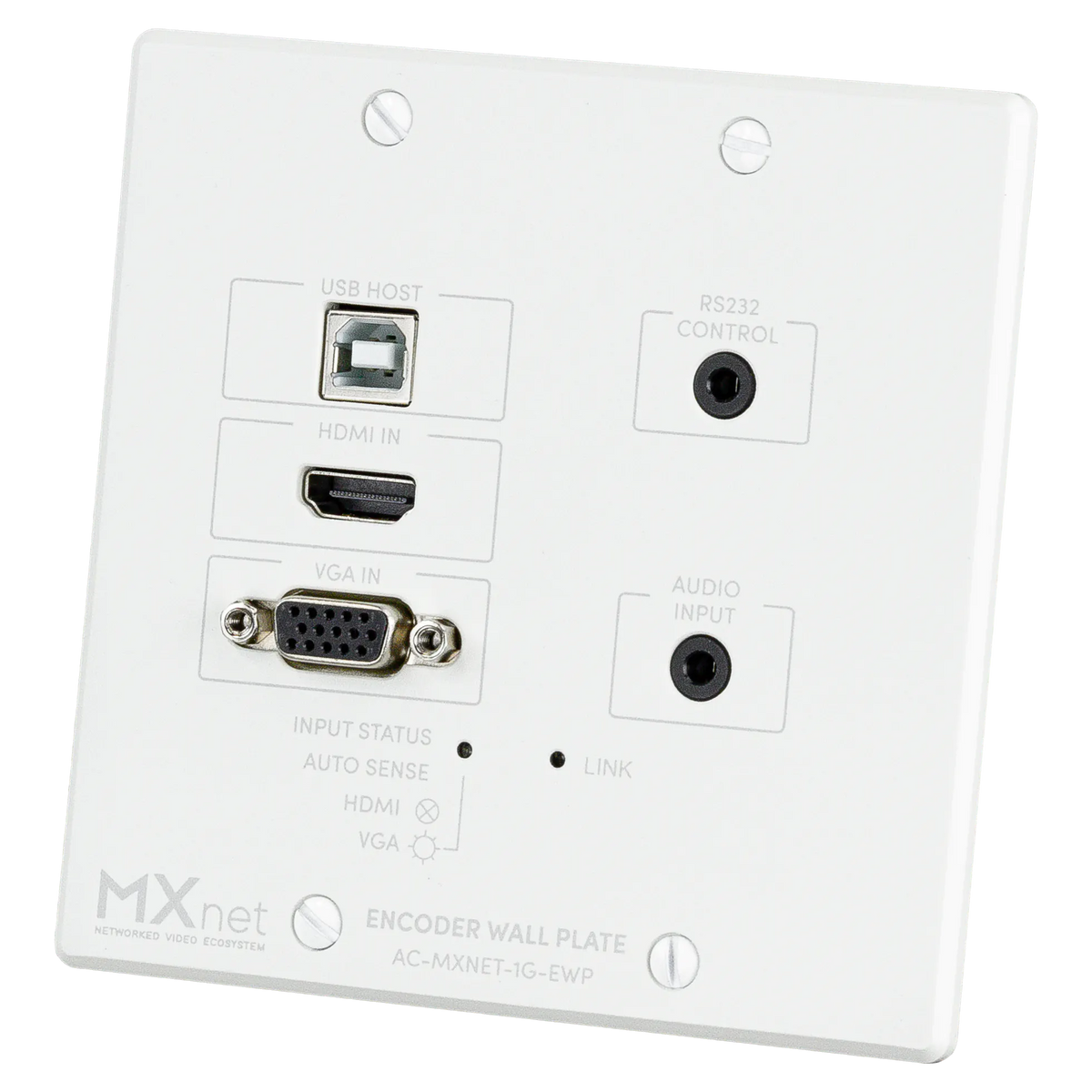

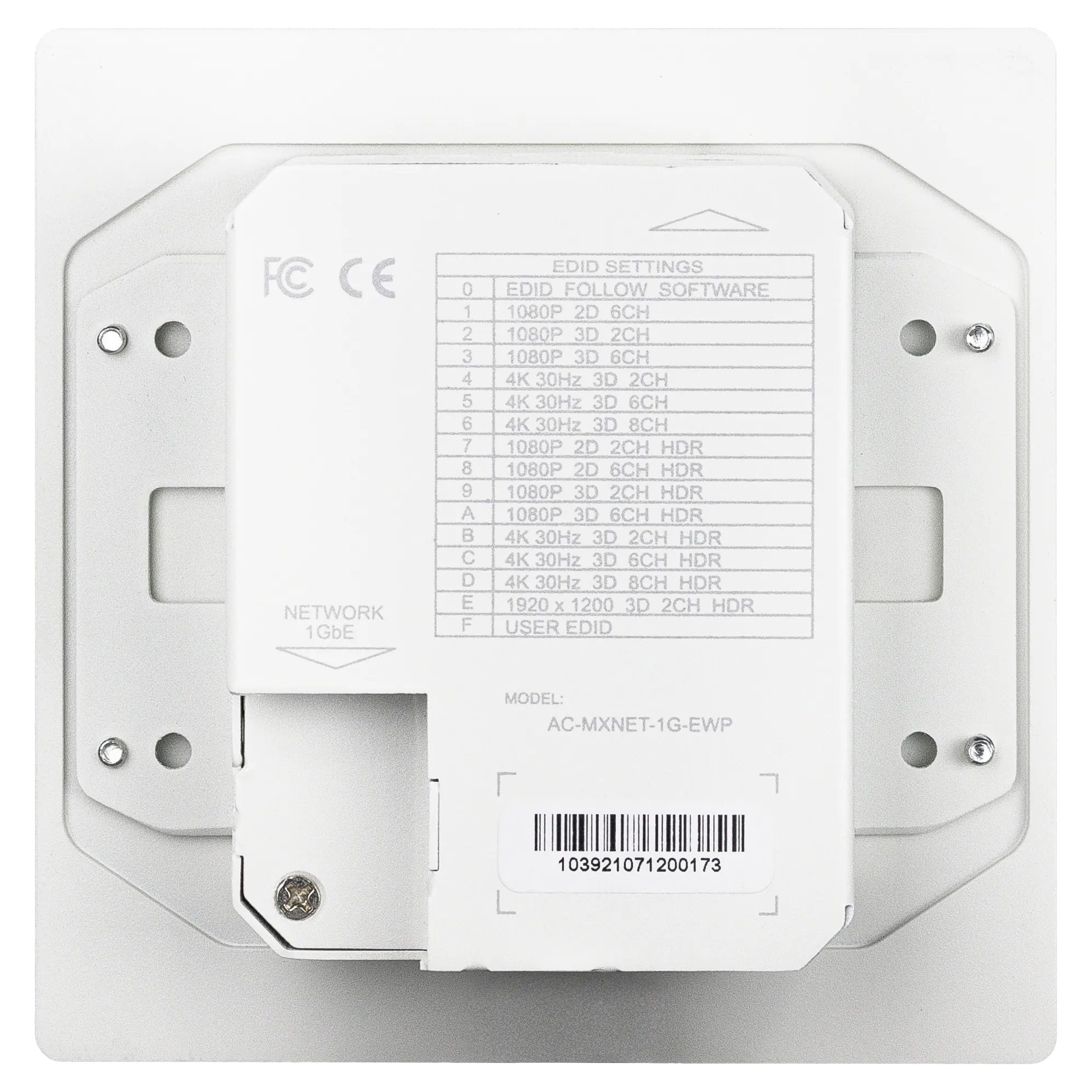

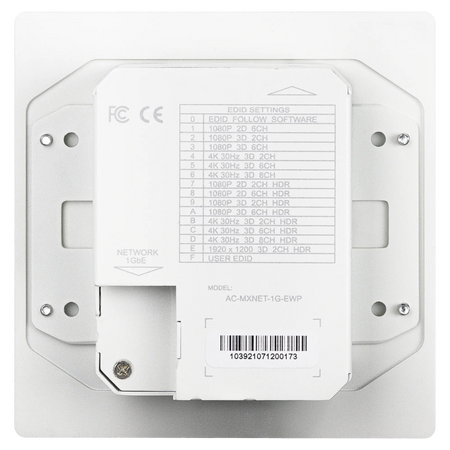

AVPro Edge MXnet 1G Wall Plate Encoder HDMI AV over IP

SKU: AC-MXNET-1G-EWP
Regular price $916.00

Frequently Asked Questions

An AV over IP wall plate encoder takes an HDMI source at the wall and converts it into video, audio, and control data that can travel over a standard network cable to an AV over IP system. It is commonly used in conference rooms, classrooms, training spaces, and other professional AV installations where a clean in-room connection point is preferred over a rack-mounted encoder with exposed cabling. The AVPro Edge MXnet 1G Wall Plate Encoder is designed for this kind of discreet installation. It fits a standard dual-gang mud ring, encodes HDMI for MXnet 1G distribution, and supports bi-directional RS-232 and IR control routing. It also includes USB/KVM host support, which is useful when a connected computer needs keyboard, mouse, or USB peripheral extension across the AV network. This type of product is best for integrators and buyers who want a polished wall-mounted input location and centralized routing. The main tradeoff is that it is part of a managed AV over IP ecosystem, so it is not meant to work like a simple point-to-point HDMI extender.

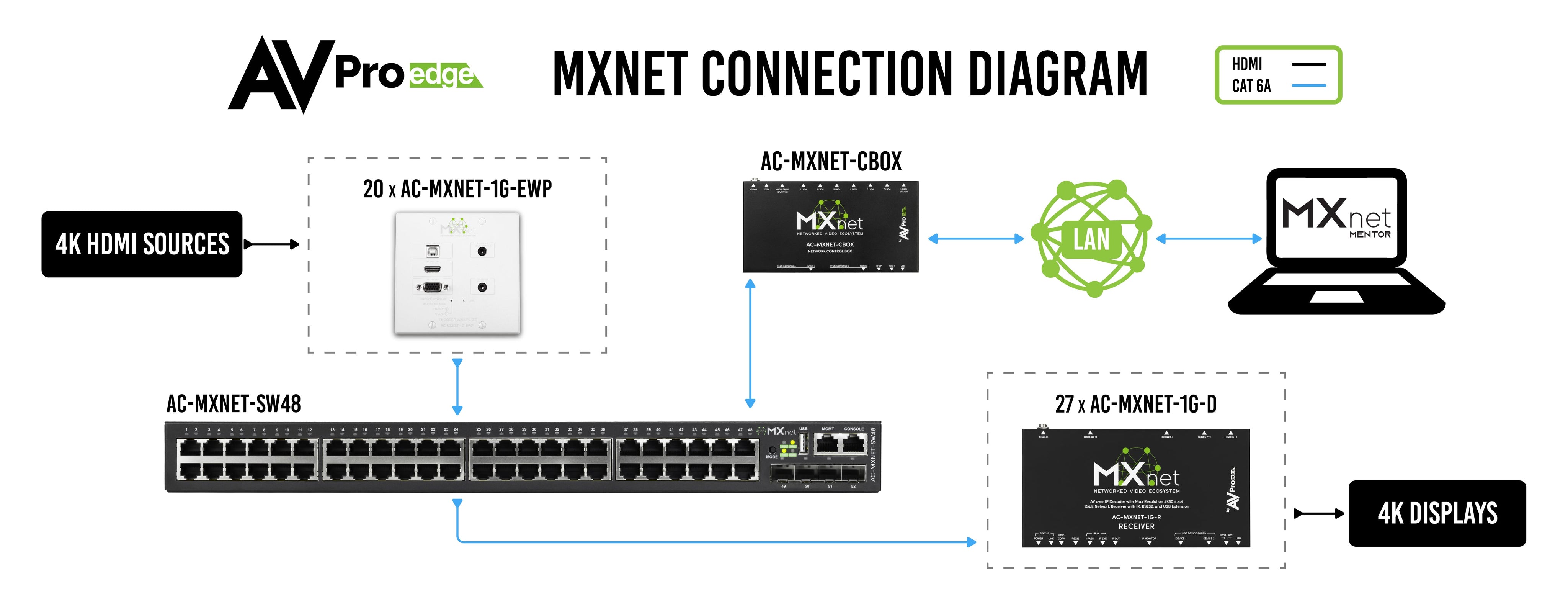

The main difference is flexibility. A standard HDMI extender usually sends one source directly to one display over twisted pair cable. An AV over IP wall plate encoder converts the source into network-based AV, so it can be routed, switched, and distributed through a compatible AV over IP system. The AVPro Edge MXnet 1G Wall Plate Encoder is built for that networked approach. It supports HDMI input, proprietary video encoding based on M-JPEG, and can send 720p, 1080p, and up to 4K at 30Hz across a 1G network environment. It also adds control and USB/KVM functionality, which a basic extender often does not offer. A standard extender can be the simpler choice for a single source and single display. A wall plate encoder is better when you want scalable matrix-style distribution, centralized management, room-to-room routing, or support for control signals. The tradeoff is that AV over IP requires compatible encoders, decoders, and network planning.
Yes, a wall plate encoder is often an excellent choice for conference rooms and classrooms because it creates a convenient, professional input point exactly where users connect their laptops or source devices. Instead of running a loose HDMI cable back to a rack, the source connects at the wall and enters the AV over IP system cleanly. The AVPro Edge MXnet 1G Wall Plate Encoder is especially suited to these environments because it mounts in a standard dual-gang mud ring and supports HDMI video, USB/KVM host functionality, and bi-directional RS-232 and IR control. That makes it useful for spaces where you may want not only video distribution, but also peripheral sharing or control integration. It is a strong fit for rooms that need polished aesthetics and scalable switching. It is less ideal if you only need a basic one-cable extension with no networked distribution. In that case, a simpler HDMI extender may be easier and more cost-effective. For managed AV systems, though, a wall plate encoder is often the cleaner long-term solution.
Yes, this encoder supports up to 4K resolution at 30Hz. It also supports 1080p at 24, 50, and 60Hz, plus 720p at 50 and 60Hz, making it suitable for many professional presentation and signage applications. For buyers comparing AV over IP wall plate encoders, the key point is that this model is designed for stable 1G network-based AV transport rather than maximum gaming-grade frame rates. It uses a proprietary codec based on M-JPEG and supports HDCP 2.2 and earlier, which helps with compatibility for protected HDMI sources. This makes it a good fit for meeting rooms, education, commercial AV, and general 4K presentation workflows where 30Hz is acceptable. If your application specifically requires 4K at 60Hz for fast-motion content or highly demanding visual environments, you may want to evaluate a higher-bandwidth platform. For standard professional AV distribution, 4K30 is often fully adequate.
The specified latency is 16ms at 60Hz. In practical terms, that is generally acceptable for many professional AV applications such as presentations, classrooms, digital signage, and meeting spaces where low delay matters but ultra-low real-time performance is not the top requirement. Latency should always be evaluated based on the use case. For slide presentations, video playback, and room-to-room content sharing, 16ms is typically manageable. For highly interactive applications where near-instant response is critical, such as certain live control environments or performance-sensitive setups, buyers may want to compare latency specifications carefully. The AVPro Edge MXnet 1G Wall Plate Encoder balances image transport, control features, and networked flexibility within a 1G AV over IP ecosystem. It also adds USB/KVM capability and control signal routing, which can matter as much as raw latency in installed systems. For most commercial AV deployments, its latency profile is reasonable, but application requirements should drive the final decision.
Yes, it supports USB/KVM host functionality. Specifically, it includes a USB 2.0 Type-B connection for KVM use and a USB Micro service port. That means the encoder can route connected USB signals through the compatible AV over IP system, which is useful when a computer source needs remote keyboard, mouse, or USB peripheral access. This is particularly helpful in training rooms, interactive spaces, control rooms, and corporate environments where a source device is connected at the wall but needs to be managed or interacted with from another location. It can also simplify installations where USB extension is needed alongside HDMI video transport. Buyers should note that USB/KVM features depend on the broader system design and compatible endpoints within the AV over IP platform. In other words, this is not just a standalone USB extender. It is part of a networked AV workflow. For users who need both video distribution and peripheral routing in one integrated system, this feature can be a major advantage.
Yes, it supports bi-directional RS-232 and IR control signal routing. That means control data can travel through the AV over IP system in both directions, not just the HDMI video and audio signal. This matters in professional AV because displays, switchers, control processors, and other devices often rely on RS-232 or IR commands for power, input switching, and automation. By carrying those signals within the same overall AV transport environment, the system can reduce extra cabling and make centralized control easier to implement. The AVPro Edge MXnet 1G Wall Plate Encoder is a good fit for installations where the source input at the wall is part of a larger controlled system, such as conference rooms, classrooms, and commercial spaces. The practical benefit is cleaner integration. The main consideration is that proper setup requires a compatible AV over IP infrastructure and control programming where needed. For basic unmanaged video extension, these control features may be more than some users need.
Yes, this encoder is designed to work over standard category cabling and includes a female RJ45 Ethernet port with PoE support. That combination is important because it can simplify installation by allowing network connectivity and power delivery over the same cable, depending on the system design. For many professional AV projects, using category cable helps reduce installation complexity and supports structured cabling practices already common in commercial buildings. PoE can also help avoid the need for a separate local power connection at the wall plate, which is useful when a clean and discreet installation is a priority. This makes the AVPro Edge MXnet 1G Wall Plate Encoder well suited for boardrooms, educational spaces, and other installations where wall-mounted source access is needed. Buyers should still confirm switch compatibility, PoE budget, and the broader MXnet system requirements. While category cable and PoE support add convenience, the product still needs a properly designed AV over IP network environment for best performance.
When comparing AV over IP encoders and decoders, focus on five main areas: supported resolution and frame rate, latency, control capabilities, USB/KVM support, installation format, and ecosystem compatibility. The right product depends on whether you need simple source distribution, scalable matrix switching, control integration, or interactive device support. The AVPro Edge MXnet 1G Wall Plate Encoder stands out for buyers who need a wall-mounted HDMI input, up to 4K at 30Hz, 16ms latency at 60Hz, HDCP 2.2 support, USB/KVM host capability, and bi-directional RS-232 and IR routing. It also fits a standard dual-gang mud ring, which is helpful for polished room installations. A key comparison point is whether you want a wall plate form factor or a rack or box-style encoder. Another is whether your system requires higher frame rates than 4K30. For conference rooms, classrooms, and commercial AV spaces that value clean installation and integrated control, this feature set is often a strong match. For more demanding motion performance, compare bandwidth and frame-rate limits carefully.
The best source for setup guidance is the official product documentation from the manufacturer or an authorized dealer such as Protech Projection Systems. For any AV over IP wall plate encoder, the basic checks before buying are system compatibility, mounting requirements, network design, power method, and signal needs. For this model, confirm that your installation uses the compatible MXnet 1G AV over IP ecosystem, that you have a standard dual-gang mud ring for mounting, and that your network infrastructure supports the required category cabling and PoE if you plan to power it through the Ethernet connection. You should also verify the source resolution you need, especially if your application requires more than 4K at 30Hz. It is also important to review whether you need USB/KVM functionality, RS-232, or IR routing, since those are strengths of this encoder. Buyers who plan ahead on these points usually end up with a cleaner, more reliable installation and avoid choosing a wall plate encoder that does not fit their control or network requirements.

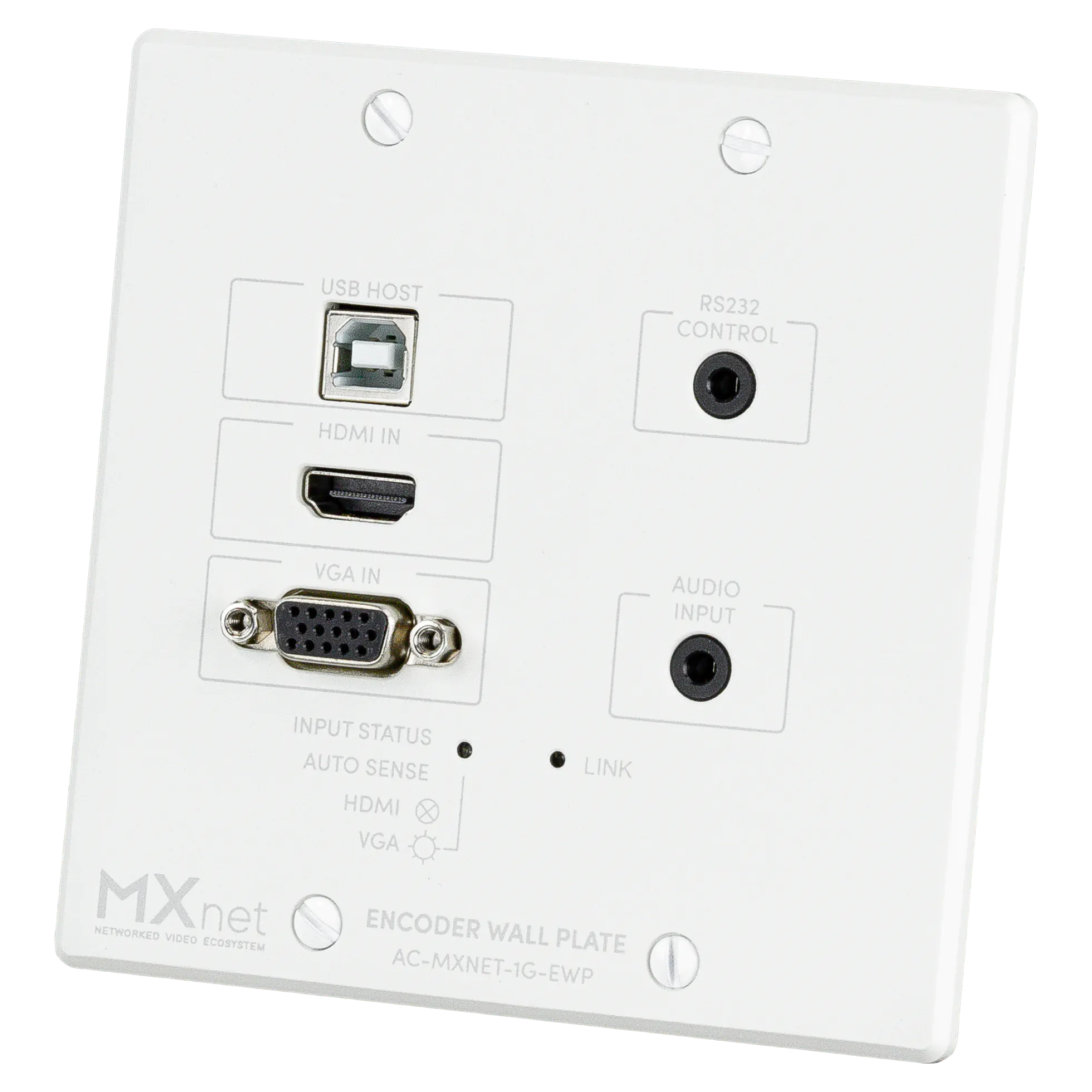

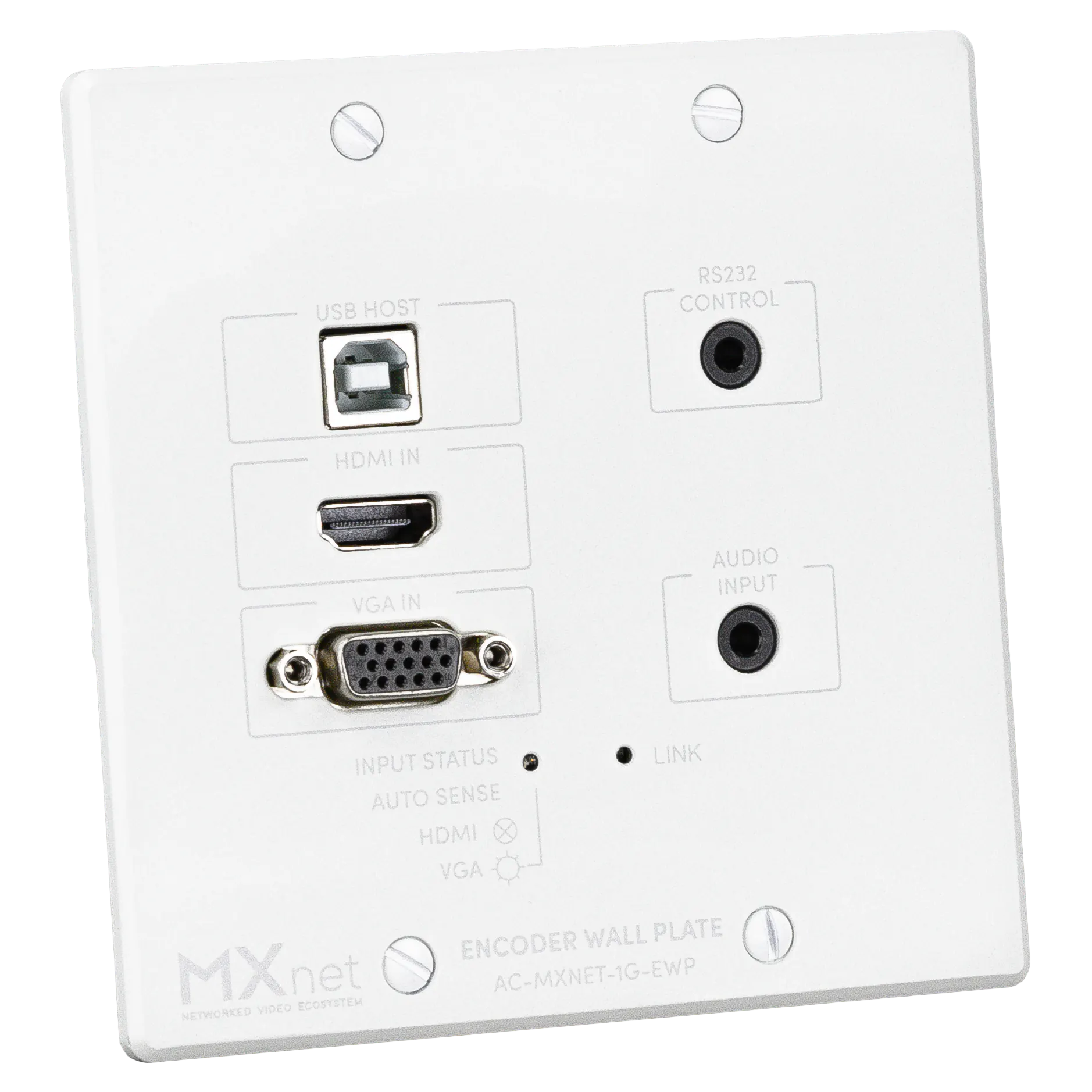

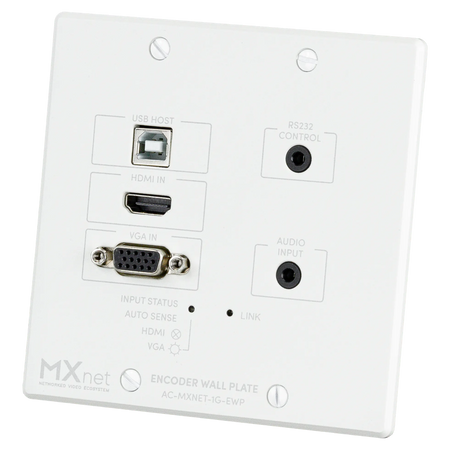

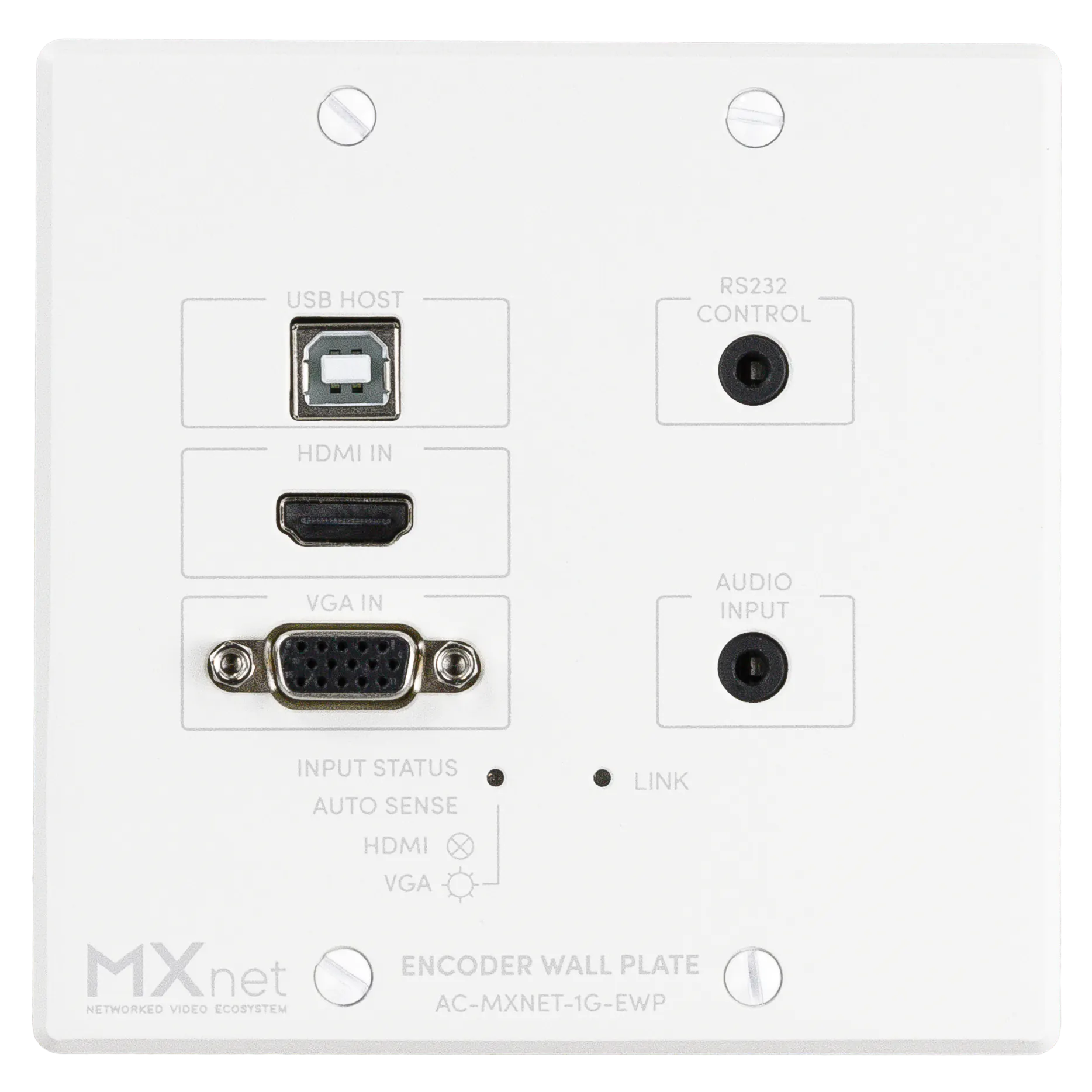

The AVPro Edge MXnet 1G Wall Plate Encoder provides clean, sleek, and stable video transmission for professional AV over IP applications. Designed to fit into any standard dual-gang mud ring, this encoder supports high-quality JPEG 2000 encoding with progressive decoding for superior picture fidelity. It features USB/KVM host support for routing connected USB signals and bi-directional RS-232 and IR control signal routing. Achieve a discreet installation with full external light control, allowing you to turn off all device and network link lights. This unit supports 4K at 30Hz resolution and is compatible with standard category cables.

Video Codec Proprietary Codec based on M-JPEG
Audio Codec Proprietary Codec
Latency 16ms@60Hz
Video Resolution 720p@50/60Hz, 1080p@24/50/60Hz, 4K@30Hz
Copy Protection HDCP 2.2 and earlier

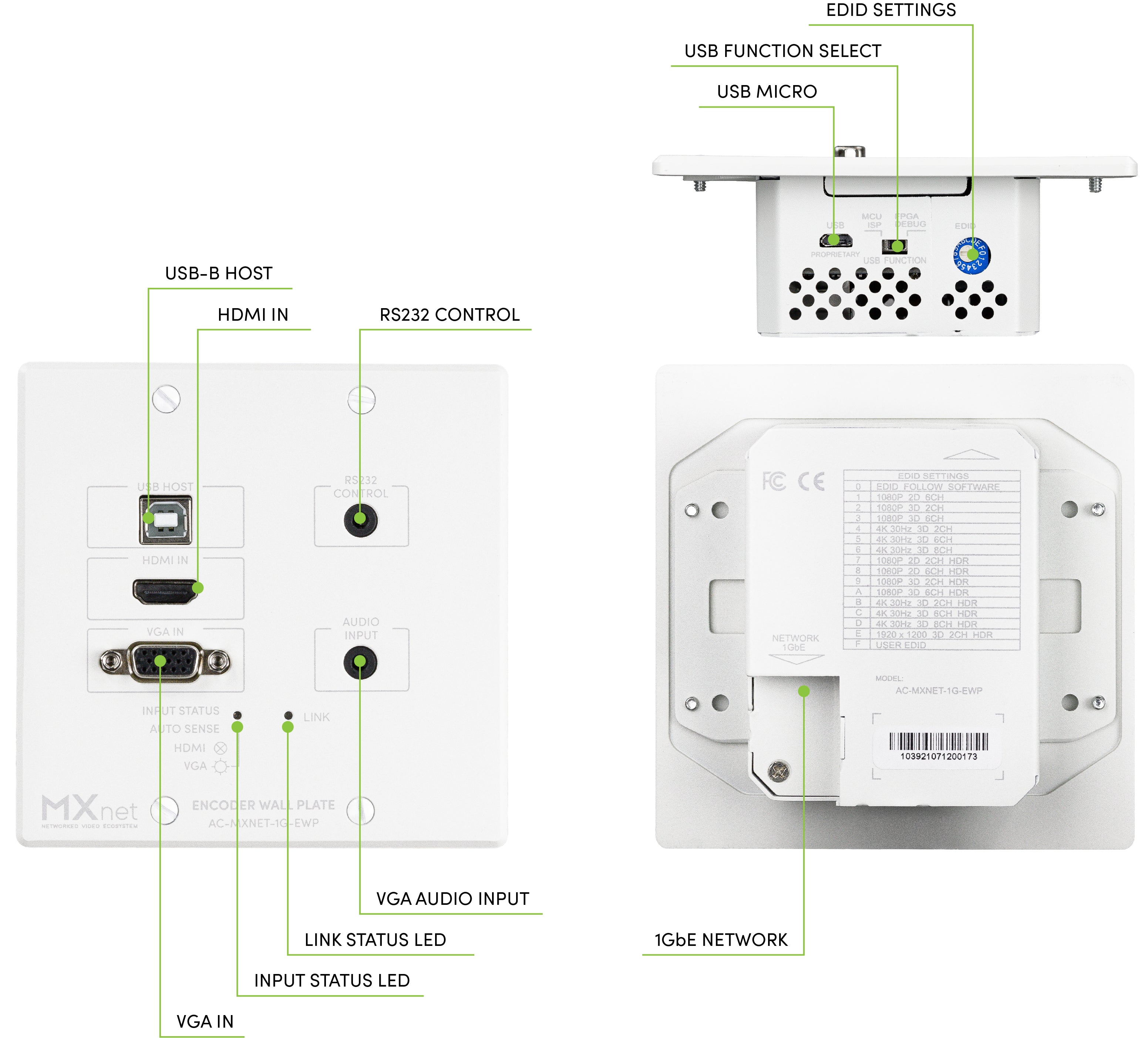

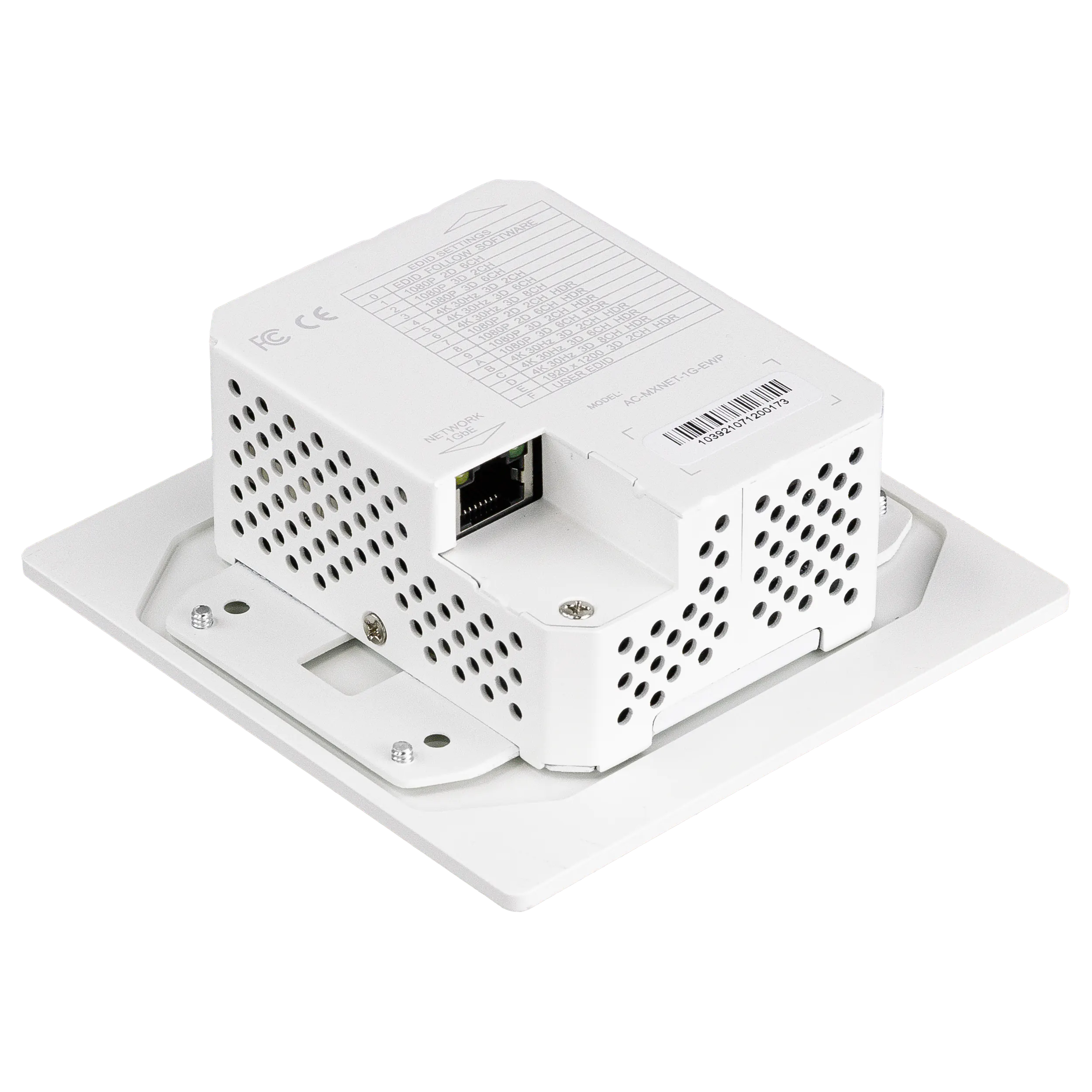

Ethernet Port 1 x female RJ45, PoE
HDMI Port 1 x HDMI Type A 19-pin female

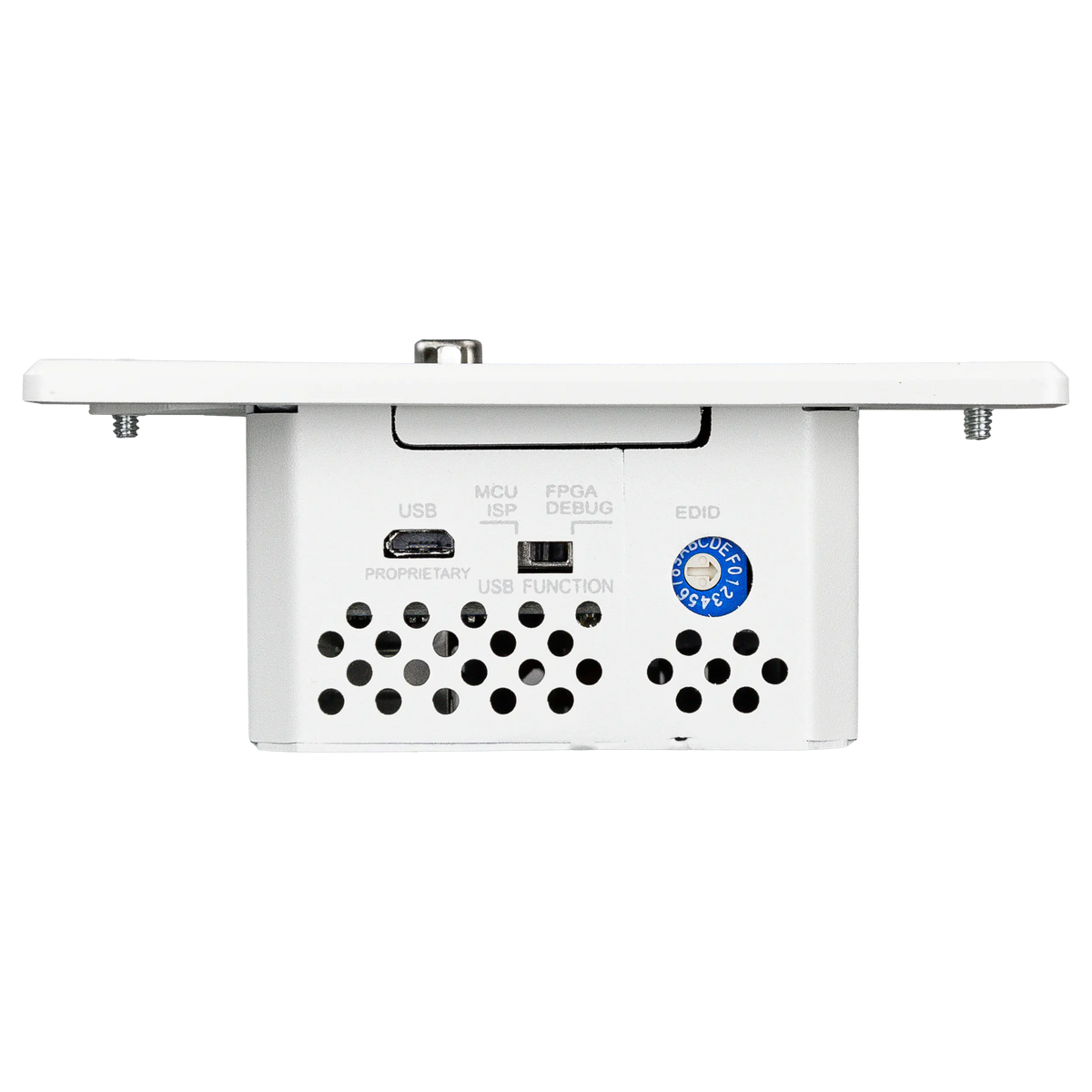

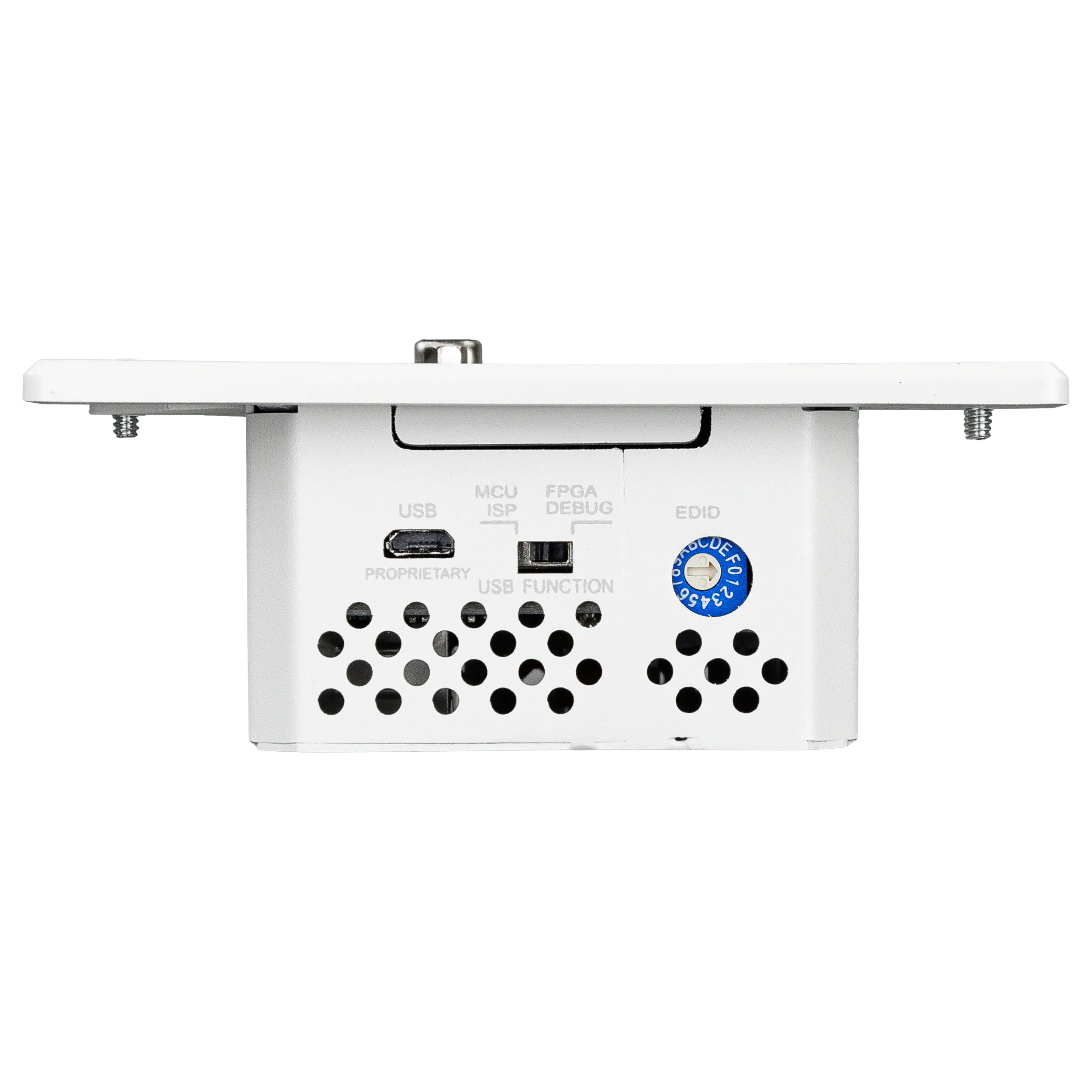

USB Support 1 x USB 2.0 Type-B (KVM), 1 x USB Micro (Service)
Operating Temperature 23 to 125°F (-5 to 51°C)

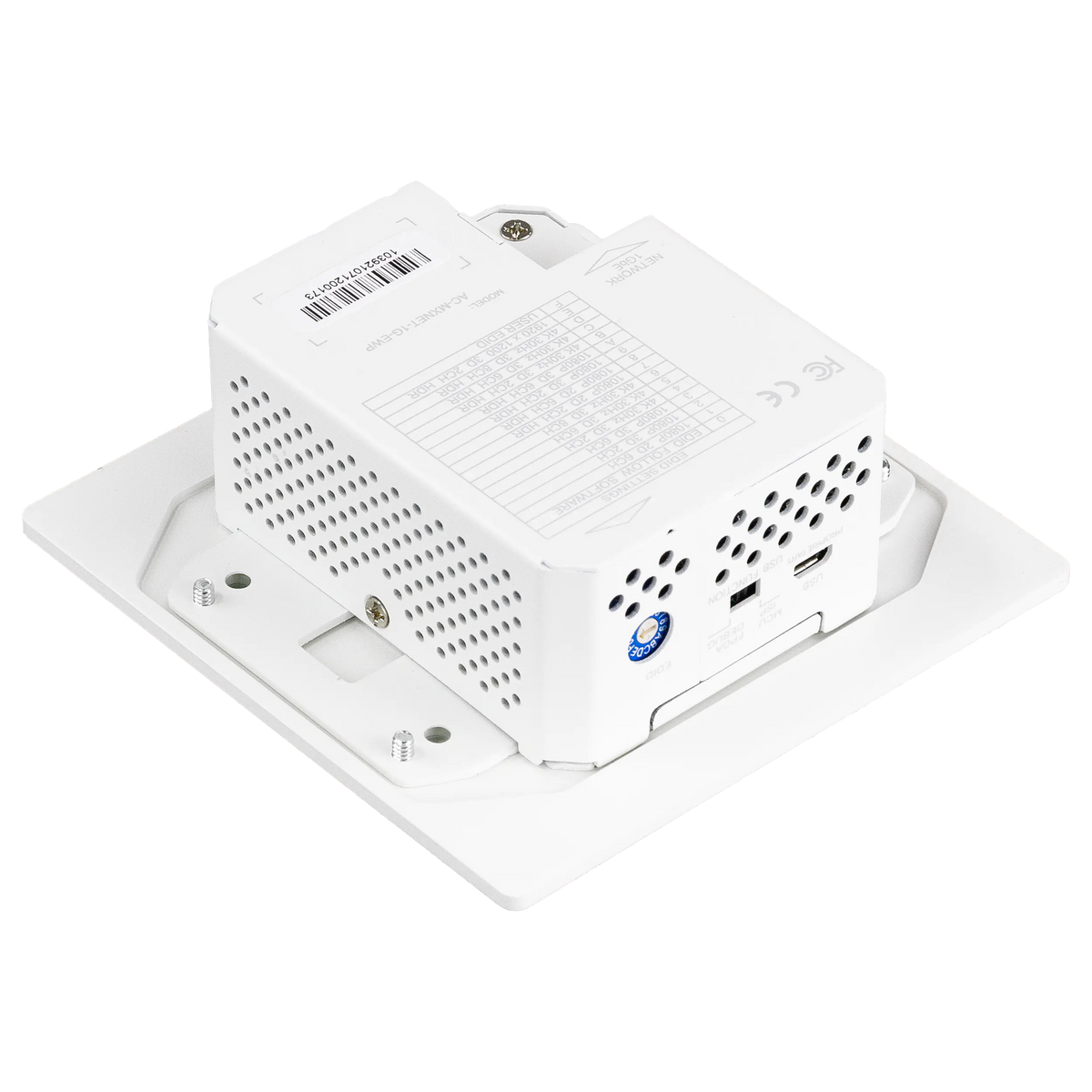

Mounting Fits dual-gang mud ring
