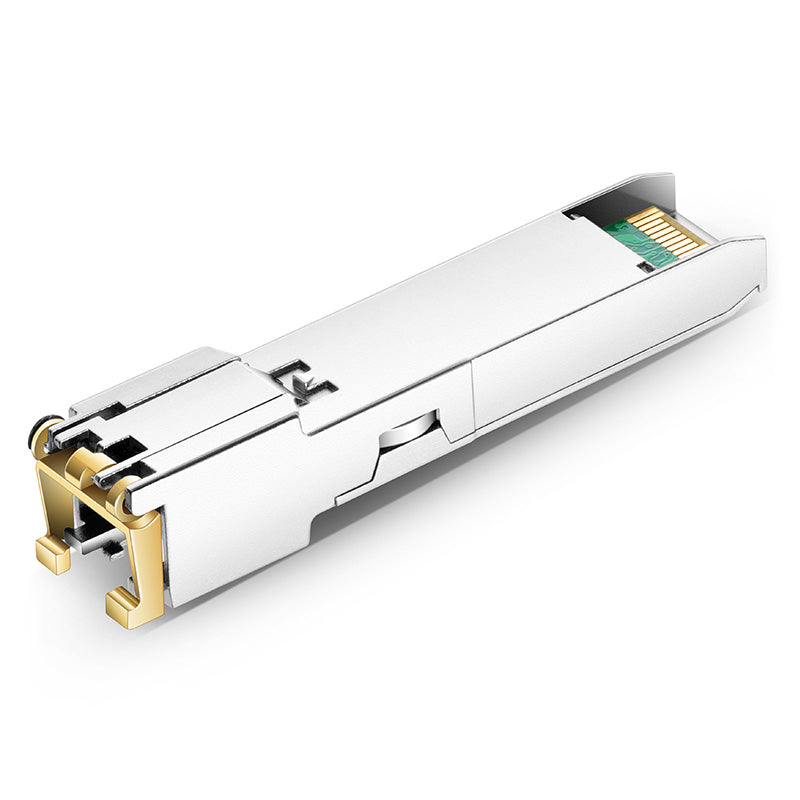

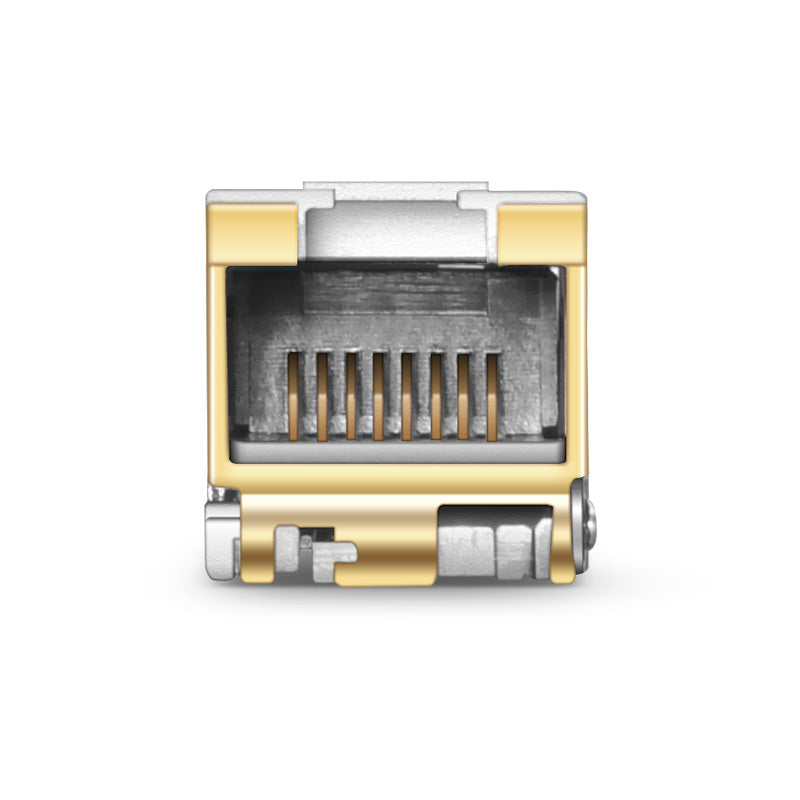

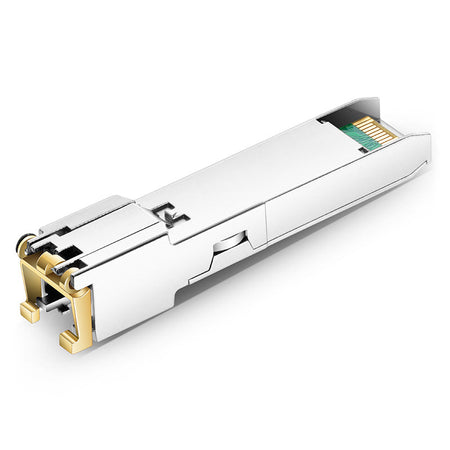

AVPro Edge MXnet 1G SFP Copper RJ-45 Transceiver Module
Regular price
$61.00
Couldn't load pickup availability
Frequently Asked Questions
What is the purpose of an SFP module?
An SFP module is used to add or change a network connection type on a switch, router, encoder, decoder, or other compatible device. It plugs into an SFP port and acts as the interface between the device and the network cabling. In simple terms, it lets you choose the media type and connection format your system will use.
This AVPro Edge MXnet 1G SFP module is designed for copper networking over standard RJ-45 connections, so it is a practical choice when you want to use existing Cat 5e, Cat 6, or Cat 6a cable rather than fiber. It supports 1 Gigabit Ethernet up to 100 meters and is hot-pluggable, which helps simplify installation or replacement in professional AV and IT environments.
It is especially useful for integrators and facility managers who need reliable network links for AV over IP systems without reworking the cable infrastructure. The main limitation is speed and distance compared with higher-bandwidth or fiber-based options, so it is best for 1G applications where copper cabling is already in place.
What is the difference between an SFP module and a transceiver?
In most networking conversations, an SFP module is a type of transceiver. A transceiver is the broader category, meaning a device that both transmits and receives data. An SFP module is the compact plug-in format that houses that transceiver function.
So when someone says "SFP" and someone else says "transceiver," they are often talking about the same part from two different angles: the form factor versus the function. This product is an SFP transceiver module, which means it plugs into an SFP slot and handles bidirectional data communication over copper Ethernet using an RJ-45 connector.
For buyers, the practical decision is less about the terminology and more about matching the module to the port type, cable type, speed, and distance requirements. This model supports 1G data rates, standard RJ-45 copper cabling, and runs up to 100 meters. That makes it a good fit for users who need a Gigabit copper uplink or network connection in compatible AV or IT hardware.
What's the difference between a transceiver and a transmitter?
A transmitter only sends data in one direction, while a transceiver both sends and receives data. In networking, most pluggable modules used in switches and AV over IP systems are transceivers because network communication is two-way.
That distinction matters when you are selecting hardware for Ethernet or managed network environments. A standard SFP networking module like this AVPro Edge MXnet 1G unit is a transceiver, not just a transmitter. It supports full communication over a copper RJ-45 connection at up to 1000 Mbps, using Cat 5e, Cat 6, or Cat 6a cable, and reaches distances up to 100 meters.
This is the right choice for users who need a normal Ethernet link between compatible devices. If you were shopping for a one-way signal device, that would typically be in a different product category entirely. For most professional AV, switching, and network integration projects, a transceiver is the expected and necessary option because devices must both send control and receive data.
When should I choose a copper RJ-45 SFP instead of a fiber SFP?
Choose a copper RJ-45 SFP when your system already uses structured Ethernet cabling and your run length stays within 100 meters. A copper SFP is often the easiest way to connect an SFP port to standard Cat 5e, Cat 6, or Cat 6a cabling without introducing fiber infrastructure.
This AVPro Edge MXnet 1G SFP is built for that exact use case. It provides a 1 Gigabit connection over RJ-45, is hot-pluggable, and supports cable distances up to 100 meters. That makes it well suited for AV racks, classrooms, conference rooms, and commercial spaces where copper network cabling is already installed.
A fiber SFP is usually the better choice when you need much longer runs, greater resistance to electrical interference, or specific network backbone requirements. The tradeoff is that fiber can add complexity and often requires different cabling and connectors. If your goal is simple, reliable Gigabit connectivity over existing copper infrastructure, a copper RJ-45 SFP is typically the more practical option.
Is a 1G SFP fast enough for professional AV and networked control systems?
Yes, a 1G SFP is often fast enough for many professional AV and networked control applications, provided the rest of the system is also designed around 1 Gigabit networking. It is commonly used for AV over IP deployments, managed switches, control traffic, and device interconnects where 1000 Mbps meets the bandwidth requirement.
This AVPro Edge MXnet transceiver supports a maximum data rate of 1000 Mbps and has been tested with MXnet switches for performance and reliability. It is a strong fit for installations that need stable Gigabit connectivity over standard copper cabling. The low power draw of 1.2W or less also makes it practical in dense switch environments.
The key tradeoff is future bandwidth headroom. If your network design requires multi-gigabit throughput, larger aggregation capacity, or higher-speed backbone links, then a 1G module may be too limited. For users deploying or maintaining a Gigabit-based AV or Ethernet environment, though, 1G remains a standard and effective choice.
How do I know if this SFP transceiver will work with my switch or AV device?
The main things to verify are the port type, speed, media type, and compatibility requirements of your device. This module requires a standard SFP slot, supports 1 Gigabit operation, and uses copper Ethernet with an RJ-45 connector rather than fiber. It is also MSA compliant, which generally improves interoperability across compatible hardware.
For this AVPro Edge MXnet module, you should confirm that your switch, router, or AV endpoint accepts 1G copper SFP transceivers and does not impose a vendor-specific lockout. It has been specifically tested with MXnet switches, which is especially relevant for professional AV installations using that ecosystem.
This product is best for buyers who want to connect SFP-enabled equipment to existing Cat 5e, Cat 6, or Cat 6a cabling over distances up to 100 meters. The main limitation is that not every device accepts every third-party SFP, even when the form factor matches. Checking the hardware manual or approved transceiver list is the safest step before purchase.
Can I use this SFP module with existing Cat 5e or Cat 6 cable?
Yes, this module is designed to work with existing copper Ethernet cabling, including Cat 5e, Cat 6, and Cat 6a. That is one of its biggest advantages for upgrades or AV system expansions because it allows you to use standard RJ-45 terminated network cable rather than installing fiber.
The AVPro Edge MXnet 1G SFP supports 1000 Mbps over copper and can reach up to 100 meters, which aligns with standard Ethernet distance limits for these cable types. For many schools, offices, houses of worship, and commercial AV projects, that makes it a straightforward solution when SFP-equipped hardware needs to connect into a structured cabling system.
Users benefit most when the existing cabling is already tested and in good condition. The tradeoff is that cable quality, termination quality, and environmental noise can still affect real-world performance. If the cabling is damaged, poorly terminated, or installed beyond recommended lengths, a copper SFP may not perform as expected even though the module itself supports the correct standards.
What cable distance does this copper SFP support?
This copper SFP supports cable distances up to 100 meters. That is the standard maximum length for Gigabit Ethernet over twisted-pair copper cable and is appropriate for many room-to-rack, floor-to-floor, or building-area network runs using structured cabling.
Specifically, the AVPro Edge MXnet 1G SFP is rated for operation over Cat 5e, Cat 6, and Cat 6a cable with an RJ-45 connection. That makes it a practical choice for installations where the network path is already built on copper and falls within normal Ethernet length guidelines.
This distance specification is most helpful for integrators planning AV over IP or network-connected systems in conference rooms, education spaces, and other commercial environments. The limitation is that 100 meters is the ceiling for copper in this category. If your design needs much longer runs, a fiber-based transceiver is usually the better fit. It is also important to remember that patch panels, couplers, and poor cable quality can reduce real-world reliability even within the rated distance.
Is this SFP module hot-swappable, and why does that matter?
Yes, this module is hot-pluggable, which means it can be inserted or removed from a compatible powered device without fully shutting the system down. That matters because it can reduce service interruption during maintenance, replacement, or configuration changes in live environments.
For professional AV and IT teams, hot-swappability is especially useful in racks, control rooms, and managed network deployments where uptime matters. This AVPro Edge MXnet 1G SFP can be deployed as a plug-and-play copper networking option for compatible SFP ports, making it easier to adapt a port to standard RJ-45 Ethernet without major downtime.
The practical benefit is faster troubleshooting and less disruption when modules need to be changed. The limitation is that "hot-swappable" does not mean every network will instantly renegotiate with no interruption at all. Depending on the switch or connected devices, the link may briefly drop while the new module initializes. Even so, hot-pluggable design is a valuable feature for serviceability and efficient installation.
What should I look for when buying a networking transceiver module for AV over IP?
Start by matching the transceiver to your device port, network speed, cable type, and installation distance. For AV over IP, you also want proven reliability, low power use, and compatibility with the switch or endpoint platform you are using. A mismatch in any of those areas can cause connection issues even if the module physically fits.
This AVPro Edge MXnet 1G SFP is a good example of what to evaluate. It uses the SFP form factor, supports 1 Gigabit Ethernet, connects over RJ-45, works with Cat 5e, Cat 6, and Cat 6a cable, and reaches up to 100 meters. It is MSA compliant, uses a Marvell chip, and has been tested with MXnet switches, which adds confidence for professional AV deployments.
This type of module is best for users building or maintaining Gigabit AV networks on existing copper infrastructure. The main tradeoff is that it is not intended for higher-speed or long-distance fiber applications. If your project is centered on stable 1G copper connectivity in an AV environment, these are exactly the specs you should prioritize.
Enhance your network infrastructure with the AVPro Edge MXnet 1G SFP Transceiver. This module provides a reliable 1G bandwidth connection over existing copper infrastructure using standard RJ-45 connectors. Designed for seamless integration, it is hot-pluggable and fully MSA compliant, ensuring broad compatibility with networking devices. Featuring a high-performance Marvell chip, the module maintains a low power consumption of just 1.2W. It has been rigorously tested with MXNet switches to guarantee superior performance, quality, and long-term reliability. The transceiver is suitable for professional AV and networking environments, supporting cable distances up to 100 meters. Experience stable data transmission with this efficient, plug-and-play networking solution.
| Form Factor | SFP |
| Connector Type | RJ-45 |
| Maximum Cable Distance | 100m |
| Maximum Data Rate | 1000Mbps |
| Power Consumption | ≤1.2W |
| Media Support | Cat 5e/6/6a |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| MTBF | 217,330 Hours |
