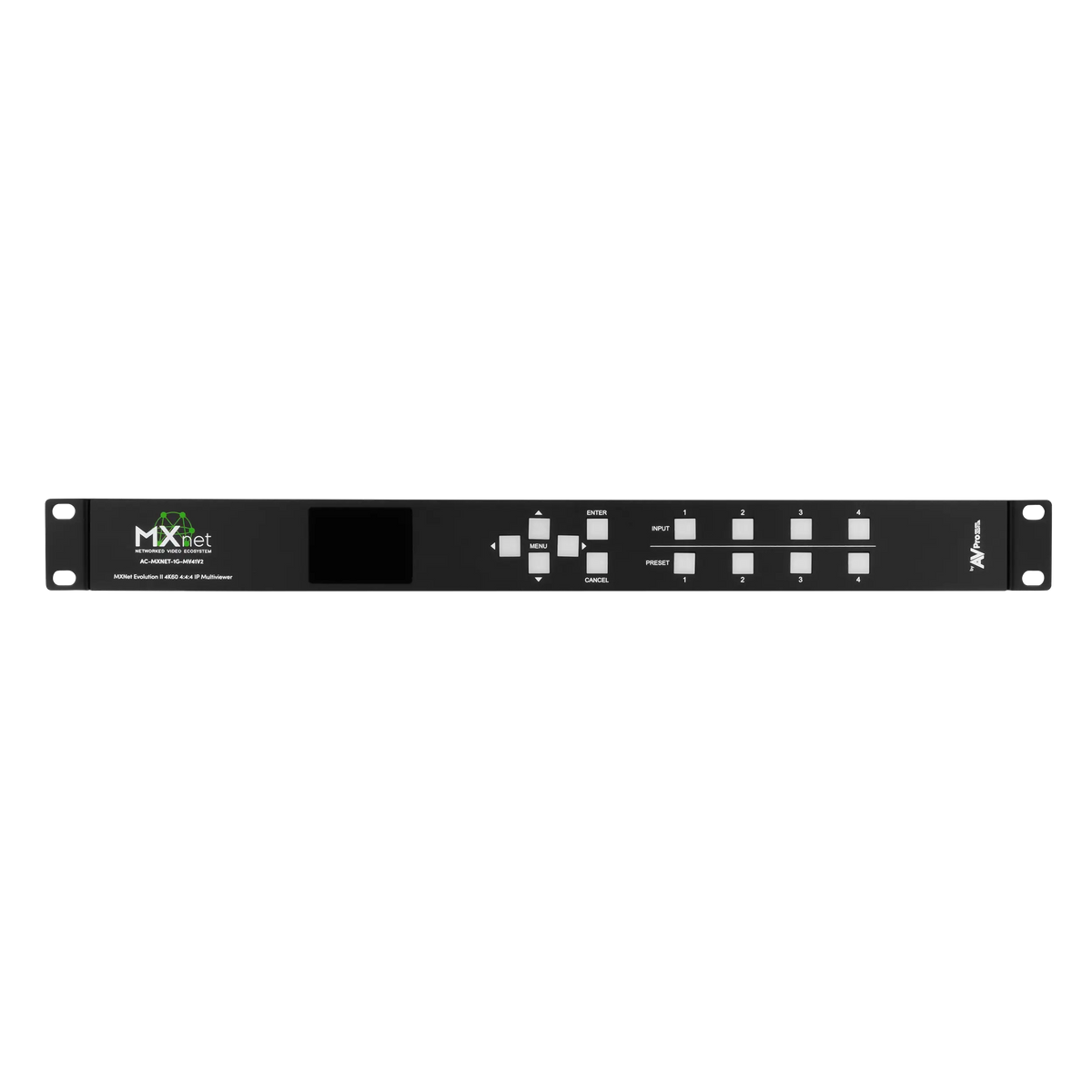

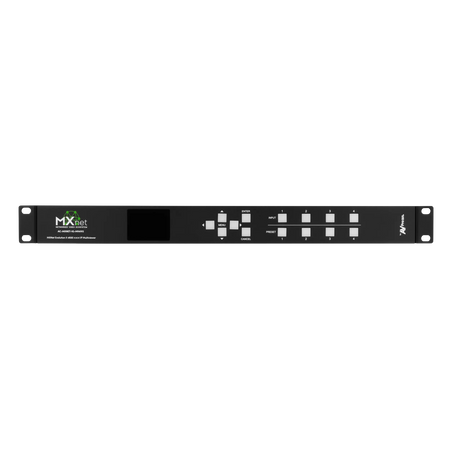

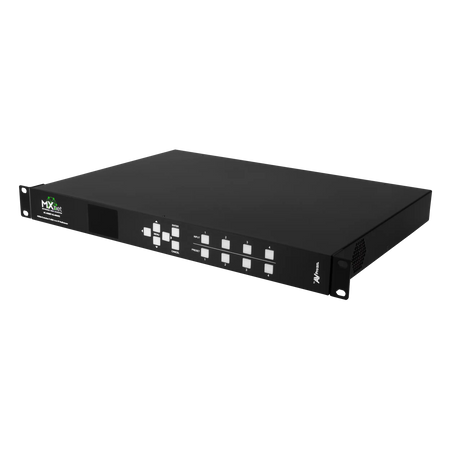

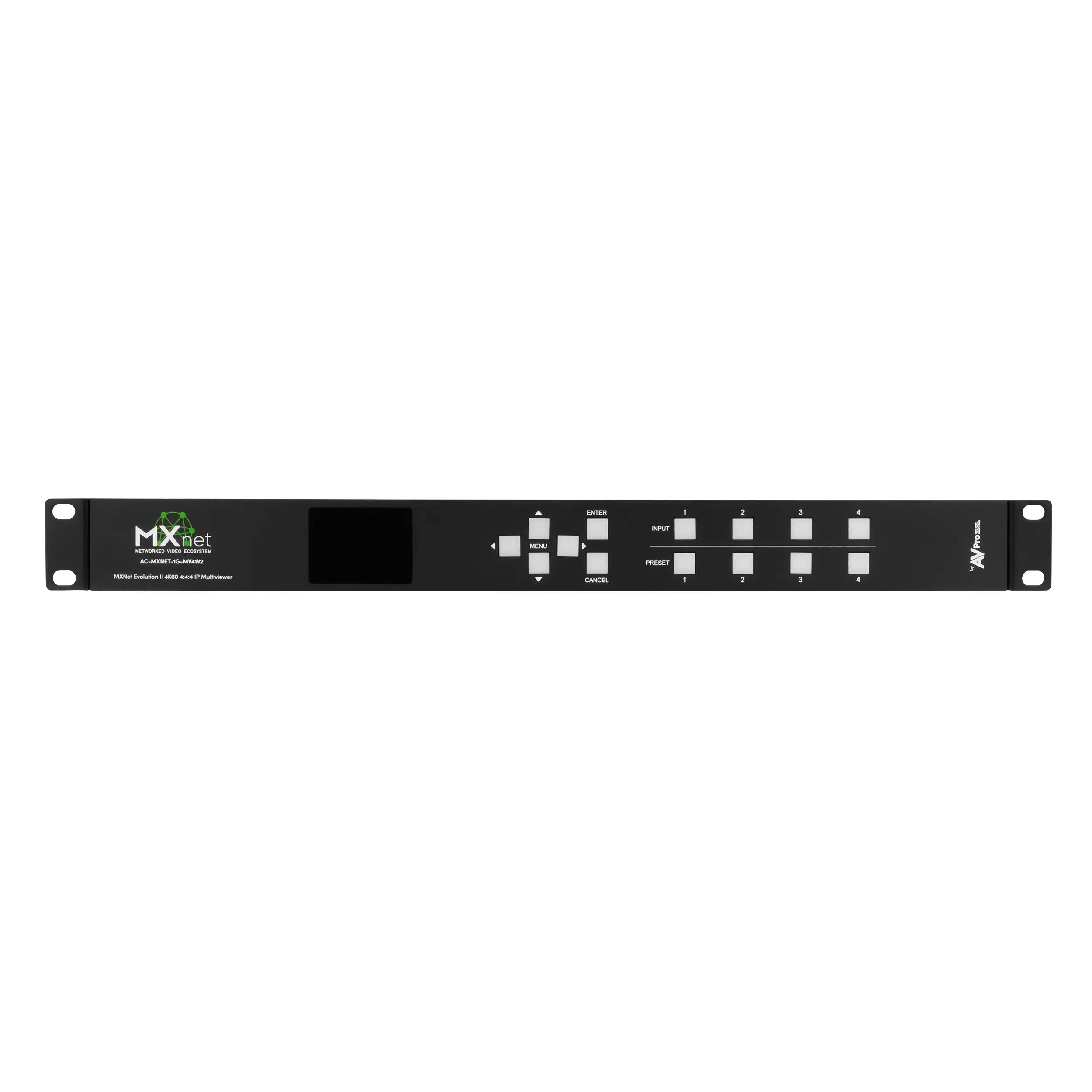

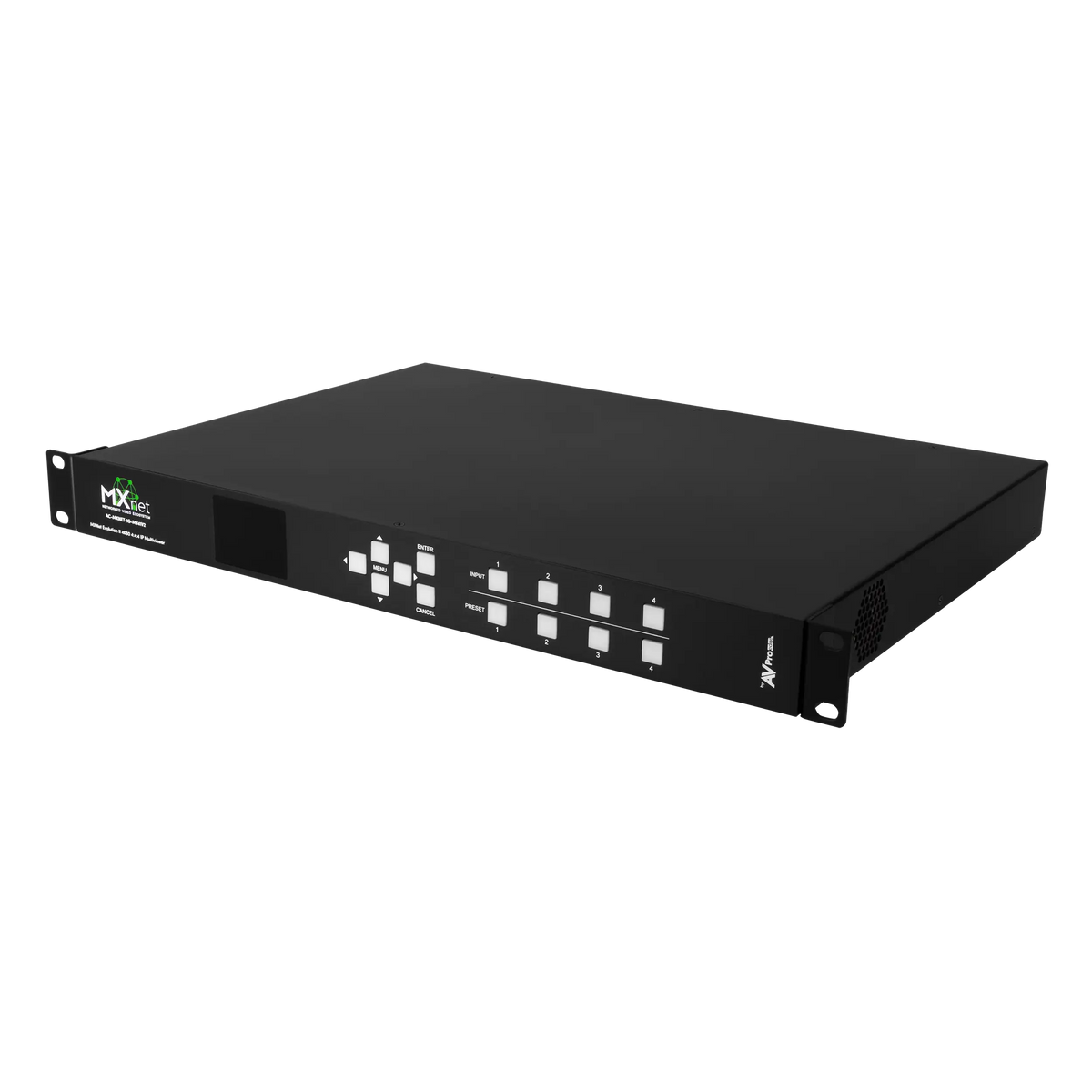

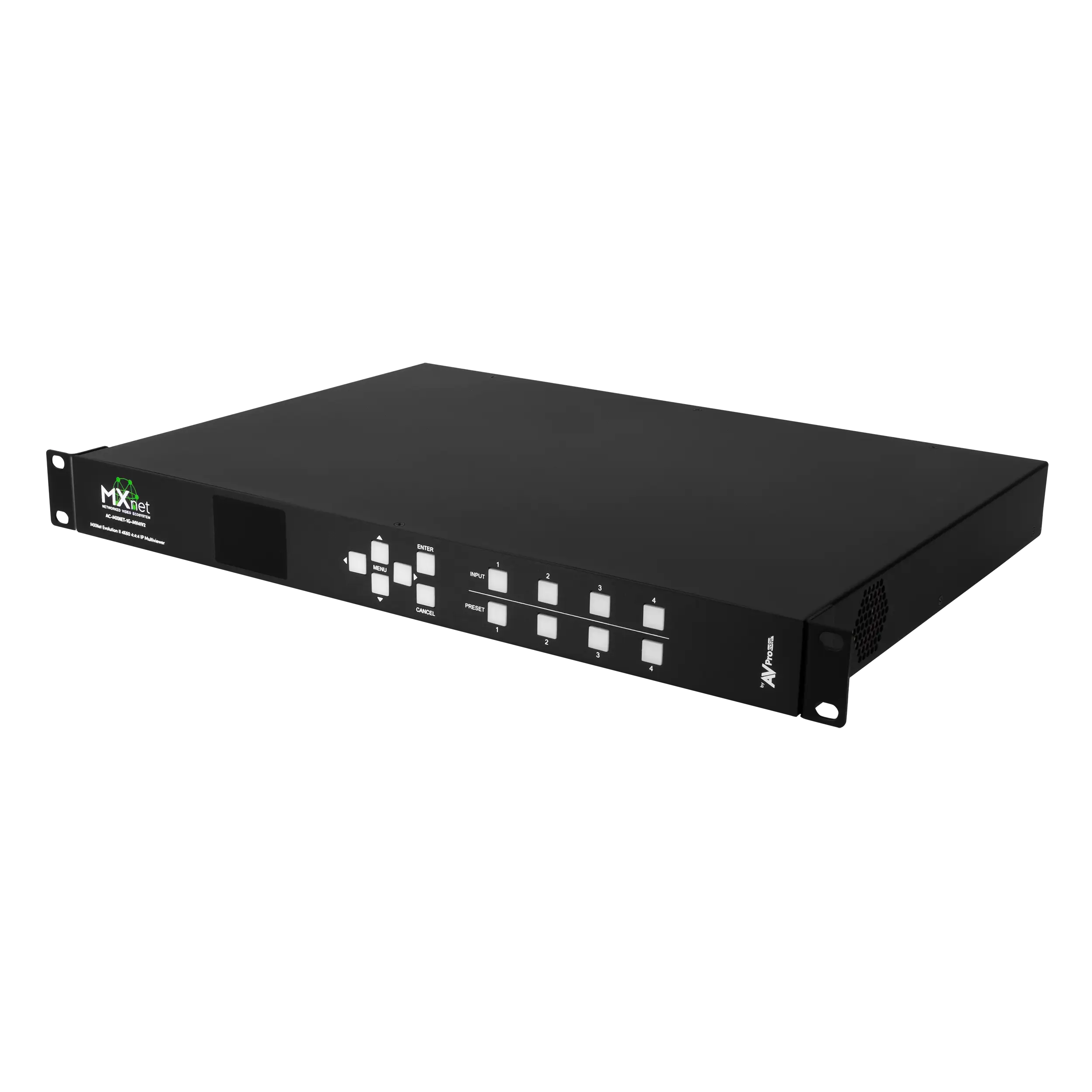

AVPro Edge MXnet 1G Evolution II 4K 4x1 Multi-viewer

The MXnet Evolution II Multi-viewer redefines video tiling and the multi-source viewing experience. It combines four 4K video streams from any MXnet Evolution II encoder to create a customized multi-view output. This output can be displayed directly via HDMI or re-encoded for transmission to any MXnet decoder on the network. Featuring a compact 1RU rack-mountable design, it is ideal for both residential and commercial installations. Users can easily customize window layouts in real-time using the MXnet Mentor interface. The device supports a wide range of audio formats including PCM, Dolby Digital, and DTS. It also provides robust third-party control support for seamless system integration. This multi-viewer simplifies complex video setups, offering professional-grade performance and flexibility.

Signal Type	DVI 1.0, HDMI 2.0b
Video Resolution	4K/60 fps, 1080p, 720p
Audio Formats	PCM 2, 5.1, 7.1, Dolby Digital, DTS, Dolby Atmos

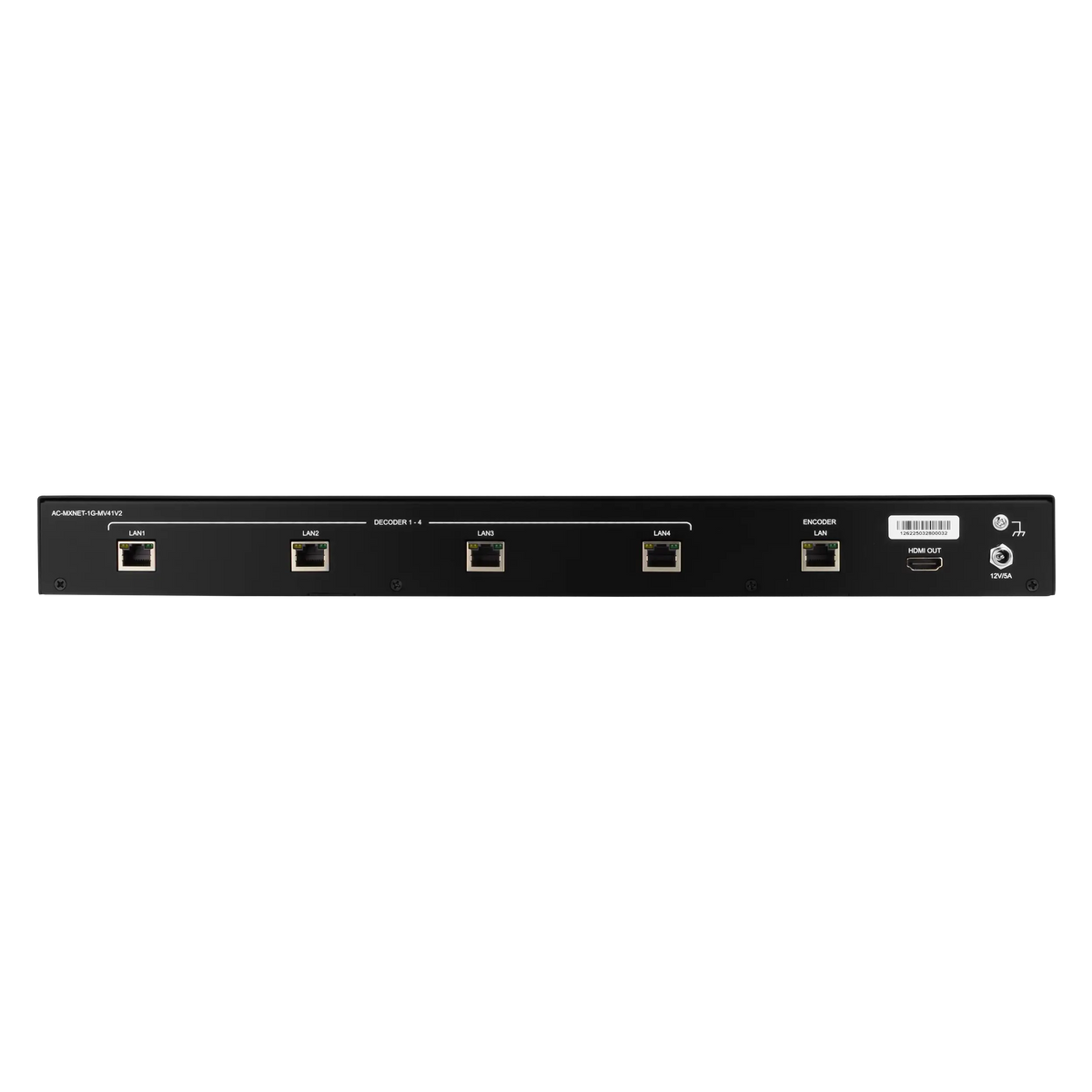

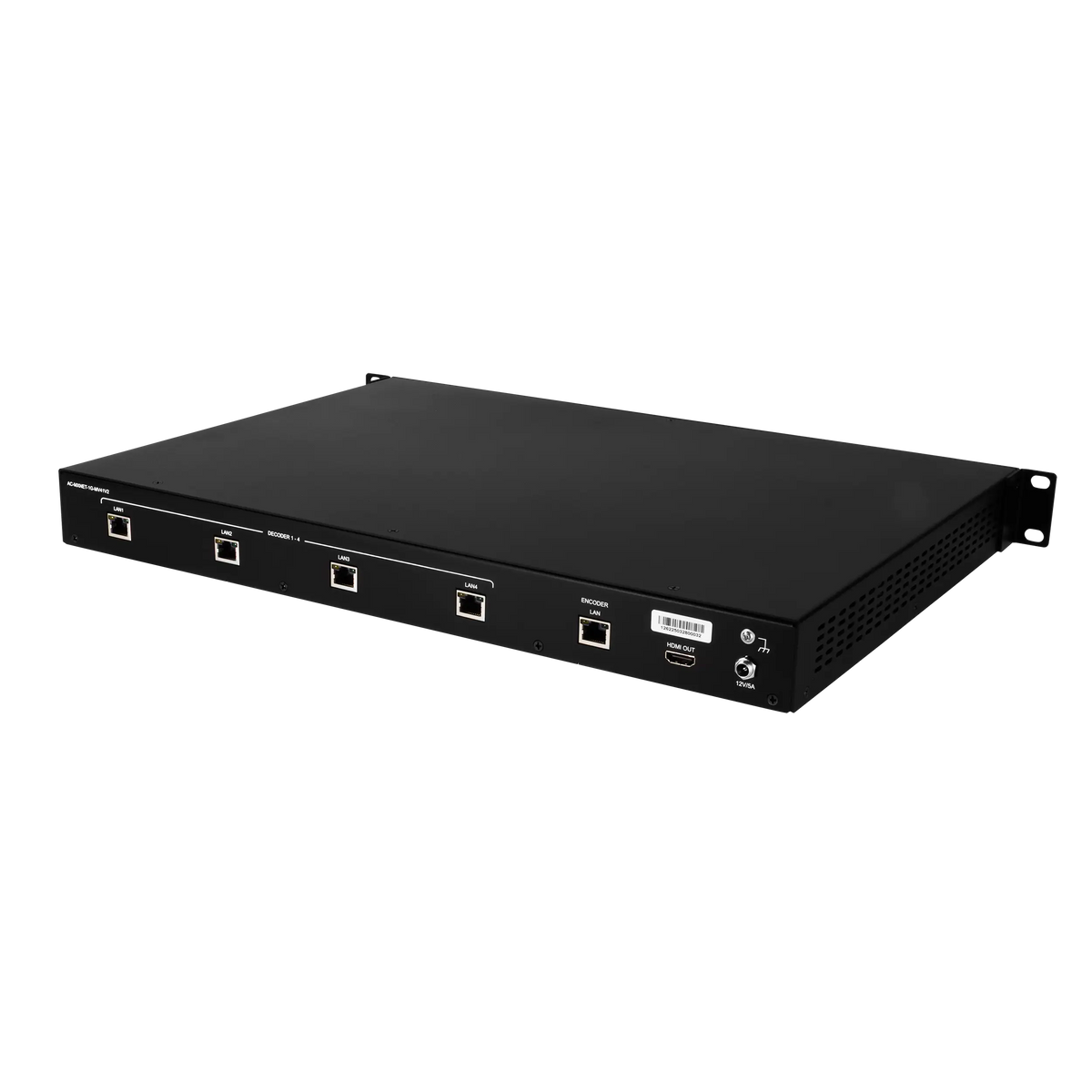

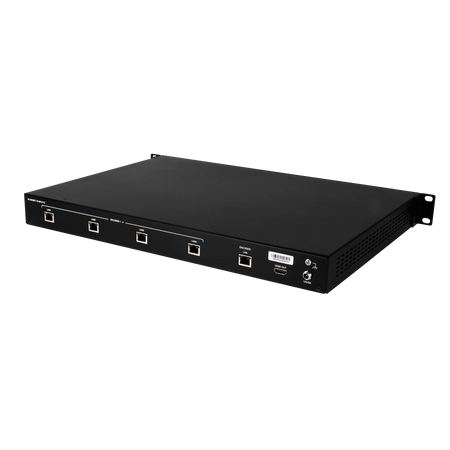

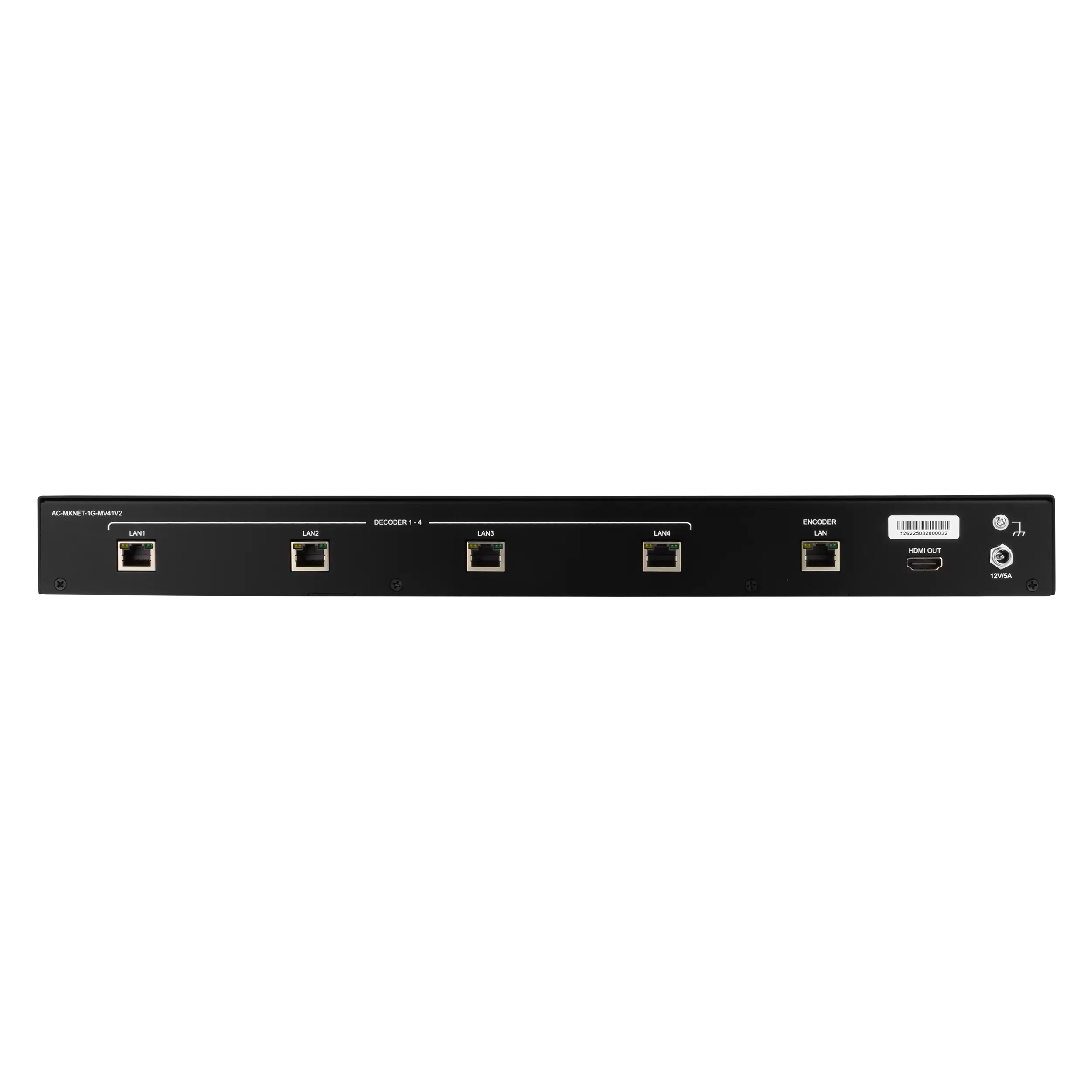

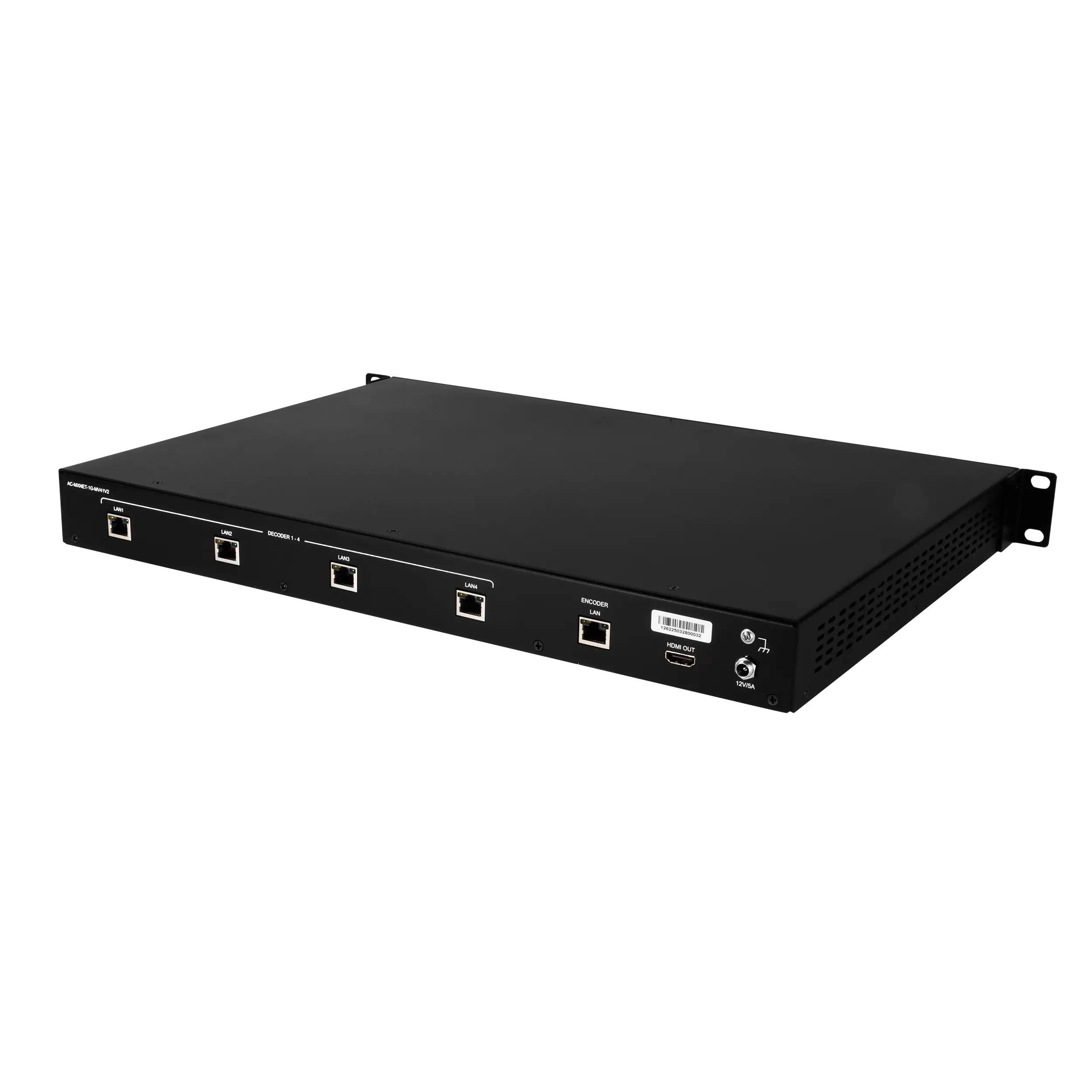

Ethernet Ports	(5) x female RJ45
HDMI Output	(1) x HDMI Type A
Operating Temperature	23°F to 125°F
Unit Dimensions	17.31 x 12.44 x 1.75 inches
Unit Weight	9.34 lbs
Power Consumption	23.04 W
