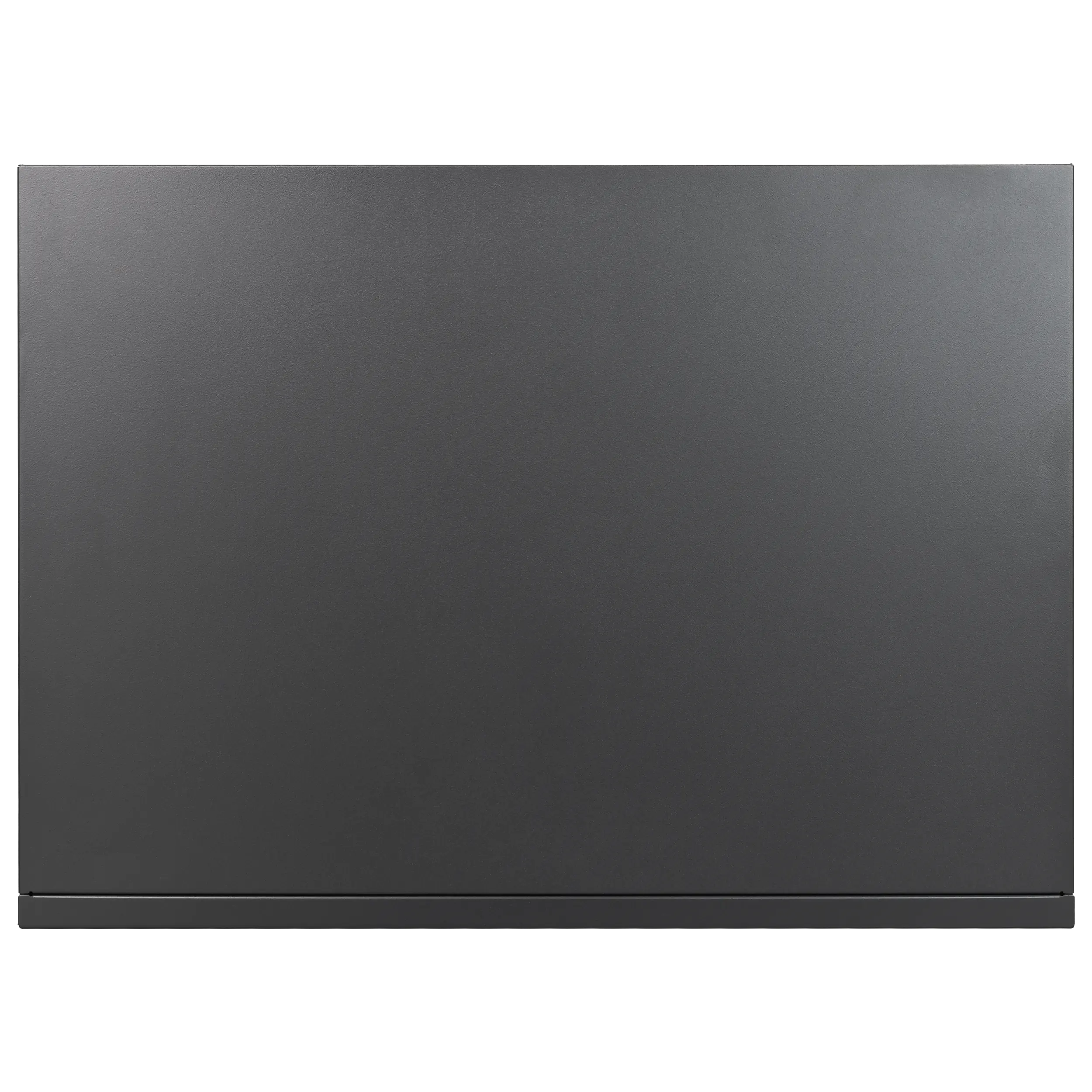

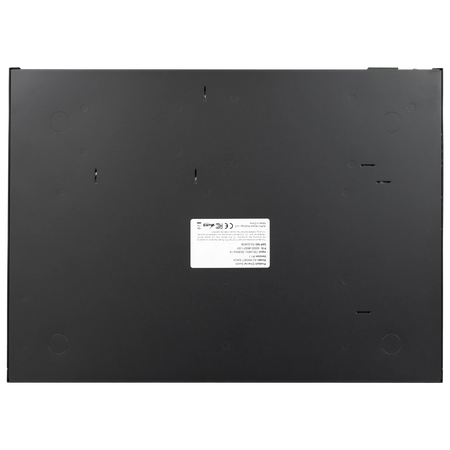

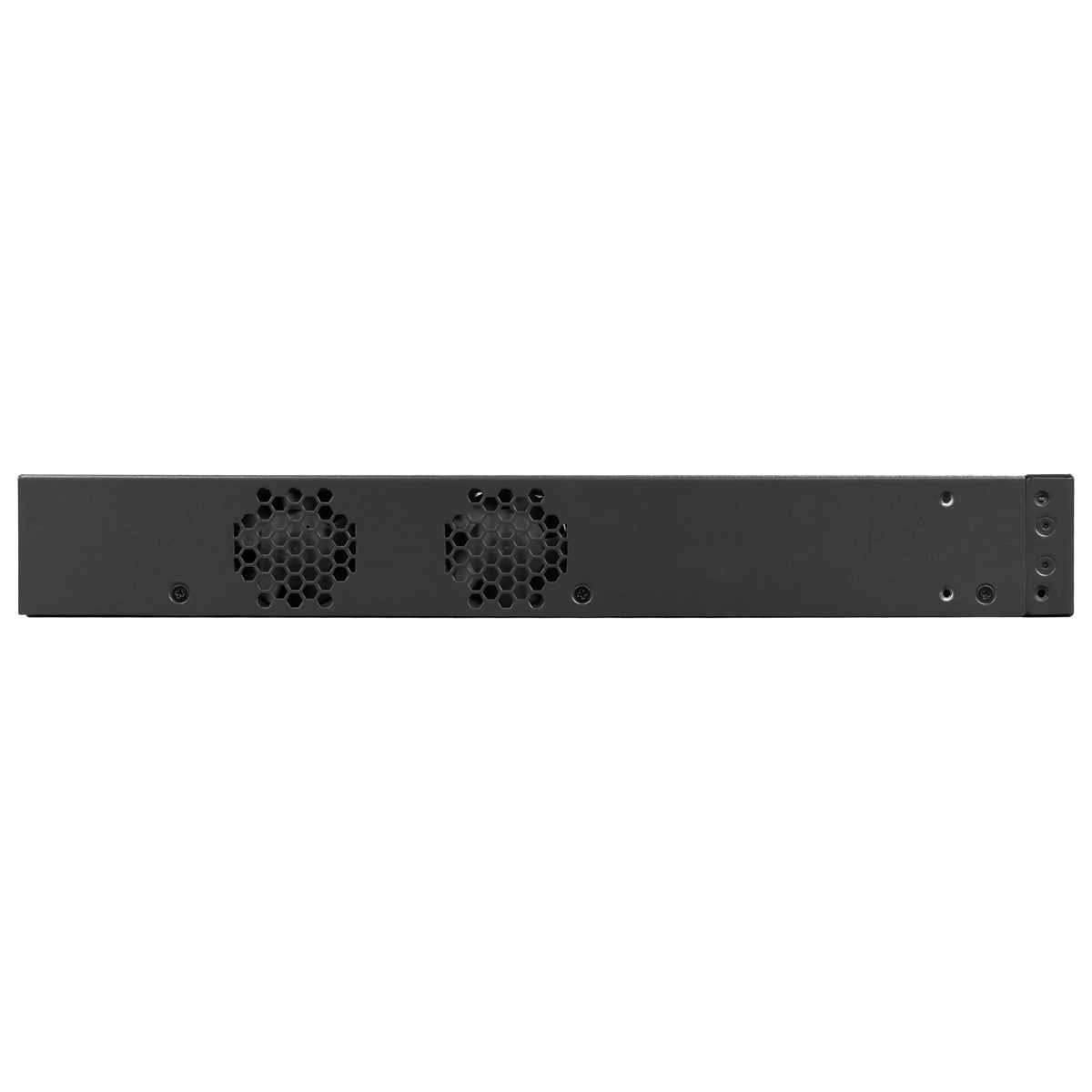

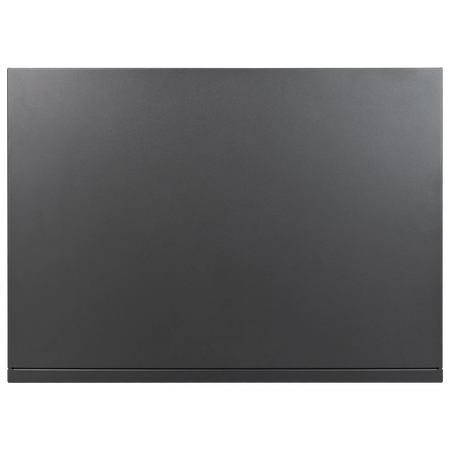

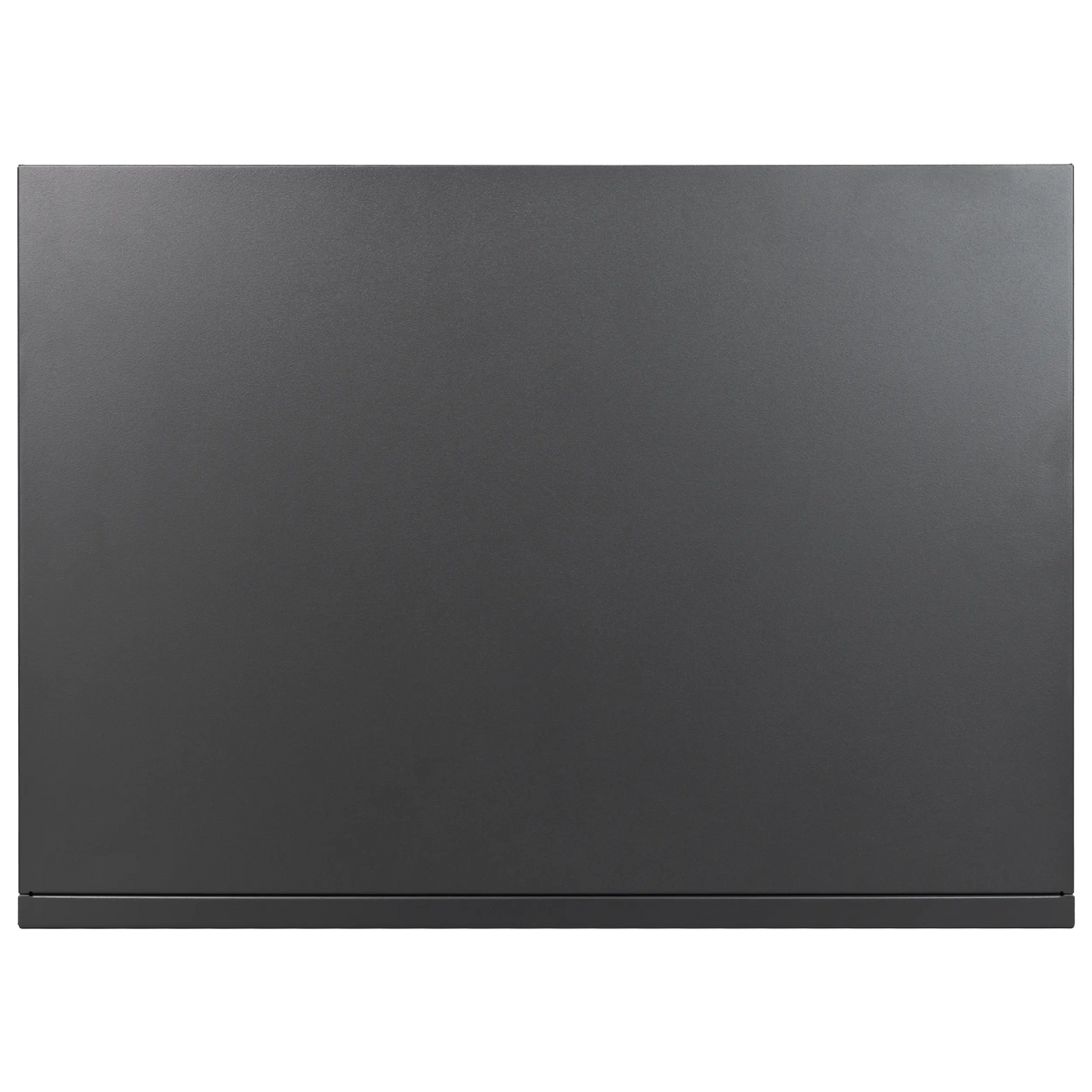

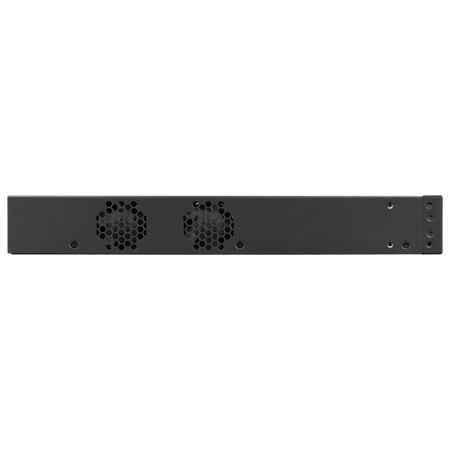

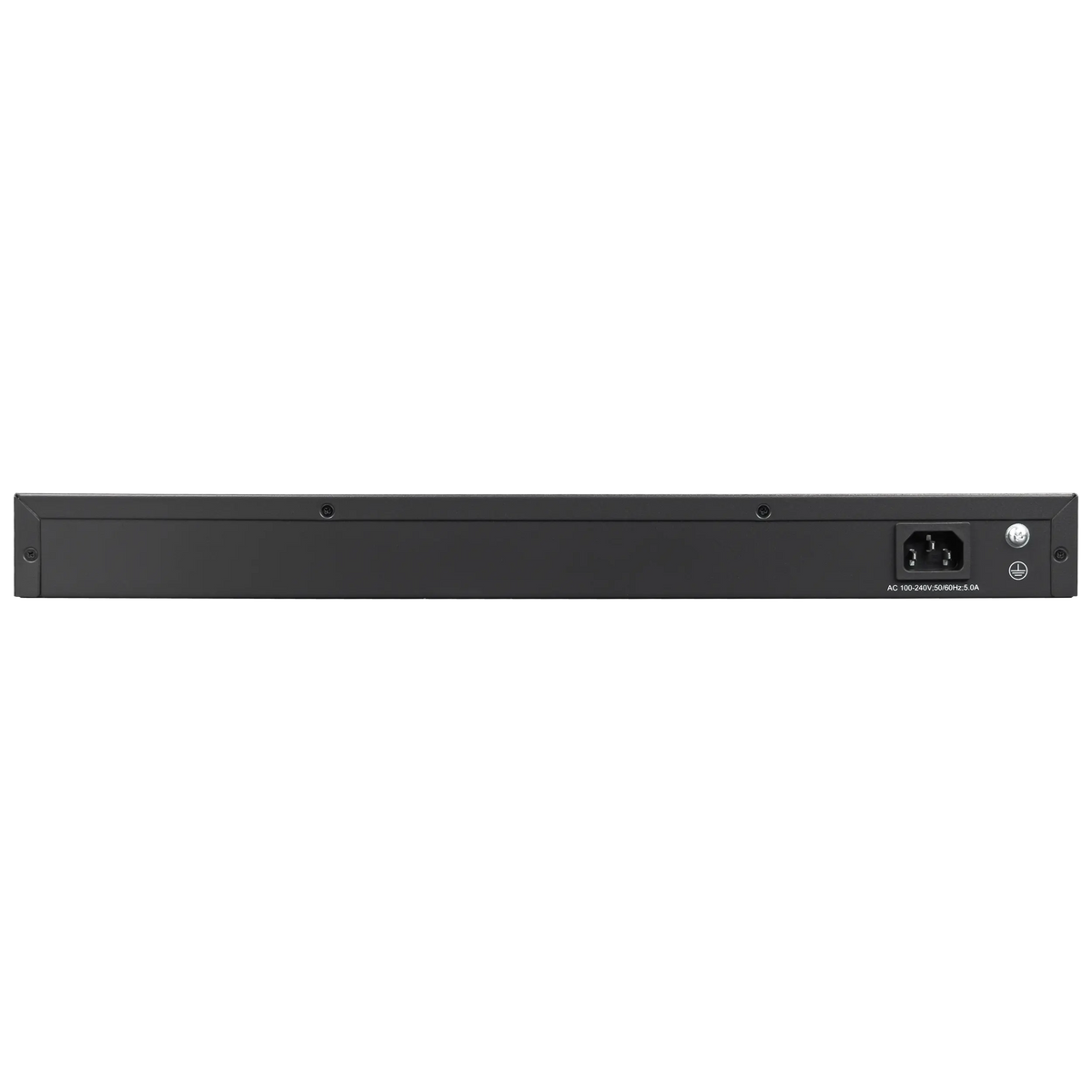

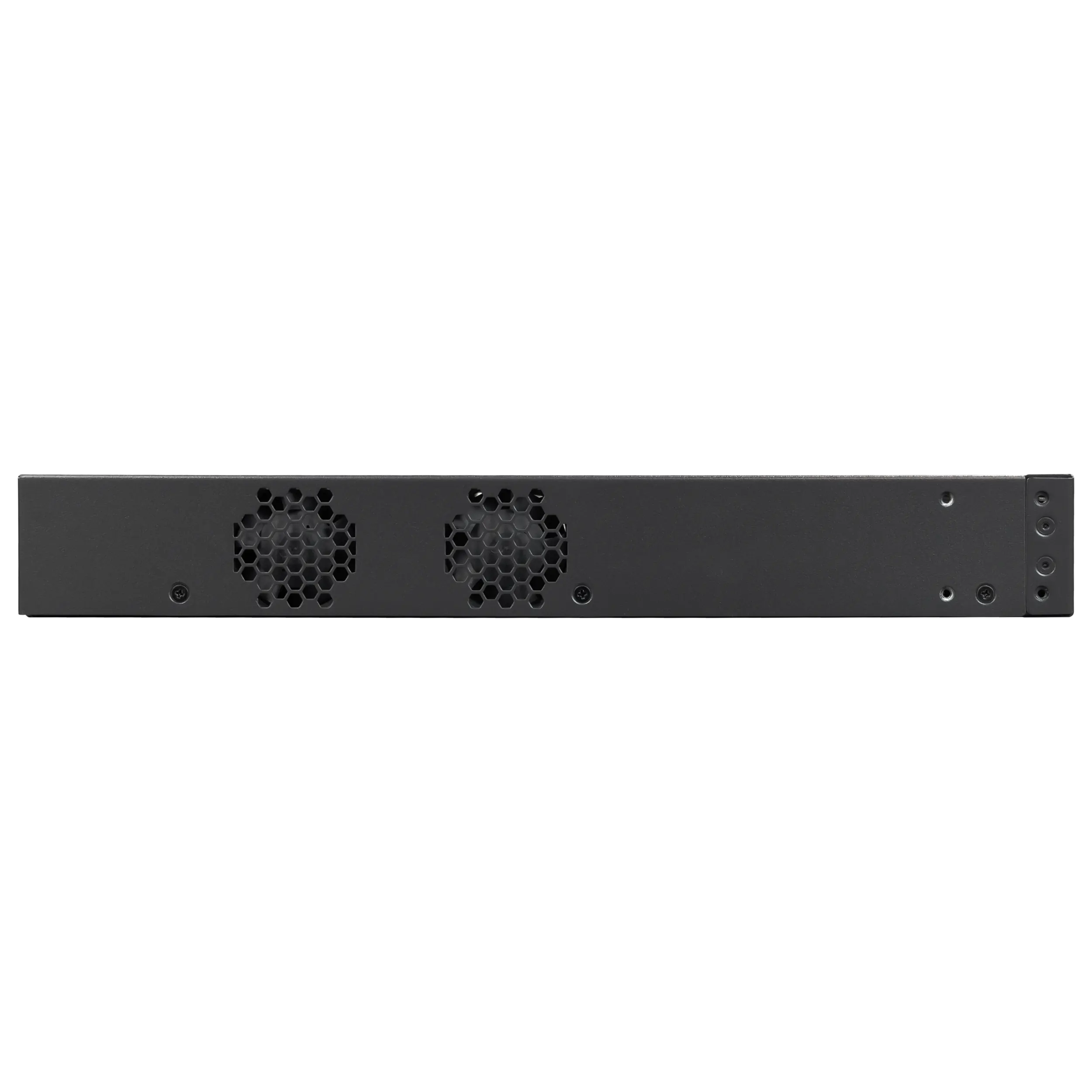

AVPro Edge MXnet 1G 24 Port Network Switch
Regular price
$5,036.00
Couldn't load pickup availability
Frequently Asked Questions
What is an AV switch, and how is it different from a standard network switch?
An AV switch for AV-over-IP is a network switch used to move audio, video, and control signals across an Ethernet network. Unlike a basic office switch, an AV-focused switch is selected for multicast handling, predictable latency, PoE power delivery, and compatibility with protocols commonly used in professional A/V systems.
The AVPro Edge MXnet 1G 24 Port Network Switch is built for that type of workload. It supports IGMP for efficient multicast traffic management, Jumbo Frames for large packet handling, and provides 20 PoE copper ports plus 4 combo GE ports and 4 high-speed 10Gbps SFP+ uplinks. It is designed to support high-bandwidth AV-over-IP distribution while maintaining low average latency of about 35 ms within an MXnet ecosystem.
This type of switch is best for integrators, classrooms, corporate spaces, and entertainment venues that need dependable signal distribution across multiple endpoints. A standard unmanaged switch may work for light data traffic, but it often lacks the traffic controls, uplink capacity, and power features needed for reliable professional AV deployment.
What should I look for in a network switch for AV-over-IP systems?
The most important features in an AV-over-IP network switch are multicast support, enough bandwidth for the number of endpoints, PoE capacity, uplink speed, and stable low-latency operation. AV traffic behaves differently from normal office traffic, so the switch must be able to manage video streams efficiently without congestion.
For example, this AVPro Edge MXnet switch includes 24 total ports, with 20 Gigabit PoE copper ports for endpoints, 4 combo GE ports for flexible copper or fiber connections, and 4 separate 10Gbps SFP+ uplinks for aggregation or backbone connections. It also supports IGMP and Jumbo Frames, both of which are important in many AV-over-IP designs. A 370W PoE budget helps power connected devices without needing separate injectors in many installations.
This matters most for users building distributed video systems in schools, meeting spaces, digital signage networks, or control environments. If the system is very small, a simpler switch may be enough. If the system is large or growing, uplink speed and proper multicast support become especially important.
Is a 1G switch good enough for AV-over-IP video distribution?
Yes, a 1G switch can be a good fit for AV-over-IP, but it depends on the codec, endpoint count, and overall network design. Many modern AV-over-IP platforms are engineered to work over Gigabit Ethernet at the edge, especially when encoders and decoders are designed for 1G operation.
The AVPro Edge MXnet 1G 24 Port Network Switch is intended for that kind of deployment. It provides Gigabit access ports for endpoints and adds 10Gbps SFP+ uplinks to help move aggregated traffic upstream without bottlenecks. That combination is useful when multiple AV streams need to be distributed across rooms, racks, or network segments. The switch also supports IGMP and Jumbo Frames, which help with efficient stream delivery.
This setup is well suited to many commercial AV installations that need reliable HD or high-quality distributed video over a managed network. The tradeoff is that if your design requires unusually high per-stream bandwidth or very large-scale aggregation, you may need to evaluate whether a higher-bandwidth architecture is more appropriate. For many professional MXnet-style systems, though, 1G edge switching is a practical and proven choice.
How many AV devices can this 24 port PoE switch support?
In practical terms, this switch can directly connect up to 20 PoE copper devices on its 20 10/100/1000BaseT ports, assuming those endpoints use RJ45 Ethernet and fit within the total 370W PoE budget. The additional combo GE ports and 10Gbps SFP+ uplinks are typically used for uplinks, fiber runs, or network expansion rather than powering standard PoE endpoints.
The real device count depends on power draw and network design. If each endpoint uses modest PoE, you can support many encoders, decoders, control devices, or other AV network hardware from the switch itself. If some devices have higher power requirements, the total PoE budget becomes the limiting factor before port count does.
This switch is a strong fit for medium to larger professional AV systems where multiple displays, sources, and control endpoints need centralized connectivity. Buyers should still plan port usage carefully, especially if they expect future expansion or want to reserve uplinks for a core switch or fiber backbone.
Why do 10Gbps uplink ports matter on an AV network switch?
10Gbps uplink ports matter because they help prevent traffic bottlenecks when multiple AV streams are aggregated from several edge ports and sent to another switch, a core network, or a separate rack. Even if endpoint devices connect at 1G, aggregated traffic can exceed 1Gbps across an uplink very quickly in a busy AV system.
This AVPro Edge MXnet switch includes 4 high-speed 10Gbps SFP+ uplink ports, which gives installers more flexibility for backbone links, inter-switch trunks, or longer fiber runs. That is especially useful in commercial spaces with many encoders and decoders, larger campuses, or systems split across multiple rooms. Faster uplinks also support cleaner scaling as the network grows.
The main benefit is design headroom. A smaller system in a single room may not fully use 10Gb uplinks, but a distributed AV deployment often will. If you expect multiple simultaneous streams or plan to link this switch to a larger AV network, high-speed uplinks are an important specification to have.
Does this switch support PoE for AV devices like encoders, decoders, and control hardware?
Yes, this switch supports PoE and is designed to power many common AV network devices directly from the switch. It includes 20 PoE copper ports and a total PoE budget of 370 watts, with support for IEEE 802.3af and IEEE 802.3at standards.
That means it can often power compatible encoders, decoders, control interfaces, touch panels, or similar AV endpoints without separate power supplies at each device location. This can simplify installation, reduce cable clutter, and make remote placement easier. In professional environments, that is especially useful when devices are mounted behind displays, in ceilings, or in lecterns.
The main limitation is that total power is shared across connected PoE devices. Buyers should add up the expected wattage of all connected hardware to confirm the system stays within the 370W budget. For many AV-over-IP systems, that budget is substantial, but power planning is still important in higher-density deployments.
What network features are important for multicast video, and does this switch include them?
For multicast video, the most important switch features usually include IGMP support, enough switching capacity, and the ability to handle large packets efficiently. These features help ensure that video streams are sent only where needed, reducing unnecessary network traffic and improving overall stability.
This switch includes IGMP support and Jumbo Frame support, both of which are relevant in AV-over-IP environments. IGMP helps manage multicast group membership so streams are delivered to the correct endpoints instead of flooding the entire network. Jumbo Frames can improve efficiency in systems that use larger packet sizes. The unit also offers a stated switching capacity of 364 Gbps and a forwarding rate of 432 GBps, reflecting a design intended for demanding signal distribution workloads.
This matters most for integrators and IT teams building managed AV networks in corporate, education, or venue settings. A switch without multicast-aware features can create traffic problems in distributed video systems, so these capabilities are a key part of selecting the right AV switch.
Is this switch suitable for conference rooms, classrooms, and other professional AV installations?
Yes, this switch is well suited to professional AV installations such as conference rooms, classrooms, training spaces, control rooms, and digital signage networks. Its design is aimed at AV-over-IP use, where reliable video distribution, centralized power, and stable network behavior are more important than basic office connectivity.
It offers 20 Gigabit PoE ports for endpoints, 4 combo GE ports for flexible connectivity, and 4 dedicated 10Gbps SFP+ uplinks for backbone or expansion links. Within an MXnet ecosystem, it is optimized for low average latency around 35 ms, which supports responsive switching and smooth signal delivery. Its support for IGMP and Jumbo Frames also aligns with common needs in multicast-based AV deployments.
It is best for buyers who need a managed, purpose-built switch for installed systems rather than a simple plug-and-play data switch. The tradeoff is that smaller, non-AV networks may not need this level of specialization. For professional environments with distributed sources and displays, though, the feature set is highly relevant.
Can I use a wireless network switch for AV systems instead of a wired AV switch?
In most professional AV-over-IP systems, a wired switch is the better choice. Wireless networking can be useful for control, guest access, or limited presentation workflows, but it is generally not the preferred backbone for high-bandwidth, low-latency AV signal distribution.
A wired AV switch like the AVPro Edge MXnet 1G 24 Port Network Switch provides predictable bandwidth, stable multicast performance, PoE for compatible devices, and dedicated uplinks for network expansion. Those qualities matter when distributing video and audio across multiple endpoints. Wireless links are more vulnerable to interference, variable throughput, congestion, and inconsistent latency, which can affect signal reliability.
Wireless AV options may still make sense for certain user-facing functions, such as BYOD presentation or flexible collaboration. However, the core infrastructure for a professional AV-over-IP deployment is usually wired Ethernet. Buyers planning classrooms, boardrooms, or larger distributed systems should treat wireless as a complementary layer, not a replacement for the primary AV switching network.
What are the tradeoffs between this AV network switch and a general-purpose switch?
The main tradeoff is specialization versus simplicity. A general-purpose switch may be enough for basic data networking, but an AV-focused switch is chosen for predictable performance with multicast video, PoE-powered AV endpoints, and higher-capacity uplinks for aggregated media traffic.
This AVPro Edge MXnet model is built around those needs. It combines 20 PoE Gigabit copper ports, 4 combo GE ports, and 4 separate 10Gbps SFP+ uplinks, along with IGMP and Jumbo Frame support. Those features make it more suitable for AV-over-IP environments than many entry-level or unmanaged switches. It is also backed by a 10-year warranty, which can matter for long-term installed systems.
The tradeoff is that not every network needs this feature set. If the project is a small office data network with no AV streaming, this may be more specialized than necessary. If the goal is reliable video distribution, centralized device power, and room to scale a professional A/V system, the added capability is usually worth prioritizing.

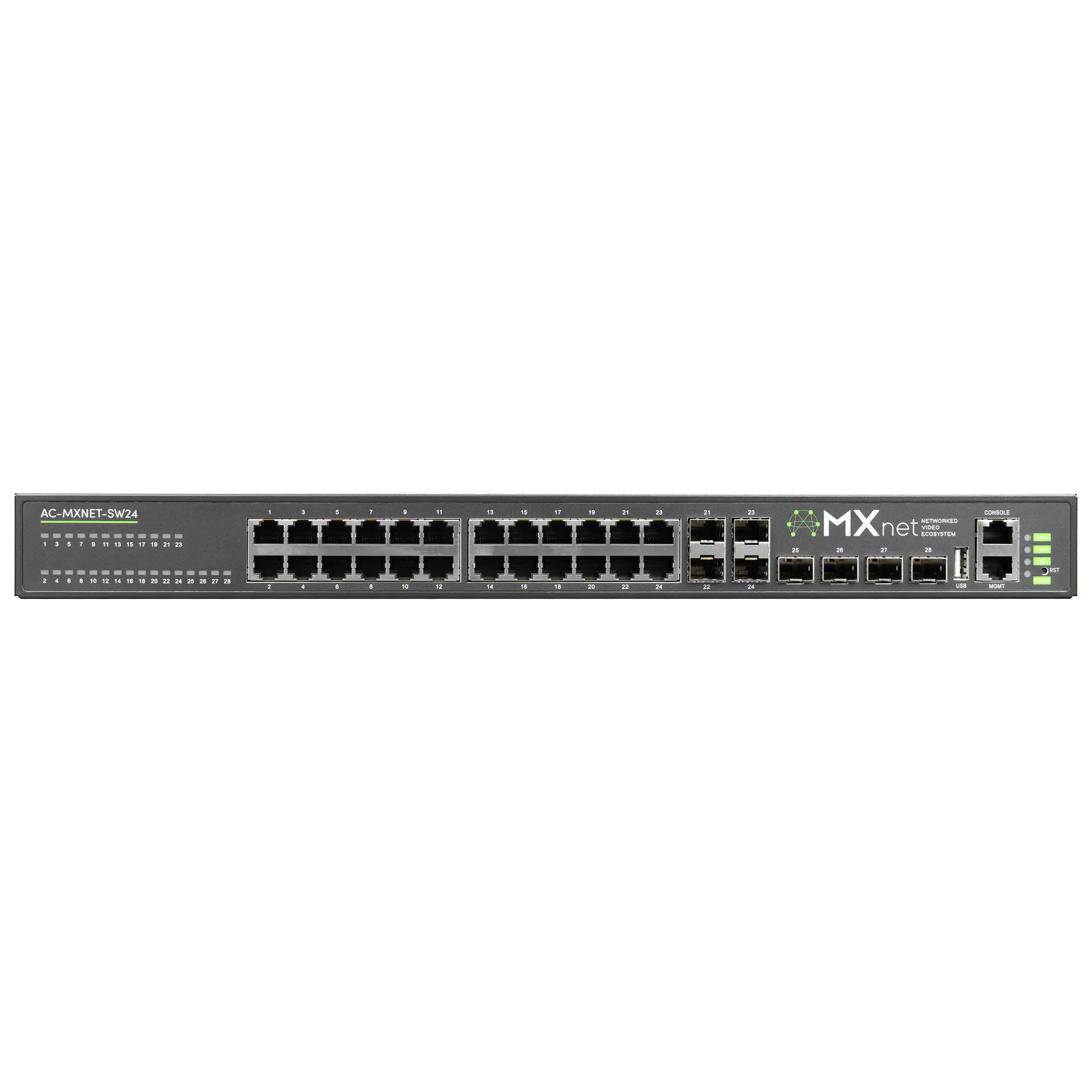

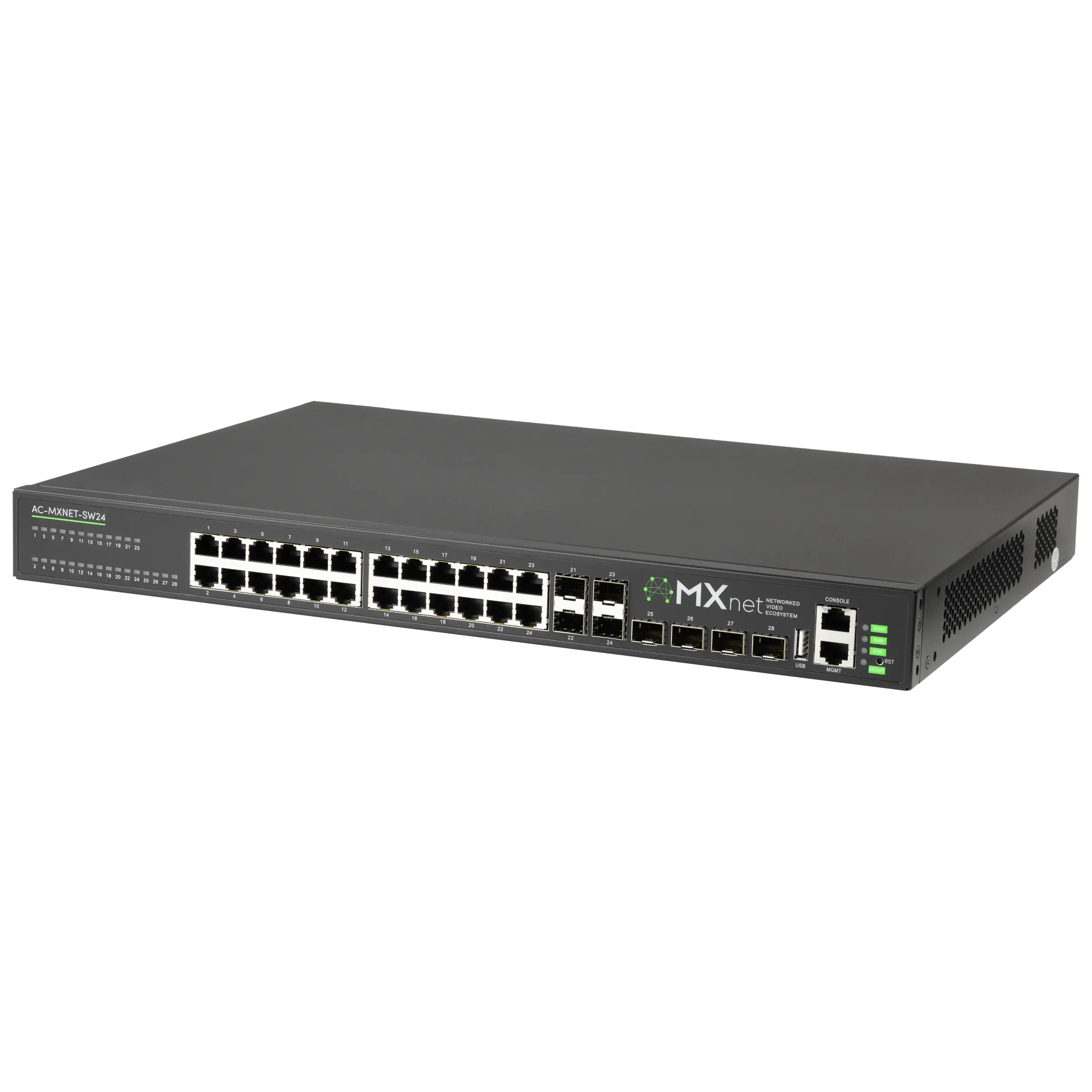

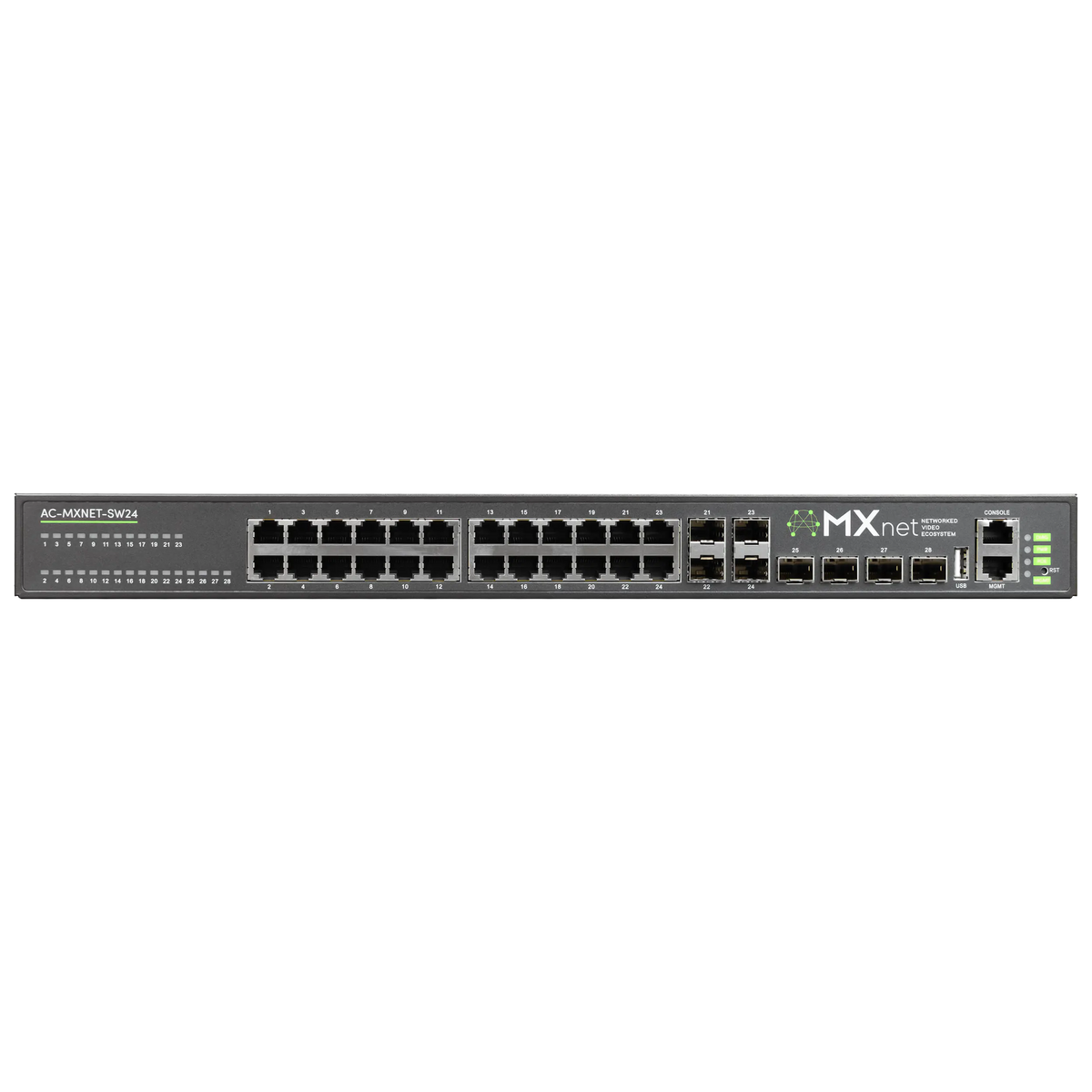

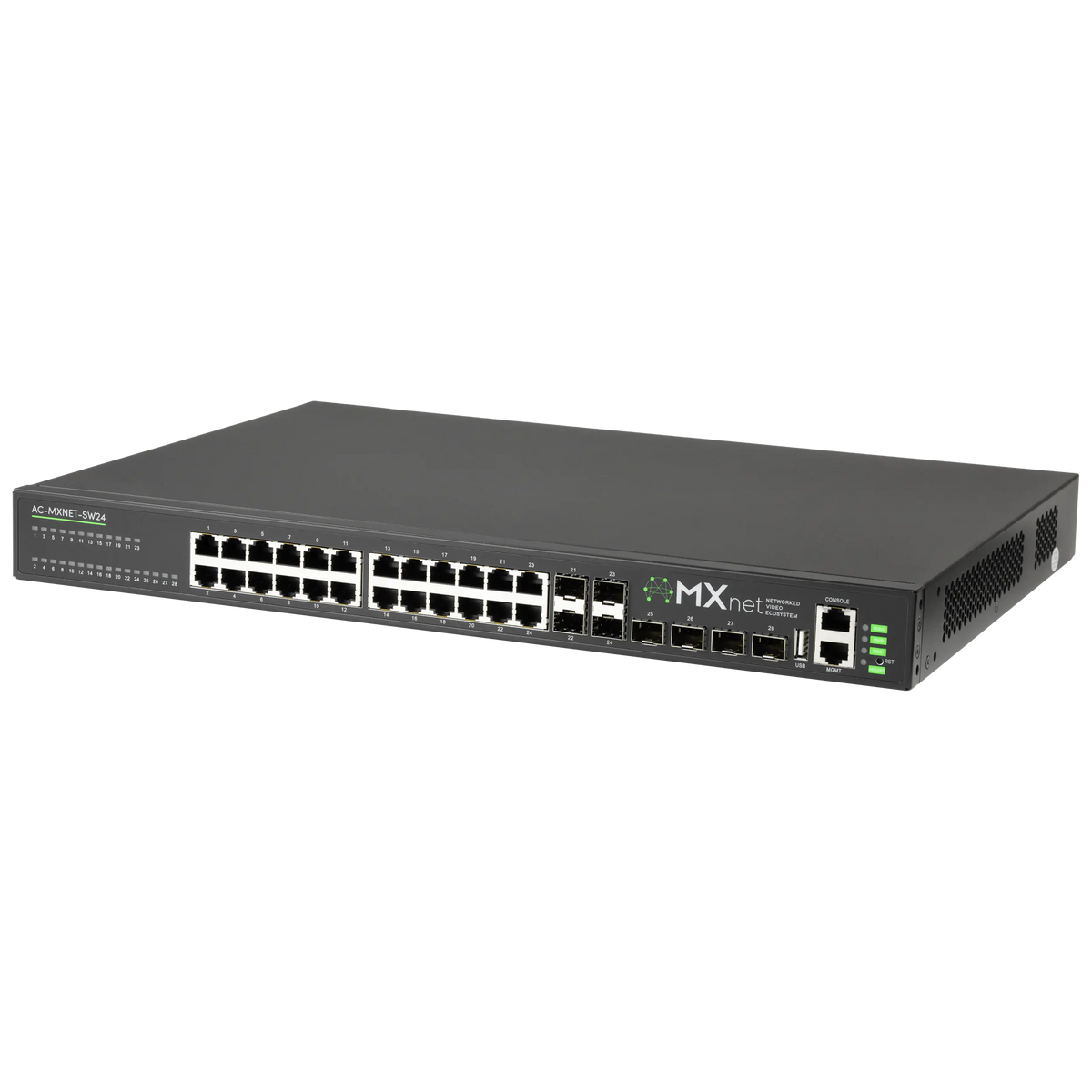

The AVPro Edge MXnet 1G 24 Port Network Switch is engineered specifically for high-bandwidth AV-over-IP data transmission. This unit features 20 copper PoE ports, 4 combo GE ports, and 4 high-speed 10Gbps SFP+ uplink ports to ensure reliable connectivity. With a 370-watt total PoE budget, it provides sufficient power for diverse connected devices. The switch is optimized for minimal latency, averaging around 35 ms in an MXnet ecosystem, ensuring seamless signal distribution. Designed for professional integration, it supports essential network protocols like IGMP and Jumbo Frames for efficient multicast processing. Its durable construction and optimized operating system provide stable, long-term performance for demanding A/V environments.
| Total Ports | 24 |
| Port Configuration | 20 x 10/100/1000BaseT, 4 x GE Combo (GT/SFP), 4 x 10GE (SFP+) |
| Switching Capacity | 364 Gbps |
| Forwarding Rate | 432 GBps |
| PoE Budget | 370W |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Dimensions (Unit) | 440 x 44 x 320 mm |
| Weight (Unit) | 4.8 kg |
| Warranty | 10 Years |
