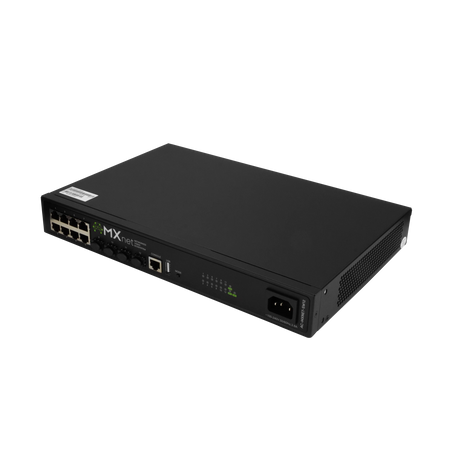

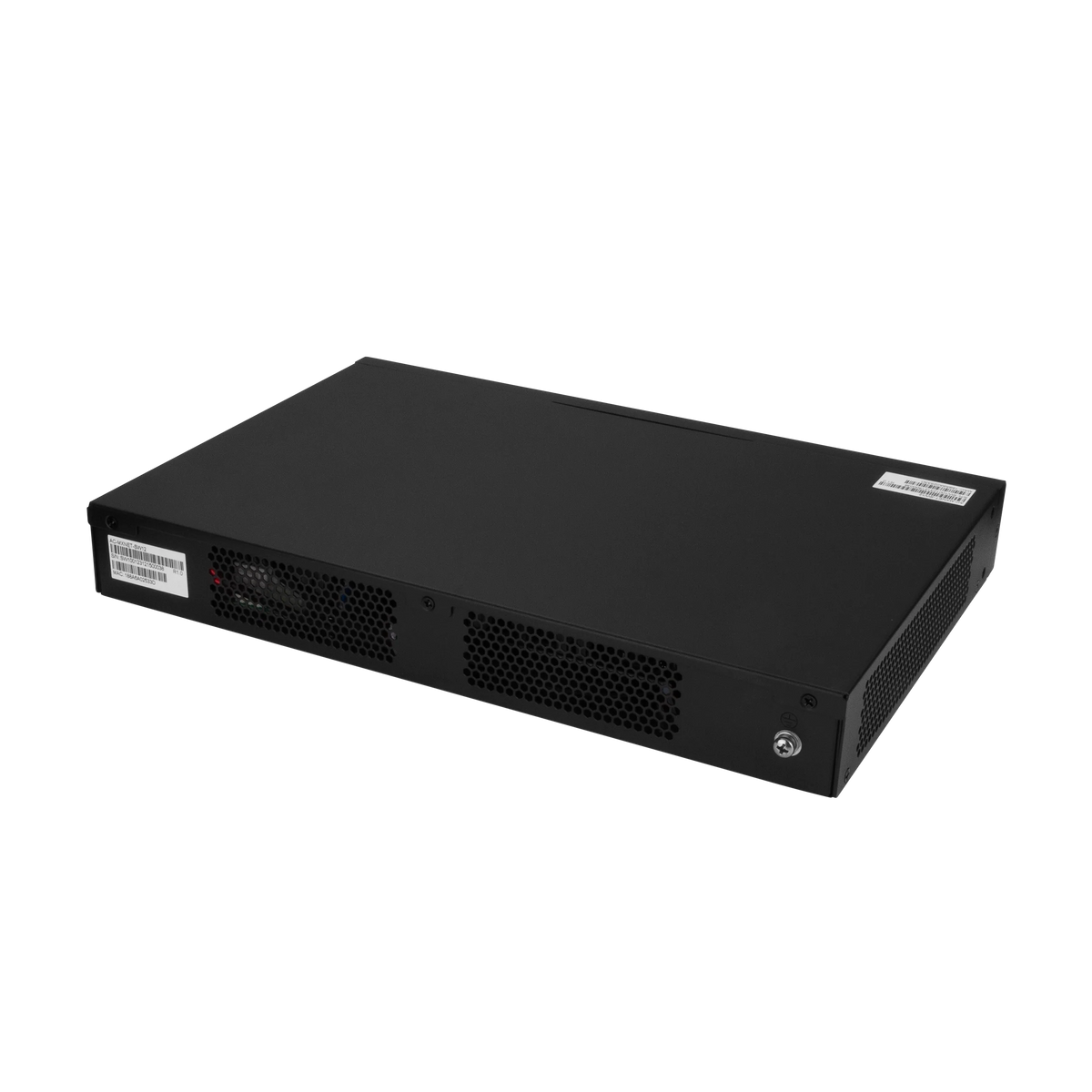

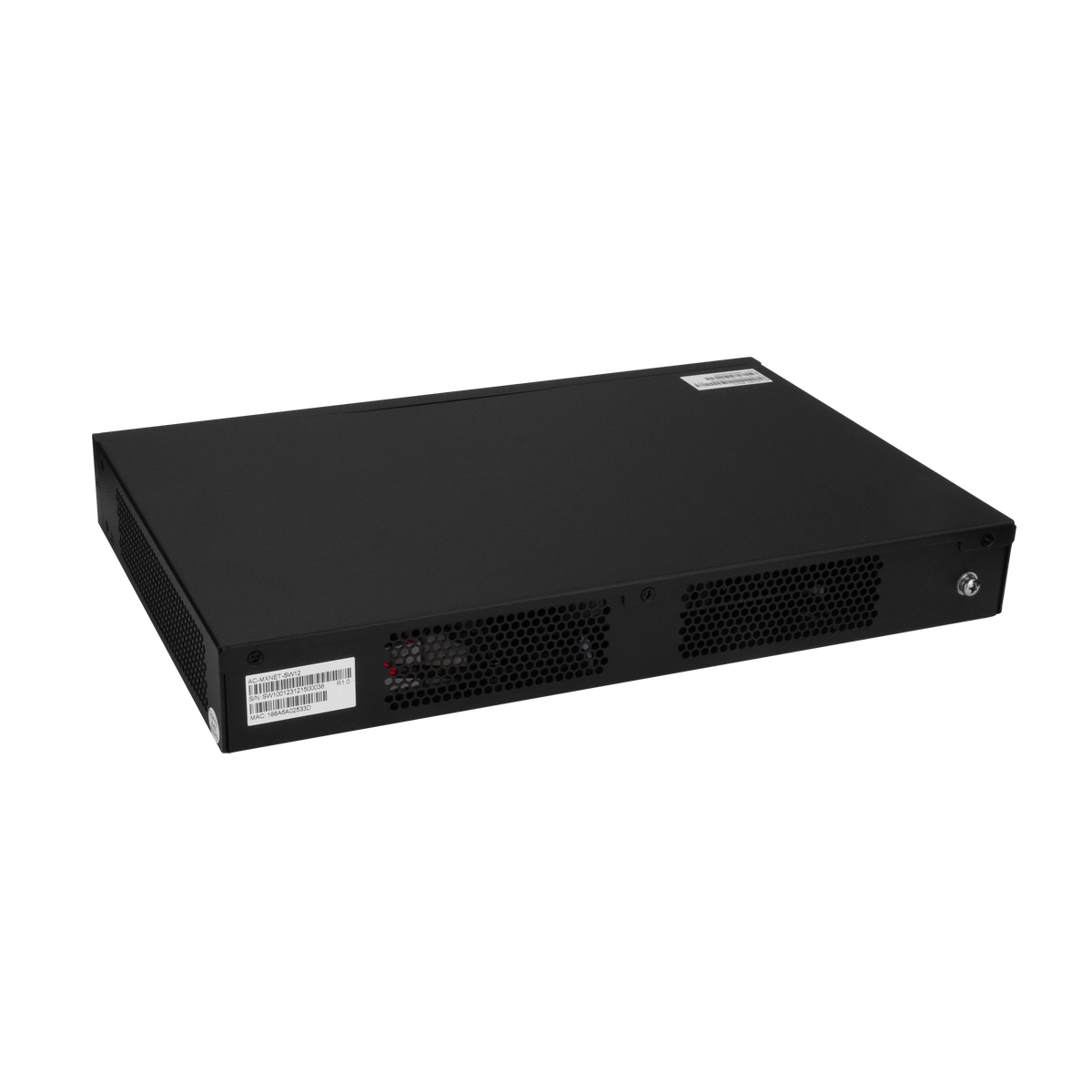

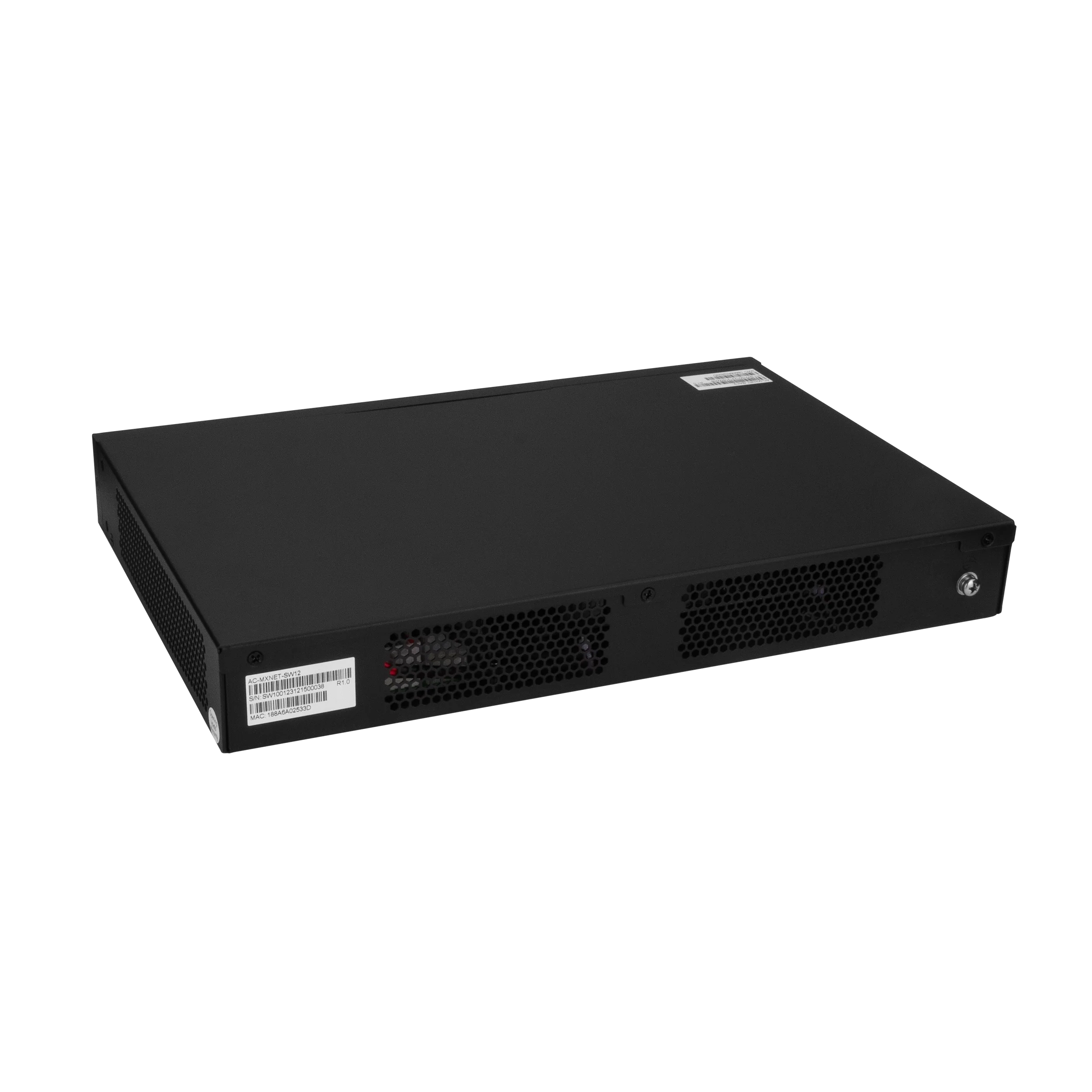

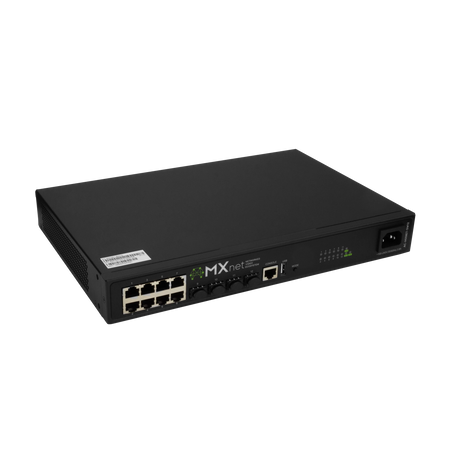

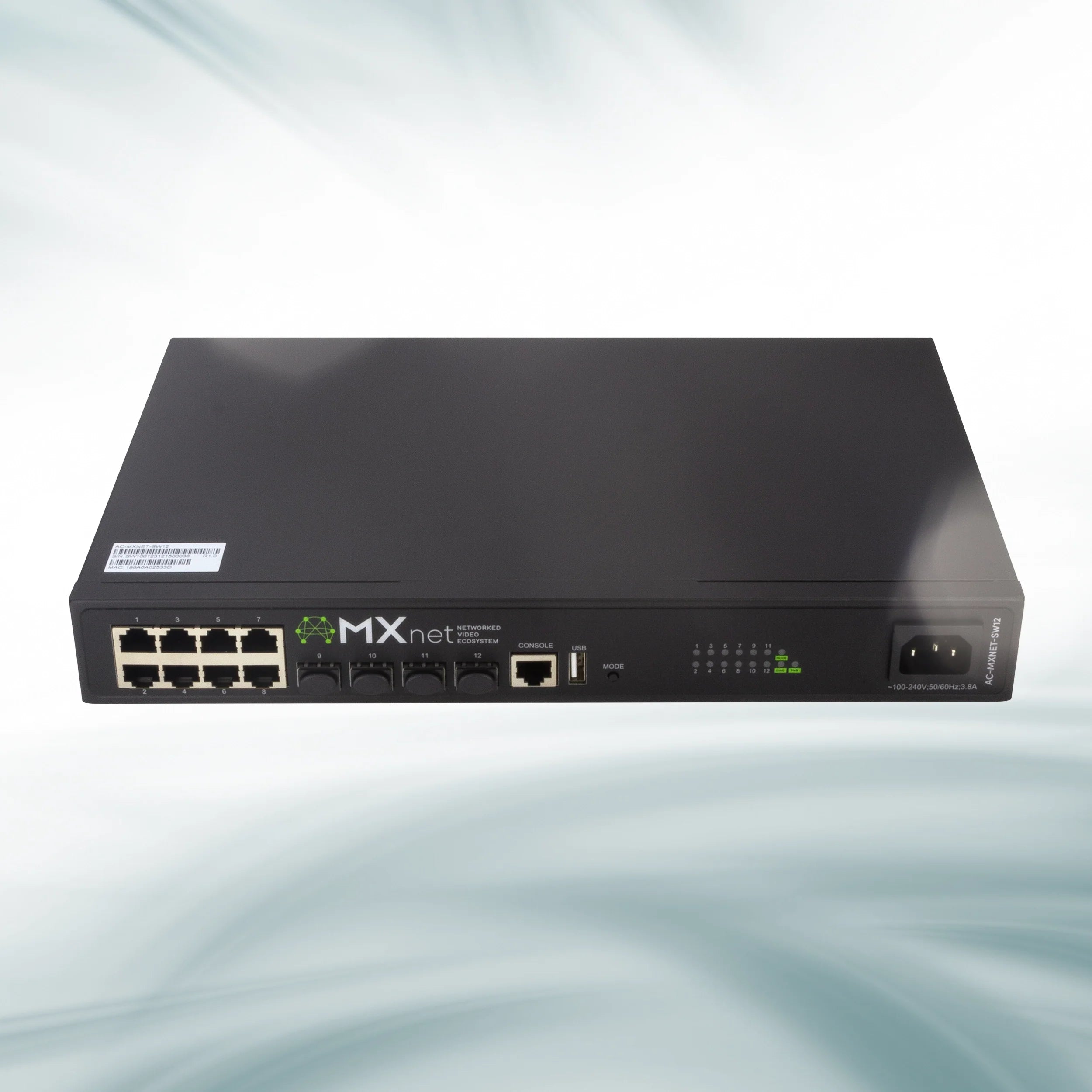

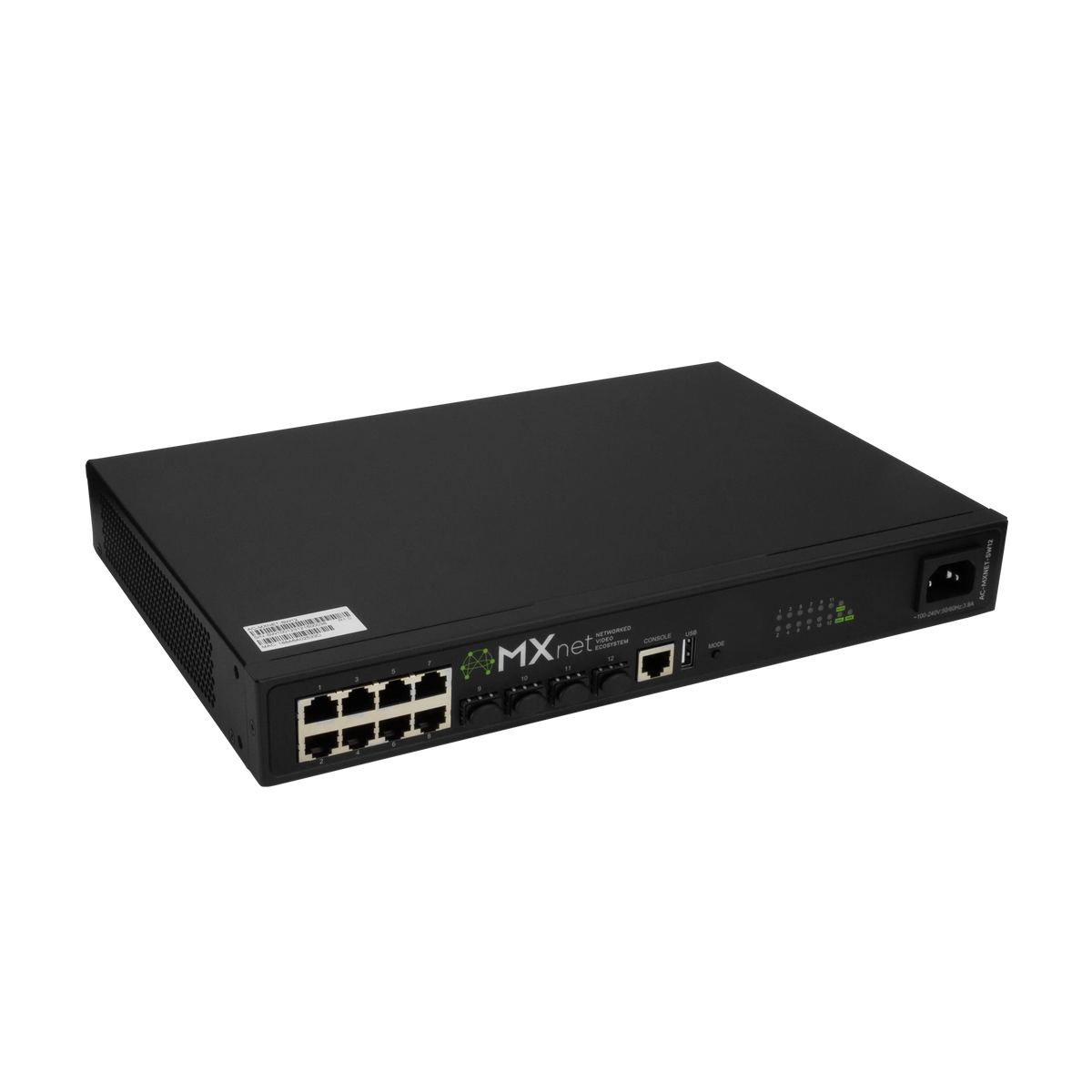

AVPro Edge MXnet 1G 12 Port Network Switch Ethernet PoE+
Regular price
$2,265.00
Couldn't load pickup availability
Frequently Asked Questions
What does AV over IP mean?
AV over IP means sending audio, video, and control signals over a standard network instead of using dedicated point-to-point AV cabling or a traditional matrix switcher. In practical terms, sources and displays connect through encoders, decoders, and an Ethernet switch, allowing the system to route content across rooms, zones, or large facilities.
For buyers, the main appeal is flexibility. AV over IP systems are easier to scale than fixed matrix systems because you can often add endpoints or expand distribution using network infrastructure. They are especially useful in corporate spaces, campuses, digital signage networks, training rooms, and other environments where multiple displays and sources need to communicate.
A switch like the AVPro Edge MXnet 1G 12 Port Network Switch is built for this kind of traffic. It combines 8 Gigabit PoE+ copper ports with 4 SFP+ 10G uplink ports, plus intelligent A/V packet handling to support low-latency multicast workflows. The tradeoff is that AV over IP requires proper network design, especially for multicast configuration, bandwidth planning, and endpoint compatibility.
What are the advantages of AV over IP compared with a traditional AV matrix switch?
The biggest advantages of AV over IP are scalability, flexibility, and easier long-term expansion. A traditional AV matrix has a fixed number of inputs and outputs, so once you outgrow it, expansion can become expensive or require a full replacement. AV over IP systems use a network-based architecture, which makes it easier to add more sources, displays, and zones over time.
Another advantage is infrastructure efficiency. AV over IP can share standardized network hardware and support features like multicast distribution, video walls, multiroom routing, and centralized management. That makes it a strong fit for schools, offices, hospitality, command centers, and large venues.
A purpose-built switch matters here. The AVPro Edge MXnet 1G 12 Port Network Switch is designed for professional AV traffic, with a 96 Gbps switching capacity, 71.4 Mpps forwarding rate, a 12 MB packet buffer, and intelligent A/V processing. Those specs help maintain stable performance for low-latency video distribution. The tradeoff is complexity. AV over IP systems usually need more network planning than a simple matrix, especially when PoE budgets, multicast behavior, and uplink bandwidth are part of the design.
What is an AV switch, and how is an AV-over-IP network switch different?
An AV switch is any device that helps route audio and video from sources to displays or other endpoints. In older or simpler systems, that often means an HDMI matrix switch, which directly connects a set number of inputs to a set number of outputs. An AV-over-IP network switch serves a different role. Instead of switching HDMI paths directly, it manages network traffic between AV encoders, decoders, controllers, and sometimes powered peripherals.
That difference matters when you are planning a system. A matrix switch is often best for smaller fixed installations with predictable routing needs. An AV-over-IP network switch is better when you want to distribute AV across multiple rooms, support multicast, or scale the system over time.
The AVPro Edge MXnet 1G 12 Port Network Switch is an example of a network switch built for AV-over-IP. It has 8 RJ-45 Gigabit PoE+ ports for connected devices and 4 10G SFP+ uplink ports for higher-bandwidth backbone links. It is best for users building a managed, scalable AV network rather than a simple one-box HDMI switching setup.
What should I look for in the best AV over IP network switch?
The best AV over IP network switch depends on the size and complexity of your system, but several specifications matter consistently. First, look at port type and count. You need enough copper ports for encoders, decoders, and controllers, and you may need high-speed uplinks if traffic is moving between switch layers or racks. Second, check PoE capability if endpoints need power through the network cable. Third, focus on switching capacity, forwarding rate, and multicast handling, because AV traffic can be demanding and sensitive to congestion.
The AVPro Edge MXnet 1G 12 Port Network Switch checks those boxes for many professional installations. It offers 8 1 Gbps PoE+ RJ-45 ports, 4 10G SFP+ uplink ports, a 125-watt PoE budget, 96 Gbps switching capacity, and a 71.4 Mpps forwarding rate. It also includes intelligent A/V packet processing, which is important for low-latency performance.
This type of switch is best for integrators and organizations building dedicated AV networks. If your system is very small, a less specialized switch may work, but for reliable AV multicast and predictable performance, AV-focused hardware is often the safer choice.
When do I need a dedicated AV-over-IP switch instead of a standard office network switch?
You need a dedicated AV-over-IP switch when video distribution reliability, multicast stability, PoE delivery, and low-latency performance are critical to the installation. Standard office switches can work in some small deployments, but they are not always optimized for the bandwidth patterns and packet behavior created by professional AV streams.
A dedicated AV-over-IP switch is especially valuable in conference centers, training facilities, digital signage networks, classrooms, and multiroom commercial systems. These environments often use encoders and decoders that continuously send high volumes of multicast traffic. If the switch cannot manage that traffic efficiently, users may see instability, dropped streams, or performance issues.
The AVPro Edge MXnet 1G 12 Port Network Switch is purpose-built for that role. It provides intelligent A/V packet passthrough, a 96 Gbps switching capacity, a 12 MB packet buffer, and 4x 10G SFP+ uplinks for backbone connectivity. It is also helpful when your endpoints need PoE+, thanks to its 125-watt budget. If your use case is basic internet access and light data traffic, a general office switch may be enough, but it is a different class of deployment.
Is this 12-port AVPro Edge MXnet switch suitable for small or mid-size AV-over-IP systems?
Yes, this switch is well suited for small to mid-size professional AV-over-IP systems, especially when you need a compact rack-mountable design with PoE+ and high-speed uplinks. Its 8 Gigabit RJ-45 ports can support a practical mix of encoders, decoders, and control devices, while the 4x 10G SFP+ ports provide room for uplinks, aggregation, or expansion into a larger network design.
That makes it a good fit for boardrooms, training suites, classrooms, hospitality spaces, esports setups, and digital signage applications where reliability matters but a full enterprise-core switch may be unnecessary. The 125-watt PoE budget can also simplify installations by powering compatible devices directly over Ethernet.
The key limitation is scale. If your system needs a large number of powered endpoints on one switch, or if every port must serve a device, you will need to account for both total port count and total PoE budget. In other words, this is a strong option for professional compact deployments or as part of a distributed architecture, but very large systems may require multiple switches or a higher-capacity design.
What do the 10G SFP+ uplink ports do on an AV-over-IP switch?
The 10G SFP+ uplink ports are used to connect the switch to higher-speed network backbones, aggregation switches, fiber runs, or other infrastructure where more bandwidth is needed than standard 1 Gbps copper ports can provide. In AV-over-IP systems, uplinks are important because multiple video streams can create concentrated traffic between network segments.
On this AVPro Edge MXnet switch, there are 4x 10G SFP+ uplink ports, which together support up to 40 Gbps of link aggregation potential. That is useful when traffic from several encoders and decoders needs to move between racks, rooms, or stacked network layers without creating bottlenecks. It also helps future-proof the design if the system expands.
These ports are most beneficial in larger or more distributed installations, or in any project using fiber infrastructure. For a very small single-switch setup, they may be underused, but they still add flexibility. Buyers should note that SFP+ ports usually require compatible transceivers or direct-attach cabling, so planning the physical media type is part of the deployment process.
How important is PoE+ when choosing an AV-over-IP switch?
PoE+ is very important if your AV-over-IP endpoints or control devices are designed to receive power over Ethernet. It allows a single network cable to carry both data and power, which simplifies installation, reduces extra power supplies, and can make rack and room layouts cleaner and easier to service.
The AVPro Edge MXnet 1G 12 Port Network Switch includes 8 PoE+ capable 1 Gbps RJ-45 ports and a total PoE budget of 125 watts. That is useful for systems where encoders, decoders, controllers, or related devices can be powered directly by the switch. It can save time during deployment and reduce dependency on local outlets near displays or equipment locations.
The main thing to check is total power draw. PoE budget is shared across all powered devices, so you need to confirm that the combined wattage of your endpoints stays within 125 watts. If not, you may need supplemental power or a different switch strategy. For buyers building a clean, centralized AV network, PoE+ is often one of the most valuable features to prioritize.
Can this switch handle multicast traffic for AV-over-IP video distribution?
Yes, this switch is designed for AV-over-IP environments where multicast traffic is commonly used to distribute video streams efficiently to multiple endpoints. Multicast is important because it lets one source stream be sent to many decoders without duplicating the full traffic load separately for each destination, which helps conserve bandwidth in larger systems.
What matters is not just raw speed, but how well the switch processes and forwards that traffic. The AVPro Edge MXnet 1G 12 Port Network Switch includes intelligent A/V processing for optimized packet passthrough, along with a 96 Gbps switching capacity, 71.4 Mpps forwarding rate, a 16K MAC address table, and a 12 MB packet buffer. Those specifications support stable handling of demanding packet flows in professional AV installations.
It is a strong choice for integrators who need predictable video distribution across conference rooms, classrooms, or signage networks. The limitation is that multicast performance still depends on correct network configuration. A switch can be AV-capable, but the system should still be designed properly with the right topology, uplinks, and endpoint planning.
Who is this AVPro Edge MXnet 1G 12 Port Network Switch best for?
This switch is best for professional AV users who need a compact, purpose-built network switch for AV-over-IP deployments rather than a general data-network product. That includes AV integrators, IT teams supporting audiovisual systems, and organizations building conference room networks, training environments, classrooms, digital signage systems, or other commercial installations where reliable video distribution matters.
It is especially useful for projects that need several powered Gigabit endpoints plus fast uplinks to a backbone or secondary switch. The combination of 8x 10/100/1000BaseT PoE+ ports, 4x 10G SFP+ ports, a 125-watt PoE budget, and 96 Gbps switching capacity makes it a practical fit for compact but performance-sensitive systems.
It may be less ideal for buyers who only need a basic unmanaged office switch, or for very large installations that require substantially more endpoint ports or higher aggregate PoE on a single chassis. In short, it is a strong match for dedicated AV network builds where low latency, stable packet handling, and scalable uplink connectivity are more important than general-purpose networking features.
The AVPro Edge MXnet 1G 12 Port Network Switch is a high-performance, low-latency solution designed for professional AV-over-IP applications. It features 8x 1 Gbps copper Ethernet/PoE+ ports for robust data transmission and 4x 10 Gbps SFP+ uplink ports for 40 Gbps link aggregation. With a 125-watt PoE budget and a 96 Gbps switching capacity, this switch ensures reliable performance and efficient multicast processing. It is engineered with intelligent A/V processing to optimize packet passthrough and maintain system stability. This compact, rack-mountable unit delivers exceptional speed and connectivity for demanding audiovisual environments.

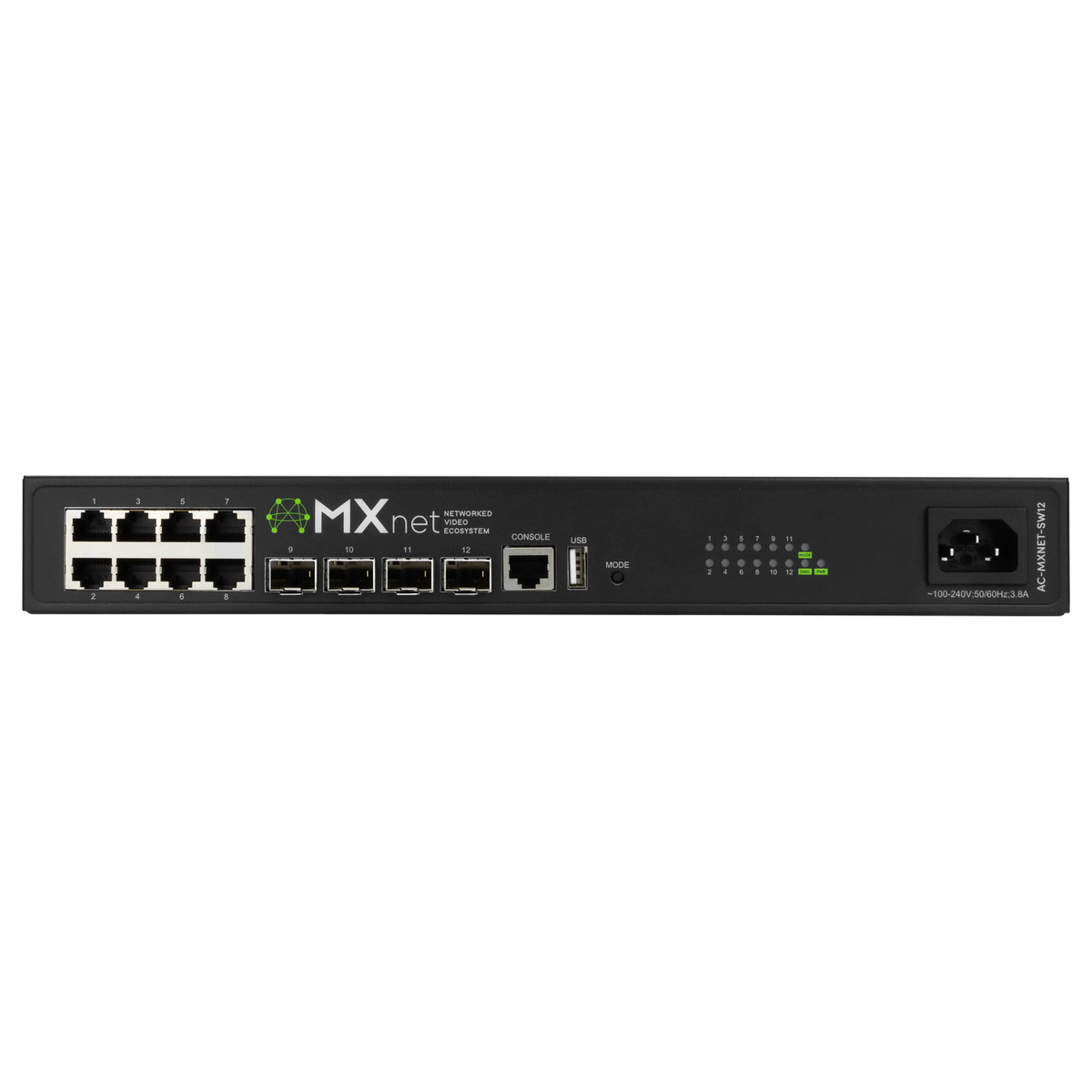

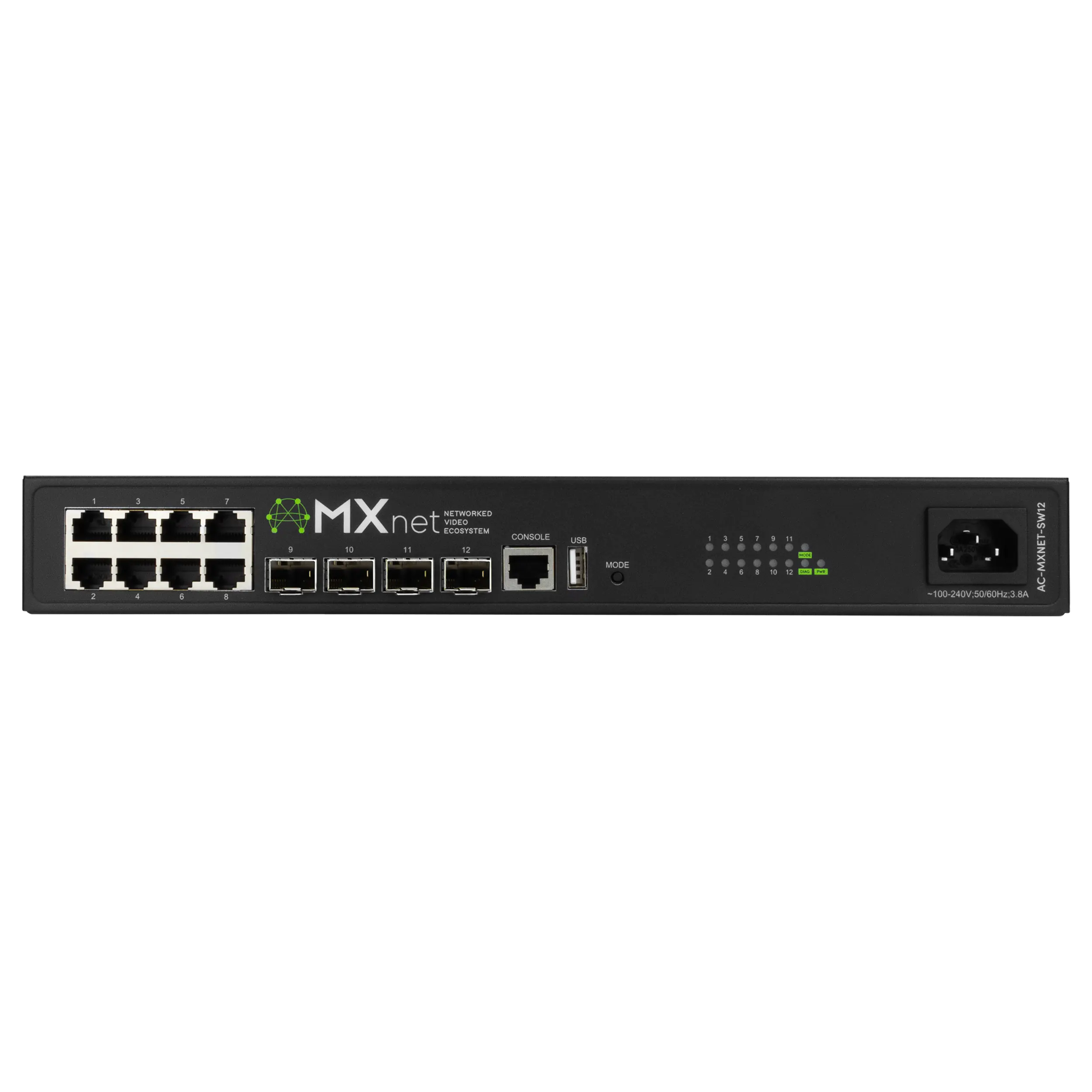

| Ports | 8x 10/100/1000BaseT RJ-45, 4x 10G SFP+ |
| Switching Capacity | 96 Gbps |
| Forwarding Rate | 71.4 Mpps |
| PoE Budget | 125 Watts |
| Jumbo Frame | 10K |
| MAC Address Table | 16K |
| Packet Buffer | 12MB |
| Operating Temperature | 0°C to 50°C |
