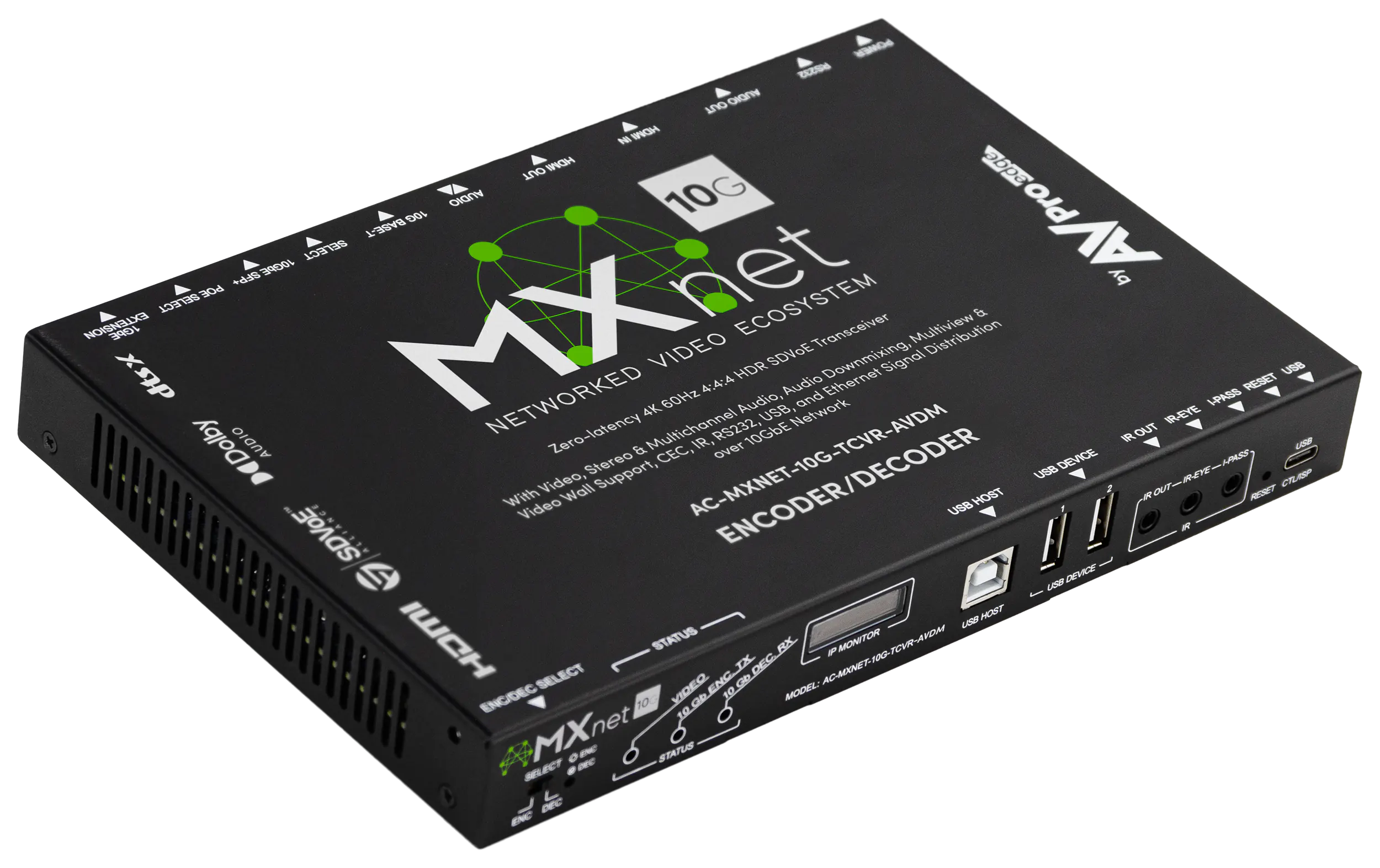

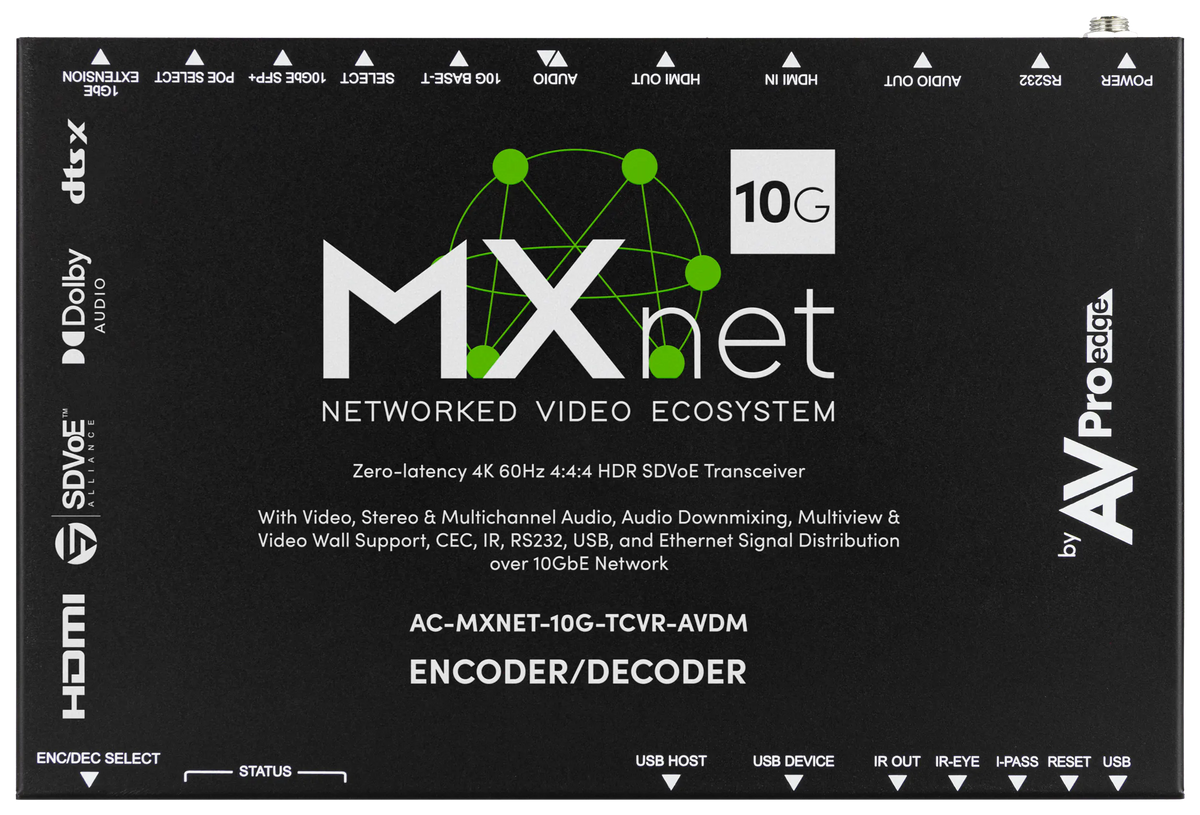

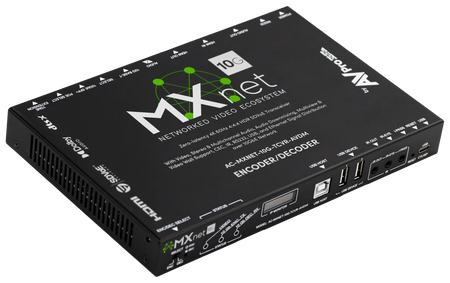

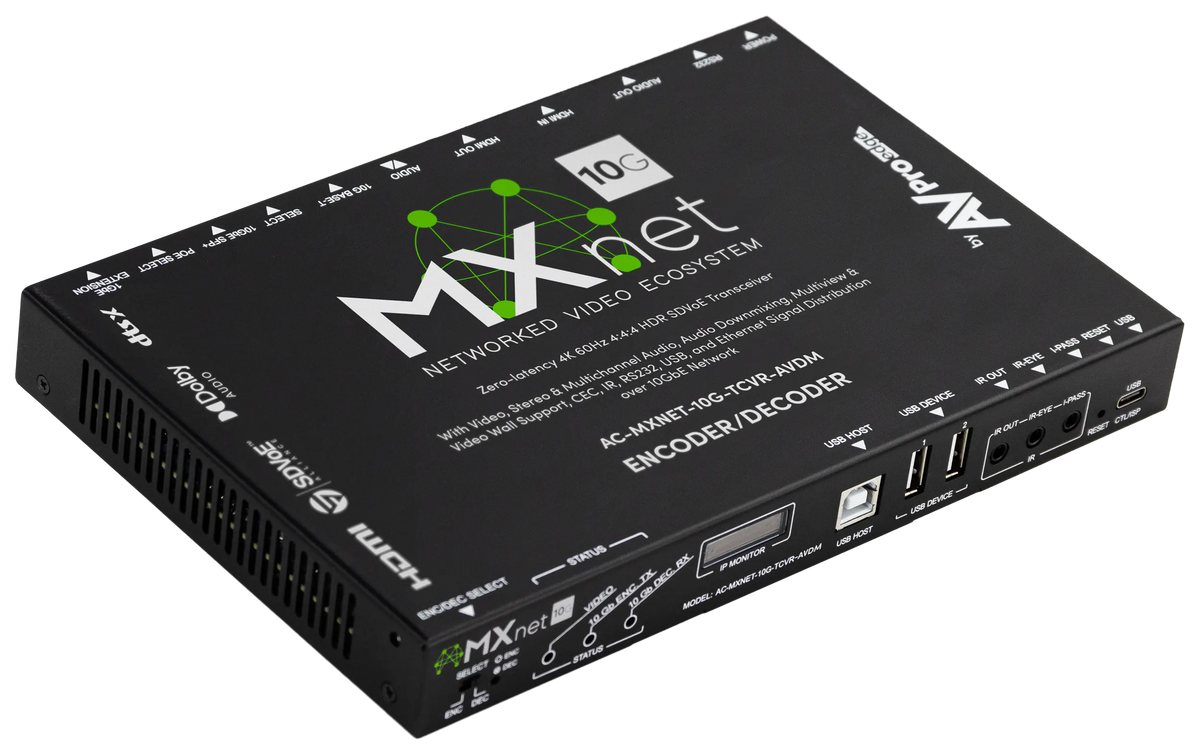

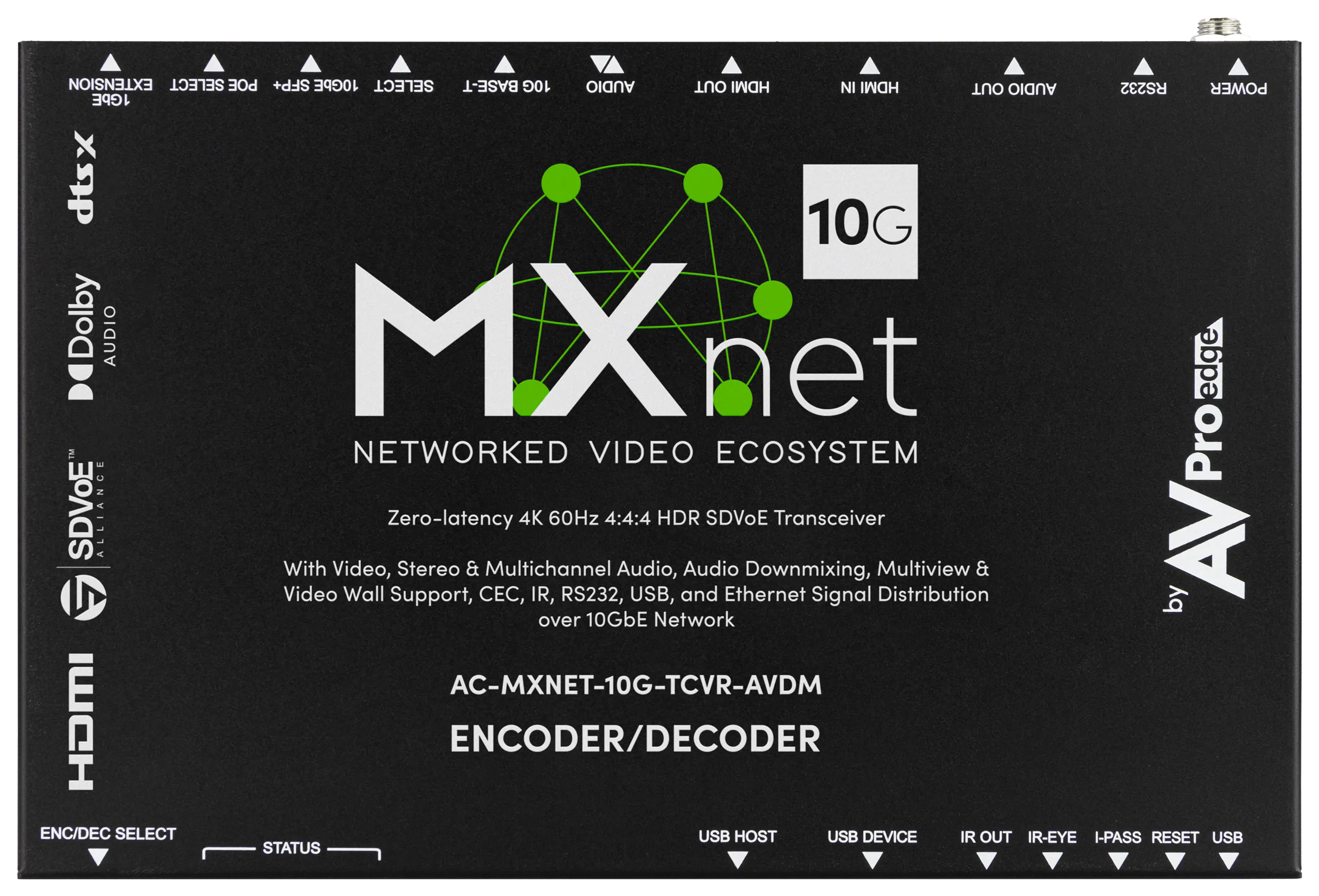

AVPro Edge MXnet 10G SDVoE Transceiver with Downmixing
Regular price
$2,513.00
Couldn't load pickup availability
Frequently Asked Questions
What does AV over IP mean?
AV over IP means sending audio, video, and control signals across a standard network instead of through traditional point-to-point AV matrix cabling. In practical terms, it lets integrators route HDMI sources, audio, USB, IR, and RS232 over Ethernet infrastructure, which can make systems more scalable and easier to expand.
For buyers comparing options, AV over IP is most useful when a project needs flexible routing, many endpoints, or room to grow over time. A transceiver like the AVPro Edge MXnet 10G SDVoE model can act as either a transmitter or receiver, which simplifies inventory and deployment. It supports HDMI 2.0b, dual 10GbE connectivity, and separate audio routing, so it fits professional environments where signal quality and control matter.
The tradeoff is that AV over IP usually requires careful network planning. Higher-performance systems, especially 10G platforms, are best suited for professional installations such as corporate campuses, education, live events, healthcare, and other spaces where low latency and advanced routing justify the added infrastructure.
What are the advantages of AV over IP compared with traditional AV matrix switching?
The main advantages of AV over IP are scalability, routing flexibility, and easier expansion. Unlike a fixed hardware matrix, an AV over IP system can add endpoints without replacing the entire switcher chassis, which is helpful for growing facilities or multiroom deployments.
A 10G SDVoE transceiver adds benefits that matter in demanding applications. The AVPro Edge MXnet 10G unit supports very low latency with Genlock mode for synchronized playback, plus audio breakaway for sending video to one destination and audio to another. It also supports multi-view compositing for up to 32 images and video walls up to 8x8, which are functions many traditional matrix systems need separate processors to handle.
This approach is best for organizations that need many sources and displays, video wall capability, or flexible room reconfiguration. The tradeoff is complexity. AV over IP systems often require managed network switches, bandwidth planning, and setup expertise. For a single room with only a few inputs and outputs, a conventional matrix can still be simpler.
What are the best AV over IP solutions for low-latency 4K video distribution?
The best AV over IP solution depends on the application, but for low-latency 4K distribution, shoppers should look for a 10G platform with HDMI 2.0 support, synchronized playback, and professional control options. Those features matter more than brand labels because they directly affect image quality, responsiveness, and system reliability.
The AVPro Edge MXnet 10G SDVoE Transceiver is a strong fit when the project needs HDMI 2.0b, dual 10GbE ports, compatibility with both copper and fiber, and Genlock mode for precise sync. It also adds uncommon flexibility with 8-channel to 2-channel audio downmixing, balanced stereo analog output, audio breakaway, and independent routing. That makes it useful in environments where both video transport and usable audio extraction are important.
This type of solution is best for corporate AV, higher education, control rooms, medical imaging support spaces, and live production environments. Buyers should note that 10G systems are typically more advanced than entry-level AV over IP products, so they make the most sense when low latency, synchronized video, and system expandability are top priorities.
How can I broadcast audio over IP in a professional AV system?
To broadcast audio over IP in a professional AV system, you typically send embedded audio with the video stream across the network, then extract or route the audio where needed at the endpoint. The best products for this support both digital transport and practical output options for amplifiers, DSPs, or local speakers.
The AVPro Edge MXnet 10G SDVoE Transceiver is designed for that kind of workflow. It can downmix 8-channel audio to 2-channel stereo and output balanced analog audio, which is especially useful when the source carries advanced codecs such as Dolby Atmos or DTS:X but the destination only needs stereo playback. It also includes TOSLINK, 3-pin audio, 3.5mm audio, and USB audio support, giving integrators multiple ways to distribute or extract sound.
This is most helpful in conference centers, classrooms, performance spaces, and digital signage networks where video and audio may need separate destinations. The tradeoff is that audio-over-IP design still needs proper routing logic and compatible network infrastructure, especially when many zones or mixed audio formats are involved.
What is an AV over IP transceiver, and how is it different from a transmitter or receiver only unit?
An AV over IP transceiver is a device that can function as either a transmitter or a receiver, rather than being locked into only one role. That gives installers more flexibility because the same hardware can be assigned where it is needed during setup or future system changes.
With a transmitter-only unit, you use it strictly at the source side to send content onto the network. With a receiver-only unit, you place it at the display or audio endpoint to decode the stream. A transceiver combines both roles, which can simplify spare inventory, reduce planning errors, and make reconfiguration easier in large systems.
The AVPro Edge MXnet 10G SDVoE Transceiver also adds value beyond simple encode and decode. It supports HDMI 2.0b, dual 10GbE ports, SFP+ connectivity, audio downmixing, IR, RS232, and video wall and multiview functions. It is best for professional installations where endpoints may change over time. The main tradeoff is that transceivers are generally chosen for system flexibility, not necessarily for the simplest small-room setup.
Do I need a 10G SDVoE transceiver for HDMI 2.0 and 4K AV over IP distribution?
You need a 10G SDVoE transceiver when your project requires high-bandwidth HDMI 2.0 transport, very low latency, and advanced professional routing features. Not every 4K project needs that level of performance, but many enterprise and mission-critical environments do.
This AVPro Edge MXnet 10G model supports HDMI 2.0b and dual 10GbE connections, which makes it suitable for demanding 4K AV over IP workflows. It is a smart choice when you need synchronized playback with Genlock mode, support for audio breakaway, multiview, video walls, or the ability to use either copper or fiber network links. Those are features commonly needed in live event support, command centers, higher education, and medical environments.
If your system is small, has minimal routing needs, or does not depend on near real-time performance, a simpler AV distribution method may be enough. The real decision point is not just resolution. It is whether the installation needs professional-grade sync, expandability, and flexible signal management.
Can this transceiver downmix Dolby Atmos or DTS:X to stereo analog audio?
Yes. This transceiver is built to downmix 8-channel audio to 2-channel stereo analog output, which is useful when the source carries advanced multichannel formats such as Dolby Atmos or DTS:X but the local audio system only accepts stereo.
That matters in real-world installations because many displays, amplifiers, paging systems, and room audio setups do not need or cannot decode full multichannel soundtracks. Instead of adding a separate audio processor just to create a usable stereo feed, this unit can provide balanced analog stereo output directly from the AV over IP endpoint. It also includes multiple audio-related connections such as TOSLINK, 3-pin audio, 3.5mm audio, and USB audio.
This feature is especially helpful in conference rooms, classrooms, hospitality spaces, and digital signage networks where content may originate in complex digital audio formats but playback is simple stereo. The key limitation is that downmixing creates a stereo output, not full surround reproduction, so it is meant for compatibility and practicality rather than immersive multichannel listening.
Is this AV over IP transceiver good for video walls and multiview applications?
Yes. This transceiver is well suited for video wall and multiview applications because it natively supports multiview compositing for up to 32 images and is video wall ready for arrays up to 8x8. Those are important capabilities for control rooms, signage networks, campus environments, and event spaces where multiple sources need to be viewed at once or arranged across many displays.
For buyers, the advantage is that these features are part of the platform rather than requiring separate dedicated processing in many scenarios. Combined with HDMI 2.0b support, dual 10GbE networking, and low-latency synchronized operation through Genlock mode, the unit fits installations where image timing and flexible display layouts matter.
It is best for professional integrators building scalable systems with complex display needs. The tradeoff is that successful video wall and multiview deployments still depend on proper network design, controller setup, and endpoint planning. The hardware supports the use case, but larger systems benefit from experienced AV-over-IP configuration and commissioning.
What connections and control options should I look for in an AV over IP transceiver?
The most important connections depend on your system, but a professional AV over IP transceiver should ideally support high-bandwidth network transport, HDMI, audio extraction, and common control interfaces. That combination makes the device more adaptable to real-world integration work.
This AVPro Edge model includes dual 10G Ethernet ports, 1G Ethernet, SFP+, HDMI input and output, TOSLINK, 3-pin audio, 3.5mm audio, IR, RS232, and USB. That means it can fit into systems that need copper or fiber connectivity, analog or digital audio options, and control integration with automation platforms or legacy equipment. It also supports PoE under IEEE 802.3af as well as 12V power, which adds installation flexibility.
Buyers benefit most from this breadth of connectivity when they are designing mixed-use or future-proofed systems. The main tradeoff is that more connectivity usually means more setup choices, so it is important to confirm which ports and control methods your displays, audio gear, and network infrastructure will actually use.
Who should choose the AVPro Edge MXnet 10G SDVoE Transceiver with Downmixing?
This transceiver is best for professional AV users who need more than simple signal extension. It is a strong choice for integrators, IT-managed AV teams, and facilities that need low-latency 4K distribution, synchronized playback, flexible audio handling, and scalable network-based routing.
It fits especially well in corporate campuses, universities, live event support spaces, healthcare environments, control rooms, and digital signage systems. Features such as HDMI 2.0b support, dual 10GbE ports, copper and fiber compatibility, audio breakaway, independent routing, multiview up to 32 images, and video walls up to 8x8 make it suitable for complex deployments. The built-in 8-channel to 2-channel audio downmixing is valuable where stereo analog output is needed from multichannel source material.
It may be more capability than a basic meeting room or small single-display setup requires. Buyers who do not need SDVoE-class performance, advanced routing, or integrated downmixing could consider simpler AV distribution options. For demanding enterprise and integration environments, however, this unit addresses several common system design needs in one device.
The AVPro Edge MXnet 10G SDVoE Transceiver with Downmixing is a sophisticated AV-over-IP solution designed for high-performance audio and video distribution. It features 8-channel audio downmixing to 2-channel, outputting balanced stereo analog audio from complex digital codecs like Dolby Atmos or DTS:X. The unit supports HDMI 2.0 and provides dual 10GbE ports, compatible with both copper and fiber connectivity. Genlock mode ensures synchronization with minimal latency, making it ideal for live performance or critical medical applications. Its versatile design natively supports multi-view compositing for up to 32 images and is video wall ready for arrays up to 8x8. With audio breakaway and independent routing, this transceiver offers unmatched flexibility in professional AV system design. The robust architecture is backed by a 10-year warranty, ensuring reliability in demanding integration environments.
| Ports | 10G Ethernet, 1G Ethernet, SFP+, HDMI In/Out, TOSLINK, 3-pin Audio, 3.5mm Audio, IR, RS232, USB |
| Audio Downmixing | 8-channel to 2-channel stereo |
| HDMI Support | HDMI 2.0b |
| Operating Temperature | 23°F to 125°F |
| Power | PoE (IEEE 802.3af), 12V 2A |
| Dimensions (Unit) | 8.46 x 5.51 x 0.98 inches |
| Weight (Unit) | 1.76 lbs |
| Warranty | 10 Years |
