AVPro Edge MXnet 10G 48 Port Network Switch

SKU: AC-MXNET-10G-SW48Q
Regular price $30,024.00

Frequently Asked Questions

Scalability in networking means you can expand the system without redesigning the whole infrastructure. In AV over IP, that matters because video endpoints, sources, displays, and control devices often grow over time, especially in campuses, enterprise buildings, and multi-room installations. For a 10G AVoIP environment, a scalable switch should offer high port density, fast uplinks, and enough switching capacity to handle many simultaneous streams. The AVPro Edge MXnet 10G 48 Port Network Switch is built for that kind of growth, with 48 SFP+ 10GbE ports and 6 QSFP+ 40GbE ports for aggregation or stacking. It also provides 1440 Gbps switching capacity and 1071 Mpps throughput, which helps maintain smooth performance as more endpoints are added. This type of design benefits integrators and IT teams who need to start with one deployment and expand later. The tradeoff is that a high-density 10G managed switch is more specialized than a basic office switch, so it makes the most sense when you need reliable, large-scale AV traffic handling rather than simple everyday data networking.
L1, L2, and L3 refer to the network layer where a switch primarily operates. L1 devices are very basic and mostly pass traffic physically. L2 switches handle traffic based on MAC addresses and are common for local network segmentation and VLANs. L3 switches add routing functions between networks or subnets. For AV over IP, the best choice is usually a managed switch with strong L2 features and, depending on system design, some L3 capability for larger or segmented environments. AVoIP systems need predictable multicast handling, VLAN support, traffic control, and enough bandwidth to move high-bitrate video without congestion. The AVPro Edge MXnet 10G 48 Port Network Switch is designed specifically for the MXnet 10G ecosystem, where managed performance is more important than just raw port count. Its proprietary AVPro Edge operating system and near-zero latency switching make it well suited for demanding audio and video transport. It is a better fit for professional AV deployments than a simple unmanaged switch. Buyers should still confirm the required multicast, routing, and management features for their exact network architecture.
The main types of network switches shoppers usually compare are unmanaged switches, smart or lightly managed switches, fully managed switches, and high-performance aggregation or data center switches. The right choice depends on how much control, bandwidth, and reliability your system needs. For professional AV, especially AV over IP, a managed switch is usually the safest choice because it lets you control traffic, segmentation, multicast behavior, and performance. If the system carries many high-resolution video streams, a high-bandwidth managed switch with 10GbE and 40GbE connectivity is often the better fit than a standard office network switch. The AVPro Edge MXnet 10G 48 Port Network Switch falls into the high-performance managed category. It is engineered for MXnet 10G AVoIP deployments and includes 48 SFP+ 10GbE ports, 6 QSFP+ 40GbE ports, and redundant power and fan modules. That makes it especially useful for medium-scale AV systems, stacked deployments, and environments where uptime matters. The tradeoff is that it is more specialized than a general-purpose edge switch, so it is best for demanding AV or mixed AV and IT infrastructure.
The 5-4-3 rule is an older Ethernet design guideline from shared-media network days. It said a network could have up to five segments connected by four repeaters, with only three populated segments. It was created for legacy coax and hub-based Ethernet, not for modern switched networks. For today's managed switching environments, including AV over IP systems, the 5-4-3 rule is generally not a buying factor. Modern networks use switches instead of repeaters and hubs, so performance planning is based on bandwidth, uplink design, multicast behavior, latency, and switching capacity rather than that legacy topology rule. If you are selecting a switch for 10G AVoIP, focus on whether it has enough ports, enough throughput, and the right management features for video traffic. The AVPro Edge MXnet 10G 48 Port Network Switch is built around those modern needs, with 48 SFP+ 10GbE ports, 6 QSFP+ 40GbE uplinks, and a 1440 Gbps switching capacity. That makes it relevant for current AV infrastructure planning, while the 5-4-3 rule is mostly historical background.
You typically need a 10G network switch when the AV system carries higher-bandwidth video streams, supports a larger number of endpoints, or requires more headroom for simultaneous traffic. A 1G switch may work for some lighter AV networks, but it can become a bottleneck as stream count, resolution, or system complexity increases. A 10G switch is especially useful for matrix-style video distribution, multi-room deployments, and installations where low latency and consistent throughput matter. The AVPro Edge MXnet 10G 48 Port Network Switch is designed for that environment, with 48 SFP+ 10GbE ports and 6 QSFP+ 40GbE ports for aggregation or stacking. Its proprietary operating system is built for near-zero latency switching within the MXnet 10G ecosystem. This kind of switch benefits enterprise AV, higher education, command centers, and other demanding installations. The tradeoff is that 10G infrastructure usually requires matching optics, cabling, and endpoints, so it is most appropriate when system scale or performance needs justify the added complexity compared with a basic 1G network.
The right port count depends on how many encoders, decoders, control devices, uplinks, and future expansion points your system needs. A good rule is to count every source and display endpoint, then add management devices, core uplinks, and spare capacity for growth. In professional AV, port planning should also consider redundancy and aggregation, not just today's endpoint count. A switch with 48 access ports can support substantial AV deployments while leaving room for expansion, and high-speed uplink ports help connect additional switches or core infrastructure without creating bottlenecks. The AVPro Edge MXnet 10G 48 Port Network Switch offers 48 SFP+ 10GbE/1GbE ports plus 6 QSFP+ 40GbE ports, which makes it suitable for medium to large MXnet 10G systems or stacked topologies. It is a strong option for installations where multiple rooms, zones, or buildings may eventually be added. The main tradeoff is that buyers should confirm they are comfortable with SFP+-based connectivity rather than expecting only standard copper RJ45 ports across the entire chassis.
Yes, this switch is best suited for small to medium data centers, campus environments, and larger building AV networks that need high port density and dependable uptime. Its feature set is designed for scalable infrastructure rather than a single small room or a basic office closet. The AVPro Edge MXnet 10G 48 Port Network Switch includes 48 SFP+ 10GbE ports, 6 QSFP+ 40GbE ports, and a dedicated 10/100/1000BASE-T management port. It also uses redundant internal power supplies and fan modules to support carrier-grade 99.999% uptime availability. Those are important characteristics for installations where service interruption affects many rooms or critical operations. This switch is especially useful for organizations building a centralized AVoIP backbone with room to scale. It fits environments that need high-speed aggregation and reliable operation over time. The tradeoff is that it may be more infrastructure than a small standalone AV system requires, so smaller deployments may prefer a lower-port-count option if future growth and redundancy are not major priorities.
A switch is suitable for near-zero latency video distribution when it has enough bandwidth, switching capacity, and traffic management to move high-bitrate streams without congestion or excessive delay. In AV over IP, low latency depends on the entire system, but the switch plays a major role in keeping packets flowing efficiently. Important factors include fast port speeds, non-blocking or high-capacity switching architecture, proper handling of multicast traffic, and stable operating software. The AVPro Edge MXnet 10G 48 Port Network Switch is engineered specifically for the MXnet 10G AVoIP ecosystem and uses a proprietary AVPro Edge operating system to support near-zero latency switching. Its 1440 Gbps switching capacity and 1071 Mpps throughput are designed for high-volume audio and video transport. This matters most for live presentation spaces, collaboration environments, and distributed video systems where visible lag can disrupt the user experience. Buyers should remember that overall latency also depends on encoders, decoders, network design, and endpoint settings, not just the switch alone.

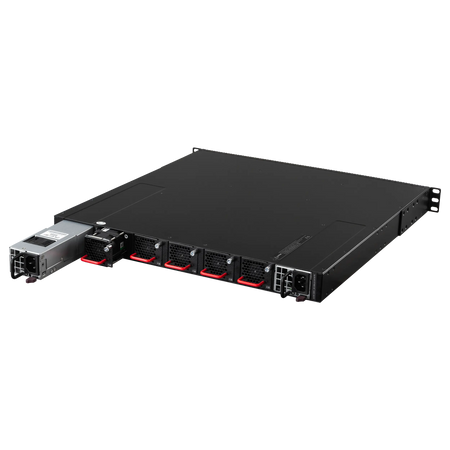

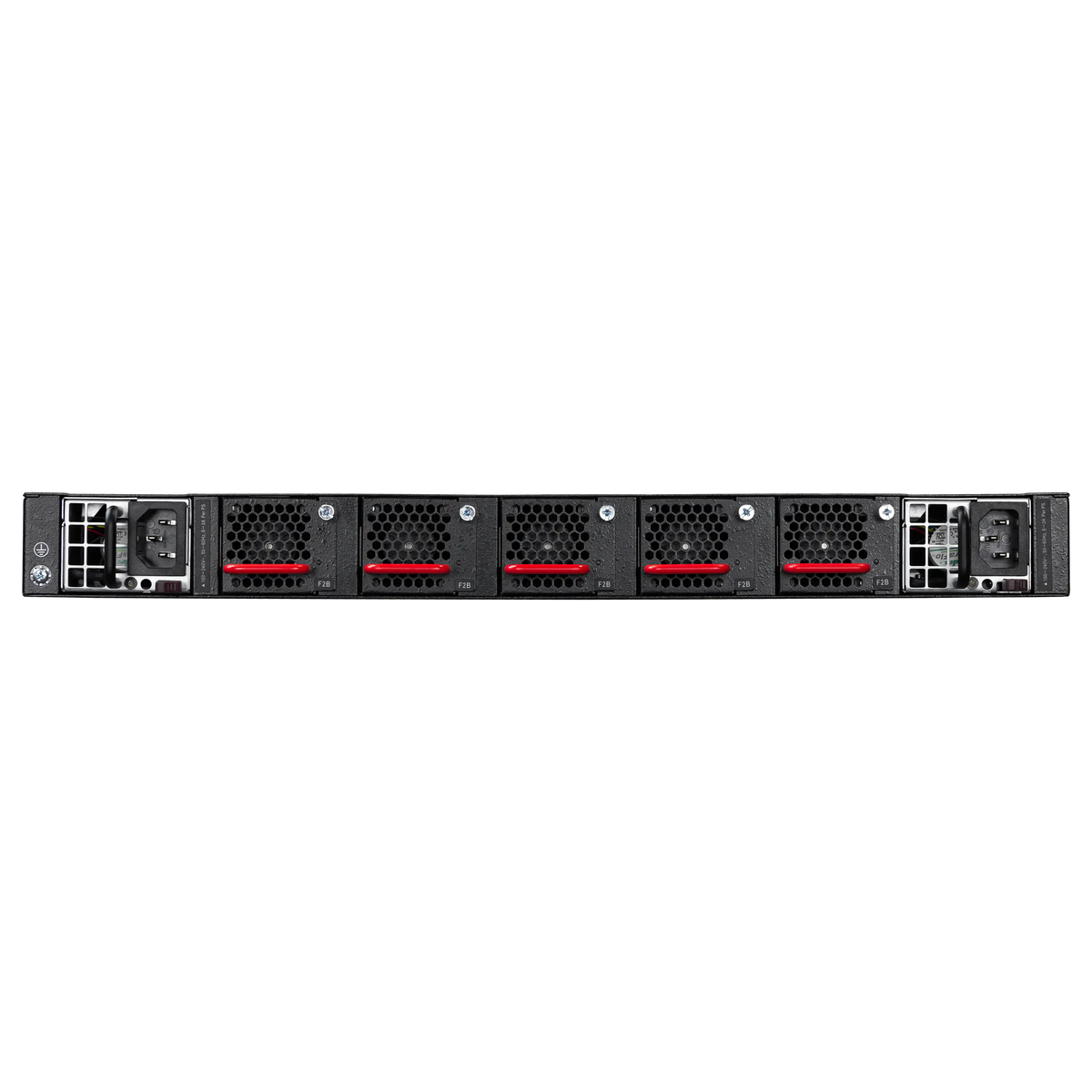

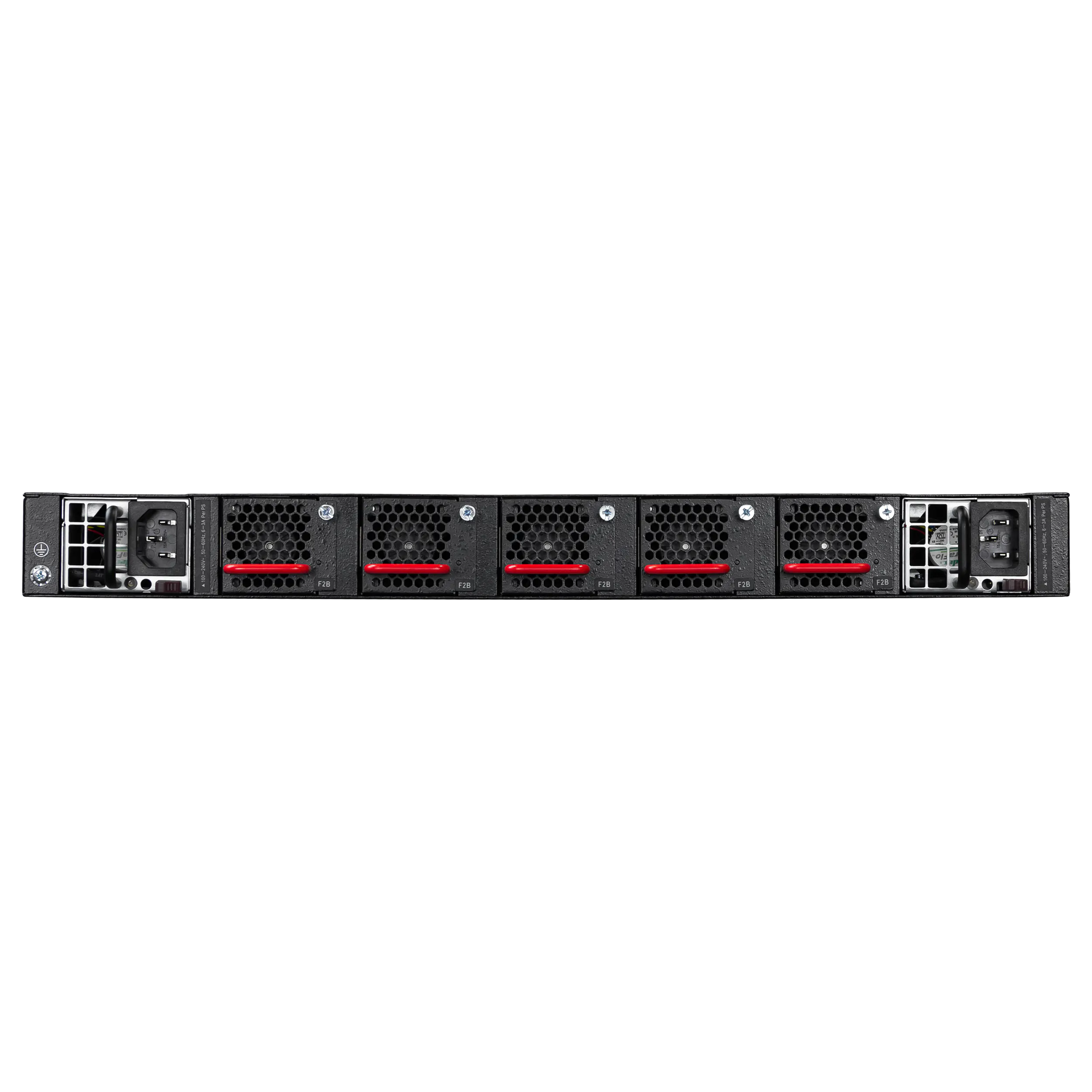

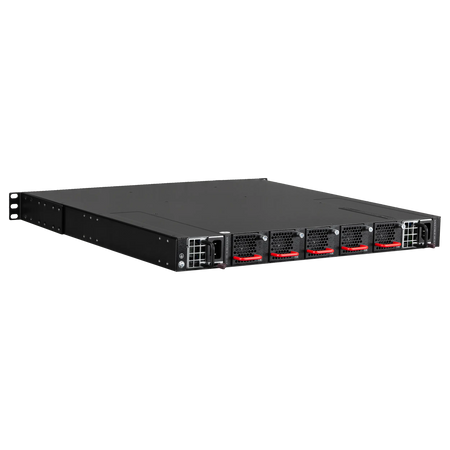

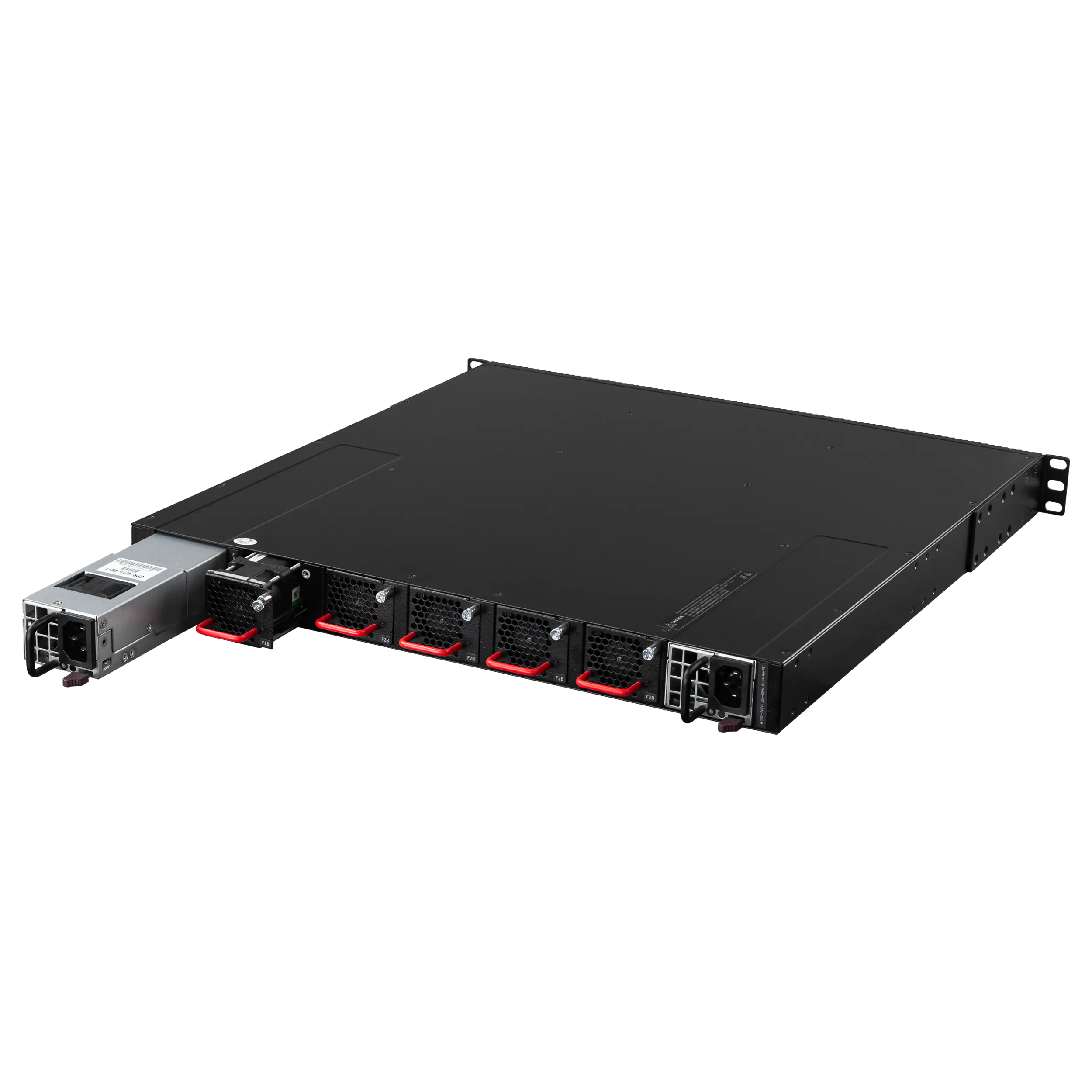

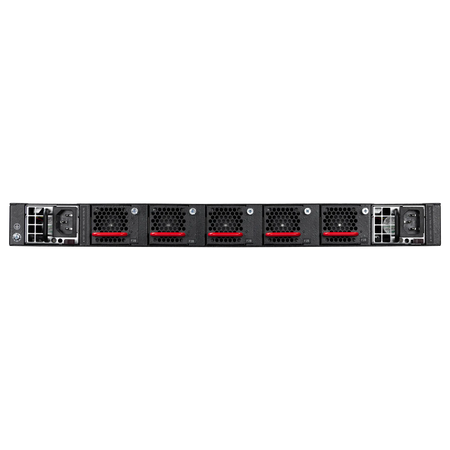

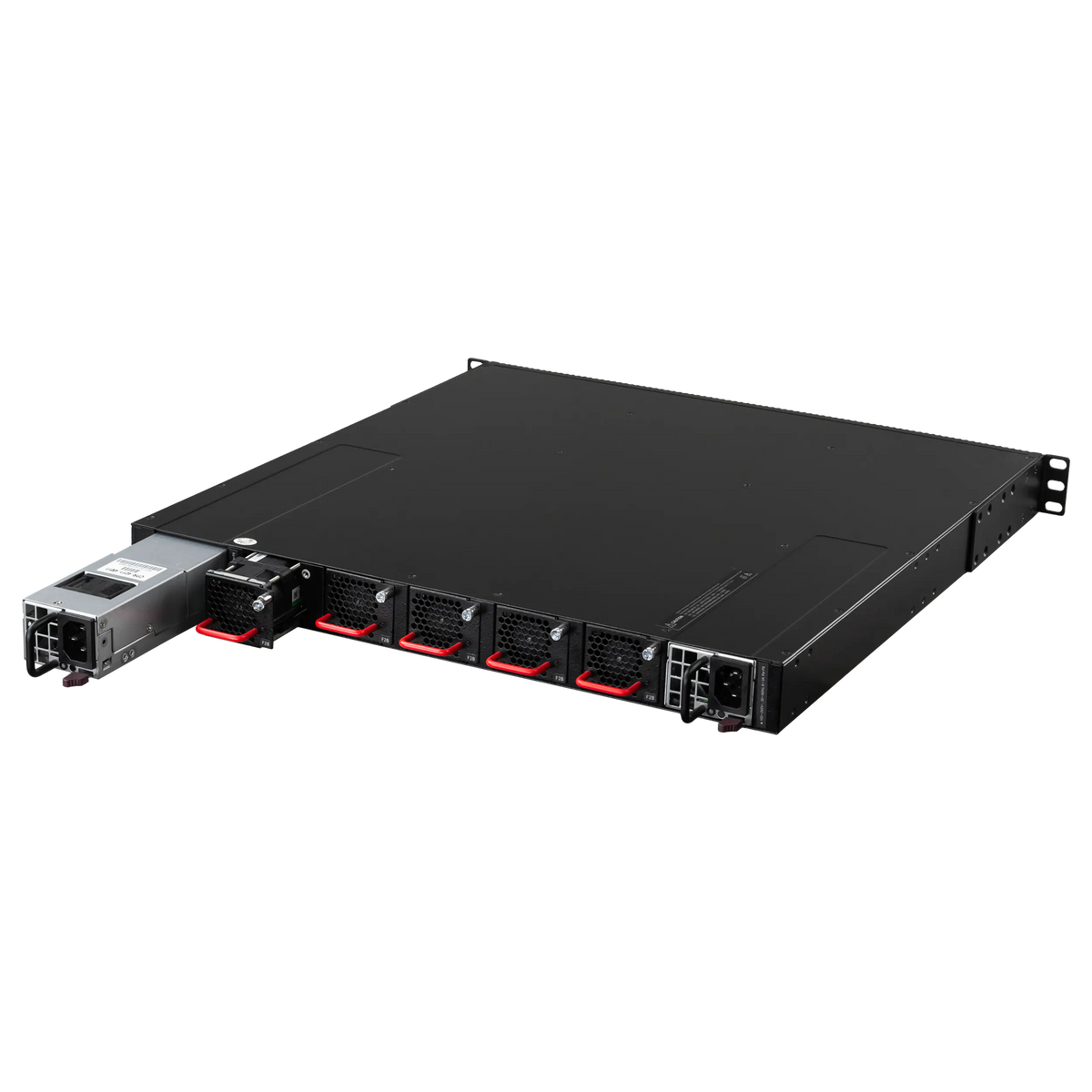

Redundant power supplies and fan modules matter because they reduce the risk of downtime from a single hardware failure. In professional AV and IT environments, a switch often supports many rooms, displays, or video endpoints at once, so one failed component can disrupt a large part of the system if redundancy is not built in. The AVPro Edge MXnet 10G 48 Port Network Switch includes redundant internal power supplies and fan modules and is specified for carrier-grade 99.999% uptime availability. That makes it a stronger fit for mission-critical or business-critical environments than a switch with only one power source or one cooling path. This kind of resilience benefits campuses, control rooms, enterprise AV backbones, and data center edge deployments where service continuity matters. The tradeoff is that redundant hardware usually adds cost, power draw, and infrastructure requirements, but many buyers consider that worthwhile when system failure would impact operations, events, or multiple connected spaces.
Before buying a managed switch for an MXnet 10G system, check four things first: compatibility with the AVoIP platform, required port types, available bandwidth for current and future endpoints, and reliability features such as redundancy and dedicated management access. For this product, the key specifications are clear. The AVPro Edge MXnet 10G 48 Port Network Switch is purpose-built for the MXnet 10G ecosystem and provides 48 SFP+ 10GbE/1GbE ports, 6 QSFP+ 40GbE ports, and a separate 10/100/1000BASE-T management port. It also offers 1440 Gbps switching capacity, 1071 Mpps throughput, a 96K MAC address table, and an operating range of 0 degrees C to 45 degrees C. This switch is a strong fit for buyers who need a high-density, stackable managed switch for professional AV networks. The main thing to verify is your physical layer design, including optics, cabling, rack space, and power planning. At 1.75 x 17.5 x 20 inches and 19.8 pounds, it fits standard rack environments but should be planned as serious network infrastructure rather than a simple plug-and-play accessory.

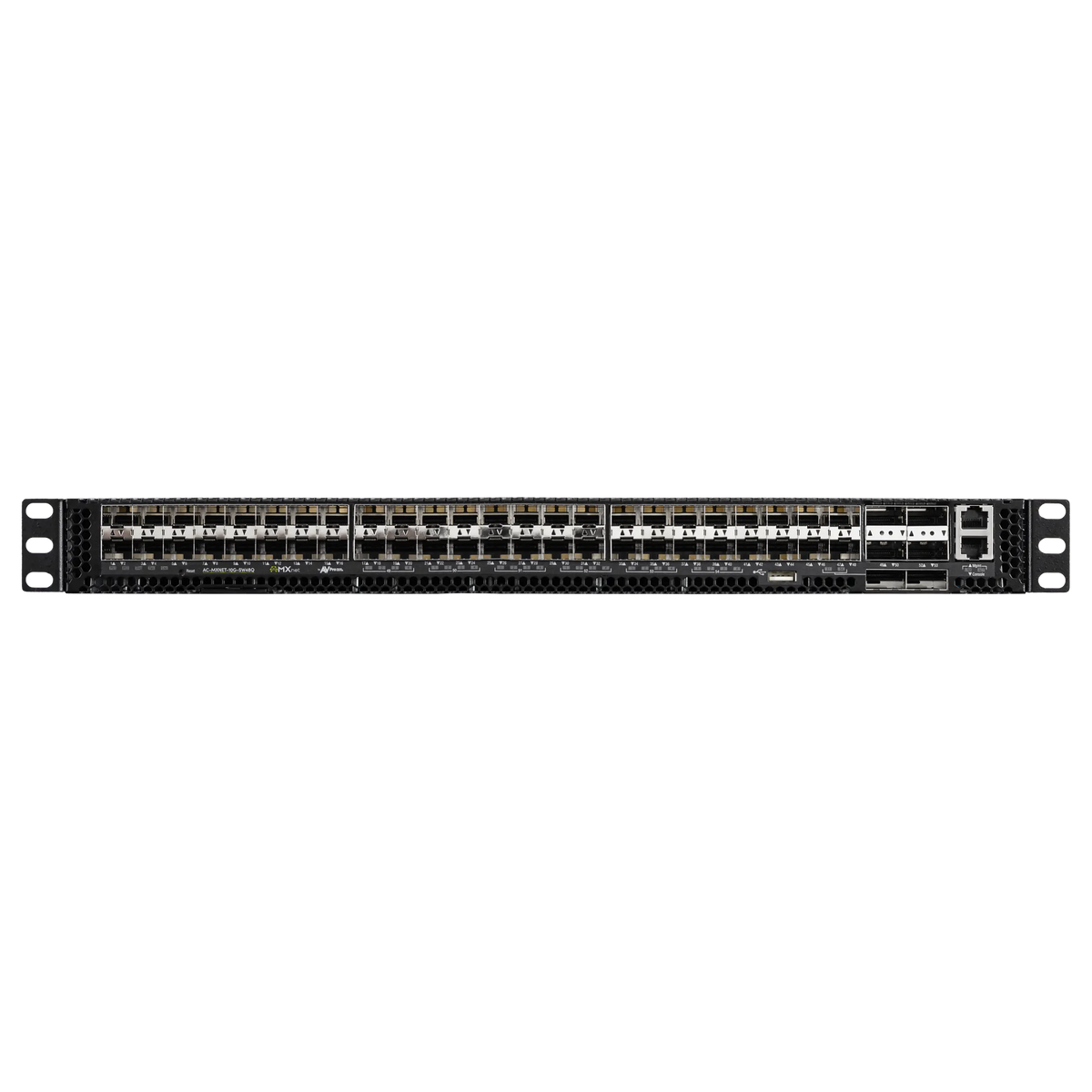

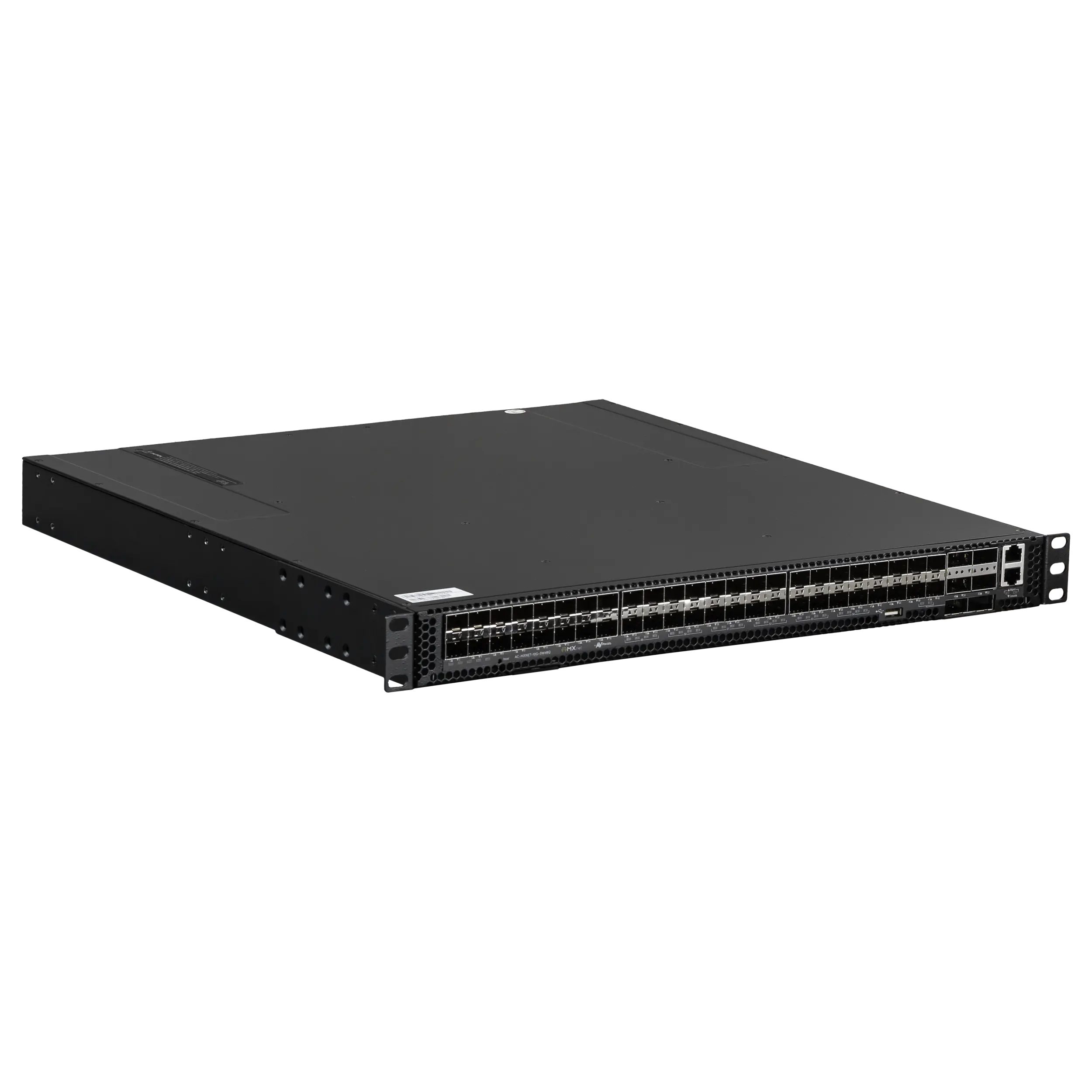

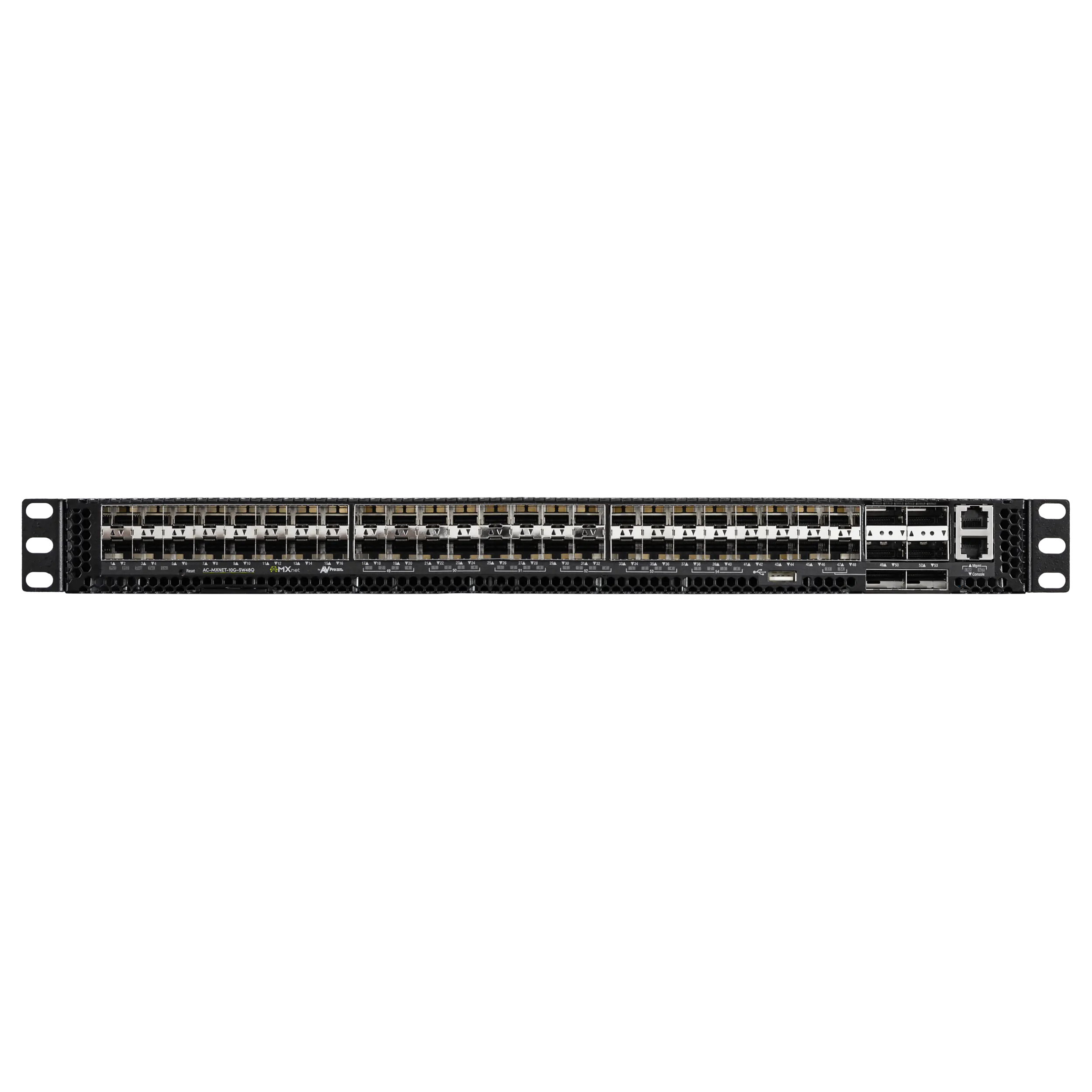

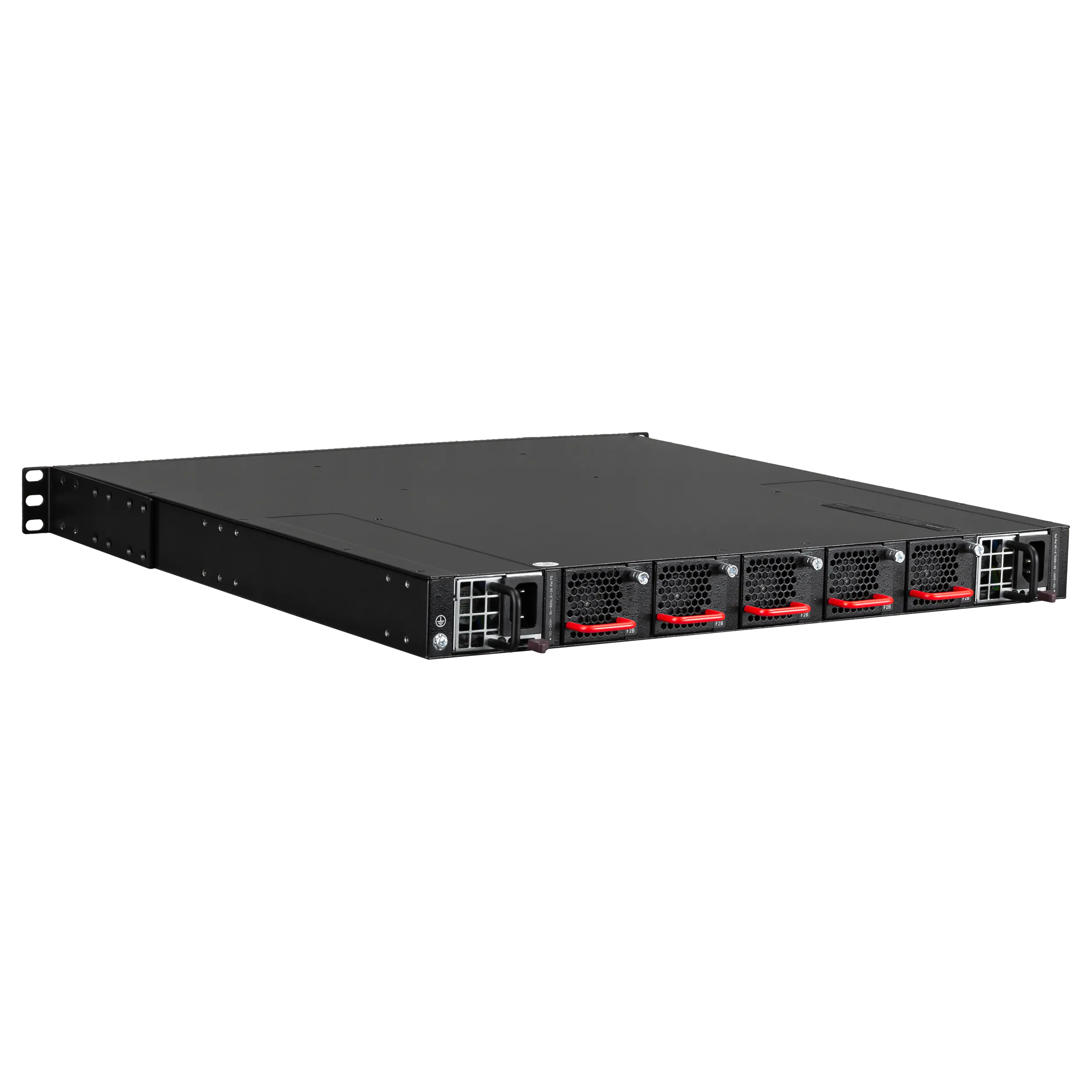

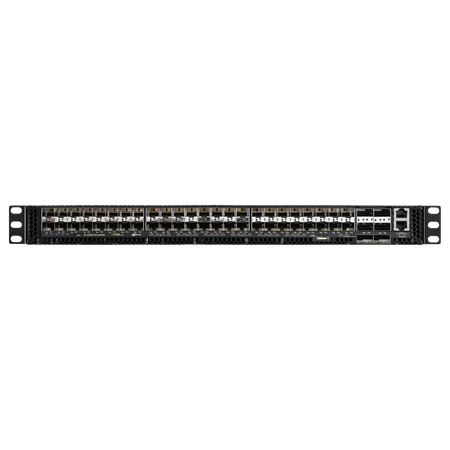

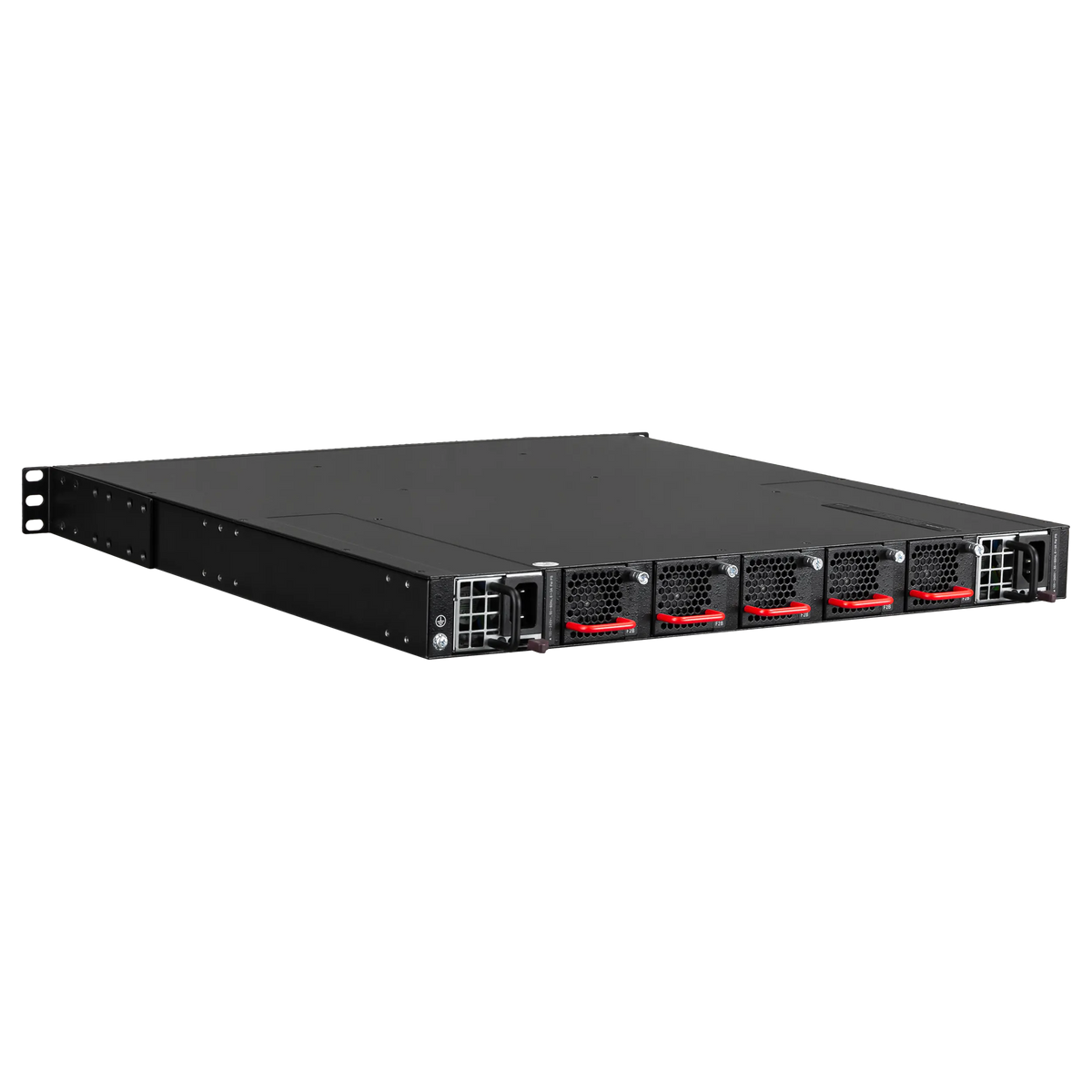

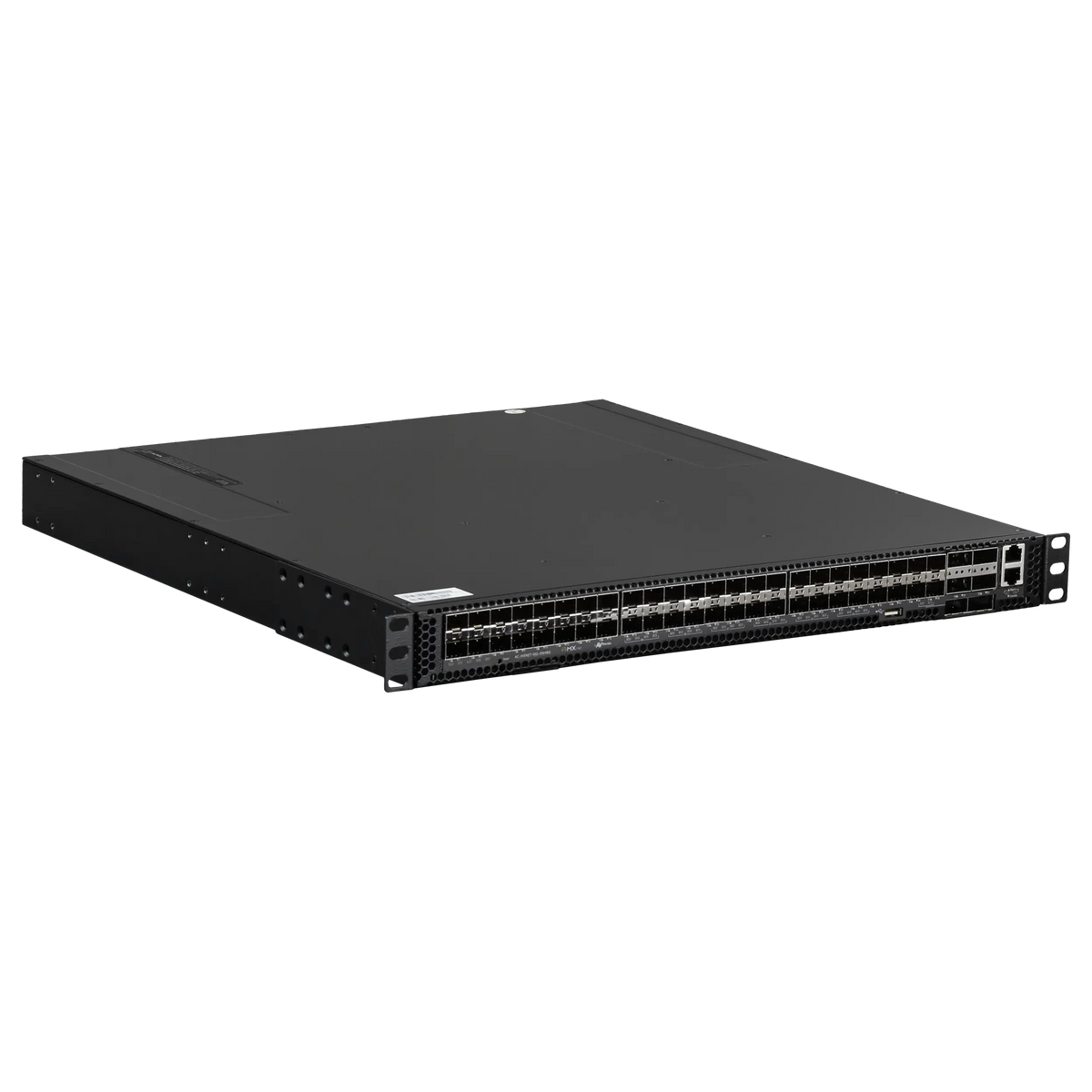

The AC-MXNET-10G-SW48Q is a high-density, stackable managed network switch engineered specifically for the MXnet 10G AVoIP ecosystem. It features 48 SFP+ 10GbE ports and 6 QSFP+ 40GbE ports, offering scalable connectivity and seamless integration. Designed with a proprietary AVPro Edge OS, this switch ensures near-zero latency switching and high-speed data throughput, making it ideal for demanding audio and video applications. The hardware includes redundant internal power supplies and fan modules to provide carrier-grade 99.999% uptime availability. It is suitable for small to medium data centers and campus environments requiring reliable, high-performance network infrastructure.

SFP+ Ports 48 x 10GbE/1GbE
QSFP+ Ports 6 x 40GbE
Management Port 1 x 10/100/1000BASE-T
Switching Capacity 1440 Gbps
Throughput 1071 Mpps
MAC Address Table 96K
Operating Temperature 0°C to 45°C
Power Consumption 400W
Unit Dimensions 1.75 x 17.5 x 20 inches
Unit Weight 19.8 lbs
