AVPro Edge MXnet 10G 24 Port Managed Network Switch
Regular price
$11,586.00
Couldn't load pickup availability
Frequently Asked Questions
What is a managed network switch, and when do you need one for AV-over-IP?
A managed network switch is a switch that gives you control over how traffic moves through the network, instead of simply passing data from port to port. For AV-over-IP, that control matters because video, audio, and control signals create heavy multicast traffic that needs features like VLANs, traffic monitoring, diagnostics, and performance tuning.
The AVPro Edge MXnet 10G 24 Port Managed Network Switch is built for that kind of environment. It provides 24 SFP+ ports for 1G or 10G connectivity, 2 QSFP+ uplink ports for 40G backbone links, and management through MXnet Mentor software. It also includes an intelligent AV multicast processing engine designed for near-zero latency distribution.
A managed switch is the right choice when you are building a professional system with multiple encoders, decoders, video walls, or large-format displays. It is especially useful in corporate, education, hospitality, and large residential projects where uptime, diagnostics, and traffic separation are important. If your network is very small and simple, an unmanaged switch may be enough, but it usually lacks the control needed for reliable AV distribution.
What are the differences between managed and unmanaged network switches for professional AV systems?
The main difference is control. A managed switch lets you configure and monitor the network, while an unmanaged switch is essentially plug-and-play with little to no adjustment. In a professional AV system, that difference affects reliability, scalability, and troubleshooting.
Managed switches are better suited for AV-over-IP because they support VLAN setup, multicast handling, diagnostics, and traffic segmentation. Those features help keep video streams stable, reduce congestion, and make it easier to isolate issues. The AVPro Edge MXnet 10G 24 Port Managed Network Switch adds real-time diagnostics through MXnet Mentor software, dual internal power supplies, and a 640 Gbps switching capacity for high-density installs.
Unmanaged switches can work for simple data networking, but they are not ideal for demanding video transport where multiple streams need predictable performance. A managed switch is the better fit for integrators, IT teams, and commercial users who need dependable performance and room to expand. The tradeoff is that managed models require more planning and setup knowledge than unmanaged alternatives.
Which is better for AV-over-IP: a managed or unmanaged switch?
For AV-over-IP, a managed switch is usually the better choice. Video distribution over IP depends on stable bandwidth, proper multicast behavior, and the ability to separate AV traffic from other network activity. Managed switches provide the tools needed to do that reliably.
The AVPro Edge MXnet 10G 24 Port Managed Network Switch is designed specifically for high-density AV traffic. It includes 24 SFP+ ports, 2 QSFP+ uplinks, a 480 Mpps forwarding rate, and an intelligent AV multicast processing engine for near-zero latency performance. It also supports configuration and diagnostics through MXnet Mentor software, which is valuable when deploying larger systems.
An unmanaged switch may be acceptable for very basic networking, but it can become a weak point when multiple 4K or other high-bitrate AV streams are involved. Managed switches benefit commercial AV installations, digital signage networks, education campuses, and enterprise spaces where uptime and troubleshooting matter. The tradeoff is complexity, since managed switches need setup and network planning, but that extra control is what makes them the better option for serious AV-over-IP work.
How can you tell if a network switch is managed or unmanaged?
The easiest way to tell is by looking for configuration and monitoring features. A managed switch will usually have a web interface, software-based management, VLAN support, diagnostics, and a dedicated management port. An unmanaged switch typically does not offer those controls and is meant to work immediately without setup.
The AVPro Edge MXnet 10G 24 Port Managed Network Switch is clearly a managed model because it includes MXnet Mentor software support for real-time diagnostics and VLAN configuration, plus a dedicated 10/100/1000BASE-T management port. Those are typical signs that a switch is intended for professional network control rather than basic plug-and-play use.
This distinction matters most for buyers building AV-over-IP systems, because managed switches help maintain predictable performance and simplify troubleshooting. If you need to segment traffic, monitor link status, or optimize multicast video distribution, you want a managed switch. If you only need simple device connectivity with no tuning or oversight, an unmanaged switch may be sufficient, but it is generally less suitable for high-performance AV installations.
What should you look for in the best managed network switch for AV-over-IP?
The best managed network switch for AV-over-IP should have enough bandwidth, proper multicast support, reliable management tools, and hardware built for continuous operation. In practice, buyers should look at port type, switching capacity, forwarding rate, uplink speed, power redundancy, and how easily the switch integrates with the AV platform being used.
The AVPro Edge MXnet 10G 24 Port Managed Network Switch checks many of those boxes. It offers 24 SFP+ ports for 1G and 10G links, 2 x 40G QSFP+ uplink ports, 640 Gbps switching capacity, and 480 Mpps forwarding performance. It also includes dual internal power supplies and management through MXnet Mentor software, which supports diagnostics and VLAN configuration. These are useful features for high-density video deployments where uptime and visibility matter.
This type of switch is best for integrators and IT teams deploying scalable AV systems in conference centers, campuses, control rooms, or large commercial spaces. One tradeoff is that SFP+ based switching requires compatible transceivers or fiber/copper modules, so buyers should plan the full network design rather than treating it like a basic office switch.
Is a 10G managed switch necessary for 4K and high-bandwidth AV distribution?
A 10G managed switch is often the right choice when you are transporting multiple high-bandwidth AV streams, especially in larger 4K AV-over-IP systems. While not every 4K deployment requires 10G on every link, higher network speeds provide more headroom, reduce bottlenecks, and make the system easier to scale.
The AVPro Edge MXnet 10G 24 Port Managed Network Switch is designed for exactly that use case. It has 24 SFP+ ports that support 1G or 10G communication, plus 40G uplinks for backbone connections. That makes it well suited for installations with many encoders, decoders, and displays that need fast, low-latency switching.
This switch is most valuable in enterprise AV, higher education, entertainment venues, and other spaces where many endpoints are active at once. If your installation is small and has limited traffic, a lower-speed switch may be enough. The tradeoff is that 10G infrastructure can increase complexity and may require compatible optics or cabling, but it gives professional systems the performance margin they often need.
What does near-zero latency mean in an AV-over-IP switch, and why does it matter?
Near-zero latency means the switch is designed to move AV traffic with extremely minimal delay, so video, audio, and control signals stay responsive across the network. In AV-over-IP, low latency matters because delays can affect live presentations, interactive spaces, camera feeds, and environments where synchronization is important.
The AVPro Edge MXnet 10G 24 Port Managed Network Switch includes an intelligent AV multicast processing engine intended to support near-zero latency performance inside the MXnet ecosystem. Combined with its 640 Gbps switching capacity and 480 Mpps forwarding rate, it is built for fast packet handling in demanding AV applications.
This is especially important for boardrooms, classrooms, command centers, and event spaces where users expect immediate switching and minimal lag. It is also helpful when multiple displays need to remain visually consistent. A key limitation is that total system latency depends on more than just the switch. Encoders, decoders, network design, and endpoint configuration also affect the final result. The switch helps create a strong foundation, but it is one part of the overall latency picture.
What are SFP+ and QSFP+ ports, and why would an AV installer want them?
SFP+ and QSFP+ are high-speed modular network port types used for fiber or compatible direct-attach connections. SFP+ typically supports 1G or 10G links, while QSFP+ is commonly used for higher-capacity uplinks such as 40G. In AV installations, these port types are valuable because they allow flexible network design and strong bandwidth for high-density video transport.
The AVPro Edge MXnet 10G 24 Port Managed Network Switch includes 24 SFP+ ports and 2 QSFP+ uplink ports. That combination lets installers connect many AV endpoints at 1G or 10G while also using high-speed uplinks between switches or network cores. This is useful in larger projects where many rooms, racks, or zones need to share AV traffic efficiently.
Installers benefit most when they need long cable runs, scalable architecture, or backbone links with more capacity than standard copper ports provide. The tradeoff is that modular networking requires planning, since transceivers and cable types must match the system design. For buyers who want flexibility and performance in a professional AV network, SFP+ and QSFP+ are strong advantages.
Is this switch a good fit for large commercial or enterprise AV installations?
Yes, this switch is best suited for large commercial and enterprise AV installations rather than small, casual networks. Its hardware and port layout are designed for high-density AV-over-IP systems that need strong throughput, expansion capacity, and dependable uptime.
The AVPro Edge MXnet 10G 24 Port Managed Network Switch offers 24 x 1/10G SFP+ ports, 2 x 40G QSFP+ uplinks, 640 Gbps switching capacity, and 480 Mpps forwarding performance. It also includes dual internal power supplies and carrier-grade hardware rated for 99.999% uptime, which are important features in business-critical environments. Rack-mount installation and software-based management through MXnet Mentor also support professional deployment standards.
This makes it a strong match for conference centers, higher education campuses, corporate AV systems, digital signage networks, control rooms, and other installations with many endpoints. It may be more than a small office or single-room system needs, especially if the network will never grow beyond a few devices. The main tradeoff is that enterprise-grade performance comes with greater setup requirements and infrastructure planning.
How does MXnet Mentor software help manage an AV-over-IP switch?
MXnet Mentor software helps simplify switch management by giving installers and administrators visibility into network status and configuration from a central interface. For AV-over-IP systems, that matters because troubleshooting multicast traffic, link performance, and VLAN behavior can be difficult without purpose-built tools.
With the AVPro Edge MXnet 10G 24 Port Managed Network Switch, MXnet Mentor provides real-time diagnostics and VLAN configuration. That means users can monitor the network, identify issues more quickly, and organize traffic for stable AV performance within the MXnet ecosystem. In a professional deployment, those management features can reduce setup time and make ongoing maintenance more predictable.
This is most useful for integrators, in-house IT teams, and facility managers responsible for multiple endpoints or mission-critical rooms. It is especially helpful when uptime and fast problem resolution are priorities. A limitation to consider is that the greatest benefit comes when the switch is part of an MXnet-based system. Buyers using a different ecosystem should confirm how the management workflow fits their overall network standards and support process.

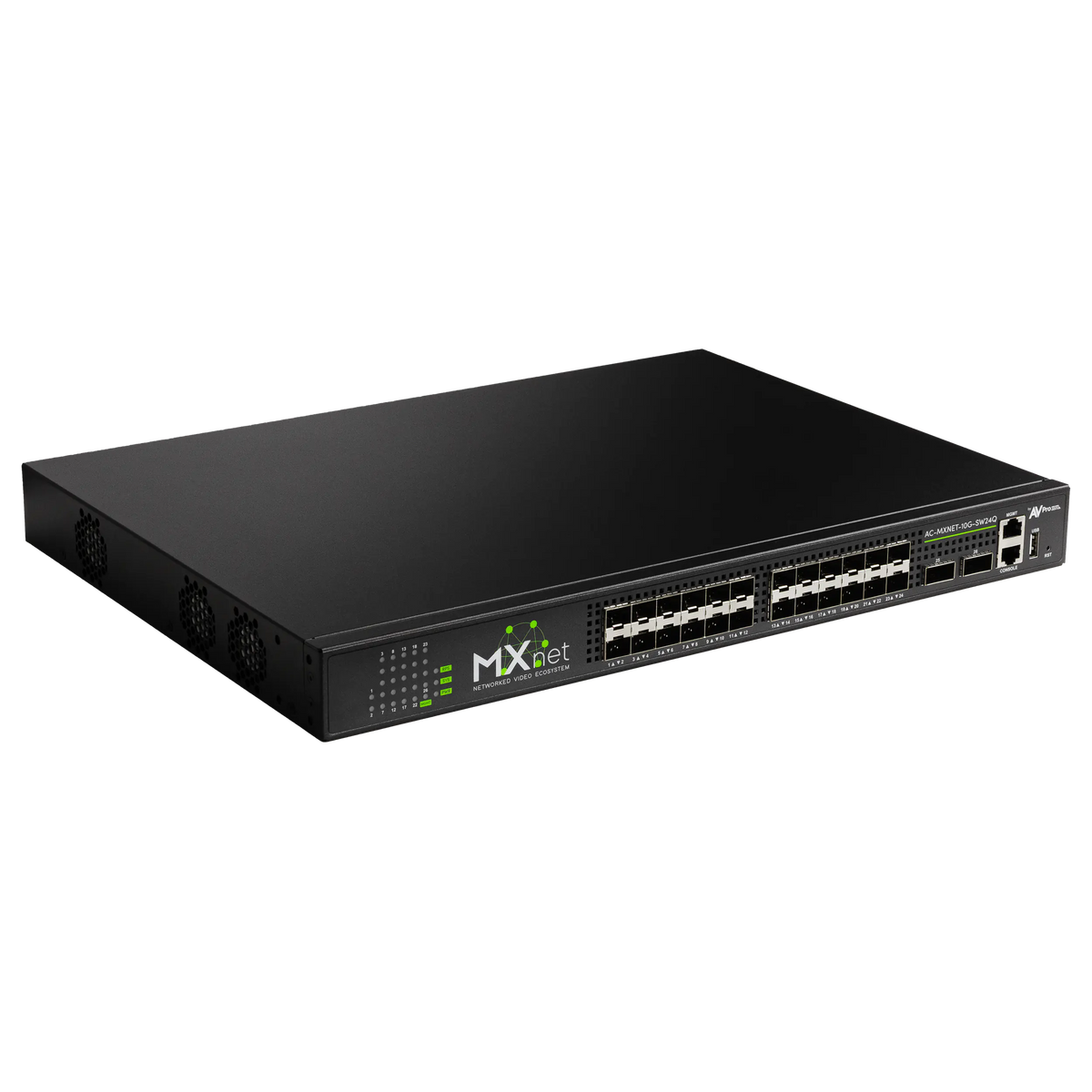

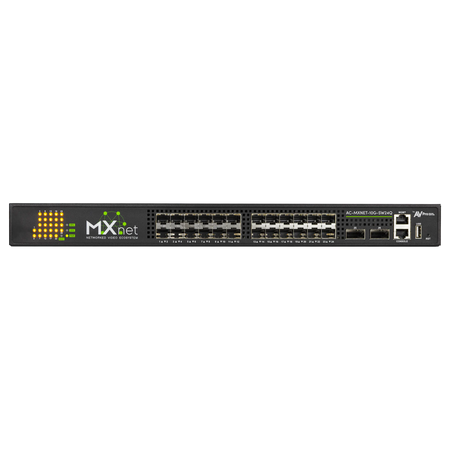

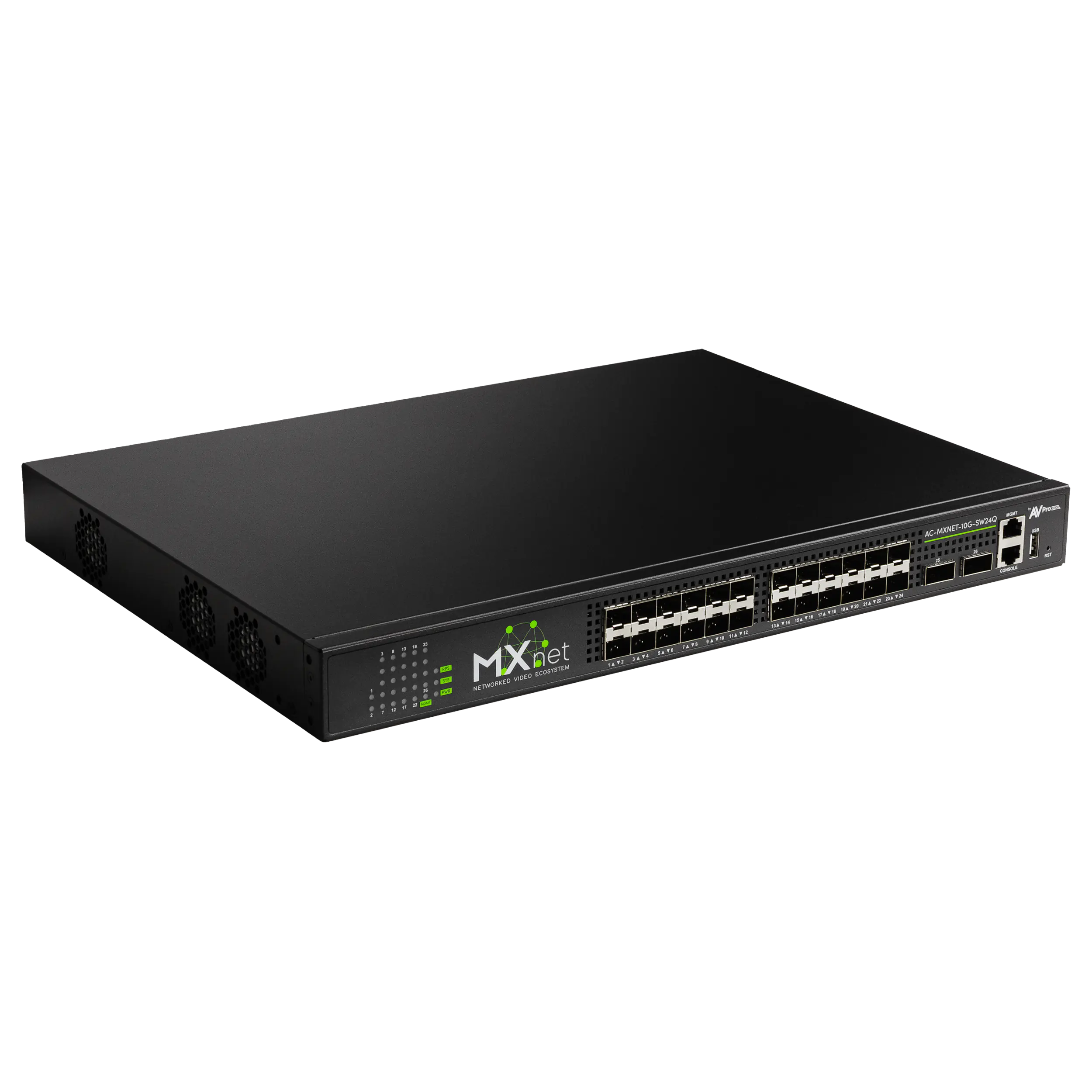

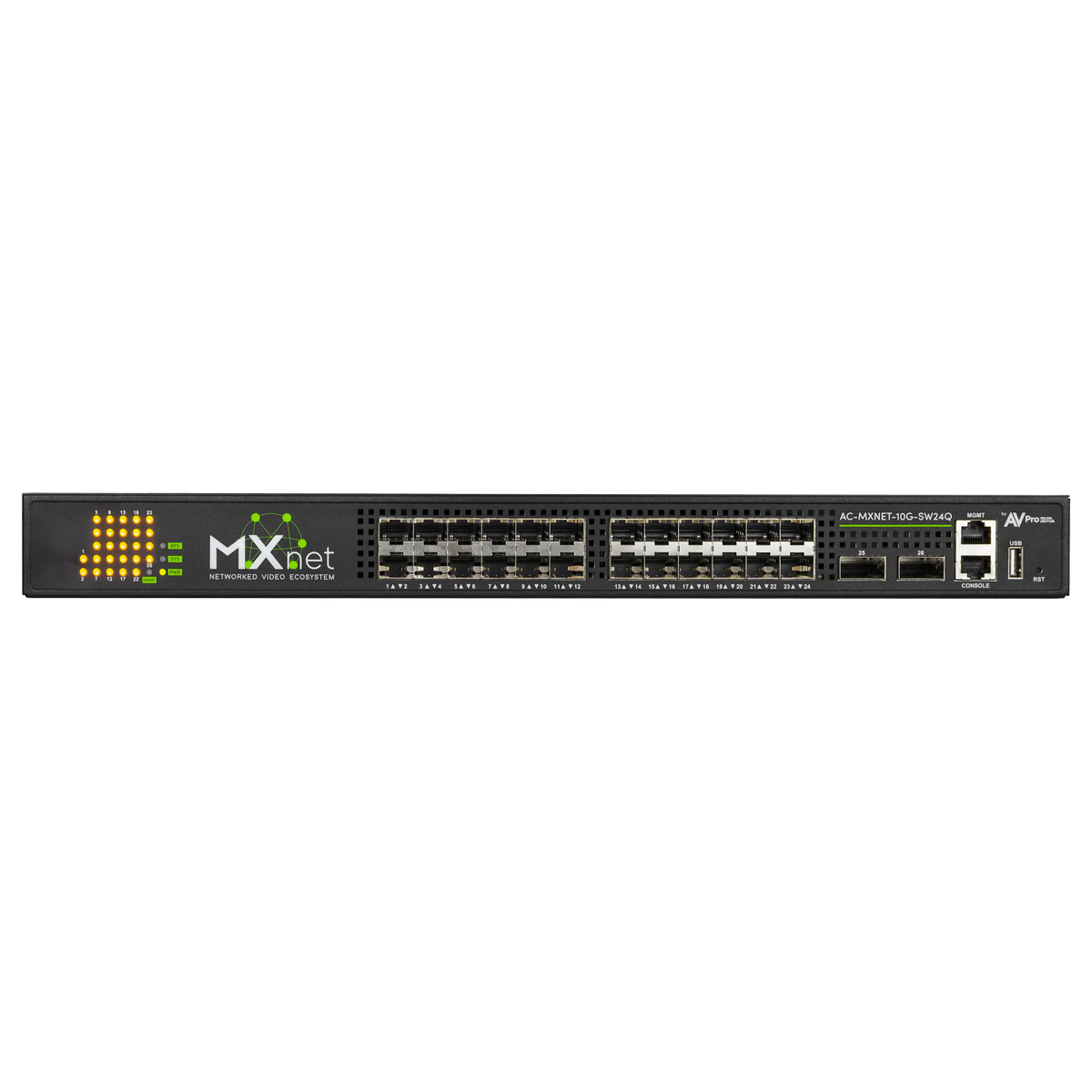

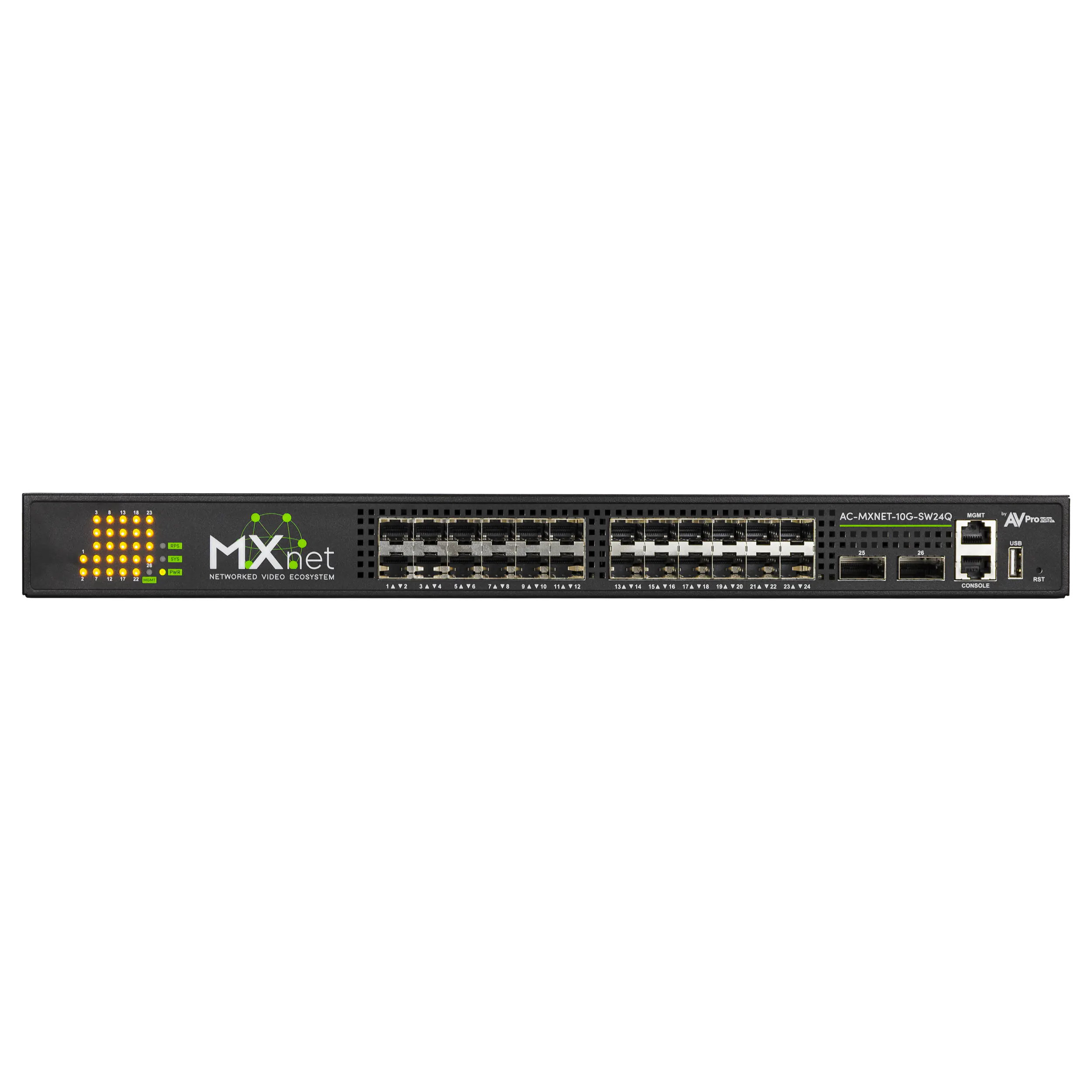

The AC-MXNET-10G-SW24Q is a professional-grade managed switch designed for high-density 10G communication within the MXnet ecosystem. It features 24 SFP+ ports and 2 QSFP+ uplink ports, supporting seamless AV-over-IP distribution. Engineered for reliability, this carrier-grade hardware ensures 99.999% uptime for demanding audio/video applications. Management is streamlined through the proprietary MXnet Mentor software, providing real-time diagnostics and VLAN configuration. With dual internal power supplies and an intelligent AV multicast processing engine, it delivers near-zero latency and high-performance throughput. This switch is the ideal solution for scalable, high-speed network installations.
| Ports | 24 x 1/10G SFP+ Ports |
| Uplink Ports | 2 x 40G QSFP+ Ports |
| Switching Capacity | 640 Gbps |
| Forwarding Rate | 480 Mpps |
| Management Port | 1 x 10/100/1000BASE-T |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 10% to 90% non-condensing |

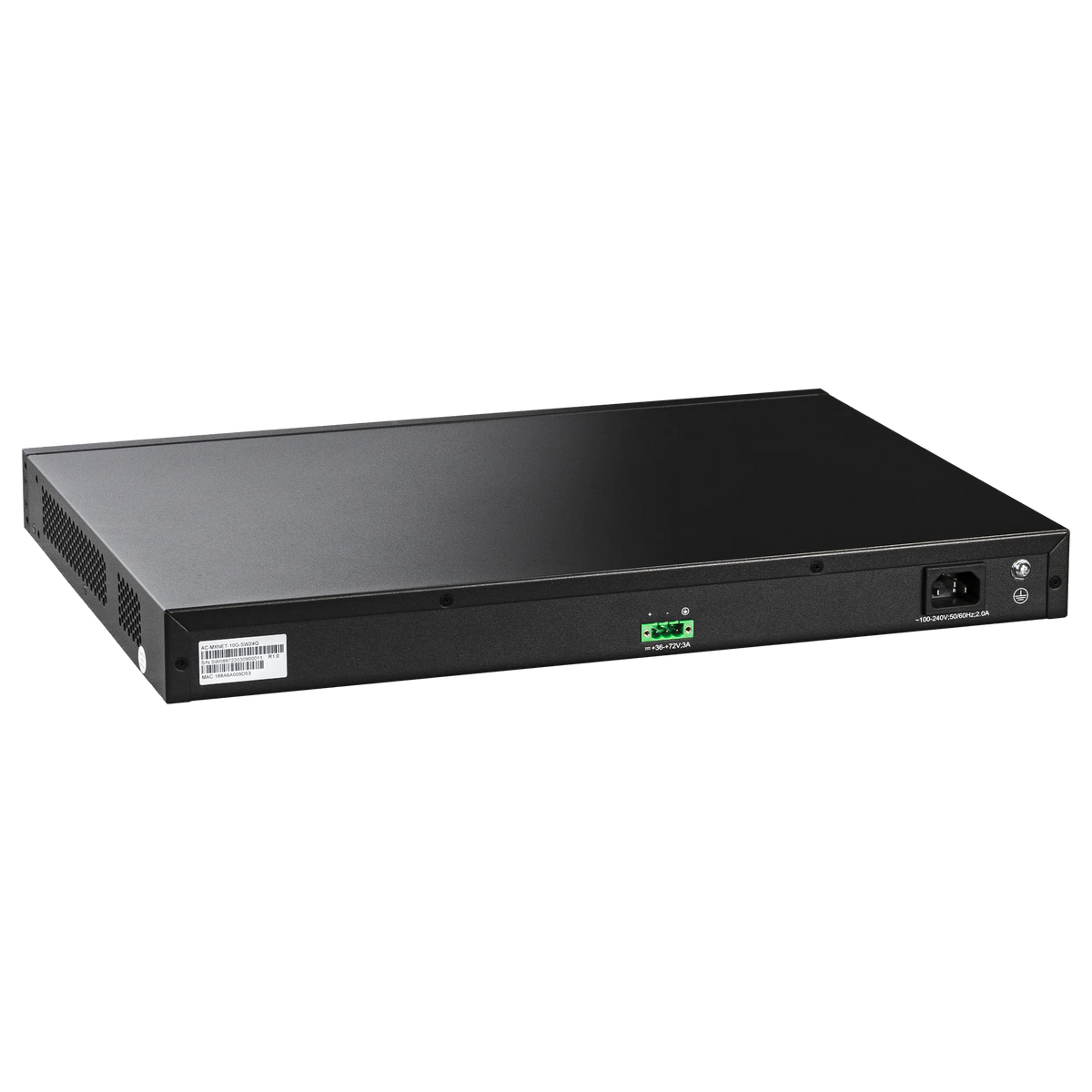

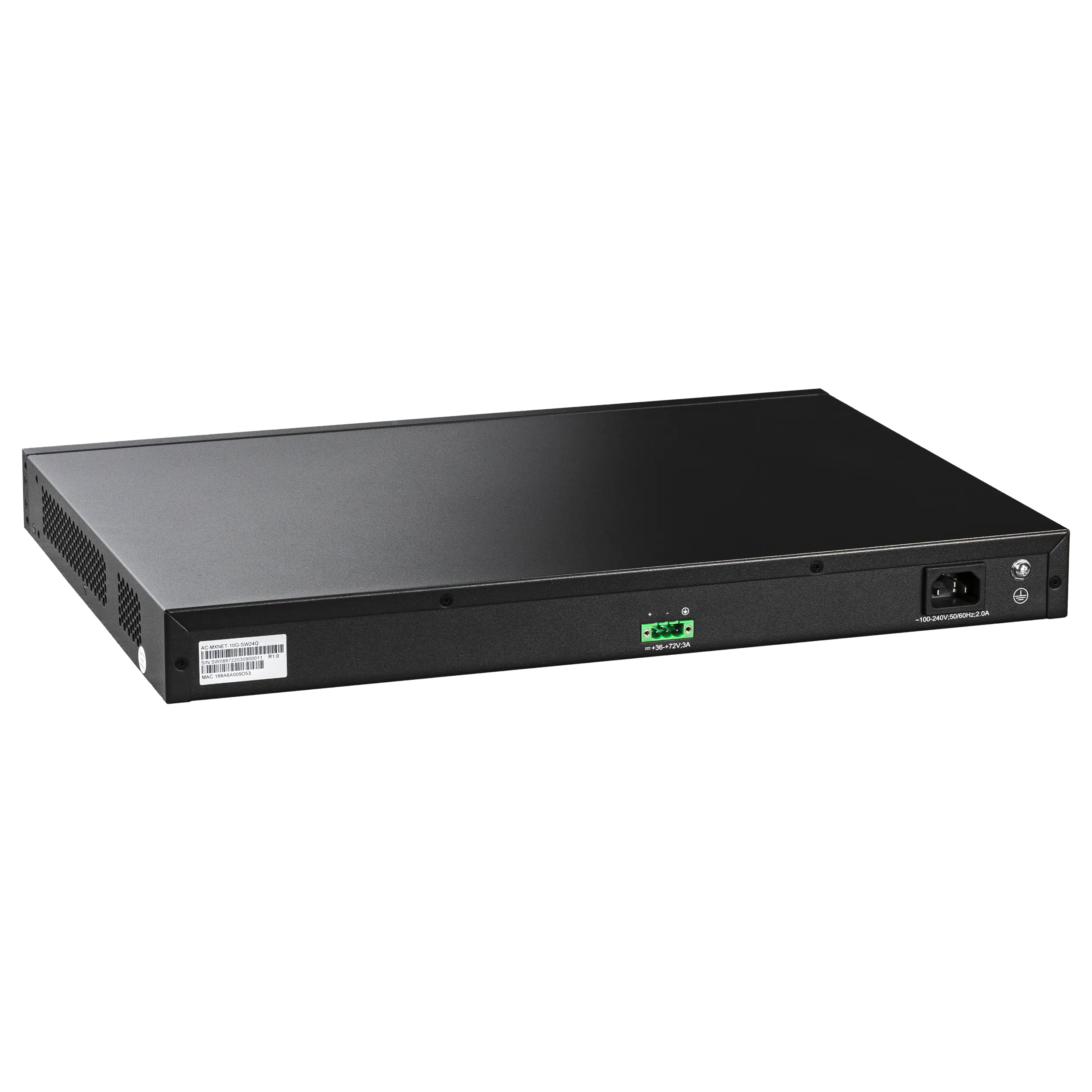

| Power Supply | Dual Internal Power Supplies |
| Installation | Rack Mount |
