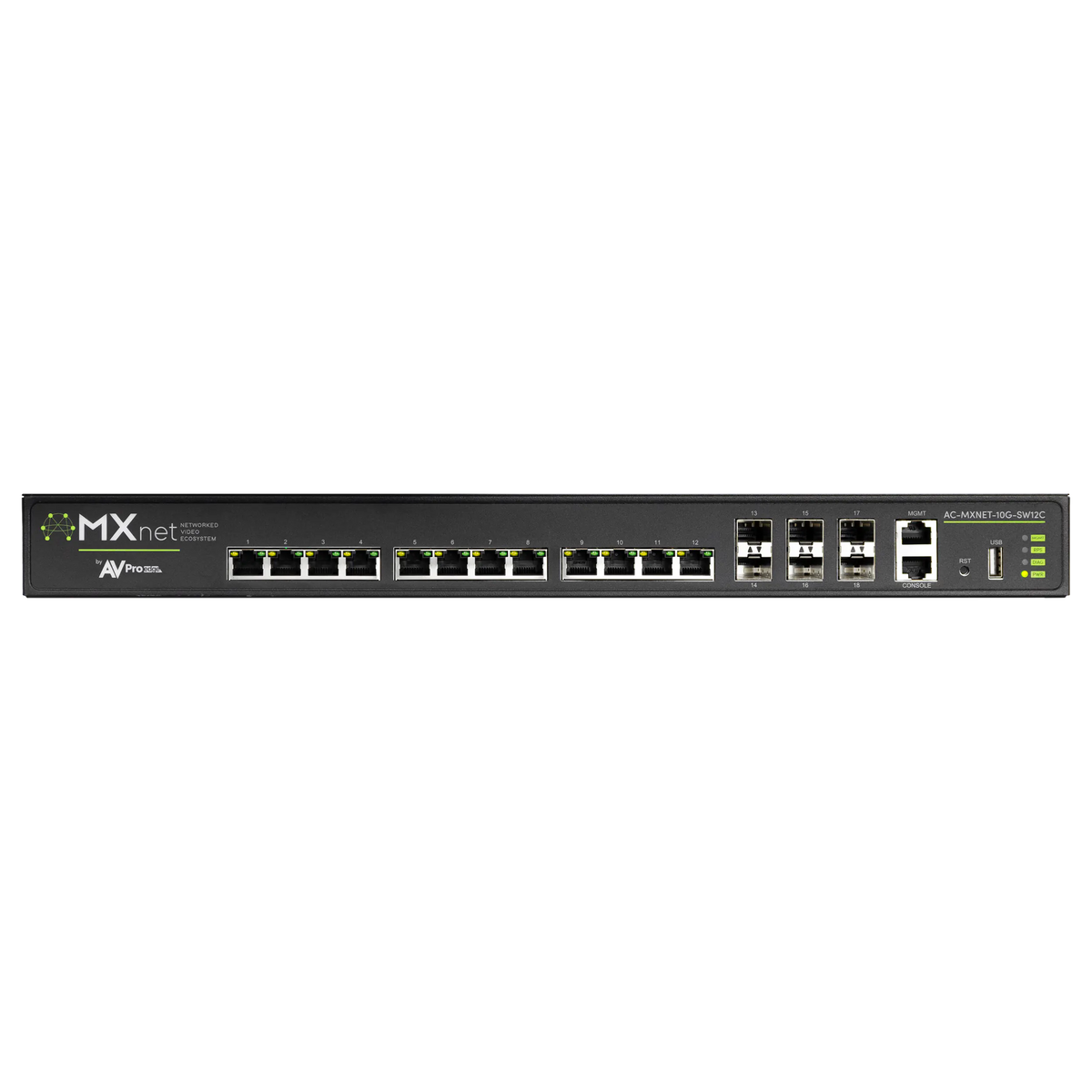

AVPro Edge MXnet 10G 12 Port Copper PoE Network Switch

SKU: AC-MXNET-10G-SW12C
Regular price $7,549.00

Frequently Asked Questions

An AV network switch is a network switch optimized for audio video traffic, especially multicast video streams used in AV over IP systems. Unlike a basic Ethernet switch, it is designed to handle high bandwidth signals, low latency requirements, PoE power delivery, and the management features needed for encoders, decoders, control devices, and displays. The AVPro Edge MXnet 10G 12 Port Copper PoE Network Switch is built specifically for that kind of environment. It supports 12 multi-gig RJ45 ports with PoE, PoE+, and PoE++, plus six SFP28 uplink ports that support 1G, 10G, and 25Gbps connections. It also includes an intelligent AV multicast processor and near-zero latency switching, which are important for smooth video routing and synchronized AV performance. This type of switch is best for commercial AV systems, education, enterprise, and large distributed video installations. A regular office switch may work for light networking, but it often lacks the throughput, PoE flexibility, uplink capacity, and AV-specific management needed for reliable 10G AV over IP deployments.
A 10G AV over IP switch is the better choice when your system needs to move high resolution video, low latency audio, control signals, and power across the same network with room to scale. It is especially useful for dense AV environments where multiple endpoints are transmitting at once, such as classrooms, corporate campuses, command centers, digital signage networks, esports spaces, or large venue installations. The AVPro Edge MXnet 10G switch is designed for those higher performance systems. It offers 12 copper 10G multi-gig ports with PoE and six 25G-capable uplink ports, along with a 540 Gbps switching capacity and 405 Mpps forwarding rate. Those specs matter when the network must stay responsive under heavy AV traffic loads. A standard 1G switch may still be enough for small, simple AV systems, but it can become a bottleneck in larger deployments. If you want cleaner expansion, fewer compromises, and support for advanced SDVoE or 10G AV ecosystems, a dedicated 10G AV switch is usually the smarter long-term choice.
The most important things to look for are bandwidth, PoE capability, uplink capacity, multicast handling, management tools, and reliability. AV over IP systems can place heavier demands on a switch than standard office networking, so the switch should be matched to the video format, number of endpoints, and expansion plans. For example, the AVPro Edge MXnet 10G 12 Port Copper PoE Network Switch combines 12 RJ45 10G multi-gig ports with PoE, PoE+, and PoE++, which helps reduce cabling by carrying both power and data over a single Cat 6a cable. It also adds six SFP28 uplink ports supporting up to 25Gbps, which is valuable when linking racks, floors, or distribution layers. Managed configuration through MXnet Mentor software helps with diagnostics and setup, and dual internal power supplies improve system resilience. This type of switch is ideal for installers and organizations that need predictable AV performance. If your application is simple and only uses a few low-bandwidth devices, a less advanced switch may be enough, but it may not offer the same headroom or control.
Yes, this switch is well suited for SDVoE and other high bandwidth AV over IP environments that require 10G infrastructure. It is built for high density 10G communication in the MXnet 10G ecosystem and includes the throughput and port configuration expected in demanding 4K and professional AV distribution systems. On the hardware side, it provides 12 10G multi-gig RJ45 ports for endpoint connections and six SFP28 uplink ports that support 1G, 10G, and 25Gbps links. It also delivers a 540 Gbps switching capacity and 405 Mpps forwarding rate, both of which are important for maintaining smooth traffic flow across multiple simultaneous streams. Near-zero latency switching and the integrated AV multicast processor further support real-time video performance. This makes it a strong fit for installations where image quality, synchronization, and scalability matter. The main tradeoff is that it is more specialized than a standard switch, so it makes the most sense in professional AV networks rather than small general-purpose office environments.
Yes, this switch is designed to power compatible AV devices over Ethernet while also carrying their network traffic. It has 12 RJ45 ports that support PoE, PoE+, and PoE++, with a total PoE budget of 370 watts. That allows many AV over IP endpoints, control devices, or other powered network products to run from the switch without needing separate local power supplies. For installers, this can simplify rack design and reduce cable clutter because a single Cat 6a cable can handle both data and power to each endpoint. That is especially helpful in classrooms, meeting rooms, digital signage setups, and distributed AV systems where minimizing hardware at the display or endpoint location is important. The key consideration is power planning. You still need to check the power draw of each connected device and confirm that the total stays within the switch's 370 watt PoE budget. It is a strong fit for systems that want clean deployment and centralized power management, but very power-hungry devices may require closer planning.
25G uplink ports help prevent bottlenecks when multiple high bandwidth AV endpoints are feeding traffic into the wider network. In a professional AV over IP system, the edge ports may connect encoders, decoders, and control devices, while uplinks carry aggregated traffic to another switch, rack, core network, or building distribution layer. Faster uplinks improve scalability and keep the system responsive as endpoint counts grow. This AVPro Edge switch includes six SFP28 uplink ports that support 1G, 10G, and 25Gbps speeds. That flexibility is useful for phased deployments because it can integrate with existing infrastructure today while still leaving room for higher-capacity uplinks later. It is particularly valuable in enterprise, education, or large venue environments where many AV streams may be active at once. If your installation is small and self-contained, 25G uplinks may be more than you need right now. But for larger or expandable AV systems, they provide valuable headroom and make the network easier to design without creating choke points between switch layers.
Management software is very important in AV over IP because it helps with configuration, monitoring, troubleshooting, and long-term maintenance. Even when a switch is plug-and-play at a basic level, larger AV systems benefit from visibility into port status, traffic behavior, multicast handling, and device communication. This switch is managed through MXnet Mentor software, which is designed to streamline diagnostics and configuration within the MXnet 10G ecosystem. That is useful for integrators and IT teams who need to deploy multiple endpoints, verify performance, and quickly identify issues if a stream or endpoint is not behaving as expected. Good management tools are especially valuable in schools, corporate spaces, and event venues where downtime affects many users at once. The tradeoff is that managed AV switches are more specialized than unmanaged networking hardware, so they are best for buyers who need control and reliability rather than the simplest possible setup. In most professional AV environments, the management layer is a major advantage, not an extra.
Yes, this switch is a strong fit for large commercial AV installations that need high port density, centralized power, and reliable 10G performance. It is engineered for high density communication in the MXnet 10G ecosystem and combines 12 copper 10G ports with six high-speed uplink ports, which makes it practical for distributing AV traffic across multiple rooms, racks, or zones. Its dual internal power supplies are a major advantage in commercial settings because they add redundancy for improved uptime. AVPro Edge rates the platform for carrier-grade 99.999 percent uptime, which is relevant in environments where system interruptions are costly. The 540 Gbps switching capacity, 405 Mpps forwarding rate, and near-zero latency switching also support demanding real-time AV applications. This switch is best for integrators, facilities teams, and organizations running professional AV over IP systems. For a very small office or a simple two or three room deployment, it may be more infrastructure than necessary, but for scalable commercial networks it offers the features buyers usually prioritize.
A PoE AV switch usually makes installation cleaner and easier because it sends both data and power through one Ethernet cable. That reduces wall warts, local power adapters, and the need for electrical outlets near displays or endpoints. It also centralizes power management in the rack, which can simplify maintenance and improve overall system organization. The AVPro Edge MXnet 10G switch is a good example of that approach. Its 12 copper ports support PoE, PoE+, and PoE++, with a total budget of 370 watts, so many encoders, decoders, and networked AV devices can be powered directly from the switch. This is especially useful in commercial AV systems where neat installation and serviceability matter. The main tradeoff is power budgeting. If too many connected devices draw significant wattage, you must carefully calculate the total load. Separate power supplies can avoid PoE budget limits, but they add complexity and more failure points at the endpoint. For most professional AV deployments, PoE switching is the more efficient option if the power plan is designed correctly.
This switch benefits installations that need reliable, high bandwidth AV distribution with room to scale. Good examples include conference centers, higher education campuses, training rooms, digital signage networks, simulation environments, control rooms, and multi-room enterprise AV systems. These deployments often need several endpoints powered over Ethernet, low latency video transport, and fast uplinks to connect racks or network layers. The switch's 12 multi-gig 10G RJ45 ports make it well suited for dense endpoint connections, while the six SFP28 uplink ports support backbone connectivity up to 25Gbps. Its support for PoE, PoE+, and PoE++ helps reduce cabling complexity, and the managed design with MXnet Mentor software supports easier diagnostics and configuration. It is best for buyers building within the MXnet 10G ecosystem or planning a serious AV over IP rollout. It is less ideal for basic networking, home use, or installations with only a few low-bandwidth devices. In those smaller cases, a simpler switch may be more appropriate than a specialized 10G AV platform.

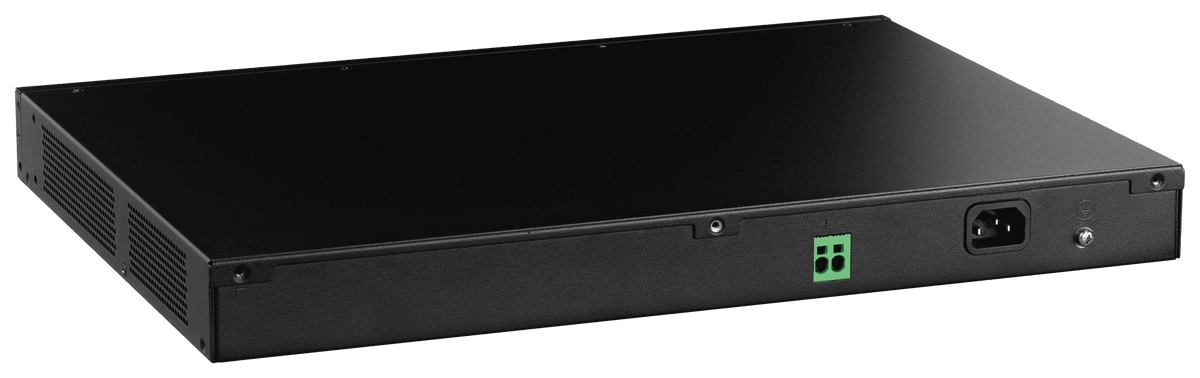

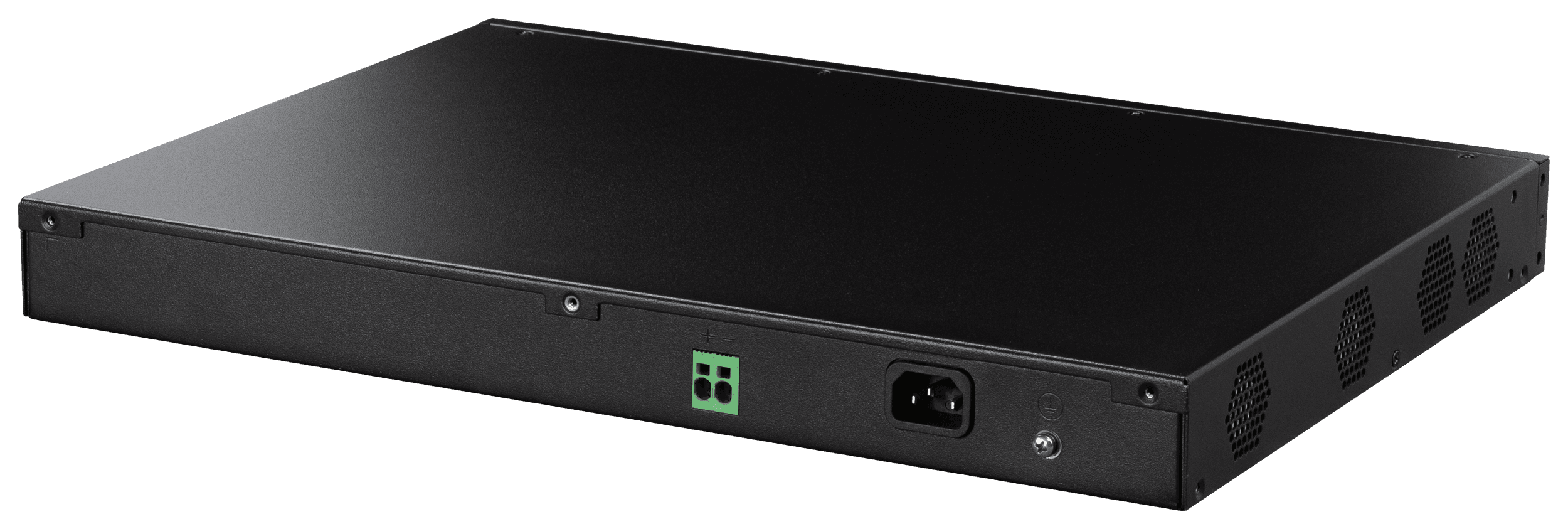

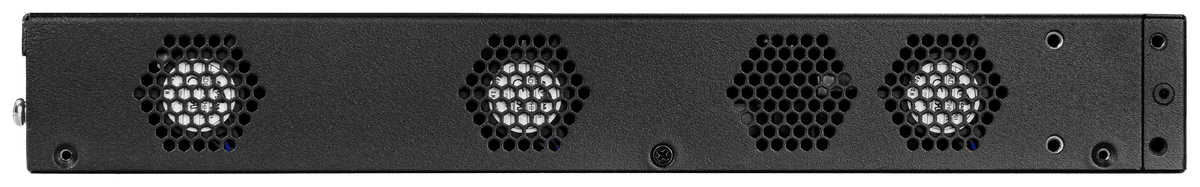

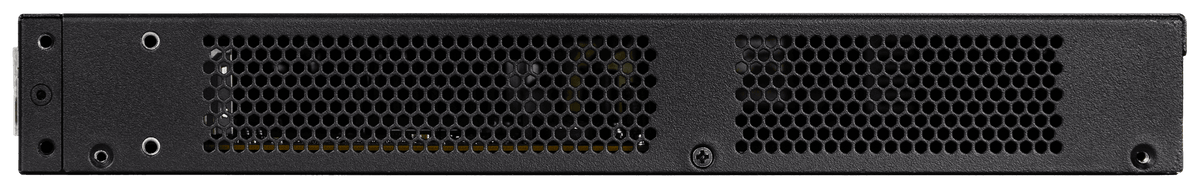

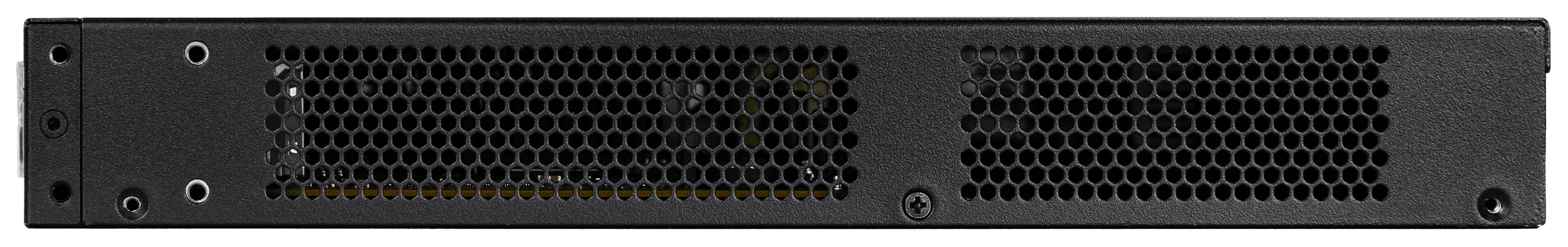

The AC-MXNET-10G-SW12C is a managed switch engineered for high-density 10G communication within the MXnet 10G ecosystem. This industry-first design handles both data and PoE traffic through 12 common ports, simplifying installations by requiring only a single Cat 6a cable for power and data. It features six 10G/25G SFP28 uplink ports for seamless connectivity and is managed via the MXnet Mentor software for efficient system diagnostics and configuration. Built for reliability, it includes dual internal power supplies for redundancy and delivers carrier-grade 99.999% uptime. With near-zero latency switching and an intelligent AV multicast processor, it ensures high-fidelity audio and video performance for demanding applications. This preconfigured, plug-and-play solution optimizes your AV-over-IP infrastructure for speed, accuracy, and scalability.

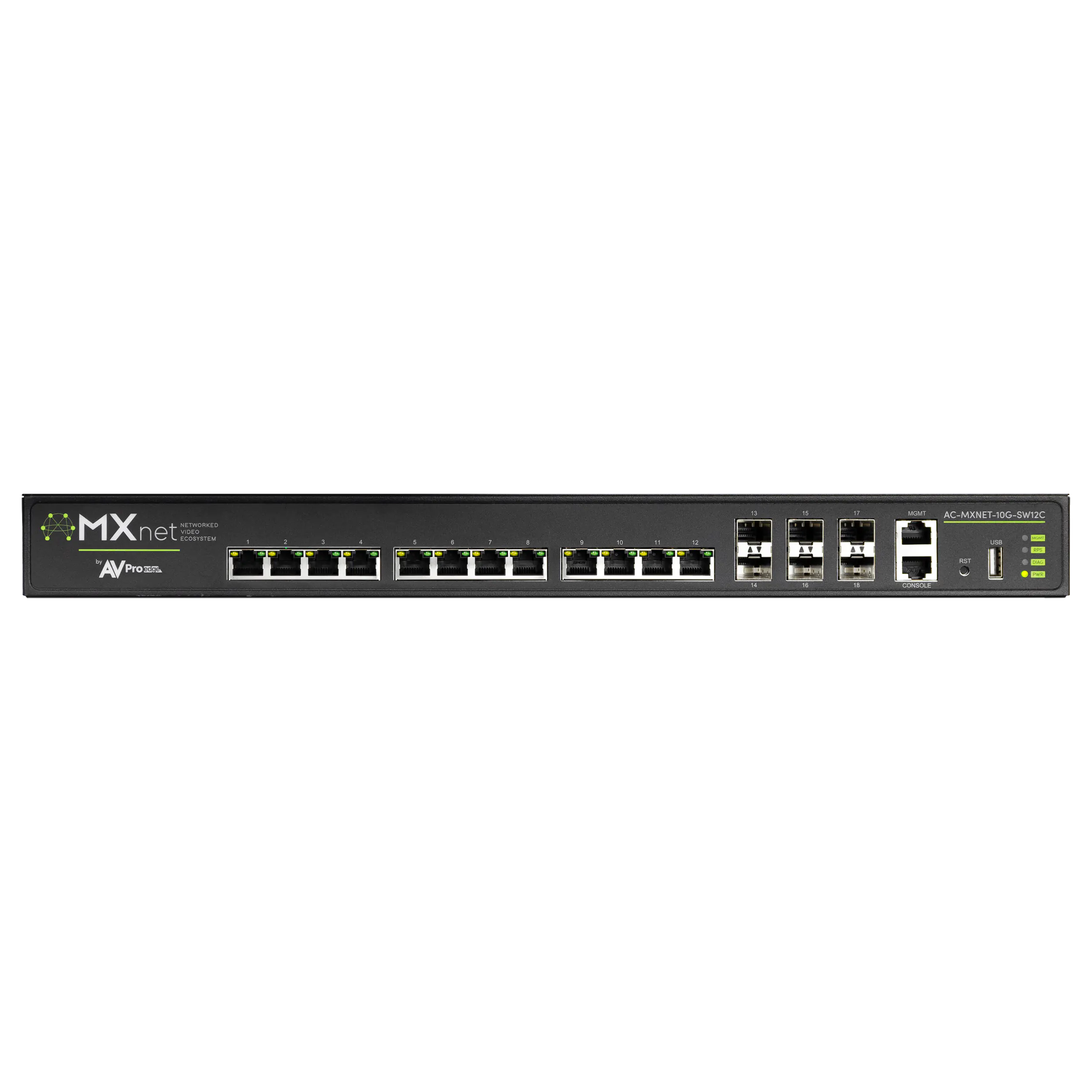

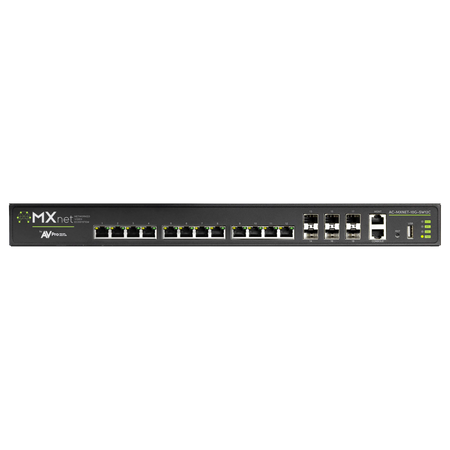

Ports 12x 10G-mGig RJ45 (PoE/PoE+/PoE++), 6x 1G/10G/25Gbps SFP28 Uplink
Switching Capacity 540 Gbps
Forwarding Rate 405 Mpps
PoE Budget 370W
Max Power Consumption 430W
MAC Address Table 32K
Operating Temperature 0°C to 50°C
Dimensions 1.75 x 17.3 x 12.56 inches
Weight 9.4 lbs
