AVPro Edge eARC Extender Kit High-Bandwidth Audio Transmitter Receiver

SKU: AC-AEX-DEARC-KIT
Regular price $628.00

Frequently Asked Questions

An HDMI splitter and an audio extender solve different problems. A splitter duplicates one signal to multiple displays or devices, while an audio extender sends audio from one location to another over a longer distance. If your goal is to move TV audio to a central rack, equipment closet, or remote audio system, an extender is usually the better fit. The AVPro Edge eARC Extender Kit is designed specifically for high-bandwidth audio transport, not simple signal duplication. It uses HDMI 2.1 eARC to carry advanced formats such as Dolby Atmos, DTS:X, and Dolby TrueHD, and it can extend that audio up to 100 meters over Category 6A cable. It also adds ARC, TOSLINK, and analog stereo options, plus bidirectional IR and RS-232 for control. A splitter is best when you need the same source on multiple outputs. An extender is best when distance, centralized equipment placement, and full-quality audio are the priority.
HDMI splitters can pass audio, but they are not the same as a dedicated audio extender. A splitter typically sends the same HDMI signal, including audio, to multiple outputs. That can work for basic setups, but it does not address long-distance audio transport, advanced eARC audio return, or centralized system integration. If you need to extract or extend audio from a TV back to an equipment rack, a dedicated solution is usually the right choice. The AVPro Edge eARC Extender Kit is built for that exact use case. It supports eARC audio formats such as Dolby Atmos, DTS:X, LPCM 5.1 and 7.1, and Dolby TrueHD, with near-zero latency over up to 100 meters on Cat6A. It also includes SPDIF and analog stereo connections for broader compatibility. This matters most for home theaters, commercial AV systems, and installations where the display is far from the audio gear. For simple duplication, a splitter may be enough. For high-quality returned audio over distance, an extender is the better tool.
No, not in the way most installations require. An HDMI splitter is designed to copy one HDMI signal to multiple destinations, but it does not replace a purpose-built extender for sending audio or AV over long cable runs. In most cases, a splitter will not provide the distance, control integration, or audio-return functionality needed for a clean professional setup. A dedicated extender like the AVPro Edge eARC Extender Kit is designed to move audio from a television to a remote location using Category 6A cable up to 100 meters. It supports HDMI 2.1 eARC, which allows transport of higher-bitrate formats such as Dolby Atmos and DTS:X. It also includes ARC, TOSLINK, analog stereo, bidirectional IR, and RS-232, which are features you would not expect from a basic splitter. If your challenge is distance, centralized equipment, or preserving premium TV audio codecs, use an extender. If your challenge is feeding the same HDMI source to more than one display, use a splitter.
The main downside is that an HDMI splitter is usually not optimized for audio return, long-distance transport, or high-bitrate audio formats. In advanced systems, that can create compatibility limits, handshake issues, or reduced audio performance compared with a dedicated audio transport solution. For example, many shoppers want to send audio from a TV's built-in apps back to a receiver or distribution system while keeping support for formats like Dolby Atmos or DTS:X. A basic splitter is not the ideal tool for that. It may pass standard audio in some setups, but it typically does not offer eARC-focused design, long-range extension, or integration features like IR and RS-232 control. The AVPro Edge eARC Extender Kit is better suited for these applications because it is engineered around HDMI 2.1 eARC audio transfer, supports up to 100 meters over Cat6A, and includes ARC, optical, and analog audio options. The tradeoff is that dedicated extenders are more specialized, so they are best for installations where audio quality, control, and distance matter.
For Dolby Atmos or DTS:X, the most important factors are codec support, eARC compatibility, transmission distance, and installation reliability. Many audio extenders handle basic stereo or compressed surround, but not all can transport high-bitrate formats from a TV to a remote audio system without compromise. The AVPro Edge eARC Extender Kit checks the key boxes for demanding installations. It supports HDMI 2.1 eARC and carries PCM 2.0, LPCM 5.1 and 7.1, Dolby Atmos, DTS:X, and Dolby TrueHD. It extends audio up to 100 meters over Category 6A cable and uses AP-LINK technology for timing stability, which matters when preserving sync and consistent performance. It also includes ARC, Mini-TOSLINK SPDIF, and 3.5 mm analog stereo inputs for added compatibility. This type of extender is best for dedicated home theaters, media rooms, and commercial AV systems where the display and audio electronics are separated. If you only need basic stereo in a short run, a simpler product may be enough. For immersive audio, eARC support is critical.
An eARC audio extender is best for users who want full-resolution audio from a television sent to a remote receiver, processor, or distribution point without losing advanced formats. Regular ARC and optical connections are fine for many basic setups, but they do not support the same bandwidth as eARC. With eARC, you can carry higher-end formats such as Dolby Atmos, DTS:X, Dolby TrueHD, and multichannel LPCM. The AVPro Edge eARC Extender Kit is designed for that level of performance and can move those formats up to 100 meters over Cat6A cable. It also supports ARC, SPDIF, and analog stereo, so it can fit into mixed systems where not every source or display uses eARC. This matters most for home theater owners using streaming apps on the TV, custom AV installations with centralized equipment, and commercial projects needing dependable audio return over distance. If your system only needs PCM 2.0 or Dolby Digital, ARC or optical may be enough. If you want the highest-quality returned audio, eARC is the stronger choice.
It depends on the model and cable specification, but professional-grade eARC extenders are built for much longer runs than standard HDMI alone. The AVPro Edge eARC Extender Kit supports a maximum distance of 100 meters, or 328 feet, over Category 6A cable. That makes it useful when the TV is mounted far from the AV rack, amplifier, or control system. Instead of trying to keep all equipment near the display, installers can centralize gear in a cleaner location and still return high-bandwidth audio. This kit is specifically designed to transport eARC audio formats including Dolby Atmos, DTS:X, and Dolby TrueHD, not just basic stereo. The key limitation is cable quality and proper installation. To achieve the rated performance, it should be used with Cat6A and installed according to best practices. For shorter and simpler systems, other connection methods may work. For long-distance, codec-rich audio return, a 100-meter eARC extender is a practical professional solution.
Yes. The AVPro Edge eARC Extender Kit is designed to carry advanced eARC audio formats, including Dolby Atmos, DTS:X, Dolby TrueHD, PCM 2.0, and LPCM 5.1 and 7.1. That makes it suitable for systems where preserving premium TV audio is the main goal. This is especially important when a television's internal apps are the source. In many installations, the display is on one side of the room and the receiver or audio processor is in a rack elsewhere. This kit allows that returned audio to travel over Cat6A up to 100 meters while maintaining near-zero latency. It also includes support for ARC and SPDIF-format audio where needed, though those formats have more limited audio capabilities than eARC. It is best for users who want immersive surround formats without placing all AV equipment directly beside the TV. The main tradeoff is that the full codec benefit depends on the source device, TV, and connected audio system also supporting those formats.
In addition to HDMI eARC, the AVPro Edge eARC Extender Kit supports ARC, SPDIF through Mini-TOSLINK, analog stereo through 3.5 mm, bidirectional IR, and RS-232. That gives it more flexibility than a single-purpose HDMI-only device. These extra connections matter in real-world installations. Some systems rely on eARC for lossless or immersive audio, while others still use optical audio or analog stereo for compatibility with older equipment. IR and RS-232 support are also important in custom AV and commercial environments because they allow local room control and integration with centralized control systems. The kit also supports Power over Cable, which helps simplify installation by reducing power supply complexity at one end. This broad connectivity is most useful for integrators, home theater projects, and mixed-generation AV systems. If you only need one short HDMI audio connection, these added interfaces may be more than you need. For flexible, professional distribution, they are a strong advantage.
Yes, it is a strong fit for centralized audio distribution when the goal is to return high-quality TV audio to a rack or remote processing location. The AVPro Edge eARC Extender Kit is built specifically for that job, using HDMI 2.1 eARC to transport advanced codecs with near-zero latency. For home theater, it helps when the display is wall-mounted but the receiver, processor, or matrix system is stored elsewhere. For commercial AV, it supports clean equipment placement, longer runs, and local control integration. The kit can extend audio up to 100 meters over Cat6A and supports Dolby Atmos, DTS:X, Dolby TrueHD, LPCM 5.1 and 7.1, plus ARC, optical, and analog stereo formats. Bidirectional IR and RS-232 add control flexibility, and Power over Cable can simplify installation. It is best for projects where audio quality, distance, and system integration are priorities. If the system is small, local, and only needs basic stereo, a simpler solution may be sufficient.

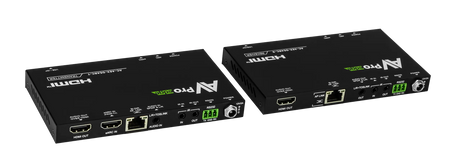

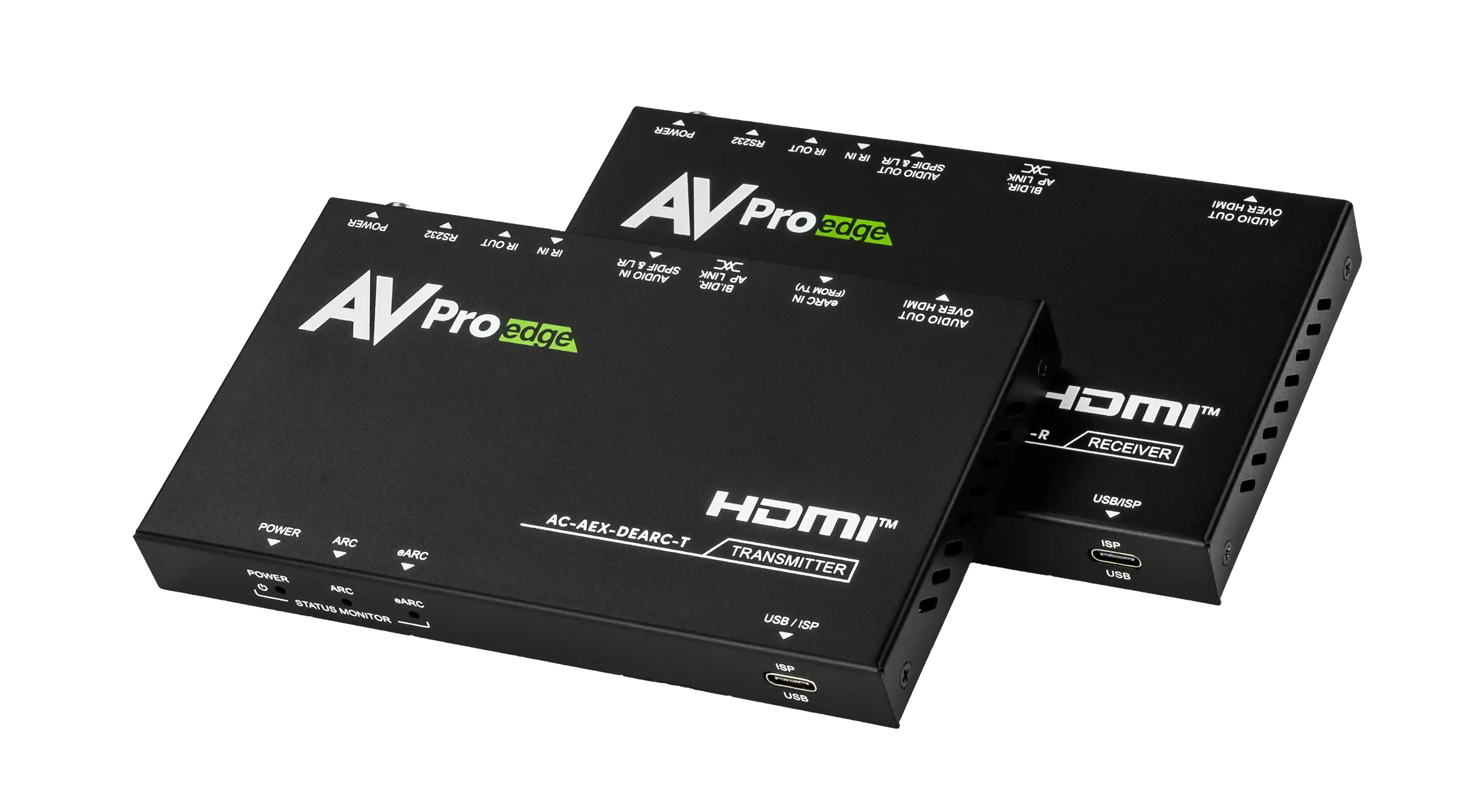

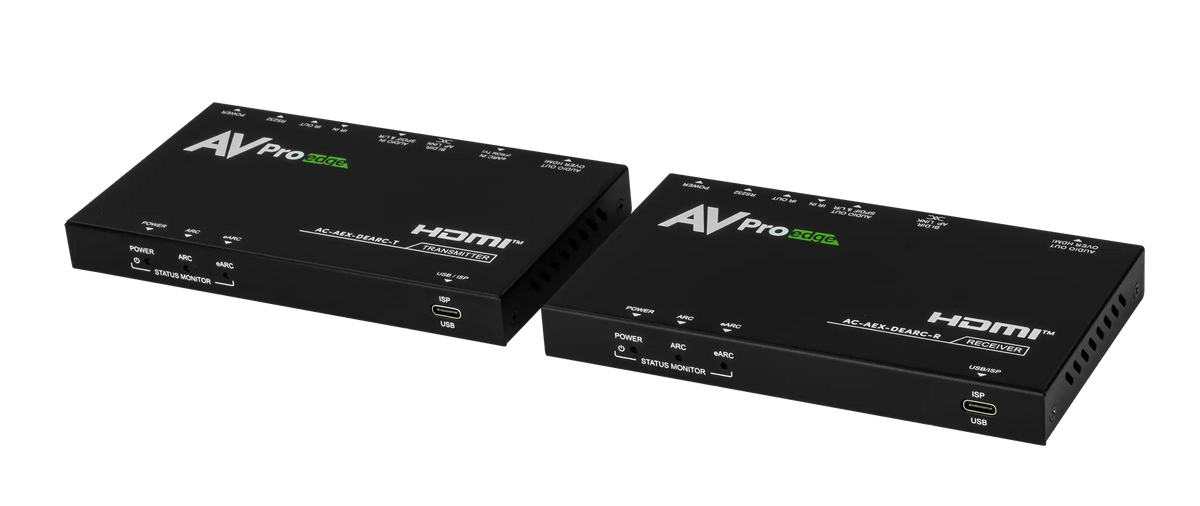

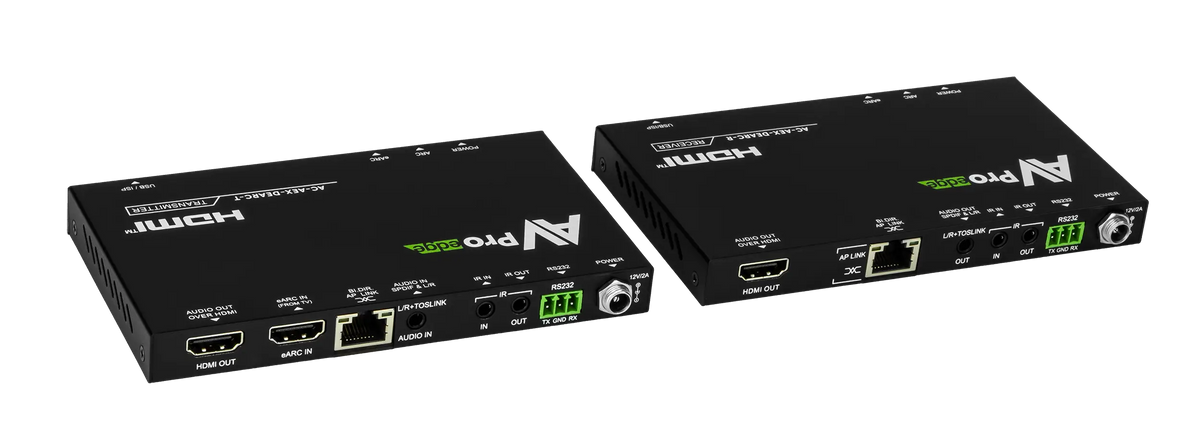

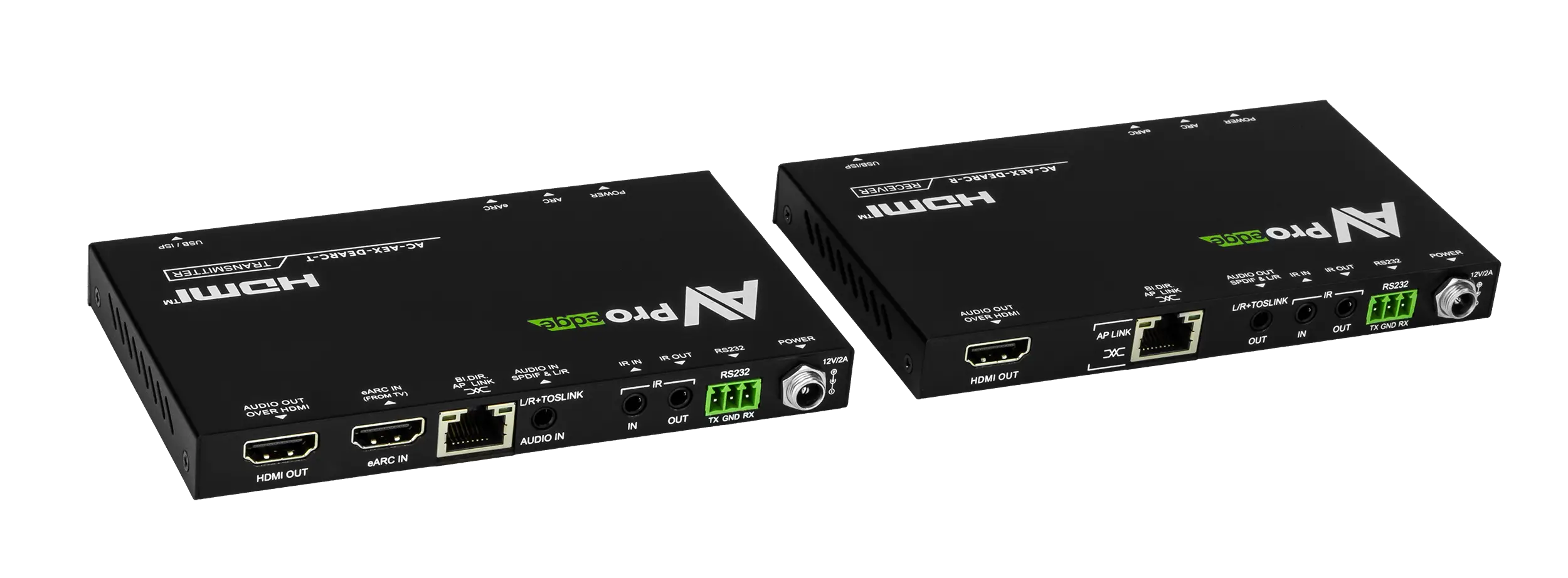

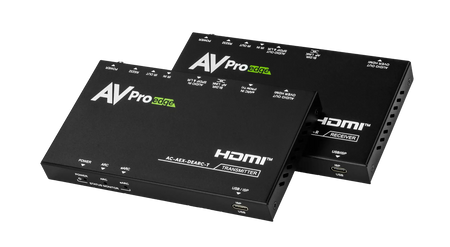

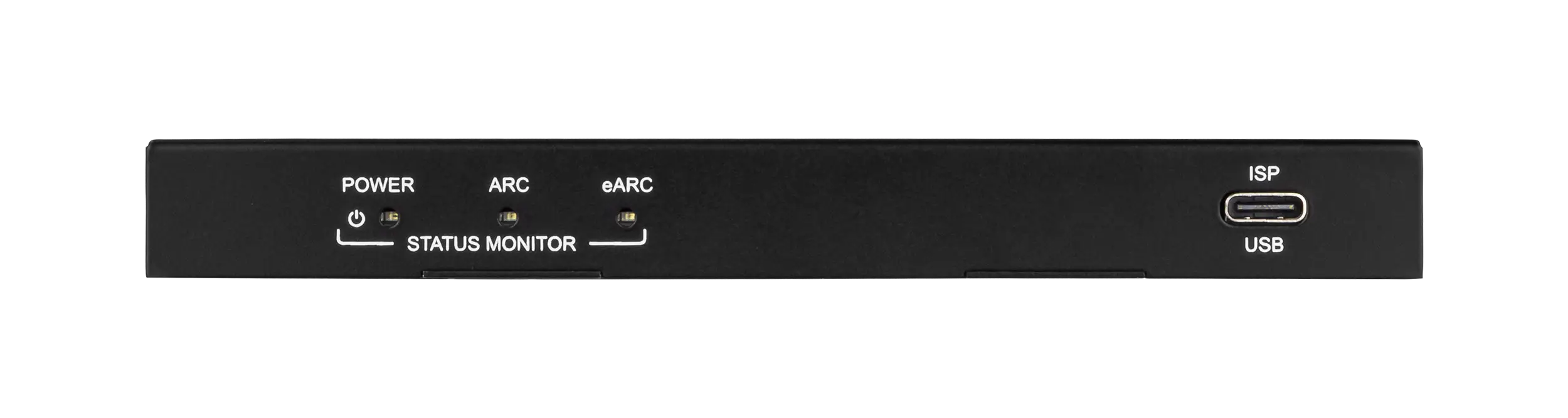

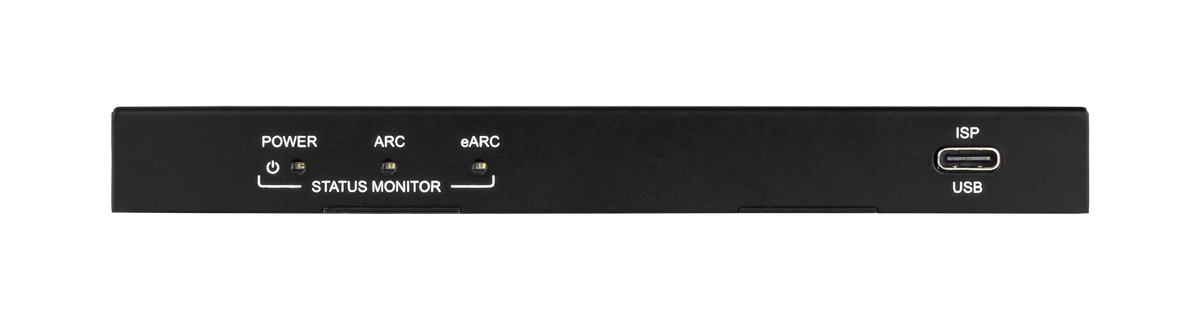

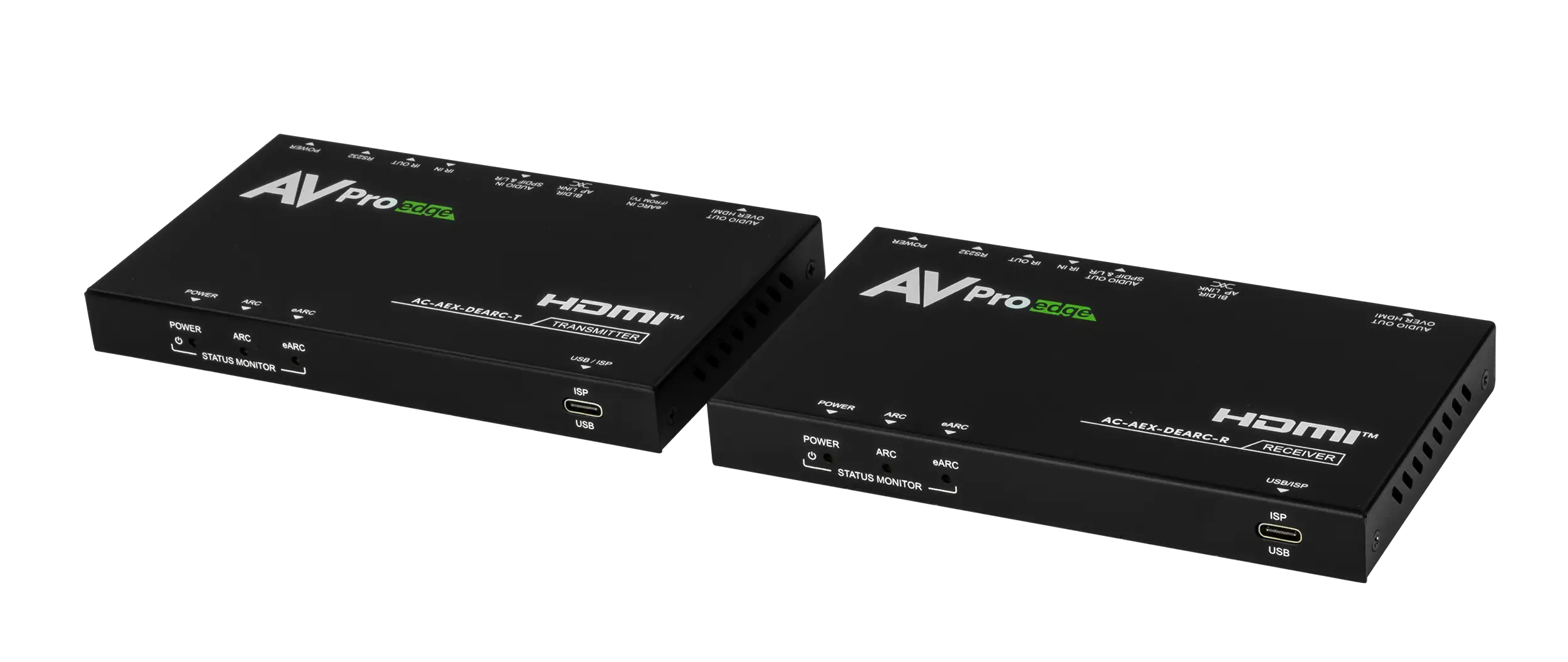

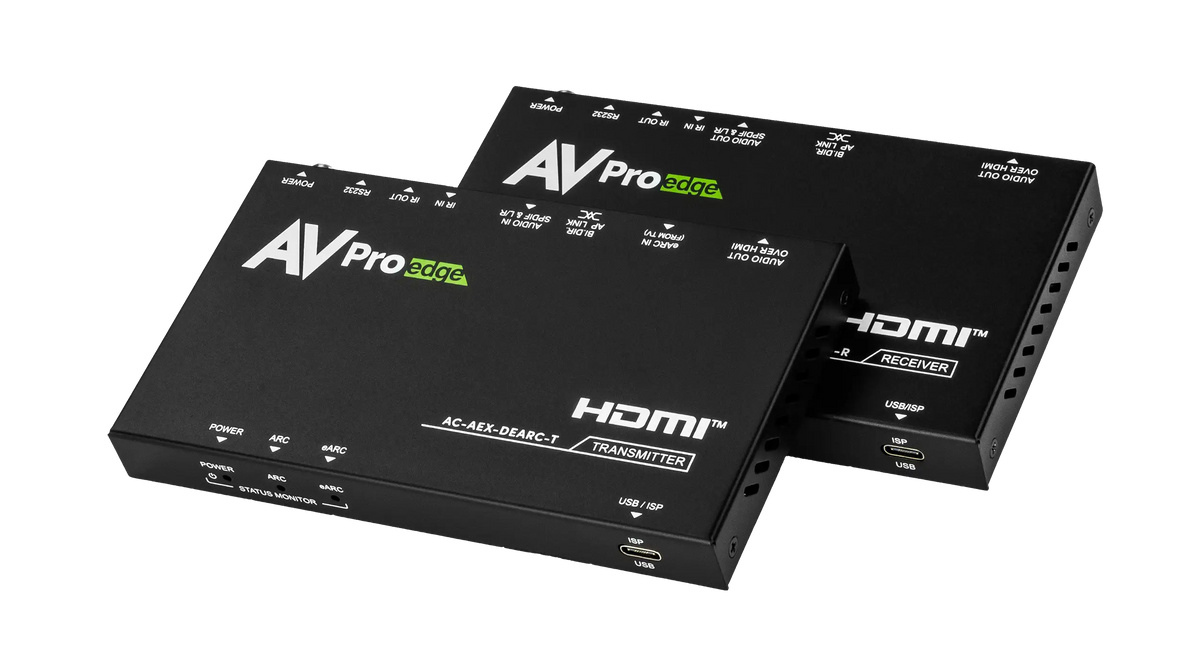

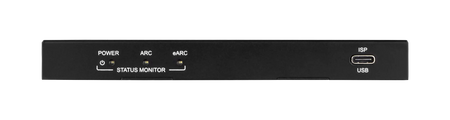

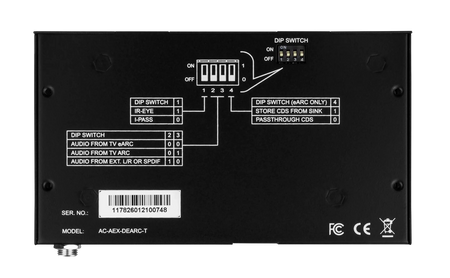

The AC-AEX-DEARC-KIT is a professional-grade transmitter-receiver duo engineered for high-bandwidth audio codec transfer from a television to a centralized distribution location. Utilizing the eARC feature of the HDMI 2.1 specification, this kit supports advanced audio formats including Dolby Atmos and DTS:X with near-zero latency. It features versatile inputs for ARC, TOSLINK, and analog stereo, alongside AP-LINK technology for precision timing stability. The system includes bidirectional IR and RS-232 data paths for seamless local room control and supports Power over Cable (PoC) for simplified installation. Designed for reliable performance with high-bitrate codecs, it serves as an essential solution for demanding home entertainment and commercial audio distribution.

Max Distance 100 meters (328ft) Category 6A
Audio Formats (eARC) PCM 2.0, LPCM 5.1/7.1, Dolby Atmos, DTS:X, Dolby TrueHD
Audio Formats (SPDIF/ARC) PCM 2.0, Dolby Digital, DTS 5.1
Power Consumption 24 Watts maximum
Power Supply 12V 2.0A
Dimensions (Per Unit) 0.6 x 5.5 x 3.1 inches
Weight (Per Unit) 0.23 kg

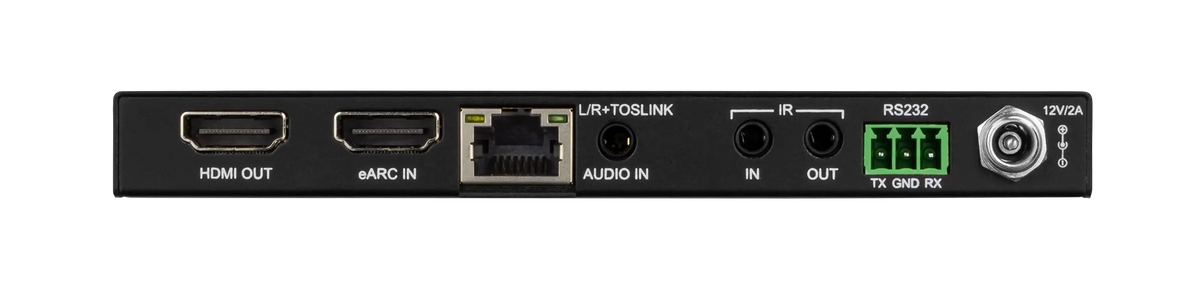

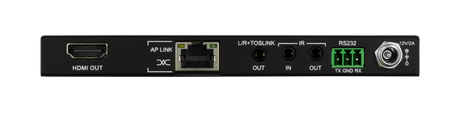

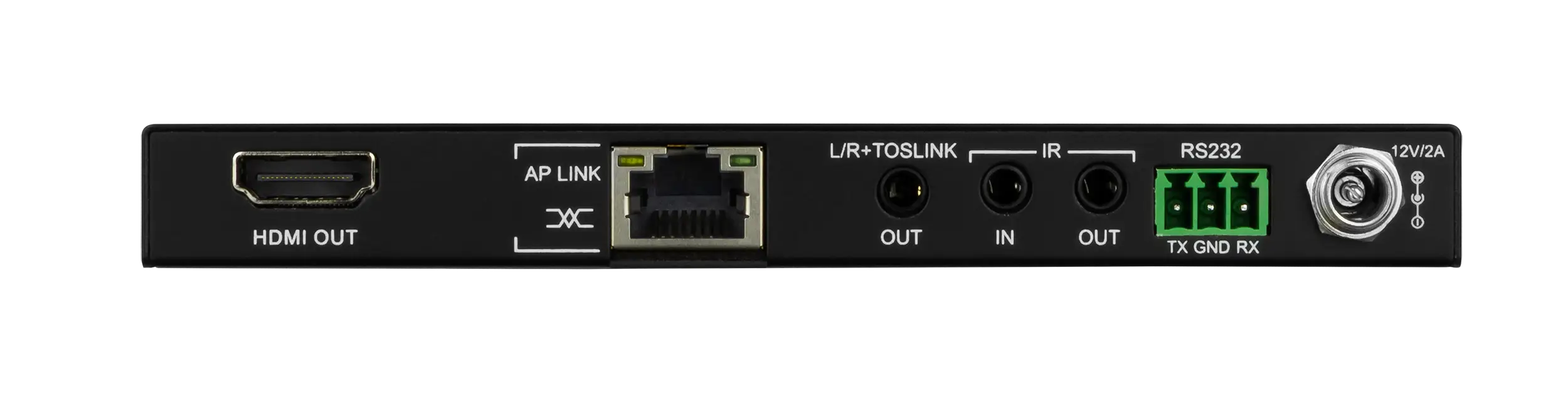

Connectivity HDMI, SPDIF (Mini-TOS), Analog (3.5mm), IR, RS-232
