AVPro Edge AXION HDBaseT Input Card with ICT
Regular price
$1,514.00
Couldn't load pickup availability
Frequently Asked Questions
What is HDBaseT used for in a professional AV system?
HDBaseT is used to send high-quality audio and video signals over category cable in commercial and residential AV installations. It is especially useful when sources and displays are far apart, such as in conference rooms, classrooms, training spaces, control rooms, and large multi-display systems.
In practical terms, an HDBaseT input card like the AVPro Edge AXION card lets an AV matrix receive signals from HDBaseT-equipped transmitters or endpoints and route them through a modular switching system. This model provides two HDBaseT inputs and supports 10.2 Gbps uncompressed pass-through, or up to 18 Gbps when using AVPro Edge Invisible Compression Technology for 4K/60Hz HDR content.
HDBaseT is a strong fit for integrators and facility managers who need reliable long-distance signal transport with cleaner cabling and centralized switching. The main consideration is compatibility. To reach its highest-performance modes, the connected devices and overall system need to support the required bandwidth and compression method.
Is HDBaseT better than HDMI?
HDBaseT is not universally better than HDMI. It solves a different problem. HDMI is ideal for short, direct connections between a source and a display. HDBaseT is better when you need to transport AV signals over longer distances, integrate with structured cabling, or connect devices into a centralized matrix system.
For example, the AVPro Edge AXION HDBaseT Input Card is designed for matrix-based AV distribution, not for a simple one-cable source-to-display setup. It accepts two HDBaseT inputs and feeds them into the AXION X Matrix Chassis. It also includes a mirrored HDMI loop-out on Input A, which is helpful for local monitoring or routing.
Choose HDMI when simplicity and short cable runs matter most. Choose HDBaseT when system scale, cable management, and distance are the priority. The tradeoff is that HDBaseT installations are usually more infrastructure-focused and may require compatible transmitters, receivers, and switching hardware.
Is HDBaseT the same as Ethernet?
No, HDBaseT is not the same as Ethernet, even though both commonly use category cable and similar connectors. Ethernet is a data networking standard. HDBaseT is an AV transport technology designed to carry high-bandwidth video and audio signals between compatible devices.
That distinction matters during product selection. The AVPro Edge AXION HDBaseT Input Card is made to receive AV signals from HDBaseT sources or extenders and route them within an AXION X matrix system. It is not a standard network interface card, and it should not be treated like a conventional Ethernet input for switching network traffic.
This is important for IT managers, AV integrators, and facilities teams planning structured cabling. A category cable run may physically look similar, but the endpoint hardware and signal type are different. Before buying, confirm that your source, receiver, matrix, and cabling path are all designed for HDBaseT AV transport rather than standard Ethernet networking.
Who should choose an HDBaseT input card instead of a standard HDMI input card?
An HDBaseT input card is the better choice when your sources are located remotely and send signals over category cable rather than local HDMI runs. That is common in commercial AV systems where equipment racks, lecterns, wall plates, or source devices are installed far from the matrix chassis.
The AVPro Edge AXION HDBaseT Input Card is built for exactly that type of environment. It gives the AXION X Matrix Chassis two HDBaseT input ports and supports 10.2 Gbps uncompressed pass-through or 18 Gbps with Invisible Compression Technology. That makes it a practical option for modern 4K/60Hz HDR workflows in larger AV systems.
A standard HDMI input card is usually the better fit when source devices are mounted in the same rack or very close to the switcher. The tradeoff comes down to infrastructure. If your system already uses HDBaseT transmitters and category cabling, an HDBaseT input card is often the cleaner and more scalable choice.
Does this HDBaseT input card support 4K 60Hz HDR video?
Yes, this card is designed to support modern 4K/60Hz HDR content when used in a compatible AVPro Edge system that takes advantage of Invisible Compression Technology. Uncompressed pass-through is rated at 10.2 Gbps, while higher-bandwidth 18 Gbps signals are supported through ICT.
That means this card is appropriate for installations where visual quality matters, including presentation spaces, digital signage systems, premium conference rooms, and other environments using HDMI 2.0 era 4K formats. It is designed as a pass-through input card for the AXION X Matrix Chassis, so its role is to receive and route the incoming HDBaseT signal rather than alter or scale it.
The main limitation is system compatibility. To carry 18 Gbps content successfully, the source side, transport path, and matrix environment must all support the required signal format and AVPro Edge compression method. For buyers planning 4K HDR distribution, confirming end-to-end compatibility is more important than looking at the card alone.
What does Invisible Compression Technology mean for real-world AV performance?
Invisible Compression Technology, or ICT, is AVPro Edge's method for carrying higher-bandwidth video signals while preserving image quality in a way intended to be visually transparent in normal use. In real-world terms, it allows this input card to handle up to 18 Gbps signals, including 4K/60Hz HDR formats, rather than being limited to the 10.2 Gbps bandwidth of uncompressed pass-through.
For AV designers and integrators, the benefit is broader support for current source devices and display formats without giving up the structured-cabling advantages of HDBaseT-based distribution. This can be especially useful in corporate, education, and commercial display environments where reliable 4K switching is required.
The tradeoff is that ICT is a proprietary technology, so compatibility matters. To get the full 18 Gbps benefit, the rest of the signal chain must support that AVPro Edge workflow. If your system is strictly uncompressed-only or built around mixed ecosystems, verify interoperability before purchase.
What is the HDMI loop-out on this card used for?
The HDMI loop-out on Input A is used to mirror that incoming source signal to a local HDMI-connected device. In practice, that can be helpful for confidence monitoring, local display feed, signal verification, recording workflows, or routing the same source to another nearby device without interrupting the matrix path.
On this AVPro Edge AXION HDBaseT Input Card, the loop-out is specifically tied to Input A, so it gives installers a convenient way to access one HDBaseT-fed source in HDMI form right at the chassis area. That can simplify rack-level troubleshooting or provide an easy local output without requiring additional signal conversion hardware.
This feature is most valuable in professional AV environments where technicians need visibility into active sources or where a local monitor is part of the system design. The limitation is that it is a mirrored output, not an independent routed output, so it follows the signal present on Input A rather than acting like a separate matrix destination.
Is this card compatible with any matrix switcher?
No, this card is designed specifically for the AXION X Matrix Chassis. It is a modular input card, not a universal external HDBaseT receiver that can be added to any switcher.
That product role is important when comparing options. The AVPro Edge AXION HDBaseT Input Card is intended for users building or expanding an AXION-based modular matrix system. It integrates into that chassis architecture and adds two HDBaseT inputs, along with a mirrored HDMI loop-out on Input A. Because it is not a standalone box, it depends on the AXION X platform for installation and operation.
This makes the card best suited for integrators, consultants, and facilities teams standardizing on a modular matrix environment. If you need HDBaseT connectivity for a different switching platform or for a point-to-point connection, a standalone transmitter or receiver may be the more appropriate category.
When should I choose a modular HDBaseT input card instead of a standalone HDBaseT transmitter or receiver?
Choose a modular HDBaseT input card when you are building a centralized switching system and want remote sources to feed directly into a matrix chassis. Choose a standalone transmitter or receiver when you need a simple point-to-point extension between a source and a display.
The AVPro Edge AXION HDBaseT Input Card is built for the centralized approach. It adds two HDBaseT inputs to an AXION X Matrix Chassis, making it suitable for facilities that distribute multiple sources across multiple displays. That is common in boardrooms, campuses, command centers, and divisible spaces where flexible routing matters.
A standalone transmitter or receiver is usually the better fit for smaller jobs with only one source and one display. The modular card approach is more scalable and cleaner in larger systems, but it also requires the matching matrix platform. Buyers should base the decision on system architecture, not just signal format.
What should I look for when buying an HDBaseT input card for 4K AV distribution?
The most important things to check are bandwidth support, matrix compatibility, signal type, and how the card fits into your overall system design. For 4K AV distribution, make sure the card can handle the video formats you expect to use, especially 4K/60Hz and HDR if those are part of the project.
With the AVPro Edge AXION HDBaseT Input Card, the key specs are two HDBaseT inputs, 10.2 Gbps uncompressed pass-through, and up to 18 Gbps support using Invisible Compression Technology. It is also designed specifically for the AXION X Matrix Chassis and includes a mirrored HDMI loop-out on Input A for local monitoring or routing.
This type of card is best for professional installations where remote HDBaseT sources need to be switched centrally. A buyer should also confirm whether the rest of the system supports proprietary compression methods, whether local loop-out is useful, and whether a modular card is the right form factor versus a standalone endpoint. Those factors will have more impact on long-term system success than any single spec alone.

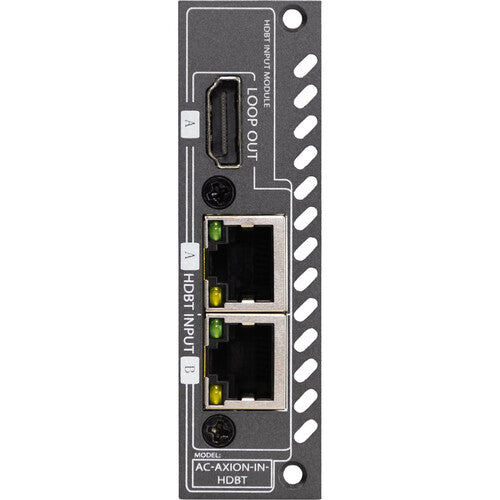

The AXION HDBaseT Input Card provides advanced signal distribution for professional AV environments. This card features dual HDBaseT input ports, supporting 10.2 Gbps uncompressed pass-through for high-fidelity signal transmission. For higher bandwidth requirements, it utilizes AVPro Edge's proprietary Invisible Compression Technology (ICT) to achieve 18Gbps, ensuring compatibility with modern 4K/60Hz HDR content. Input A is equipped with a mirrored HDMI loop-out, facilitating flexible signal routing and monitoring. Designed specifically for use with the AXION X Matrix Chassis, this card integrates seamlessly into modular matrix systems. This input card is built for reliability, offering robust connectivity for demanding commercial installations.
| Input Ports | 2x HDBaseT |
| Output Ports | 1x HDMI (Mirrored loop-out on Input A) |
| Bandwidth | 10.2 Gbps (Uncompressed) / 18 Gbps (with ICT) |
| Technology | Invisible Compression Technology (ICT) |
| Compatibility | AXION X Matrix Chassis |
| Interface | HDMI 2.0 |
| Installation Type | Modular Card |
| Signal Processing | Pass-through |
