AVPro Edge AXION Dual HDMI Input Card
Regular price
$576.00
Couldn't load pickup availability
Frequently Asked Questions
What is an HDMI input card used for in a professional AV system?
An HDMI input card is used to bring HDMI source devices into a larger AV distribution or switching system. Typical sources include laptops, media players, conferencing devices, signage players, and other HDMI outputs that need to be routed to displays, extenders, or matrix systems.
The AVPro Edge AXION Dual HDMI Input Card is designed for that role. It provides two 18Gbps HDMI 2.0 inputs, and each input has its own mirrored HDMI loop-out. That means you can feed a source into the system while also sending the same signal to a local display, recorder, or monitoring point.
This type of card is most useful in commercial AV environments where signal management matters, such as boardrooms, classrooms, training rooms, control rooms, and other installed systems. It is less about content creation or live streaming and more about reliable source integration inside a professional AV infrastructure.
Is this the same thing as an HDMI capture card?
No. An HDMI input card for AV signal distribution is not the same as an HDMI capture card. A capture card is mainly used to bring video into a computer for recording, streaming, or video conferencing software. An HDMI input card like the AVPro Edge AXION Dual HDMI Input Card is built to feed HDMI sources into an AV system for switching, routing, and display distribution.
This card supports dual 18Gbps HDMI 2.0 inputs and includes dual mirrored HDMI loop-out ports. That makes it a fit for professional AV installations where you need dependable source handling and local pass-through, not USB-based video capture for a laptop or desktop.
If your goal is to stream gameplay, record video to a computer, or use HDMI as a webcam source, you likely need a capture device instead. If your goal is to integrate two HDMI sources into a managed AV environment, this type of HDMI input card is the better choice.
What does HDMI input mean, and how is it different from HDMI output?
An HDMI input receives audio and video from a source device. An HDMI output sends audio and video from a device to a display, switcher, recorder, or another endpoint. In simple terms, outputs send the signal and inputs accept it.
On the AVPro Edge AXION Dual HDMI Input Card, the two HDMI input ports are where you connect source devices such as a laptop, media player, or conferencing appliance. The mirrored HDMI loop-out ports then repeat each input signal so it can also be sent to another local destination, such as a confidence monitor or test display.
Understanding this difference matters when planning a system. If you need to bring multiple HDMI sources into an AV backbone, you need input capability. If you only need to send video from one device to a display, you are dealing with output. This card is intended for systems that need professional source integration rather than simple one-cable display connections.
Can I turn an HDMI output into an HDMI input with a card like this?
Not by itself. An HDMI output on a source device stays an output, and an HDMI input on an AV card stays an input. This card does not convert the direction of an HDMI port on another device. Instead, it accepts HDMI output from your source and brings that signal into a compatible AV system.
The AVPro Edge AXION Dual HDMI Input Card is designed to take in two HDMI 2.0 signals at up to 18Gbps. Each input also includes a mirrored HDMI loop-out, which lets you duplicate the source signal to a nearby display or monitoring device.
If someone asks whether they can make a laptop's HDMI port act as an input, the answer is usually no unless they use a separate capture device made for that purpose. This product solves a different problem. It helps integrators and commercial AV users add HDMI sources into a structured signal management environment.
Who should choose a dual HDMI input card instead of a single-input solution?
A dual HDMI input card is a smart choice when you regularly need to connect more than one HDMI source in the same zone or rack location. It reduces hardware sprawl, simplifies cable management, and gives an installer two source inputs on one card rather than consuming space with separate single-input modules.
The AVPro Edge AXION Dual HDMI Input Card is especially useful in meeting rooms, classrooms, training spaces, and presentation systems where two common sources might be a room PC and a guest laptop, or a media player and a document source. Because each input includes a mirrored HDMI loop-out, it also supports local confidence monitoring or signal pass-through without extra splitters.
A single-input option may still be enough for very simple systems with only one permanent source. But if your system may grow, if users switch between devices often, or if clean rack design matters, a dual-input card usually offers better long-term flexibility.
What is a mirrored HDMI loop-out, and why would I need it?
A mirrored HDMI loop-out is a duplicate of the incoming HDMI signal. It lets you take the same source feeding the AV system and send it to a second local destination at the same time. That can be useful for a nearby monitor, a recorder, a troubleshooting display, or a confidence screen for presenters.
On the AVPro Edge AXION Dual HDMI Input Card, each of the two HDMI inputs has its own dedicated mirrored HDMI loop-out. That means both connected sources can be passed through independently without needing separate external splitters.
This feature is most valuable in installed AV systems where local monitoring is important. For example, an integrator might need to confirm signal presence at the rack, or a room might require a local preview monitor while the main signal is distributed through the larger system. The tradeoff is that loop-out is for mirroring the source, not for independent content or separate source selection.
Does 18Gbps HDMI 2.0 support matter when choosing an HDMI input card?
Yes. 18Gbps HDMI 2.0 support matters if you want an input card that can handle modern high-bandwidth video formats reliably. It is especially relevant for 4K signals, higher frame rates, and color formats that demand more bandwidth than older HDMI versions were designed for.
The AVPro Edge AXION Dual HDMI Input Card supports 18Gbps bandwidth and HDMI 2.0, which makes it suitable for professional AV systems that need to carry contemporary source formats without becoming the bottleneck in the signal path. In practical terms, that helps future-proof an installation compared with lower-bandwidth hardware.
This matters most in conference spaces, educational environments, digital signage, and other systems where source devices may change over time. Even if you are not using the highest-resolution formats on day one, selecting an 18Gbps HDMI card gives more flexibility for newer sources and display ecosystems.
Will this work for a conference room or classroom AV system?
Yes, this type of card is well suited to conference rooms and classrooms that need dependable HDMI source integration. In those spaces, it is common to have multiple source devices such as an in-room computer, a guest laptop, or a media player that need to be fed into a managed AV system.
The AVPro Edge AXION Dual HDMI Input Card provides two HDMI 2.0 inputs with 18Gbps bandwidth, so it is built for current professional AV signal requirements. Its dual mirrored HDMI loop-outs are also useful in these environments because they can support local preview displays, instructor monitors, or troubleshooting at the rack.
It is best for installed systems where sources are being distributed or switched as part of a larger AV design. It is not a standalone all-in-one presentation switcher, and it is not intended to replace a USB capture device for software-based conferencing. It fits best when the room already uses compatible AV infrastructure.
Is an HDMI input card a good choice for a laptop that needs HDMI input?
Usually no, not if your goal is to make a laptop accept HDMI video directly. Most laptops have HDMI output, not HDMI input. An AV HDMI input card like the AVPro Edge AXION Dual HDMI Input Card is made for professional AV systems, not for adding an HDMI input port to a laptop.
This product is designed to accept two HDMI source signals into an AV signal management environment and provide mirrored loop-outs for each source. It is not described as a USB peripheral or a computer capture accessory, so it is not the right solution for someone who wants to bring a camera, console, or another HDMI source into laptop software.
If your use case is recording, streaming, or conferencing on a laptop, a dedicated HDMI capture device is usually the right category. If your use case is integrating HDMI sources into a fixed AV installation, then this HDMI input card is the correct type of product.
What should I look for when comparing HDMI input cards for an AV installation?
Start with signal capability, input count, output behavior, and how the card fits into your overall AV architecture. For modern systems, bandwidth support is critical because it determines whether the card can handle current HDMI source formats without compromise. You should also consider whether you need local monitoring or pass-through, which is where loop-out ports can be very valuable.
The AVPro Edge AXION Dual HDMI Input Card stands out in a few practical ways. It offers two HDMI inputs instead of one, supports 18Gbps HDMI 2.0, and includes a dedicated mirrored HDMI loop-out for each input. That combination is useful when you want two source connections and local signal duplication without adding external splitters.
Buyers who benefit most are integrators and facility managers building meeting rooms, classrooms, and other installed AV systems. The main tradeoff is that this is a specialized infrastructure component, so it is most appropriate when you already have a compatible AV system design rather than a simple direct-to-display setup.

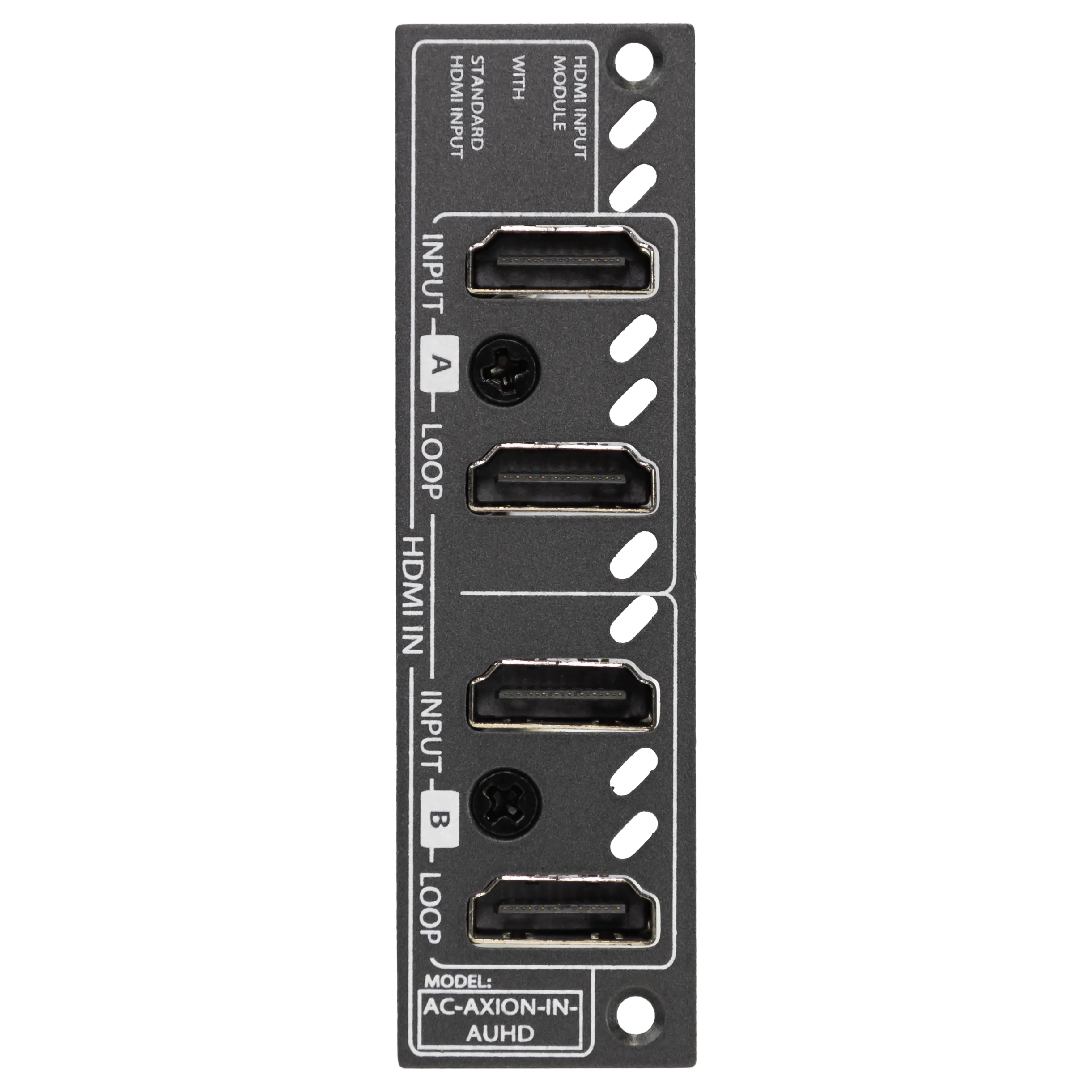

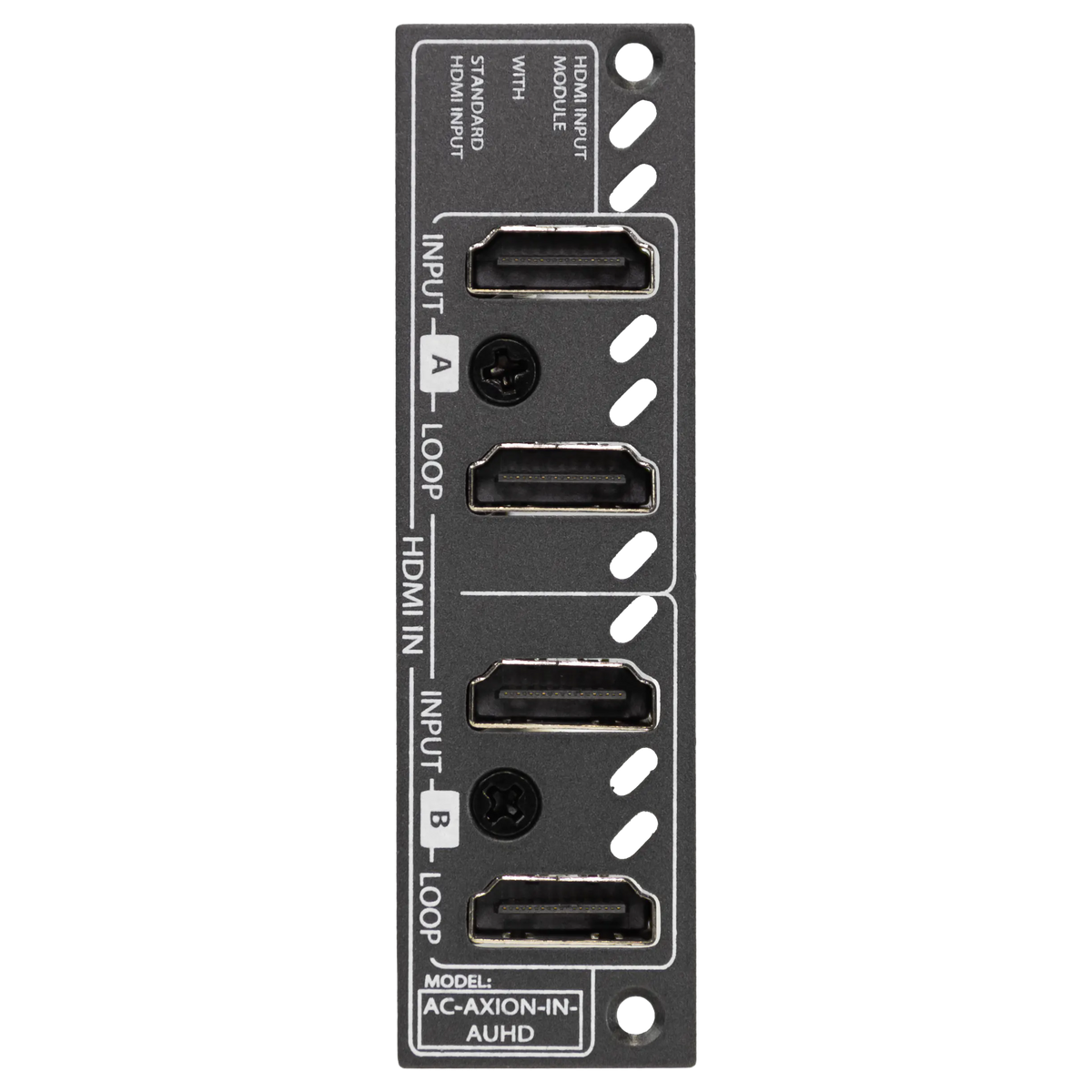

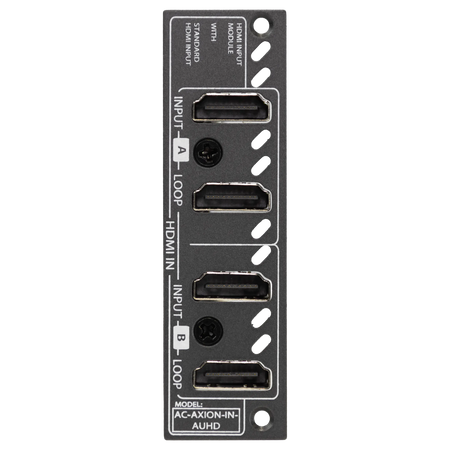

The AVPro Edge AXION Dual HDMI Input Card features dual 18Gbps HDMI input ports with dual mirrored HDMI loop-out ports. Designed for high-performance AV environments, this card supports HDMI 2.0 standards, ensuring reliable signal distribution. Each of the two inputs provides a dedicated mirrored loop-out for enhanced connectivity versatility.
| Bandwidth | 18Gbps |
| HDMI Standard | 2.0 |
| Input Configuration | Dual HDMI |
| Output Configuration | Dual Mirrored HDMI Loop-out |
