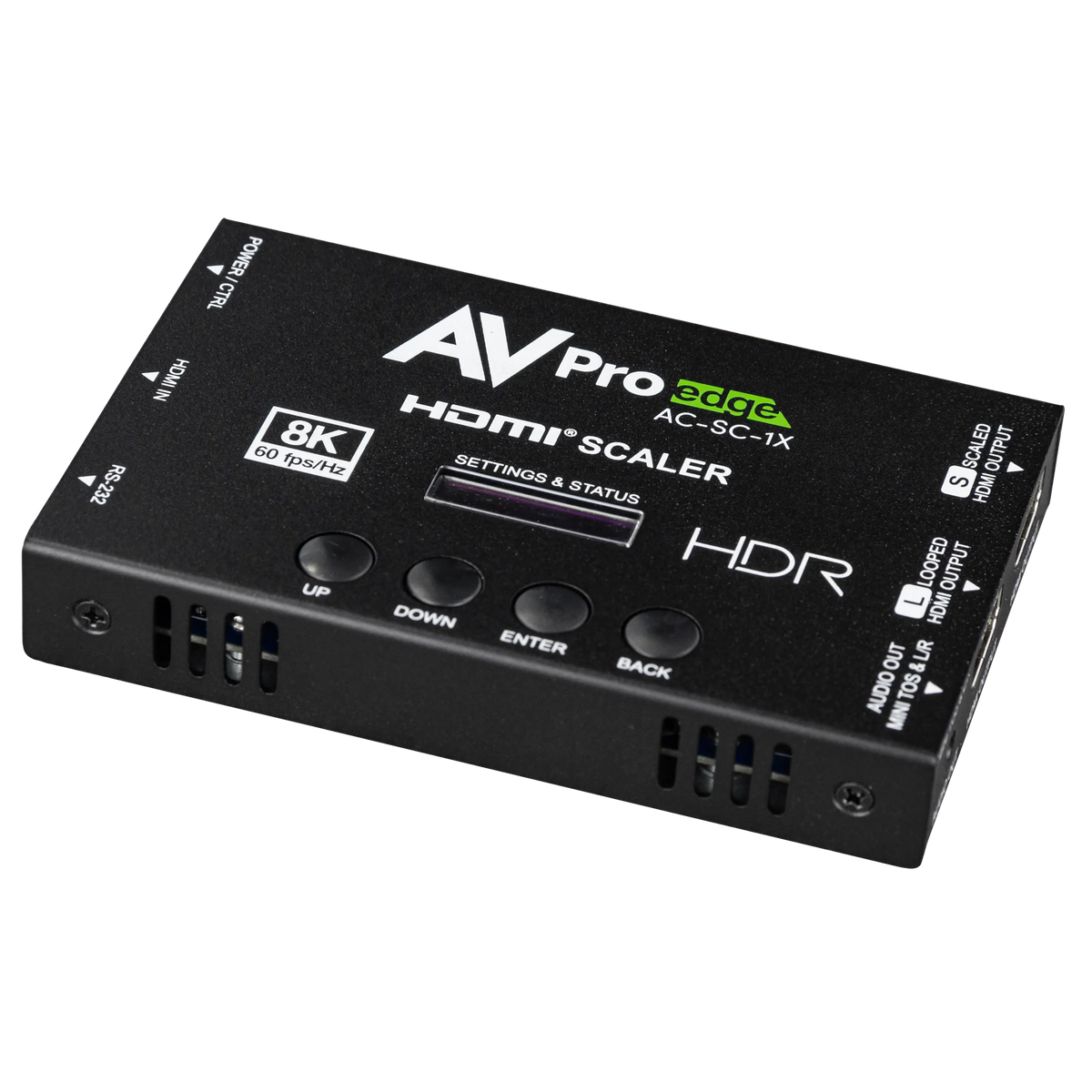

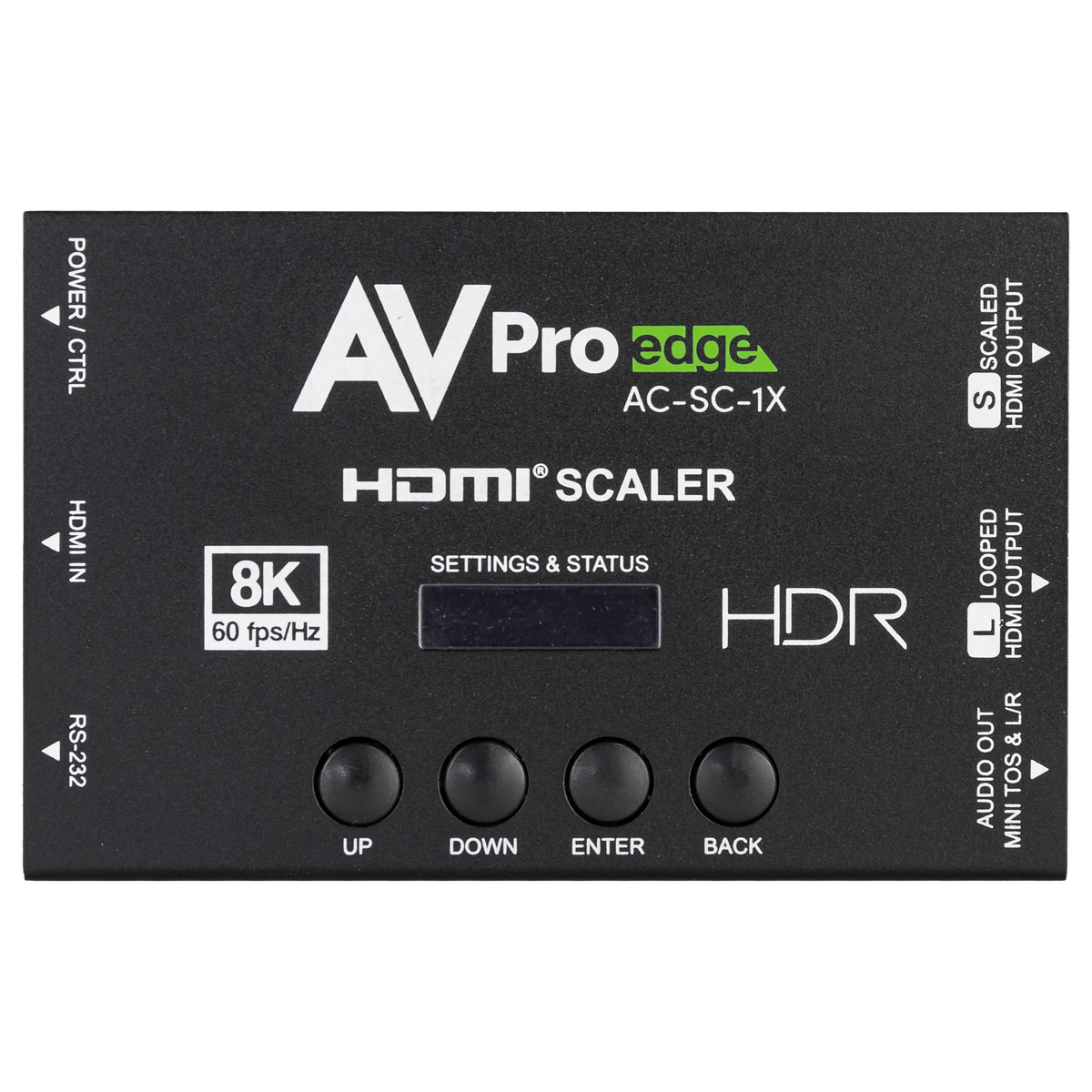

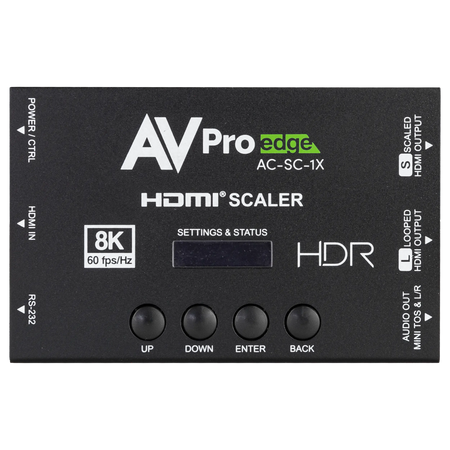

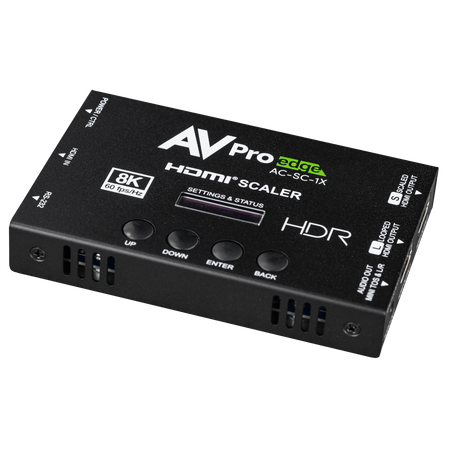

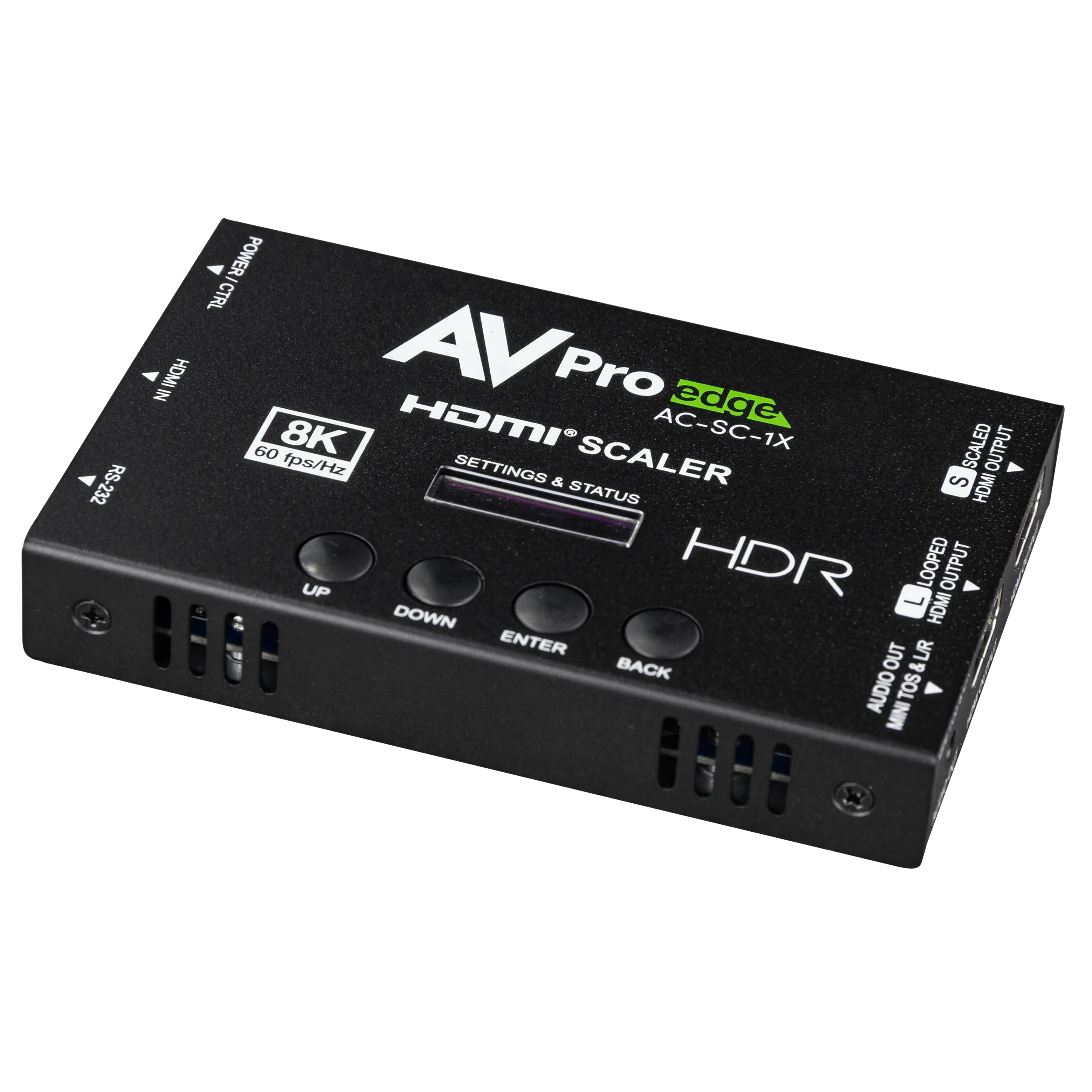

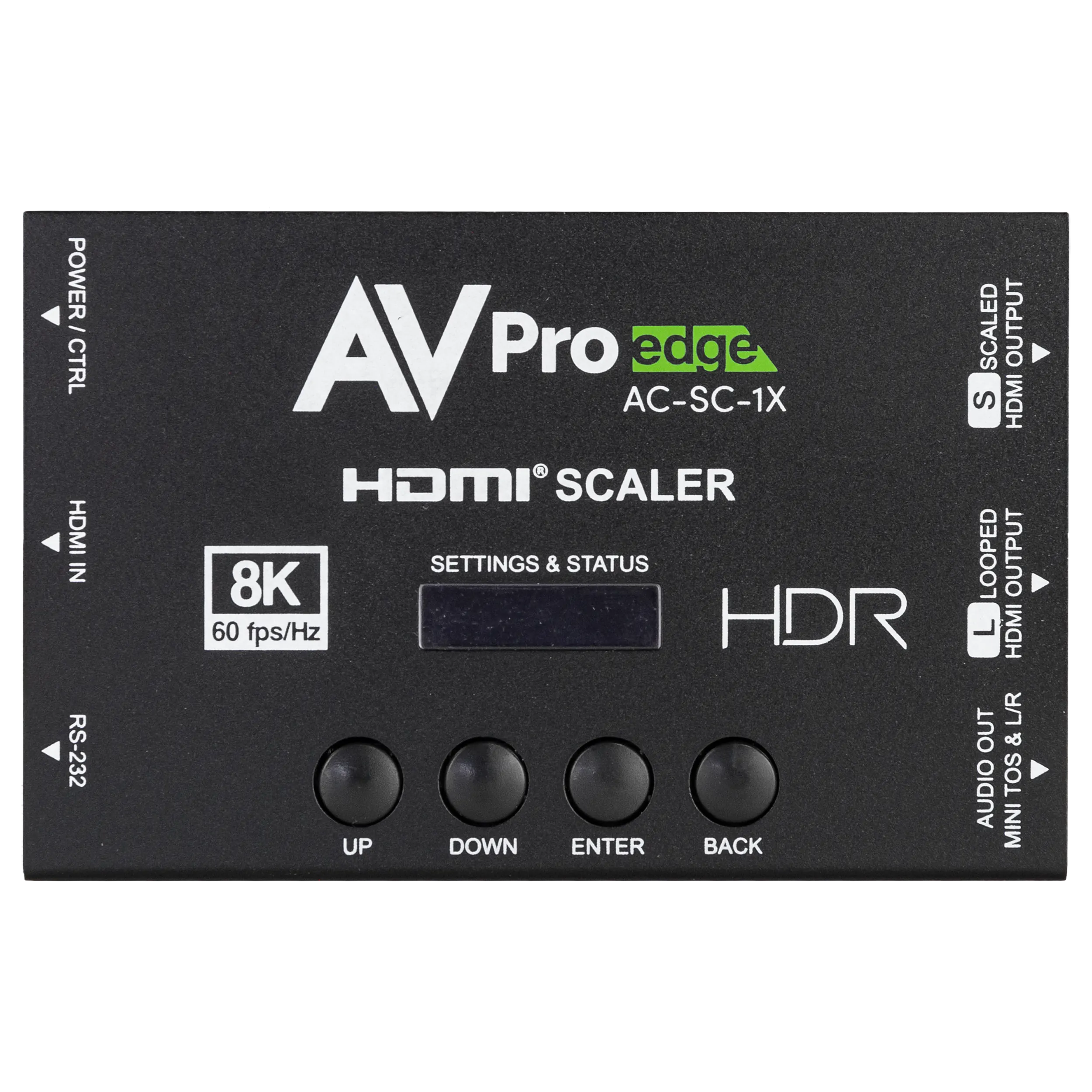

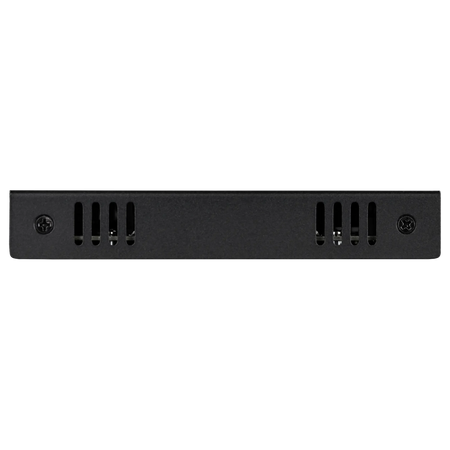

AVPro Edge AC-SC-1X 8K HDMI Downscaler EDID Manager 40Gbps
Regular price
$504.00
Couldn't load pickup availability
Frequently Asked Questions
What does an HDMI downscaler do, and when would I need one?
An HDMI downscaler takes a high-resolution video signal from a source and converts it to a lower resolution that an older or lower-capability display can actually show. You typically need one when your source device outputs 8K or 4K formats, but your display, recorder, switcher, or audio system only supports 4K or 1080p.
The AVPro Edge AC-SC-1X is designed for exactly that kind of compatibility problem. It can accept up to 40Gbps HDMI 2.1a signals and downscale 8K to 4K or 1080p while preserving support for modern formats like HDR10, HDR10+, Dolby Vision, HLG, VRR, and ALLM where the connected system supports them. It also includes 16 EDID settings to help the source and display communicate properly.
This is most useful in mixed AV systems where a new gaming console, media player, or PC has to work with an older display or secondary device. The main tradeoff is that a downscaler does not add resolution. It preserves compatibility by lowering output to match the receiving equipment.
What is the difference between an HDMI repeater, an extender, and a downscaler?
The difference is mainly about what problem each device solves. An HDMI repeater boosts or regenerates a signal to help it travel farther over HDMI cable. An HDMI extender sends HDMI over another transport medium, often Cat cable or fiber, so the source and display can be placed much farther apart. A downscaler changes the video resolution so mismatched equipment can work together.
The AVPro Edge AC-SC-1X is primarily a downscaler and EDID manager, not a long-distance HDMI extender. Its main job is to take high-bandwidth HDMI 2.1a signals up to 40Gbps and make them compatible with displays or devices that need 4K or 1080p output. It also helps resolve handshake issues with 16 EDID options and can extract audio through Toslink or HDMI.
Choose a repeater if your issue is cable length, an extender if your issue is distance between rooms or racks, and a downscaler if your issue is display compatibility. In many professional AV systems, the real need is the downscaler because the source and display support different formats.
Is there such a thing as an HDMI extender, and is this product one?
Yes, HDMI extenders are real products, and they are commonly used when you need to send HDMI farther than a standard cable can reliably handle. They usually work over Cat cable, fiber, or another transmission method and are meant to solve distance limitations.
The AVPro Edge AC-SC-1X is not a traditional long-distance HDMI extender. It belongs more accurately in the HDMI downscaler and signal management category. Its purpose is to bridge compatibility between modern high-bandwidth sources and displays or devices with lower video capabilities. It supports up to 40Gbps, can downscale 8K to 4K or 1080p, and includes EDID management plus audio de-embedding.
If your main problem is getting a source signal to a display across a long run, you should look at a true HDMI extender. If your main problem is that the source outputs 8K or advanced 4K formats and the destination cannot handle them, a product like this is the more appropriate solution. Many buyers confuse the two because both sit in the signal path, but they solve different problems.
What is the best HDMI downscaler for 8K or 4K gaming systems?
The best HDMI downscaler for gaming is one that supports high HDMI bandwidth, modern HDR formats, and gaming features without forcing the source into an older low-performance mode. For current consoles and gaming PCs, that means looking for support beyond basic 18Gbps 4K60 devices.
The AVPro Edge AC-SC-1X is a strong fit for advanced gaming setups because it supports up to 40Gbps HDMI 2.1a signals, including formats up to 8K 60Hz 4:2:0, 8K 30Hz 4:4:4, and 4K 120Hz. It also supports VRR and ALLM, which matter for smooth gameplay and low-latency switching behavior, plus HDR10, HDR10+, Dolby Vision, and HLG for modern image formats. That makes it useful when a console or GPU needs to feed a secondary 4K or 1080p display, capture workflow, or legacy AV component.
It is best for users who need compatibility management, not just cable connection. If you only need simple 4K60 distribution, this may be more advanced than necessary. But for mixed 8K and high-frame-rate gaming systems, its feature set is highly relevant.
Can this device convert an 8K HDMI source to a 4K or 1080p display?

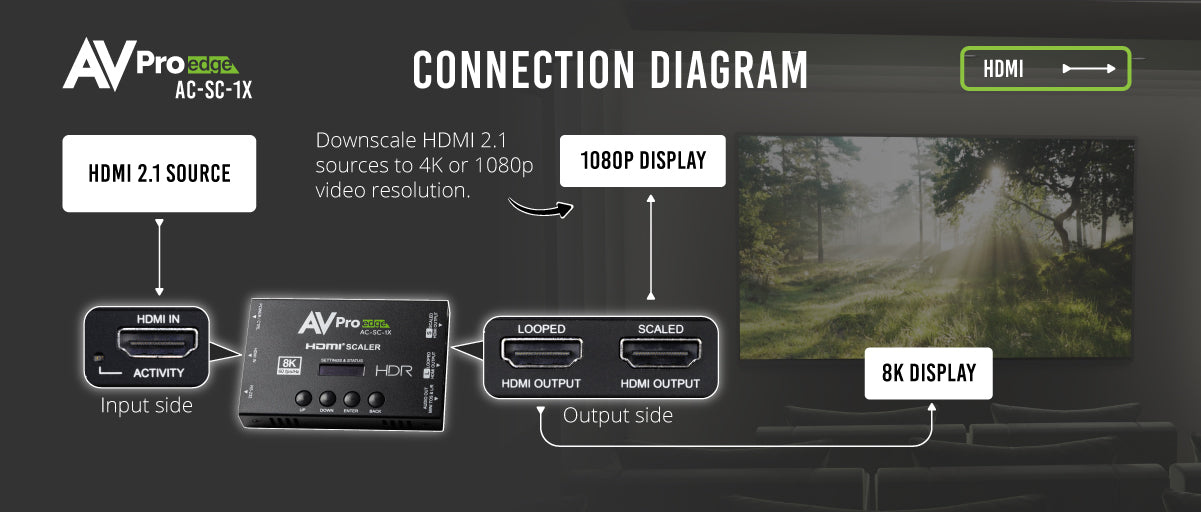

Yes, this device is built to do exactly that. The AVPro Edge AC-SC-1X accepts high-bandwidth HDMI signals up to 40Gbps and can downscale an 8K source to 4K or 1080p so a lower-resolution display or connected device can still work correctly.
That makes it useful in real-world systems where a new source, such as a gaming console, media server, or PC, has to feed equipment with different resolution limits. Instead of forcing the source to output a lower format globally, the downscaler handles the conversion for the destination device. It also supports modern HDR formats including HDR10, HDR10+, Dolby Vision, and HLG, along with gaming features like VRR and ALLM where supported in the signal chain.
The main benefit is preserving compatibility while keeping the source in a high-performance mode. The main limitation is that the receiving display will only show the resolution it supports. This device helps the connection succeed, but it cannot make a 1080p display behave like a native 4K or 8K screen.
How does EDID management help with HDMI compatibility problems?
EDID management helps by controlling how a source device reads the capabilities of the connected display or AV system. Many HDMI problems are really handshake problems, where the source sees conflicting information about supported resolution, refresh rate, audio format, or HDR and then chooses settings that cause no image, no audio, or unstable switching.
The AVPro Edge AC-SC-1X includes 16 EDID settings, including a User Copy option. That allows installers or advanced users to select a known-good EDID profile or copy one from a display to improve compatibility. In practical terms, this can help when a source tries to output a format that a display, switch, scaler, recorder, or AVR cannot handle consistently.
This is especially valuable in mixed systems with newer HDMI 2.1 sources and older displays or audio gear. Buyers who benefit most are integrators, gamers with complex setups, and users feeding more than one type of destination device. The tradeoff is that EDID management is powerful, but it is most effective when the installer understands the capabilities of each device in the signal chain.
Can this HDMI downscaler extract audio for a sound system or separate audio path?

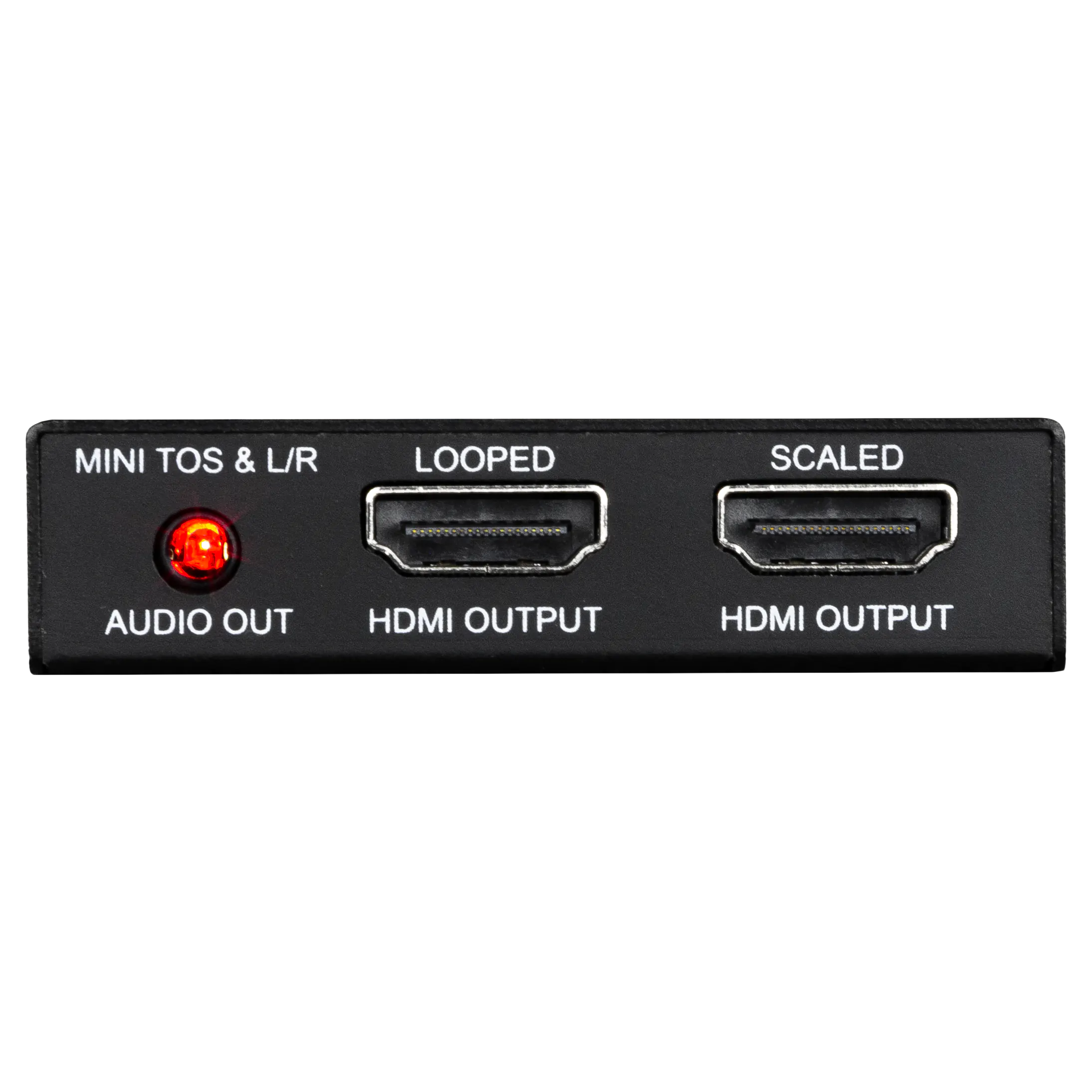

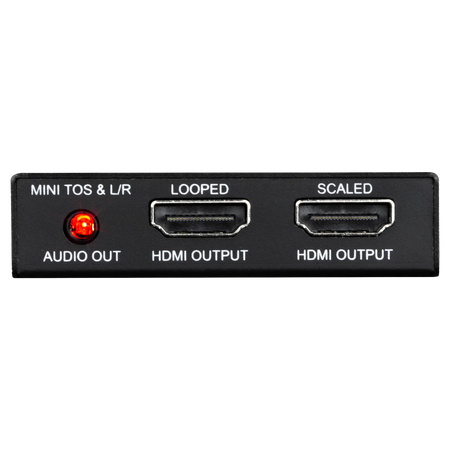

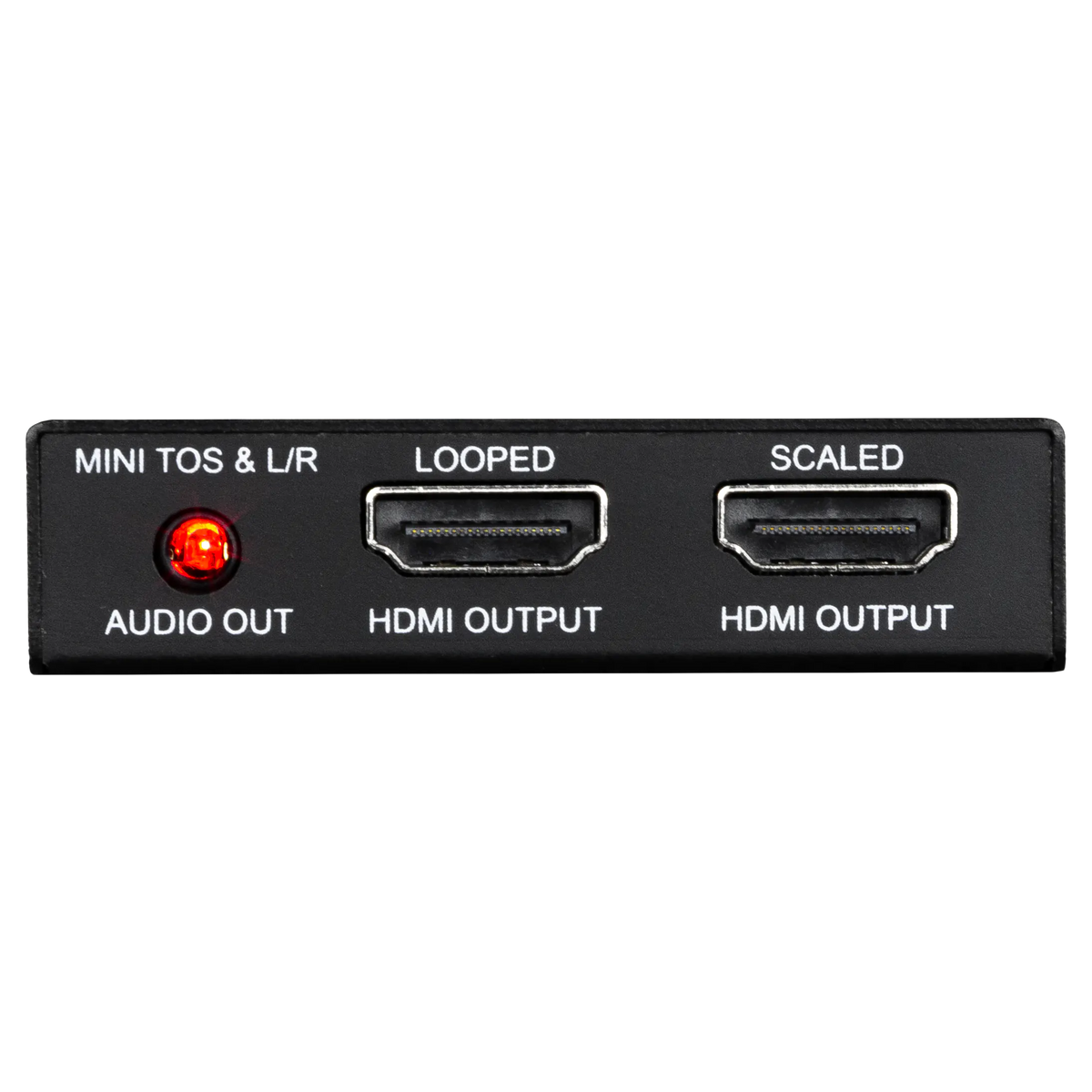

Yes, this model includes audio de-embedding, which means it can separate audio from the HDMI signal for use with other equipment. The AVPro Edge AC-SC-1X supports audio extraction through Digital Toslink or HDMI, giving flexibility when the display is not the only audio destination.
On the HDMI side, it supports formats such as PCM 2.0, LPCM 5.1 and 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, and Dolby Atmos. For extracted audio, it supports LPCM up to 5.1 at 96kHz 24-bit, Dolby Digital 5.1, DTS HiRes Audio, and PCM 2-channel. That makes it useful when integrating a source with a display plus a receiver, sound processor, or distributed audio system.
This feature is especially helpful in retrofit installations where the display handles video but the audio needs to go somewhere else. The limitation is that extracted audio format support depends on the output method, so users should verify whether Toslink or HDMI extraction matches the needs of their specific audio equipment.
Will this work with HDR, Dolby Vision, VRR, and 4K 120Hz sources?
Yes, the AVPro Edge AC-SC-1X is designed for modern HDMI 2.1a source formats and supports key high-performance features that matter in current media and gaming systems. It handles up to 40Gbps bandwidth and supports resolutions up to 8K 60Hz 4:2:0, 8K 30Hz 4:4:4, and 4K 120Hz.
For dynamic range and image formats, it supports HDR10, HDR10+, Dolby Vision, and HLG. For gaming-related performance, it also supports VRR and ALLM. That means it is suitable for systems where a current console, gaming PC, or advanced media player needs to connect to downstream equipment that may not match the source's highest format natively.
This is a good fit for users who want to maintain modern source capabilities while improving compatibility with displays or audio equipment. The important tradeoff is that end performance still depends on the capabilities of the entire signal chain. The source, cabling, and destination equipment all need to support the desired feature set, even though the downscaler helps bridge format mismatches.
Who should buy an HDMI downscaler instead of replacing their display or AVR?
An HDMI downscaler is often the smarter choice when your source equipment is newer than the rest of your AV system and everything works except for format compatibility. If you have a modern 8K or advanced 4K source but still rely on a 4K or 1080p display, older AVR, secondary monitor, capture device, or audio system, a downscaler can preserve usability without forcing a full equipment replacement.
The AVPro Edge AC-SC-1X is especially suitable for mixed systems because it combines 8K to 4K or 1080p downscaling with EDID management and audio extraction. That helps when the issue is not just resolution, but also handshake reliability and audio routing. Its compact low-profile design also makes it practical behind displays or in racks.
This approach benefits home theaters, gaming setups, digital signage, and professional AV installs where one incompatible component can disrupt the whole system. The tradeoff is that a downscaler solves compatibility, not performance parity. If your goal is native 8K display capability everywhere, replacing the display or AVR may still be the better long-term path.
Is this a good choice for clean installations behind a display or in a rack?
Yes, this unit is well suited for discreet professional installations. The AVPro Edge AC-SC-1X has a compact ultra-low-profile design, measuring about 2.55 by 3.94 by 0.63 inches and weighing only 0.32 pounds. That makes it easy to place behind a display, inside a credenza, or in a rack system where space is limited.
Its low power draw of 2.5 watts maximum also helps in enclosed or multi-device installations. For professional AV and home theater setups, small form factor matters because signal management products often need to disappear into the system without adding clutter or requiring major mounting hardware. This model is especially useful where you need 8K-to-4K or 1080p downscaling, EDID control, and audio extraction in one compact device.
The main advantage is installation flexibility without giving up modern HDMI features. The practical limitation is that compact devices still require thoughtful cable management, especially with high-bandwidth HDMI connections. Using quality cables and maintaining proper airflow remain important for reliable long-term performance.
The AVPro Edge AC-SC-1X acts as a versatile bridge for high-bandwidth HDMI signals, supporting up to 40Gbps. This device enables 8K to 4K or 1080p downscaling and features robust EDID management with 16 settings, including User Copy for display compatibility. It supports essential AV technologies like HDR, Dolby Vision, VRR, and ALLM for high-performance gaming and media setups. Audio extraction is simplified through Digital Toslink or HDMI, offering flexibility for complex system configurations. The ultra-low-profile, compact design is ideal for rack mounting or concealing behind displays, ensuring a clean installation.
| Bandwidth | 40 Gbps (FRL 5) |
| Video Resolutions | Up to 8K 60Hz 4:2:0, 8K 30Hz 4:4:4, 4K 120Hz |
| HDR Formats | HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats (HDMI) | PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos |
| Audio Formats (Extracted) | LPCM up to 5.1 96KHz 24 Bit, Dolby Digital 5.1, DTS HiRes Audio, PCM 2 CH |
| Operating Temperature | -5 to 51°C (23 to 125°F) |
| Power Consumption | 2.5 Watts max |
| Dimensions (Unit) | 2.55 x 3.94 x 0.63 inches |
| Weight (Unit) | 0.32 lbs |
