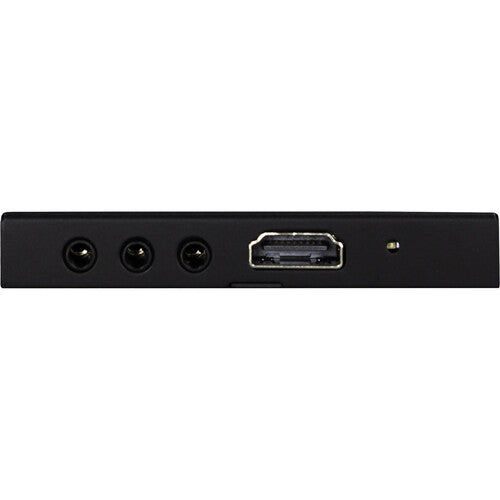

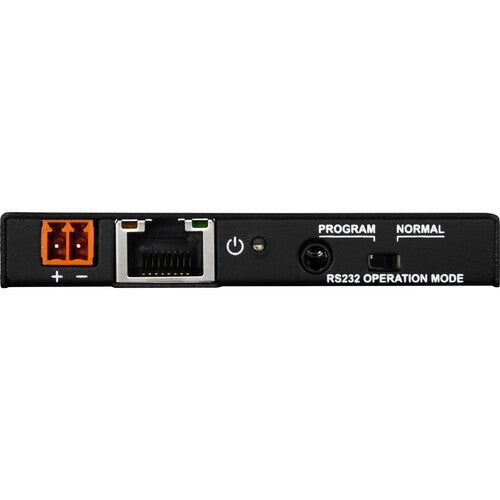

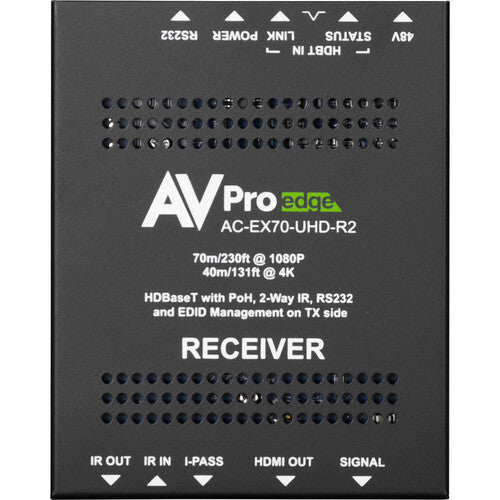

AVPro Edge AC-EX70-UHD-R2 Ultra-Slim HDBaseT Receiver

Overview

Receive video and control signaling in a data center, conference room, or classroom with this Ultra Slim 4K HDMI 2.0 over HDBaseT Extender Kit from AVPro Edge.  This receiver pairs with a separately available AC-EX70-UHD-T transmitter that can transmit 4K60 video and embedded audio up to 131' and 1080p video with embedded audio up to 230'.

The receiver features a HDBaseT input that connects a Cat 7, 6a, or 5e cable to receive the video with embedded audio as well as serial signaling.  One HDMI 2.0 output supports up to 4K60 4:2:0 video input as well as up to 12-bit 4:2:2 HDR and even 3D video. The system also supports HDCP 2.2, CEC pass-through, daisy-chaining, and bidirectional RS-232 serial transport for computer data and control units.  Embedded audio support includes transport of uncompressed two-channel PCM, LPCM 5.1 & 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, and Dolby Atmos audio.

Key Features

• Receive 4K HDMI Transmission up to 131'
• Supports up to 4K60 HDMI 2.0 Video
• HDR Support up to 12-Bit 4:2:2
• Receive 1080p60 Video from up to 230'
• 3D, CEC Pass-Through & HDCP 2.2 Support
• HDBaseT over Cat 6a/5e with PoH Support
• RS-232 & IR Pass-Through, Daisy-Chaining
• ESD Protection Circuitry & IR Circuit
• User Manual
