AVPro Edge AC-EX70-UHD-BKT 70m HDBaseT Extender Kit

SKU: AC-EX70-UHD-BKT
Regular price $576.00

Frequently Asked Questions

An HDBaseT extender is a device that sends HDMI video, audio, and control signals over standard category cable, such as Cat5e or Cat6, instead of a short HDMI cable. You need one when your display, projector, or AV equipment is too far away for a reliable direct HDMI run. The AVPro Edge AC-EX70-UHD-BKT is an HDBaseT extender kit designed for that exact job. It can carry 4K HDMI up to 40 meters and 1080p up to 70 meters, while also supporting bi-directional IR and RS-232 control. That makes it useful in conference rooms, classrooms, home theaters, digital signage, and other installations where the source and display are in different locations. This type of extender is best for permanent or semi-permanent setups that need clean cable management and stable signal delivery. The main tradeoff is that performance depends on using proper cabling and staying within the supported resolution and distance limits.
The maximum length depends on the extender technology, the resolution you need, and the quality of the cable. For this AVPro Edge HDBaseT extender kit, the rated distance is up to 40 meters for UHD 4K and up to 70 meters for 1080p over category cable. That means if you need full HD for a classroom, meeting room, or control room display, you can go significantly farther than you typically can with a standard HDMI cable. If you need 4K, the supported distance is shorter because higher-resolution signals require more bandwidth. This model supports 4K 30Hz 4:4:4 with a 10.2 Gbps bandwidth rating. Shoppers who need long, reliable AV runs should match the extender to their actual resolution requirements. If your system must carry 4K over longer distances than 40 meters, you may need a different extender class or system design. For 1080p installations, this kit offers a longer reach that fits many common commercial and residential layouts.
With a properly matched digital extender, you should not see the kind of gradual quality loss associated with analog signals. In practical terms, an HDMI extender either delivers a stable signal at the supported format or it does not. The key is choosing a model with the right bandwidth, distance rating, and control support for your system. The AVPro Edge AC-EX70-UHD-BKT is built to transmit HDMI over HDBaseT with support for 4K 30Hz 4:4:4, HDCP 2.3 and earlier, and advanced audio formats such as Dolby Atmos and DTS-X. That makes it a strong fit for installations where both picture detail and audio compatibility matter. The main limitations are not image "softening" but compatibility and distance. If you exceed the rated cable length, use poor category cable, or expect a format beyond 10.2 Gbps, the signal may become unreliable. This kit is best for users who want dependable digital extension within clearly defined 4K and 1080p distance limits.

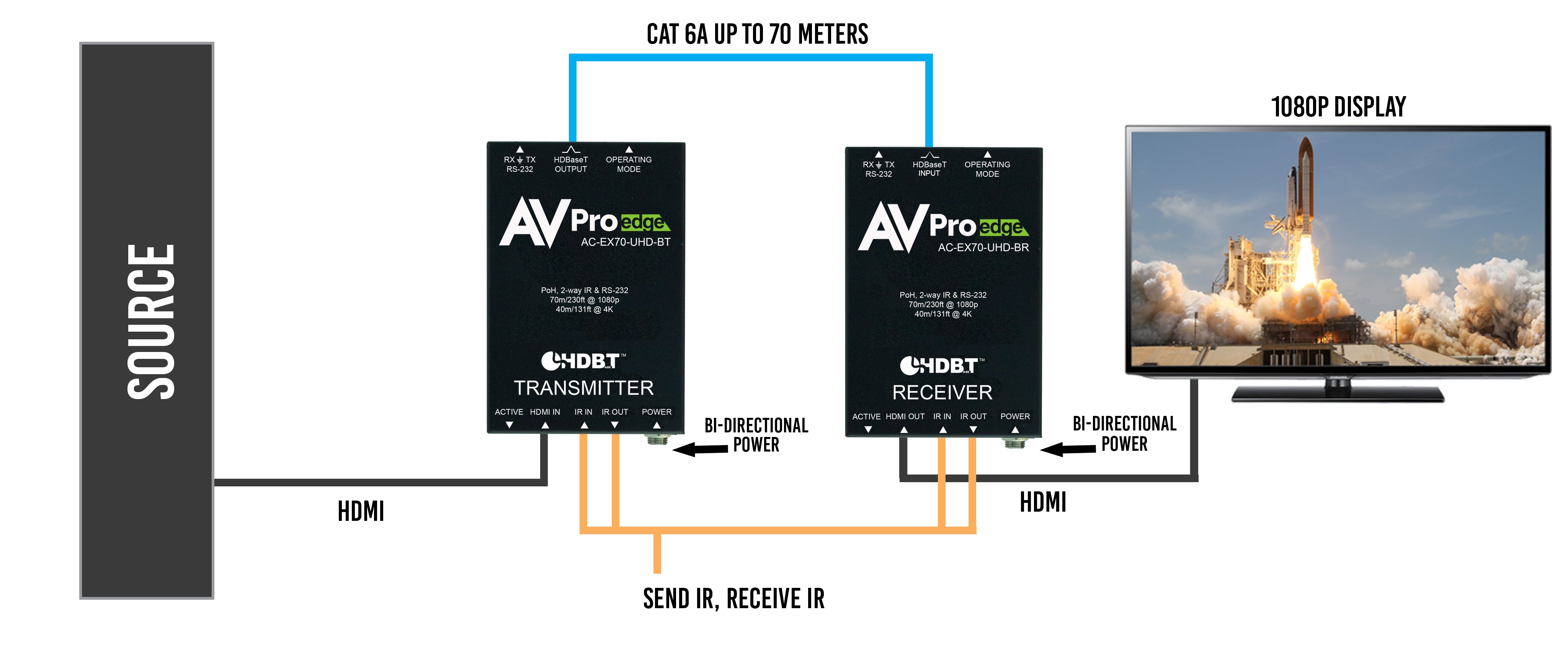

Choose a long HDMI cable for shorter, simple runs where the source and display are relatively close together. Choose an HDMI extender when the distance is longer, the cable path is more complex, or you also need control signals such as IR or RS-232. The AVPro Edge AC-EX70-UHD-BKT is a good example of why extenders are often preferred for structured installations. It sends HDMI over standard category cable up to 40 meters at 4K or 70 meters at 1080p, and it includes bi-directional IR and RS-232. It also uses Power over Cable, so the transmitter can power the receiver, reducing the need for an outlet at the display end. This approach benefits conference rooms, classrooms, projector installations, and equipment racks where neat cable routing matters. The tradeoff is that an extender kit adds hardware and requires attention to cable quality. If your run is very short and you do not need remote control integration, a direct HDMI cable may be simpler.
Yes, this extender is well suited for conference rooms, classrooms, and projector setups where the source equipment is separated from the display by a moderate to long cable run. Its distance ratings of 40 meters for 4K and 70 meters for 1080p fit many real-world room layouts, especially when the AV rack is at one end of the space and the projector or display is mounted elsewhere. It also supports bi-directional IR and RS-232, which is useful when you need to integrate display or projector control into a larger AV system. Power over Cable is another practical advantage because it can simplify installation at the display end where power access may be limited. This model is best for users who need reliable signal transport and control in a professional environment. The main limitation is that it is not intended for higher-bandwidth 4K formats beyond its 10.2 Gbps specification, so buyers should confirm that 4K 30Hz 4:4:4 meets their content and system requirements.
The AVPro Edge AC-EX70-UHD-BKT supports up to 4K 30Hz 4:4:4 over HDBaseT, with a maximum bandwidth of 10.2 Gbps. It can transmit that 4K signal up to 40 meters. For 1080p, it can extend the signal up to 70 meters. It also supports HDCP 2.3 and earlier, which helps with compatibility across many modern HDMI sources and displays. On the audio side, it supports advanced formats including Dolby Atmos and DTS-X. That makes it suitable not only for video distribution but also for installations where immersive audio compatibility matters, such as home theater zones, training spaces, and presentation environments. This extender is best for users who need dependable 4K 30Hz or long-distance 1080p distribution. The important tradeoff is that it is not a fit for systems that require higher-bandwidth HDMI 2.0 or 4K 60Hz 4:4:4 transmission. Buyers should match the extender to the exact signal format their source devices output.
Yes, the AVPro Edge AC-EX70-UHD-BKT supports bi-directional IR and RS-232 control. That matters because many professional AV systems need more than just video and audio extension. They also need a way to control projectors, displays, switchers, or source devices from either end of the installation. Bi-directional IR allows remote control signals to pass between locations, which can be helpful if the source equipment is hidden in a rack or closet. RS-232 support is especially useful in integrated AV systems where displays or projectors are controlled by automation platforms, touch panels, or room control processors. This feature set benefits conference rooms, classrooms, houses of worship, training rooms, and residential AV systems where centralized equipment management is important. The tradeoff is that these control features are most valuable in planned installations. For a simple point-to-point video run with no control needs, they may be more capability than some users require.
Power over Cable, or PoC, means one unit in the extender pair can supply power to the other through the same category cable used for signal transmission. In the AVPro Edge AC-EX70-UHD-BKT, the transmitter powers the receiver, which can simplify installation and reduce the need for a separate power outlet at the display end. This is especially useful for projectors, wall-mounted displays, and remote receiver locations where local power access is inconvenient or expensive to add. It can also help reduce cable clutter and streamline system design in commercial AV installations. PoC is most beneficial for installers and users building clean, professional systems with equipment racks and remote displays. The main consideration is that you still need to follow the manufacturer’s installation guidelines and stay within the supported distance limits. PoC improves convenience, but it does not change the bandwidth or resolution capabilities of the extender itself.
This HDBaseT extender is designed to work over standard category cabling, such as Cat5e or Cat6, but for best reliability many installers prefer higher-quality cable and careful terminations. Since the extender is carrying 4K HDMI, control signals, and Power over Cable, the quality of the cabling can directly affect system stability. Using solid, in-wall rated cable from a trusted source and following proper installation practices helps the AVPro Edge AC-EX70-UHD-BKT perform as intended at its rated distances of 40 meters for 4K and 70 meters for 1080p. Good terminations and avoiding unnecessary patch points also improve results. This matters most for permanent installations in schools, offices, and home AV systems where reliability is more important than cutting corners on infrastructure. The tradeoff is that even a high-quality extender can underperform if paired with poor cable or sloppy installation. For buyers planning a new run, investing in proper category cable is part of choosing the right extender solution.
This model is a better choice than a basic HDMI over Cat extender when you need a more professional feature set and predictable integration. The AVPro Edge AC-EX70-UHD-BKT combines HDBaseT transport, 4K support up to 40 meters, 1080p support up to 70 meters, bi-directional IR, RS-232 control, HDCP 2.3 compatibility, advanced audio support, and Power over Cable in one matched kit. That makes it especially useful for conference rooms, education spaces, home theater equipment racks, digital signage, and other installations where reliability and control matter as much as simple signal extension. A basic extender may work for a short, uncomplicated run, but it often lacks the control options and installation flexibility needed in a managed AV environment. The tradeoff is that this type of kit is most valuable when you will actually use its capabilities. If you only need a very short point-to-point extension with no control or remote power benefits, a simpler solution may be sufficient. For structured AV systems, this kit is the more appropriate category of product.

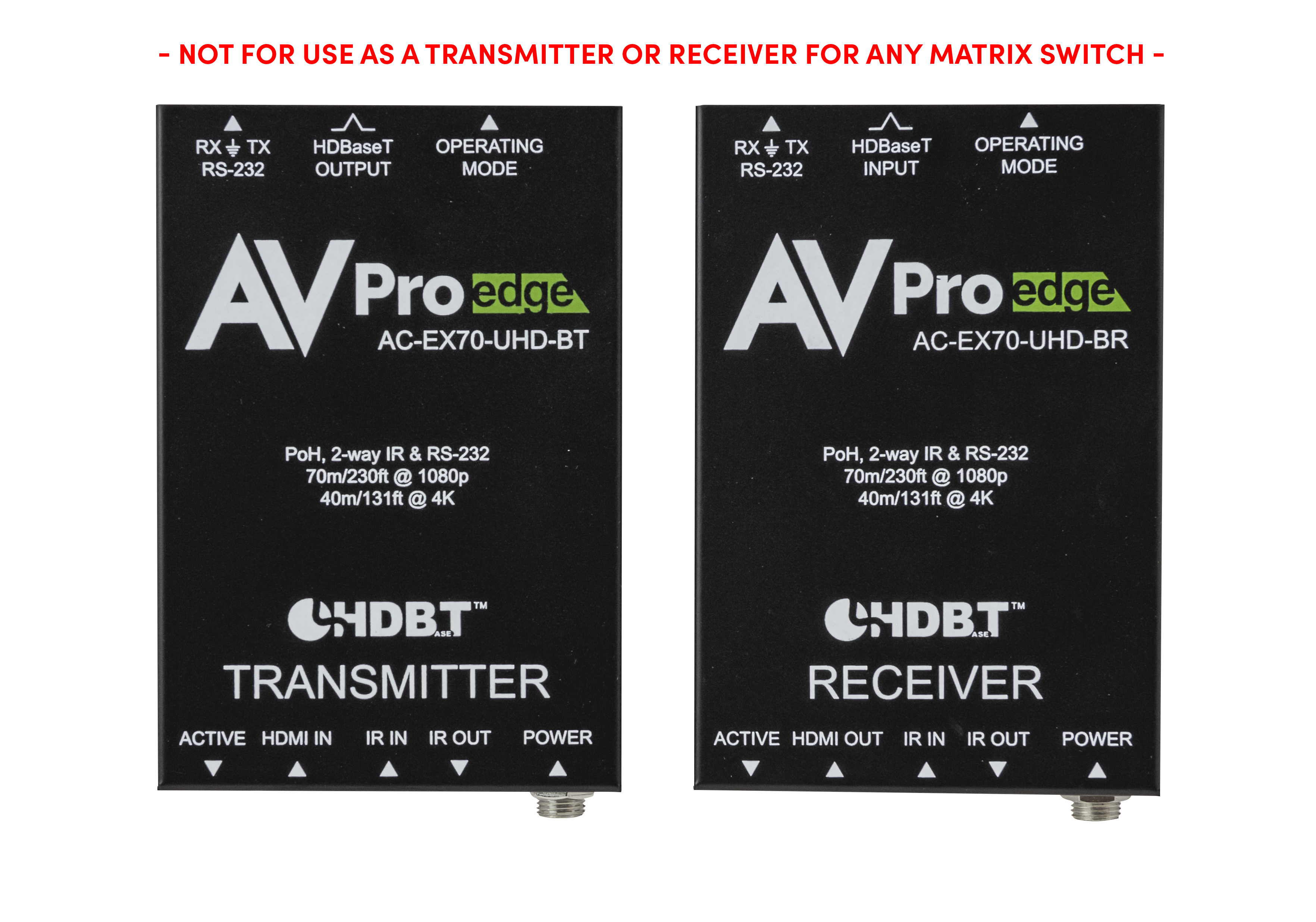

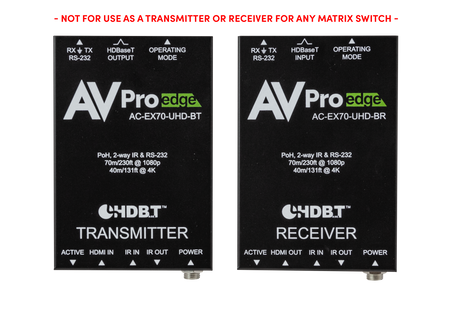

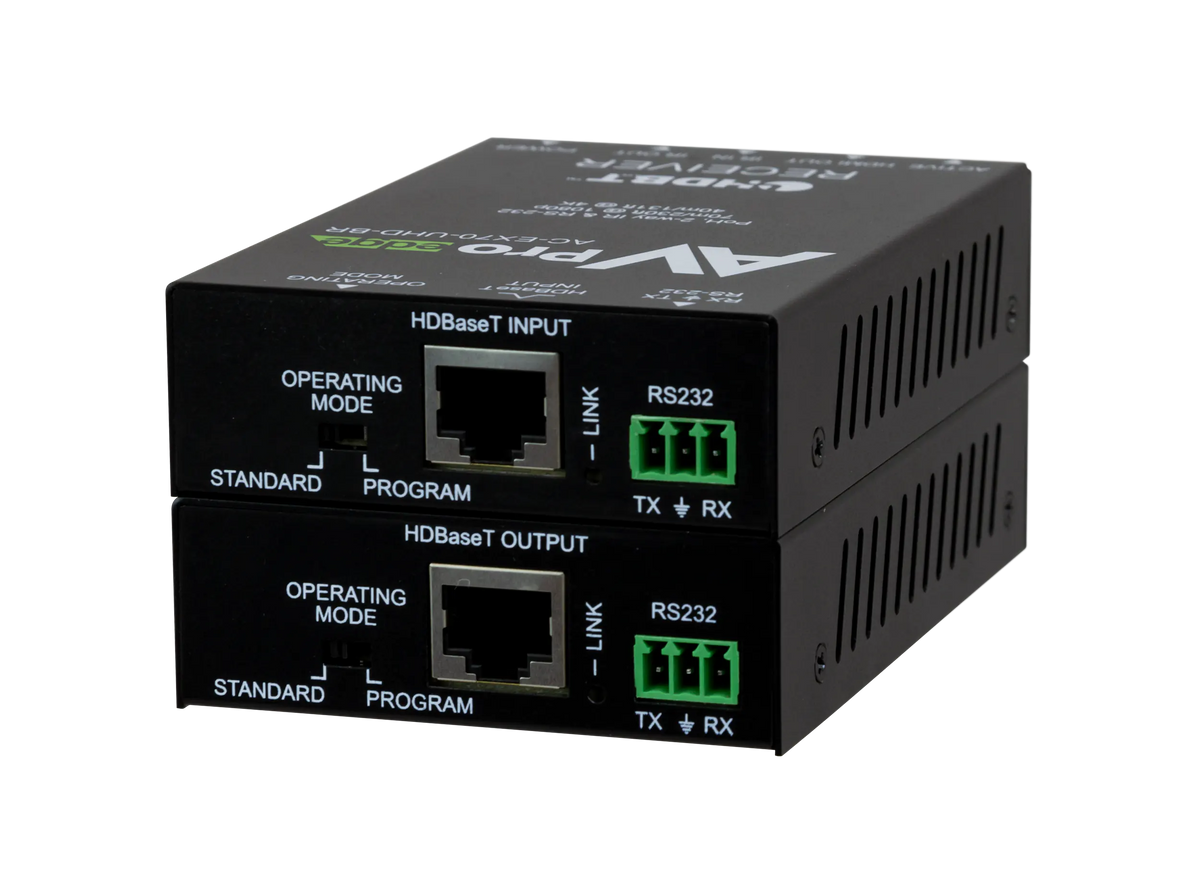

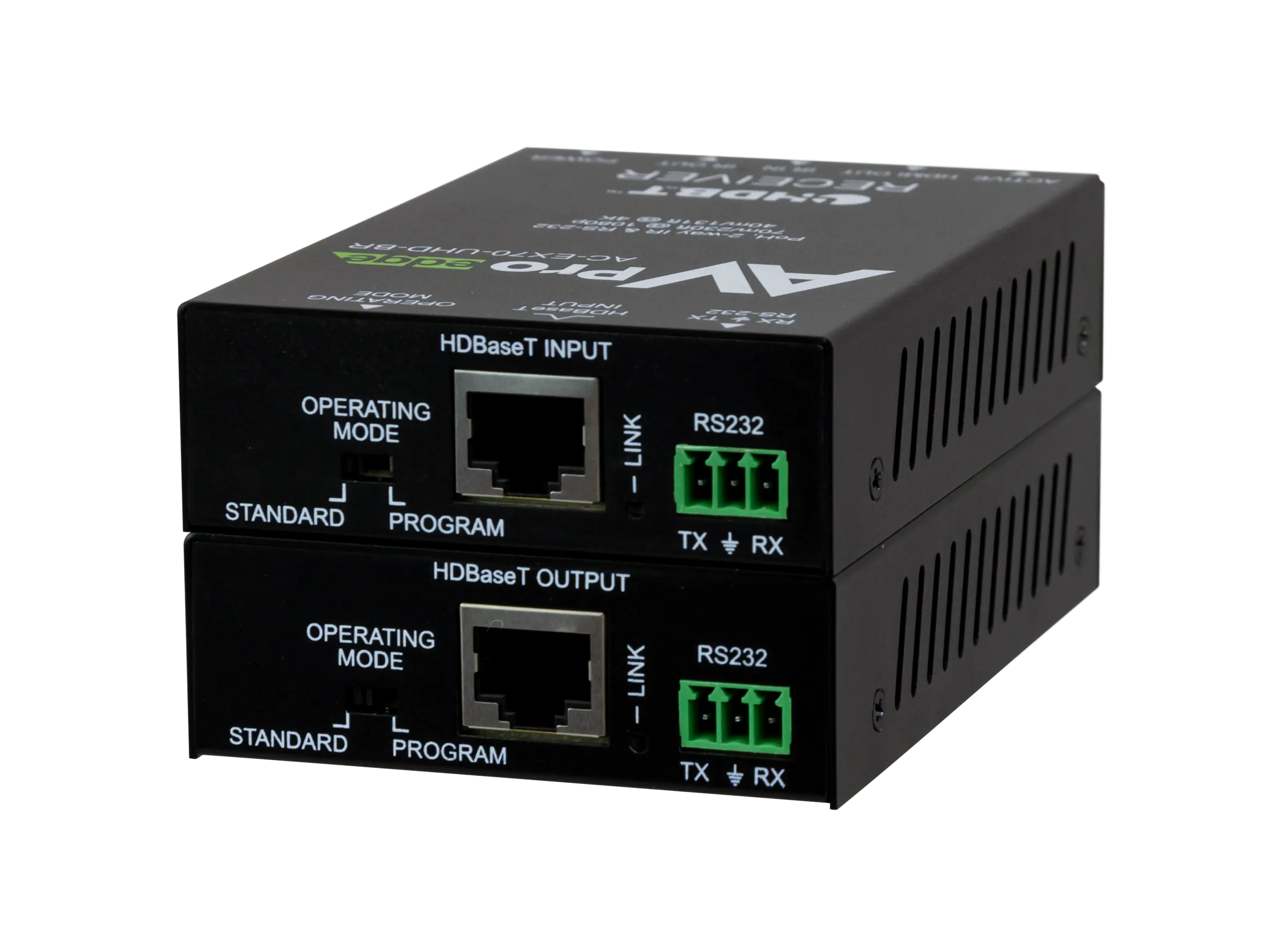

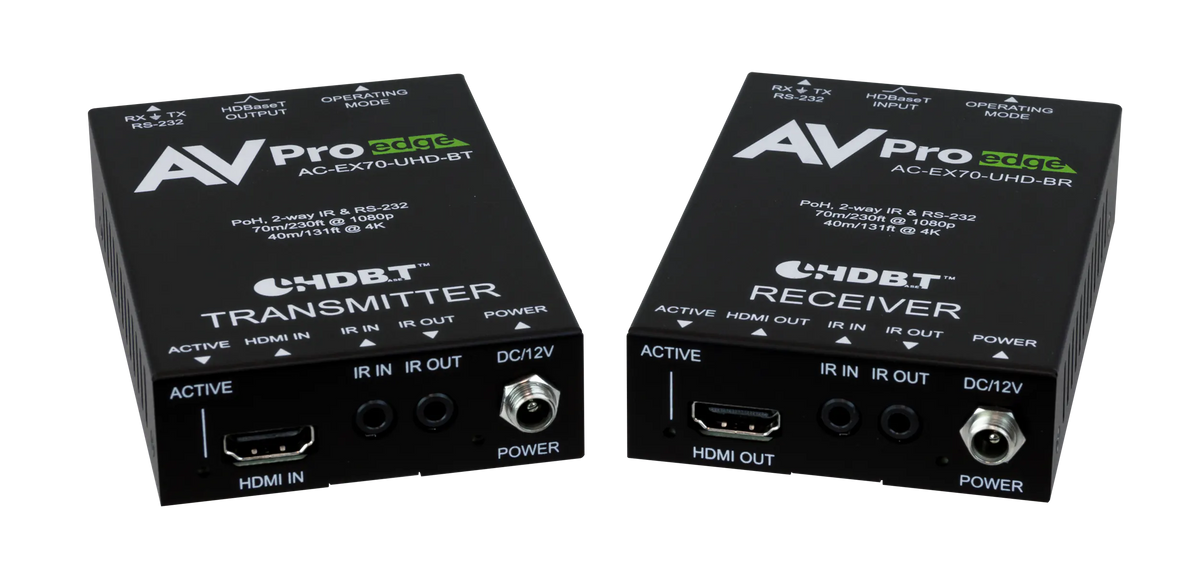

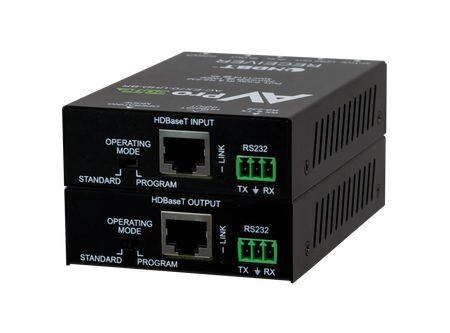

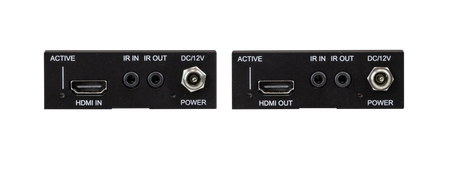

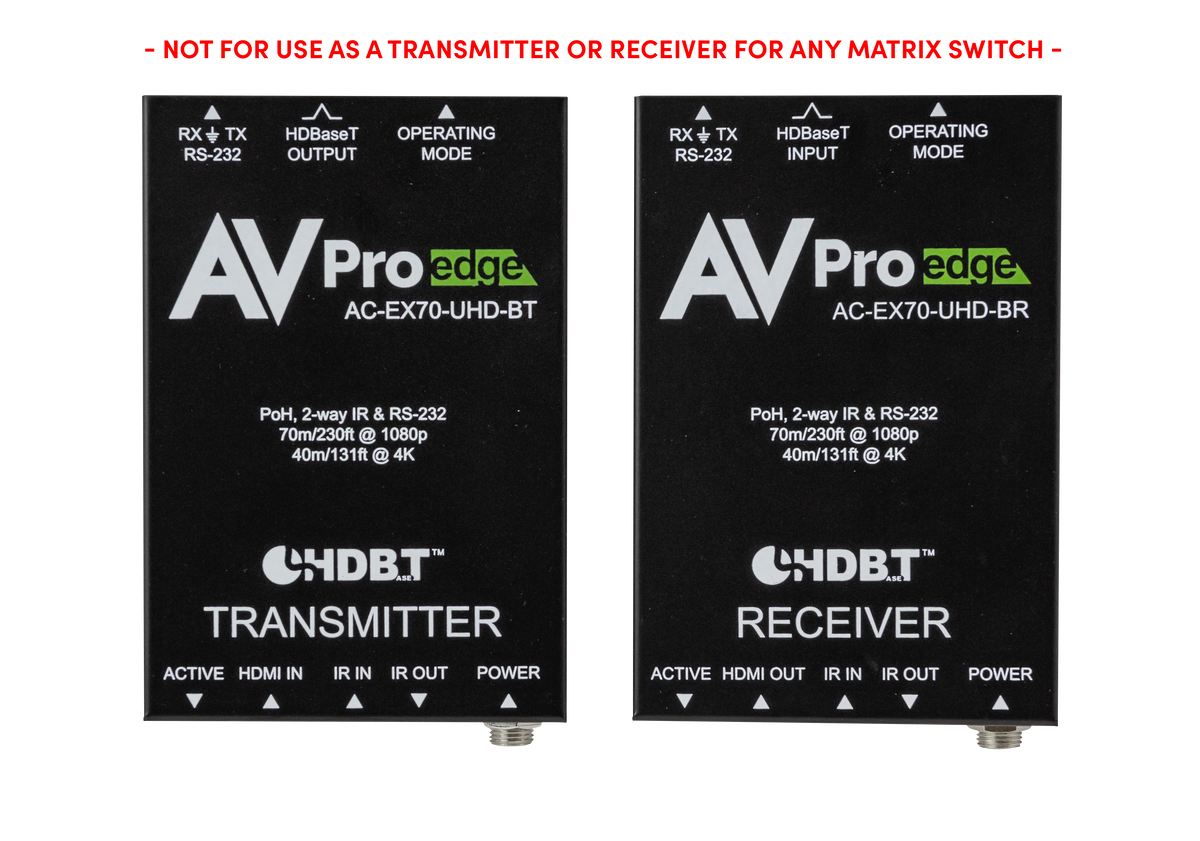

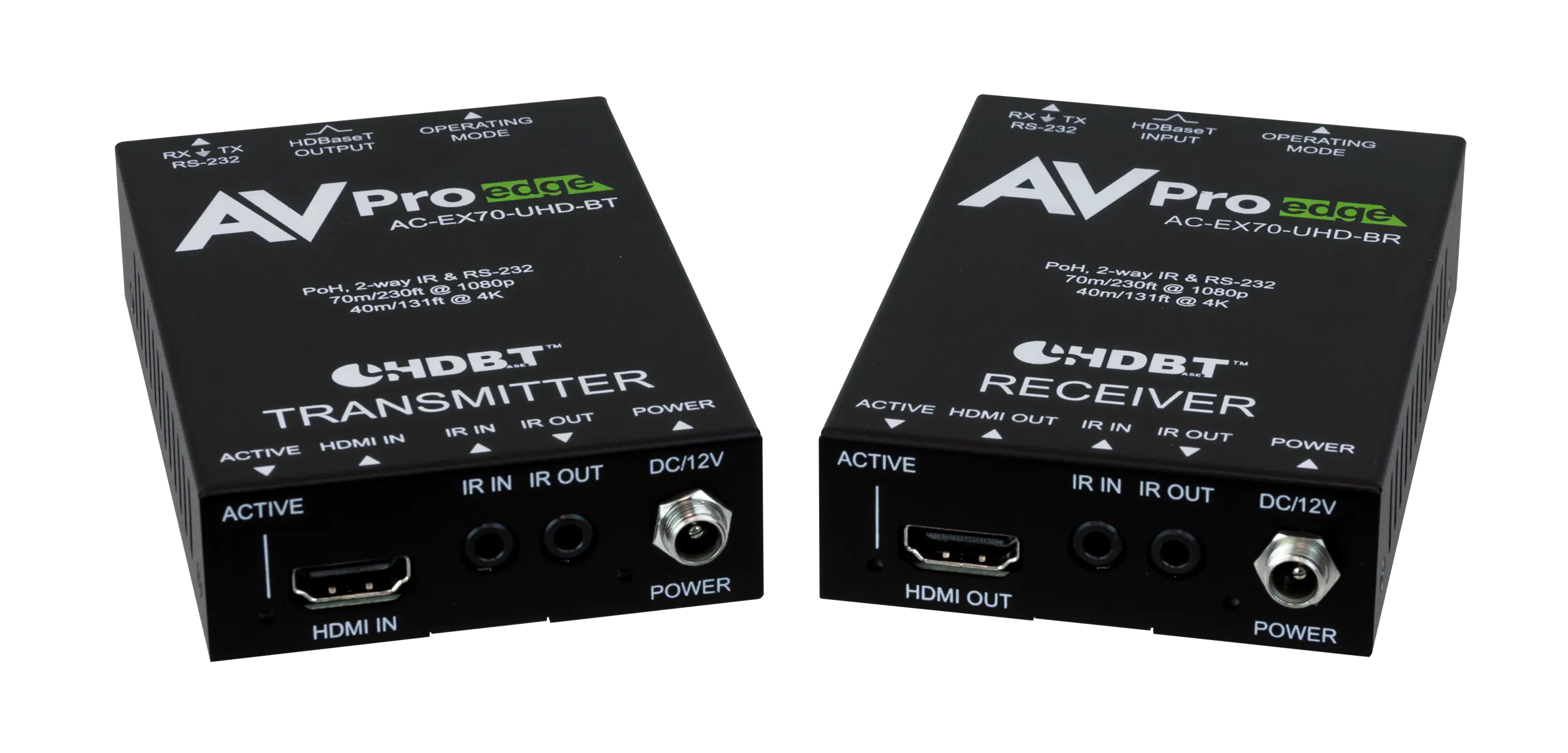

The AVPro Edge AC-EX70-UHD-BKT is a professional-grade HDBaseT extender kit engineered to transmit 4K HDMI signals over standard category cabling. This kit supports UHD 4K resolution at distances up to 40 meters and full HD 1080p resolution up to 70 meters. Equipped with bi-directional IR and RS-232 control, it allows for seamless integration into complex AV control systems. The system utilizes Power over Cable (PoC) technology, enabling the transmitter to power the receiver, which simplifies installation in locations where power outlets are not readily available. Designed for reliability and ease of use, this matched kit supports high-bandwidth video and advanced audio formats, including Dolby Atmos and DTS-X, providing a robust solution for diverse installation requirements.

Max Resolution 4K 30Hz 4:4:4
4K Transmission Distance 40 meters (131 feet)
1080p Transmission Distance 70 meters (230 feet)

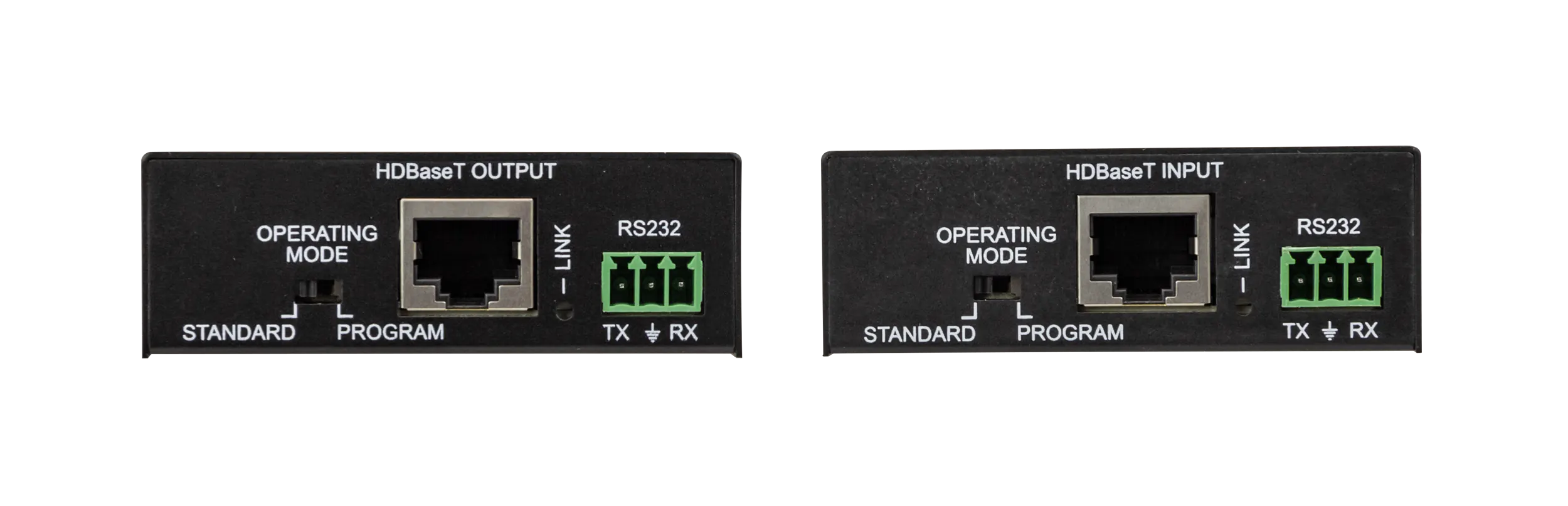

Control Bi-directional IR and RS-232
Power PoC (Power over Cable)
Bandwidth 10.2 Gbps
HDCP Support HDCP 2.3 and earlier
Dimensions 4.14 x 2.82 x 0.98 inches
Weight 0.35 lbs
