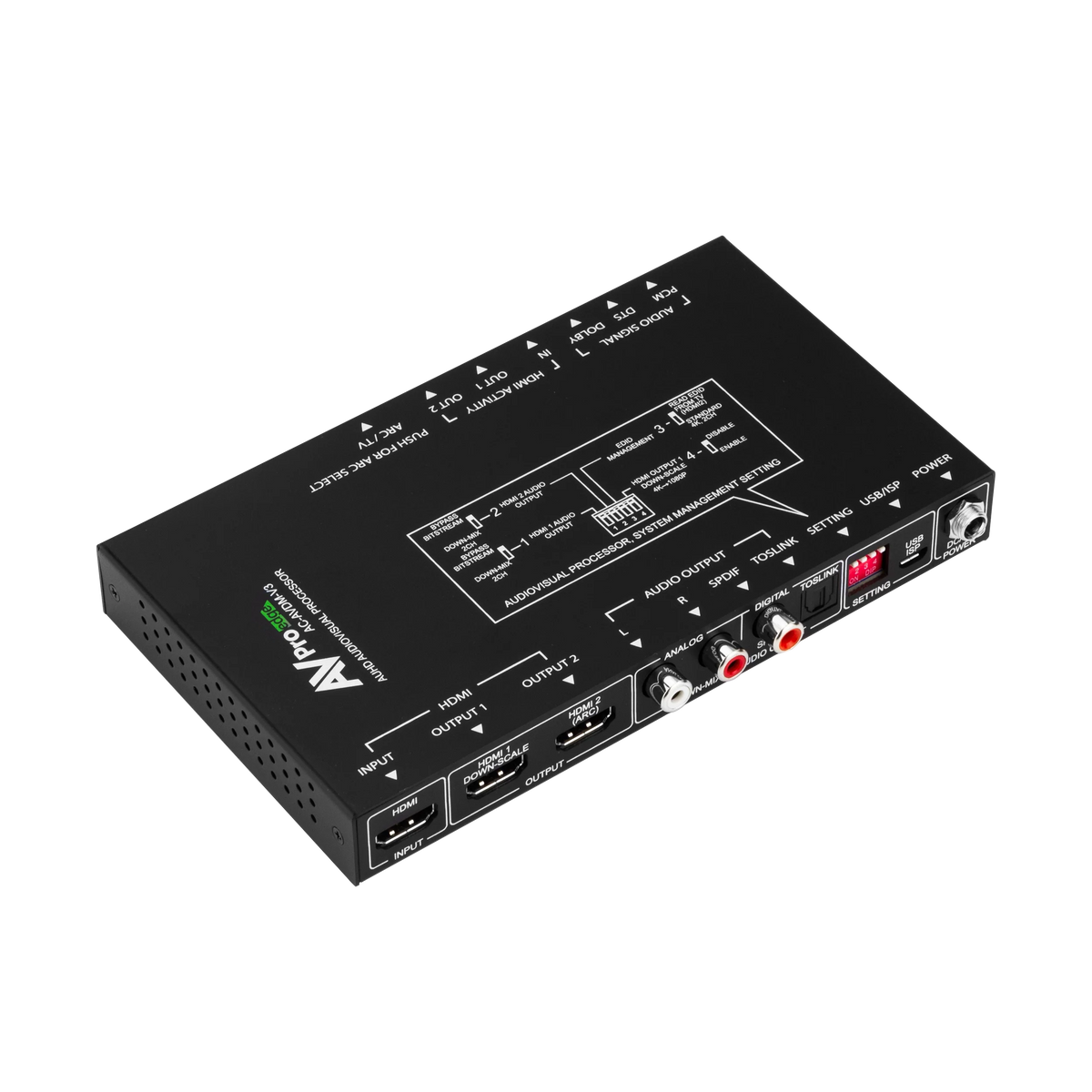

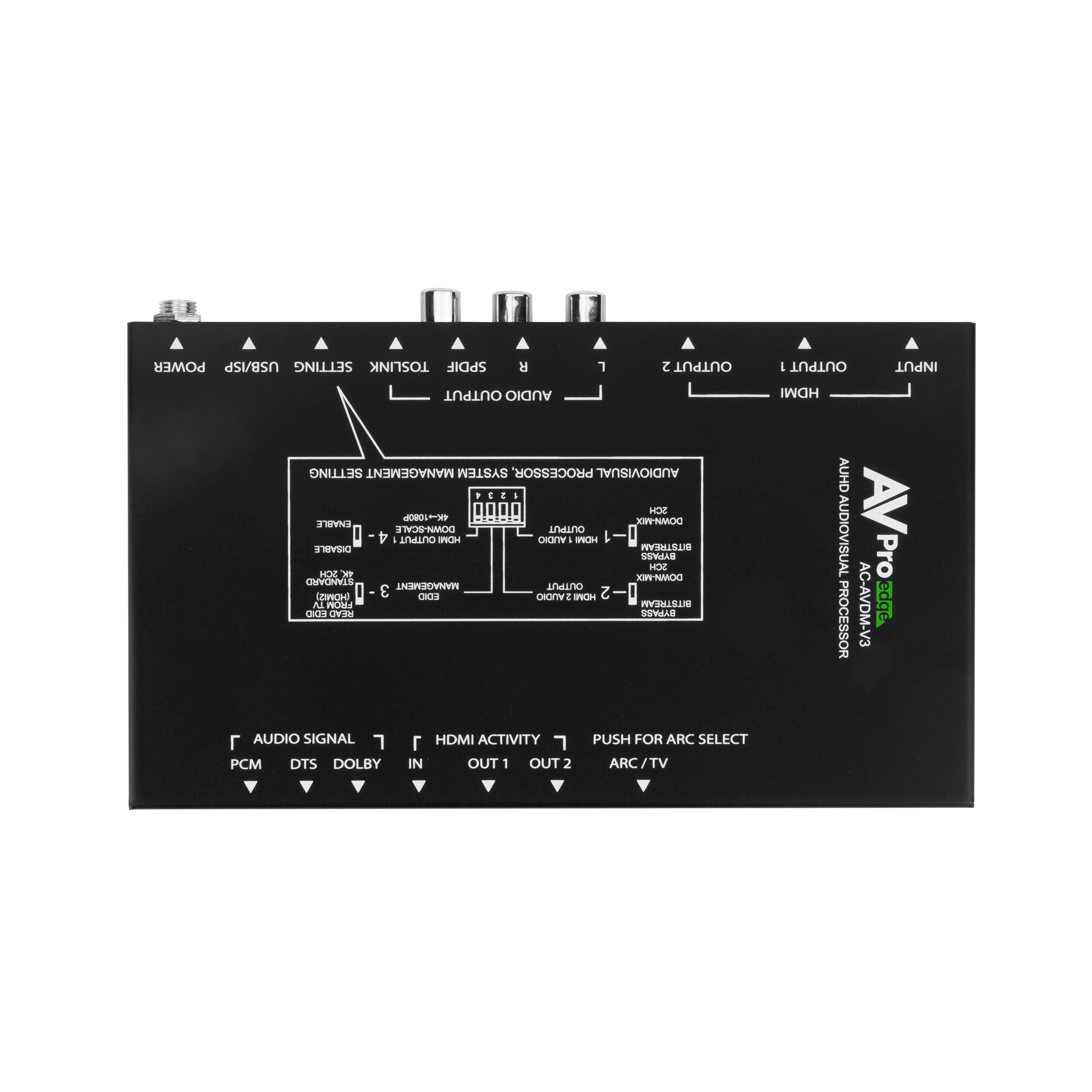

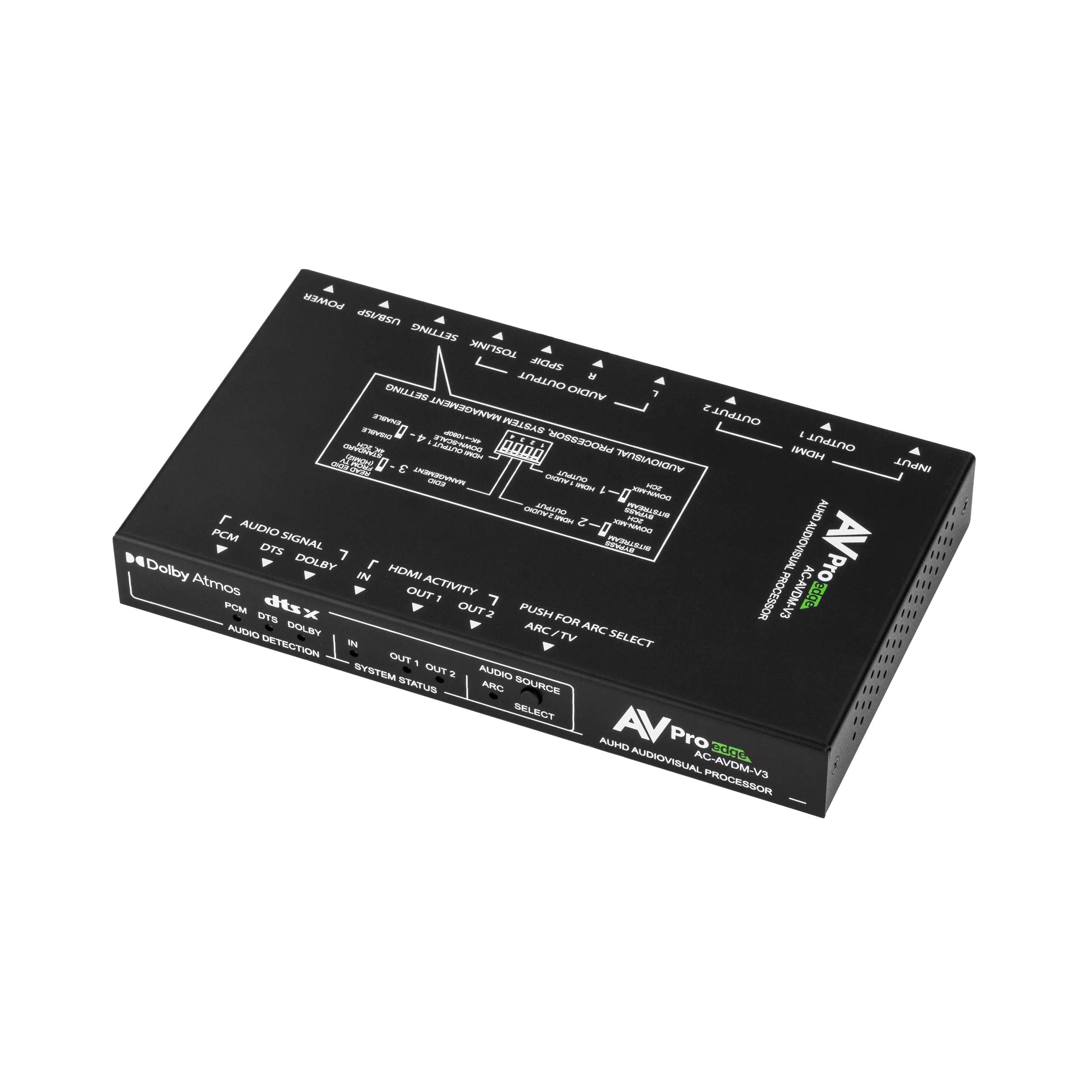

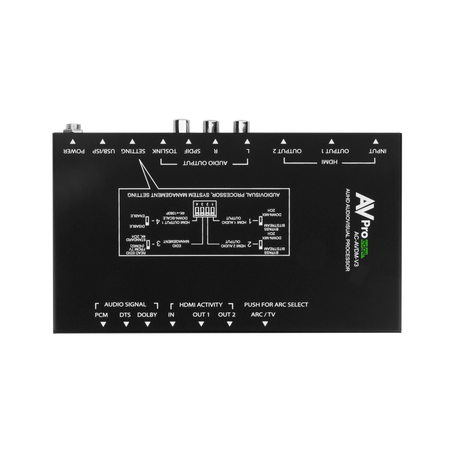

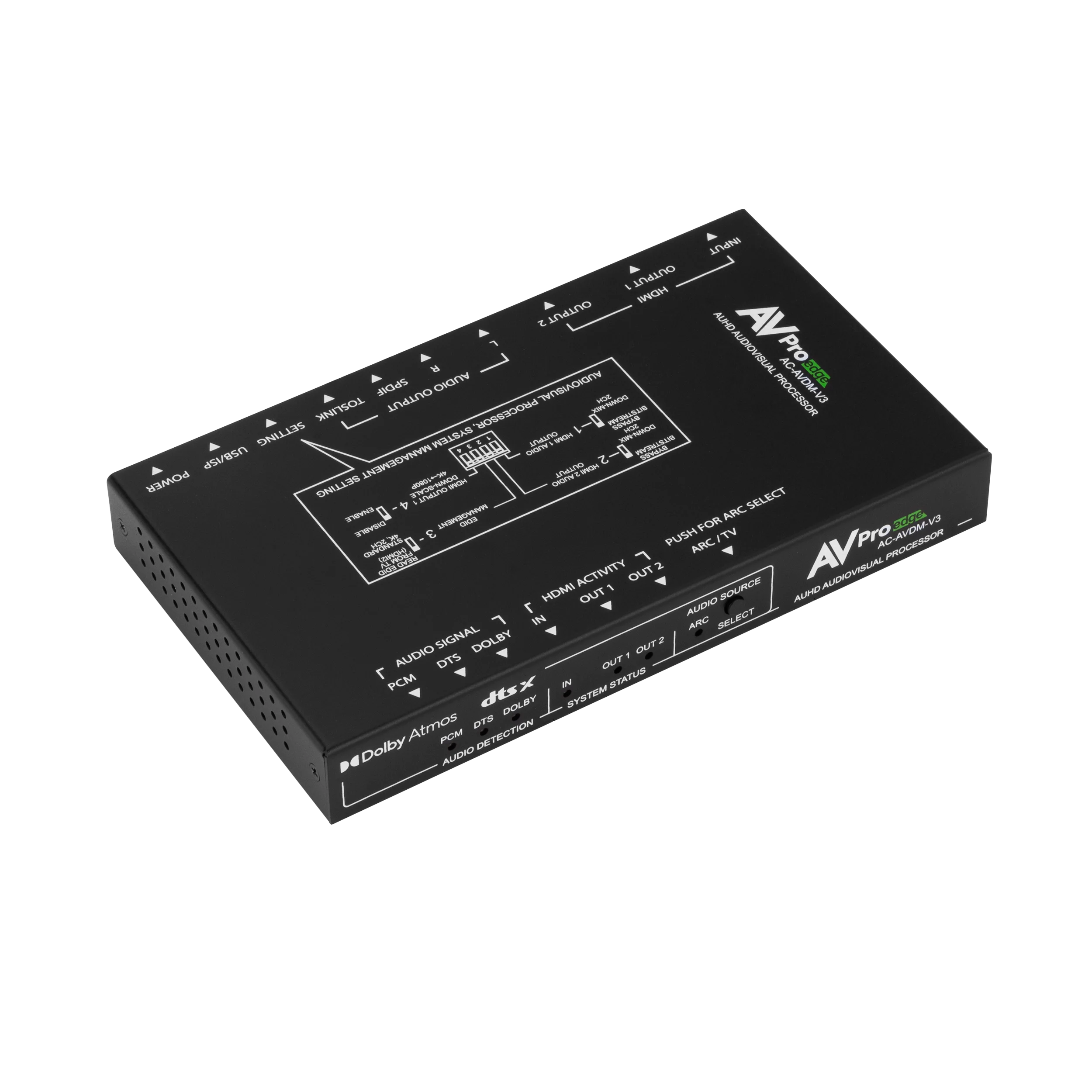

AVPro Edge AC-AVDM-V3 18Gbps 8-Channel HDMI Audio Downmixer
Regular price
$1,256.00
Couldn't load pickup availability

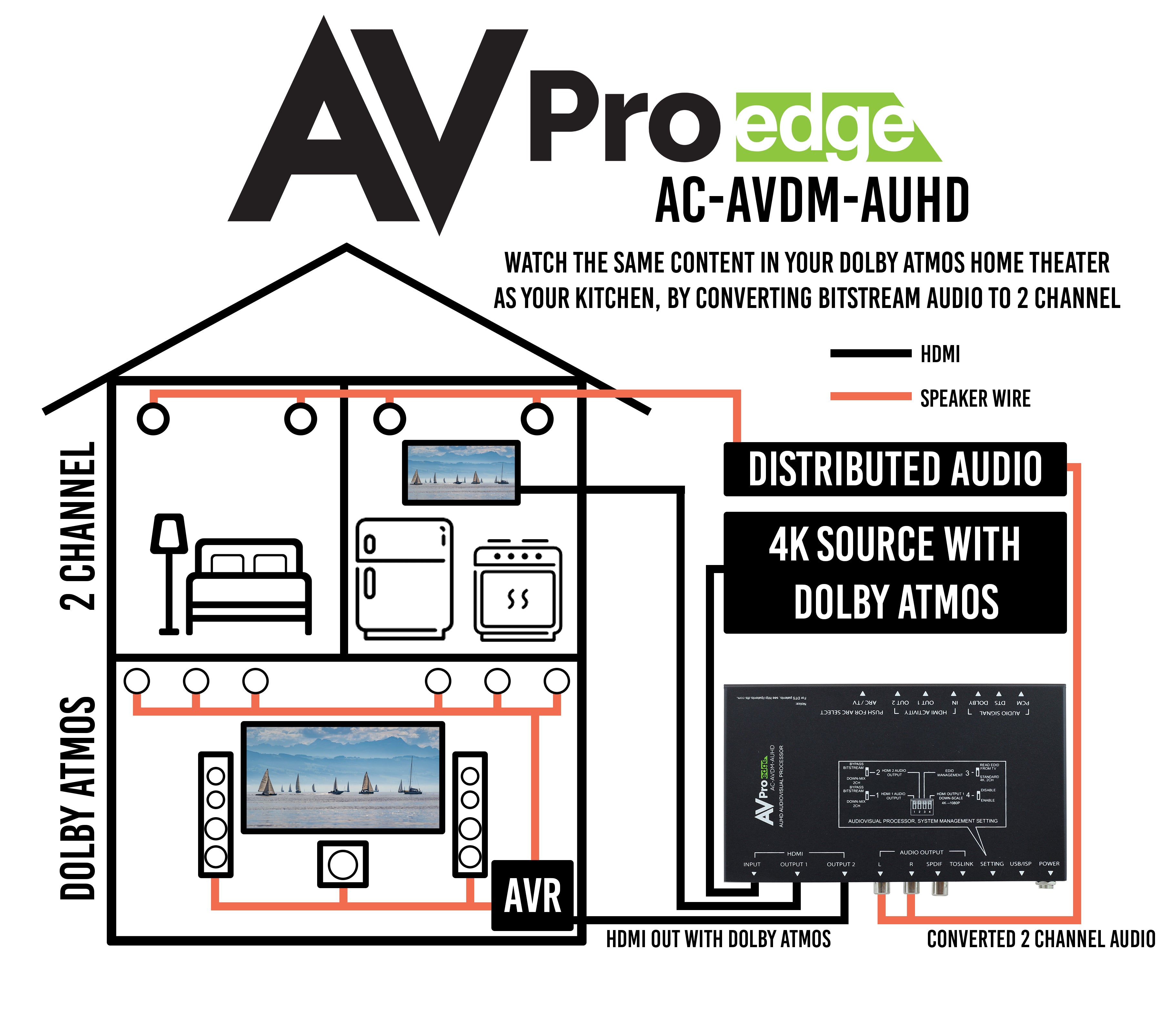

This 4K UHD HDMI audio downmixer supports high-bandwidth 18Gbps video transmission while simultaneously extracting and splitting audio signals. It efficiently converts Dolby Audio and DTS-HD formats up to 7.1 into stereo LPCM 2.0 output. Equipped with versatile connectivity, it features HDMI, S/PDIF optical, coaxial, and analog RCA outputs. The device manages Dolby Atmos signals by extracting and downmixing 7.1 channels, ensuring high-fidelity audio performance. It supports LPCM 7.1 pass-through with audio sampling rates up to 192 kHz. Additionally, it enables ARC audio extraction from compatible displays. Both HDMI ports handle 4K UHD resolutions at 60Hz with YUV 4:4:4 8-bit color depth.
| Bandwidth | 18Gbps |
| Max Resolution | 4K@60Hz (YUV 4:4:4, 8-bit) |
| Audio Formats | Dolby Atmos, DTS-HD, LPCM 2.0/7.1 |

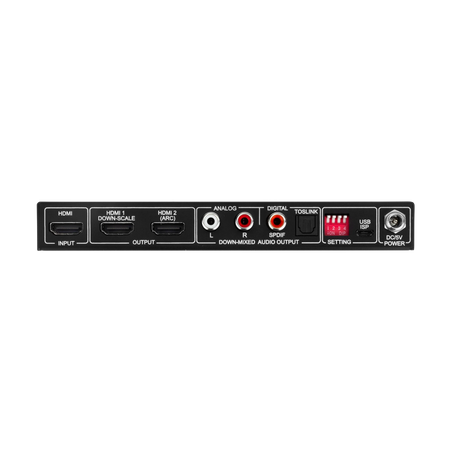

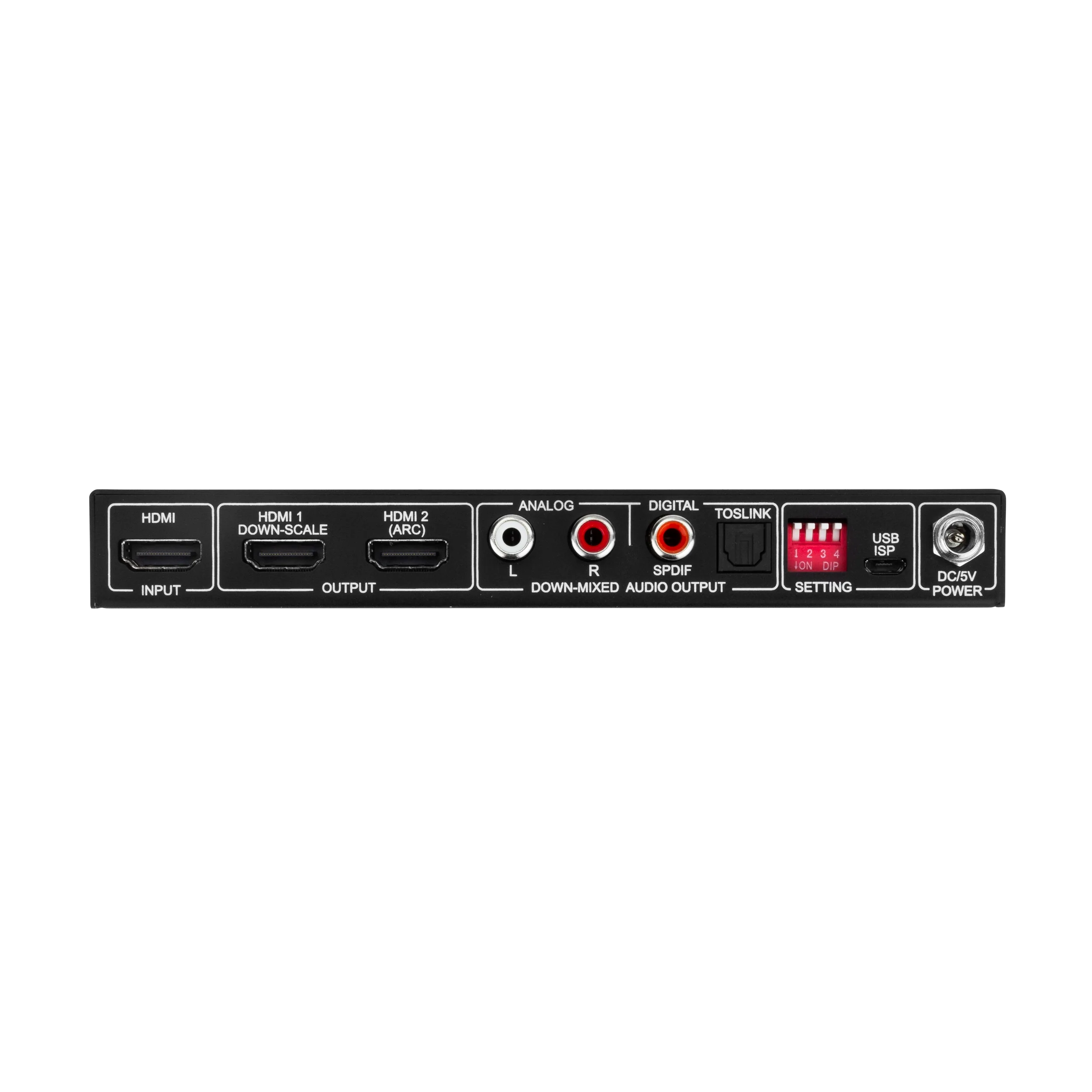

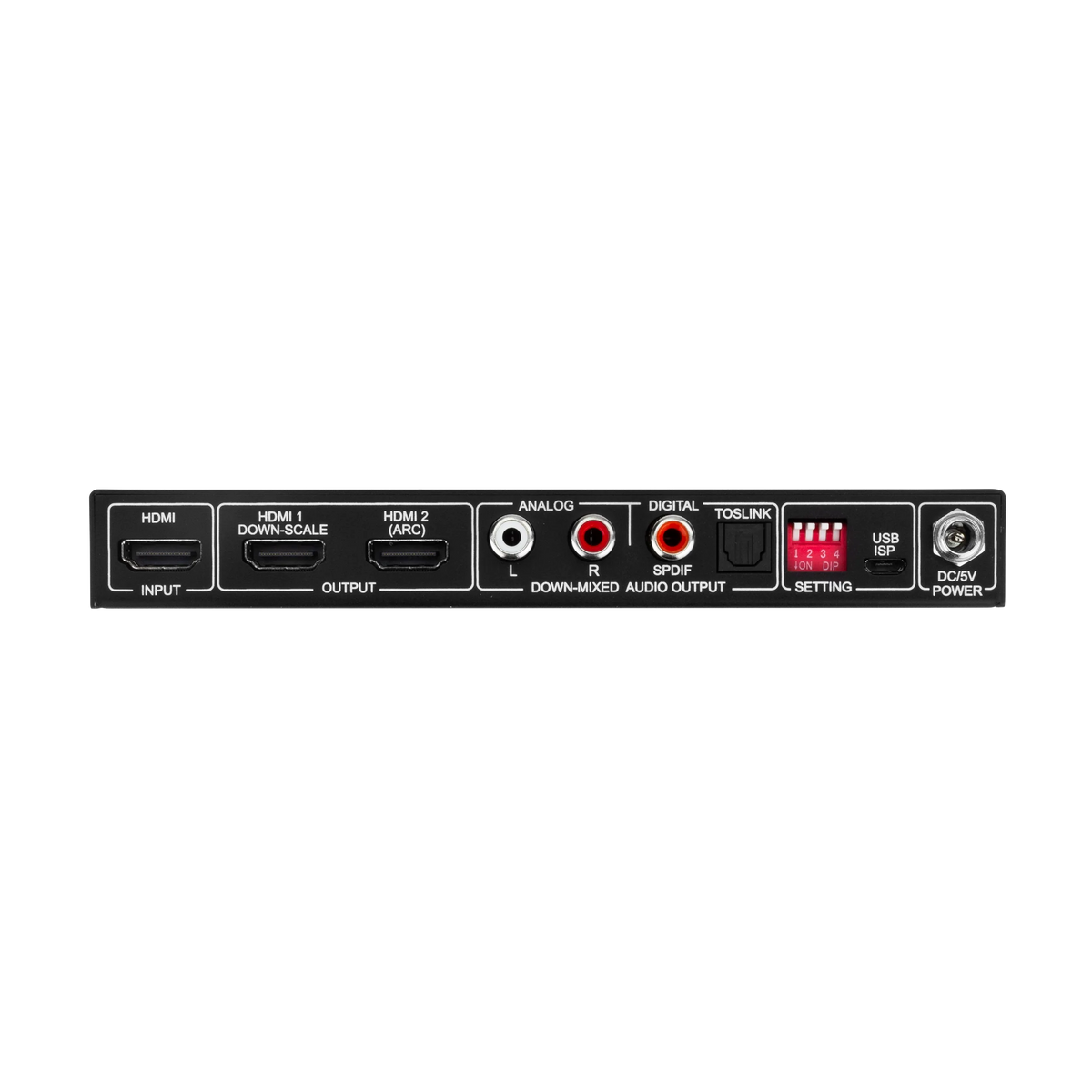

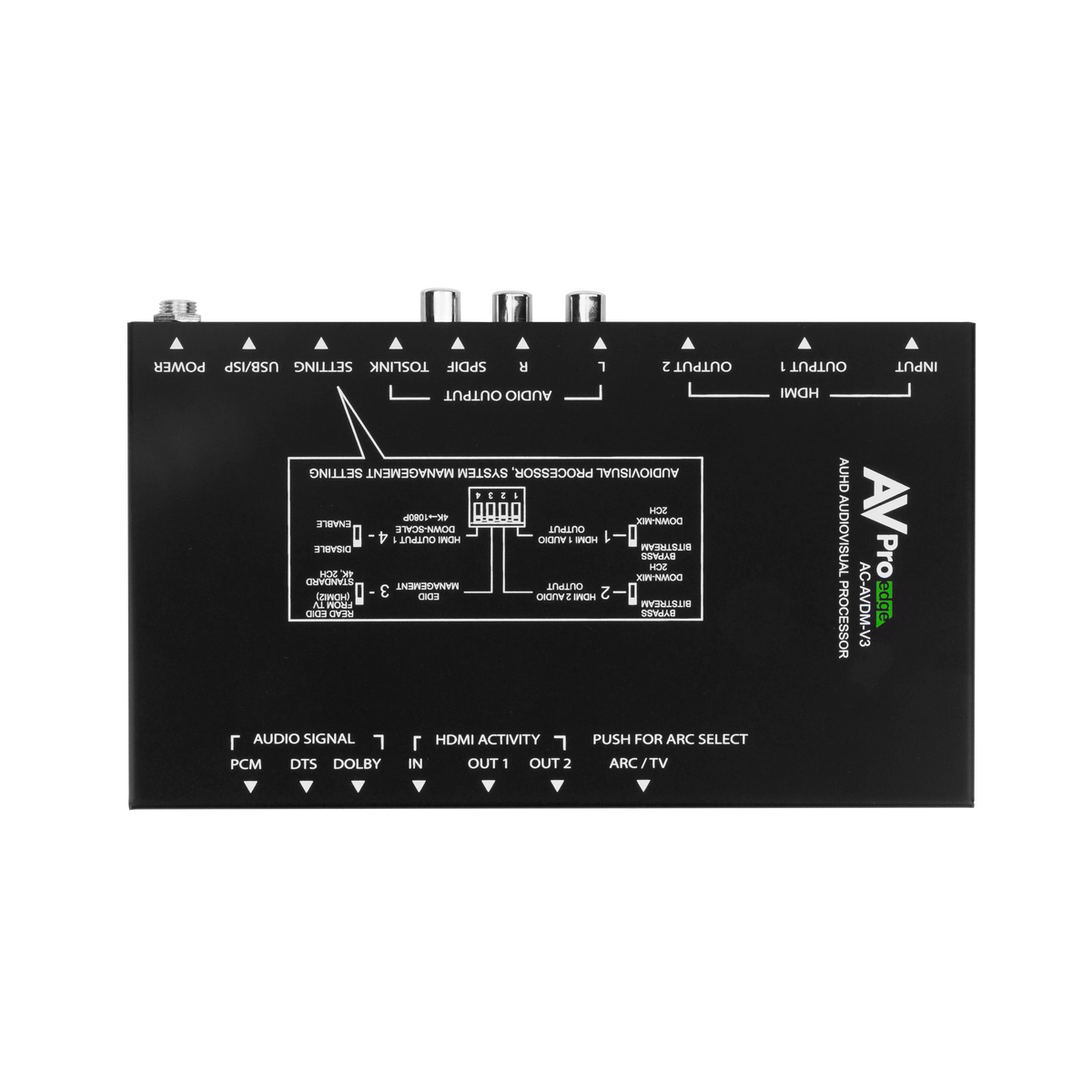

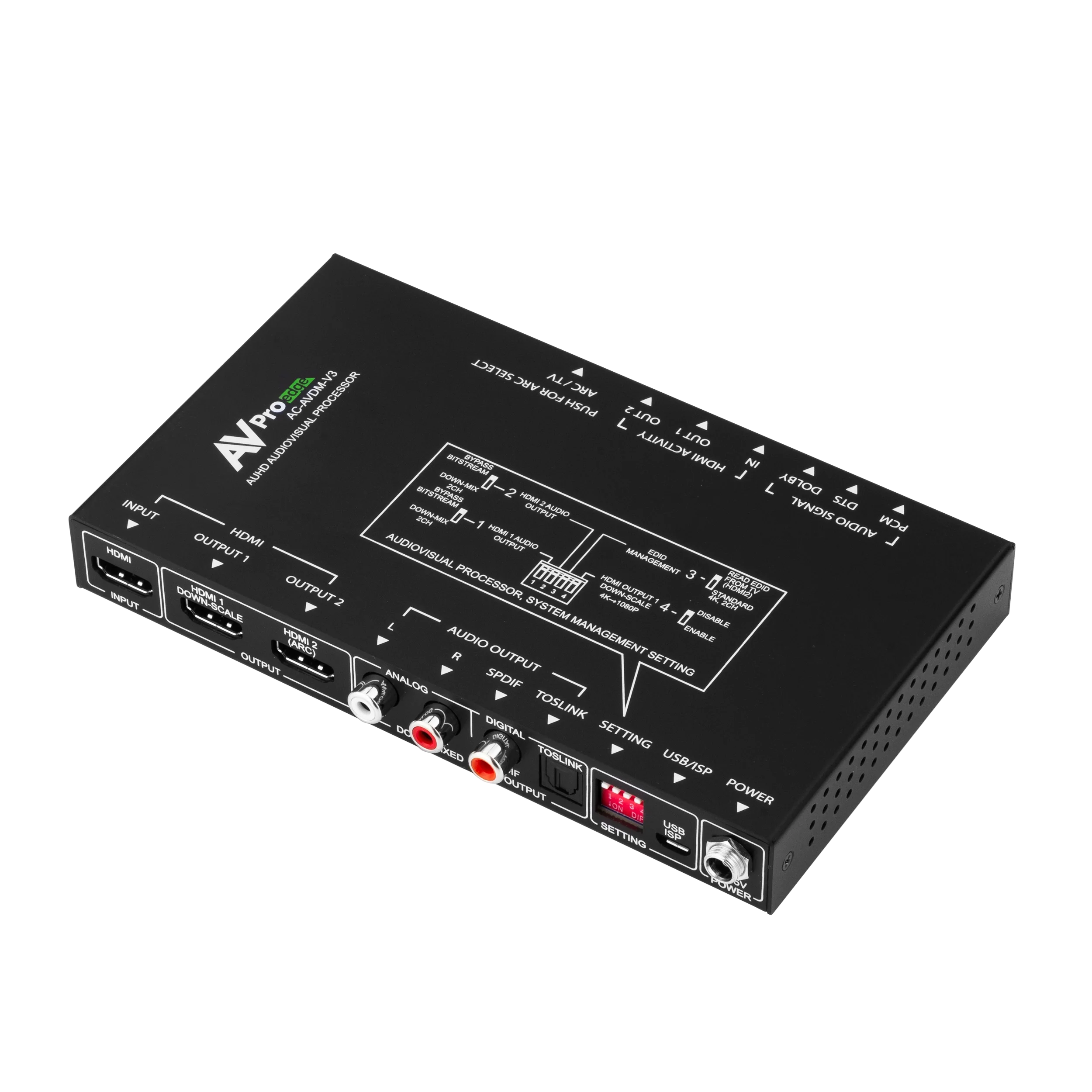

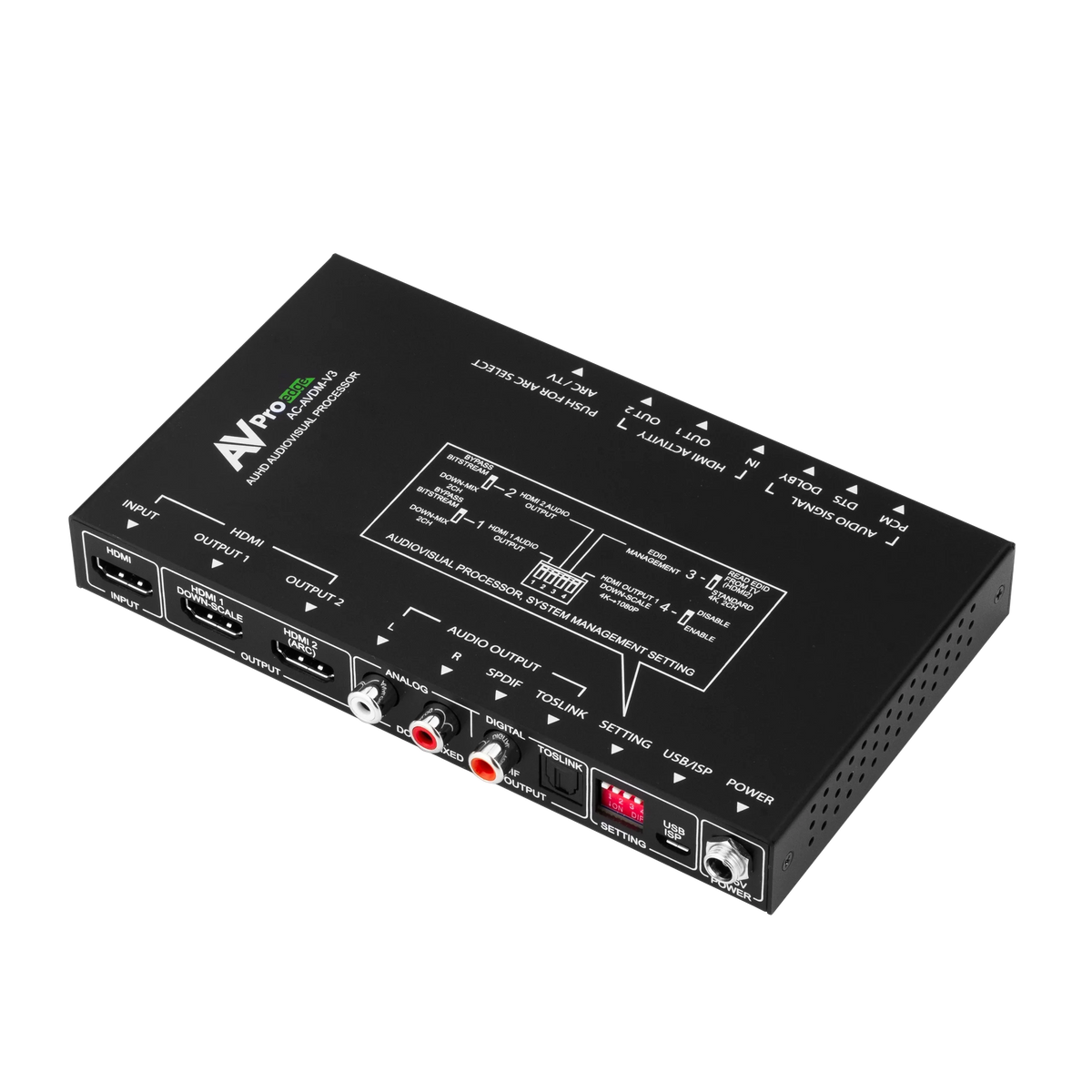

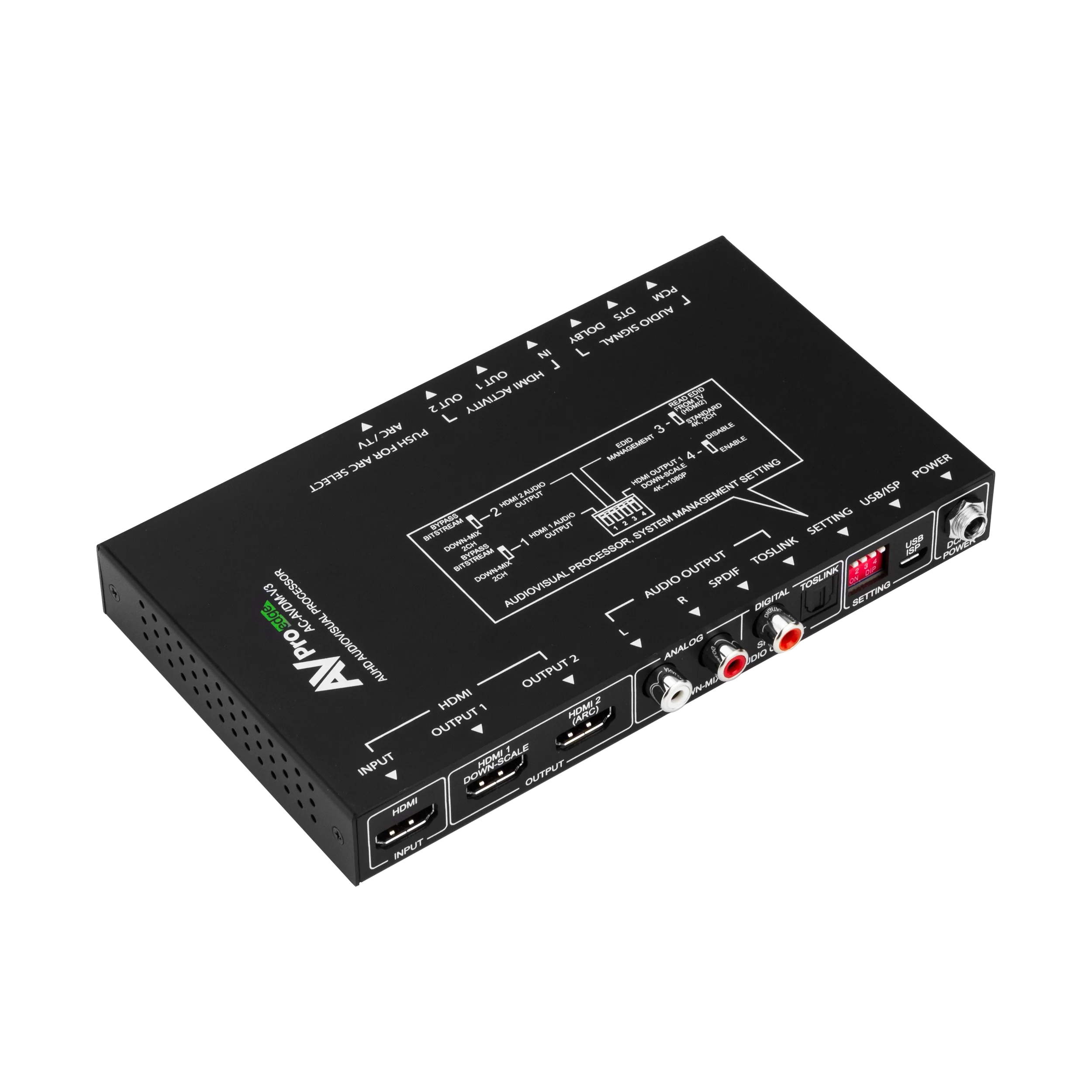

| Outputs | HDMI, S/PDIF (Optical/Coaxial), Analog RCA |
| Sampling Rate | Up to 192 kHz |
| ARC Support | Yes |
