AVPro Edge AC-AEX-RC-HUB 12x12 Audio-Only Matrix Switching Aggregation Hub

SKU: AC-AEX-RC-HUB
Regular price $2,018.00

Frequently Asked Questions

An audio matrix switch is a device that routes multiple audio sources to multiple audio zones independently. In simple terms, it lets you choose which source plays in which room or output without physically reconnecting cables. That is different from a basic splitter, which usually sends the same signal everywhere. The AVPro Edge AC-AEX-RC-HUB is an audio-only 12x12 matrix hub built for professional installations that need flexible routing. It supports up to 12 outputs and can work with digital Toslink and analog RCA stereo at the same time. It also accepts audio from several source types, including remote inputs carried over shielded twisted pair cabling using Power over Cable technology. This type of product is best for commercial AV, distributed audio, overflow zones, and systems where video is not needed in every location. The main tradeoff is that it is not an HDMI matrix and it does not switch video. It is specifically designed for audio expansion and routing.
A matrix switcher directs selected sources to selected outputs, so different audio can play in different spaces at the same time. In a commercial or campus-style system, that means one source can feed a lobby, another can feed conference rooms, and another can feed training or overflow areas, all from one central routing point. The AC-AEX-RC-HUB is designed for that kind of job. It offers 12 digital Toslink outputs and 12 analog RCA stereo outputs with simultaneous output on both formats, which is useful when a system includes both modern digital endpoints and legacy analog audio gear. It also provides eight AEX inputs with Power over Cable support for remote audio collection from up to 130 meters away over shielded twisted pair cable. This is especially useful for integrators expanding audio from a larger AV matrix into additional zones where sending video would be unnecessary or impractical. The key limitation is that it handles 2-channel PCM audio, not multichannel surround decoding or video switching.
In audio, a matrix is a routing system that lets you assign any input to any output. Its main purpose is signal distribution and zone flexibility. A mixer, by contrast, combines multiple audio signals into one or more summed outputs. A splitter duplicates one input to multiple outputs, usually without letting each output choose a different source. The AVPro Edge AC-AEX-RC-HUB is a matrix-style hub, not a mixer. It is built to route audio sources independently across up to 12 outputs rather than blend them together. It also adds practical system tools such as output volume control, left and right balance adjustment, and seven onboard preset EQ curves for tuning each zone. This makes it a strong fit for distributed audio in offices, hospitality spaces, education, and other professional AV environments. If you need live sound mixing with microphones and multiple channels being blended in real time, a mixer is the better choice. If you need organized source-to-zone routing, an audio matrix is the better fit.
You need an audio-only matrix switch when your goal is to distribute or expand sound without sending video to every location. An HDMI matrix is the right choice when displays in different rooms need independent video sources. An audio-only matrix is better when the video is already handled elsewhere or when some zones only need sound. The AC-AEX-RC-HUB is built for exactly that scenario. It can expand audio from a larger AV system into extra zones using 12 analog RCA outputs and 12 digital Toslink outputs, with both available simultaneously. It is especially useful when tied to a video matrix in a central rack and you want music, presentations, or program audio to reach areas where a screen is not installed. This type of product benefits schools, corporate spaces, hospitality venues, houses of worship, and multiroom systems. The tradeoff is straightforward: it does not switch HDMI or distribute video. If your project requires synchronized source selection for televisions or projectors, you would need a video-capable matrix in addition to or instead of this type of audio hub.
The most important factors are input and output count, audio format compatibility, connection types, control options, cable distance support, and whether the unit can adapt to both digital and analog zones. You should also check for zone-level tuning features such as EQ, volume, and balance control, because those affect how well the system performs in real rooms. The AC-AEX-RC-HUB checks many of those boxes for professional installations. It supports a 12x12 audio matrix configuration, accepts AEX, RCA, and Toslink inputs, and provides simultaneous RCA and Toslink outputs. It handles 2-channel PCM audio at sample rates from 32 kHz up to 192 kHz. For integration, it offers RS-232 and IP/LAN control. For tuning, it includes seven onboard EQ presets, output volume control, and left and right balance adjustments. This is best for projects that need flexible distributed stereo audio rather than surround processing. If your system requires microphone DSP, networked audio protocols, or multichannel cinema audio, you may need a more specialized platform.
Yes. The AC-AEX-RC-HUB supports simultaneous output on both analog RCA and digital Toslink. That means a single routed source can be made available in both formats at once, which is very useful in mixed-system environments where some zones use analog amplifiers and others use digital audio equipment. This dual-format output helps simplify upgrades and phased installations. For example, an integrator can keep older analog endpoints in service while also feeding newer digital destinations from the same matrix hub. The unit provides 12 RCA outputs and 12 Toslink outputs, making it practical for multi-zone commercial audio systems with a variety of endpoint requirements. This capability is most valuable in retrofit projects, education facilities, hospitality spaces, and corporate systems where not every room is standardized. The limitation is that the device is designed for stereo PCM audio routing, not multichannel home theater bitstreams. If the application depends on surround audio formats, this product is not the right fit.

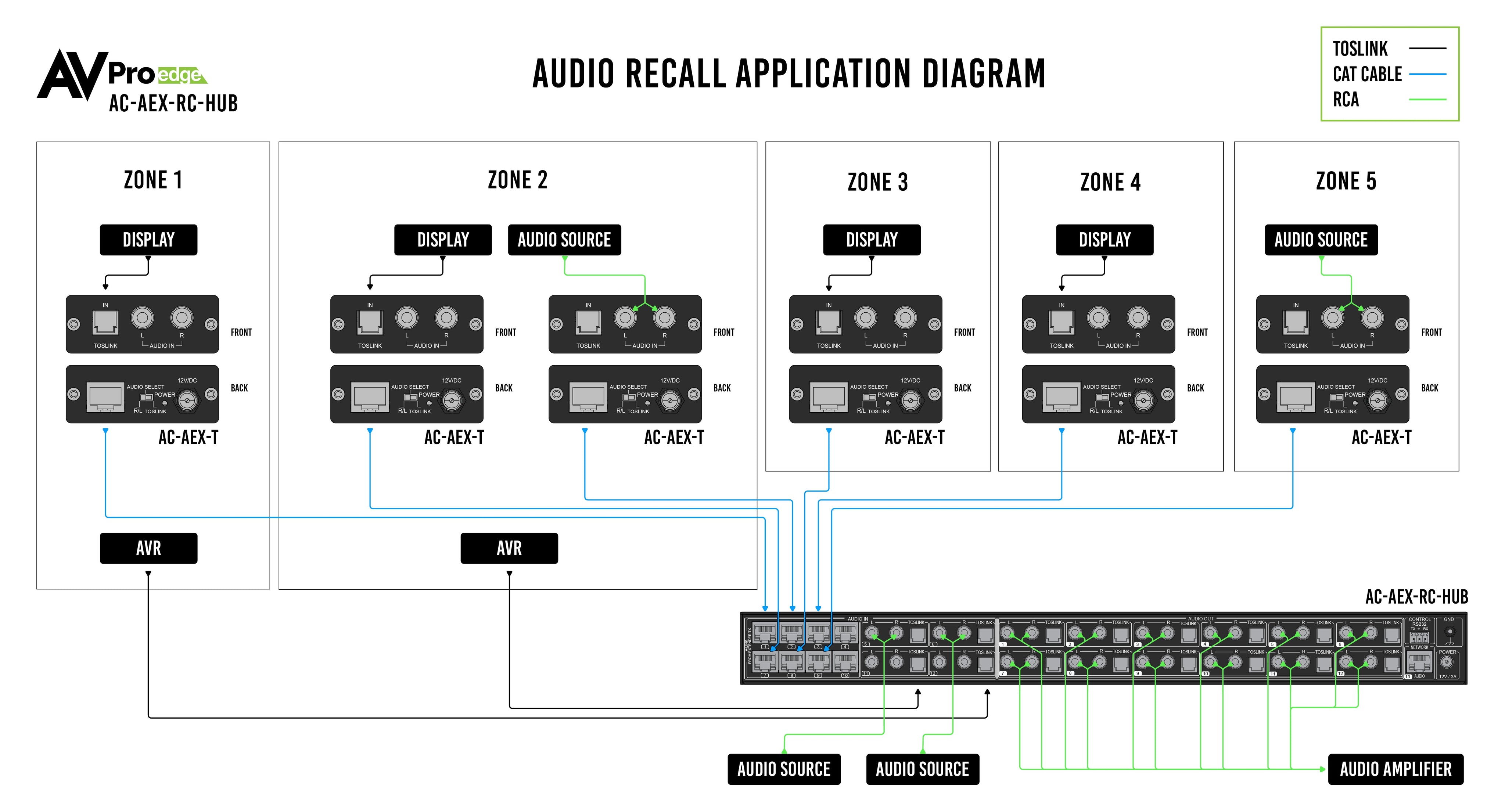

The AC-AEX-RC-HUB is designed to retrieve audio from compatible remote sources up to 130 meters away using shielded twisted pair cabling on its AEX inputs. It includes eight inputs designed for Power over Cable technology, which helps simplify remote connectivity by carrying what the endpoint needs over the cable path. This long-distance capability is useful when sources are not located in the central equipment rack. For example, audio can be brought back from distant rooms, lecterns, displays, or source locations in larger buildings without relying only on short local analog runs. That can make system design cleaner and more practical in campuses, offices, hospitality venues, and training centers. The main consideration is infrastructure. To achieve the stated distance and performance, the installation should use appropriate shielded twisted pair cabling and compatible endpoint hardware. Shoppers who only need local source switching may not need this feature, but for distributed AV systems with remote source locations, it is one of the product's most useful advantages.

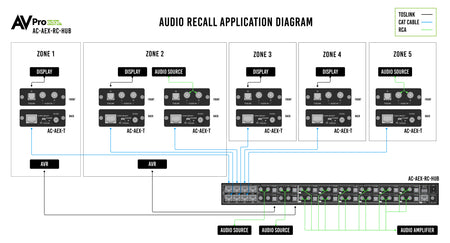

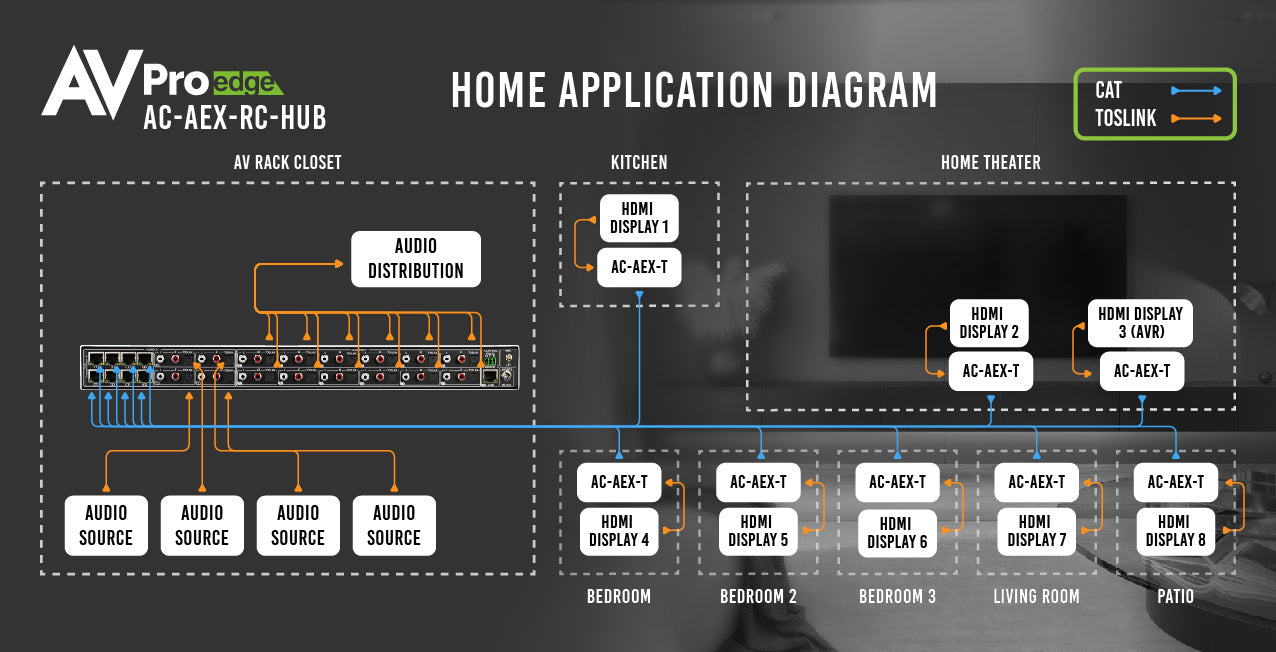

Yes. This product is well suited for expanding audio beyond the display zones of a video matrix system. It is specifically designed to make high-quality stereo audio available in additional areas where video distribution may be unnecessary, impractical, or too costly to extend. The AC-AEX-RC-HUB works as a 12x12 audio-only aggregation and routing hub, making it a practical companion for larger AV distribution systems. It offers 12 analog RCA outputs and 12 digital Toslink outputs, along with support for multiple input types. That flexibility allows audio from central sources or compatible remote endpoints to be routed into lobbies, hallways, waiting areas, break rooms, audio-only overflow zones, or other non-display spaces. This is a strong fit for integrators building commercial AV systems with centralized control. The tradeoff is that it is not a replacement for the actual video matrix. It complements a video distribution platform by solving the audio expansion part of the project, especially where independent zone routing and mixed analog and digital outputs are required.
The AC-AEX-RC-HUB supports 2-channel PCM digital audio at sample rates of 32, 44.1, 48, 88.2, 96, 176, and 192 kHz. On the analog side, it uses stereo RCA connections with a 1 Vrms nominal input and output level. This makes it suitable for high-quality stereo audio distribution in professional AV systems. For control, the unit supports both RS-232 and IP/LAN, which gives installers flexibility when integrating it into managed AV environments. Those control options are useful for centralized system automation, scheduling, source routing, and zone management in commercial settings. The hub also includes practical tuning features such as seven onboard EQ presets, output volume control, and left and right balance adjustments. This combination is ideal for projects that need dependable stereo routing with system control integration. The main limitation is that it is not intended for HDMI switching, immersive surround decoding, or advanced DSP tasks like acoustic echo cancellation. It is focused on controlled, professional 2-channel audio distribution.
This audio matrix hub is best for professional AV installations that need flexible stereo audio routing across many zones. Typical users include commercial integrators, corporate AV teams, education facilities, hospitality venues, houses of worship, and any organization expanding sound beyond the rooms that already have video displays. The AC-AEX-RC-HUB is especially useful in projects where the system must support both analog and digital audio endpoints at the same time. Its 12 RCA outputs and 12 Toslink outputs, along with eight remote-capable AEX inputs and additional local RCA and Toslink inputs, make it a practical fit for mixed infrastructure environments. Zone-level tuning through EQ presets, volume control, and balance adjustment also helps adapt audio for different room types. It is less suited to small residential setups that only need a few zones or users looking for a simple consumer audio selector. It is also not the right product if the main need is video switching or multichannel surround distribution. Its strength is organized, professional-grade stereo audio expansion and routing.

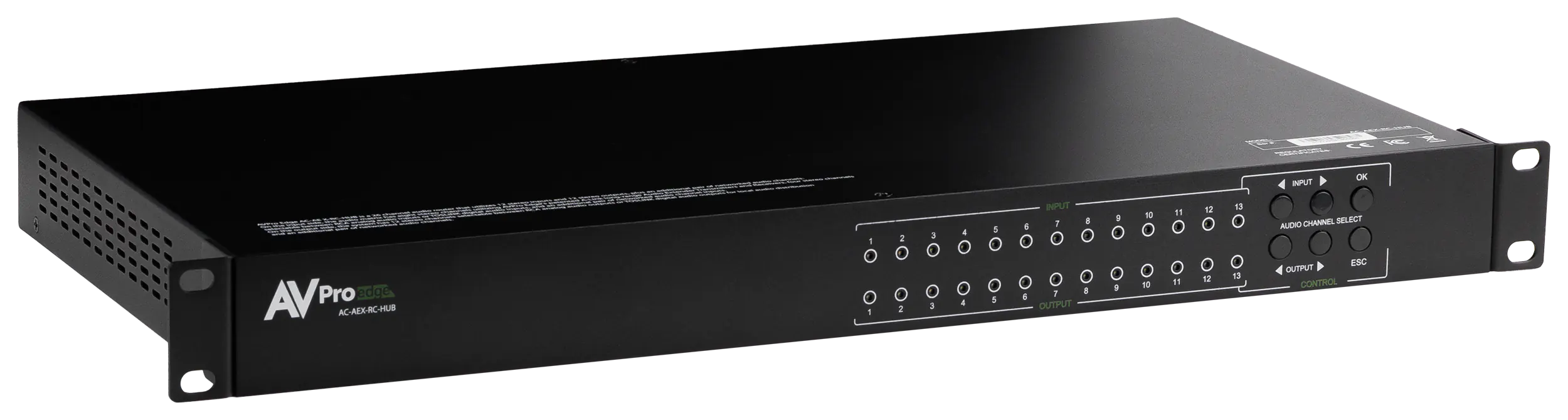

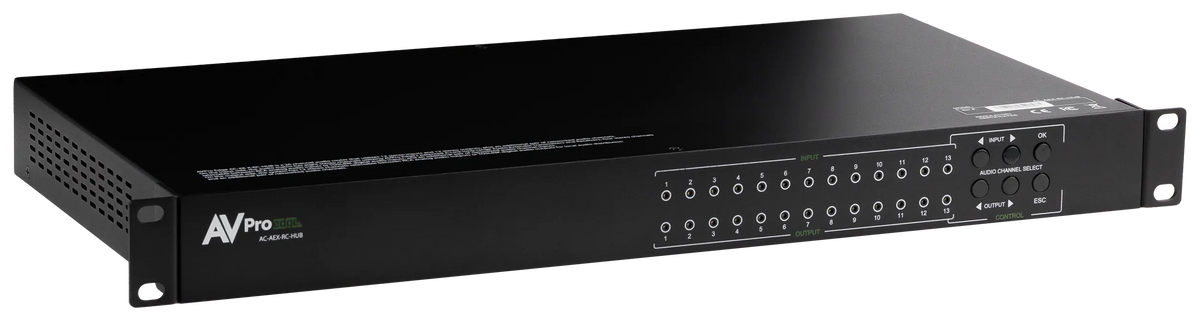

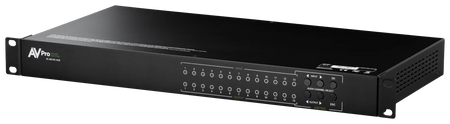

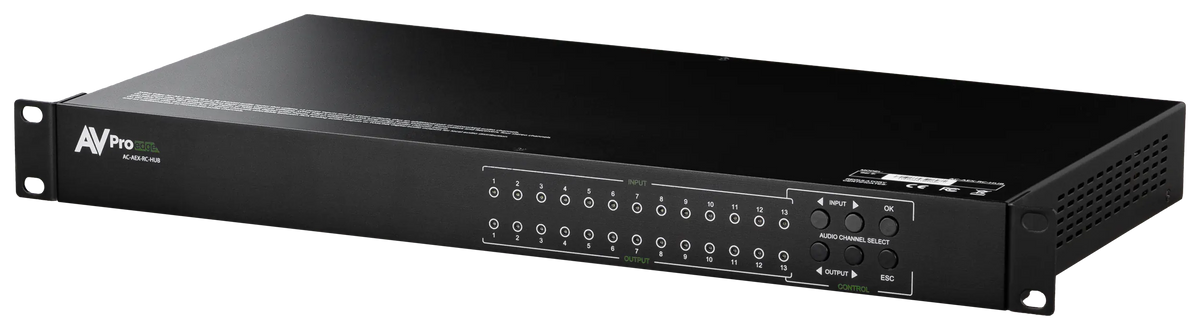

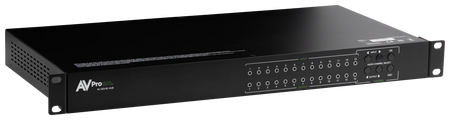

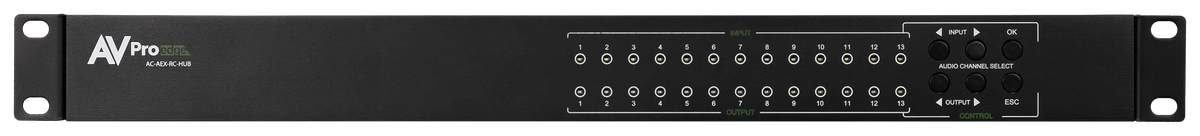

The AVPro Edge AC-AEX-RC-HUB is a powerful 12x12 audio-only matrix switching hub designed to expand audio capabilities in professional AV distribution systems. It supports 12 digital Toslink and 12 analog RCA stereo outputs, featuring simultaneous output for both formats. The hub includes eight inputs designed for Power over Cable (PoC) technology, allowing for remote audio retrieval from sources located up to 130 meters away using shielded twisted pair cabling. With advanced features such as 7 onboard pre-set EQ curves, output volume control, and Left/Right balance adjustments, it provides precise audio tailoring. This unit is an ideal solution for expanding audio outputs from video matrices, such as the AVPro Edge Axion series, to additional zones, making high-quality audio available in areas where video distribution is impractical.

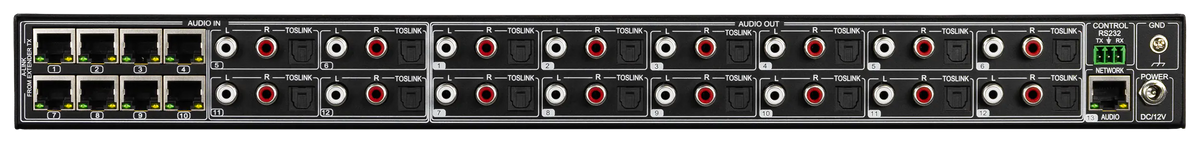

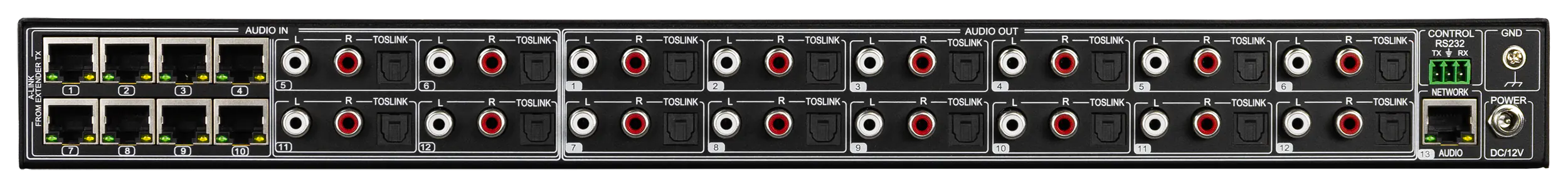

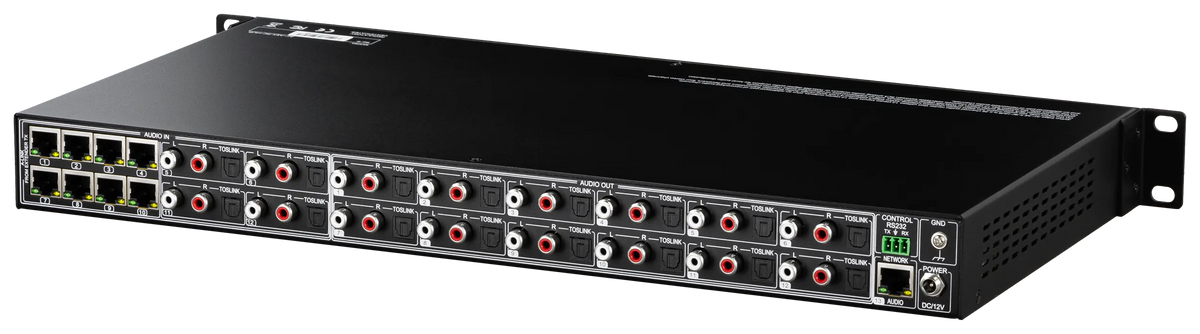

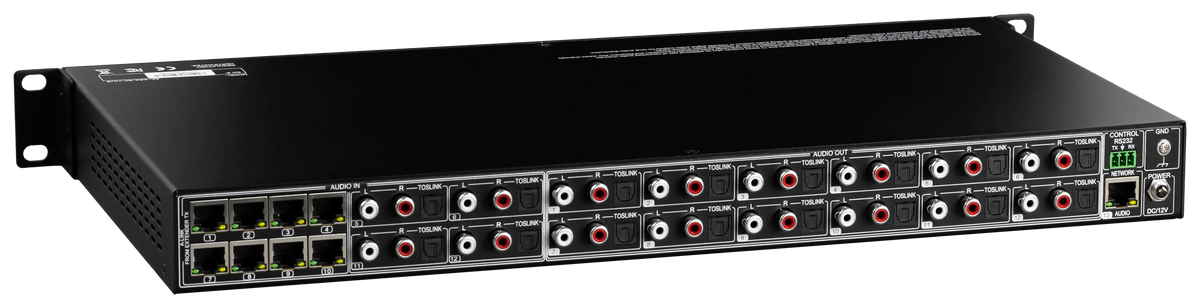

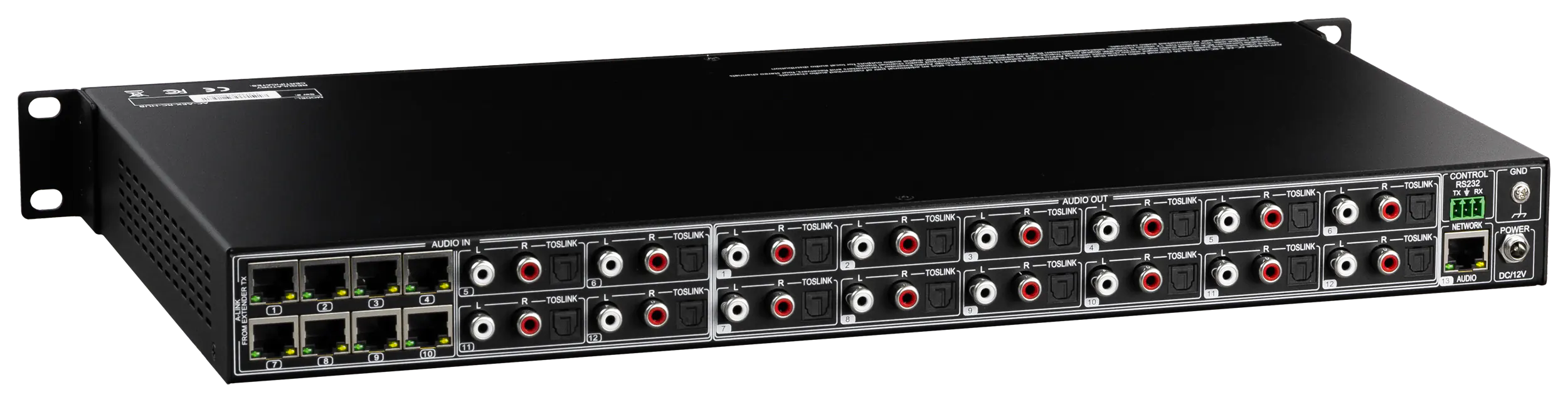

Audio Inputs 8 AEX (PoC), 4 RCA, 4 Digital (TOSLINK)
Audio Outputs 12 RCA, 12 Digital (TOSLINK)
Analog Input Voltage 1Vrms, 2.3 Vp-p
Analog Output Voltage 1Vrms, 2.828 Vp-p
Digital Audio 2 Channel PCM (32, 44.1, 48, 88.2, 96, 176, 192 kHz)
Latency 30ms
Control Interfaces RS-232, IP/LAN
Power Consumption 3 watts max
Power Supply DC 12V 2A
