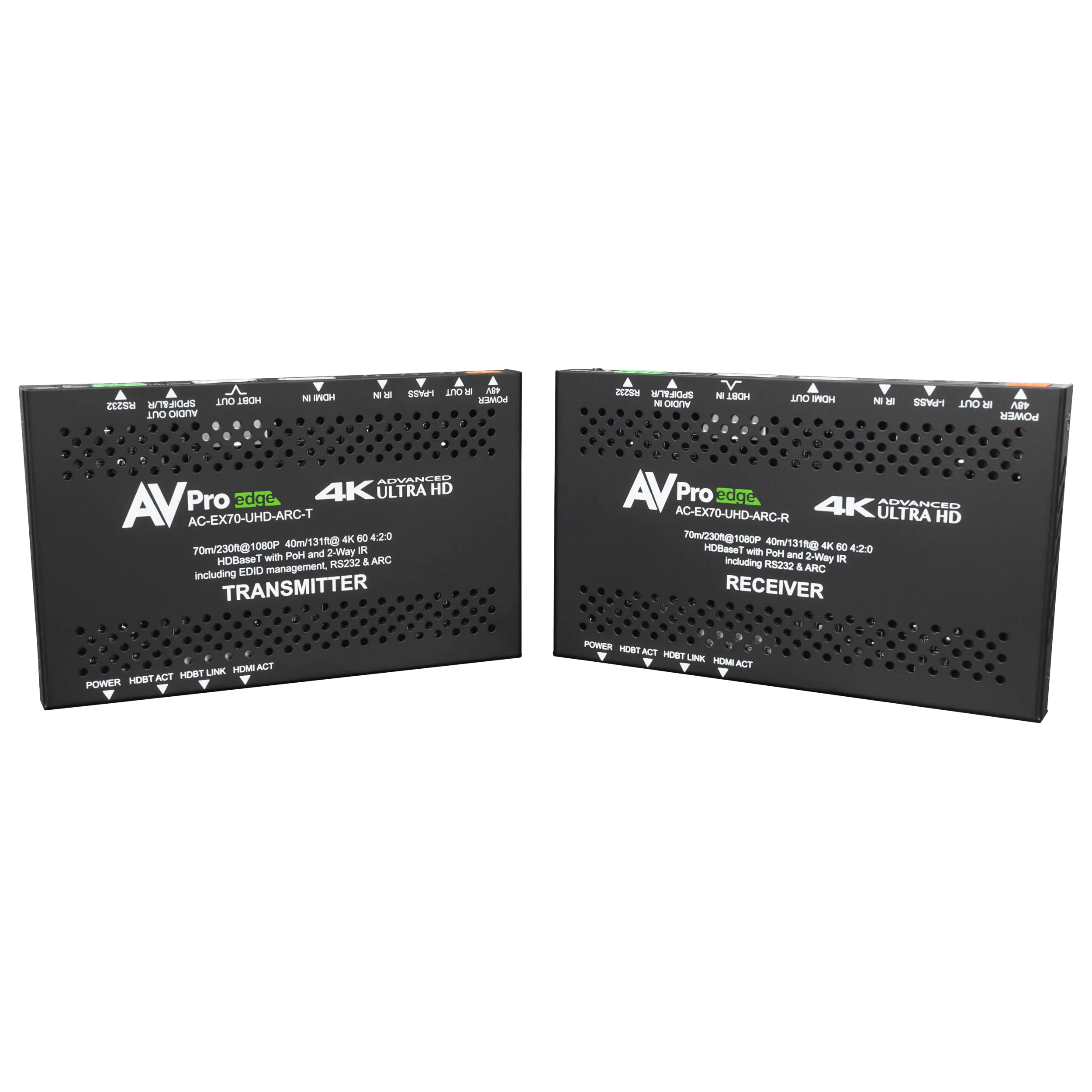

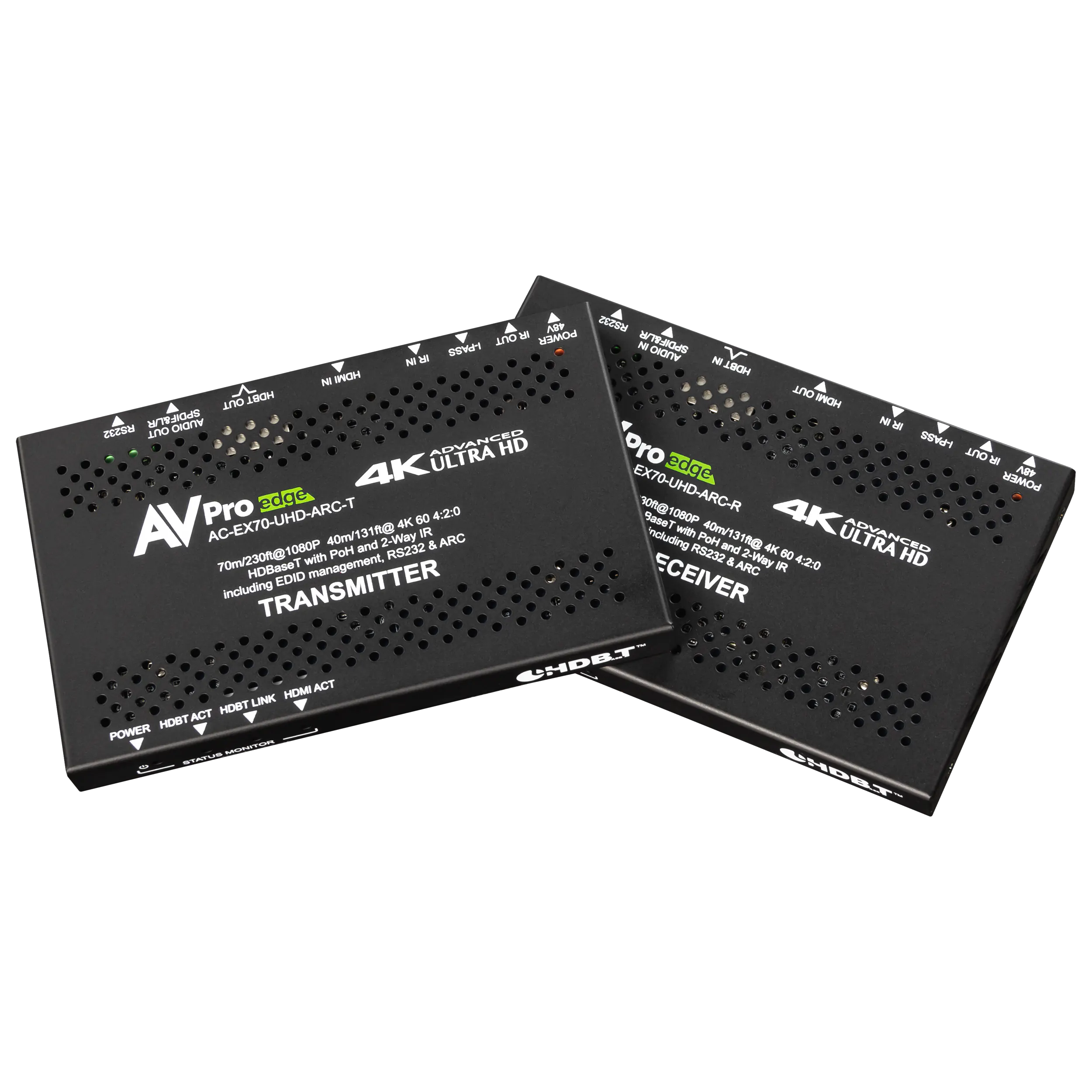

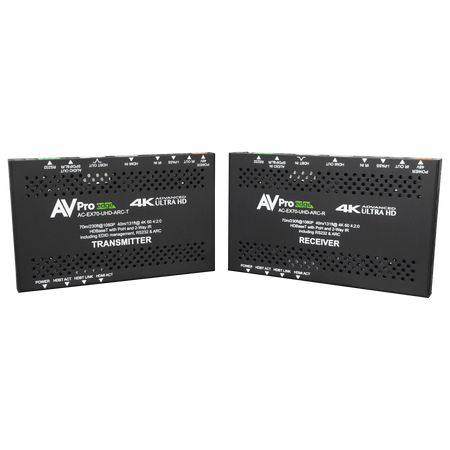

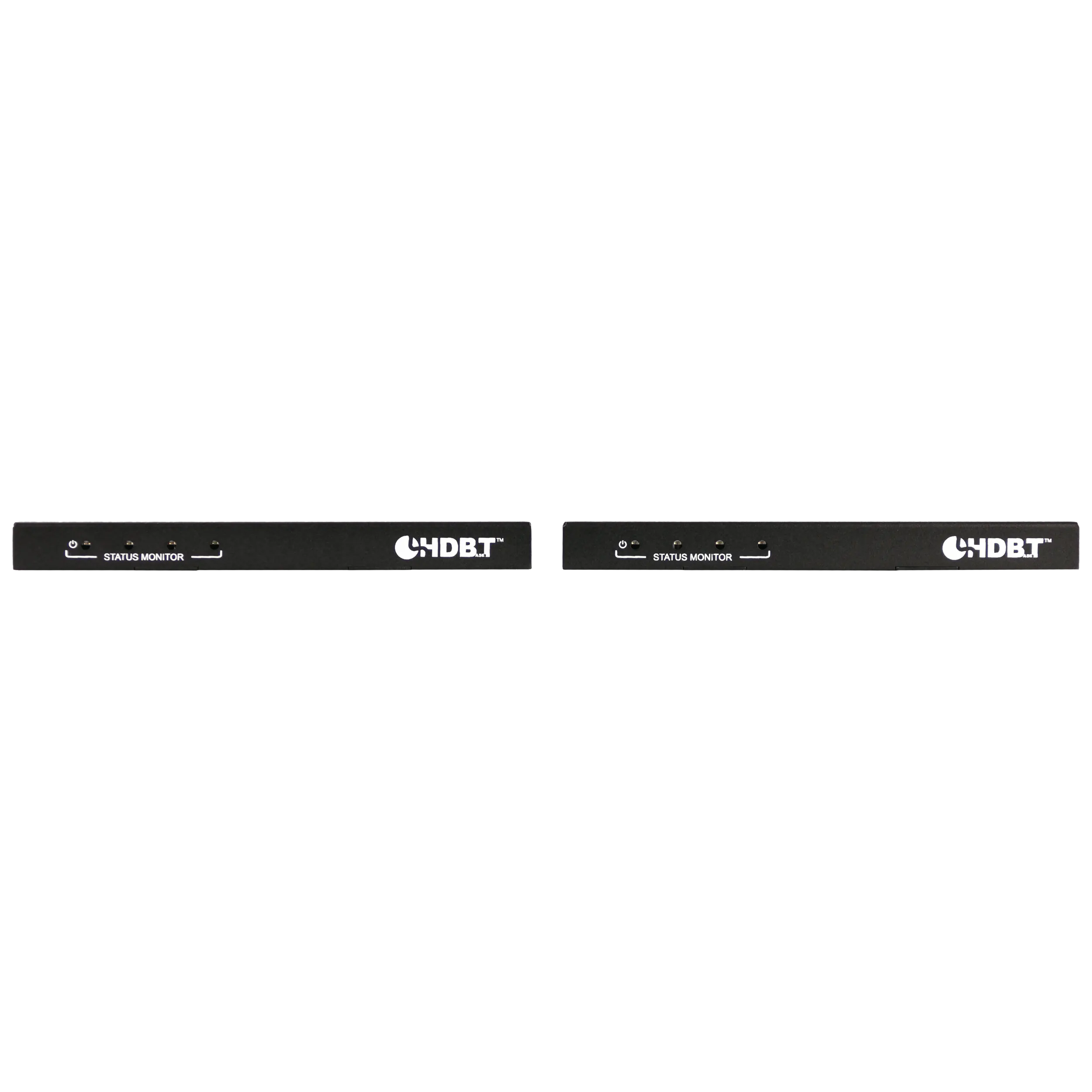

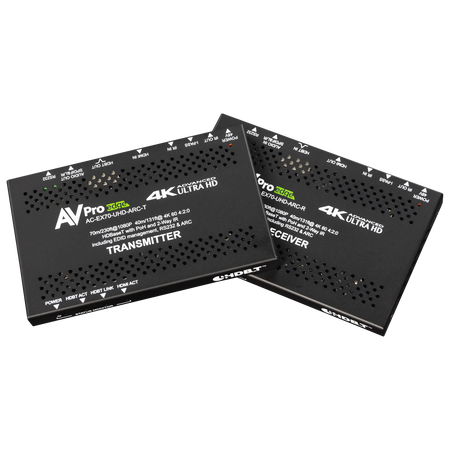

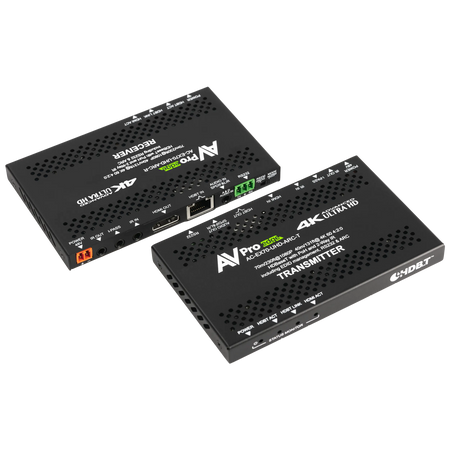

AVPro Edge 70M 10Gbps HDBaseT Extender Kit with ARC
Regular price
$885.00
Couldn't load pickup availability
Frequently Asked Questions
Do HDMI extenders work for 4K video over long distances?
Yes, HDMI extenders are a proven way to send video farther than a standard HDMI cable can reliably handle, especially for 4K installations. Instead of running a long HDMI cable, they convert the signal to travel over structured cabling such as Cat 6a, then convert it back at the display.
For this type of use, the AVPro Edge 70M 10Gbps HDBaseT Extender Kit supports up to 4K60 at 4:2:0 and 4K30 at 4:4:4. It can extend 4K signals up to 40 meters, or 1080p up to 70 meters, using Cat 6a. That makes it well suited for conference rooms, classrooms, home theaters, digital signage, and other installs where the source and display are not close together.
It is best for users who want stable, wired AV distribution with control options like bi-directional IR and RS-232. The main tradeoff is that this model is a 10.2 Gbps solution, so it is not intended for full-bandwidth 4K60 4:4:4 systems that require 18 Gbps or higher.
What is the best HDMI extender for 4K over Cat6?
The best 4K HDMI extender depends on the signal format, distance, control needs, and whether you need audio return from the display. A strong choice for many professional installations is an HDBaseT extender that supports reliable 4K transport, control pass-through, and clean integration with modern displays.
The AVPro Edge AC-EX70-UHD-ARC stands out for installations that need up to 4K60 4:2:0 or 4K30 4:4:4 over Cat 6a, plus ARC support, bi-directional IR, RS-232, HDCP 2.3 compliance, and Power over HDBaseT. Those features make it a good fit for smart TVs, matrix systems, classrooms, and residential AV racks where control and audio routing matter as much as picture quality.
It is best for users who want a professional 4K HDMI extender over Cat6 with dependable wired performance rather than a basic point-to-point consumer solution. The main thing to confirm before buying is bandwidth. If your system requires full 18 Gbps 4K60 4:4:4, you would need a higher-bandwidth extender category.
What is the maximum length an HDMI extender can extend?
The maximum length depends on the extender technology, video resolution, cable quality, and bandwidth. In general, HDMI extenders can go much farther than passive HDMI cables, but the usable distance drops as resolution and signal demands increase.
For the AVPro Edge 70M 10Gbps HDBaseT Extender Kit, the rated distance is up to 70 meters at 1080p and up to 40 meters at 4K. Those figures are based on Cat 6a cabling, which is important because cable type and termination quality directly affect real-world performance.
This makes the unit a practical choice for medium-to-long AV runs in boardrooms, houses of worship, training spaces, and equipment rack to display applications. It is especially useful when you need a clean infrastructure cable run rather than a bulky long HDMI cable. The key limitation is that longer distance at higher resolution is always harder, so users planning a 4K system should design around the 40 meter 4K specification rather than the longer 1080p distance.
What is a 4K HDMI extender over Cat6, and when do you need one?
A 4K HDMI extender over Cat6 sends HDMI video, audio, and often control signals over network-style cable instead of a long HDMI cable. You typically need one when the source device and display are too far apart for a direct HDMI connection to remain reliable, or when you want a cleaner, easier-to-route installation.
The AVPro Edge AC-EX70-UHD-ARC is a professional example of this category. It uses HDBaseT technology to carry up to 4K60 4:2:0 or 4K30 4:4:4, along with bi-directional IR and RS-232. It also supports ARC, which is especially helpful when a smart TV app needs to send audio back to an AV receiver or headend.
This type of product is best for commercial AV systems, home theater equipment rooms, classrooms, and digital signage deployments. It is less about adding extra displays and more about extending one HDMI path reliably over distance. If you only need a very short run, a standard HDMI cable may be simpler. If you need to split one source to multiple displays, you would need a different product category such as a splitter or matrix.
Is this HDBaseT extender a good choice for smart TVs with ARC?
Yes, this extender is a strong choice for smart TV installations where ARC is important. The built-in Audio Return Channel support allows audio from the TV's internal apps, such as streaming services, to travel back through the extender to the headend or audio system instead of requiring a separate local audio connection.
That is a key advantage in installations where the display is mounted far from the AV rack. The AVPro Edge AC-EX70-UHD-ARC supports ARC along with PCM 2.0, LPCM 5.1 and 7.1, Dolby Atmos, and DTS:X, so it is designed for systems where video extension and immersive audio both matter.
This setup benefits users building a clean smart TV or projector system with centralized sources and sound equipment. It is particularly helpful in residential media rooms and commercial spaces using smart displays. The main consideration is system compatibility and configuration, since ARC behavior can vary by TV and connected audio gear. For best results, the full signal path should be planned with ARC support in mind.
What resolutions and formats does this 4K HDMI extender support?
This extender supports up to 4K at 60Hz with 4:2:0 chroma and up to 4K at 30Hz with 4:4:4 chroma. It has a 10.2 Gbps bandwidth rating, which places it in the class of professional 4K extenders designed for many common UHD distribution tasks without stepping up to full 18 Gbps transmission.
In practical terms, that makes it a good fit for signage players, cable boxes, media streamers, presentation systems, and many AV rack-to-display connections where the source output matches those formats. It is also HDCP 2.3 compliant and backward compatible with earlier HDCP versions, which helps with modern protected content.
This is best for users who need dependable 4K extension but do not specifically require full 4K60 4:4:4. That distinction matters in applications such as close-range desktop text reproduction or gaming scenarios where full chroma at 60Hz may be preferred. For cinema, presentations, and general AV playback, the supported formats are often more than adequate.
Does this HDMI extender support control signals like IR and RS-232?
Yes, this extender supports both bi-directional IR and RS-232, which is important in professional AV systems where control matters as much as signal transport. Bi-directional means commands can travel in either direction, allowing flexible control of source devices or displays depending on system design.
For example, IR can be used to pass remote-control commands from the display location back to the source equipment in a rack. RS-232 is useful for integrating displays, switchers, and automation systems in conference rooms, classrooms, and custom residential installations.
This makes the AVPro Edge AC-EX70-UHD-ARC a good choice for users who want more than simple video extension. It suits centralized AV systems where equipment is hidden away but still needs reliable control. The tradeoff is that control wiring and setup should be planned correctly during installation. Users looking for a plug-and-play consumer-only solution may not need these features, but installers and integrators often consider them essential.
Can this extender carry advanced audio formats like Dolby Atmos and DTS:X?
Yes, this extender supports several important audio formats, including PCM 2.0, LPCM 5.1 and 7.1, Dolby Atmos, and DTS:X. That makes it suitable for AV systems where preserving higher-quality audio is just as important as extending the video signal.
This is especially useful when paired with ARC functionality. For example, if a smart TV app is being used at the display, the audio can return through the extender to compatible audio equipment at the rack or headend. That helps avoid separate audio cabling and simplifies the overall system design.
It is a strong fit for media rooms, home theaters, and commercial spaces where the display is remote but users still want immersive sound. The main point to keep in mind is that overall audio performance also depends on the capabilities of the source, display, and receiving audio equipment. The extender supports the transport, but the connected devices must also support the desired audio format.
Does this HDBaseT extender need separate power at both ends?
No, this kit supports PoH, or Power over HDBaseT, which can reduce the need for separate power connections at both ends of the installation. In many professional AV setups, PoH simplifies the install because power can be provided through the HDBaseT link rather than requiring a local outlet for each unit.
That is valuable in wall-mounted display locations, ceiling-mounted equipment areas, and other spaces where local power access may be inconvenient. It also helps keep the installation cleaner and can reduce setup complexity.
This feature benefits integrators and end users who want a neater infrastructure-based AV system with fewer exposed adapters and cables. The practical advantage is not just convenience, but also easier planning in commercial and residential environments. As with any PoH-based setup, users should still follow the manufacturer's installation requirements and use the recommended cabling, especially Cat 6a, to maintain reliable performance across the full run.
Who should buy a 10Gbps HDBaseT extender instead of a standard HDMI cable?
A 10Gbps HDBaseT extender is the better choice when you need to send HDMI over longer distances, keep equipment in a separate rack, add control features, or support ARC from a remote display. A standard HDMI cable works well for short runs, but it becomes less practical as distance increases or when the installation path is difficult.
The AVPro Edge 70M 10Gbps HDBaseT Extender Kit is best for users building permanent AV systems in conference rooms, classrooms, home theaters, digital signage setups, and similar spaces. It supports up to 4K60 4:2:0, reaches 40 meters at 4K and 70 meters at 1080p, and adds bi-directional IR, RS-232, ARC, and PoH. Those are all features a standard HDMI cable does not provide.
The main tradeoff is that an extender is a system component, not just a cable. It is ideal when reliability, control, and infrastructure matter. If your source and display are close together and you do not need ARC or control pass-through, a direct HDMI cable may be the simpler option.

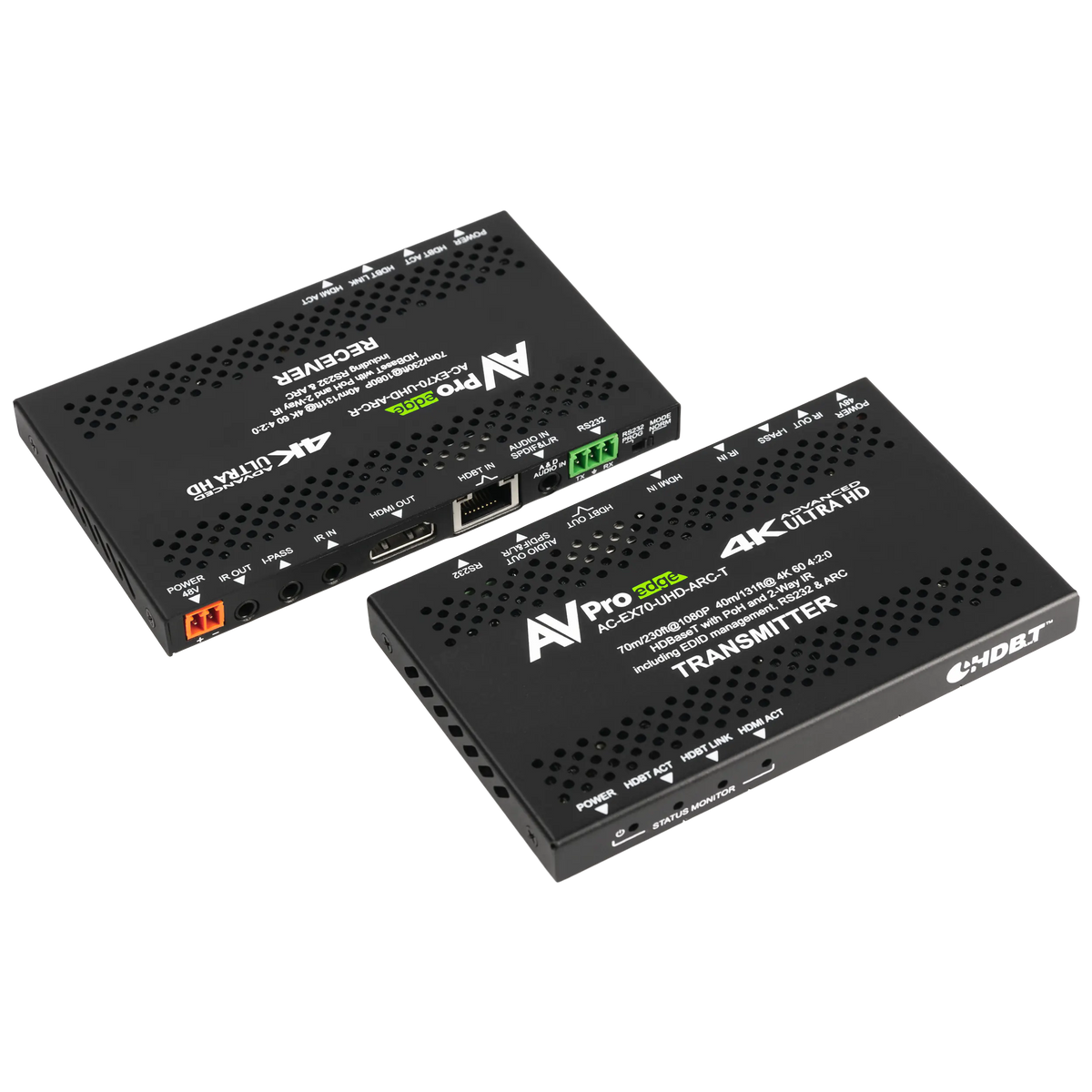

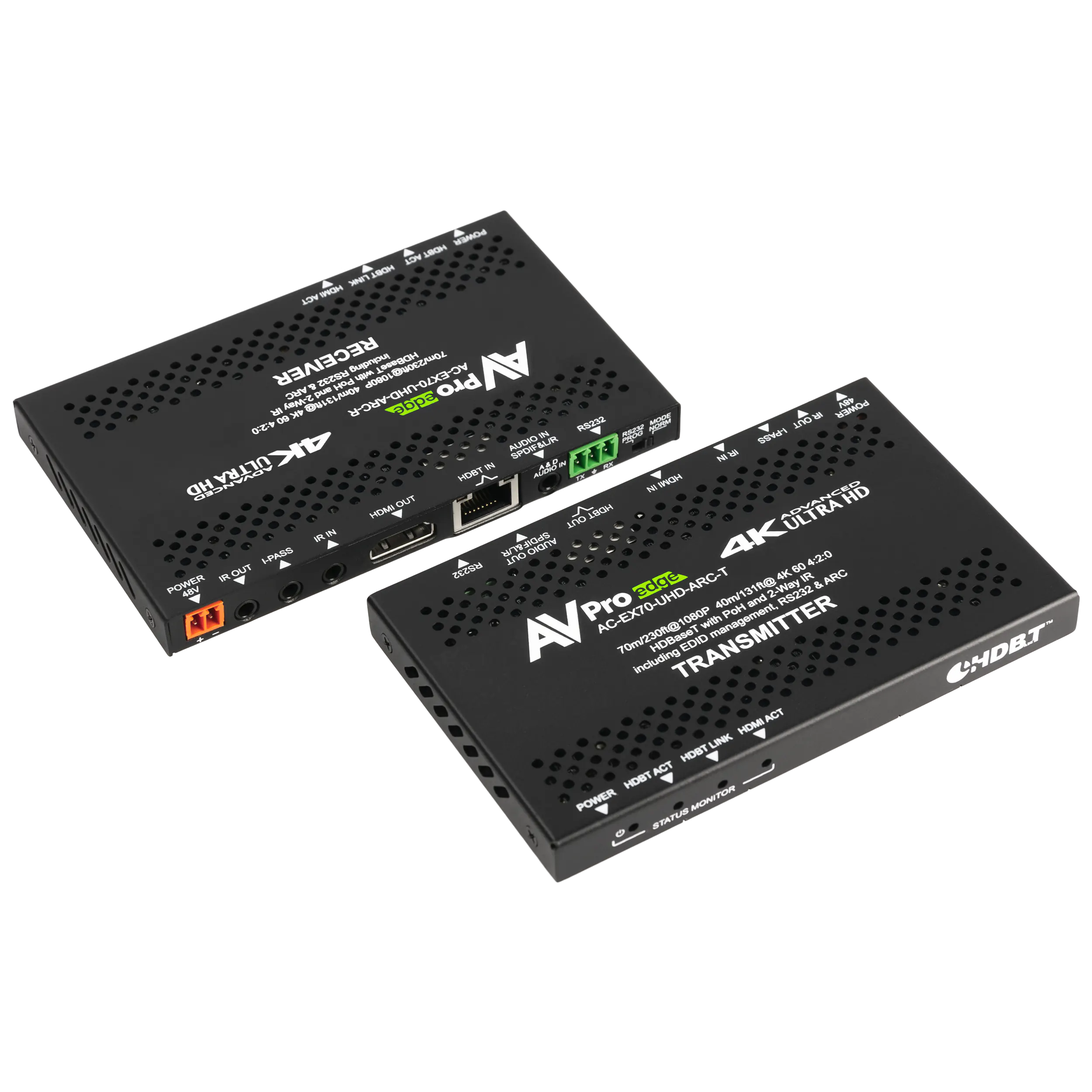

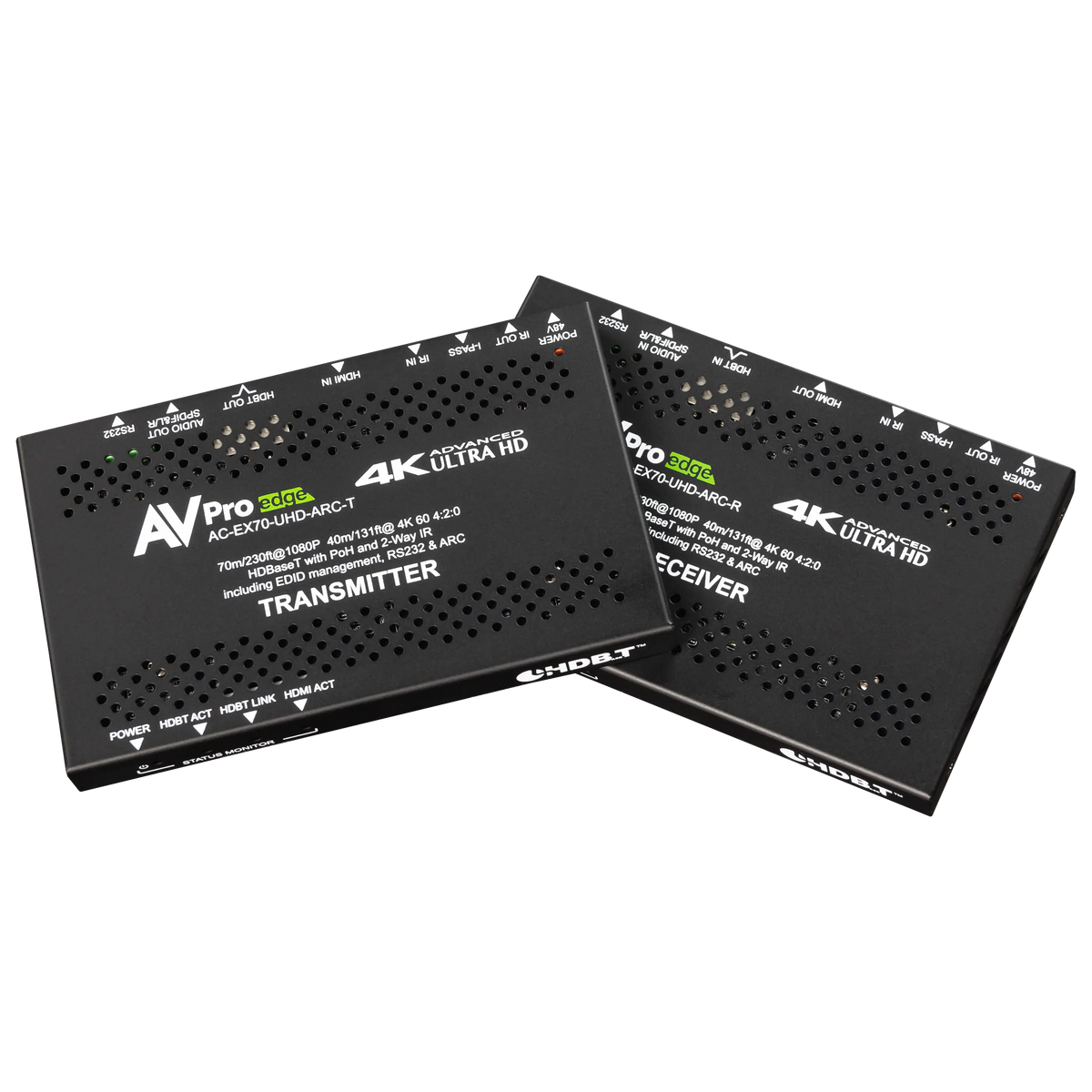

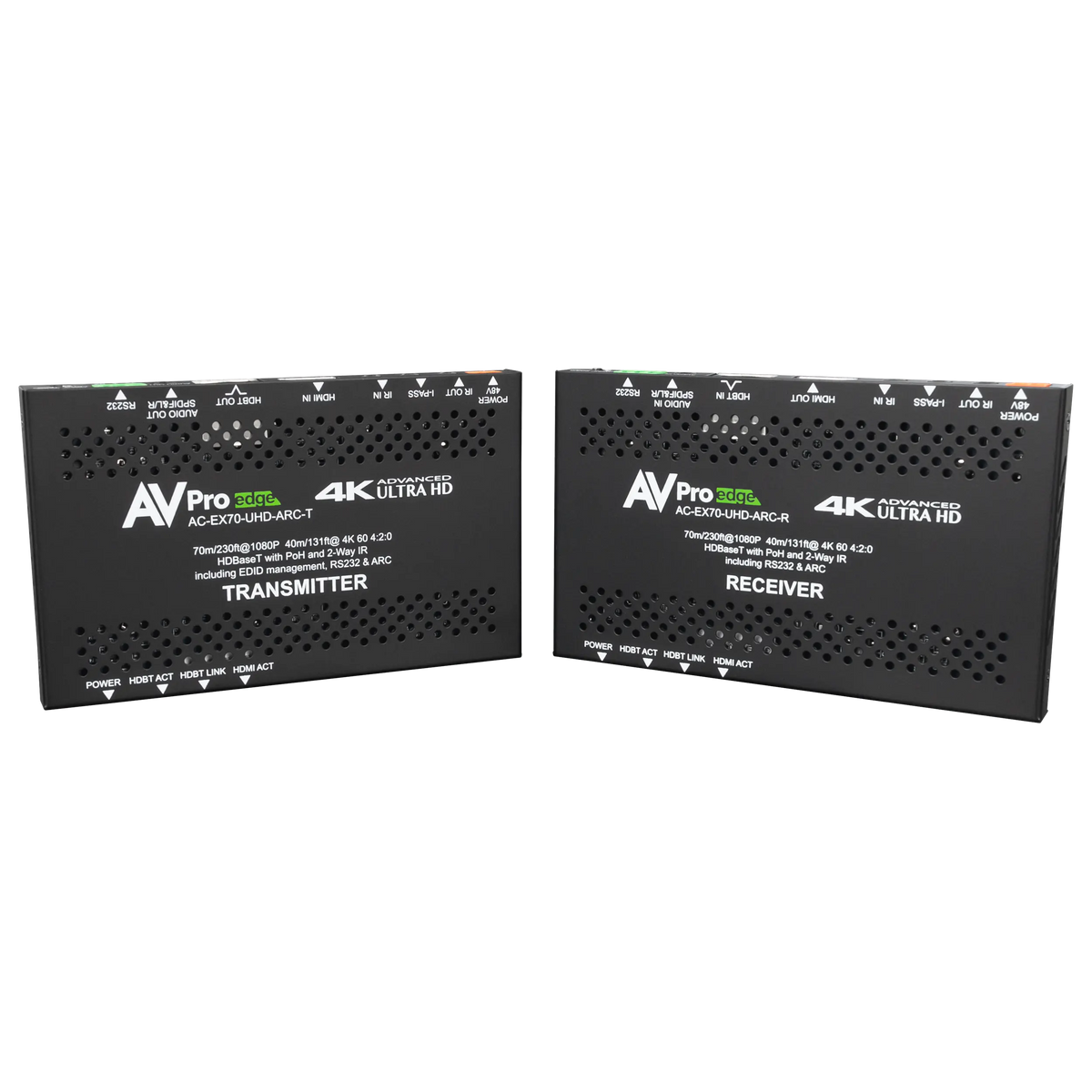

The AVPro Edge AC-EX70-UHD-ARC is a professional HDBaseT extender kit designed for reliable 4K HDMI signal distribution over long distances. This kit supports resolutions up to 4K60 4:2:0 and 4K30 4:4:4, making it ideal for high-value commercial and residential AV installations. It features integrated Audio Return Channel (ARC) capabilities, allowing local audio from smart TV apps to be sent back to your headend for enhanced sound performance. The system supports bi-directional IR and RS-232 control, providing flexible management of sources and displays. With a transmission range of up to 70 meters for 1080p and 40 meters for 4K, it offers robust performance and simple installation via Cat 6a cabling.
| Video Resolution | Up to 4K 60Hz 4:2:0 & 4K30 4:4:4 |
| Transmission Distance (4K) | 40 meters (131 feet) |
| Transmission Distance (1080p) | 70 meters (230 feet) |
| Audio Support | ARC, PCM 2.0, LPCM 5.1/7.1, Dolby Atmos, DTS-X |
| Bandwidth | 10.2 Gbps |
| HDCP Compliance | HDCP 2.3 and earlier |
| Control | Bi-directional IR, RS-232 |
| Power Output | PoH (Power over HDBaseT) |
| Operating Temperature | 23 to 125°F (-5 to 51°C) |
