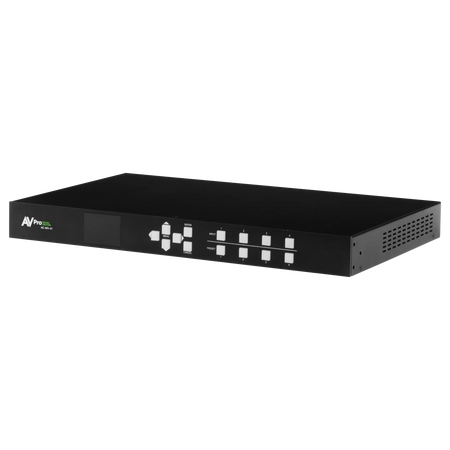

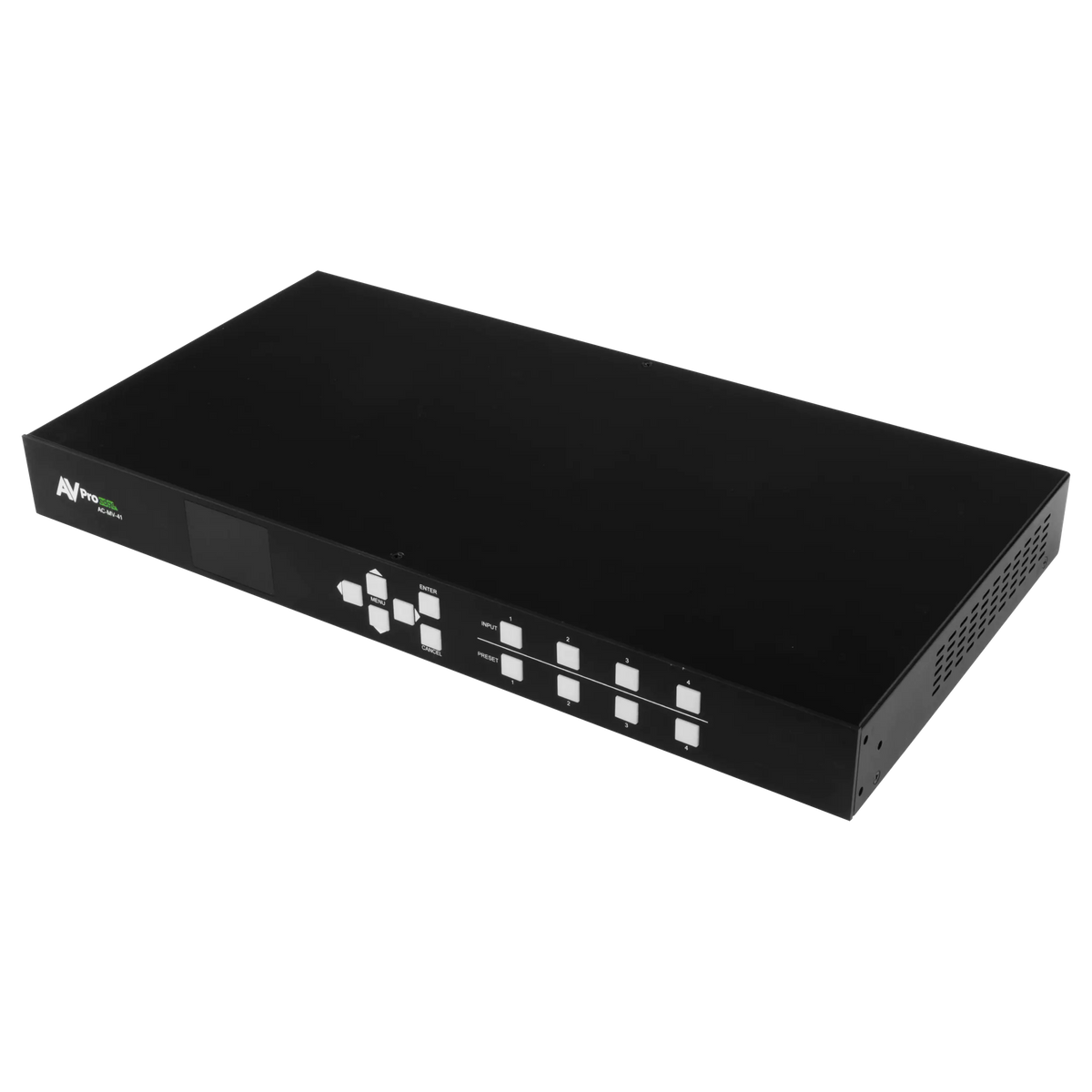

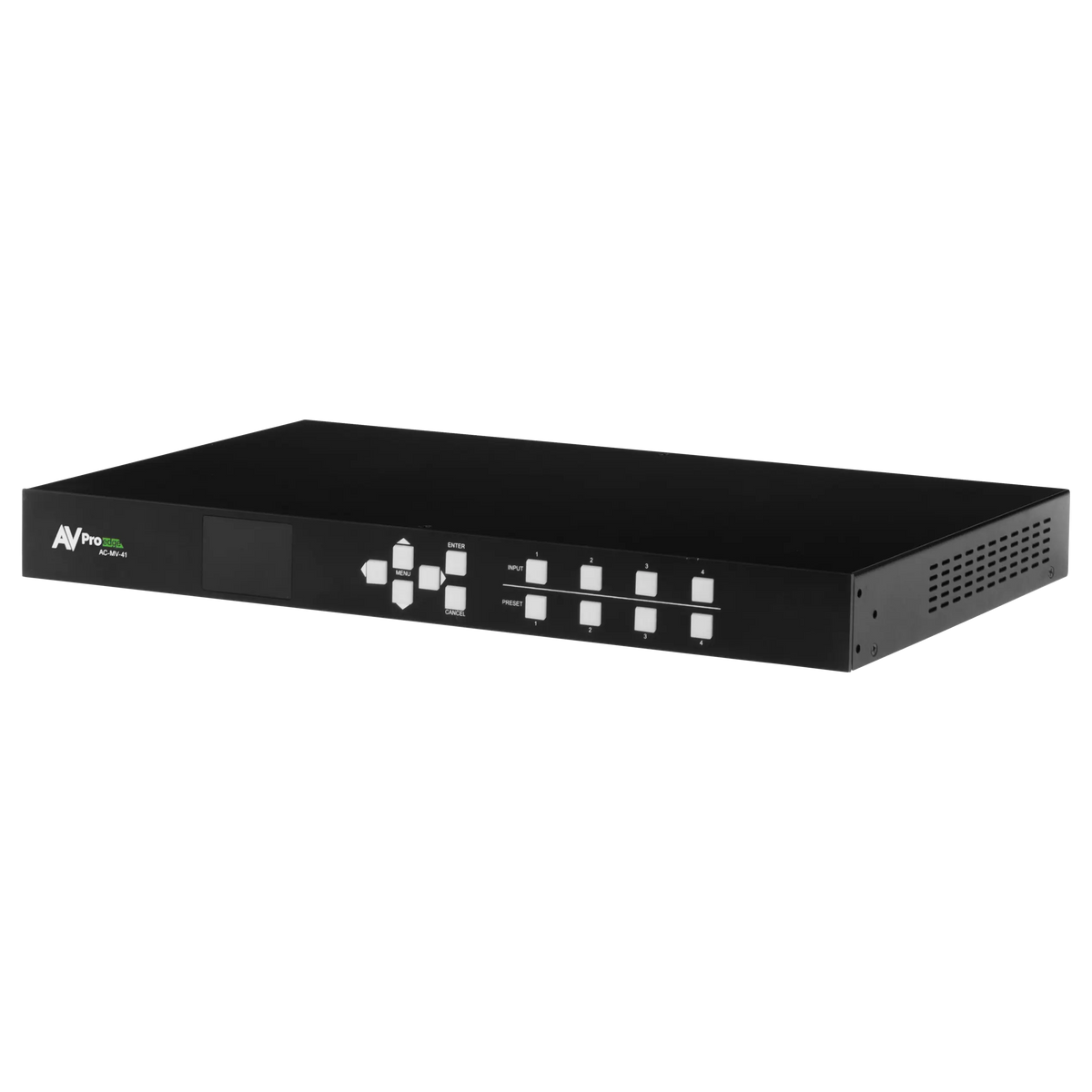

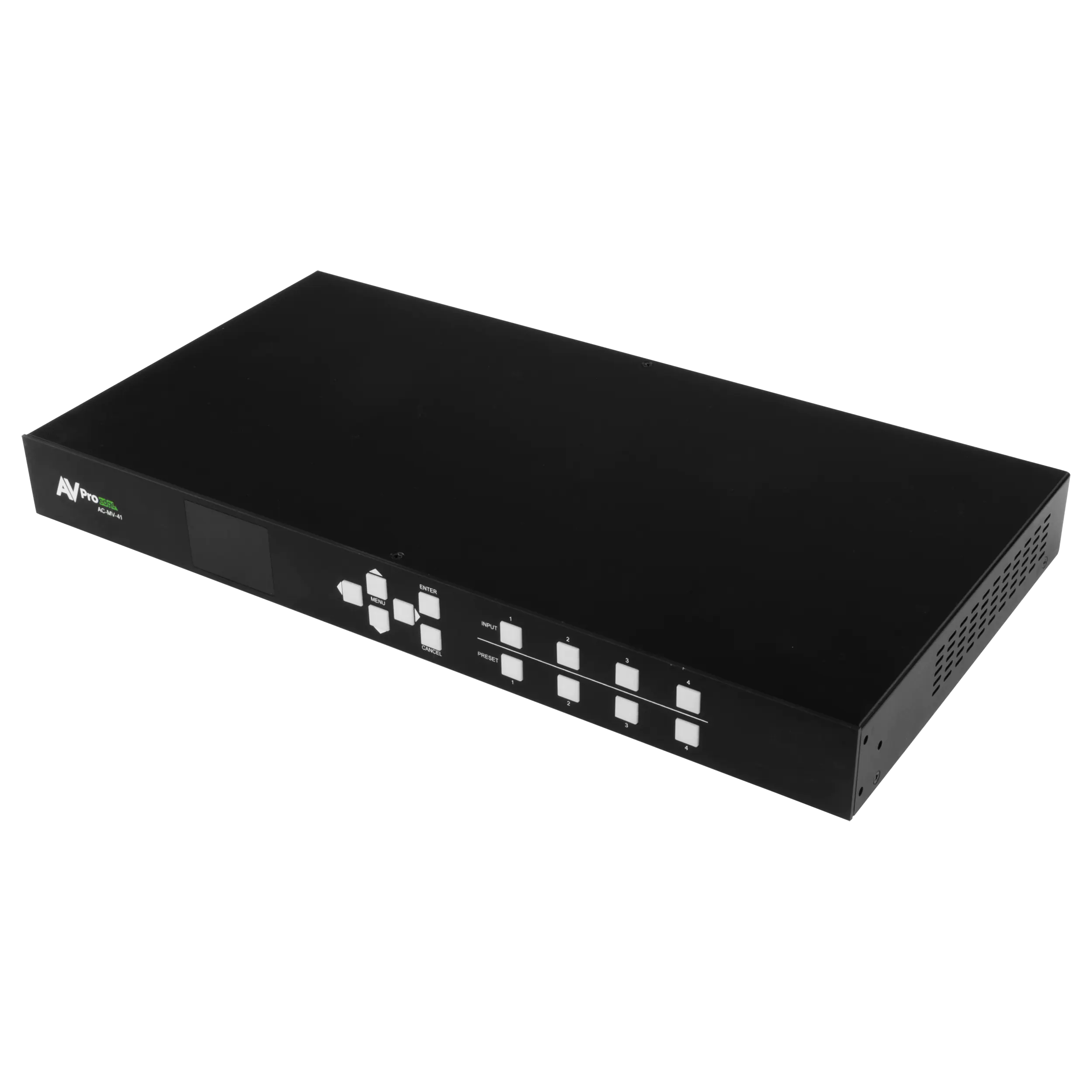

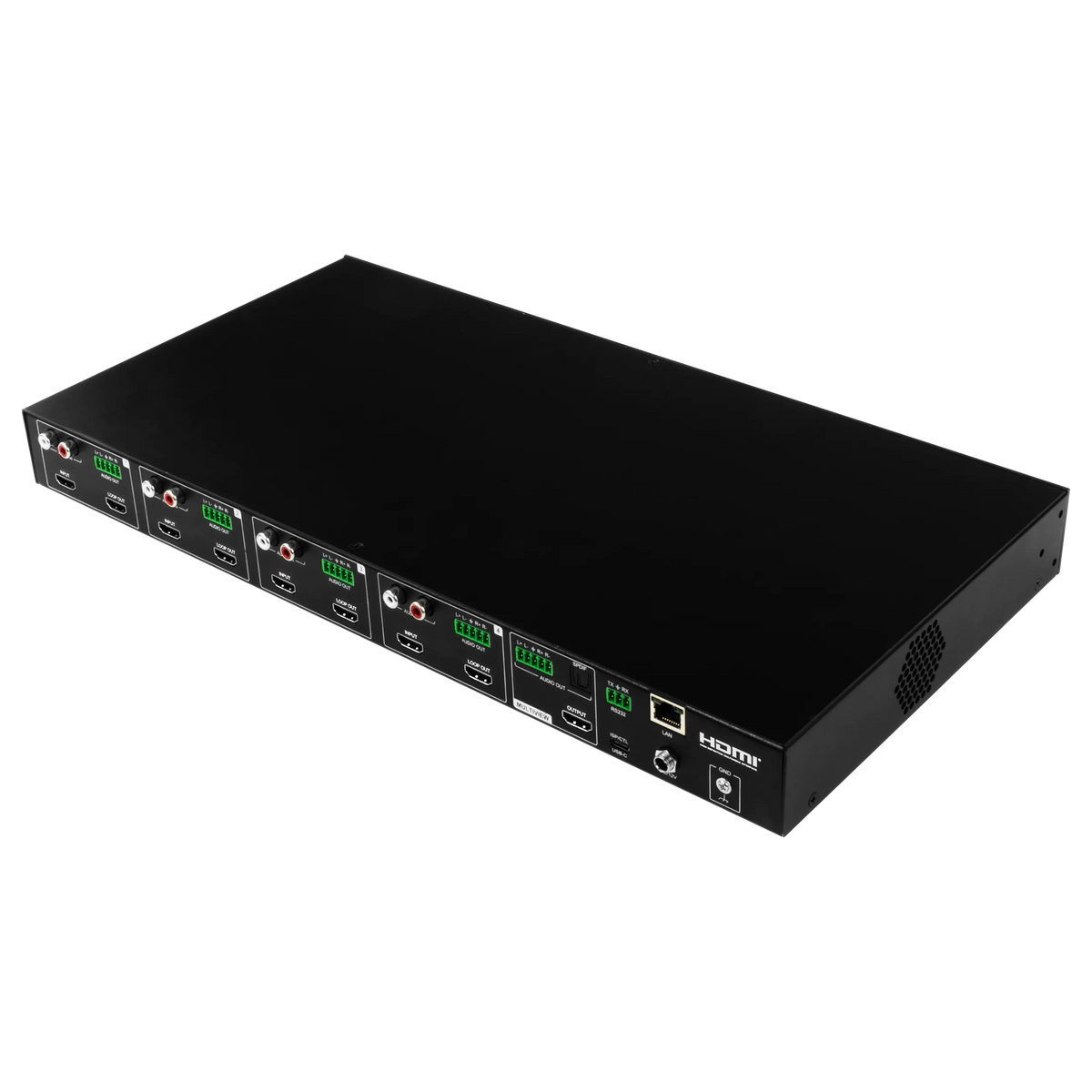

AVPro Edge 4K 4x1 Multi-Viewer Video Processor for HDMI Displays
Regular price
$2,307.00
Couldn't load pickup availability
Frequently Asked Questions
What is a video processor, and when do you need one instead of a basic HDMI switch?
A video processor does more than simply change between sources. It manages, scales, arranges, and outputs video so multiple devices can be shown correctly on one display. A basic HDMI switch usually selects one source at a time, while a processor can handle more complex tasks such as multi-view layouts, audio routing, and control integration.

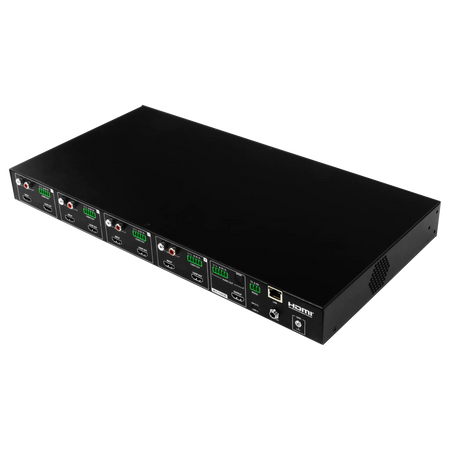

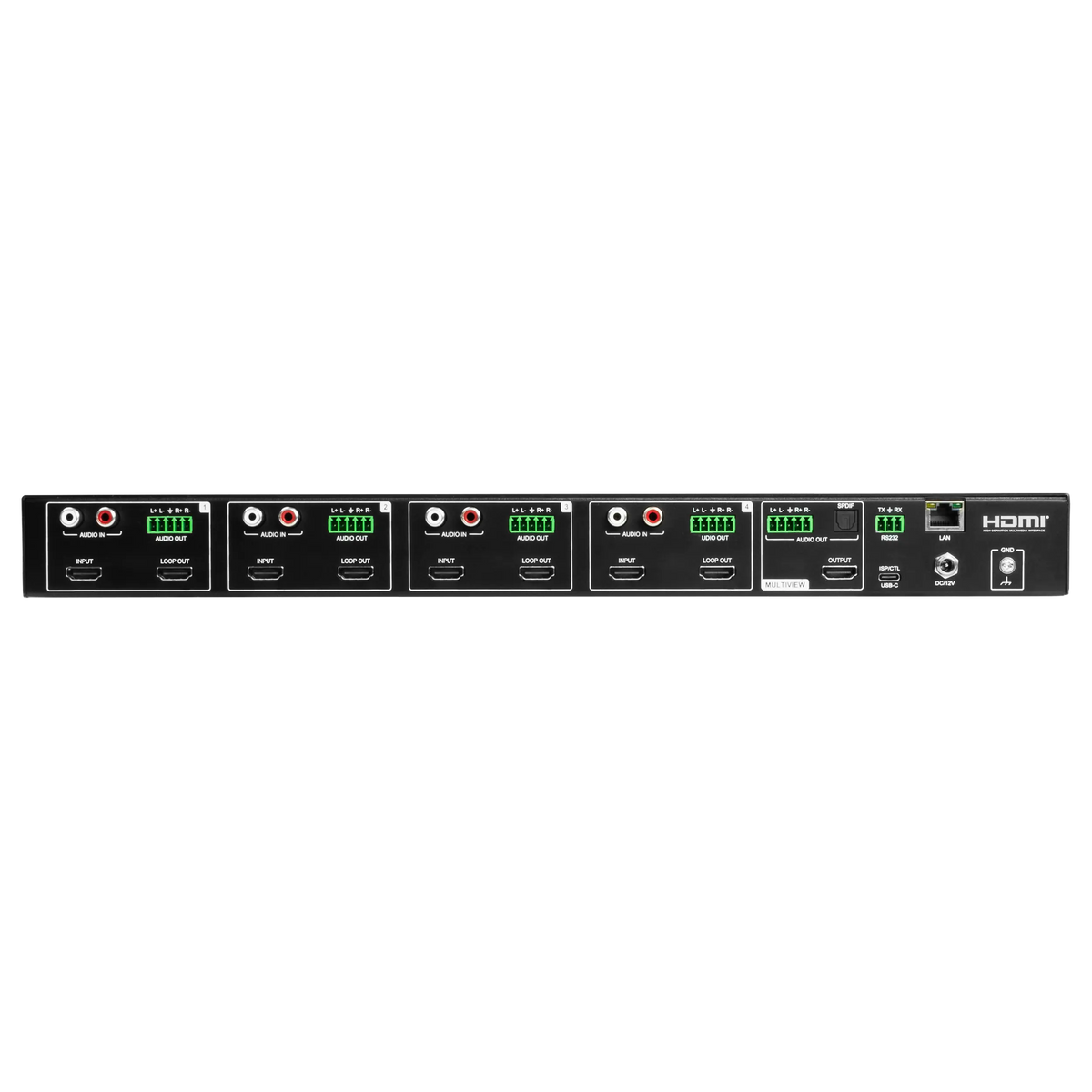

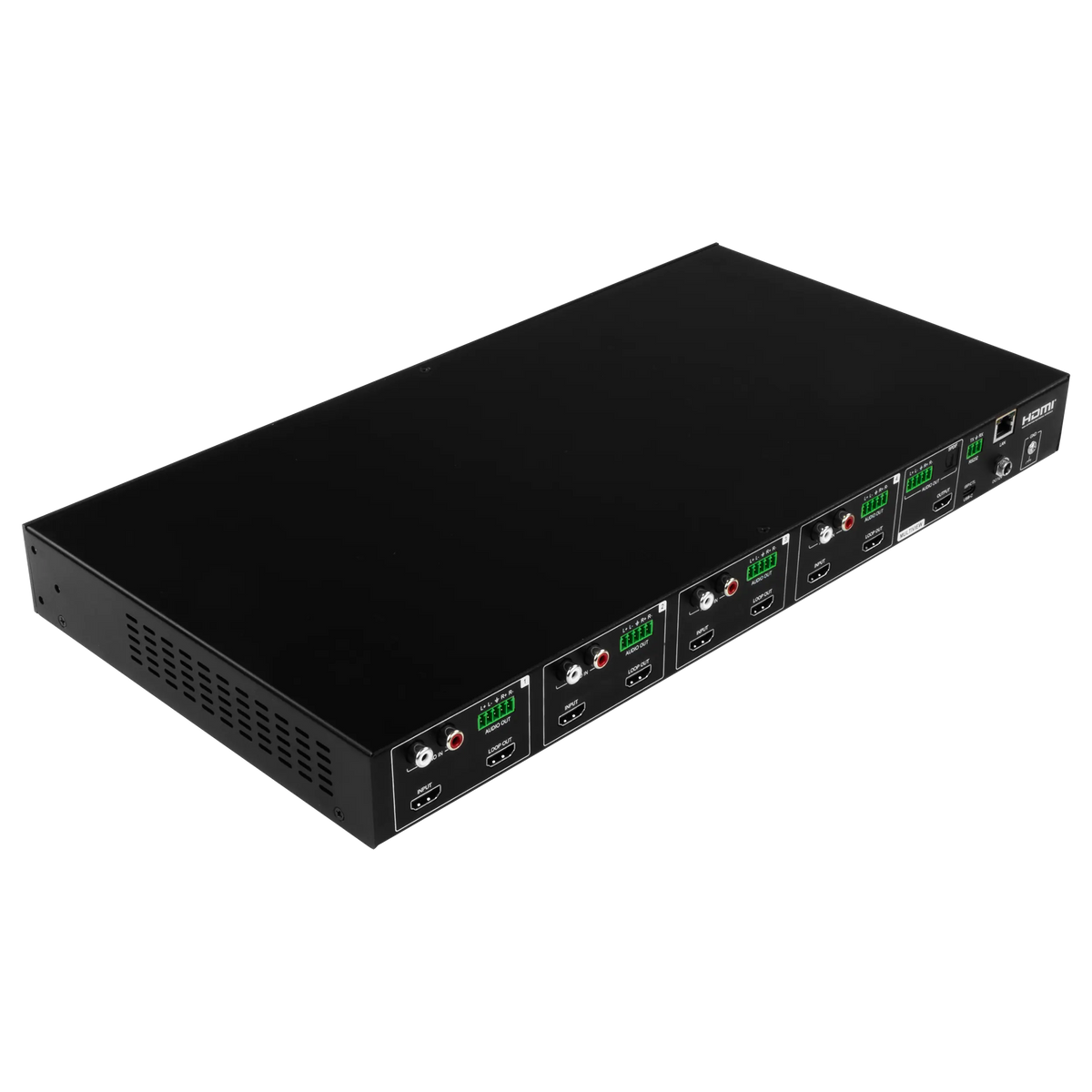

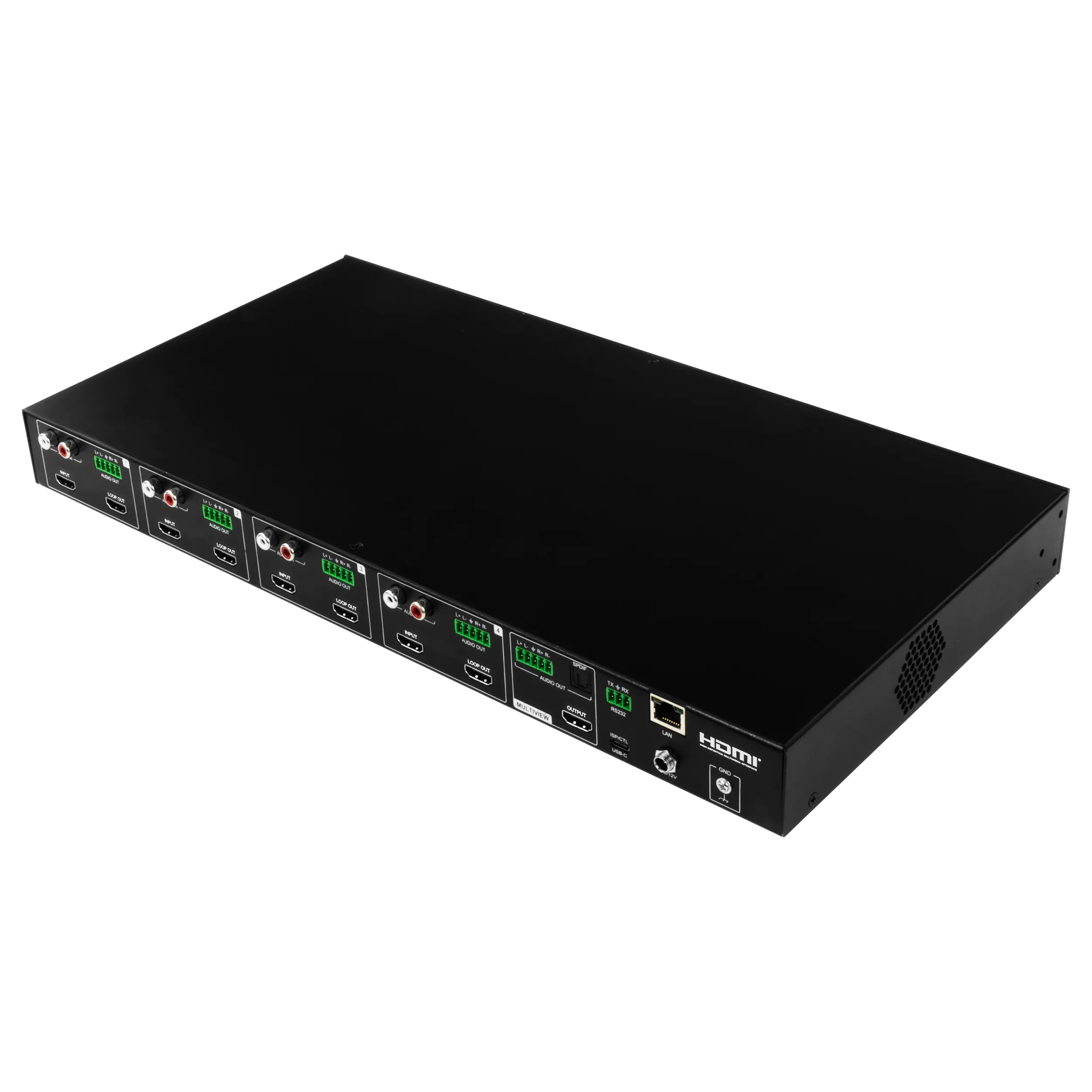

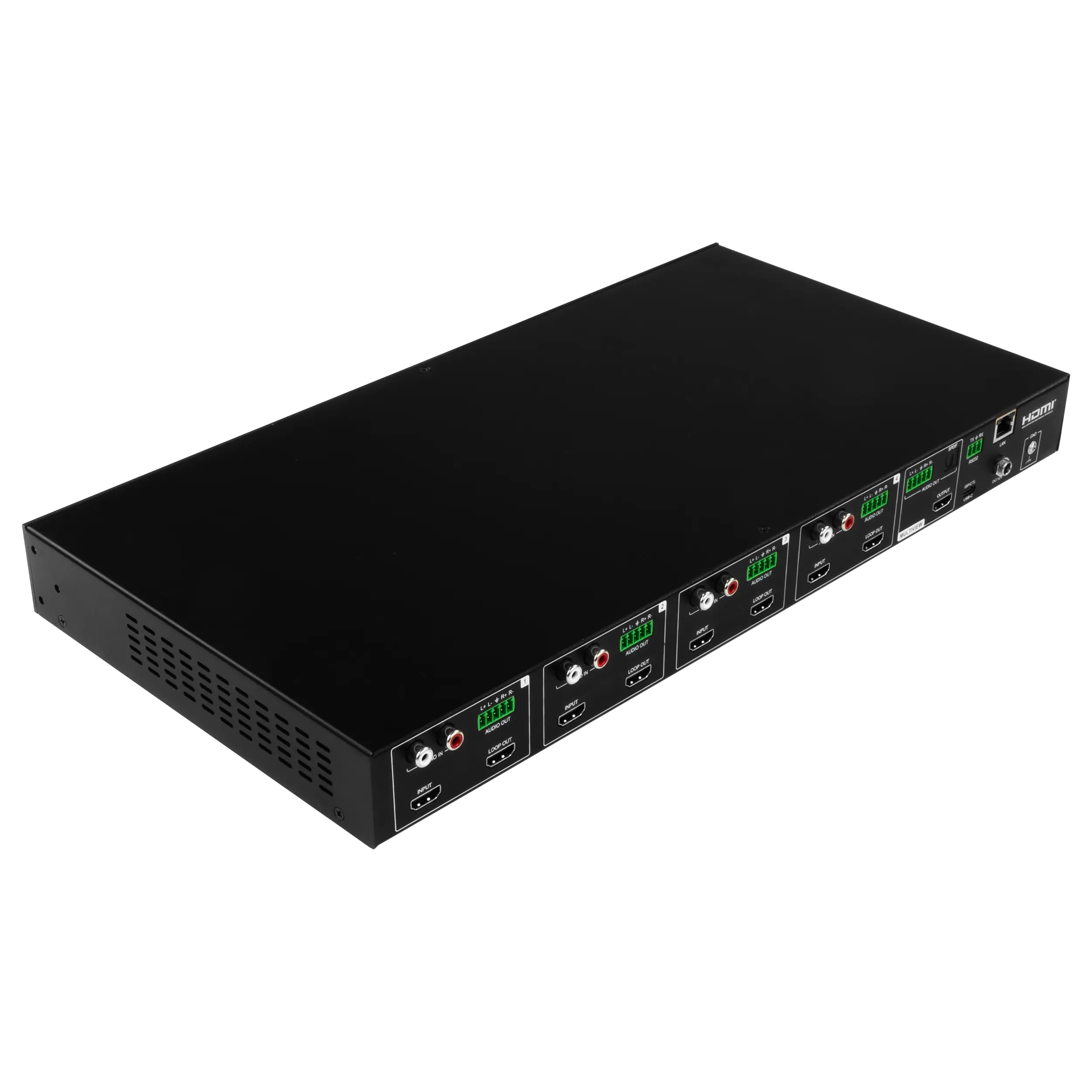

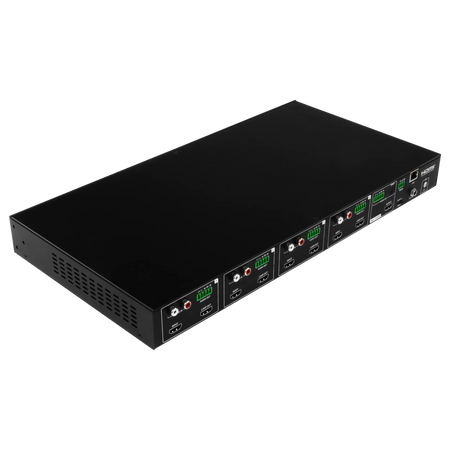

The AVPro Edge 4K 4x1 Multi-Viewer is a good example of when a processor makes more sense than a simple switch. It accepts four HDMI 2.0 inputs and can display them in quad-view, tiled patterns, or single full-screen mode on one HDMI 2.0 output. It also includes four HDMI loop-outs, assignable stereo analog RCA audio inputs, extracted audio on a 5-pin connection, and IP or RS-232 control.
This type of product is best for users who need to monitor several sources at once, such as security, traffic control, sports viewing, factory robotics, or control rooms. If you only need to connect several devices and watch one at a time, a basic switch may be enough.
What does a video switcher do?
A video switcher lets you connect multiple video sources to one display or signal path and choose how those sources are shown. In simple setups, that means switching from one source to another. In more advanced systems, a switcher may also support scaling, multi-view display, audio management, and control over a network or automation system.
This AVPro Edge unit functions as a more advanced switcher and scaler because it does not just switch inputs. It can show up to four HDMI 2.0 sources simultaneously on one monitor, TV, or projector, with support for 4K resolution and 18Gbps bandwidth. It also gives each input an HDMI loop-out, which is useful when you want to send the same source elsewhere in the system.
A product like this is ideal for users who need visibility across several sources instead of only one active source at a time. That makes it especially useful for commercial AV, industrial monitoring, surveillance, and sports viewing applications.
What are the different types of video switchers?
The main types of video switchers include simple input selectors, matrix switchers, presentation switchers, multi-view switchers, and switchers with built-in scaling or processing. Each type solves a different problem.
A basic selector sends one chosen source to one display. A matrix switcher routes multiple sources to multiple displays independently. A presentation switcher is designed for meeting rooms and often combines inputs, scaling, and audio control. A multi-view switcher shows several sources on a single screen at the same time. A processor-based switcher adds advanced layout control, audio extraction, and automation support.
The AVPro Edge 4K 4x1 Multi-Viewer fits best into the multi-view processor category. It takes four HDMI 2.0 inputs and outputs them to one HDMI 2.0 display in quad-view, tiled layouts, or full-screen mode. It also adds loop-outs for each source, app-based configuration, and IP and RS-232 control.
Shoppers who need to compare several feeds on one screen should focus on multi-view processors. Buyers who need flexible routing across multiple displays may be better served by a matrix switcher instead.
Who should buy a 4K multi-view video processor?
A 4K multi-view video processor is best for users who need to see multiple HDMI sources at the same time on one display. Common examples include surveillance monitoring, industrial control, traffic operations, factory robotics, sports viewing, and command center environments.
The AVPro Edge 4K 4x1 Multi-Viewer is especially useful when four separate HDMI 2.0 sources need to be monitored on a single monitor, television, or projector without constantly changing inputs. It supports quad-view, patterned tiling, and independent full-screen viewing, which gives operators flexibility depending on the task. The four HDMI loop-outs also make it easier to expand the system or feed other devices.
This type of processor benefits buyers who value real-time visibility and centralized monitoring. It may be less necessary in a simple home setup where only one source is viewed at a time. In those cases, a standard HDMI switch is usually simpler. The biggest advantage here is operational awareness across multiple sources on one screen.
Can this video processor display four HDMI sources on one screen at the same time?
Yes. The AVPro Edge 4K 4x1 Multi-Viewer is specifically designed to display up to four HDMI 2.0 sources simultaneously on a single monitor, TV, or projector. That is its core function.
It supports several viewing modes rather than limiting you to one layout. Users can choose quad-view for equal visibility across four sources, patterned tiling for custom visual emphasis, or a full-screen view of one source when needed. This flexibility makes it practical for both active monitoring and presentation-style use.
It is a strong fit for applications where several live feeds need to be visible without changing inputs, such as sports rooms, control stations, industrial facilities, security desks, and transportation monitoring. Because it is built around HDMI 2.0 with 18Gbps bandwidth and 4K support, it is also appropriate for high-resolution source material.
The main limitation is that it is intended for one main display output, so buyers needing to distribute different layouts to multiple screens may need a more complex switching or matrix solution.
What is the difference between a multi-view processor and a matrix switcher?
A multi-view processor is designed to combine multiple sources onto one display, while a matrix switcher is designed to route sources independently to multiple displays. The difference is less about image quality and more about what problem you need to solve.
The AVPro Edge 4K 4x1 Multi-Viewer is a multi-view processor. It accepts four HDMI 2.0 sources and outputs them to one HDMI 2.0 display in layouts such as quad-view, tiled arrangements, or full-screen. That makes it ideal when one operator or audience needs to see several sources at once on one screen.
A matrix switcher, by contrast, is better when you want source A on display 1, source B on display 2, and source C on display 3 at the same time. It is about routing flexibility, not combining multiple views onto a single display.
Choose a multi-view processor if your priority is simultaneous monitoring on one screen. Choose a matrix switcher if your priority is independent source distribution across several displays.
Is this 4K video processor good for control rooms, security monitoring, or industrial display systems?
Yes. This type of processor is well suited for control rooms, security monitoring, and industrial display environments because it allows several HDMI sources to be viewed together on one screen with flexible layouts and professional control options.
The AVPro Edge 4K 4x1 Multi-Viewer supports up to four HDMI 2.0 inputs, 4K resolution, and 18Gbps bandwidth, which helps maintain image detail for cameras, PCs, media players, or other source devices. Its quad-view and tiling modes are useful for at-a-glance monitoring, while the full-screen option lets users focus on one source when needed. IP and RS-232 control, plus Control 4 driver support, make it easier to integrate into managed AV systems.
It is particularly useful in traffic control, factory robotics, operations centers, and surveillance desks where multiple feeds must be visible without using several separate displays. One tradeoff is that the unit is centered on a single HDMI display output, so very large multi-screen walls may require additional system components.
Does this HDMI 2.0 multi-viewer support audio input and audio extraction?
Yes. This processor supports both analog audio input and audio extraction, which is important in systems where video monitoring and audio routing need to stay coordinated.
Specifically, the AVPro Edge 4K 4x1 Multi-Viewer includes stereo analog RCA audio inputs that can be assigned for audio companion tracking. It also provides extracted audio through a 5-pin stereo output. That gives installers and system designers more flexibility when sending audio to external amplifiers, DSPs, or control systems.
This is especially useful in command centers, sports viewing systems, or industrial environments where users may want a selected source's audio to follow the active layout or be routed separately from the main display. It can also simplify integration when the display device is not the final audio destination.
Buyers should note that this is not primarily an audio mixer. Its audio features are designed to support professional AV routing and source-follow behavior rather than replace dedicated sound processing in more advanced audio systems.
How do you control and configure this video processor?

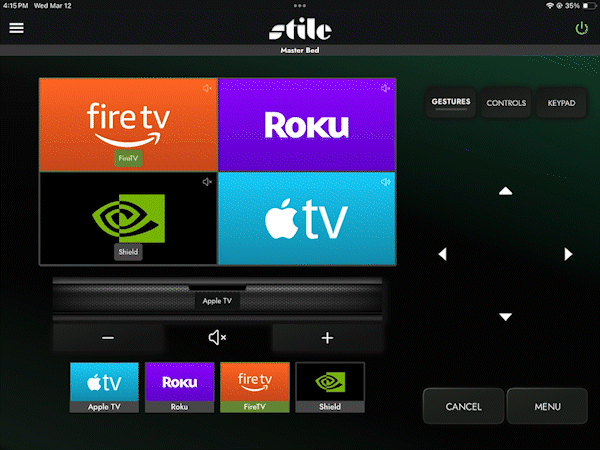

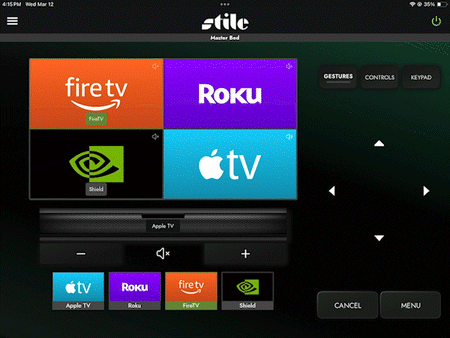

This video processor offers several professional control methods, which makes it easier to fit into both standalone and integrated AV systems. Users can manage display configurations through the dedicated STILE app, as well as through IP and RS-232 commands.
The AVPro Edge 4K 4x1 Multi-Viewer also supports Control 4 driver compatibility, which is helpful in automated commercial or residential control environments. These options allow installers and operators to adjust layouts, manage switching behavior, and integrate the processor into broader room control or monitoring systems.
The benefit of multiple control methods is flexibility. A small setup may rely mainly on the app for quick configuration, while a larger installation may use IP or RS-232 for centralized control. That makes the unit suitable for environments where reliability and repeatable operation matter.
Shoppers who only want a plug-and-play switch with minimal setup may not need this level of control. But for structured AV systems, the available control interfaces are a major advantage.
What should I look for when buying video processors and switchers for sale?
Start by matching the product to the job. The most important buying factors are how many sources you need to connect, whether you need one source at a time or multiple at once, your required resolution and bandwidth, audio handling, and how the unit will be controlled.
For buyers who need simultaneous viewing, a multi-view processor like the AVPro Edge 4K 4x1 Multi-Viewer is a strong fit because it accepts four HDMI 2.0 sources and can show them together on one display in quad-view, tiled layouts, or full-screen mode. Its 4K support and 18Gbps bandwidth are important for modern high-resolution sources. The four HDMI loop-outs add system design flexibility, and the app, IP, and RS-232 control options help with integration.
If your main need is simply switching one source at a time, a less complex product may be enough. If you need to route different sources to different screens, a matrix switcher may be a better choice. The best purchase depends on whether your priority is monitoring, presentation, routing, or automation.

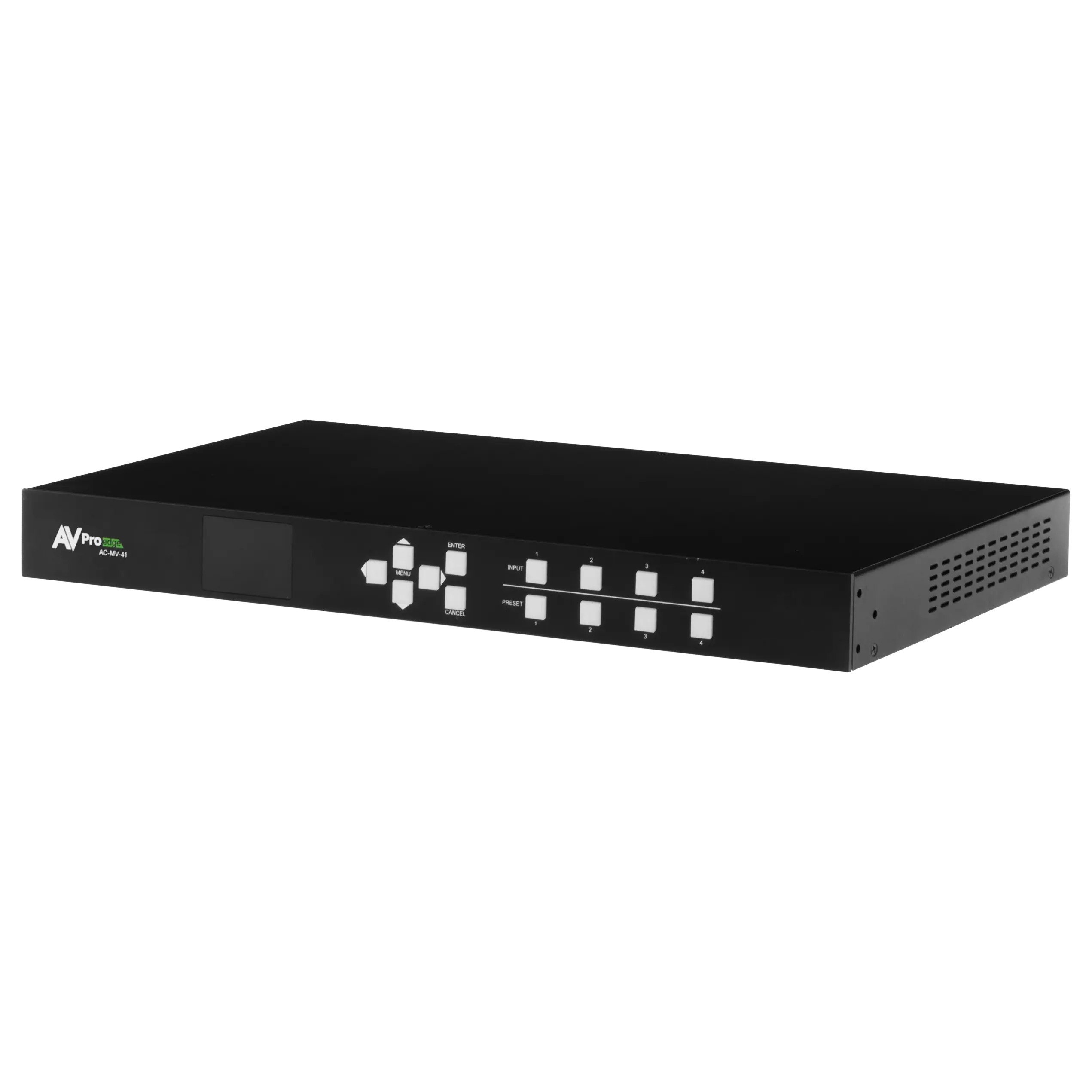

Display up to four HDMI 2.0 sources simultaneously on a single monitor, television, or projector with the AVPro Edge 4K 4x1 Multi-Viewer. This powerful video processor enables versatile layouts, including quad-view, patterned tiling, or independent full-screen viewing, perfect for sports enthusiasts and industrial monitoring. Each input features an HDMI loop-out for creative expansion or integration into larger AVPro Edge MXnet ecosystems. Manage your display configurations effortlessly using the dedicated STILE app. The unit supports stereo analog RCA audio inputs for assignable audio companion tracking and provides extracted audio via 5-pin outputs. Designed for high-resolution performance, this processor delivers pristine image fidelity suitable for security, traffic control, and factory robotics. Take control of complex visual environments with reliable IP and RS-232 command support, including Control 4 driver compatibility. Enjoy enhanced flexibility with a professional-grade solution built for demanding visual applications.

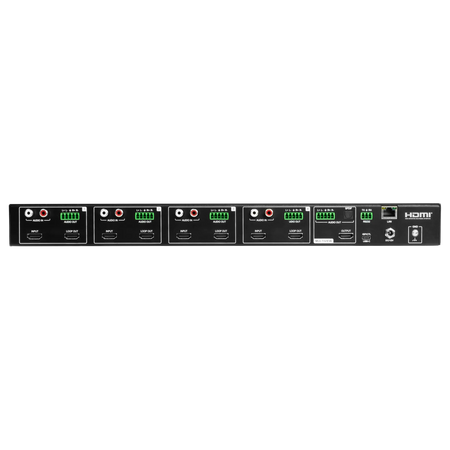

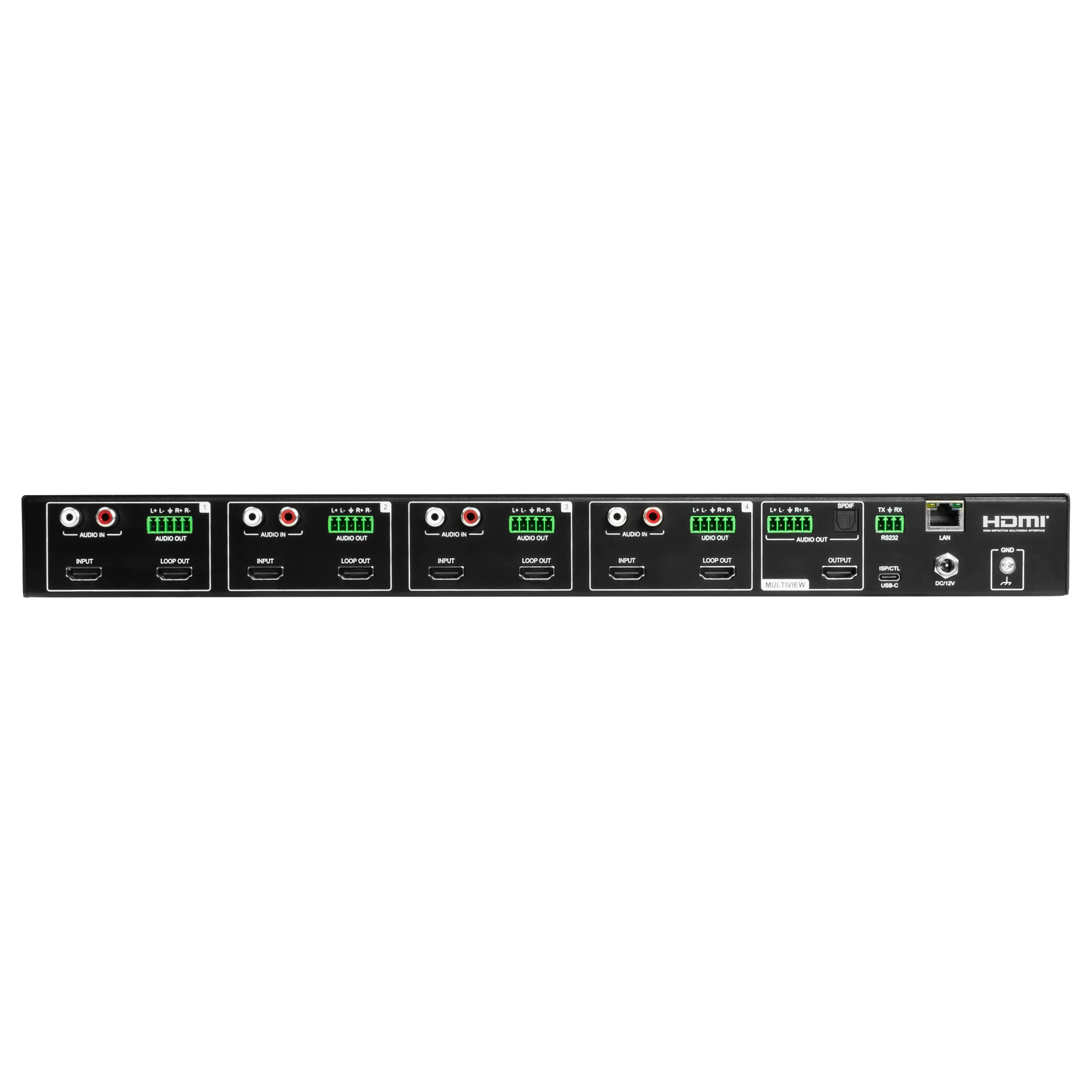

| Video Input | 4x HDMI 2.0 |
| Video Output | 1x HDMI 2.0 |
| Loop Output | 4x HDMI |
| Audio Input | Stereo Analog RCA |
| Audio Output | 5-pin Stereo |
| Control Interface | IP, RS-232, STILE App, Control 4 |
| Max Resolution | 4K |
| Bandwidth | 18Gbps |
