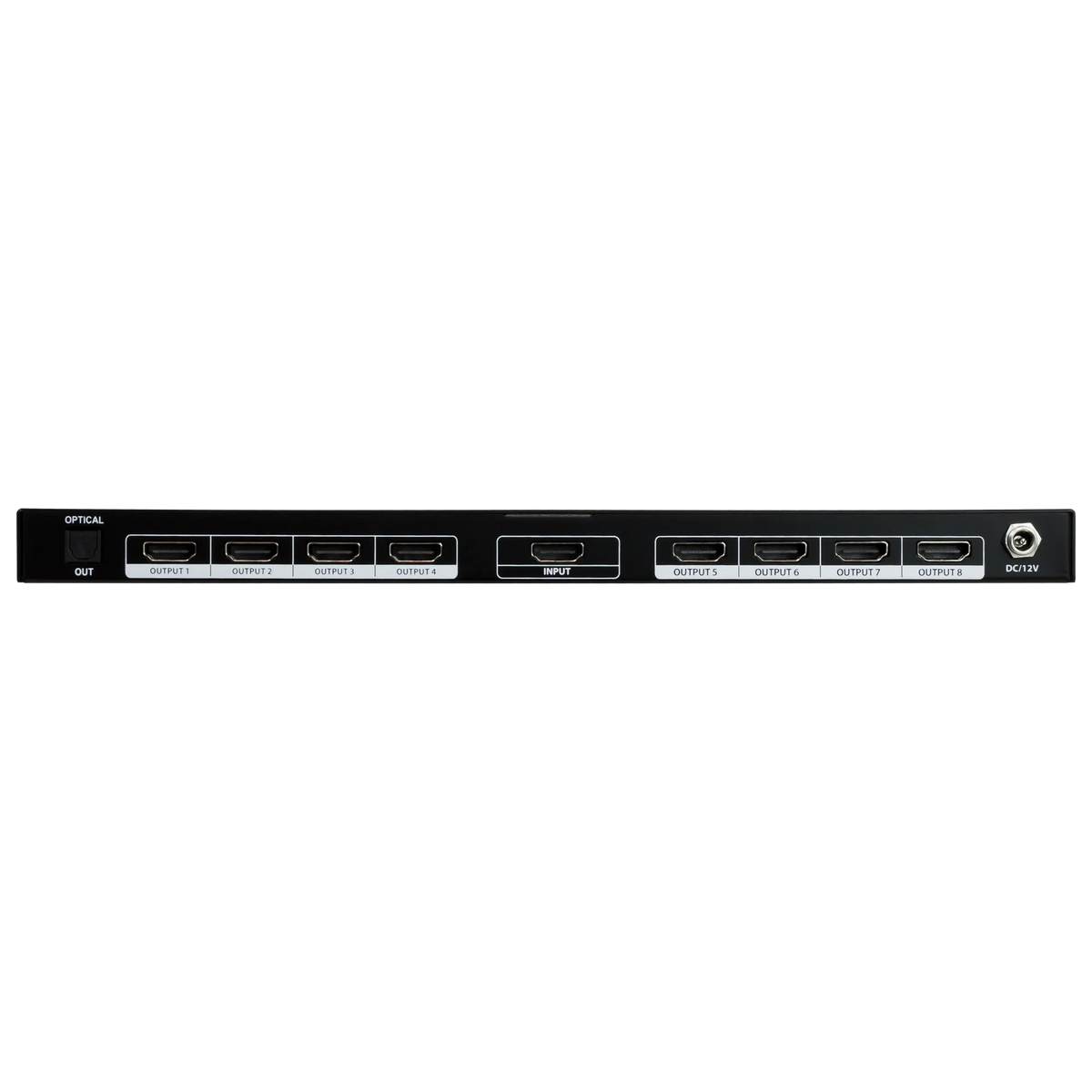

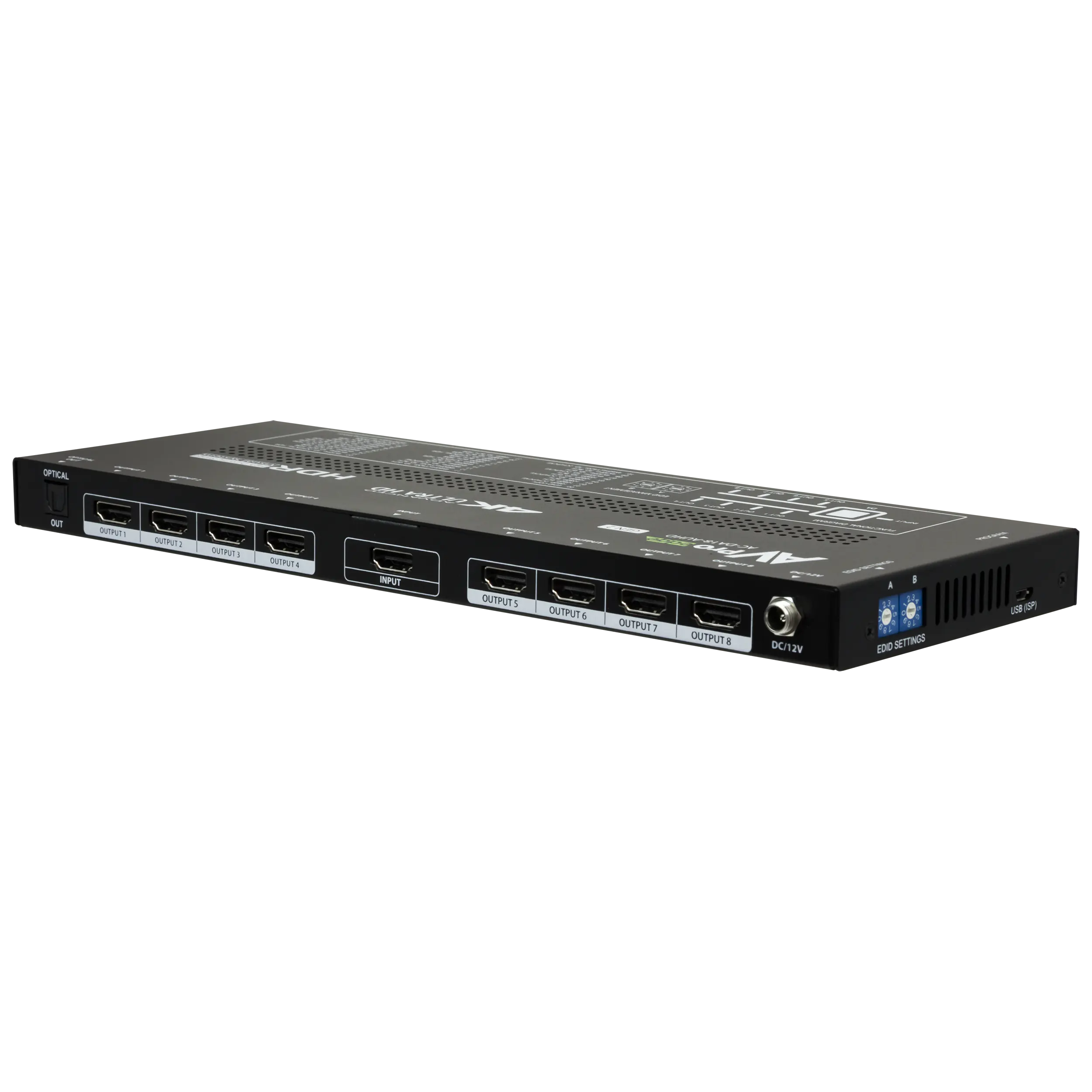

AVPro Edge 18Gbps 1x8 HDMI Distribution Amplifier AC-DA18-AUHD-GEN2

SKU: AC-DA18-AUHD-GEN2
Regular price $1,009.00

Frequently Asked Questions

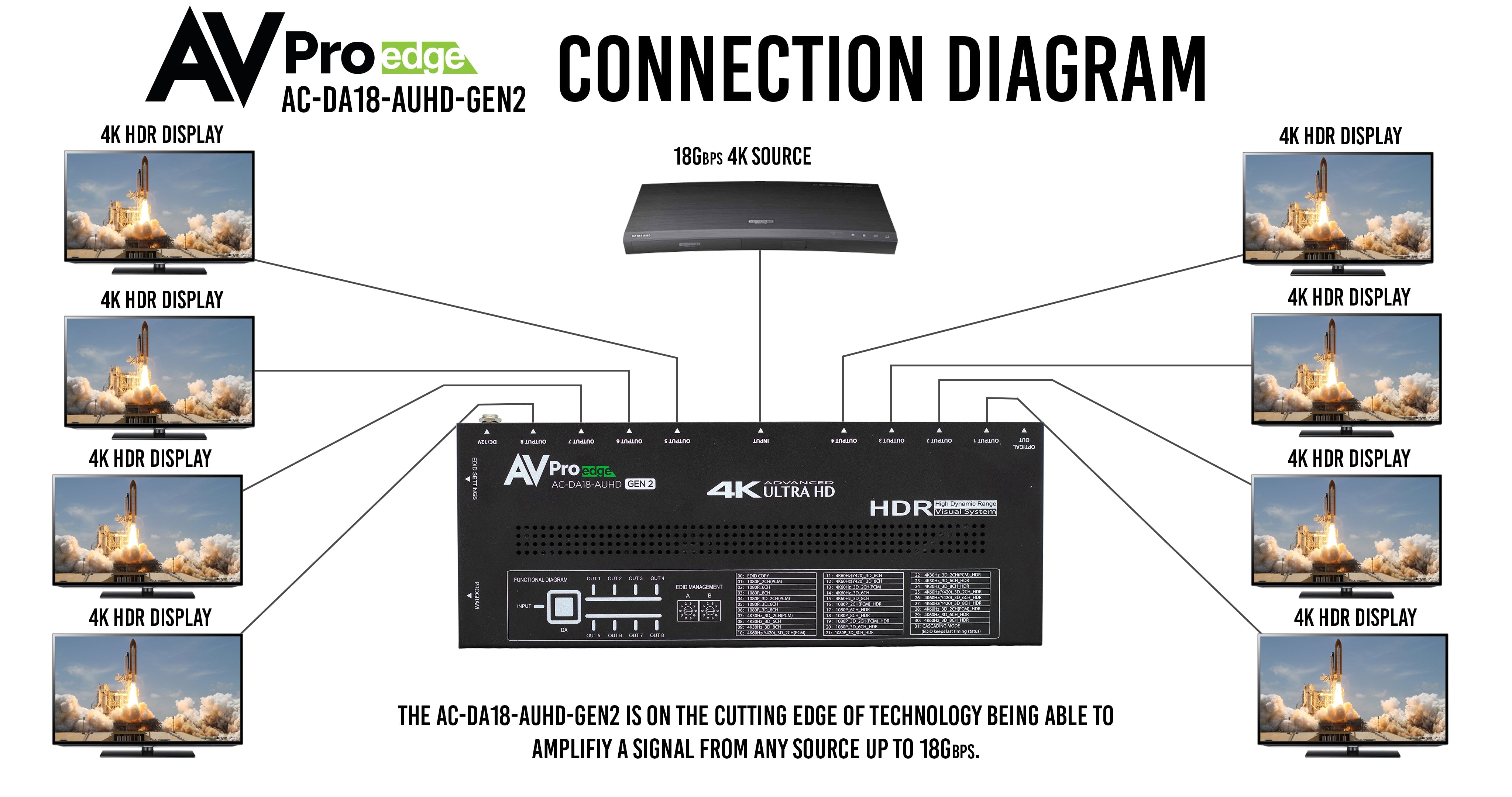

An HDMI distribution amplifier takes one HDMI source and sends that same signal to multiple displays while maintaining signal stability and format compatibility. It is commonly used when one media player, cable box, matrix output, or presentation source needs to feed several TVs, monitors, or projectors at the same time. The AVPro Edge AC-DA18-AUHD-GEN2 is a 1x8 HDMI distribution amplifier, which means it accepts one HDMI input and sends it to up to eight HDMI outputs. It supports up to 18Gbps bandwidth, full 4K 60Hz 4:4:4 video, HDR formats including HDR10+, Dolby Vision, and HLG, plus HDCP 2.2 compliance. That makes it suitable for modern commercial AV systems where image quality and handshake reliability matter. This type of product is best for conference rooms, digital signage, training rooms, sports bars, and other installations where all displays need to show the same content. It is not the right choice if you want different content on each screen, because that requires an HDMI matrix switcher instead.
The main difference is reliability and signal management. A basic HDMI splitter simply duplicates one signal to multiple outputs, while a distribution amplifier is designed to actively manage signal integrity, EDID communication, and HDCP handshakes across several displays. In simple home setups, people often use the terms interchangeably, but in professional AV, a distribution amplifier is the more precise term for a unit built for stable operation in demanding systems. The AVPro Edge AC-DA18-AUHD-GEN2 goes beyond basic splitting by offering 18Gbps support, 4K 60Hz 4:4:4 video, HDR10+, Dolby Vision, HDCP 2.2, and 16 EDID settings controlled by dual rotary dials. Those features help prevent common problems such as displays dropping to a lower resolution or failing to sync properly. A basic splitter may be fine for simple consumer use. A distribution amplifier is the better choice for integrators, offices, schools, and commercial installs where multiple displays need consistent performance and compatibility.
A distribution amplifier duplicates one AV source to multiple destinations and helps keep the signal usable across the entire system. In a professional AV environment, it is not just about multiplying outputs. It also helps manage EDID, HDCP compliance, and the signal quality needed for modern 4K and HDR content. The AVPro Edge AC-DA18-AUHD-GEN2 is built for that role. It distributes one HDMI source to eight displays and supports 18Gbps bandwidth, which is required for full 4K 60Hz 4:4:4 content. It also supports PCM, multichannel LPCM, Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos, so it can preserve both video and advanced audio formats. With 16 EDID settings and cascading support, it can fit into more complex systems where installers need predictable behavior. This is especially useful in digital signage, boardrooms, classrooms, hospitality, and command environments. If every screen needs to show the same source with reliable syncing, a distribution amplifier is often the correct tool.
Choose a 1x8 HDMI distribution amplifier when you need to send one source to more than four displays, or when you want extra output capacity for future expansion. A 1x4 model works for smaller setups, but once you reach five to eight displays, a 1x8 unit avoids the need for multiple splitters and can simplify installation. The AVPro Edge AC-DA18-AUHD-GEN2 is a 1x8 design, so it is well suited for conference centers, retail signage, houses of worship, classrooms, and multi-display presentation systems. It also supports cascading, which means you can expand beyond eight outputs if the system grows. Because it handles 18Gbps, 4K 60Hz 4:4:4, HDR10+, and Dolby Vision, it is appropriate when image quality must remain high across every connected display. A 1x4 unit may be enough for a small meeting room or residential setup. A 1x8 model is the better fit when scalability, cleaner rack design, and professional signal management are higher priorities.
Yes, it is designed to support high-bandwidth 4K and HDR formats across its outputs, provided the source, cables, and displays also support those formats. The AVPro Edge AC-DA18-AUHD-GEN2 is rated for 18Gbps, which allows up to 4K 60Hz 4:4:4 video. It also supports HDR10, HDR10+, Dolby Vision, and HLG. That matters because many older HDMI splitters cannot pass full-bandwidth 4K with advanced HDR metadata reliably. In professional installations, maintaining the original signal format is important for signage, video presentation, and content playback quality. This model is also HDCP 2.2 compliant, which helps with protected 4K sources such as streaming devices, media players, and certain commercial content sources. The main limitation is that the final result still depends on the weakest part of the chain. If one display does not support the same resolution or HDR format, EDID settings may need to be adjusted so the source outputs a format all displays can handle.
A properly designed HDMI distribution amplifier should not reduce picture quality in normal operation. Its purpose is to replicate the digital signal accurately so multiple displays receive the same content without introducing scaling or visible degradation. The AVPro Edge AC-DA18-AUHD-GEN2 is built for high-quality signal distribution, with support for 18Gbps bandwidth, full 4K 60Hz 4:4:4, and major HDR formats including Dolby Vision and HDR10+. Since HDMI is digital, the goal is not to improve the image but to preserve the original source format across all outputs. That makes it suitable for applications where image fidelity matters, such as commercial displays, presentation systems, and high-resolution video playback. The real risks to quality are usually outside the amplifier itself, such as incompatible displays, poor cable quality, or incorrect EDID settings. If the source has to fall back to a lower format to match one connected screen, the system output can be reduced. In a correctly configured system, the amplifier should maintain the intended signal standard.

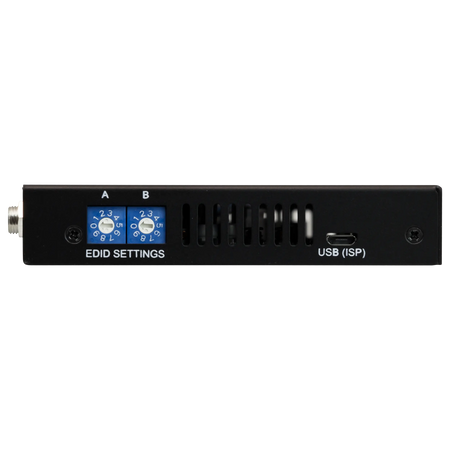

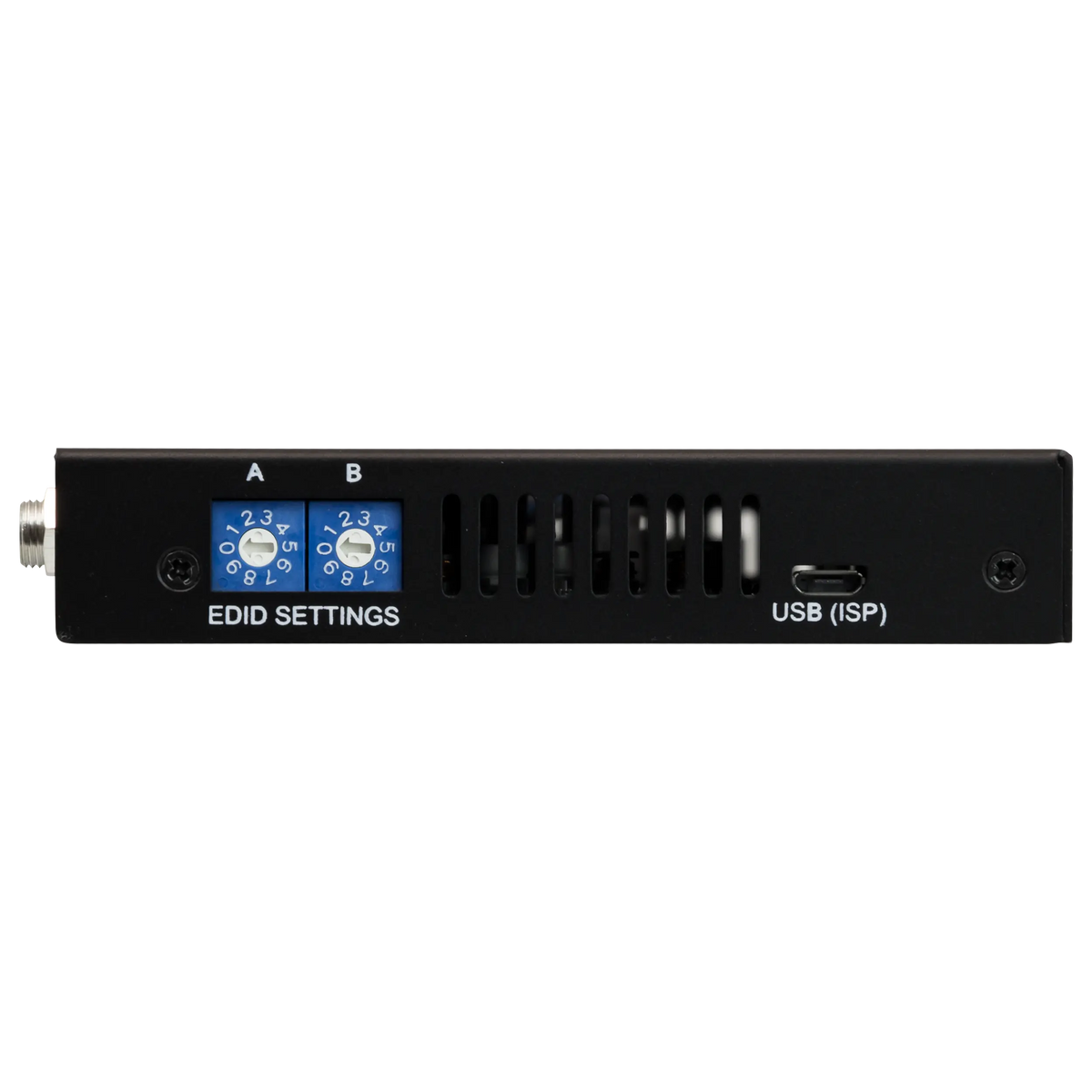

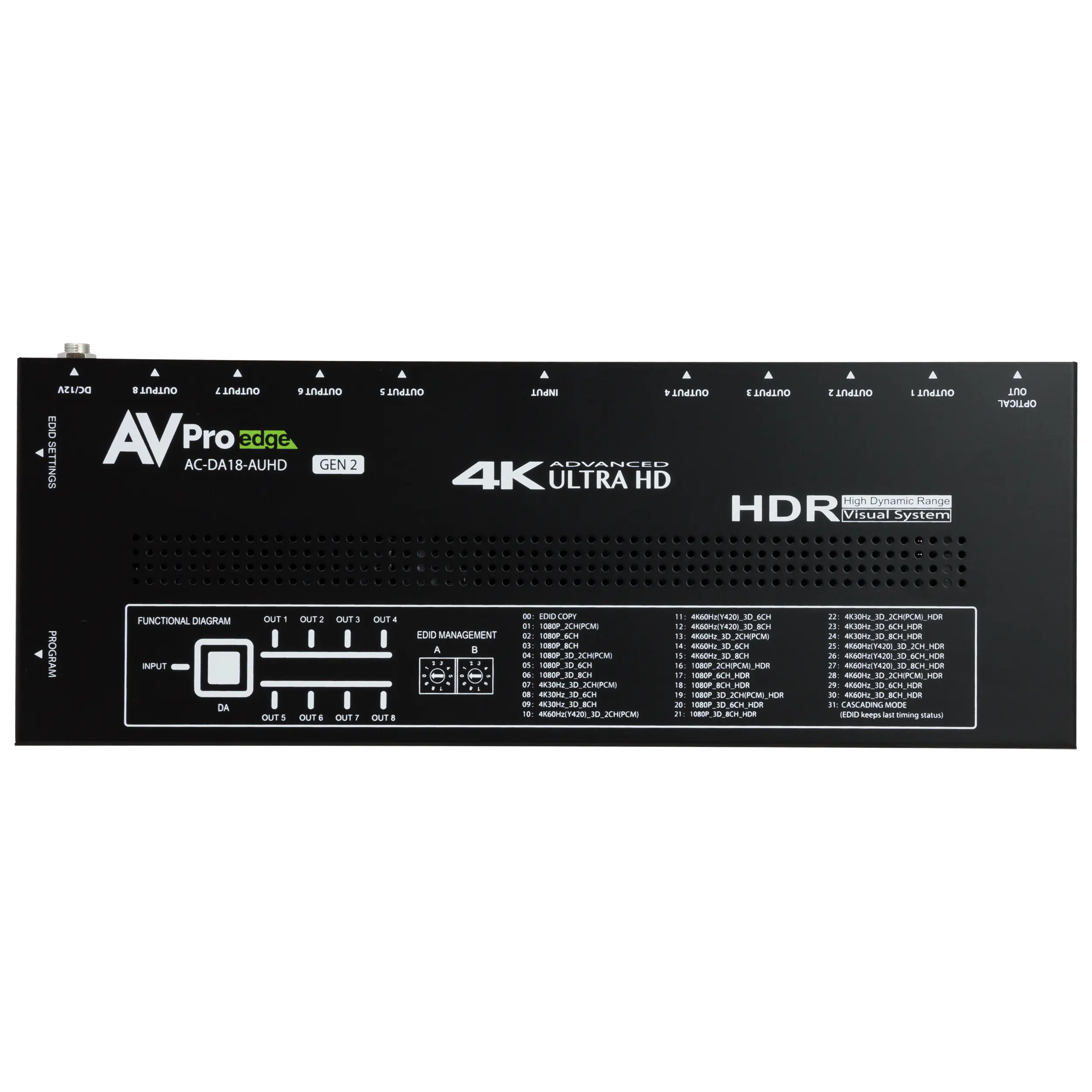

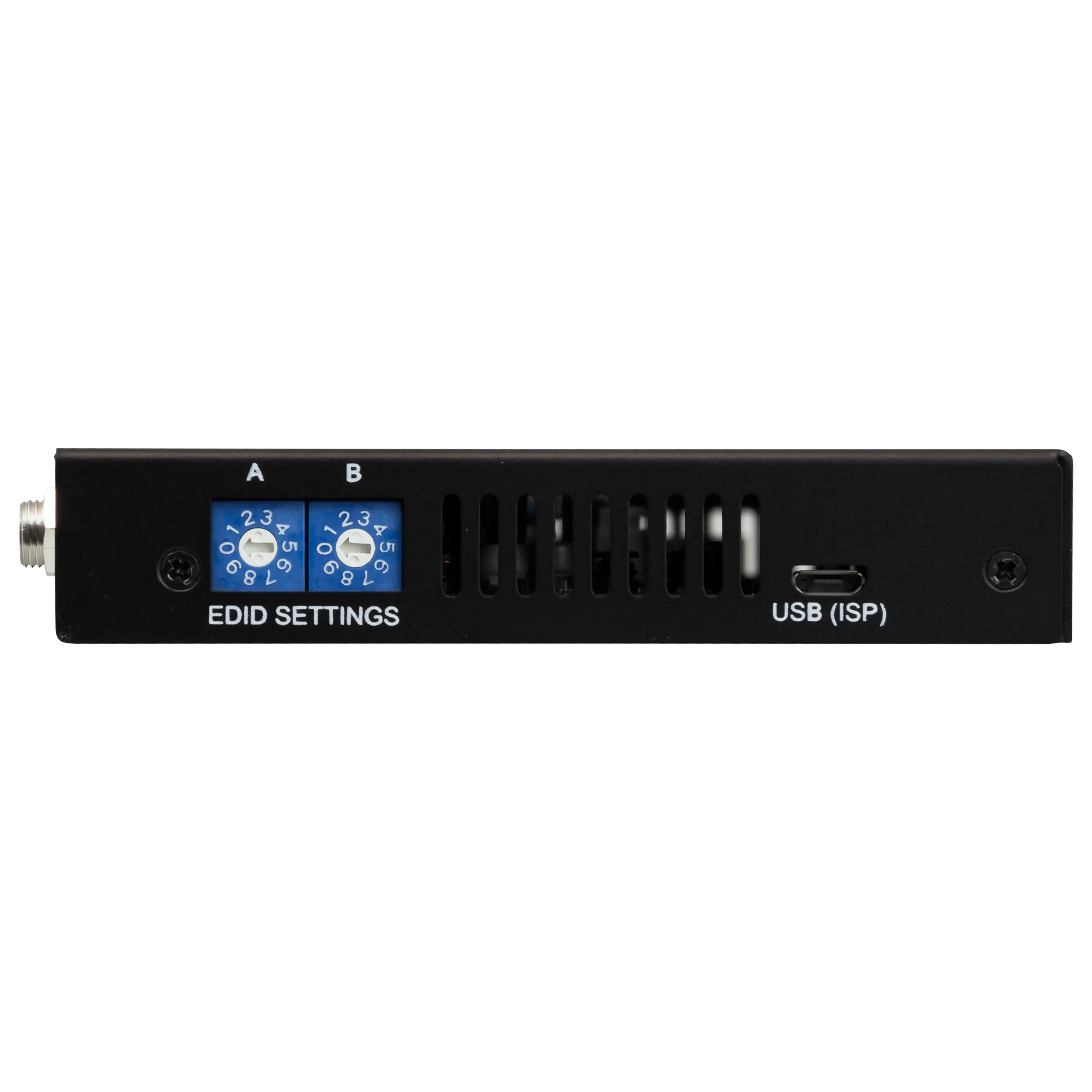

EDID management helps the source device understand what video and audio formats the connected displays can accept. This becomes important when you are feeding several TVs, monitors, or projectors at once, especially if they do not all have identical capabilities. Without proper EDID handling, a source may choose a format that some displays cannot show, or it may default to a lower common format than expected. The AVPro Edge AC-DA18-AUHD-GEN2 includes advanced EDID management with 16 settings and dual rotary controls, which gives installers more control over how the source negotiates resolution, refresh rate, color format, and audio support. This is most useful in mixed-display environments such as conference rooms, digital signage, and education spaces where some screens may be 4K HDR and others may be older or limited. The tradeoff is that EDID settings need to be chosen thoughtfully. Better control means more flexibility, but it also assumes the installer understands the system requirements.
Yes, this model supports cascading, which allows you to expand beyond eight displays by feeding the output of one distribution amplifier into another compatible unit. That can be useful in larger commercial systems where one source needs to be shown across a broader display network. With the AVPro Edge AC-DA18-AUHD-GEN2, cascading gives integrators a way to scale installations without changing the source workflow. This is practical in retail environments, training facilities, hospitality venues, and other multi-screen applications. Because the unit supports 18Gbps bandwidth, 4K 60Hz 4:4:4, HDR formats, and HDCP 2.2, it is intended for modern signal requirements rather than legacy-only systems. The key consideration is system design. As output counts grow, cable quality, power management, rack layout, and EDID strategy become more important. Cascading is a strong option when all displays need the same content, but if different zones need different sources, an HDMI matrix may be a better fit.
It supports both standard stereo and advanced multichannel audio formats. Specifically, the AVPro Edge AC-DA18-AUHD-GEN2 supports PCM 2.0, LPCM 5.1 and 7.1, Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos. This matters when the source content includes high-resolution surround formats and the system needs to preserve them while distributing video to multiple displays. In presentation spaces, digital signage systems with external audio processing, or professional AV racks feeding displays and downstream audio equipment, proper audio pass-through helps avoid format limitations that some lower-end splitters can create. The main practical point is that support on the amplifier does not guarantee playback on every connected device. The source and the receiving equipment also need to support the selected audio format. If one display or downstream device only accepts basic stereo, EDID settings may need to be configured to avoid compatibility issues. For systems that require full surround audio support alongside 4K HDR video, this model is designed to accommodate that need.
This unit is best suited for professional AV users who need one HDMI source distributed reliably to up to eight displays with modern 4K and HDR support. Typical users include AV integrators, IT teams, facilities managers, educators, event spaces, hospitality venues, and retail operators. The AVPro Edge AC-DA18-AUHD-GEN2 is especially appropriate when the system requires full 18Gbps performance, 4K 60Hz 4:4:4 video, HDR10+, Dolby Vision, HDCP 2.2 compliance, and more advanced EDID control than a basic HDMI splitter offers. Its low-profile chassis also makes it practical in tight racks, credenzas, and compact installation spaces. It is a strong fit for boardrooms, digital signage, training rooms, and multi-display projector or monitor systems where all screens need the same signal. It is less suitable for users who need different content on different displays, because that calls for a matrix switcher. It may also be more capability than needed for a simple two-screen residential setup.
The AVPro Edge AC-DA18-AUHD-GEN2 is an 18Gbps 1x8 HDMI distribution amplifier engineered for high-bandwidth, stable signal distribution in professional AV systems. It supports full 4K 60Hz 4:4:4 resolution, HDR10+, Dolby Vision, and HDCP 2.2 compliance, ensuring signal integrity across multiple displays. Featuring advanced EDID management with 16 settings and dual rotary controls, it simplifies complex system integration. The unit supports cascading for expanded output requirements and boasts an ultra-low-profile design suitable for compact installation environments. It is a reliable solution for professional applications requiring robust, high-performance HDMI distribution.

Bandwidth 18 Gbps
Video Resolution Up to 4K 60Hz 4:4:4
Audio Formats PCM 2.0, LPCM 5.1/7.1, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos
HDR Support HDR10, HDR10+, Dolby Vision, HLG
HDCP Version HDCP 2.2 and earlier
Unit Dimensions 11.81 x 4.55 x 0.84 inch
Unit Weight 2 lb
Operating Temperature 23 to 125°F (-5 to 51°C)
