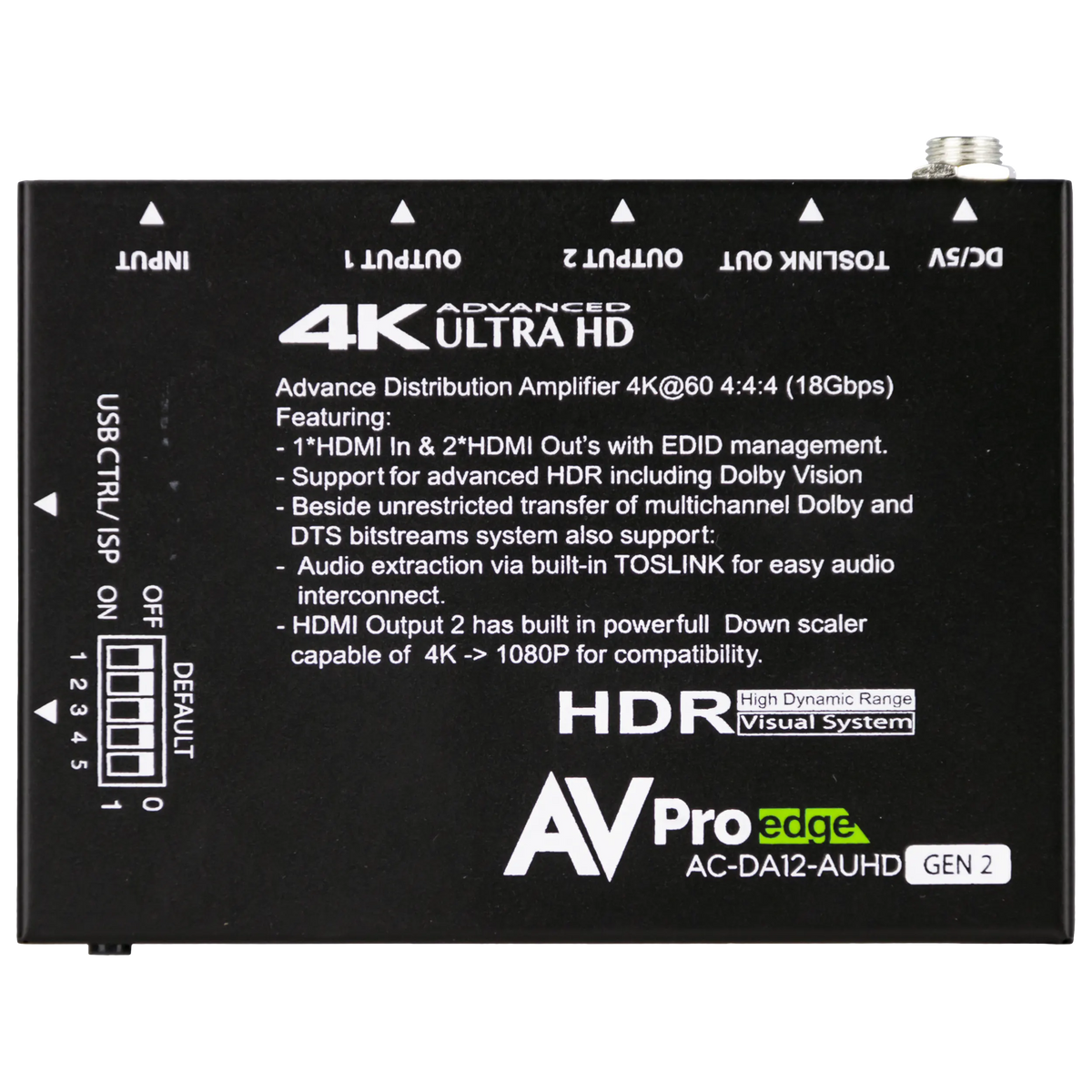

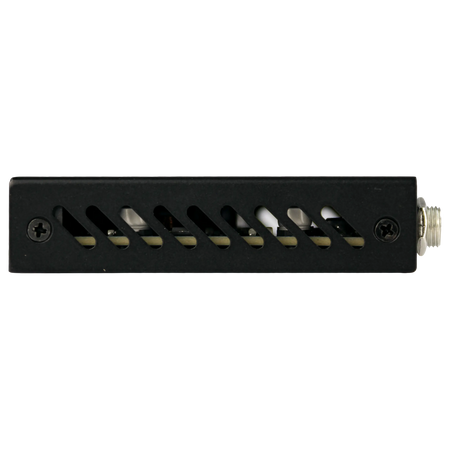

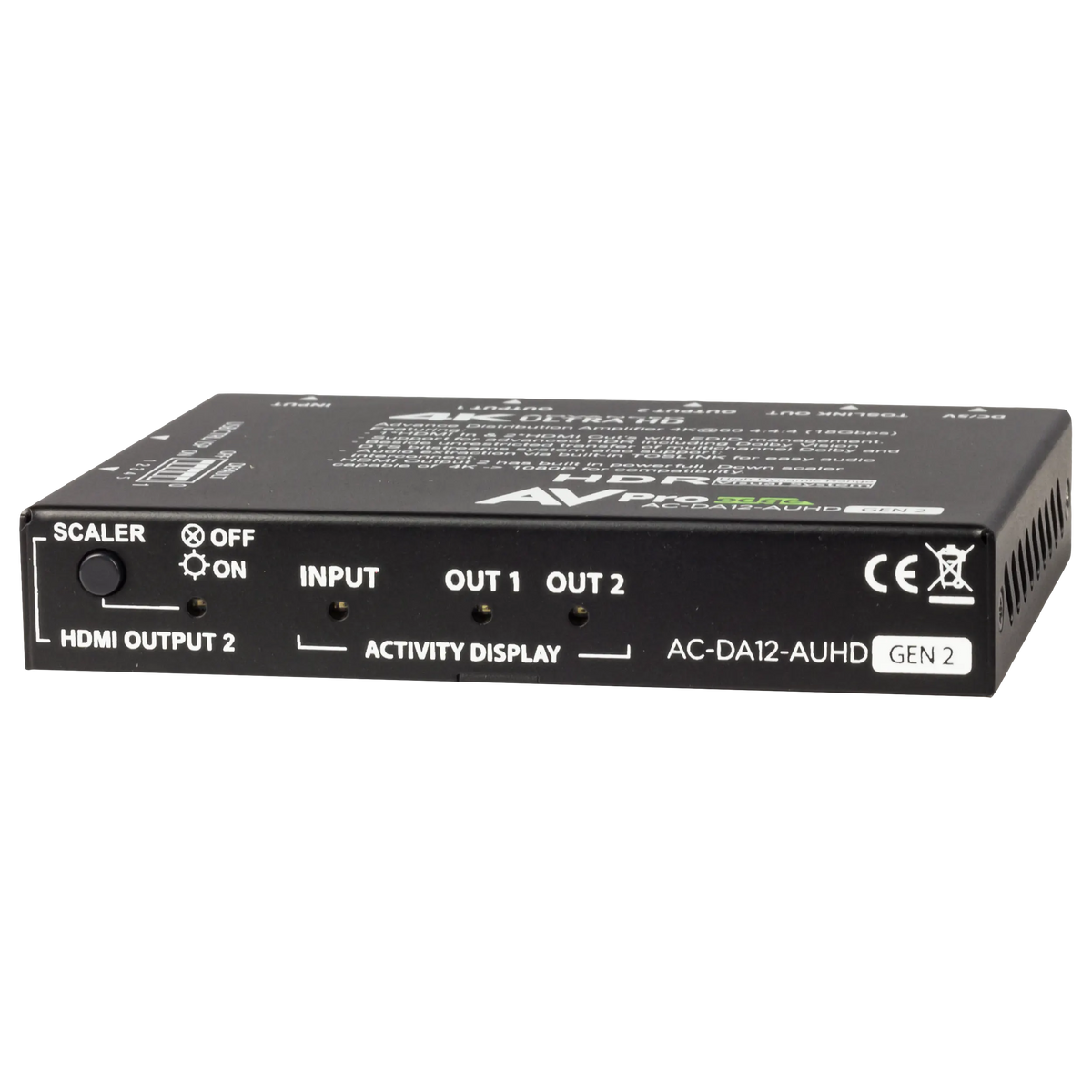

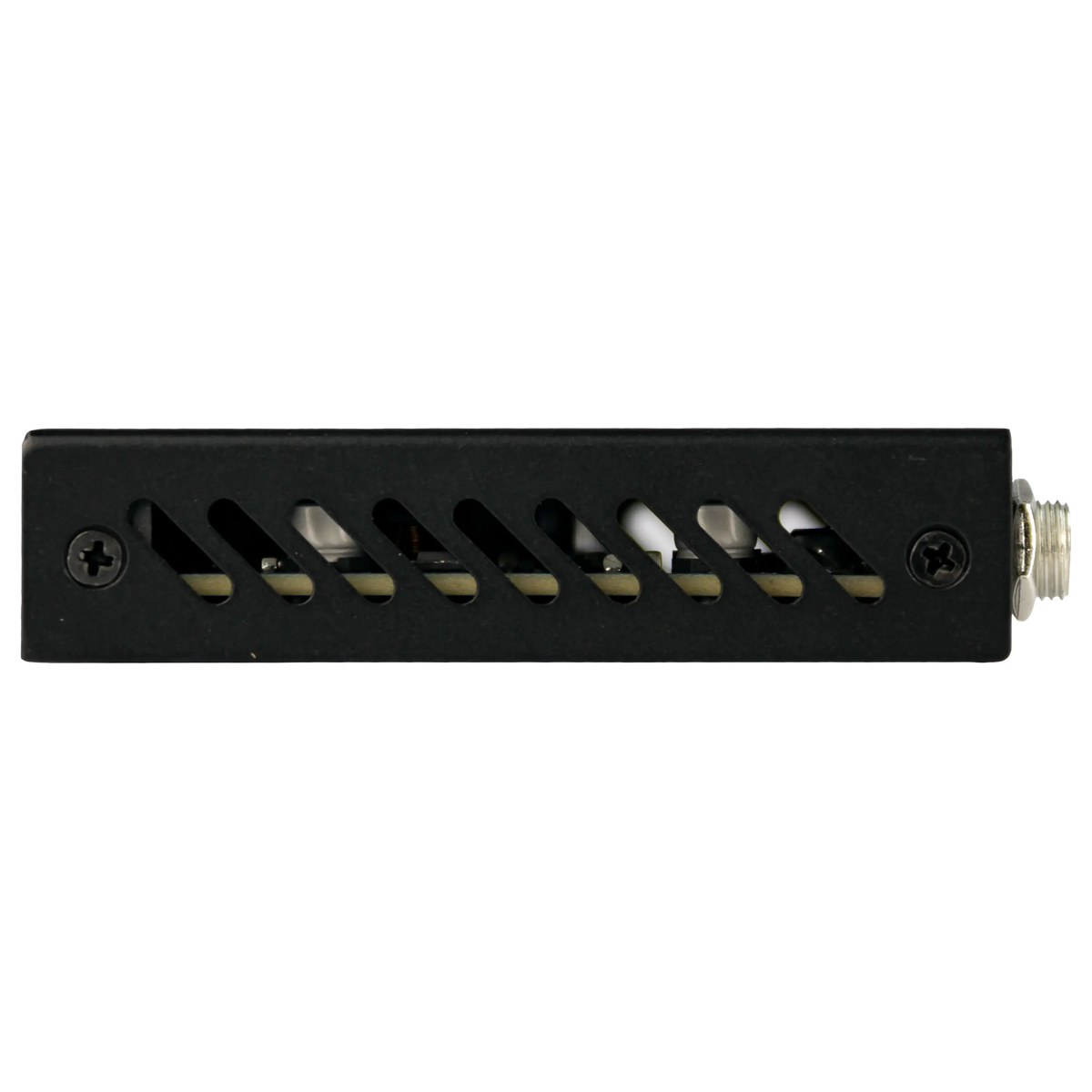

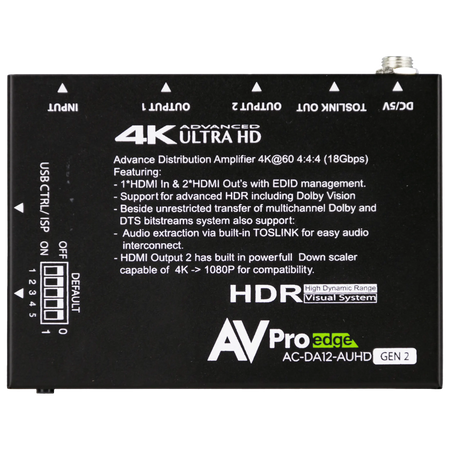

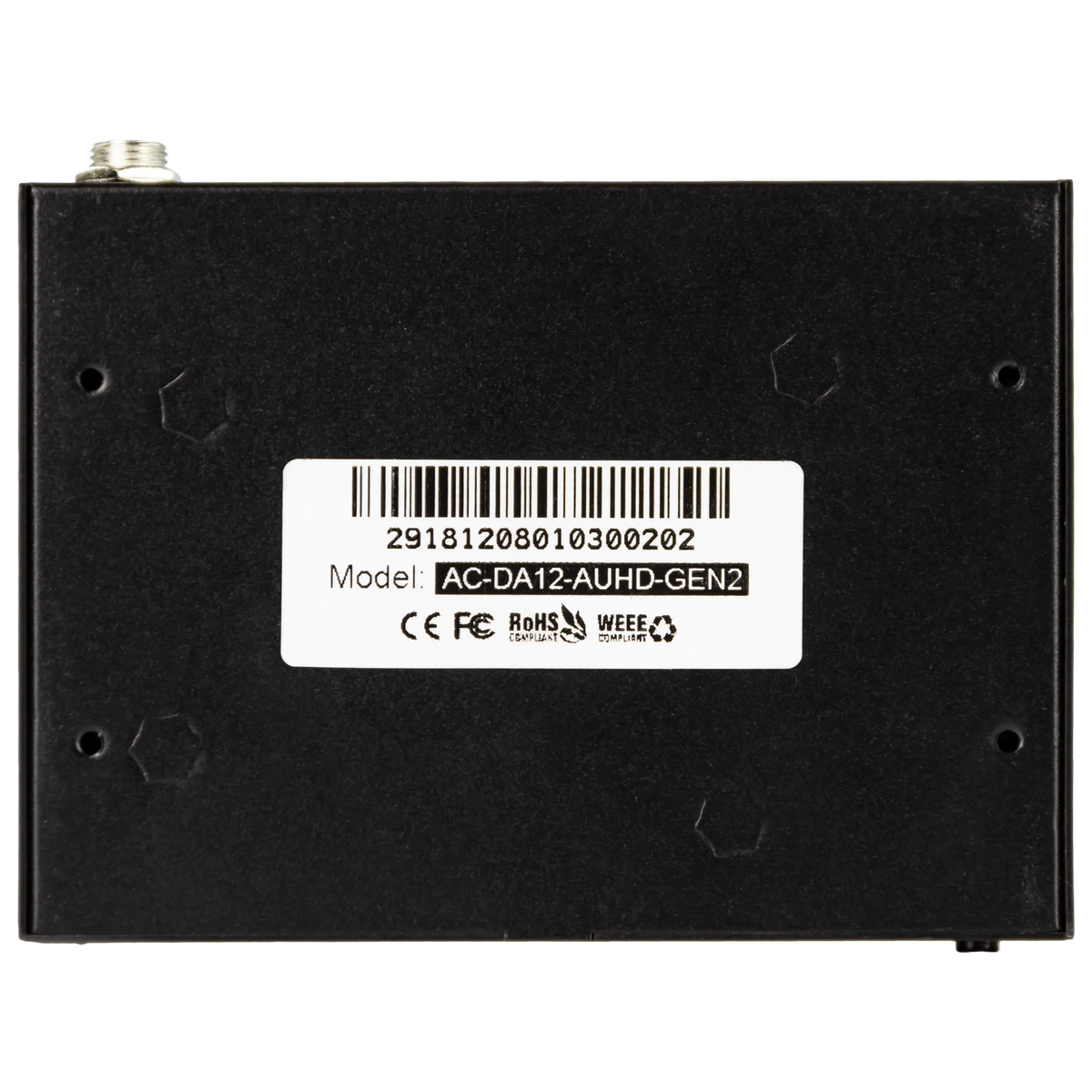

AVPro Edge 18Gbps 1x2 HDMI Distribution Amplifier 4K Video

SKU: AC-DA12-AUHD-GEN2
Regular price $350.00

Frequently Asked Questions

An HDMI distribution amplifier takes one HDMI source and sends it to multiple displays while maintaining signal stability. It is commonly used when you want the same content on two TVs, projectors, monitors, or AV destinations at the same time. Unlike a basic splitter, a distribution amplifier is designed to handle signal management more reliably, especially with modern 4K formats, HDR, and HDCP copy protection. This AVPro Edge 1x2 HDMI distribution amplifier is built for professional AV applications. It supports the full 18Gbps HDMI 2.0 bandwidth needed for 4K at 60Hz with 4:4:4 chroma, along with HDCP 2.2 and HDR formats including HDR10, HDR10+, HLG, and Dolby Vision. It also adds practical features such as EDID management, audio extraction through Toslink, and 4K to 1080p down-scaling. It is a strong fit for conference rooms, digital signage, classrooms, home theaters, and other systems where one source must feed two displays consistently. If you only need to switch between sources instead of duplicating one source, you would want an HDMI switch rather than a distribution amplifier.
The main difference is signal management and compatibility. A basic HDMI splitter simply duplicates the signal, but many low-end models do not manage EDID, HDCP, HDR, or mixed-resolution displays very well. A distribution amplifier is designed to distribute the signal more reliably and is better suited for professional or permanent AV installations. This model supports 18Gbps bandwidth, which is important for full 4K60 4:4:4 video. It is also HDCP 2.2 compliant, which matters for protected content from modern streaming boxes, media players, and source devices. Full HDR support, including Dolby Vision, makes it suitable for newer displays. The built-in EDID controls help the installer manage handshake behavior between the source and connected displays. For buyers, the real advantage is predictability. If you are feeding two displays that may have different capabilities, or you need stable operation in a conference room, classroom, or home theater rack, a distribution amplifier is usually the better choice. A simple splitter can be fine for basic 1080p use, but it is more likely to create compatibility issues in advanced 4K systems.

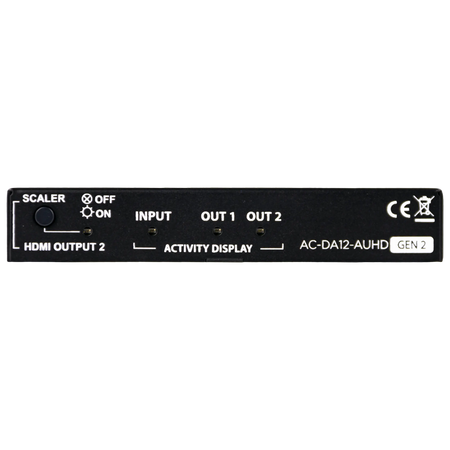

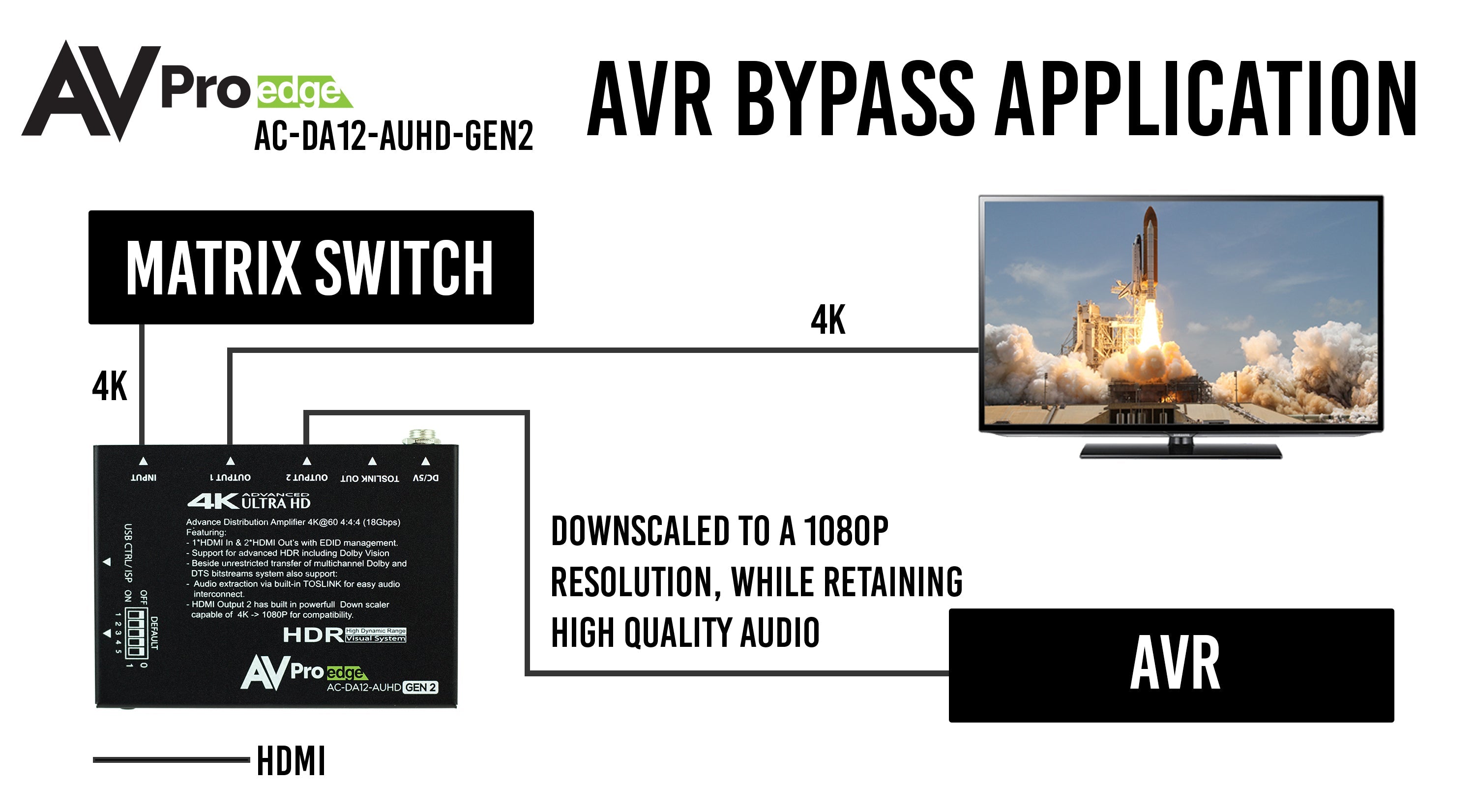

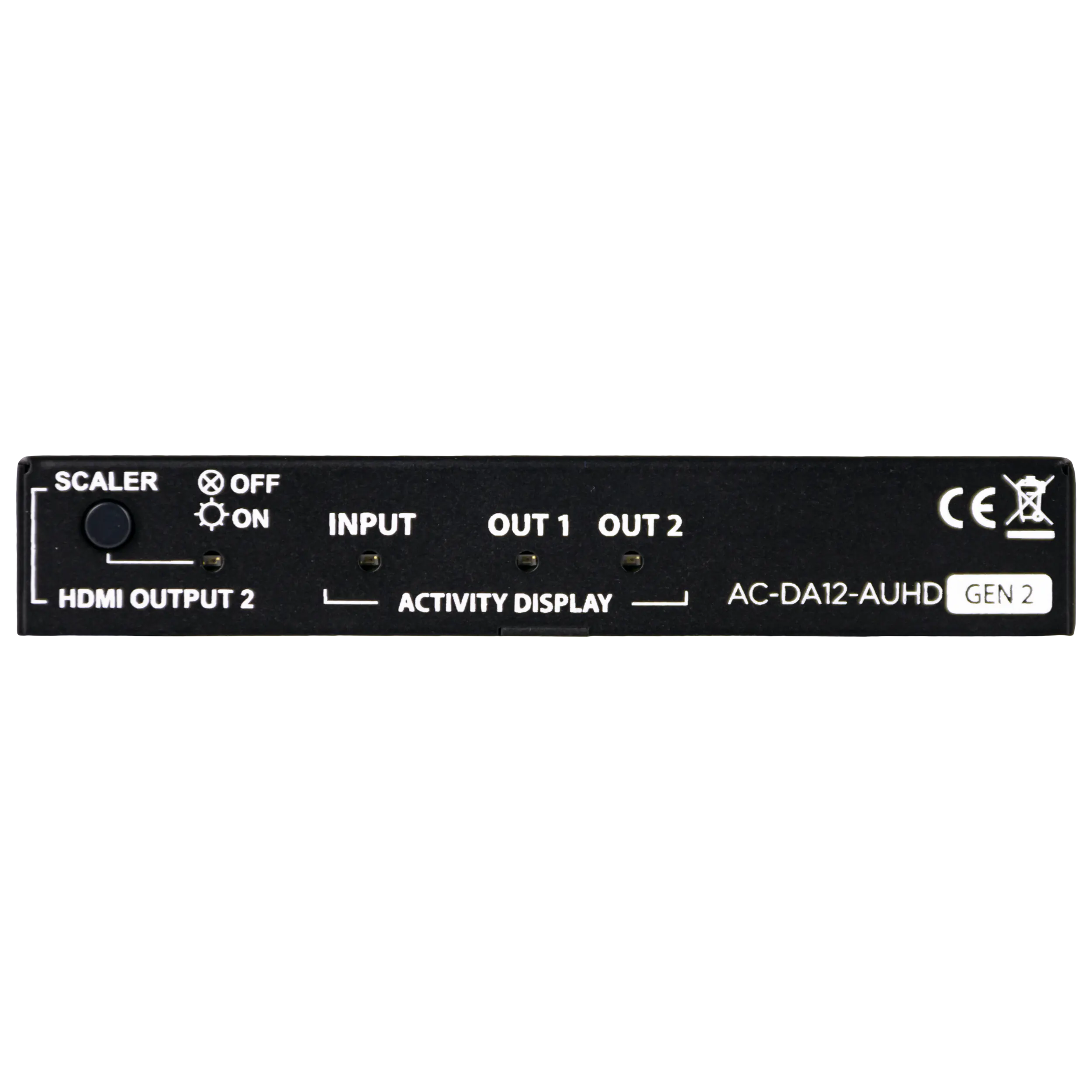

Yes, that is one of the most useful features of this unit. It includes 4K to 1080p down-scaling, which allows a 4K source to be used with a newer 4K display and an older 1080p display in the same system. That makes it practical for mixed-display environments where not every screen has been upgraded. This is especially helpful in commercial AV, education, and home installations where one display may be a primary 4K screen and the second display may be a legacy monitor, confidence display, or older projector. Without down-scaling, the entire system often defaults to the lowest shared resolution, which can reduce image quality on the better display. The key benefit is flexibility. You can keep the main display at higher quality while maintaining compatibility with the older screen. Buyers should still confirm how their specific source and displays handle EDID and scaling, but this feature is a strong reason to choose a professional-grade HDMI distribution amplifier over a simpler splitter when different display resolutions are involved.
Yes. This HDMI distribution amplifier supports the full 18Gbps bandwidth needed for 4K at 60Hz with 4:4:4 chroma, which is important for high-detail video, PC graphics, and presentation content where text clarity matters. It also supports modern HDR formats including HDR10, HDR10+, HLG, and Dolby Vision. That level of compatibility makes it suitable for current 4K source devices and modern displays in both residential and commercial AV systems. If you are connecting a media player, streaming device, game console, or presentation source that outputs 4K HDR, this unit is built to pass those signals correctly, provided the connected displays also support them. For shoppers, the practical takeaway is that this is not limited to older 4K standards or basic HDR. It is a better fit for installations that need to preserve image quality and dynamic range across two outputs. The limitation is that both source and display compatibility still matter, so the entire signal chain must support the format you want to use.

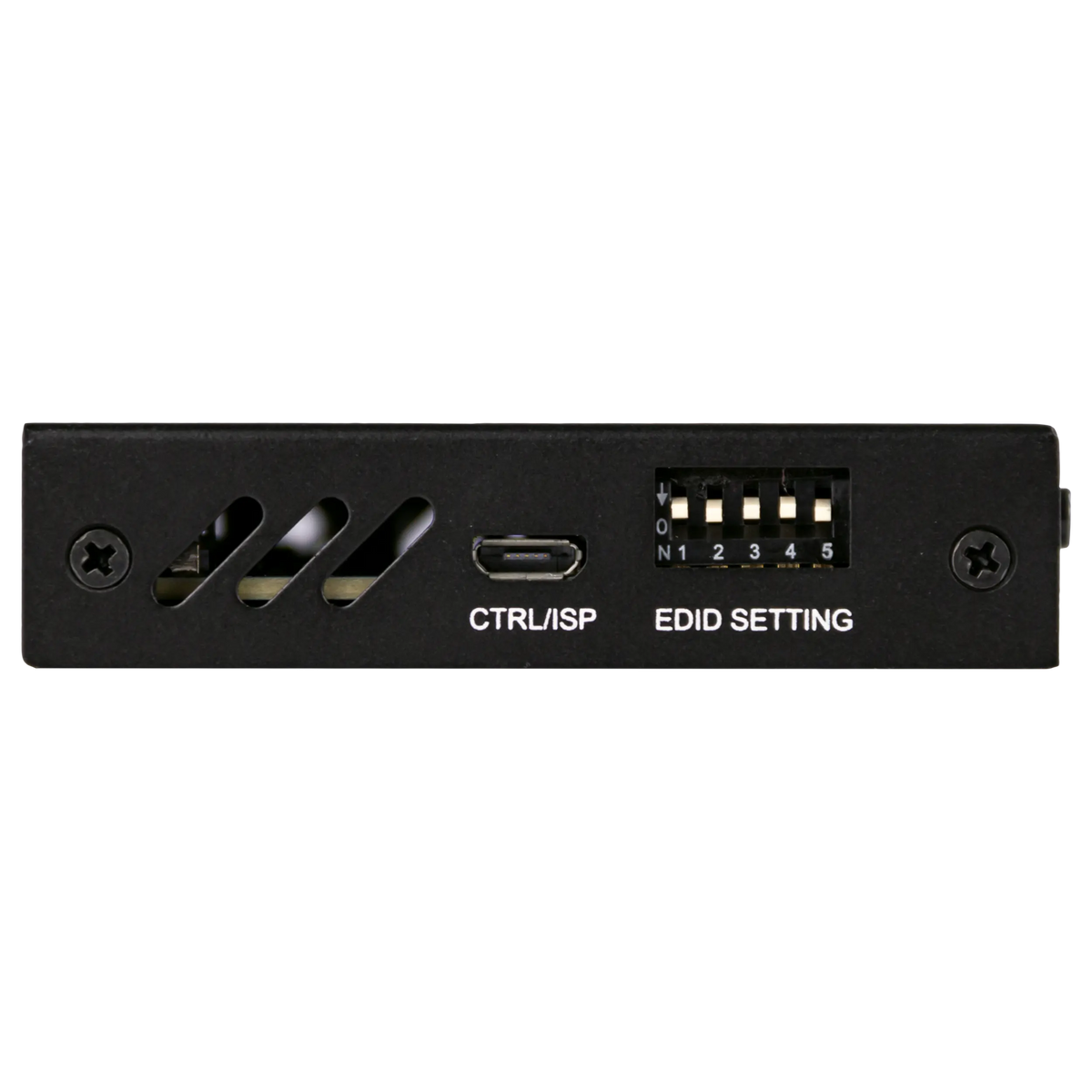

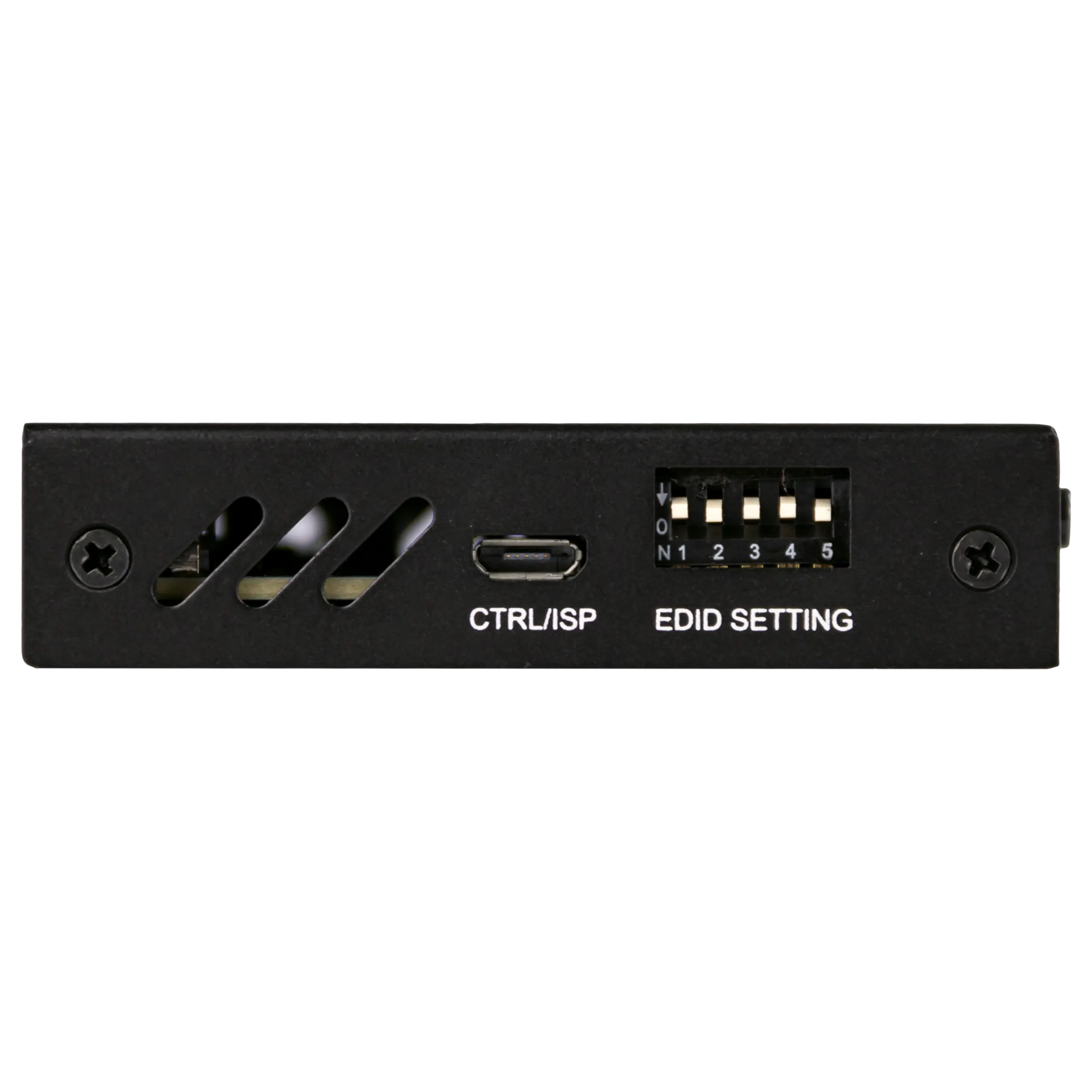

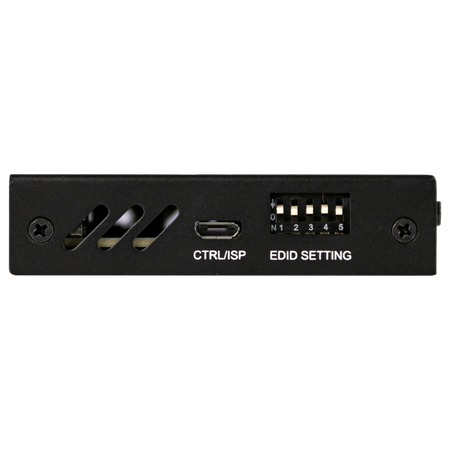

EDID management helps the source device understand what video and audio formats the connected displays can accept. Without proper EDID handling, HDMI systems can run into handshake problems such as incorrect resolution, no image, no audio, or the source dropping down to a lower format than necessary. This AVPro Edge unit includes advanced EDID management with dual rotary controls, which gives the installer more control over how the source negotiates with the connected displays. That is especially important when two displays have different capabilities, such as one 4K HDR display and one older 1080p screen. For buyers, this matters because reliable HDMI performance is not just about bandwidth. It is also about communication between devices. Better EDID control can reduce troubleshooting time and improve consistency in conference rooms, classrooms, digital signage, and home theater systems. If your setup includes mixed display types or you have had HDMI handshake issues before, EDID management is a feature worth prioritizing over low-cost splitters with limited control.

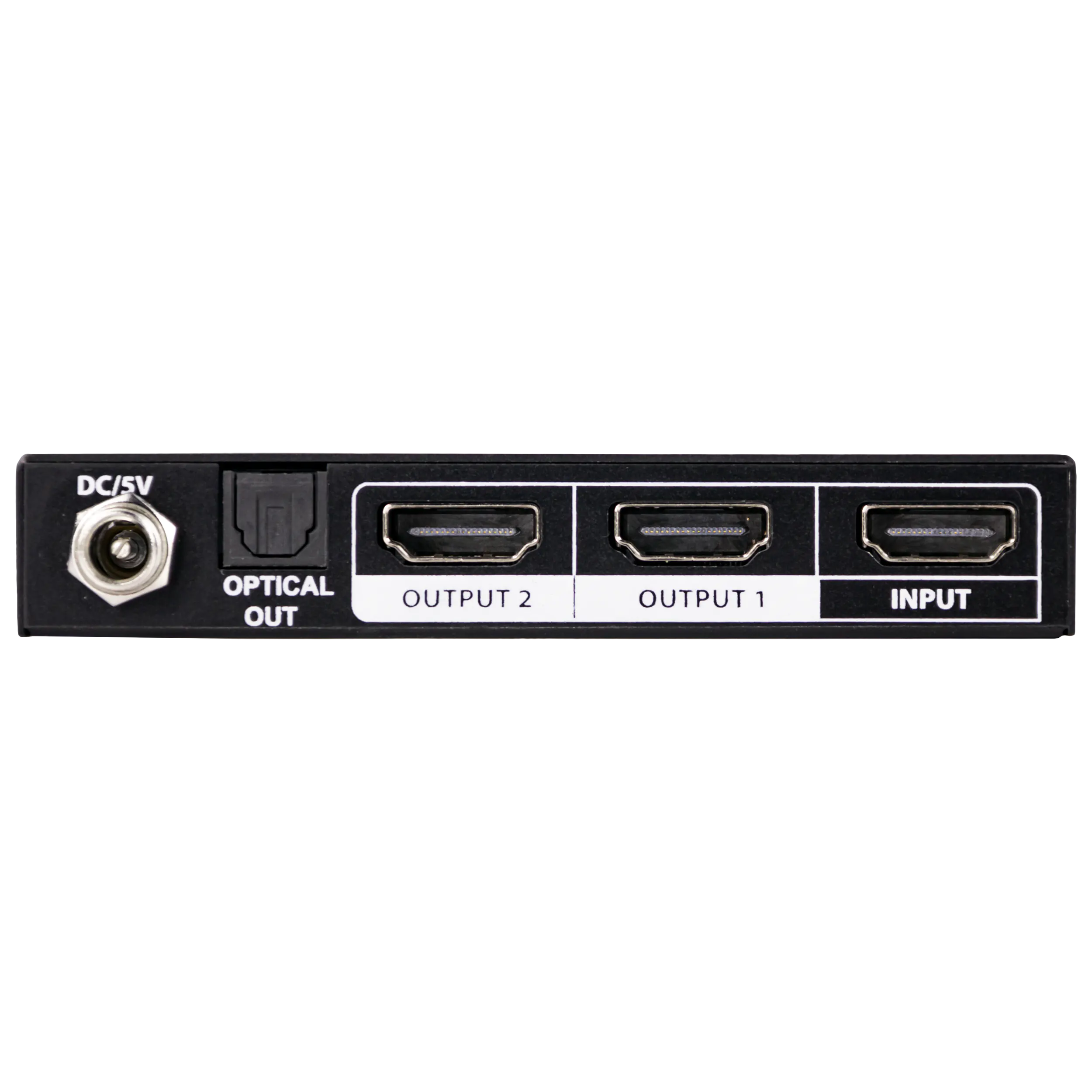

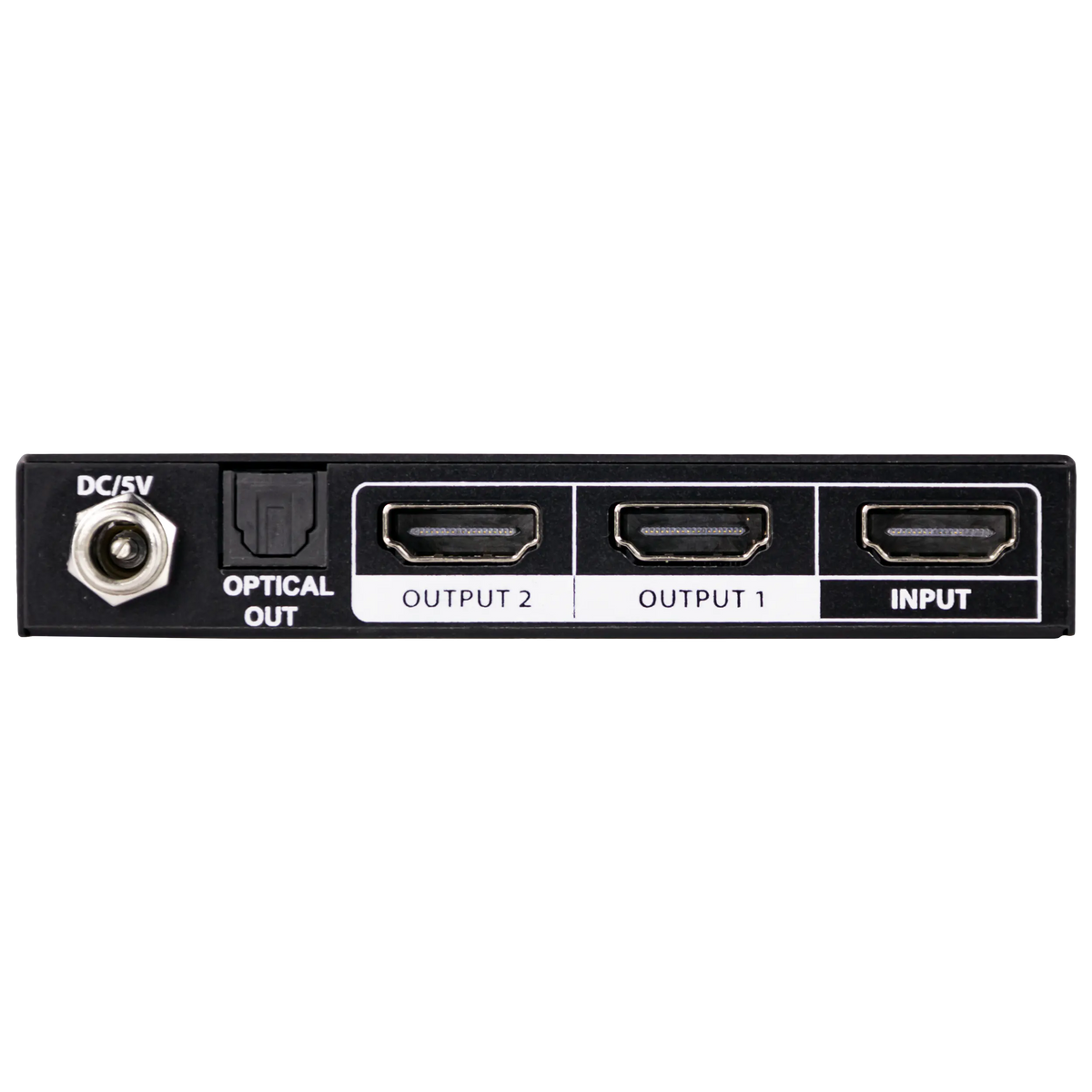

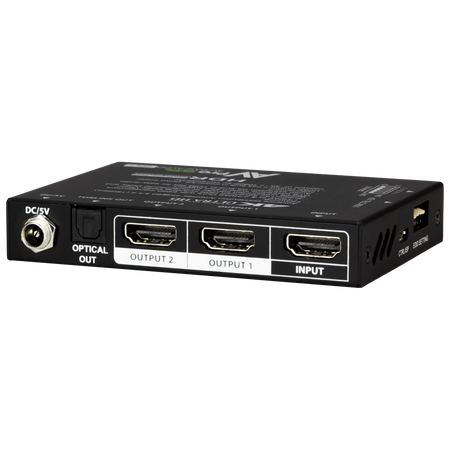

Yes. This unit includes digital audio extraction through a Toslink output, which allows audio to be separated from the HDMI signal and sent to compatible audio equipment. That can be useful if your display does not handle audio the way you need, or if you want to feed an external sound system while also sending video to two displays. This is a practical feature in conference rooms, bars, classrooms, and home entertainment systems where the source audio needs to be routed independently. For example, a source can feed two screens while the extracted digital audio goes to a sound processor, amplifier, or legacy audio device with optical input. The main advantage is system flexibility. You are not relying entirely on the display’s audio output path. Buyers should note that the product description specifies Toslink digital audio extraction, so it is best suited for systems that accept optical audio. If your system depends on HDMI ARC or newer return-audio features, that is a different function and should not be confused with source audio extraction.
A 1x2 HDMI distribution amplifier is the right choice when you need to send one source to exactly two displays and want a cleaner, simpler installation. It is commonly used for a main screen plus a secondary monitor, mirrored displays in retail or hospitality, dual-display conference rooms, or a projector and flat panel showing the same content. A 1x4 model is better when the same source must feed four displays at once, such as menu boards, multi-screen signage, or larger distributed viewing areas. Choosing a larger model than you need can add cost and complexity without improving performance for a two-display setup. This AVPro Edge 1x2 model adds value for buyers who need more than basic duplication. It supports 4K60 4:4:4, HDR, HDCP 2.2, audio extraction, EDID management, cascading, and 4K to 1080p down-scaling. That makes it well suited for professional AV systems where two outputs are enough but reliability and format support still matter. If future expansion beyond two displays is likely, then a higher output count may be worth considering from the start.
Yes, it is well suited for those environments because it combines high-format video support with installation-focused features. Conference rooms and classrooms often need one source duplicated to a front display and a confidence monitor, or to a projector and a flat panel. Digital signage systems often need the same content on two screens with dependable operation. This unit supports 4K60 4:4:4, HDCP 2.2, and major HDR formats, which helps it work with modern source devices and displays. The built-in EDID management can reduce HDMI handshake issues, and 4K to 1080p down-scaling is useful when one of the displays is older. Audio extraction through Toslink also helps when sound must be routed to a separate audio system. Its compact, low-profile design makes installation easier in furniture, racks, lecterns, or behind displays. It is a strong fit for professional AV setups that need stable mirroring of one source to two endpoints. Buyers who need long-distance transmission over network cable should confirm whether they need a true HDBaseT extension solution in addition to or instead of an HDMI distribution amplifier.
Yes, this model supports cascading, which means it can be integrated into a larger signal distribution layout if your system needs to expand beyond two displays. Cascading is useful when a single 1x2 output is not enough and you want to build a multi-display system while keeping the same source signal path. For example, an installer might use one output for a local display and route the other output into another distribution stage to feed additional screens. In professional AV environments, that can be a practical way to scale a system without redesigning the entire signal chain from scratch. The benefit of cascading is flexibility, but it is still important to design carefully. As systems grow, EDID management, HDCP compatibility, and signal path planning become more important. This unit’s professional feature set helps with that, especially compared with entry-level splitters. Buyers planning a larger deployment should still map out display counts, resolutions, and audio needs in advance so the overall system remains stable and each display receives the intended format.
The most important things to check are bandwidth, resolution support, HDCP compatibility, HDR support, EDID management, and any special features your installation needs. For modern systems, 18Gbps bandwidth is a key benchmark because it supports 4K at 60Hz with 4:4:4 chroma, which is ideal for sharp video and readable text. You should also look for HDCP 2.2 compliance if you plan to use protected 4K content, and broad HDR support if image quality matters on newer displays. In mixed-resolution systems, built-in down-scaling can be very useful. EDID management is another major factor because it helps prevent handshake issues and lets the source communicate properly with both displays. This model checks those boxes with 18Gbps throughput, 4K60 4:4:4 support, HDCP 2.2, HDR10, HDR10+, HLG, Dolby Vision, Toslink audio extraction, dual rotary EDID controls, and 4K to 1080p down-scaling. It is a strong choice for buyers who need a professional 1x2 HDMI distribution amplifier rather than a basic consumer splitter.
The AVPro Edge 18Gbps 1x2 HDMI distribution amplifier is designed for professional AV systems, supporting 4K60 4:4:4 video and HDCP 2.2 compliance. This unit features full HDR support, including Dolby Vision, and includes built-in audio extraction via Toslink and 4K to 1080p down-scaling for legacy display compatibility. Built for stability, it supports cascading and advanced EDID management via dual rotary controls. The compact, low-profile design ensures easy installation in any environment.

Bandwidth 18 Gbps
Video Resolution Up to 4K 60Hz 4:4:4
HDR Support HDR10, HDR10+, Dolby Vision, HLG
Audio Output Digital Toslink
HDCP Version 2.2
Power Supply 5V 2A
Operating Temperature 23 to 125°F
Weight 0.18 kg
