AVPro Edge 18Gbps 16x16 HDMI Matrix Switch 4K HDR

SKU: AC-MX-1616
Regular price $13,843.00

Frequently Asked Questions

An HDMI matrix switch lets you route multiple source devices to multiple displays independently. In simple terms, it combines the job of an HDMI switch and an HDMI splitter, so any input can be sent to any output without reconnecting cables. This is especially useful in commercial AV systems, training rooms, sports bars, digital signage networks, control rooms, and large homes where different screens need different content. A 16x16 HDMI matrix like the AVPro Edge AC-MX-1616 can connect up to 16 sources and distribute them to up to 16 displays. It also supports professional control options such as LAN, RS232, and IR, which helps integrators automate routing changes. Buyers benefit most when they need centralized signal management, clean rack installation, and reliable switching between many devices. The tradeoff is that a matrix switch is more advanced than a basic HDMI switch, so it makes the most sense for larger systems rather than a simple one-display setup.
The best HDMI matrix switcher for a professional 4K installation is one that matches the system size, signal format, control requirements, and audio needs of the project. For demanding installations, a strong option is a matrix that supports full 18Gbps bandwidth, 4K at 60Hz 4:4:4, HDR formats, dependable EDID management, and multiple control methods. The AVPro Edge 16x16 HDMI Matrix Switch is designed for that level of use. It supports HDMI 2.0a/b, HDR10, HDR10+, Dolby Vision, and HLG, making it appropriate for modern high-performance sources and displays. Its 16x16 capacity suits large distributed AV systems, while the 1U chassis helps save rack space. It also includes 16 analog audio de-embedding outputs and built-in test patterns for system verification. This type of matrix is best for integrators, corporate environments, education, and other multi-display installations. It may be more than a smaller project needs, so buyers with only a few sources and displays may be better served by a lower-capacity matrix.
Yes, an HDMI matrix switch is worth it when you need flexible routing between several sources and several displays. A basic HDMI switch usually sends multiple sources to one display, while a splitter sends one source to multiple displays. A matrix does both kinds of routing in one system. That flexibility matters in real-world installations. For example, a conference center may want one media player on several screens in the morning, then different laptops on different screens later in the day. A matrix switch makes those changes fast and centralized. The AVPro Edge 16x16 model also adds advanced features that basic devices often lack, including 18Gbps support, 4K 60Hz 4:4:4, HDR compatibility, EDID management, and professional control via LAN, RS232, and IR. The tradeoff is complexity and scale. If you only need to connect one or two devices to one TV, a simple switch is usually enough. A matrix becomes worthwhile when reliability, centralized control, and multi-room or multi-display routing are priorities.
A 4x4 HDMI matrix has 4 inputs and 4 outputs, meaning it can route any of 4 source devices to any of 4 displays. A 16x16 matrix does the same thing on a much larger scale, with 16 inputs and 16 outputs for more complex systems. The main difference is capacity and intended use. A 4x4 matrix is often enough for a small conference room suite, classroom group, or residential media setup. A 16x16 matrix like the AVPro Edge AC-MX-1616 is built for larger commercial AV environments, such as enterprise facilities, control rooms, hospitality spaces, or distributed video systems with many endpoints. Beyond size, larger professional matrices often include higher-level features. This model supports full 18Gbps HDMI 2.0a/b, 4K 60Hz 4:4:4 video, HDR10, HDR10+, Dolby Vision, HLG, 16 analog audio de-embedding outputs, built-in test patterns, and extensive control options. Buyers should choose based on current needs and future expansion, since oversizing can add cost and complexity, but undersizing can limit the system quickly.
If you want full-quality 4K HDR from modern sources, then yes, an 18Gbps HDMI matrix is usually the right choice. That bandwidth is important for carrying 4K at 60Hz with 4:4:4 chroma, which preserves image detail for sharp text, graphics, and high-quality video. The AVPro Edge 16x16 matrix supports the full 18Gbps data rate and HDMI 2.0a/b features, including HDR10, HDR10+, Dolby Vision, and HLG. That makes it suitable for systems using current media players, computers, signage sources, and displays that require more than older 10.2Gbps hardware can handle. This matters most in commercial presentation spaces, digital signage, premium home AV, and any installation where image fidelity and HDR compatibility are priorities. If your system only runs lower-resolution signals or older 1080p equipment, a lower-bandwidth matrix may still work. But for buyers planning around current 4K infrastructure, 18Gbps support helps avoid compatibility limitations and preserves full signal performance.
Yes, this matrix switch is designed to support major HDR formats used in modern AV systems. The AVPro Edge AC-MX-1616 supports HDR10, HDR10+, Dolby Vision, and HLG, along with 4K 60Hz 4:4:4 video over its 18Gbps HDMI platform. That broad HDR support is important because professional installations often include a mix of sources and displays with different capabilities. A matrix that handles multiple HDR formats can reduce compatibility problems and help preserve image quality across the system. This is especially relevant in high-end conference spaces, digital signage, simulation environments, and premium media distribution where content quality matters. The key limitation is that overall performance still depends on the connected source devices, displays, cable quality, and system configuration. If one display in the signal chain has lower capabilities, that can affect how the system must be managed. This is where advanced EDID management becomes valuable, since it helps maintain stable handshakes and better interoperability in mixed-display environments.
A 16x16 HDMI matrix switch is best for buyers managing a large number of sources and displays in one centralized AV system. It makes the most sense in corporate campuses, higher education, hospitality, command centers, multi-room training facilities, large residential projects, and digital signage networks. The AVPro Edge 16x16 model is especially appropriate when the system needs professional-grade video support, independent routing, and centralized control. With 16 inputs and 16 outputs, it can support complex routing scenarios that smaller matrices cannot. Its 1U high-density form factor also helps in racks where space is limited, and its control options include LAN, RS232, IR, and Micro USB. A smaller matrix is often the better choice for a single room or a project with only a few displays. Buyers should also consider future growth. If the installation may expand, choosing a larger matrix early can simplify infrastructure planning. If expansion is unlikely, a lower-capacity matrix may be more practical and easier to manage.

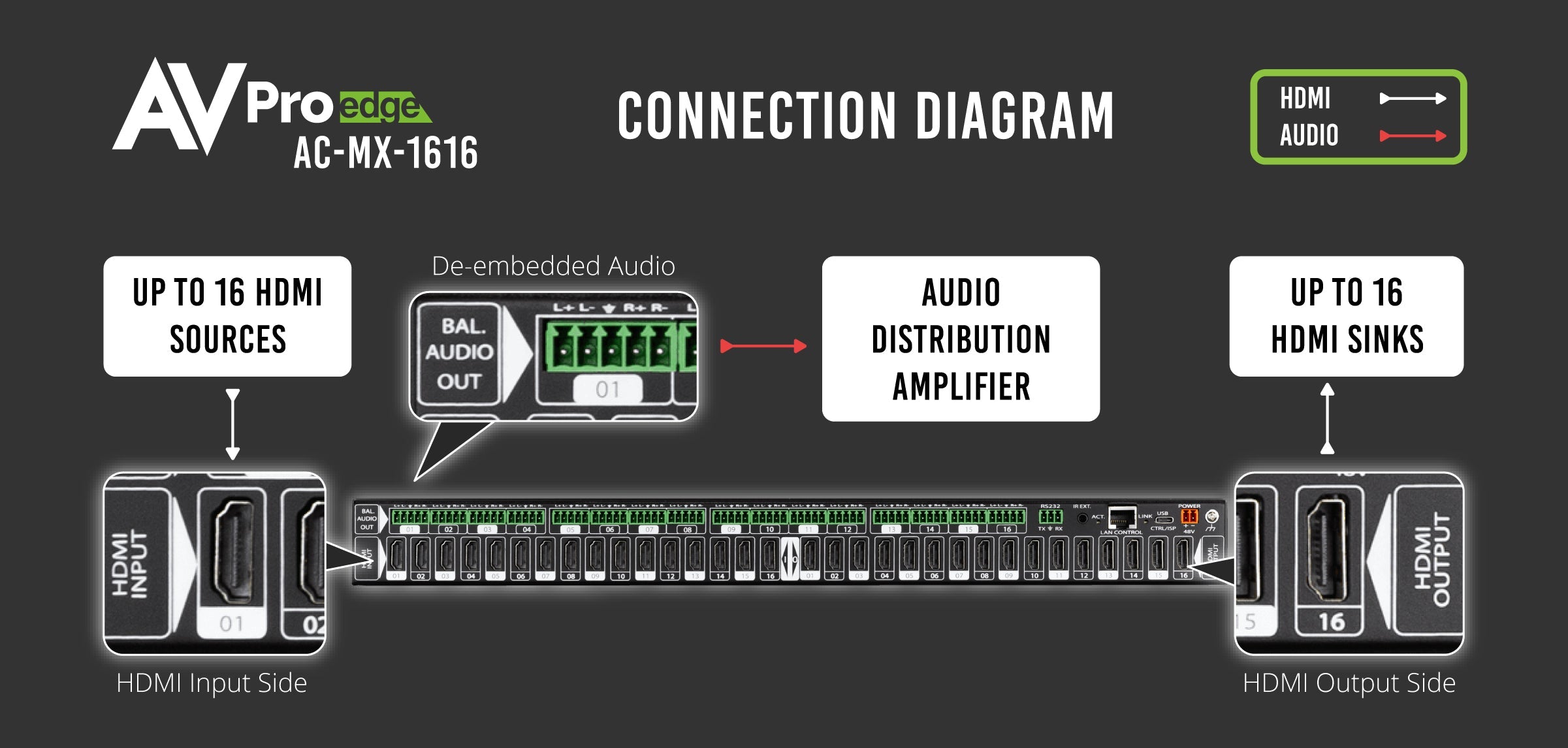

Yes, this model includes extensive audio de-embedding. The AVPro Edge AC-MX-1616 provides 16 analog 2-channel audio outputs, allowing audio to be separated from the HDMI signal for routing to external amplifiers, DSPs, or distributed audio systems. This is useful in installations where video goes to displays but audio needs to be handled independently. Common examples include conference centers, classrooms, hospitality spaces, and control environments where local screen audio is not enough or where centralized sound reinforcement is required. Having dedicated analog outputs can simplify integration with existing audio infrastructure. This feature benefits integrators who need more control over signal distribution and system design. The limitation is that buyers should verify the exact audio format requirements of their project, especially if they need more than 2-channel analog output at each point. For many commercial AV applications, though, built-in de-embedding adds flexibility and reduces the need for separate external audio extraction hardware.
EDID management matters because it helps sources and displays communicate correctly about supported resolutions, refresh rates, color formats, and HDR capabilities. In matrix systems with many devices, poor EDID handling can cause handshake failures, wrong resolutions, loss of HDR, or unstable signal performance. The AVPro Edge 16x16 matrix includes advanced EDID management, which is important in large installations where displays may have mixed capabilities. For example, some screens may support full 4K 60Hz HDR while others may not. Good EDID control helps the integrator manage those differences and keep the system operating predictably. This feature is especially valuable for professional AV environments where uptime and consistency matter more than simple plug-and-play convenience. It helps reduce troubleshooting time and supports cleaner deployment across varied hardware. Buyers who are building a larger routed video system should view EDID management as a core reliability feature, not just a technical extra.
Built-in test patterns are used to verify cabling, displays, and signal paths without depending on an external source device. In professional AV installations, that saves time during setup, troubleshooting, and system validation. On the AVPro Edge 16x16 HDMI matrix, built-in test patterns help integrators confirm that the infrastructure is working properly across outputs before diagnosing source-related issues. This can be very useful in large racks or distributed systems where many devices and cable runs are involved. Instead of wondering whether a problem is caused by the player, the cable, or the display, a test pattern gives a known reference signal for faster isolation. This feature is most valuable for installers, IT teams, and facility managers who need dependable commissioning tools. It may be less important for very simple AV setups, but in larger 4K HDR environments, built-in test patterns can reduce labor, speed up deployment, and improve confidence that the matrix and connected displays are functioning as intended.

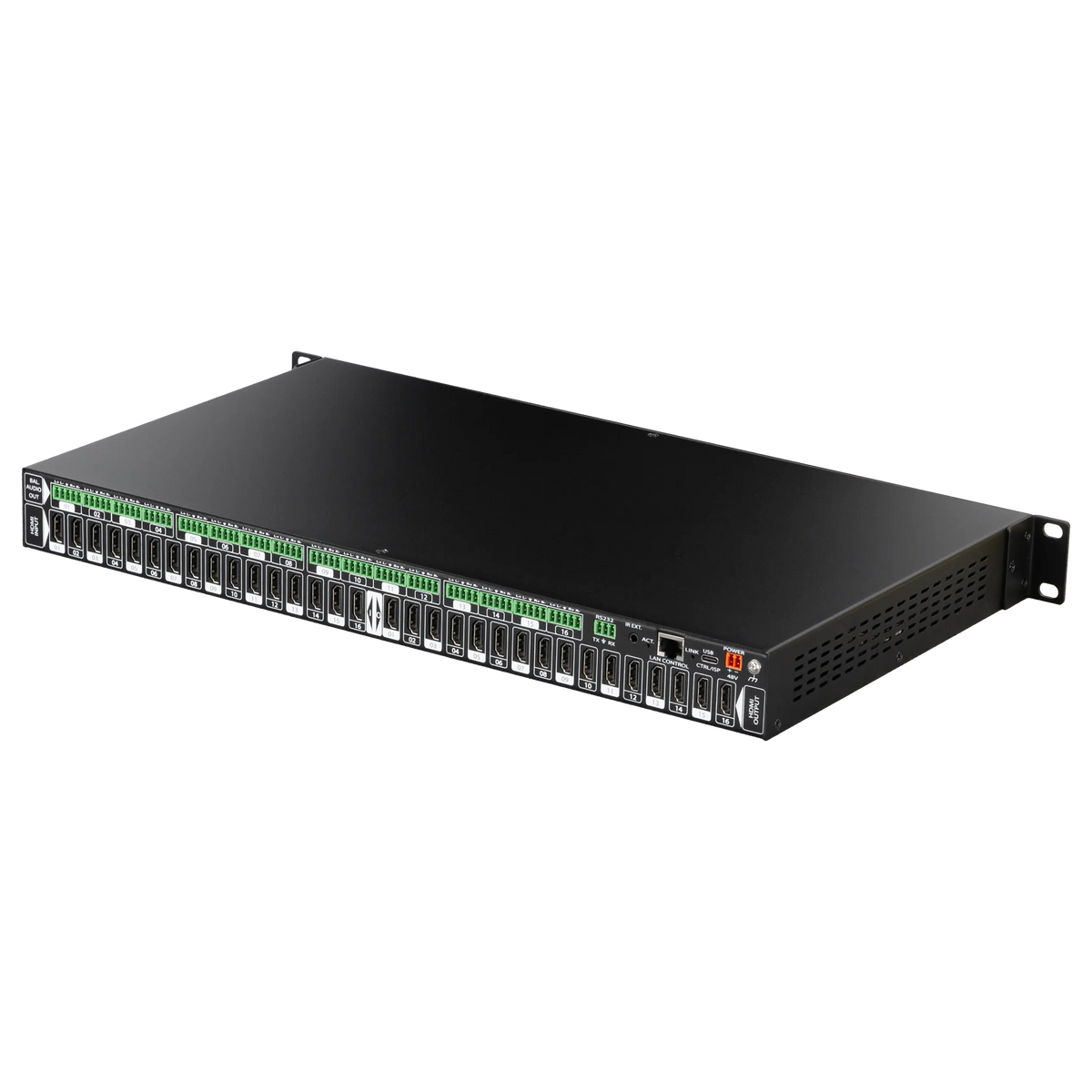

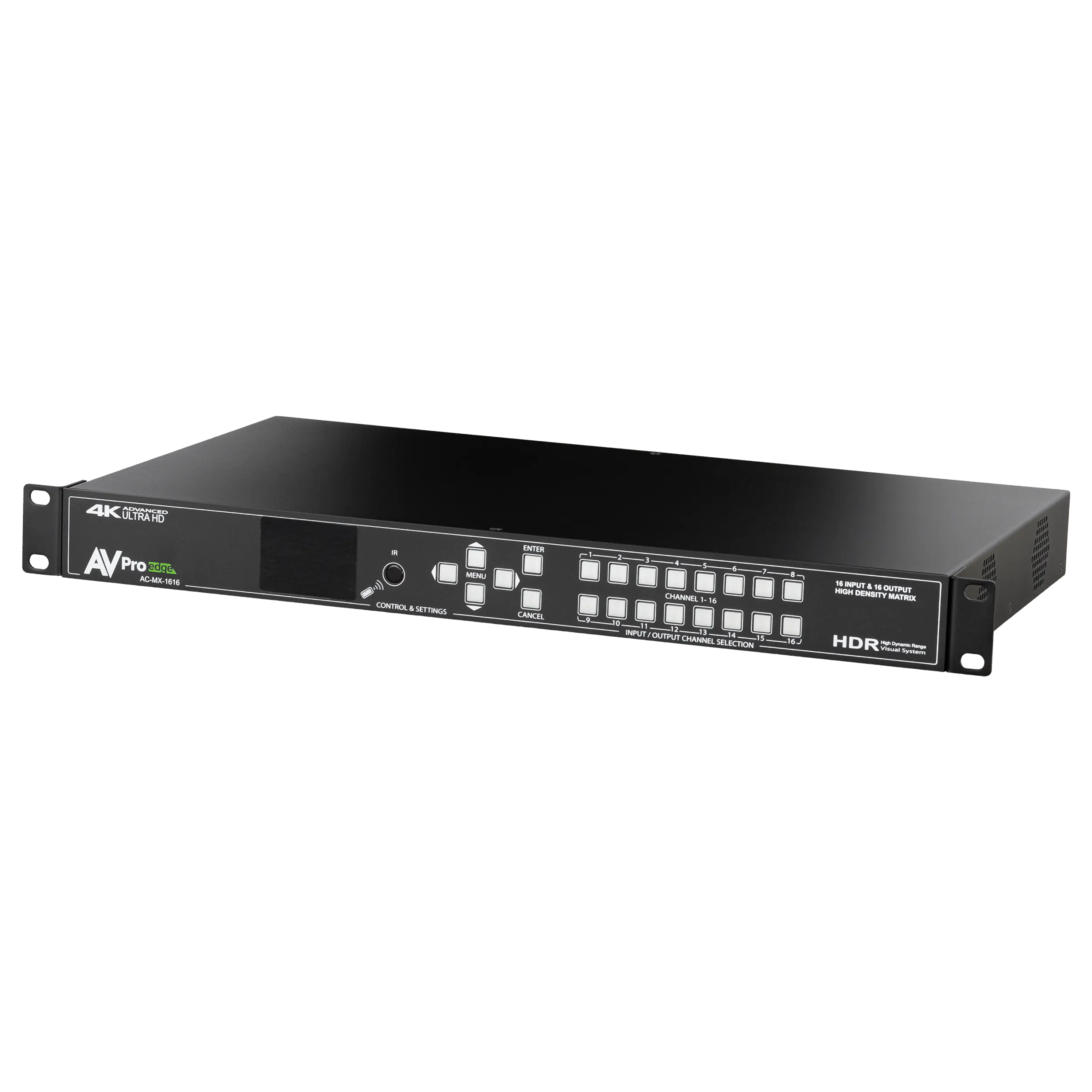

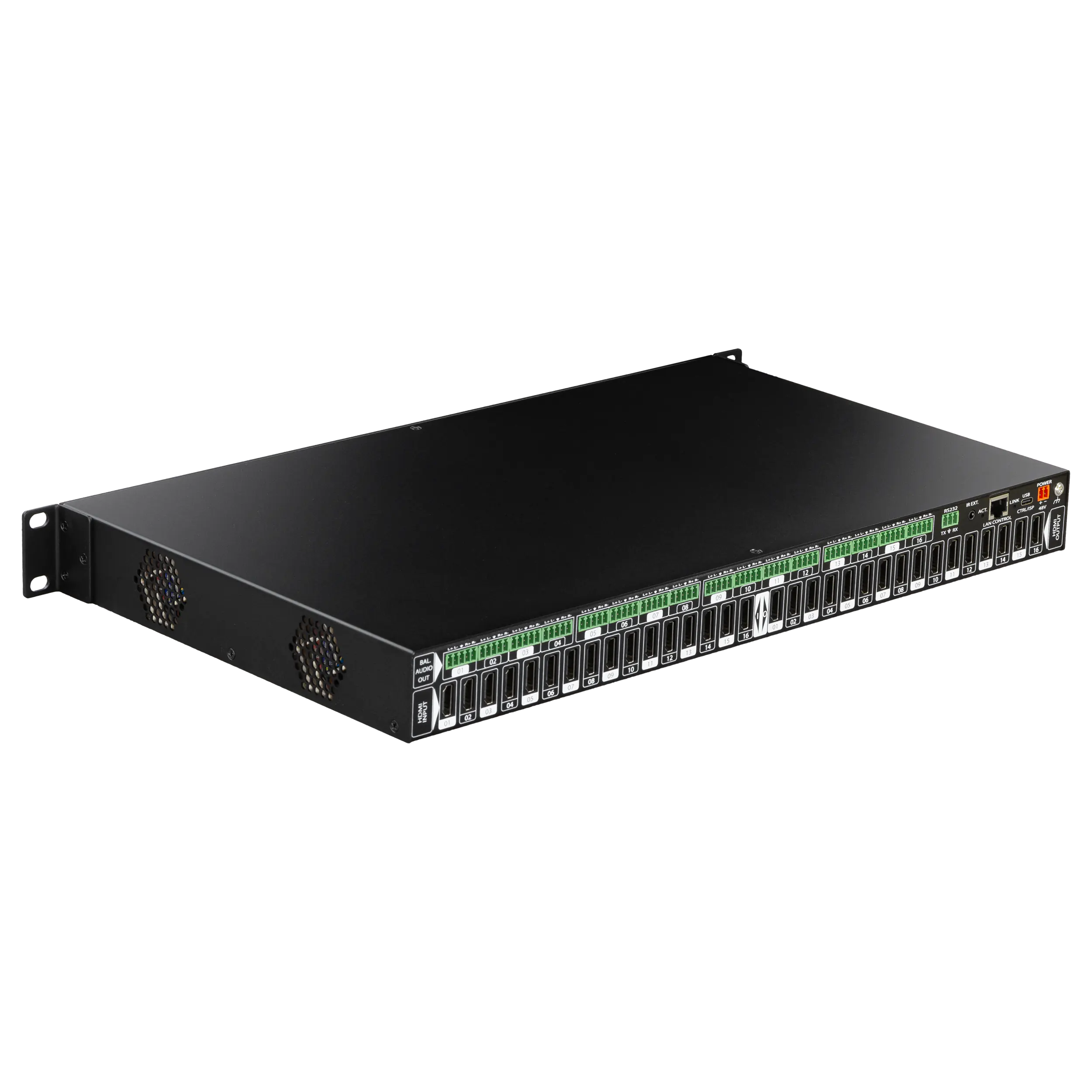

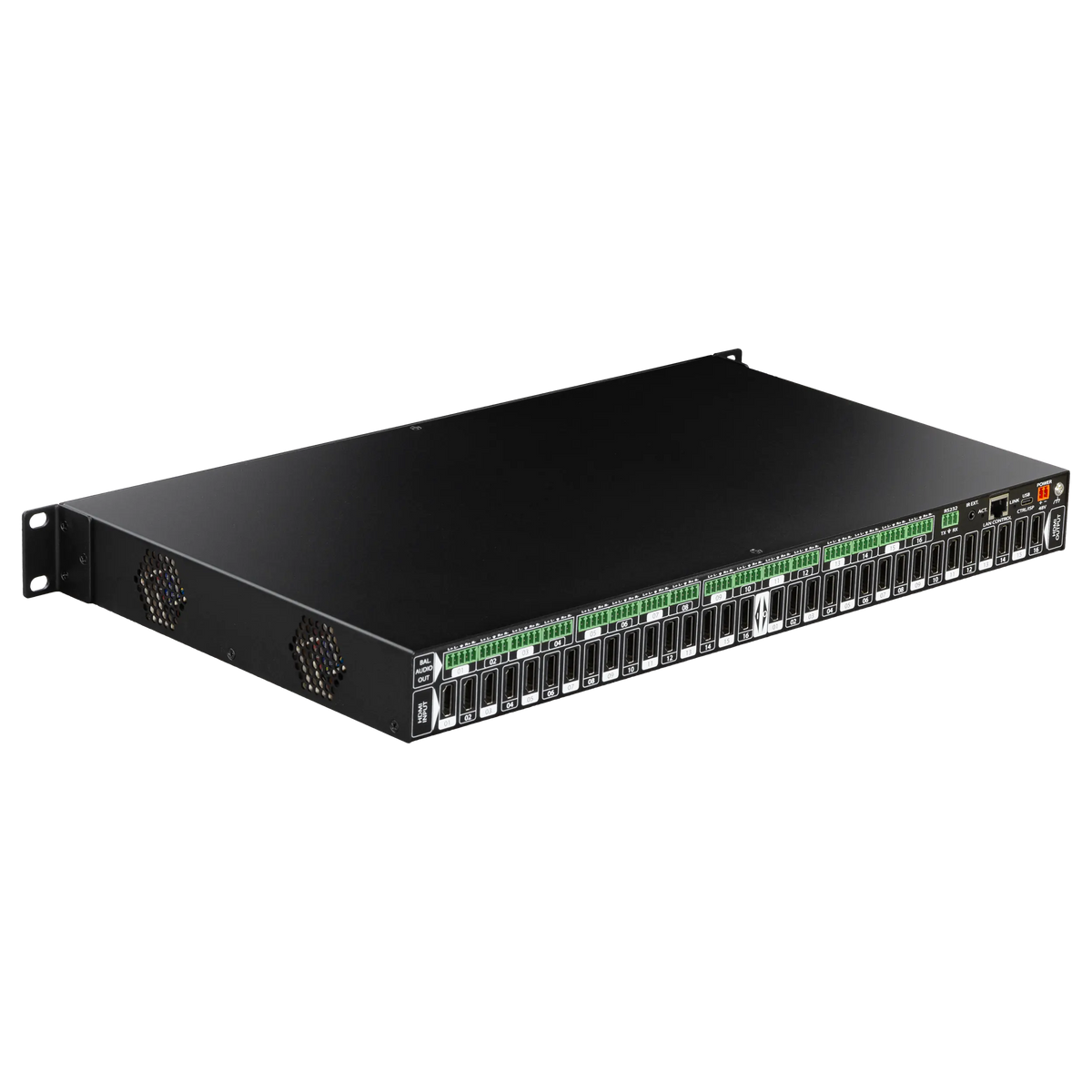

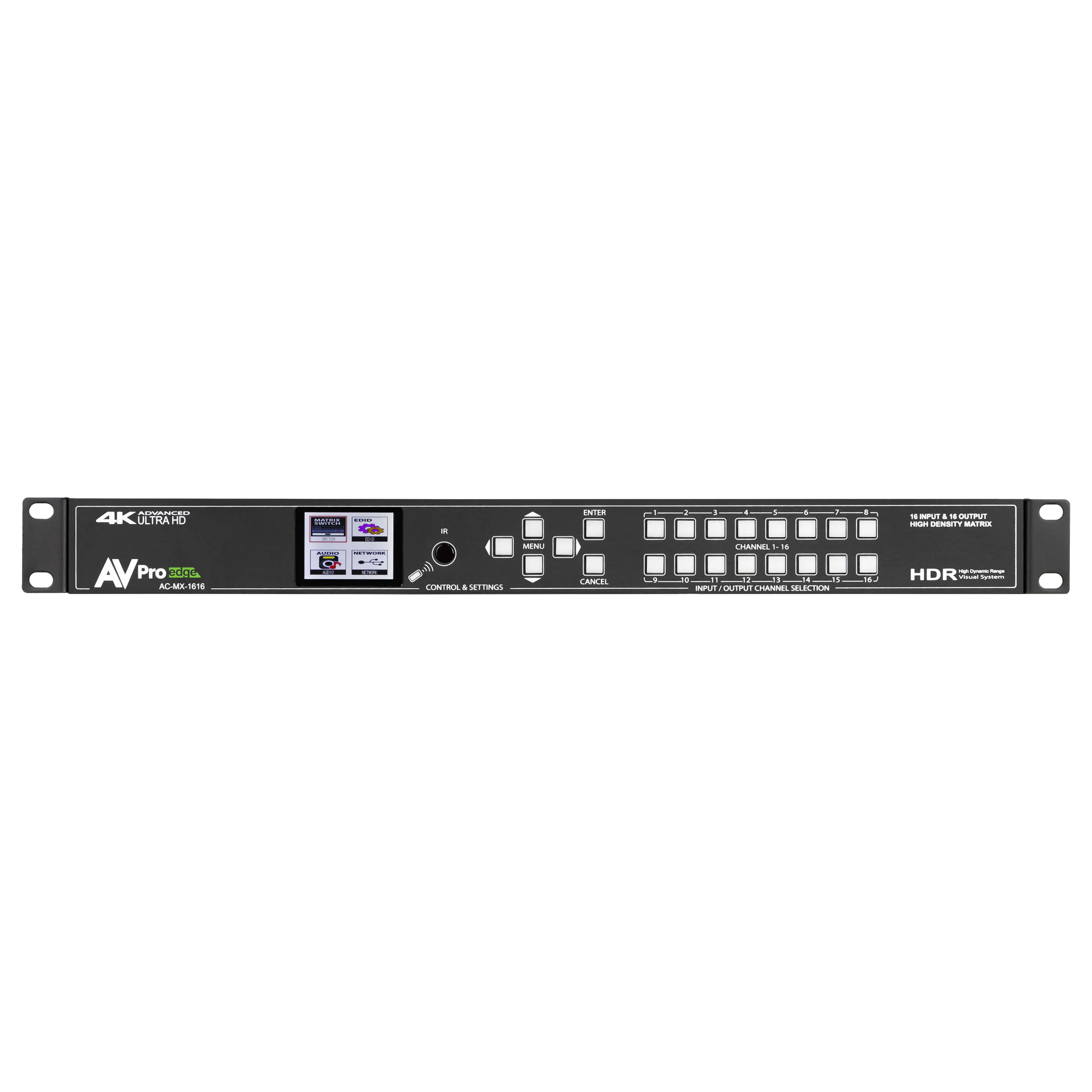

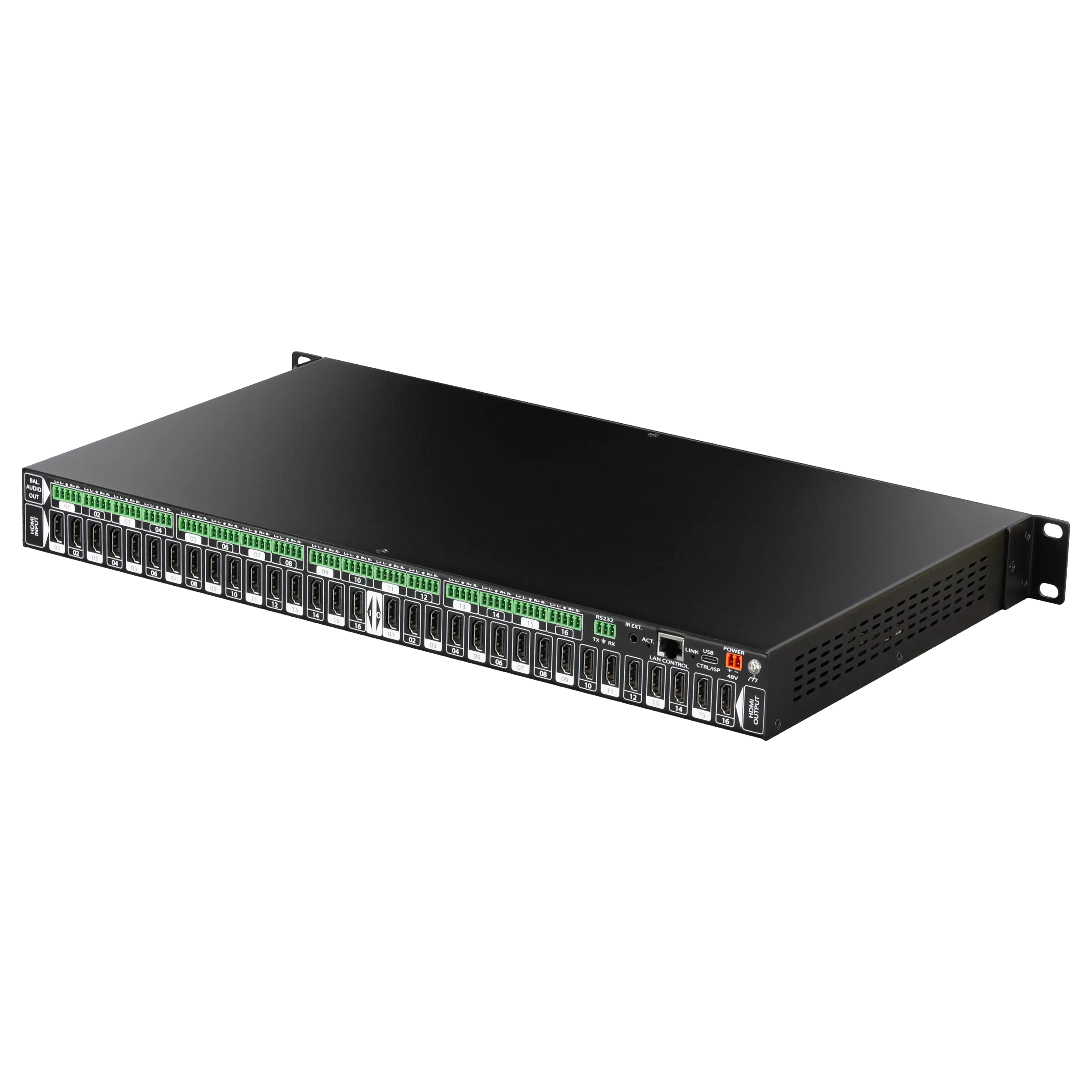

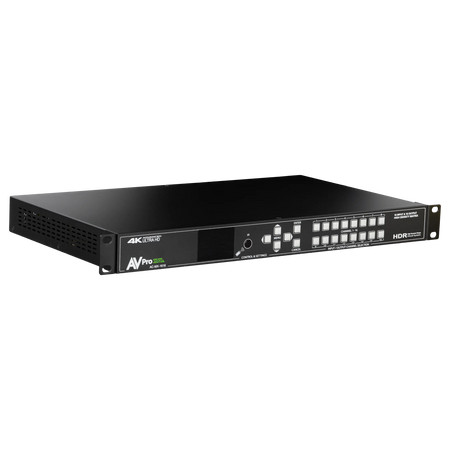

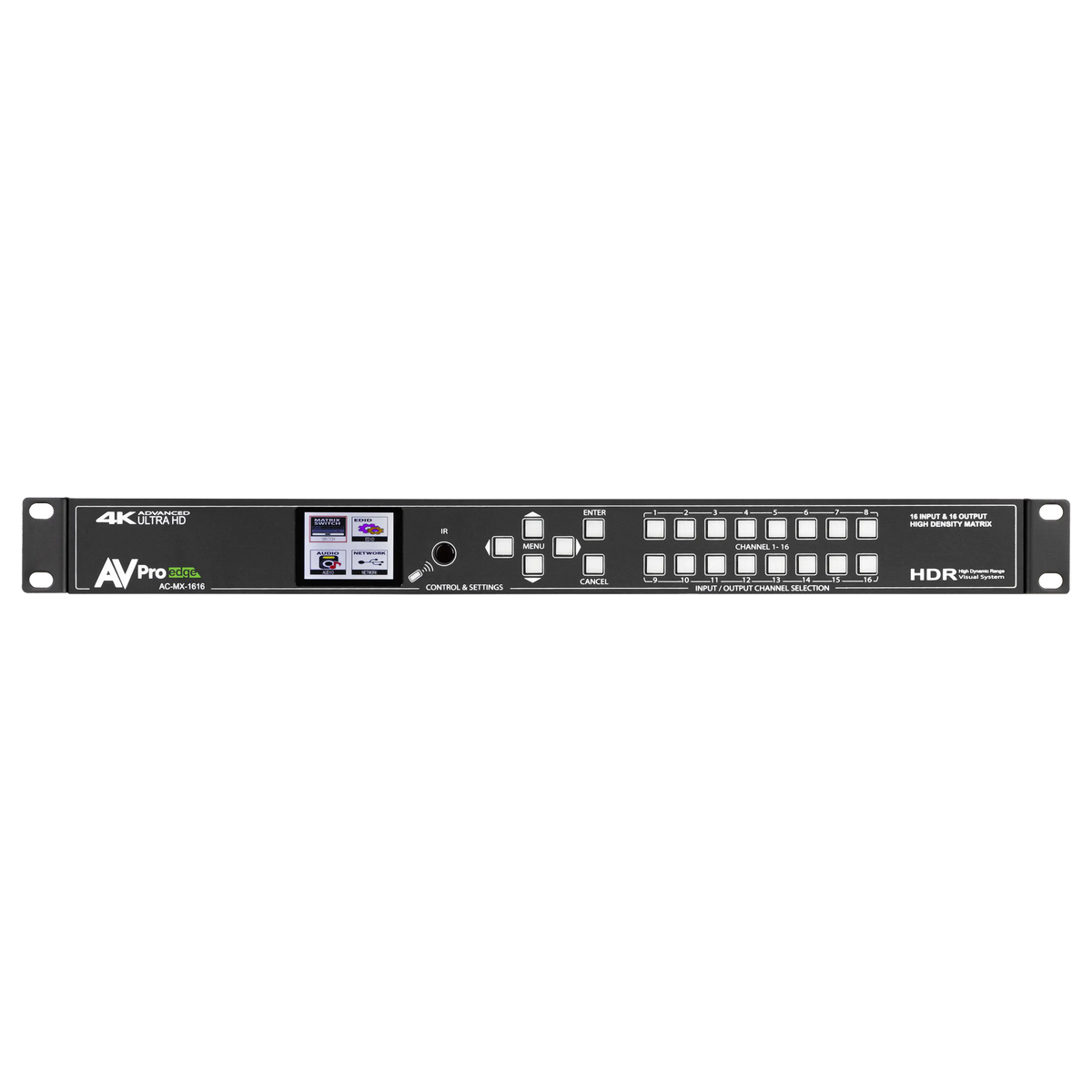

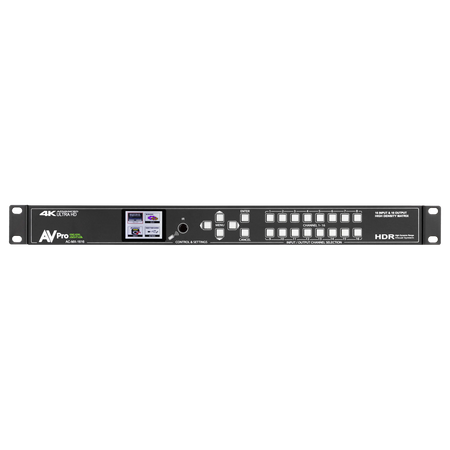

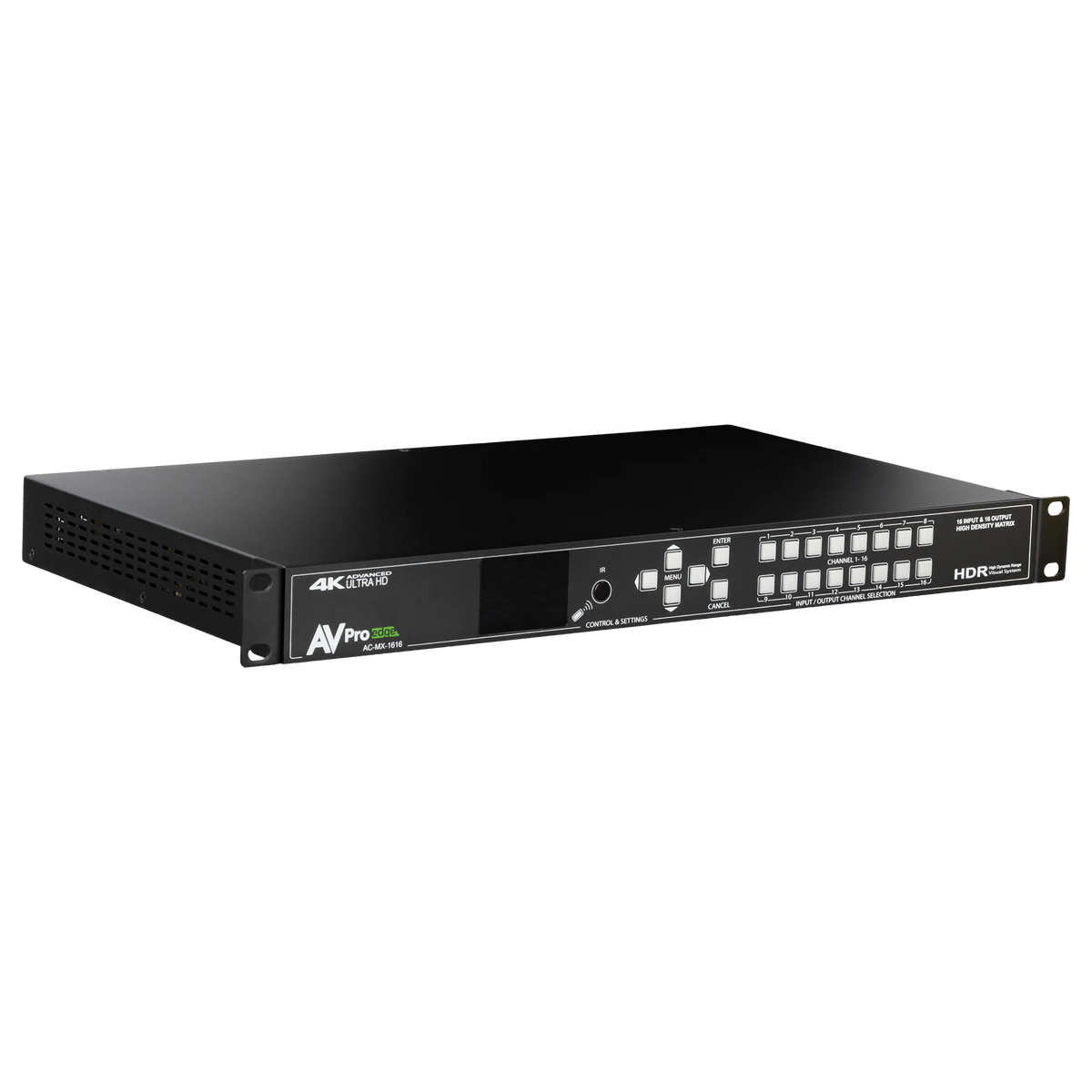

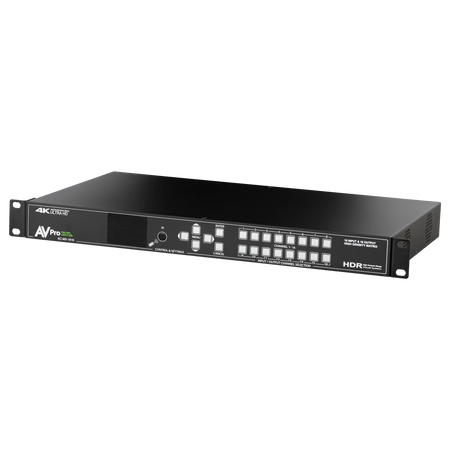

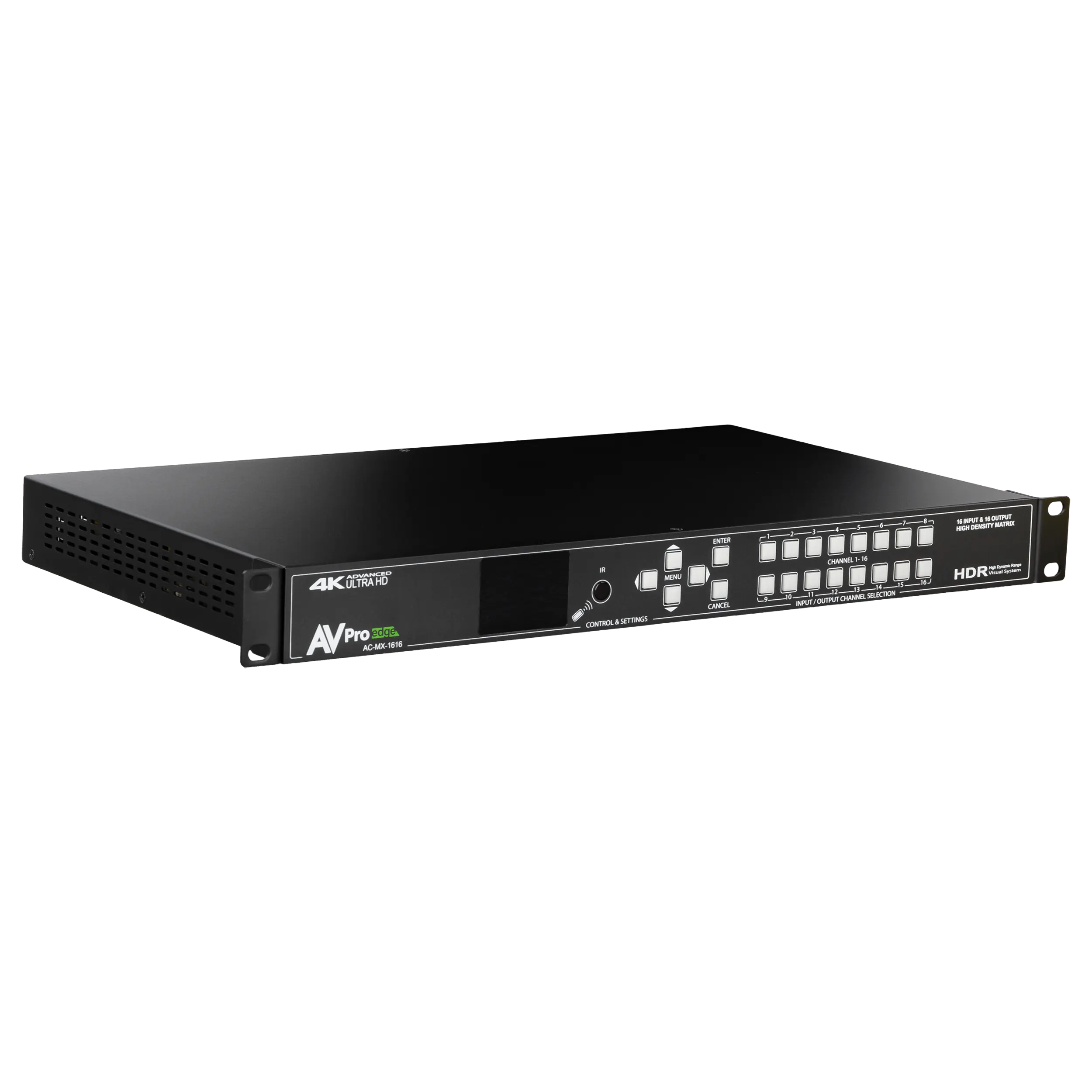

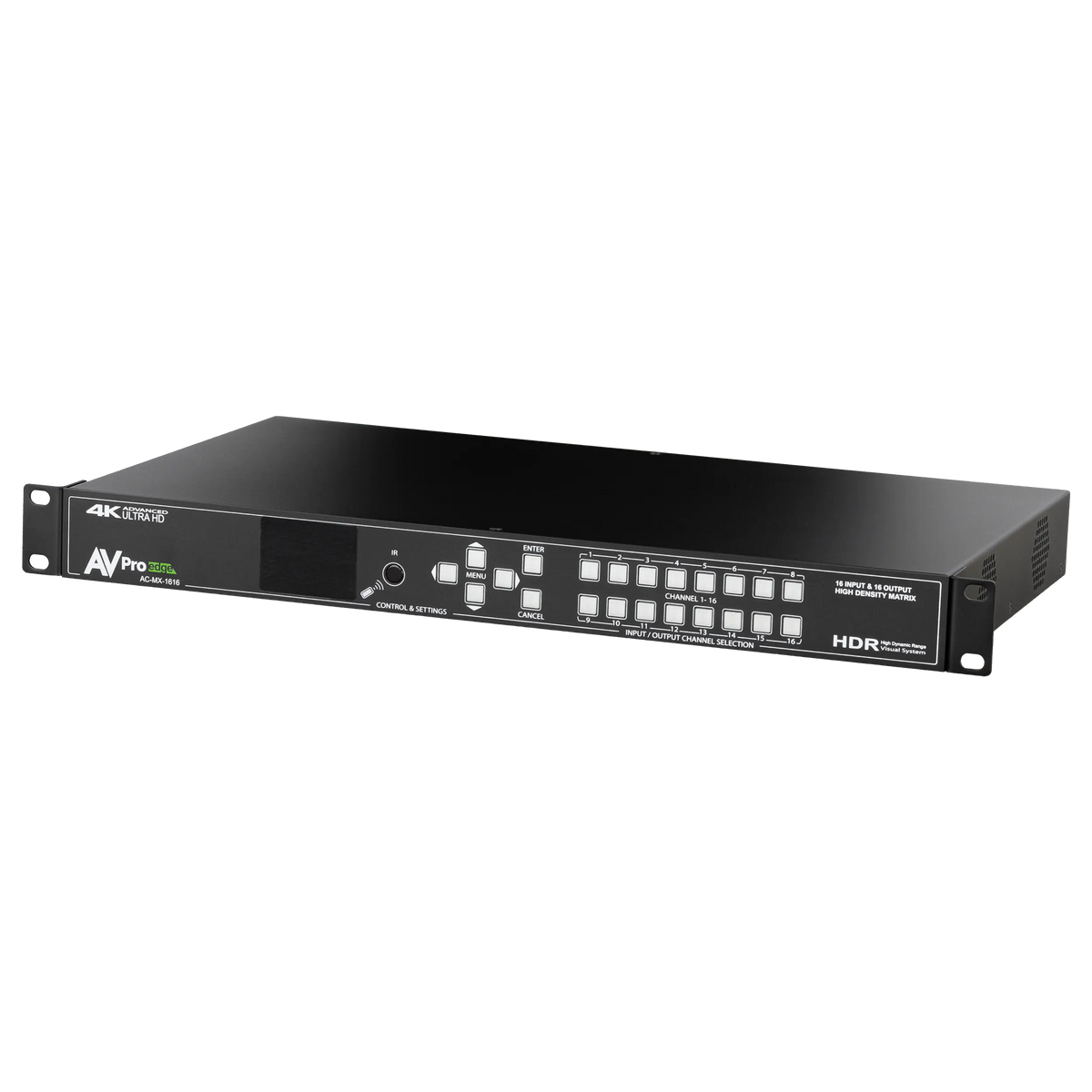

The AVPro Edge AC-MX-1616 is a high-bandwidth 1RU HDMI matrix designed for demanding professional installations. It supports full HDMI 2.0a/b specifications, including 4K 60Hz 4:4:4 and comprehensive HDR formats like HDR10, HDR10+, and Dolby Vision. Featuring fast switching speeds of under 3 seconds, this unit includes an integrated OLED front panel for effortless management and setup. The high-density design saves valuable rack space while providing 16 analog audio de-embedding outputs. Built-in test patterns allow for easy infrastructure verification, and advanced EDID management ensures reliable, high-quality signal distribution across your entire system. This matrix is built to handle complex interoperability between sources and displays, providing a robust solution for large-scale AV environments.

Bandwidth 18Gbps
Video Resolution Up to 4K 60Hz 4:4:4
HDR Support HDR10, HDR10+, Dolby Vision, HLG
Rack Size 1U
Audio Extraction 16 analog 2 Channel outputs

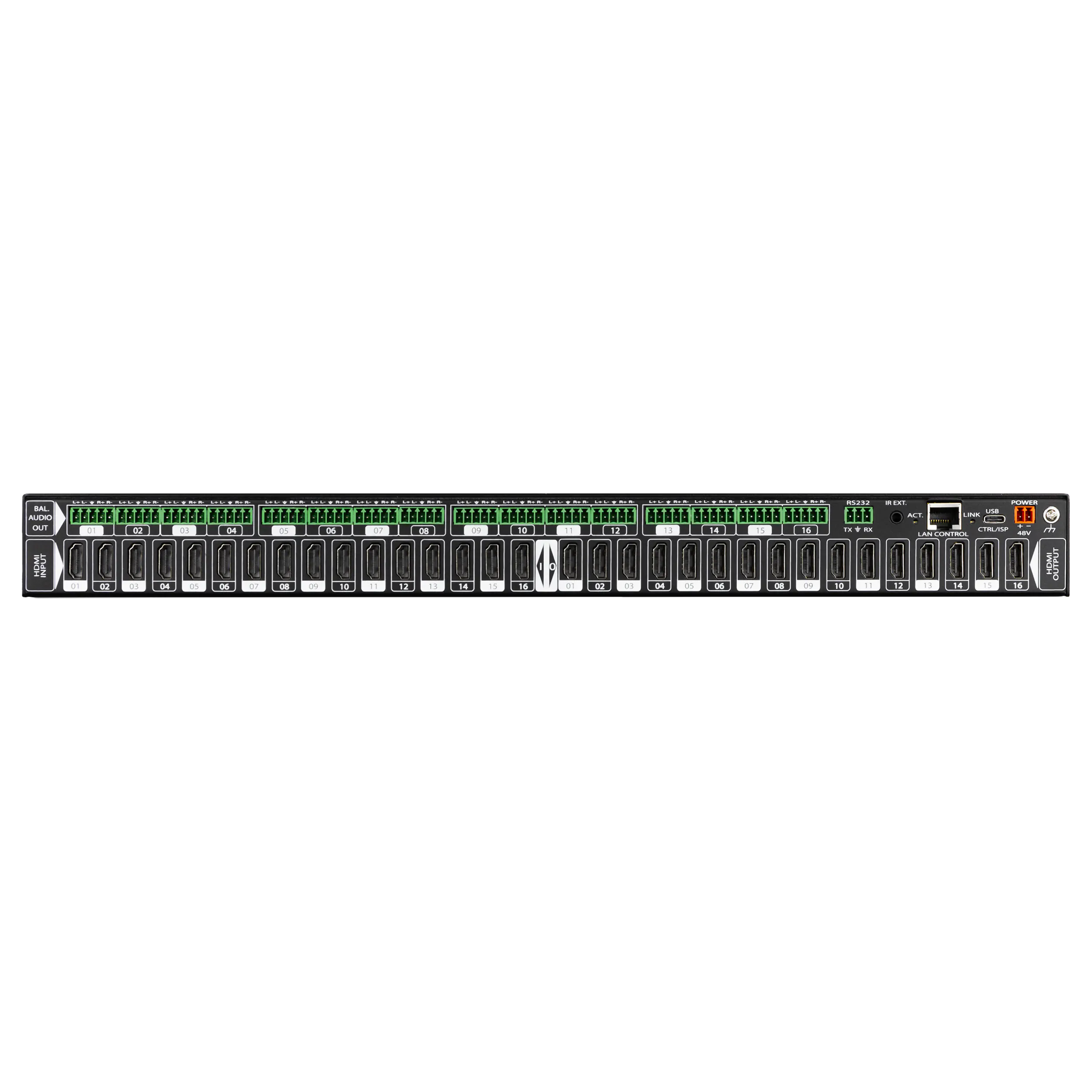

Control Ports LAN, RS232, IR, Micro USB
Power Consumption 92 Watts Max
Operating Temperature 23 to 125°F
