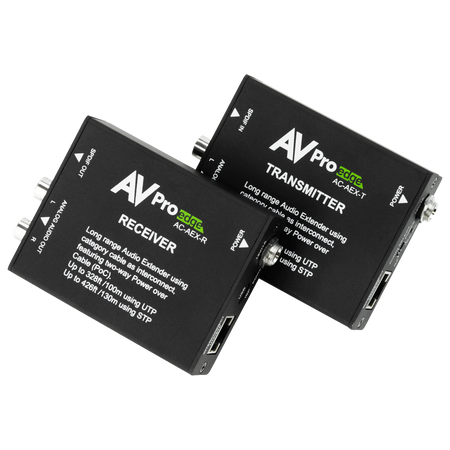

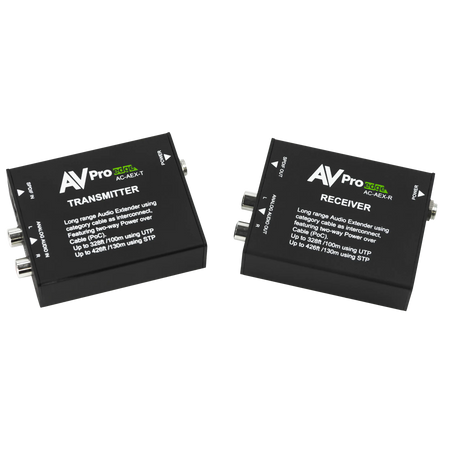

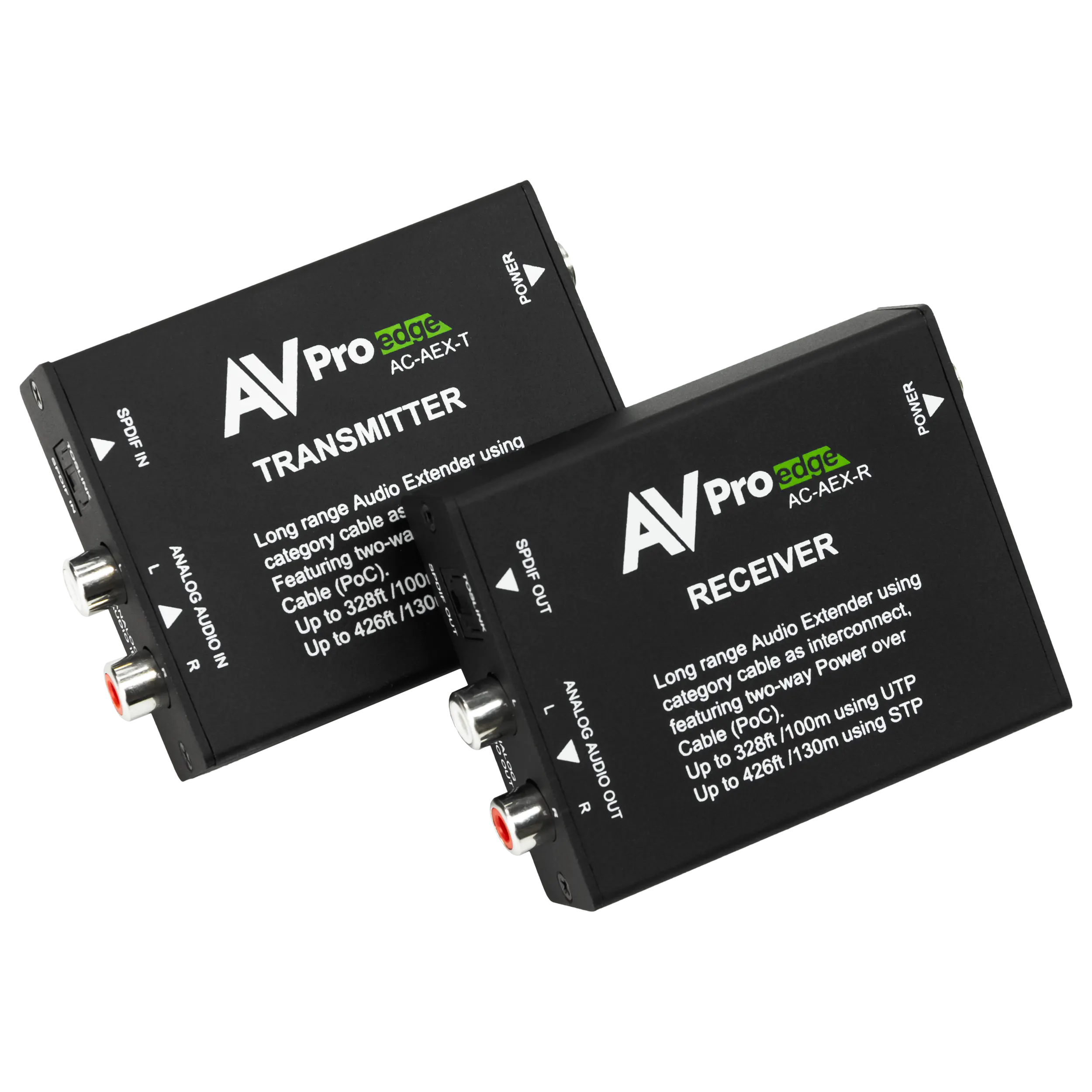

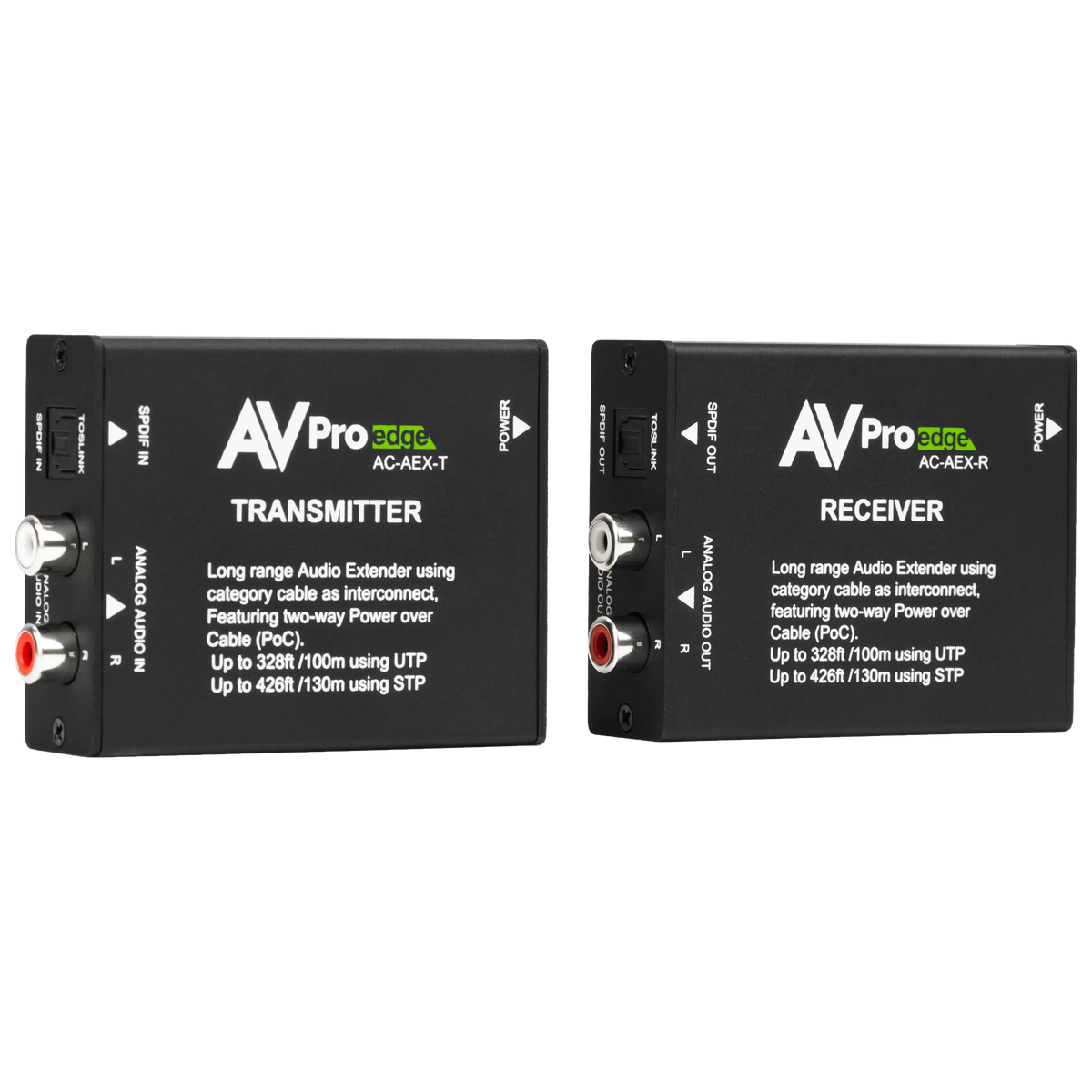

AVPro Edge 100M Uncompressed Audio Extender AC-AEX-KIT
Regular price
$350.00
Couldn't load pickup availability
Frequently Asked Questions
What is an audio extender, and when would you need one?
An audio extender is a device that sends audio from one location to another over a longer distance than a standard short patch cable is designed for. It is commonly used when the audio source, such as a TV, media player, or AV rack, is far from the amplifier, receiver, or distributed audio system.
The AVPro Edge AC-AEX-KIT is built for that job. It transmits uncompressed stereo audio up to 100 meters over UTP cable and up to 130 meters over STP cable. It supports both analog stereo and optical digital audio, so it can fit into a wide range of installations. It is especially useful for SmartTV audio distribution, including audio from built-in streaming apps like Netflix, Spotify, and Disney+.
This type of product is best for residential AV systems, commercial installations, and any project where clean long-distance audio transport matters. The main tradeoff is that it is an audio-only extender, so shoppers who need to send video too should look at a separate audio-video extension solution.
What is the difference between an audio extender and an HDMI extender?
An audio extender sends only audio, while an HDMI extender sends both audio and video together. The right choice depends on what problem you are solving. If you only need to move sound from a TV or source device to a remote audio system, an audio extender is often simpler and more cost-effective than extending a full HDMI signal.
The AVPro Edge AC-AEX-KIT is designed specifically for audio distribution. It accepts optical and analog stereo inputs and provides optical and analog stereo outputs at the far end. It also supports digital audio formats such as LPCM 2-channel, Dolby Digital, and DTS 5.1-channel over S/PDIF, which makes it useful when a TV or source device provides digital audio output but the sound system is located elsewhere.
Choose an audio extender if your display is already in place and the only missing link is audio transport. Choose an HDMI extender if you need the picture and sound together. The tradeoff is that this product will not carry video, IR control, or HDMI features.
How do HDMI audio extenders compare to a dedicated audio extender for TV sound distribution?
A dedicated audio extender is usually the better fit when your goal is to move TV audio to another room or equipment rack without extending video. HDMI audio extenders can work, but they are often chosen when the installer also needs to carry the video signal. If the display stays local and only the audio needs to travel, a purpose-built audio extender is a cleaner solution.
The AVPro Edge AC-AEX-KIT is designed exactly for that use case. It can send uncompressed stereo audio long distances and supports optical digital formats including LPCM 2-channel, Dolby Digital, and DTS 5.1-channel. It also includes both analog L/R and optical audio connections, which helps when integrating modern TVs with distributed audio systems that may use different input types.
This is especially helpful for SmartTV installations where streaming apps are built into the television. A dedicated audio extender avoids adding unnecessary video hardware. The limitation is that it will not solve HDMI switching or video extension needs, so it is best for audio-first installations rather than full signal transport.
Do cable extenders for audio actually work over long distances?
Yes, audio extenders can work very well over long distances when they are designed for professional AV use and installed with the right cabling. The key factors are the transmission technology, cable quality, supported audio format, and whether the extender is meant for analog, digital, or both.
The AVPro Edge AC-AEX-KIT is rated for up to 100 meters over UTP cable and up to 130 meters over STP cable. It is built to carry uncompressed stereo audio and also supports digital formats over optical S/PDIF, including Dolby Digital and DTS 5.1-channel. That makes it suitable for both home and commercial applications where audio quality and signal stability matter.
This type of extender benefits installers, integrators, and anyone trying to connect a remote TV to an audio system without signal loss from improvised long analog runs. The main tradeoff is that performance depends on proper installation and compatible source and destination equipment. It is not a substitute for a full networked audio platform, but it is a strong fit for direct point-to-point audio extension.

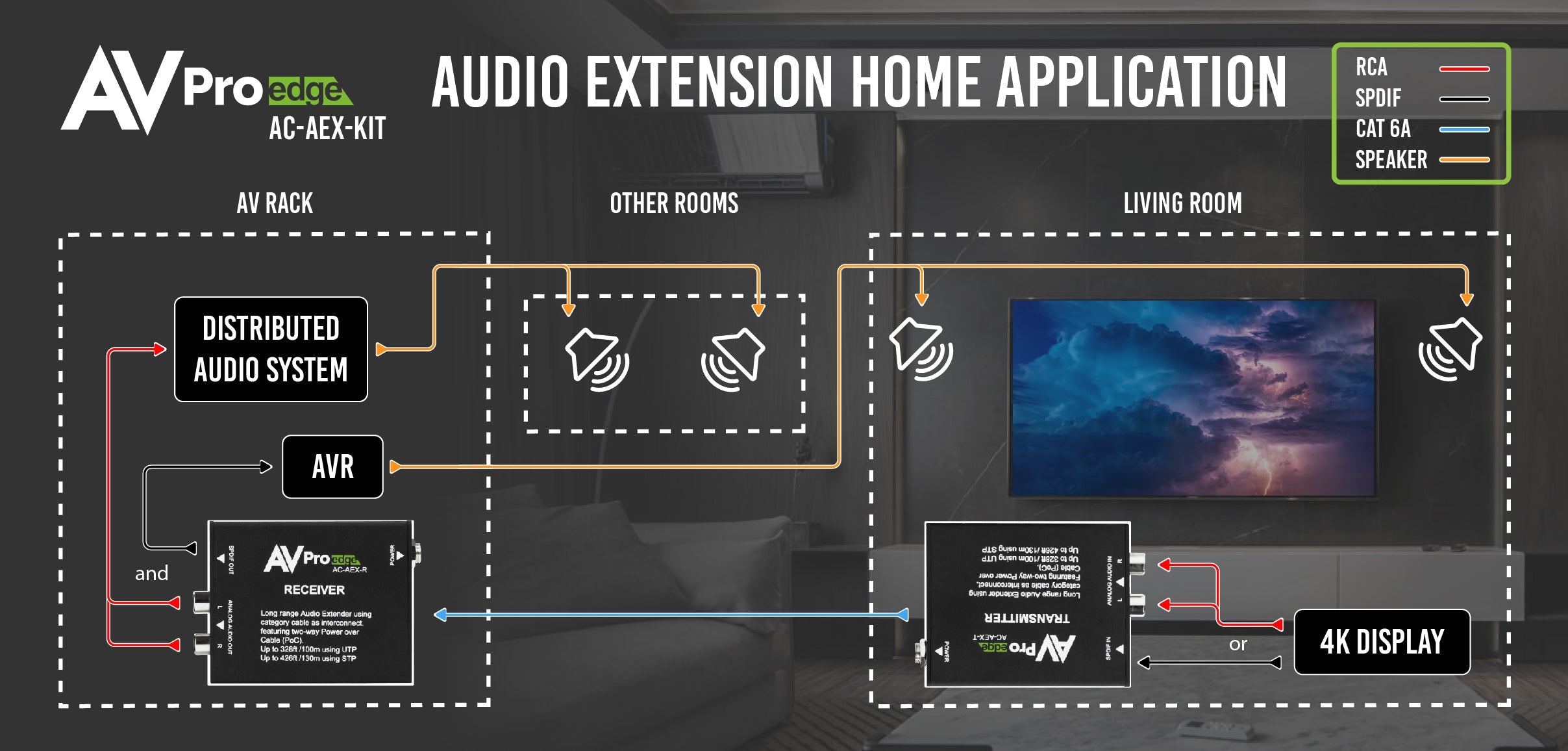

Can this audio extender send sound from a SmartTV streaming app to a whole-home or distributed audio system?

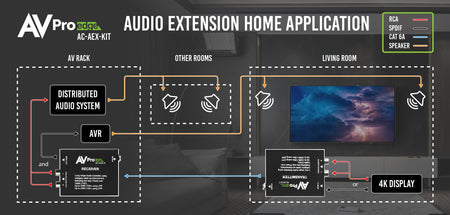

Yes, that is one of the most practical uses for this audio extender. The AVPro Edge AC-AEX-KIT is designed to help move SmartTV audio into a remote audio system, which is especially useful when the TV's built-in apps are the source. That includes common streaming services such as Netflix, Spotify, and Disney+.
The unit supports both optical and analog stereo connections, so it can adapt to many television and audio system combinations. On the digital side, it supports LPCM 2-channel, Dolby Digital, and DTS 5.1-channel through S/PDIF. It also provides dual active audio outputs, including analog L/R and optical digital, giving installers flexibility at the receiving end.
This makes it a strong choice for homes, hospitality spaces, and commercial projects where displays are wall-mounted but audio equipment is centralized. The main limitation is that it is focused on audio transport, not source control or video routing. If you also need video extension or app control integration, that would require additional components.
What audio formats does the AVPro Edge AC-AEX-KIT support?
The AVPro Edge AC-AEX-KIT supports LPCM 2-channel, Dolby Digital, and DTS 5.1-channel audio formats over its optical digital path. That gives it compatibility with many TVs, media devices, and AV systems that output audio through S/PDIF. It also supports analog stereo L/R connections, making it useful for both digital and analog installations.
In practical terms, this means the extender can handle common two-channel PCM audio as well as compressed surround formats often found in TV broadcasts, streaming devices, and media sources. Its input sampling rates range from 32 kHz to 96 kHz, which covers standard professional and consumer audio applications.
This feature set benefits shoppers who want flexibility in mixed-system environments, such as connecting a modern SmartTV to an older distributed audio system or integrating digital audio into a long-run installation. The tradeoff is that this is not a multichannel HDMI audio transport solution, so it is best suited for optical and analog audio workflows rather than advanced HDMI-based immersive audio formats.
How far can this audio extender transmit, and what cable should you use?
The AVPro Edge AC-AEX-KIT can transmit audio up to 100 meters over UTP cable and up to 130 meters over STP cable. That range makes it suitable for structured cabling environments, equipment closets, classrooms, conference rooms, hospitality spaces, and residential installations where the source and audio system are far apart.
If you want the longest supported distance and better resistance to interference, shielded twisted pair cable is the stronger option. UTP can still work very well in many standard installations, especially where cable runs are clean and electrically quiet. Using quality cable and following proper installation practices will help preserve signal reliability.
This product is best for shoppers who need long-run, point-to-point audio distribution without relying on very long analog cable paths. The main consideration is that installation quality matters. Cable type, termination, and environmental noise all affect real-world performance. For the best results, match the cable choice to the installation environment and the desired transmission distance.
Does the AC-AEX-KIT support both analog and optical audio connections?

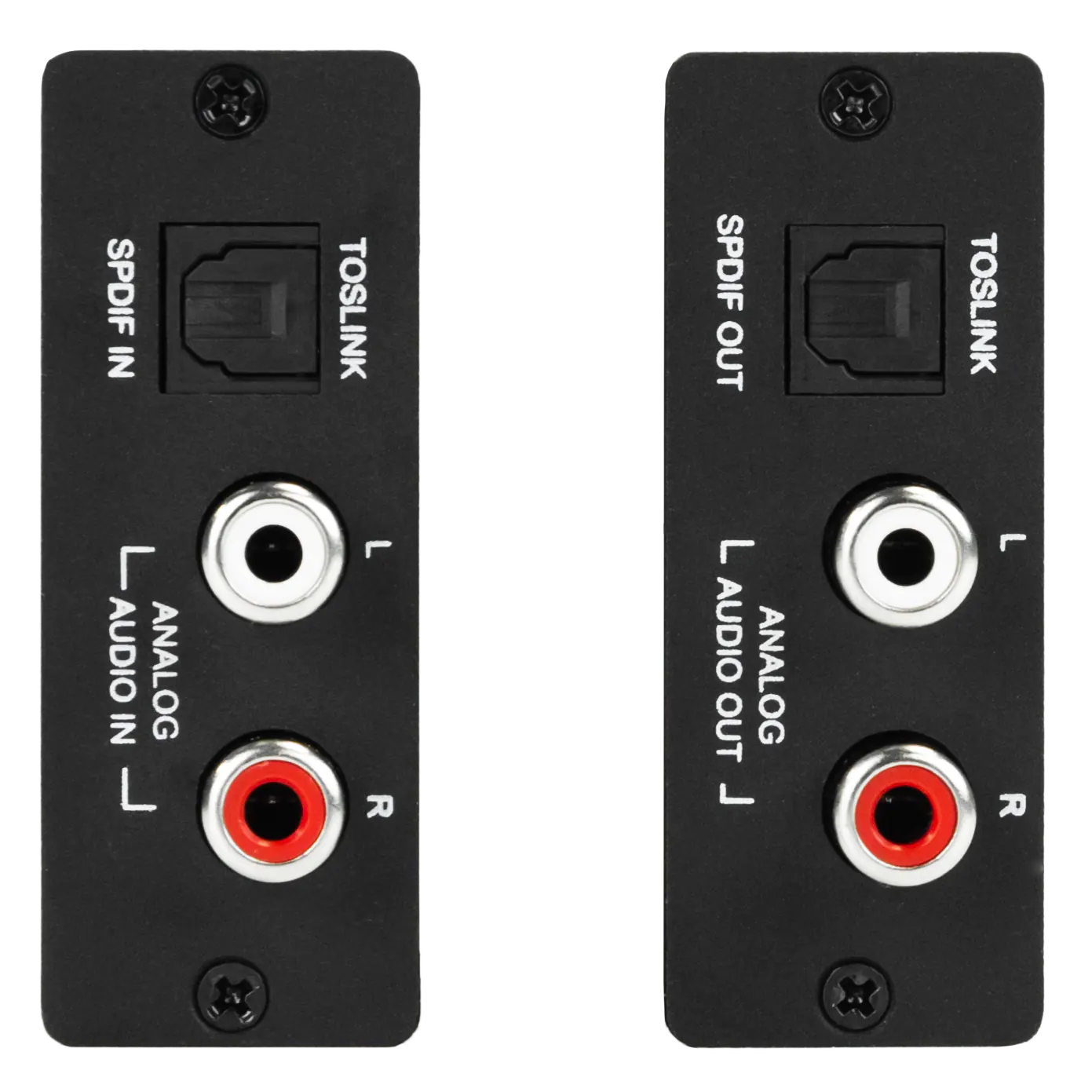

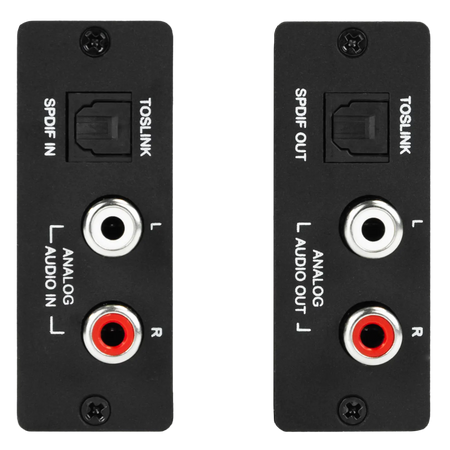

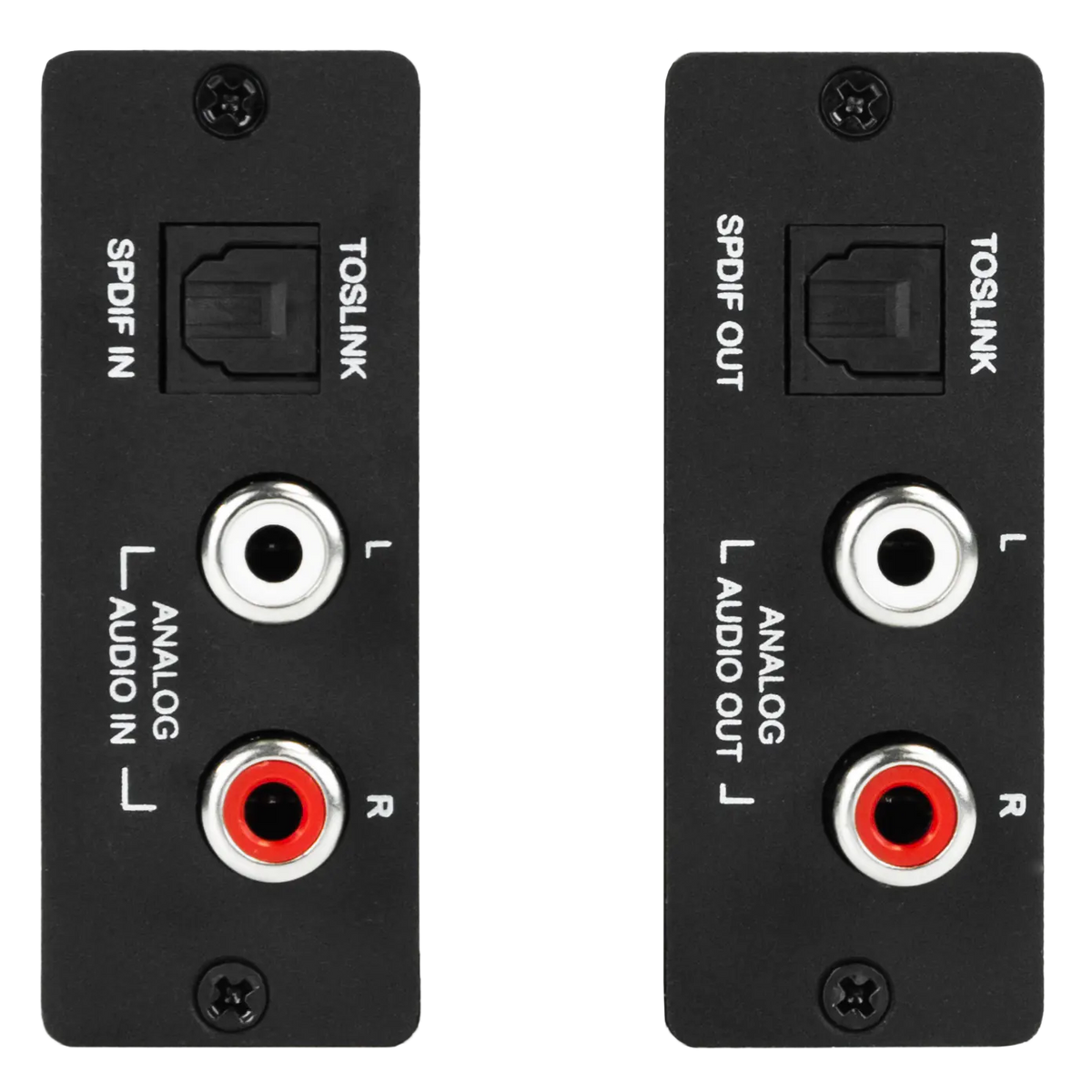

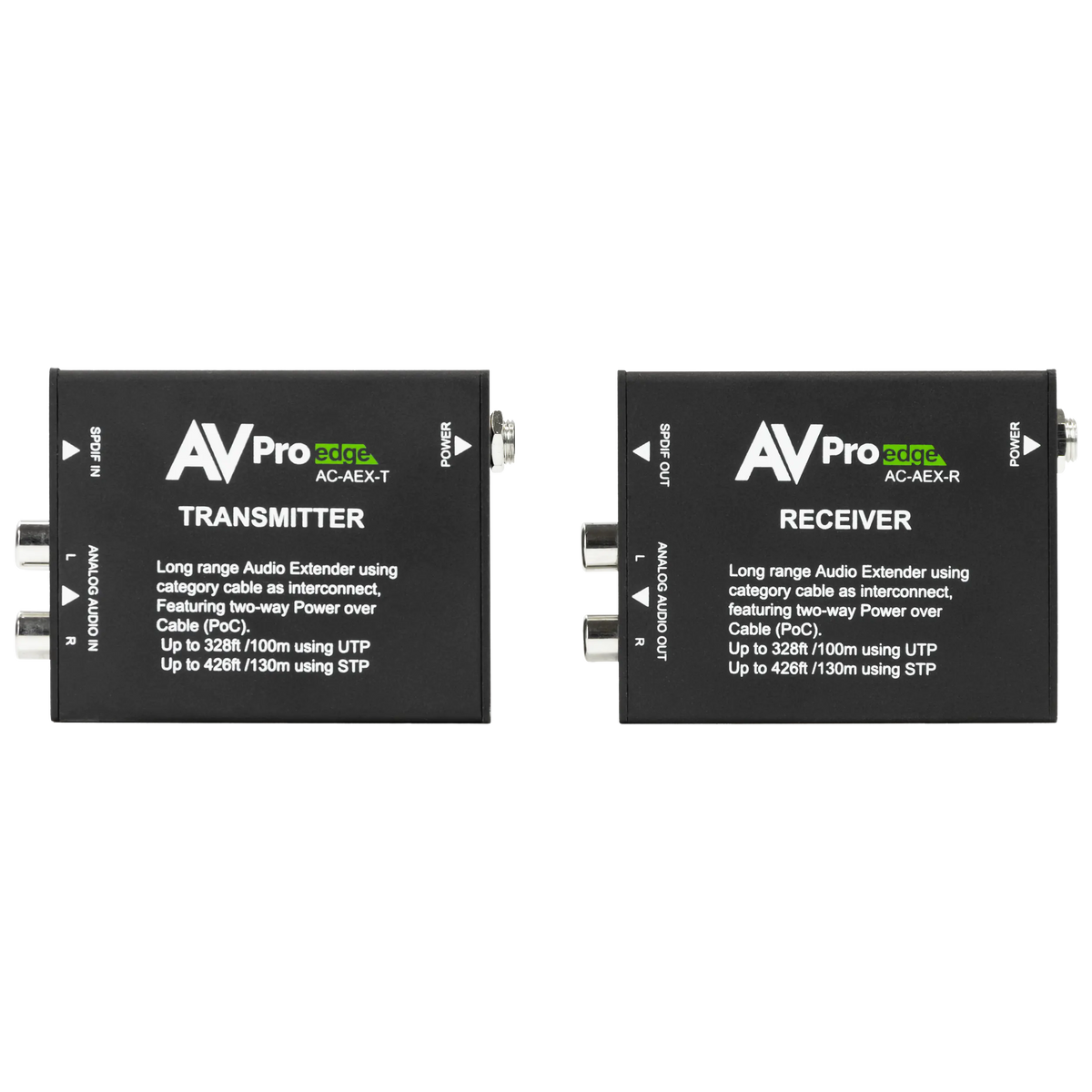

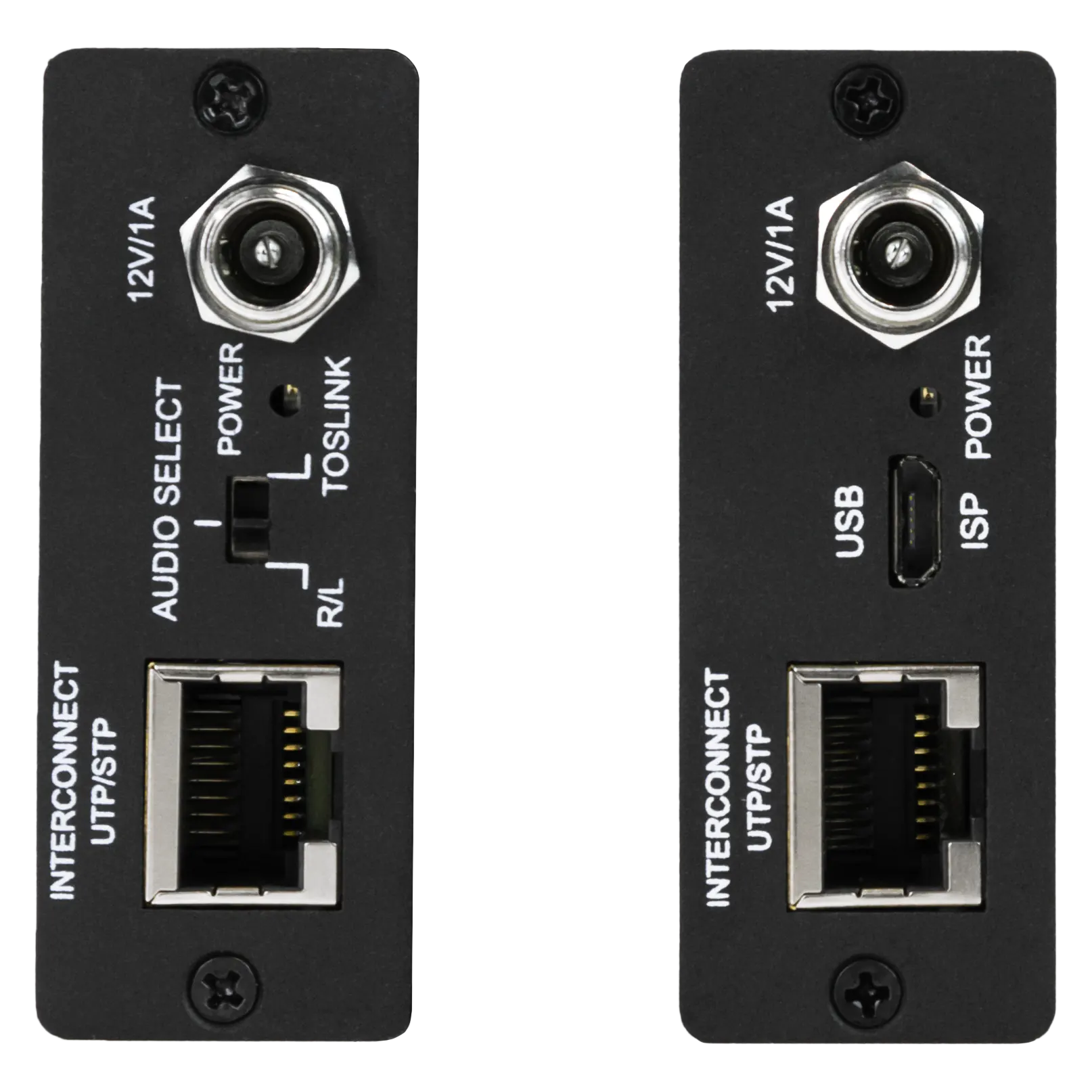

Yes, the AC-AEX-KIT supports both analog stereo and optical digital audio. It includes one optical input and one analog stereo L/R input, along with one optical output and one analog stereo L/R output. That combination gives installers flexibility when connecting different types of source devices and sound systems.
This is useful in real-world AV projects because not every TV, amplifier, or matrix uses the same audio connection type. A SmartTV may offer optical output, while an older distributed audio system may accept analog stereo. In other cases, an installer may want to preserve a digital signal path all the way through. Having both formats available makes the extender easier to integrate into mixed systems.
Shoppers who need a simple way to bridge older and newer audio equipment will benefit most from this feature. The tradeoff is that the product is focused on stereo analog and S/PDIF optical workflows, so anyone needing balanced audio, Dante, or HDMI audio extraction should look for a different category of solution.
Is this a good choice for commercial AV and professional installations?
Yes, this is a strong choice for commercial AV and professional installations where reliable long-distance audio transport is needed. The AVPro Edge AC-AEX-KIT is built with a compact, durable chassis, low 3W maximum power consumption, and Power over Cable capability, which can simplify installation by reducing the number of local power requirements.
Its support for uncompressed stereo transmission, analog and optical connections, and common digital formats like Dolby Digital and DTS 5.1 makes it flexible enough for conference rooms, hospitality environments, education spaces, digital signage zones, and centralized AV rack systems. The included transmitter and receiver also make it a complete point-to-point solution rather than a partial component that needs matching separately.
It is especially well suited for projects where the audio source is located at a display and the audio processing or amplification is located elsewhere. The main limitation is that it is not a networked audio platform or a video extension product, so it works best in installations that need dependable direct audio extension rather than enterprise audio routing.
Who should choose the AVPro Edge AC-AEX-KIT instead of a simpler audio adapter or long audio cable?
Choose the AVPro Edge AC-AEX-KIT when you need to send audio a long distance with better reliability, cleaner installation, and broader format support than a basic adapter or very long analog cable can usually provide. It is especially useful when the source and destination are separated by rooms, floors, or centralized equipment racks.
A simple adapter works for short, local connections, but it does not solve long-run signal transport well. Very long analog cable runs can introduce noise and integration issues, especially in professional environments. By comparison, this extender supports up to 100 meters on UTP and 130 meters on STP, handles both optical and analog audio, and supports digital formats including LPCM 2-channel, Dolby Digital, and DTS 5.1-channel.
This makes it a good fit for installers, home AV users with centralized equipment, and businesses that need dependable TV-to-audio-system integration. The tradeoff is that it is more specialized than a simple converter. If your connection is only a few feet and stays local, a basic audio adapter may be enough.

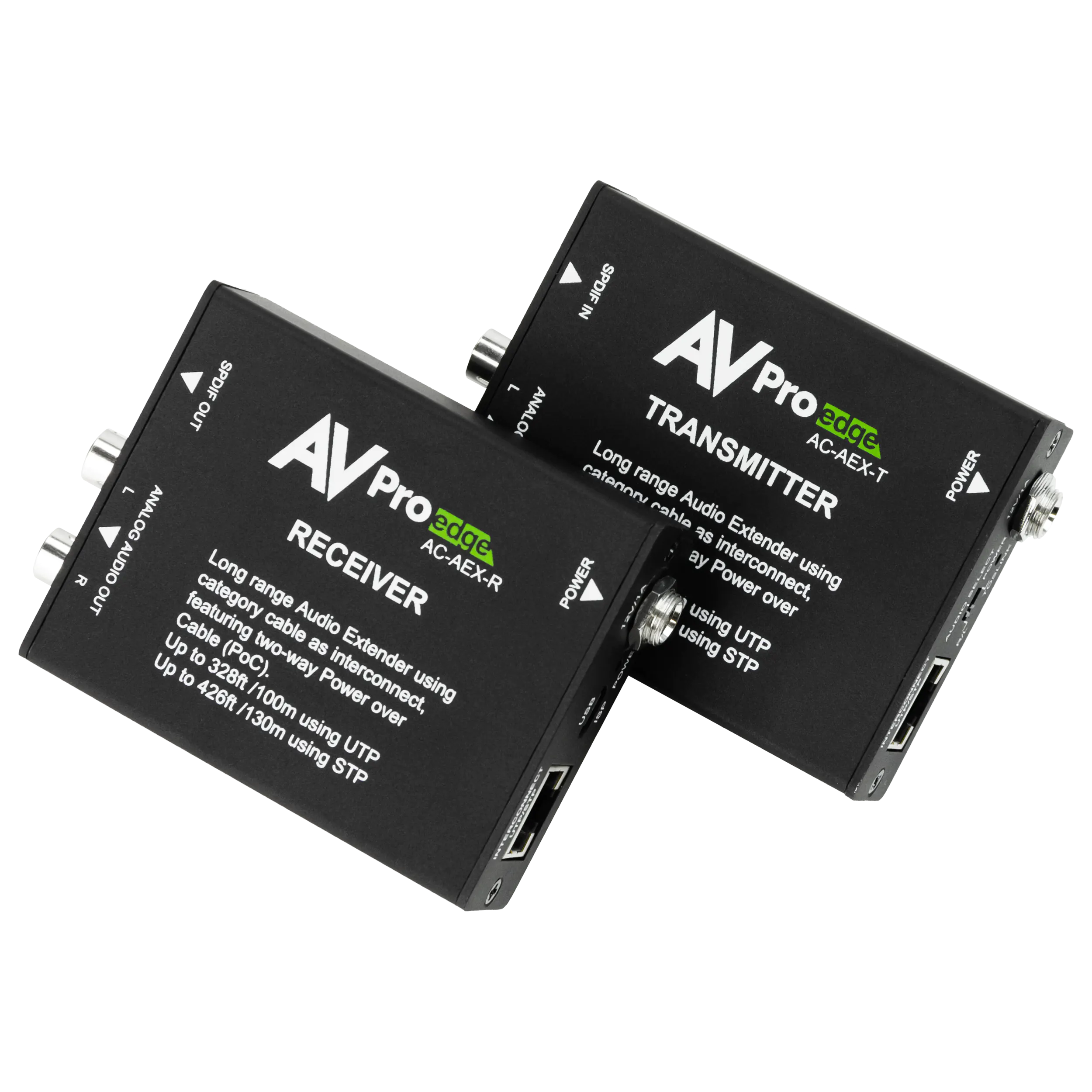

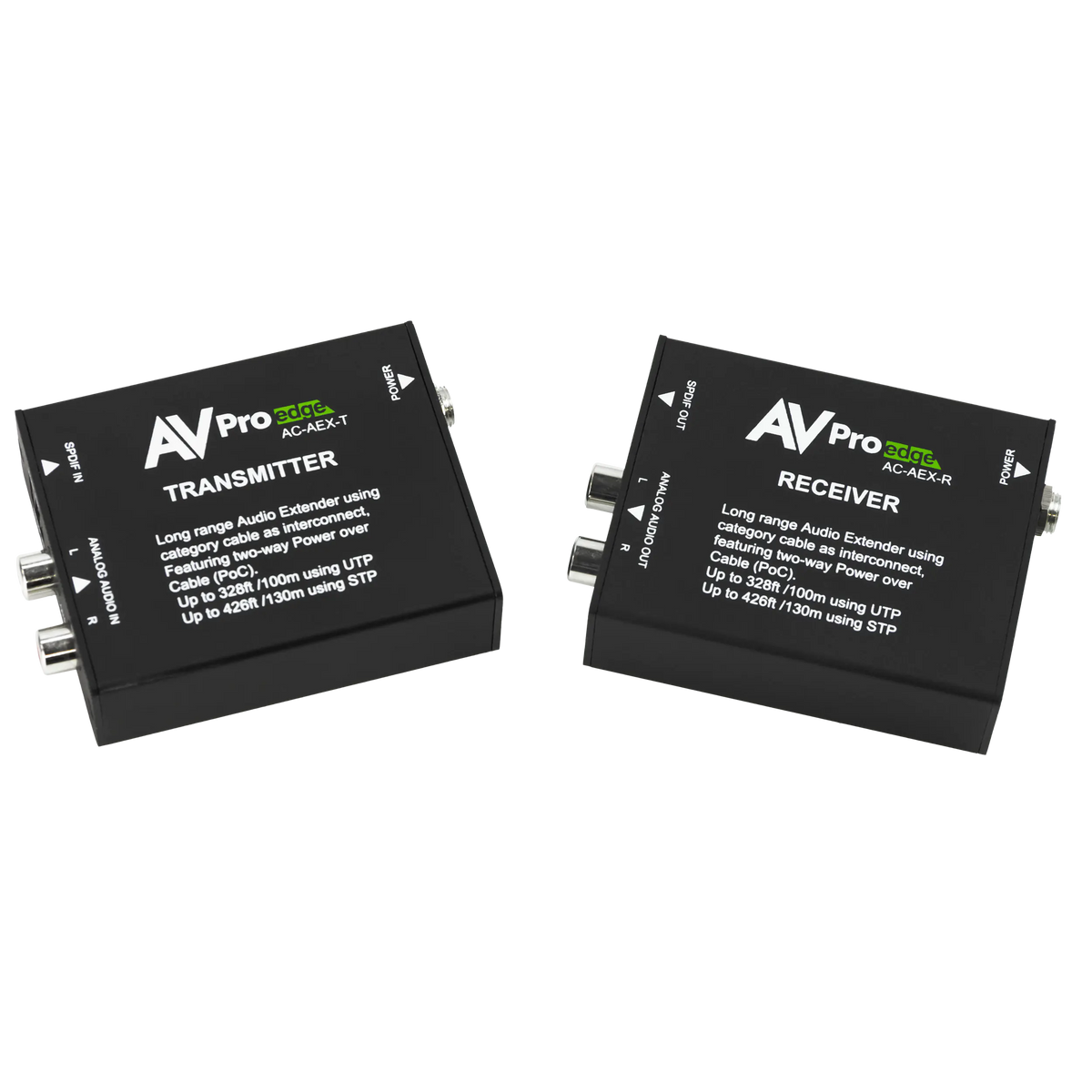

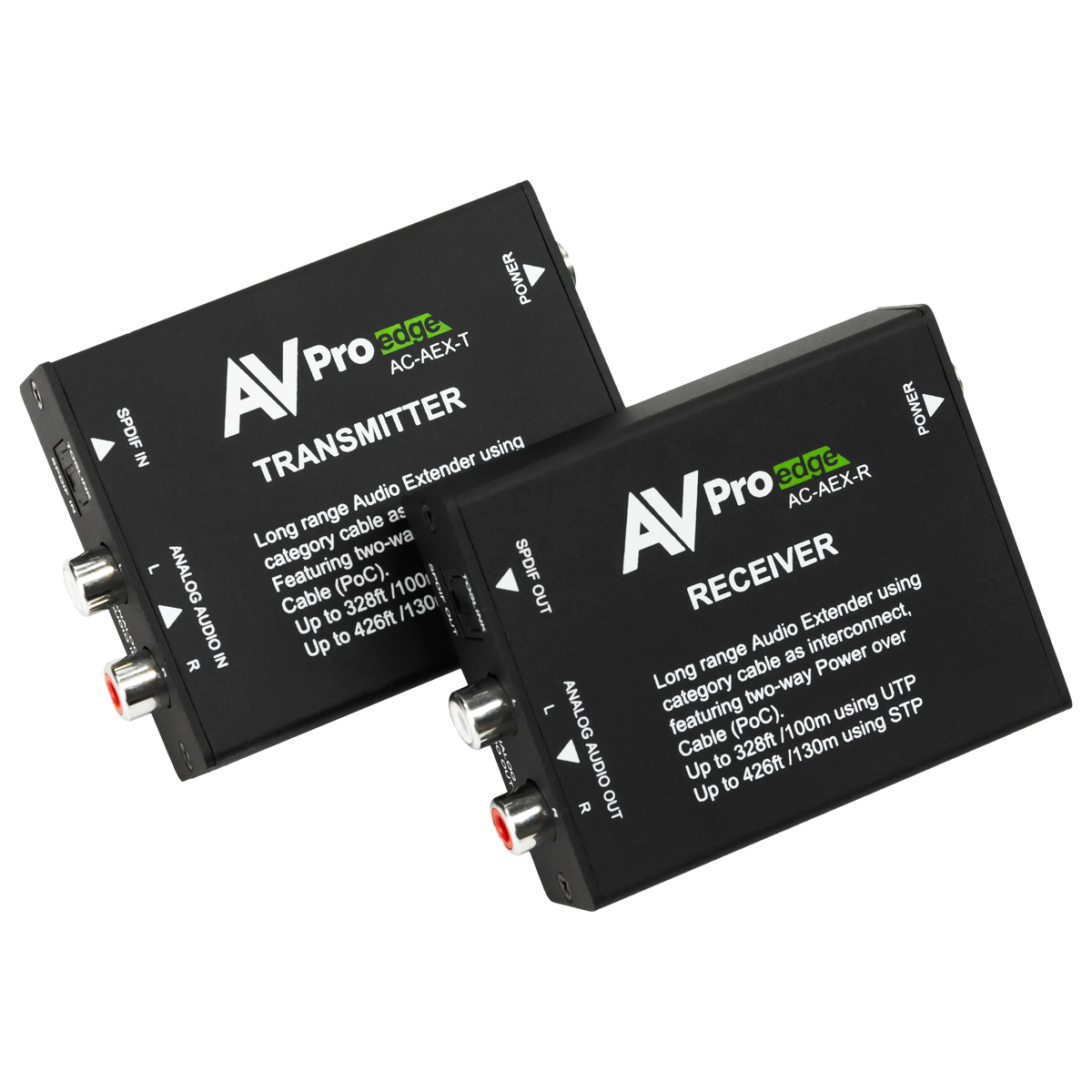

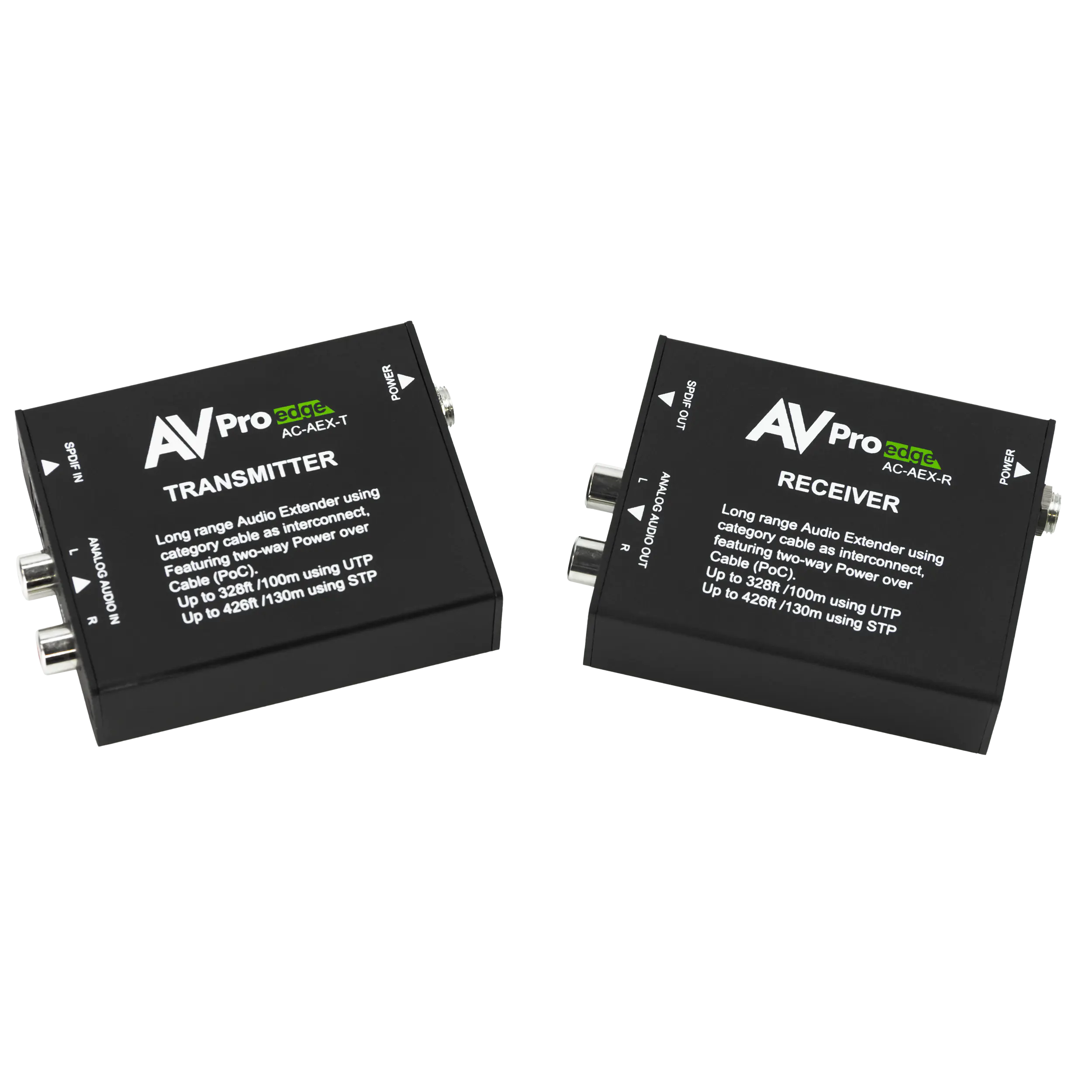

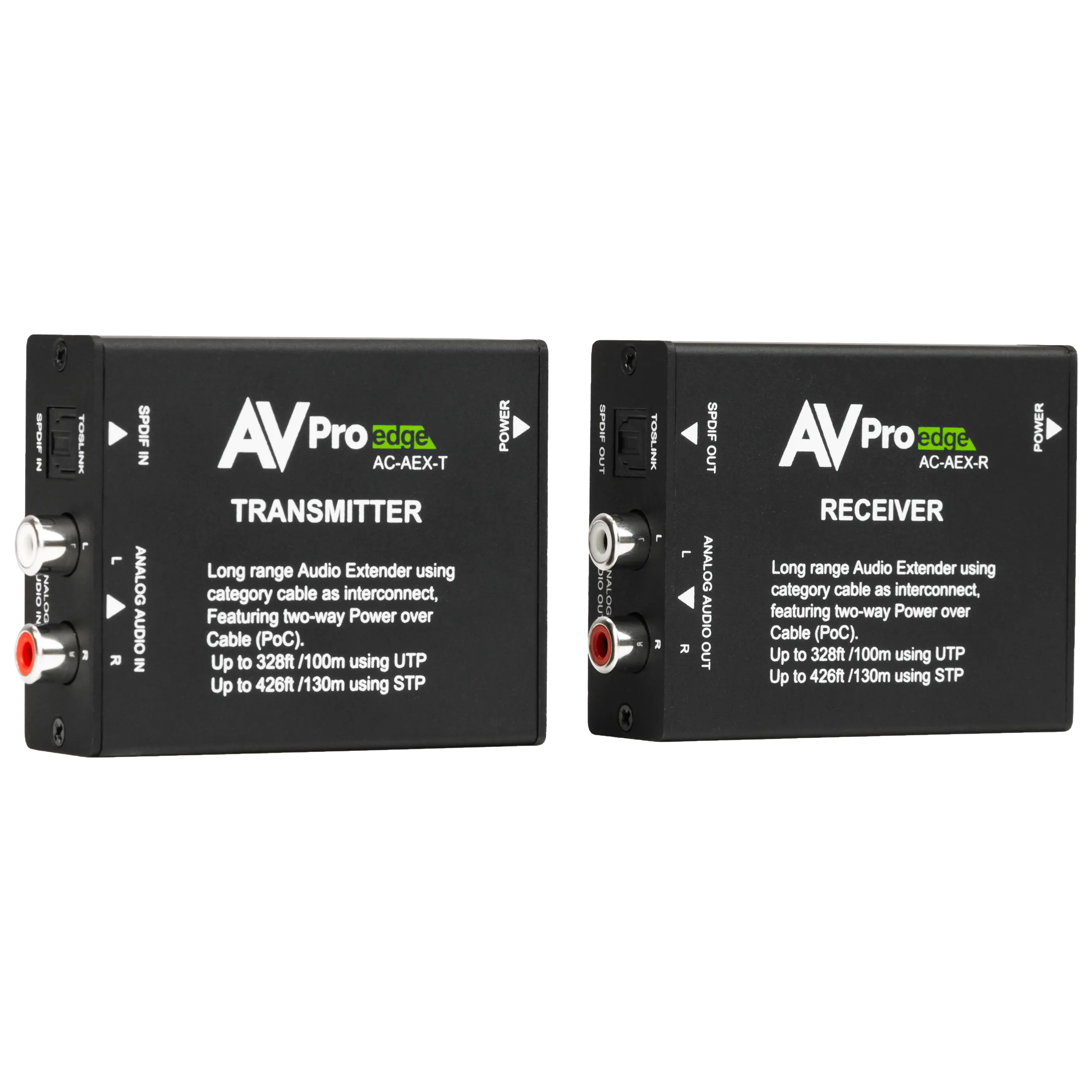

The AVPro Edge AC-AEX-KIT is a professional-grade audio extender designed to deliver uncompressed stereo signals over distances up to 100 meters. Perfect for integrating SmartTV audio into distributed systems, it supports popular streaming apps like Netflix, Spotify, and Disney+. This extender features dual active audio outputs, supporting both L/R analog and optical digital (S/PDIF) signals, including LPCM 2 CH, Dolby Digital, and DTS 5.1 CH. With its compact, durable chassis and Power over Cable (POC) capability, it offers flexible installation and reliable performance. The system includes both transmitter and receiver units, ensuring high-fidelity audio transmission for demanding AV environments.
| Transmission Distance (UTP) | 100 Meters |
| Transmission Distance (STP) | 130 Meters |
| Audio Inputs | 1x Optical, 1x Analog Stereo (L/R) |
| Audio Outputs | 1x Optical, 1x Analog Stereo (L/R) |
| Supported Audio Formats | LPCM 2 CH, Dolby Digital, DTS 5.1 CH |
| Input Sampling Rates | 32kHz - 96kHz |
| Power Consumption | 3W max |

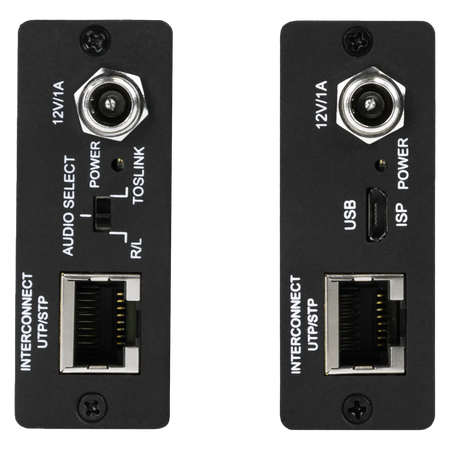

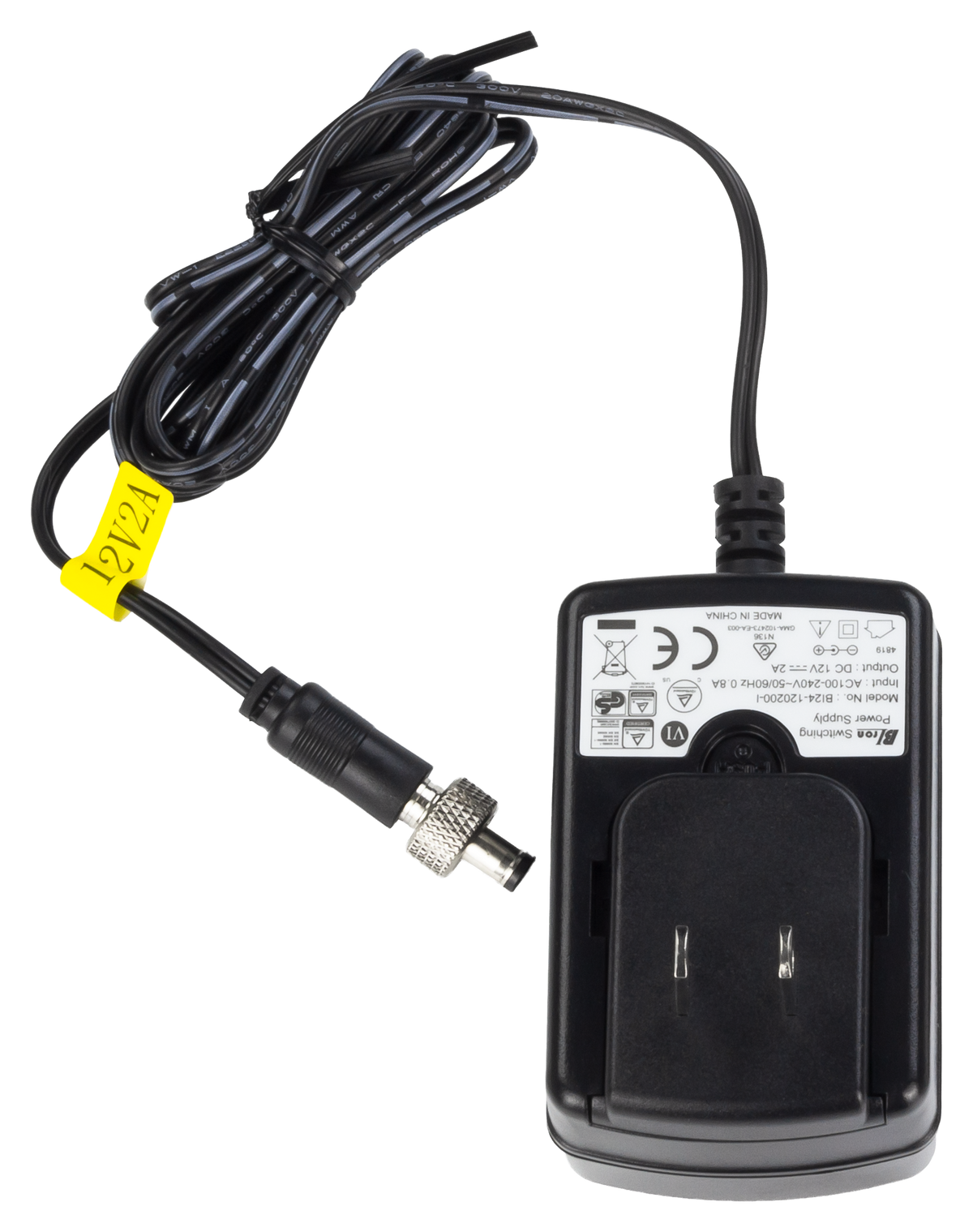

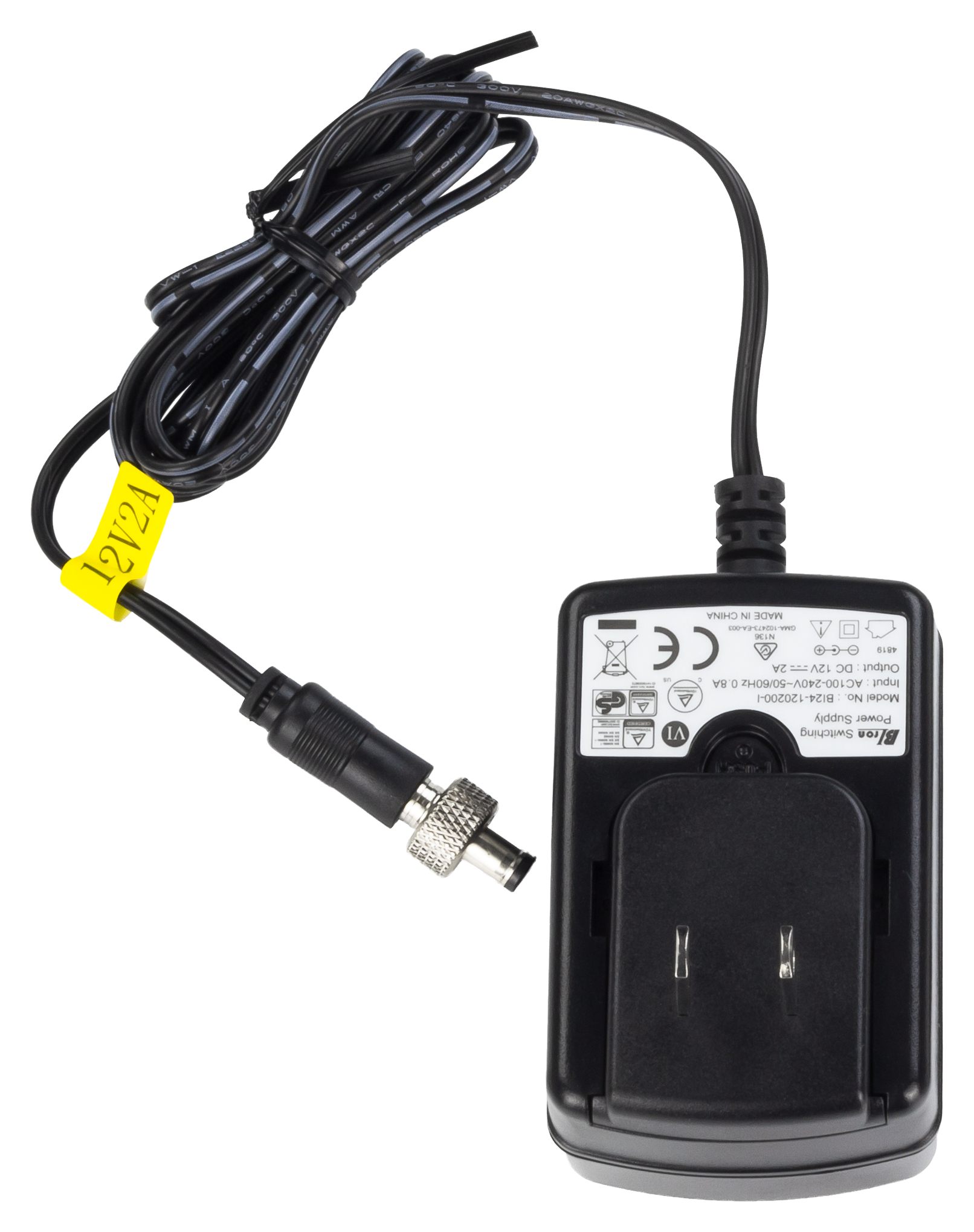

| Power Supply | 12V DC, 2A |
| Unit Dimensions | 22.3 x 58 x 82 mm |
| Unit Weight | 0.09 kg |
