AVFI CM4070 Mobile Confidence Monitor Mount with Shroud Storm Grey
AVFI CM4070 Mobile Confidence Monitor Mount with Shroud Storm Grey
AVFI CM4070 Mobile Confidence Monitor Mount with Shroud Storm Grey
AVFI CM4070 Mobile Confidence Monitor Mount with Shroud Storm Grey
AVFI CM4070 Mobile Confidence Monitor Mount with Shroud Storm Grey
AVFI CM4070 Mobile Confidence Monitor Mount with Shroud Storm Grey
AVFI CM4070 Mobile Confidence Monitor Mount with Shroud Storm Grey
AVFI CM4070 Mobile Confidence Monitor Mount with Shroud Storm Grey
AVFI CM4070 Mobile Confidence Monitor Mount with Shroud Storm Grey
AVFI CM4070 Mobile Confidence Monitor Mount with Shroud Storm Grey
AVFI CM4070 Mobile Confidence Monitor Mount with Shroud Storm Grey
AVFI CM4070 Mobile Confidence Monitor Mount with Shroud Storm Grey
Avfi

AVFI CM4070 Mobile Confidence Monitor Mount with Shroud Storm Grey

SKU: CM4070
(0)
$1,698.00

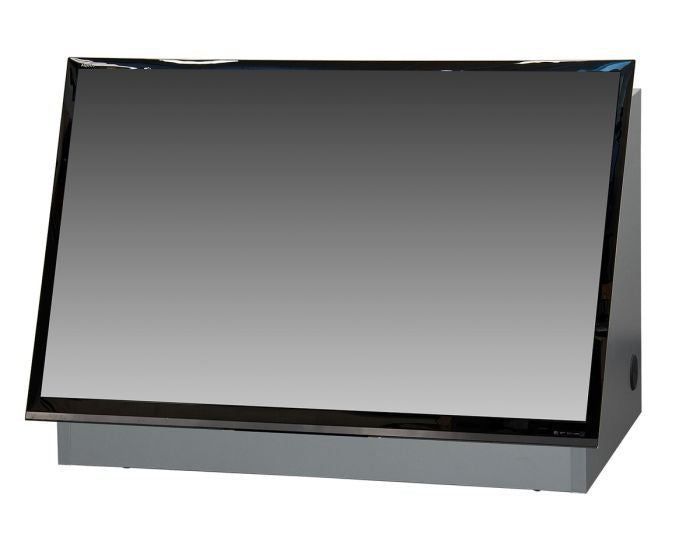

The AVFI CM4070 is a mobile confidence monitor mount engineered to support 40" to 70" displays up to 220 lbs, providing a clean and professional presentation solution. Its integrated shroud conceals wiring and electronics while allowing heat to vent from the top, maintaining a tidy stage or boardroom appearance.

Designed for flexibility, the mount offers 30 degrees of fine tilt adjustment and height customization to optimize the viewing angle for presenters. It rolls smoothly on non-marking casters with two locking rear wheels, and the locking dual rear doors provide secure access to the internal compartment.

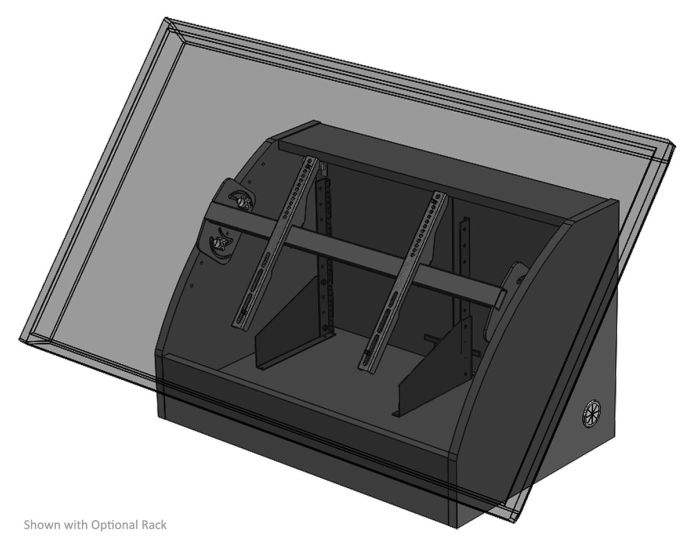

The spacious interior accommodates a desktop rack up to 36.88" W x 22.5" D x 21.25" H, and the adjustable TV bracket supports VESA patterns up to 850mm x 440mm. Three cable grommets on the sides and bottom rear ensure efficient cable management for a seamless setup.

Key Features

Brand AVFI
Model CM4070
Model Type Mobile
Finish Storm Grey-STL
Compatible Display Size 40" - 70"
Maximum Weight Capacity 220 lbs
Tilt Adjustment 30 degrees
VESA Pattern Up to 850mm x 440mm

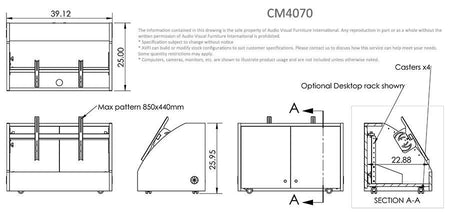

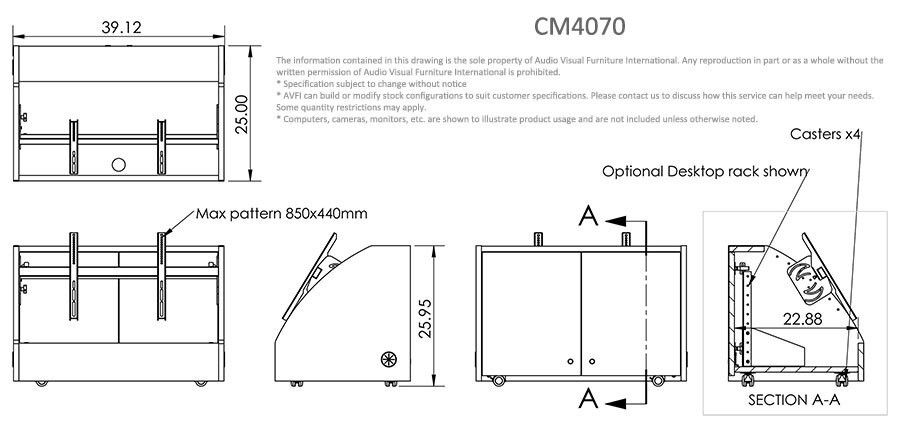

Internal Rack Capacity (W x D x H) 36.88" x 22.5" x 21.25"
Overall Width 39"
Overall Depth 25"
Overall Height 26"+
Casters 4 non-marking, 2 locking rear
Cable Management 3 grommets (2 sides, 1 bottom rear)
Rear Doors Locking dual rear doors
Weight 85 lbs
UPC 810122543789

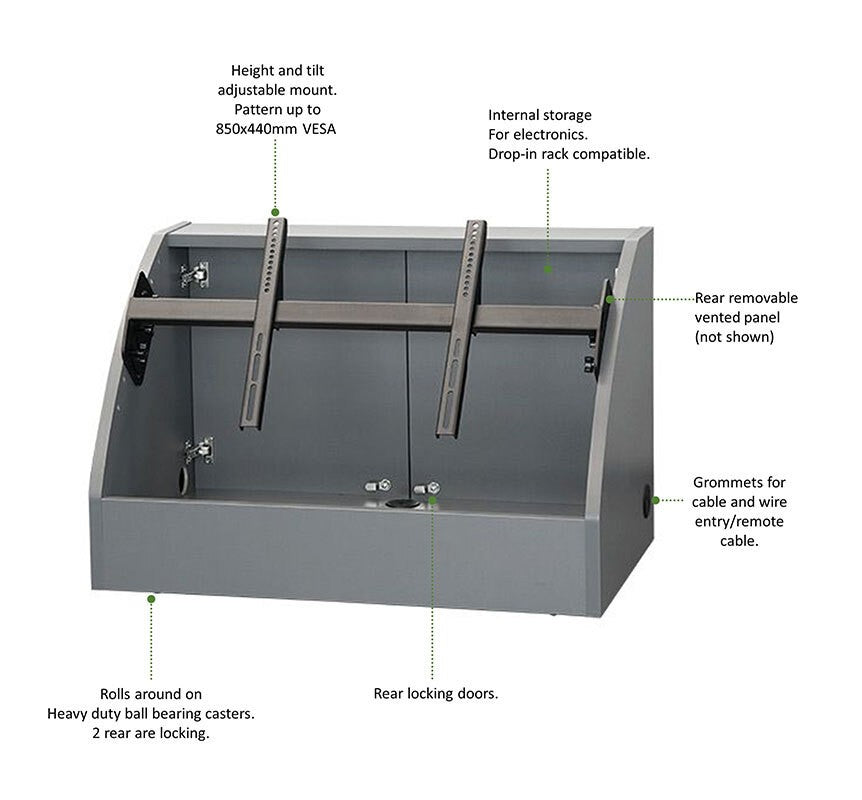

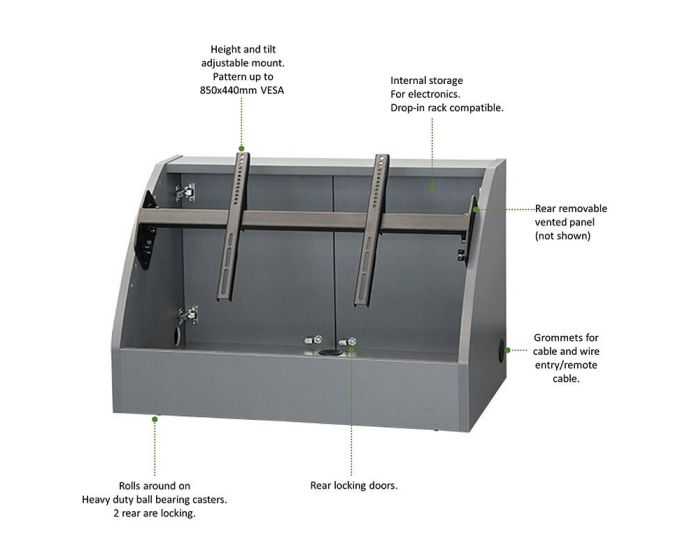

Highlights

  • Accommodates 40" - 70" monitors (220 lbs max)
  • Base hides wiring and electronics
  • 30 degrees of fine tilt adjustment and height adjustable for larger monitors
  • Quick adjustment knobs
  • Locking dual rear doors
  • Rolls on casters with non-marking wheels, 2 rear are locking
  • Can accommodate desktop rack inside (36.88" W X 22.5" D X 21.25" H)
  • Adjustable TV bracket for up to 850 X 440mm pattern
  • 3 cable grommets (2 sides and 1 bottom rear)

Videos

Downloads

Frequently asked questions

What size displays are compatible with the CM4070 mount?

The CM4070 is designed to accommodate confidence monitors ranging from 40 inches to 70 inches, with a maximum weight capacity of 220 lbs.
Can I install a rack-mounted device inside the CM4070?

Yes, the internal compartment can fit a desktop rack with maximum dimensions of 36.88 inches wide, 22.5 inches deep, and 21.25 inches high.
How is the monitor angle adjusted on this mount?

The mount provides up to 30 degrees of fine tilt adjustment using quick adjustment knobs, and the height can be customized for larger monitors to optimize the presenter's view.
Does the CM4070 include cable management features?

Yes, it includes three cable grommets—two located on the sides and one on the bottom rear—to help route and conceal wiring for a clean setup.
