Atlona 4K HDR HDBaseT Transmitter with Control and Ethernet

SKU: AT-HDR-EX-100CEA-TX
Regular price $529.00

Frequently Asked Questions

HDBaseT is a technology standard that sends multiple signals over one network-style cable, typically Cat5e, Cat6, or Cat6A. Instead of running separate cables for video, audio, control, Ethernet, and sometimes power, HDBaseT can combine them into a single link. That makes it popular in conference rooms, classrooms, digital signage, and other professional AV installations. For shoppers comparing signal extension options, HDBaseT is especially useful when the source and display are far apart. This Atlona 4K HDR HDBaseT transmitter is designed for that type of setup. It can send 4K/UHD video at 60 Hz with 4:4:4 chroma sampling up to 330 feet over a single Category 6 or 6A cable. It also carries Ethernet, bidirectional RS-232, IR control, and remote power over HDBaseT to compatible receivers. HDBaseT is best for clean, reliable, long-distance wired installations. It is less relevant if your equipment is already close together or if you specifically need a wireless solution.
For long-distance runs, HDBaseT is usually the better choice. Standard HDMI works well for short connections, but as cable length increases, signal reliability can become a problem, especially with 4K video and HDR. HDBaseT is built specifically to extend AV and control signals over structured cabling across much longer distances. This Atlona transmitter extends 4K/UHD at 60 Hz with 4:4:4 chroma sampling up to 330 feet over a single Cat6 or Cat6A cable. It also supports HDR10, HLG, and Dolby Vision, while carrying RS-232, IR, Ethernet, and remote power to a compatible receiver. That makes it more flexible than a simple HDMI cable when you need a professional installation. HDMI is still the simpler option for short, direct connections between nearby devices. HDBaseT is the better fit for conference rooms, classrooms, racks, lecterns, and display locations where distance, cable management, and system control matter.
An HDBaseT transmitter is a wired extension solution, while a wireless HDMI transmitter sends video through the air. The main advantage of HDBaseT is stability. A wired HDBaseT link is generally more reliable in rooms with Wi-Fi congestion, structural obstacles, or mission-critical presentation needs. It also supports additional signals like control, Ethernet, and in some cases power. This Atlona model is designed for professional wired AV systems. It extends 4K/UHD at 60 Hz with 4:4:4 chroma sampling up to 330 feet over Cat6 or Cat6A, with visually lossless compression and zero latency. It also carries RS-232, IR, Ethernet, and remote power to compatible receivers. Those are important features in boardrooms, classrooms, and digital signage applications where dependable performance matters. Wireless HDMI can be useful for temporary setups or rooms where running cable is not practical. The tradeoff is that wireless range, latency, and signal consistency can vary depending on interference and room conditions.
An HDBaseT transmitter is the right choice for users who need more than basic video extension. If your installation requires long cable runs, 4K HDR support, device control, Ethernet pass-through, or cleaner cable infrastructure, HDBaseT is usually the stronger option than a simple HDMI extender. This Atlona transmitter is a good fit for conference rooms, classrooms, lecture halls, equipment racks, and digital signage systems. It supports 4K/UHD at 60 Hz with 4:4:4 chroma sampling, extends up to 330 feet over Cat6 or Cat6A, and carries AV, Ethernet, bidirectional RS-232, and IR over one cable. It also supports remote power over HDBaseT to compatible receivers, which can simplify installation at the display end. A basic HDMI extender may be enough for shorter runs or simpler residential setups. HDBaseT becomes more valuable when reliability, integration, and professional control features are part of the buying decision.
Yes. This transmitter supports 4K/UHD at 60 Hz with 4:4:4 chroma sampling and is compatible with HDR10, HLG, and Dolby Vision. That matters for installations where image quality, color fidelity, and contrast need to be preserved across a long cable run. For buyers comparing 4K extension products, not all extenders fully support high-bandwidth 4K HDR formats. This model is designed for professional AV environments that need modern video performance, including protected content support through HDCP 2.2 compliance. It is a practical choice for premium flat panels, projectors, and other displays that are expected to show high-quality source material without visible degradation. The key limitation is that overall system performance also depends on the compatible receiver, the display, the source device, and the installed cable quality. To get the full benefit of Dolby Vision or other HDR formats, the entire signal chain needs to support those standards.
This transmitter can extend a 4K/UHD signal up to 330 feet, or 100 meters, over a single Category 6 or 6A cable. That distance is one of the main reasons shoppers choose HDBaseT for professional AV systems instead of relying on long HDMI cables. It supports 4K/UHD at 60 Hz with 4:4:4 chroma sampling, using visually lossless compression with zero latency. In practical terms, that makes it well suited for rooms where the source equipment is located in a rack, lectern, or control area while the display or projector is mounted far away. It is commonly used in classrooms, conference spaces, digital signage, and other installations that need long, dependable signal runs. To achieve maximum performance, the cable type and overall system design matter. This model is specified for Category 6 or 6A cabling, and the receiving endpoint must also be compatible. Poor cabling or mismatched components can reduce performance even if the transmitter itself supports the full distance.
Yes. This model is designed to carry more than video. Along with AV transmission, it supports Ethernet pass-through, bidirectional RS-232, and IR control over the same HDBaseT connection. That allows installers to reduce cable clutter and simplify integration between source devices, displays, and control systems. This is especially useful in commercial AV environments where equipment is centrally located and the display is mounted remotely. For example, a conference room can use one cable path to send video to the display while also enabling control commands and network connectivity at the far end. The unit also supports remote power over HDBaseT to compatible receivers, which can further simplify installations in hard-to-reach display locations. Shoppers who only need a basic picture extension may not need these features. But for integrated rooms, classrooms, and signage systems, combining AV, control, Ethernet, and power into one infrastructure path is a major practical advantage.
Yes, it is well suited for conference rooms and classrooms where source devices need to connect to a display or projector over a long distance with reliable performance. These spaces often require more than just video extension. They may also need control integration, clean cable management, and support for modern 4K content. This Atlona transmitter addresses those needs with 4K/UHD at 60 Hz, 4:4:4 chroma sampling, HDR10, HLG, and Dolby Vision support. It extends signals up to 330 feet over a single Cat6 or Cat6A cable and can carry Ethernet, RS-232, IR, and remote power to a compatible receiver. The compact enclosure also makes it easier to place in furniture, lecterns, or equipment racks. It is a strong fit for permanent professional installations. For a very simple room with short cable runs and no need for control or network pass-through, a direct HDMI connection may be enough. But for larger or more integrated spaces, HDBaseT is often the more scalable choice.
The most important factors are resolution support, color bandwidth, HDR compatibility, maximum extension distance, control capabilities, and cable requirements. If you are sending high-quality 4K content, look for support for 4K/UHD at 60 Hz with 4:4:4 chroma sampling rather than lower-bandwidth formats. HDR compatibility is also important if your displays and sources use HDR10, HLG, or Dolby Vision. This transmitter checks those boxes. It supports 4K/UHD at 60 Hz, 4:4:4 chroma sampling, HDR10, HLG, Dolby Vision, and HDCP 2.2. It extends up to 330 feet over Cat6 or Cat6A and also adds Ethernet pass-through, bidirectional RS-232, IR, TOSLINK return audio, and remote power over HDBaseT. Shoppers should also confirm receiver compatibility and installation needs. A model with advanced control and audio features is ideal for integrated AV systems, but may be more than necessary for a basic point-to-point consumer setup.
Yes. This model includes an integrated TOSLINK pathway for return audio from the display back to the source location. That can be useful in setups where audio originating at the display end needs to be sent back into the AV system without running separate dedicated audio cabling. In practical terms, this feature helps in professional environments where a display may be connected to local audio sources, smart display apps, or other content that needs to feed back into centralized equipment. It can simplify system design and reduce the number of individual cable runs required for a complete installation. This is not a feature every shopper will need, but it adds flexibility for more advanced applications. Buyers should still verify that their full signal path, receiver, and audio equipment are configured to take advantage of return audio. For straightforward video-only extension, the main benefits of this transmitter remain its 4K HDR support, long-distance HDBaseT transport, and integrated control capabilities.

The Atlona 4K HDR HDBaseT Transmitter delivers professional-grade video distribution over standard Cat5e/Cat6 cabling, extending 4K HDR signals up to 130 feet without quality loss. Built-in control and ethernet capabilities streamline system integration, making it ideal for conference rooms, classrooms, and digital signage installations. Compact design fits seamlessly into any AV rack or control system. Experience reliable, long-distance signal transmission that simplifies your infrastructure while maintaining pristine image quality.

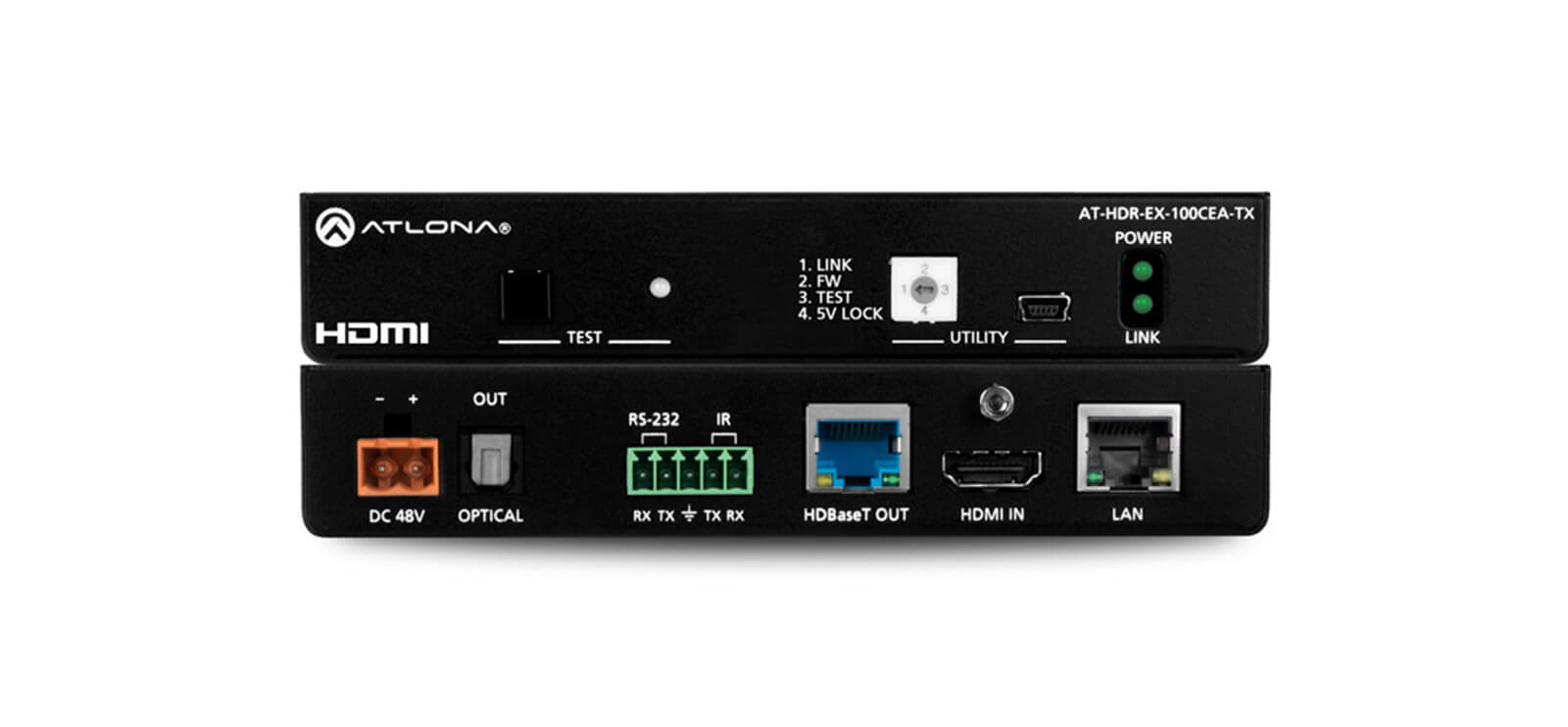

The Atlona 4K HDR HDBaseT Transmitter delivers high-performance signal extension for 4K/UHD video at 60 Hz with 4:4:4 chroma sampling. It extends signals up to 330 feet over a single Category 6/6A cable while maintaining visually lossless compression and zero latency. Full support for HDR10, HLG, and Dolby Vision ensures stunning contrast and color accuracy for high-end displays. This transmitter carries AV, Ethernet, RS-232, and IR control signals over a single connection for streamlined integration. It provides remote power to compatible receivers to simplify installation in remote locations. An integrated TOSLINK pathway allows for seamless return audio from the display back to the source. The compact enclosure is designed for discreet mounting in furniture, lecterns, or equipment racks. HDCP 2.2 compliance ensures the secure transmission of protected high-definition content. Front panel LED indicators provide immediate status updates for power and HDBaseT link connectivity. This professional solution is ideal for point-to-point applications or integration with compatible switching systems.

Maximum Resolution 4K/UHD @ 60 Hz
Chroma Sampling 4:4:4
HDR Compatibility HDR10, HLG, Dolby Vision
Extension Distance 330 feet (100 meters)
Cable Type Category 6/6A
Compliance HDCP 2.2
Control Signals Bidirectional RS-232 and IR
Audio TOSLINK Return Audio Pathway
Power Remote Power over HDBaseT (PoH)
Ethernet Pass-through Support
