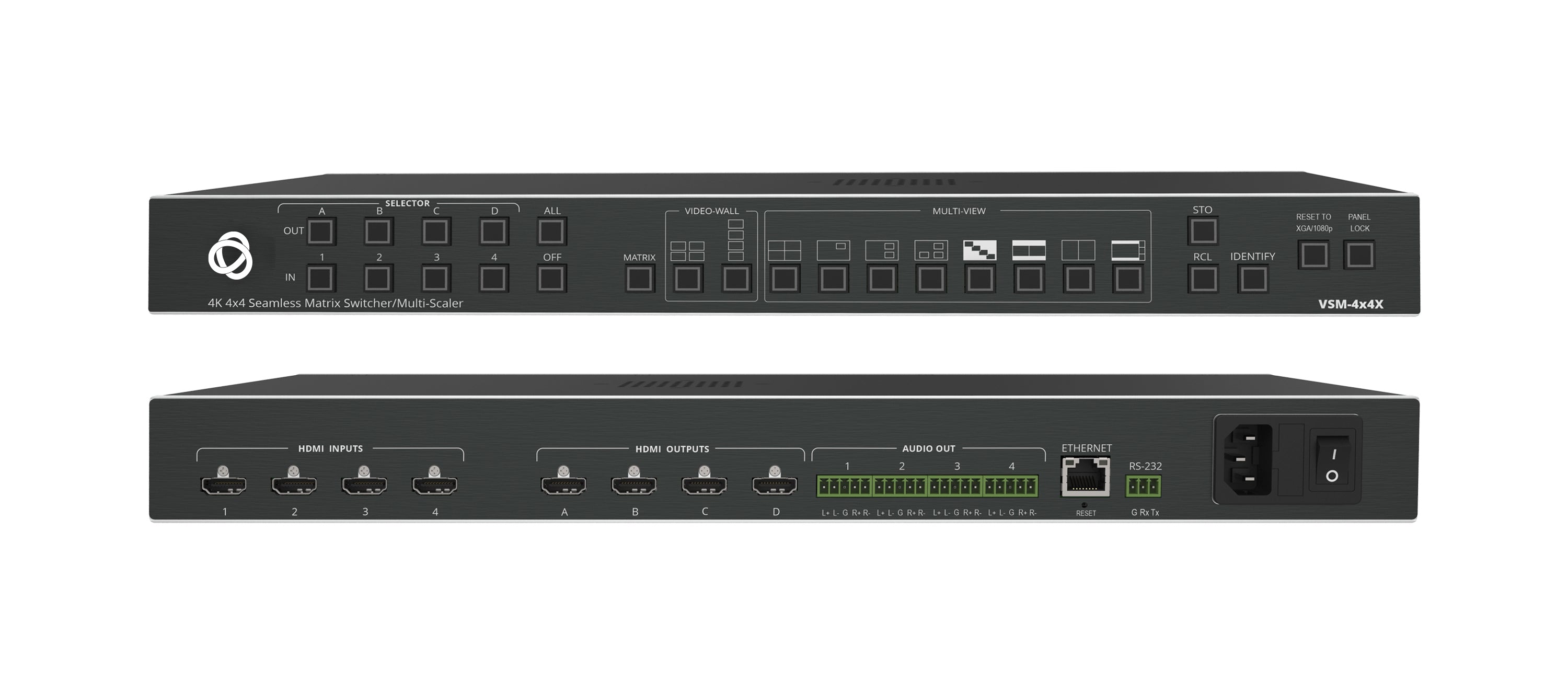

Kramer VSM-4X4X 4x4 Seamless Matrix Switcher Videowall and Multiviewer

An HDMI matrix switcher lets you route multiple video sources to multiple displays independently. In practical terms, that means any input can be sent to any output without constantly reconnecting cables. It is useful in conference rooms, control rooms, classrooms, digital signage networks, auditoriums, and other AV systems where several laptops, media players, or cameras need to feed several screens. The Kramer VSM-4X4X is more advanced than a basic matrix because it combines 4x4 matrix switching with seamless scaling, video wall processing, and multiviewer modes. It accepts four HDMI inputs and sends scaled HDMI output to four displays at up to 4K60 4:4:4. It can also run as a 2x2 or 1x4 video wall driver, or show quad, picture-in-picture, and picture-outside-picture layouts. This type of product is best for users who need flexible routing plus professional presentation features. If you only need to connect one source to one display, a matrix switcher is usually more than you need.

A 4K seamless matrix switcher is designed for live presentation environments where switching must happen without visible black screens, signal dropouts, or handshake delays. A standard HDMI switcher often performs a hard cut, which can briefly interrupt the image while the display re-locks to the signal. In boardrooms, events, lecture halls, and control spaces, that interruption can be distracting. The Kramer VSM-4X4X supports seamless, frame-to-frame switching and also offers fade-through-black transitions. It uses PixPerfect scaling to process and map content precisely, which helps maintain image clarity at up to 4K60 4:4:4. Because it is also a scaler, it can normalize different source resolutions and improve compatibility across modern digital displays. This matters most for professional AV users who switch between presenters, media players, or live sources during active sessions. The tradeoff is that seamless matrix switchers are more specialized than simple switchers, so they make the most sense when reliability, presentation quality, and layout flexibility are top priorities.

A well-designed HDMI switcher should not noticeably degrade digital video quality when it supports the required bandwidth and standards for your system. Problems usually come from mismatched resolutions, inadequate processing, poor EDID handling, or older hardware that cannot pass modern 4K signals cleanly. The Kramer VSM-4X4X is built for professional 4K workflows, with HDMI 2.0 and HDCP 2.2 support and output up to 4K60 4:4:4. It also includes PixPerfect scaling, noise reduction, and advanced EDID management, which help preserve image integrity and improve device compatibility. Those features are especially important when multiple sources and displays are involved, because they reduce the chances of handshake issues or inconsistent output behavior. For users running conference room displays, digital signage walls, or high-resolution presentation systems, this type of switcher is intended to maintain a clean, stable image rather than compromise it. The key is using a switcher that matches your signal format, display requirements, and installation complexity.

The best 4K seamless matrix switcher for your installation should match your signal types, display count, switching expectations, and control needs. The most important features usually include true 4K60 4:4:4 support, seamless switching, solid EDID management, HDCP 2.2 compatibility, reliable scaling, and easy control over Ethernet or RS-232. The Kramer VSM-4X4X checks many of those boxes for professional environments. It offers four HDMI inputs, four scaled HDMI outputs, seamless frame-to-frame switching, and PixPerfect scaling. It also adds value beyond basic routing by functioning as a 2x2 or 1x4 video wall driver and a multiviewer with quad, PIP, and POP layouts. Four balanced analog stereo outputs with audio de-embedding make it useful when audio needs to be managed independently from video. This makes it a strong fit for meeting spaces, auditoriums, and digital signage installations. If you do not need video wall or multiviewer features, a simpler matrix may be enough, but for mixed-use AV systems, these extra capabilities can reduce the need for separate processors.

Yes, the Kramer VSM-4X4X is a strong option for smaller professional video wall applications. It can operate as a video wall driver in either 2x2 or 1x4 configurations, which makes it suitable for display arrays used in lobbies, command areas, signage zones, and presentation spaces. What sets it apart is that it does more than simply split an image. It also provides seamless matrix switching and scaling, so the same unit can route different HDMI sources while supporting clean visual transitions and properly processed output. With support for up to 4K60 4:4:4, HDMI 2.0, and HDCP 2.2, it is designed to work with modern digital displays and high-detail content. It is best for installations that need a compact processor for a 2x2 wall or a stretched 1x4 layout without adding a separate video wall controller. The limitation is scale: if you need a larger wall than four displays or highly complex creative wall mapping, you may need a more specialized large-format video wall platform.

Yes. The Kramer VSM-4X4X can function as a multiviewer, which means it can display multiple sources on screen at the same time instead of showing only one full-screen source per output. It supports quad view, picture-in-picture, and picture-outside-picture layouts, giving installers and users more ways to monitor or present content. This is especially useful in control rooms, collaboration spaces, training rooms, and live presentation environments where users need to compare several inputs at once. For example, one display can show multiple laptops, media feeds, or camera signals in a single organized layout, while other outputs can still be routed differently through the matrix. The practical advantage is consolidation. Instead of needing separate products for matrix switching, scaling, and multiviewing, one device can cover those roles in many installations. The main consideration is layout complexity. If you need highly customized multi-window design or advanced broadcast-style monitoring, a dedicated multiview processor may offer deeper layout control.

The Kramer VSM-4X4X is best for professional AV users who need flexible source routing, fast switching, and advanced display modes in one unit. Typical users include integrators designing conference rooms, higher education spaces, auditoriums, digital signage systems, and control-oriented environments. It is particularly useful when a system needs more than simple input selection. Because it combines 4x4 matrix switching, seamless transitions, 4K scaling, video wall support, and multiviewer modes, it fits spaces where displays may serve different functions throughout the day. One moment the system may route separate sources to different screens, and the next it may create a 2x2 wall or a quad-view layout. Users also benefit if they need audio de-embedding, since the unit provides four balanced analog stereo outputs with independent volume control. It is less ideal for very simple installations with only one display or no need for scaling and layout processing, where a basic switcher would be more appropriate.

Yes. The Kramer VSM-4X4X is designed for current digital AV systems with support for HDMI 2.0, HDCP 2.2, and resolutions up to 4K60 4:4:4. Those specifications are important because they determine whether the switcher can properly handle high-resolution sources and protected content used in modern commercial installations. In addition to passing compatible 4K signals, the unit provides scaled HDMI outputs. That means it can process and adapt content for display requirements instead of acting only as a passive pass-through device. Its EDID management also helps sources and displays communicate more reliably, which is valuable when mixing different equipment types in one system. This makes it well suited for conference rooms with 4K flat panels, digital signage applications, and presentation spaces where image sharpness and interoperability matter. Buyers should still verify that every source, cable path, and display in the system supports the required format, since overall performance depends on the complete signal chain, not just the switcher itself.

Audio de-embedding matters because many AV systems need to send video to displays while routing audio somewhere else, such as a DSP, amplifier, ceiling speaker system, or recording path. Without de-embedding, the audio remains tied to the HDMI signal, which limits system flexibility. The Kramer VSM-4X4X includes four balanced analog stereo audio outputs, and it allows independent volume control across those outputs. That is useful in conference rooms, auditoriums, and signage environments where display audio is not the main listening path or where each zone needs separate level control. It also simplifies integration with professional sound systems that expect balanced analog audio connections. This feature benefits installers and facilities that need more control over how sound is distributed. A user can route high-quality video to screens while feeding clean audio into a dedicated sound system. If your application relies entirely on the display's built-in speakers, audio de-embedding may be less critical, but in most commercial AV designs, it adds meaningful flexibility.

Seamless switching improves reliability from the user perspective because it prevents visible interruptions when changing sources. In a live meeting or presentation, black screens and handshake delays can make the system feel unstable even if it eventually reconnects. Frame-to-frame switching keeps transitions smooth and predictable. EDID management improves reliability behind the scenes. EDID is the information displays share with source devices about supported resolutions and formats. In multi-display systems, that communication can get complicated, especially when different screens and sources are mixed. Advanced EDID management helps the switcher present consistent capabilities to sources, reducing compatibility problems and unexpected resolution changes. The Kramer VSM-4X4X combines both of these advantages with noise reduction and 4K scaling. That makes it a practical choice for installations where uptime and presentation quality matter, such as executive meeting rooms, training spaces, and digital signage systems. While no processor can fix every upstream cable or source problem, these features significantly reduce common signal-chain issues.
