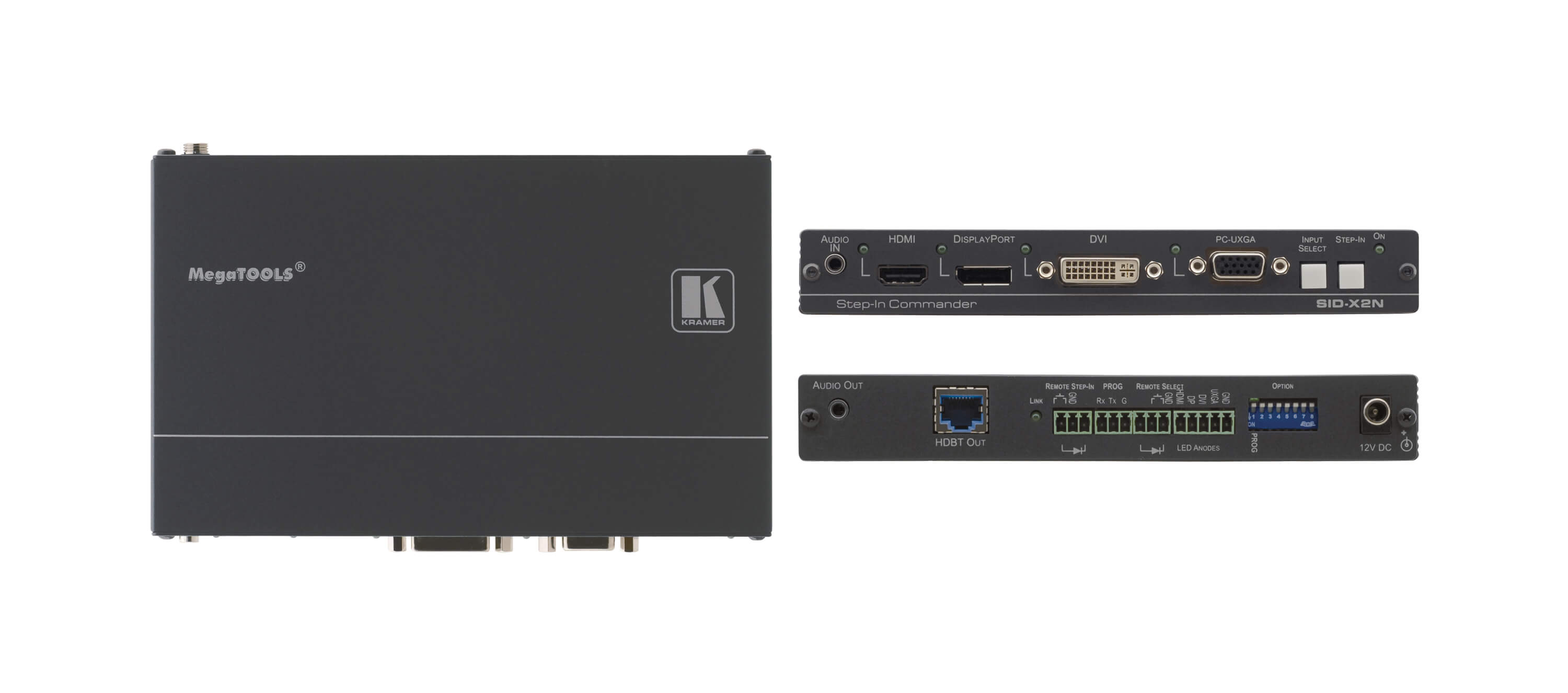

Kramer SID-X2N 4-Input HDBaseT Transmitter and Presentation Step-In Commander

The Kramer SID-X2N is a high-performance HDBaseT twisted pair transmitter and step-in commander designed for high-resolution AV signals. It supports versatile connectivity, including DisplayPort, HDMI, DVI, VGA, and unbalanced stereo audio. Engineered for professional boardrooms and presentation rooms, this unit handles data rates up to 6.75Gbps. It features advanced auto-input selection, HDCP compliance, and seamless EDID pass-through for Plug-and-Play operation. Users benefit from local balanced audio de-embedding and reliable signal distribution with reclocking. The system supports local step-in switching via button or contact closure for intuitive control. With an extended transmission range of up to 426 feet, it provides a stable, long-distance routing solution. This compact device offers robust performance for complex AV installations requiring professional-grade signal management.

Input	DisplayPort, HDMI, VGA, DVI, Unbalanced Stereo Audio
Output	HDBaseT (Twisted Pair)
Max Data Rate	6.75Gbps (Normal Mode)
Max Resolution	1080p @60Hz
Max Transmission Distance	426ft (Normal Mode)
Control	Button, Contact Closure
Compliance	HDCP Compliant
Audio Support	Local Balanced De-Embedding
Enclosure Type	MegaTOOLS
Power	Independent Power Supply Required
