AVPro Edge HDMI Wall Plate Kit 4K 40m
Regular price
$1,009.00
Couldn't load pickup availability

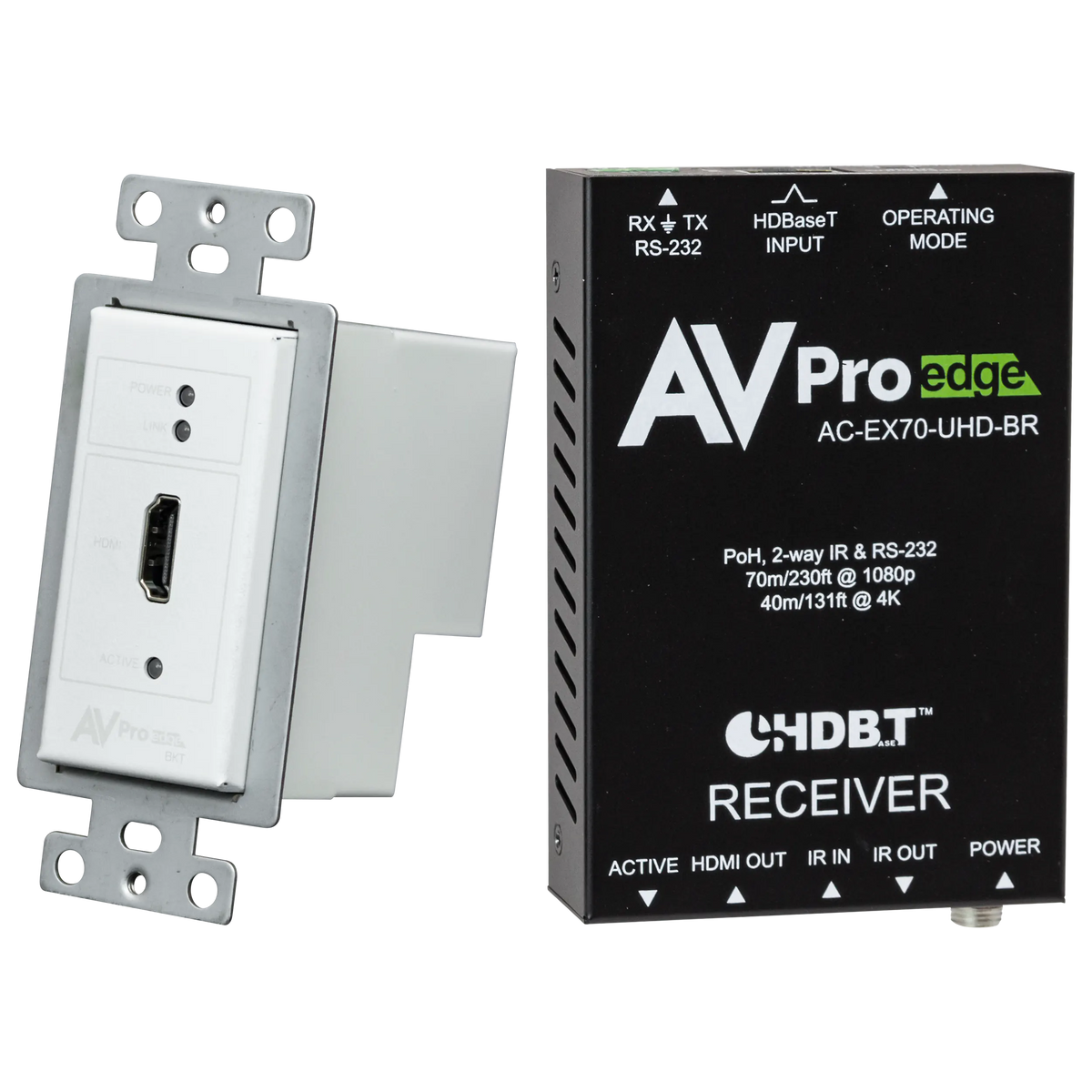

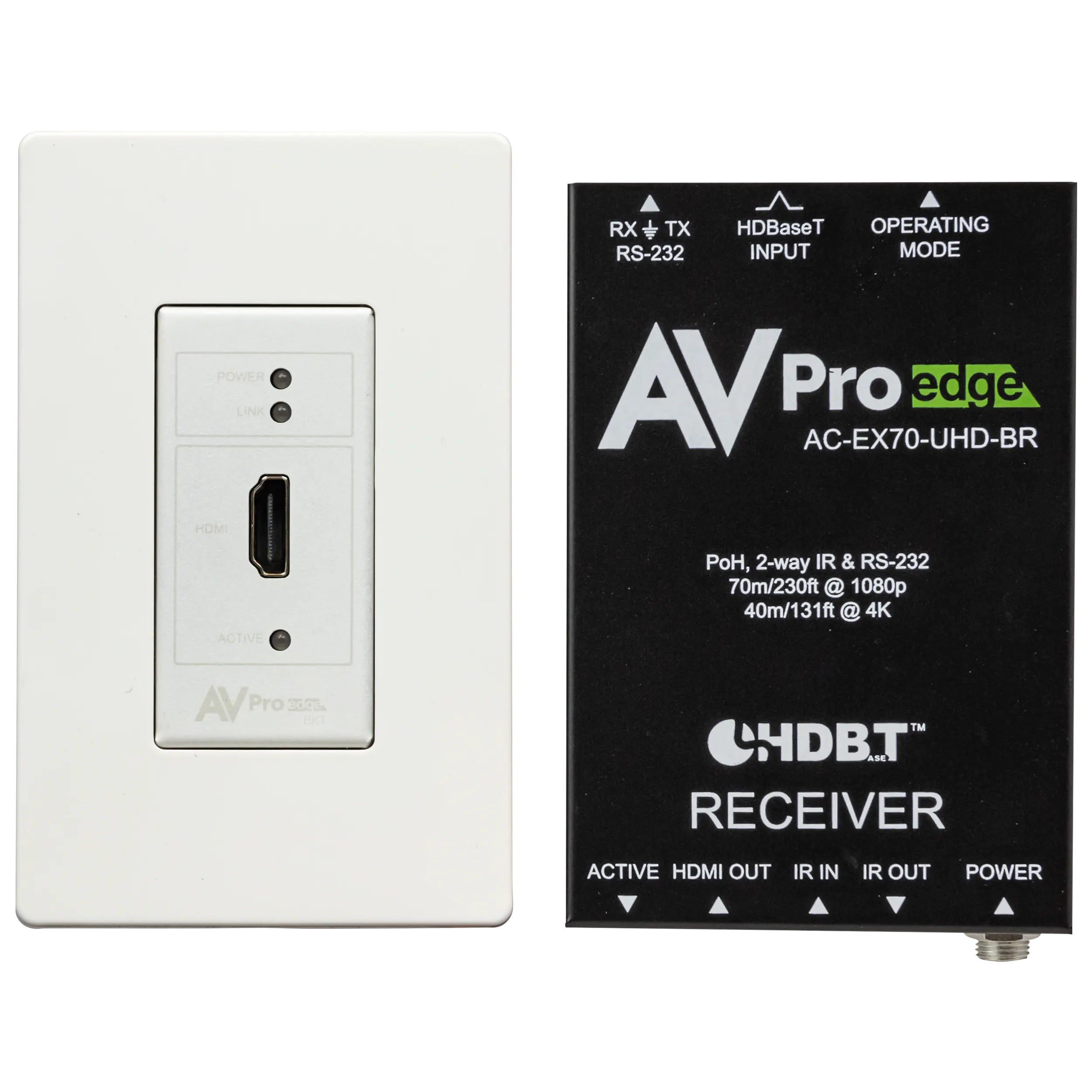

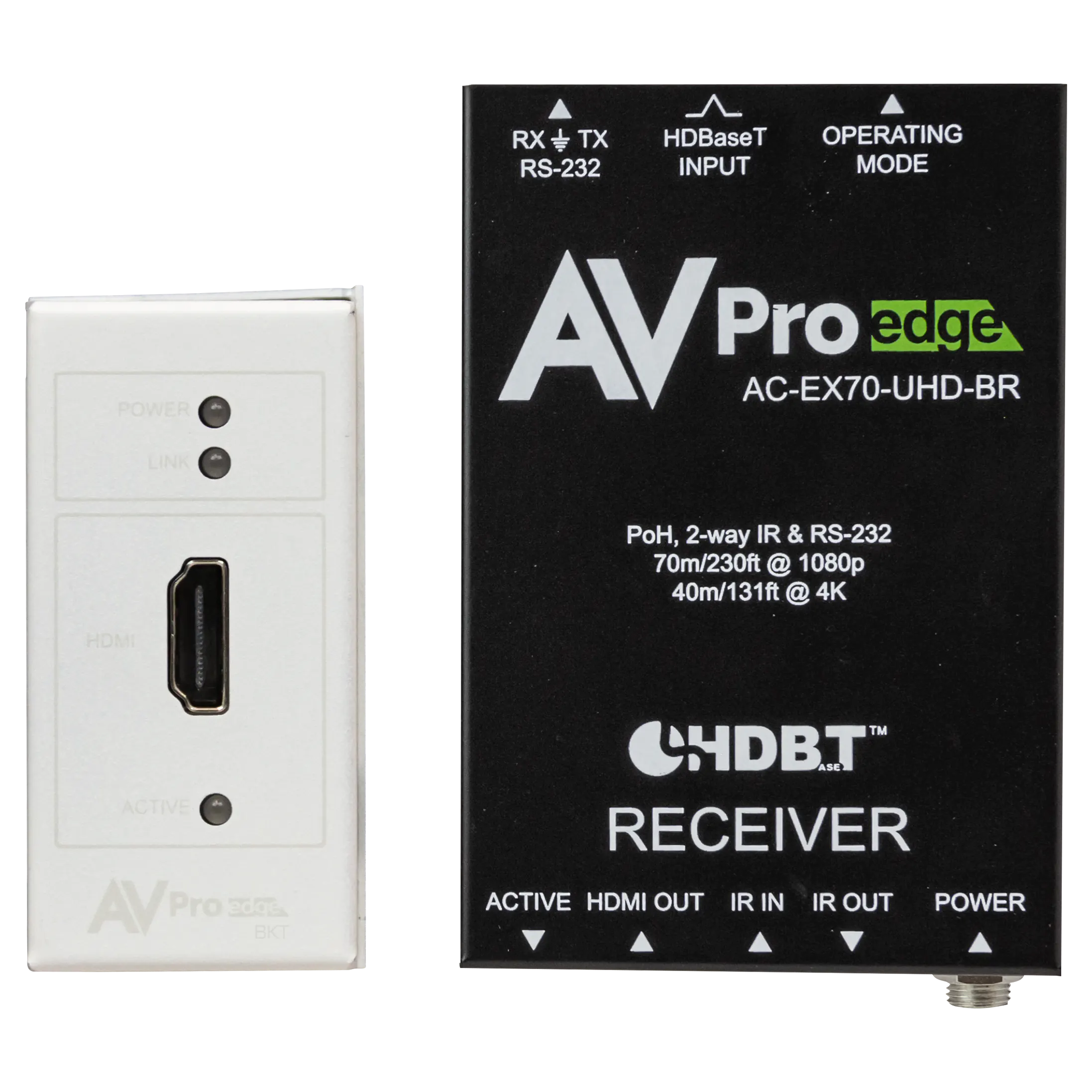

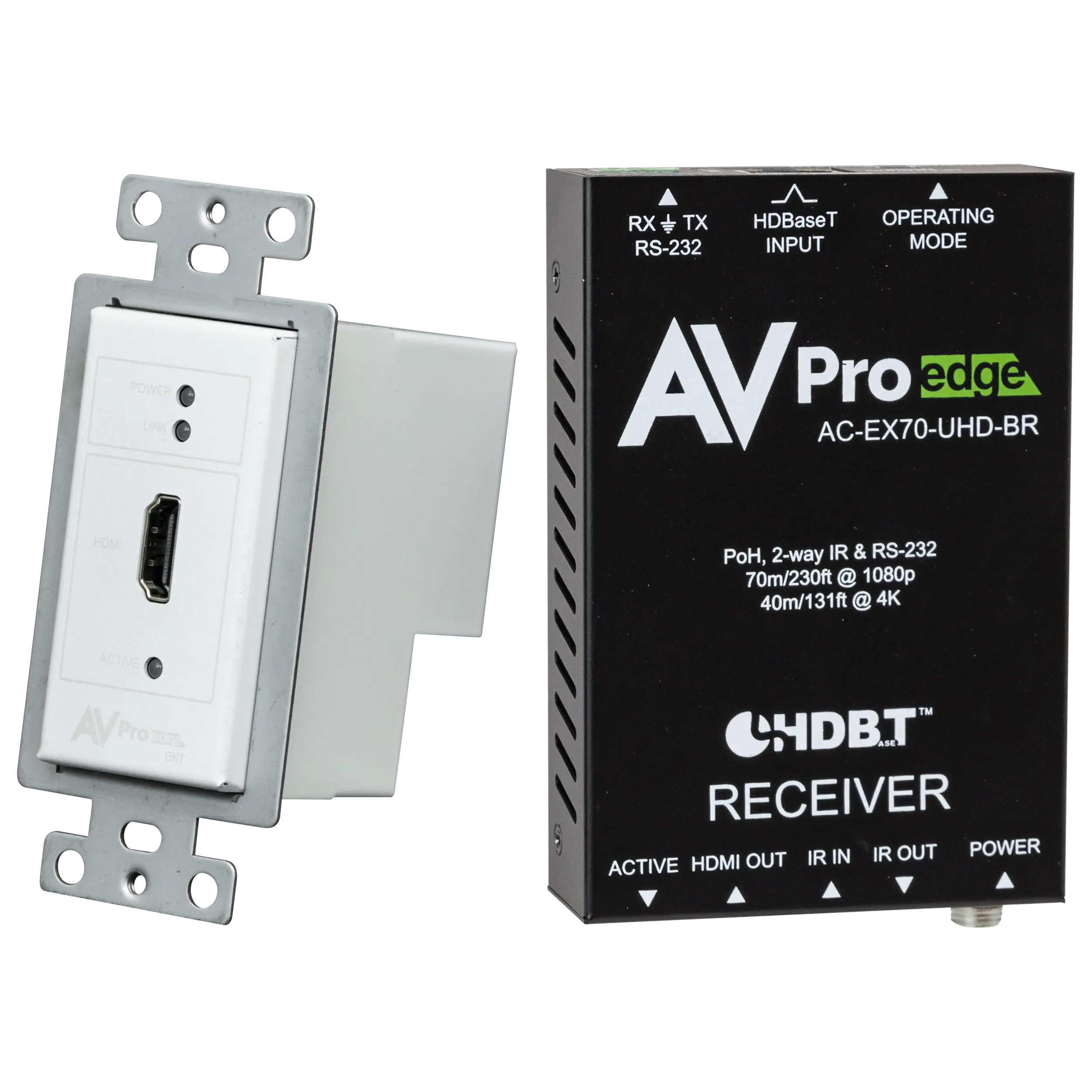

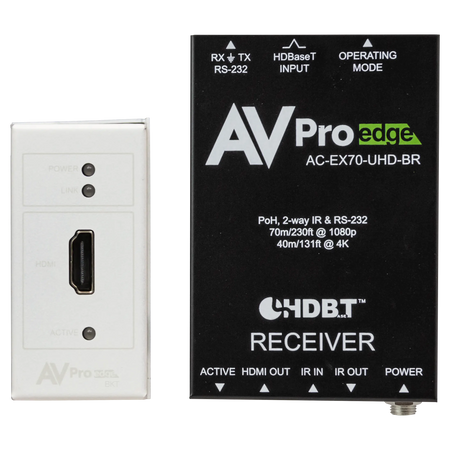

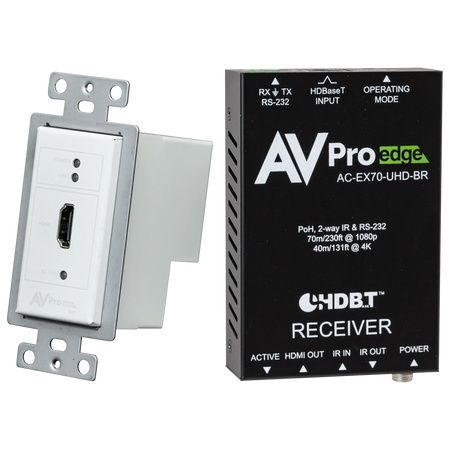

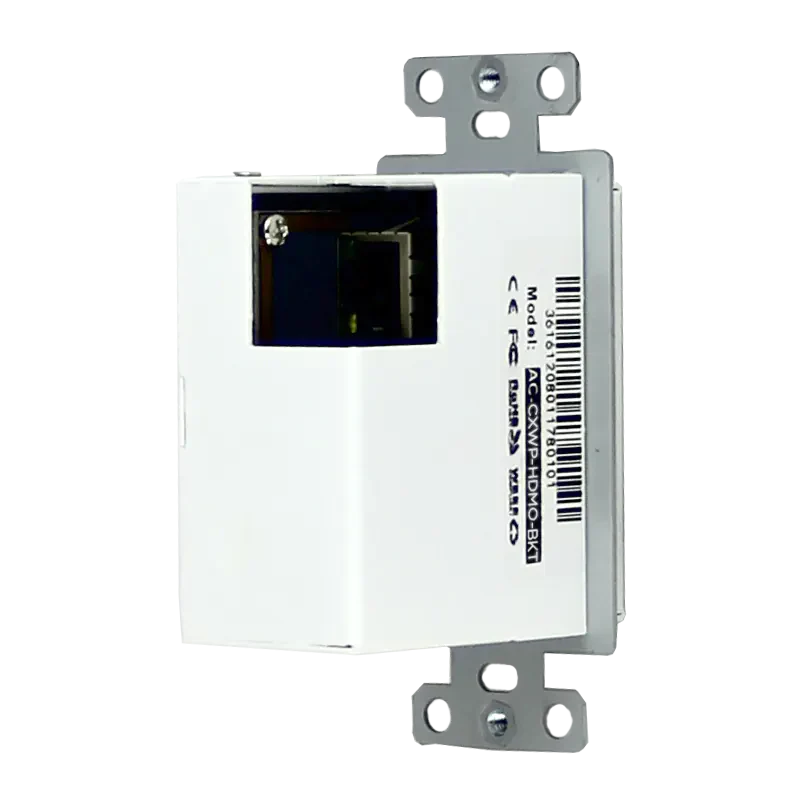

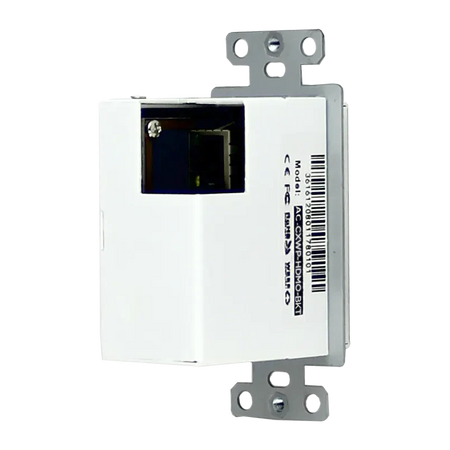

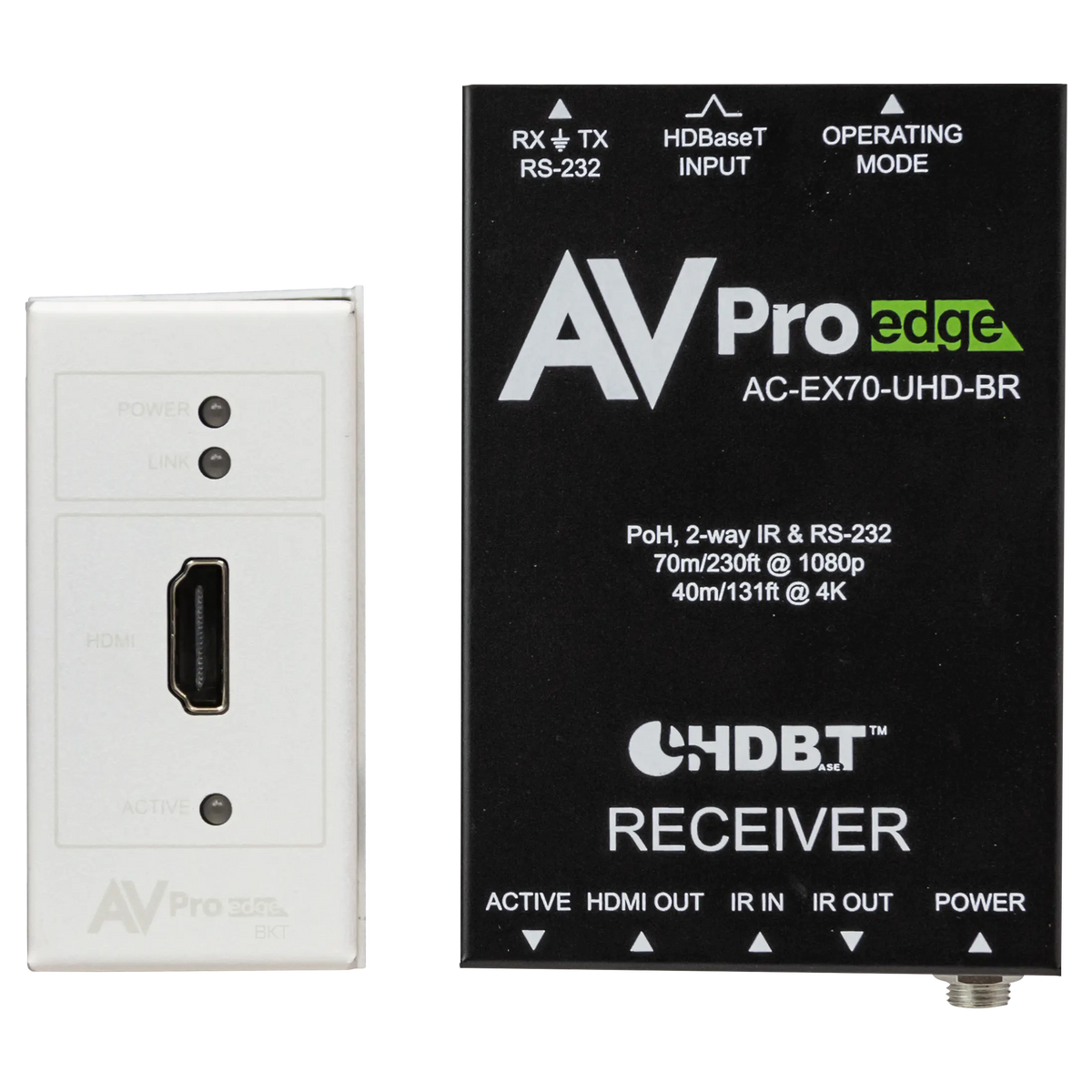

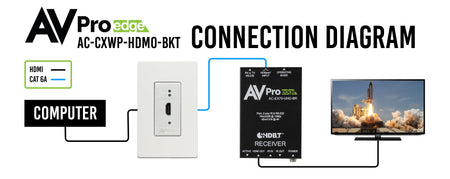

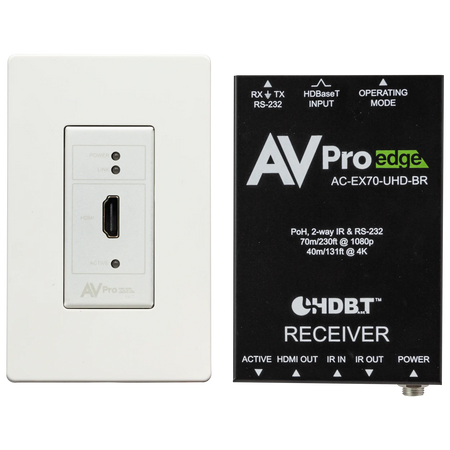

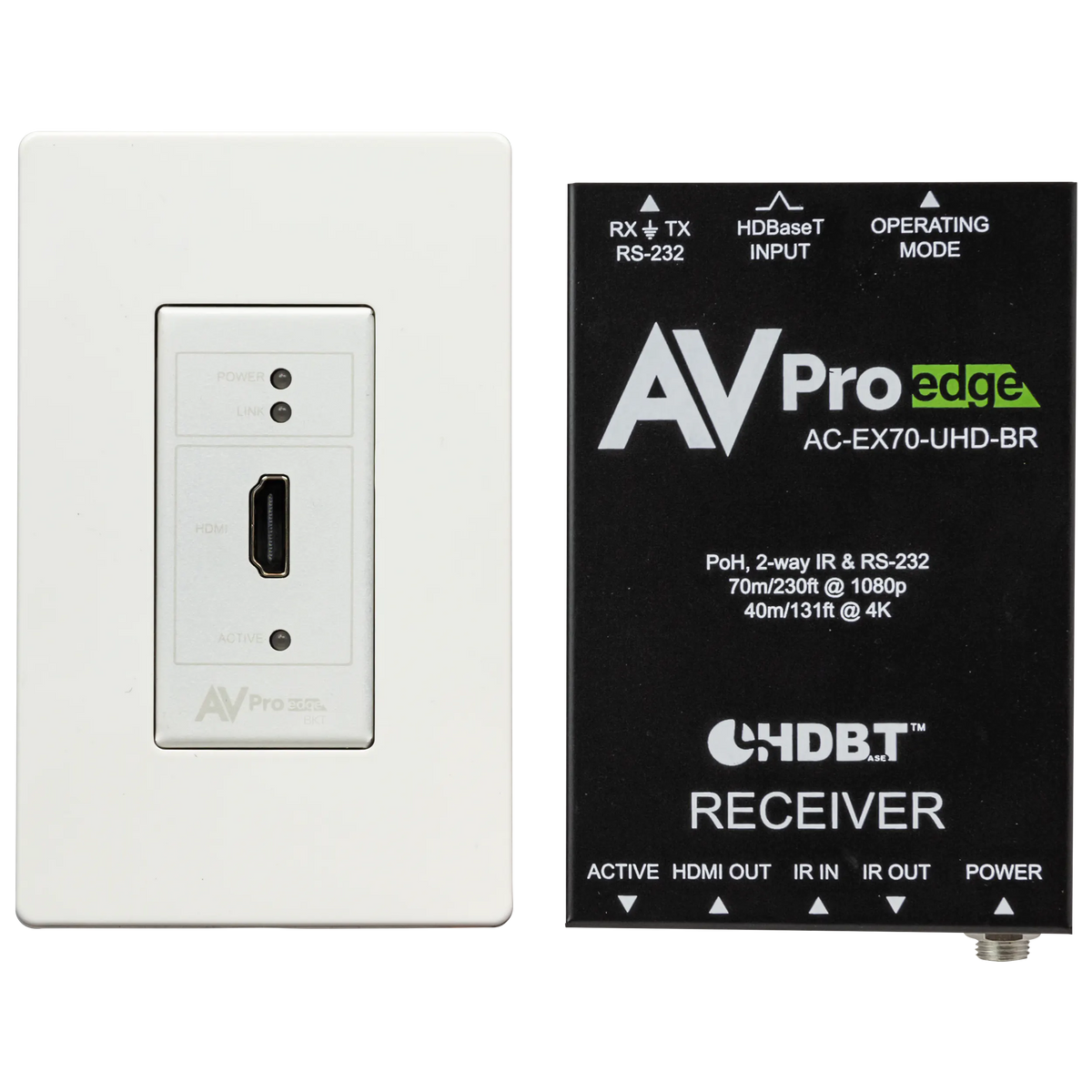

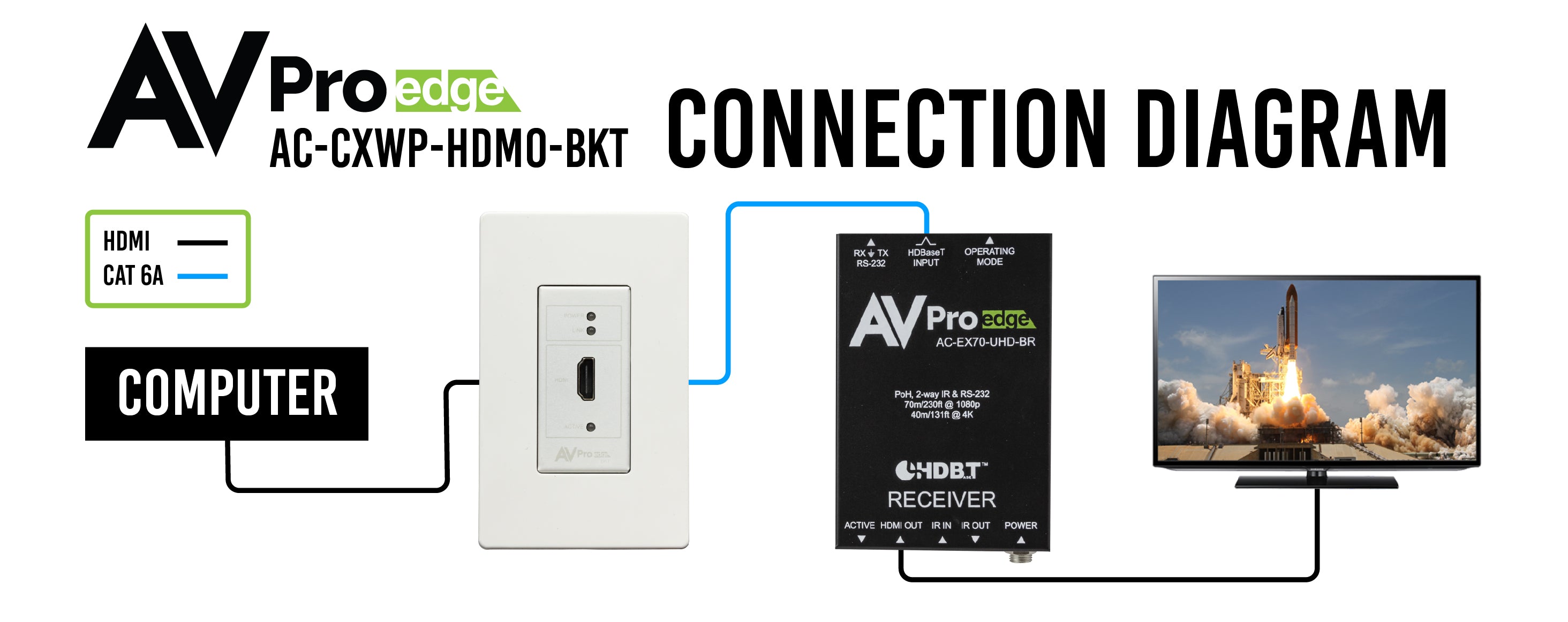

The AVPro Edge Basic HDMI Wall Plate Kit provides a reliable, cost-effective solution for extending high-definition video signals. Designed for a sleek, single-gang installation, this kit supports HDMI 2.0 and HDCP 2.2 for compatibility with modern displays. It transmits 1080p video up to 70 meters and 4K resolution up to 40 meters over CAT-6A or CAT-7 cabling. The system uses Power over Cable (PoC) technology to deliver power directly to the receiver, simplifying the setup process. Ideal for conference rooms, podiums, or wall-mounted applications, this kit ensures a professional and clean HDMI connection. Please note that this unit is designed as a matched kit and is not compatible with matrix switches.
| Resolution | Up to 4K 60Hz 4:2:0 8-bit |
| Video Support | HDCP 2.2 |
| Transmission Distance (4K) | 40 meters |
| Transmission Distance (1080p) | 70 meters |
| Bandwidth | 10.2 Gbps |
| Power Consumption | 16.5W |
| Tx Unit Dimensions | 65 x 31 x 70 mm |
| Installation | Single-gang |
