A 4K display can look excellent during a local test and still disappoint in a live video meeting. The reason is often not the display or camera - it is the cable path between the laptop, conferencing system, camera, and room screen. Understanding which cables support 4K conferencing helps schools, corporate IT teams, churches, and government facilities specify rooms that deliver clear content sharing without unreliable connections.
For most meeting rooms, the practical answer is HDMI, DisplayPort, USB-C, and USB - but each cable has a different job. A cable that carries a 4K laptop image may not carry camera data, power, Ethernet, or control signals. Selecting the right combination starts with identifying the signal path rather than assuming one cable handles the entire conference.

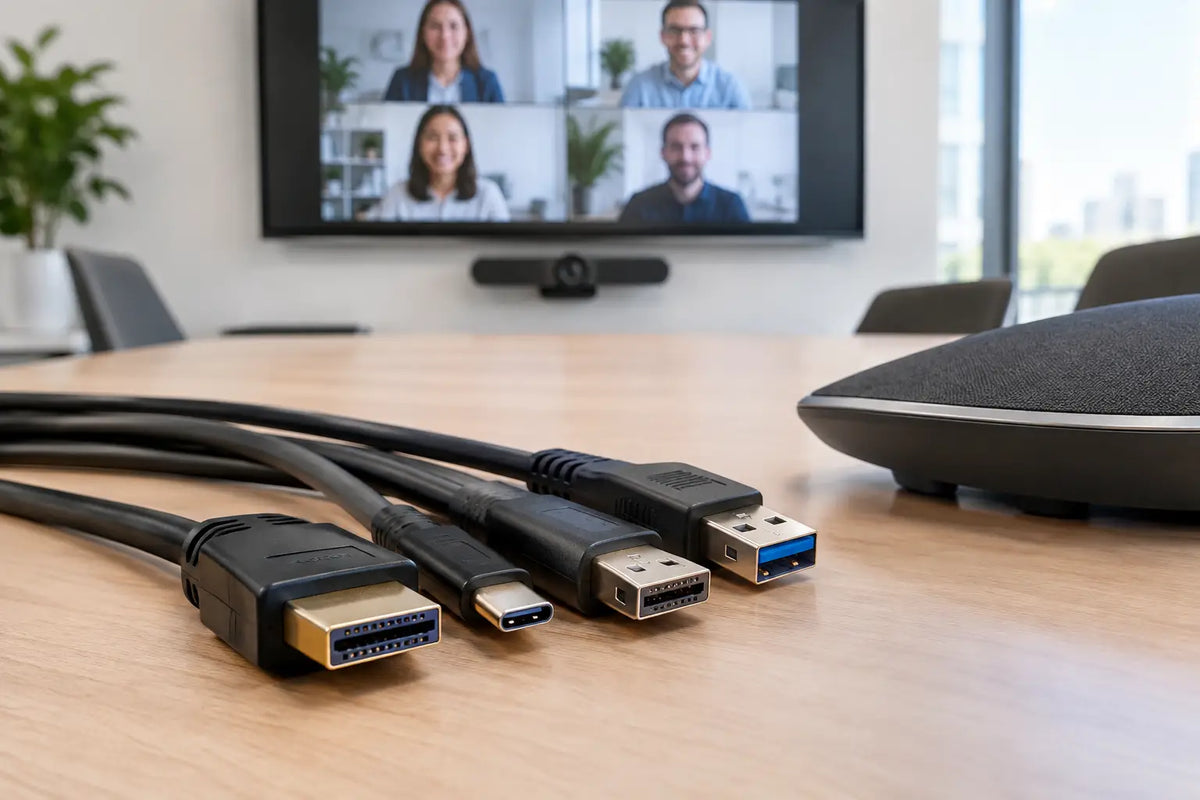

Which Cables Support 4K Conferencing?
HDMI is the most common choice for carrying 4K video from a laptop, room PC, conferencing codec, switcher, or wireless presentation receiver to a display or projector. For dependable 4K conferencing at up to 60Hz, specify a certified Premium High Speed HDMI cable rated for 18 Gbps. This supports the 4K 60Hz video formats commonly used by modern conferencing systems and gives presenters readable spreadsheets, detailed diagrams, and sharp shared documents.
Ultra High Speed HDMI cables support up to 48 Gbps and are designed for HDMI 2.1 capabilities, including higher refresh rates and 8K formats. They are a sensible choice when a new room needs additional headroom, particularly when connecting newer source devices to large-format displays. However, they are not automatically necessary for a standard 4K 60Hz conference room. The value comes from the room’s actual source and display requirements, not simply the highest number on the cable package.
DisplayPort is another strong 4K video connection, especially for desktop PCs, professional workstations, and some commercial displays. DisplayPort 1.2 supports 4K at 60Hz, while DisplayPort 1.4 offers more bandwidth for higher-resolution and higher-refresh applications. In a fixed corporate training room or command center, DisplayPort can be an excellent direct connection. For guest-facing meeting tables, HDMI and USB-C are usually more familiar to presenters.
USB-C can carry 4K video through DisplayPort Alt Mode, making it especially useful for BYOD rooms and laptop-based collaboration. A single USB-C connection can potentially deliver video, USB data, Ethernet, and laptop charging through a compatible dock, display, or conferencing hub. The key word is compatible. Both the laptop’s USB-C port and the receiving device must support video output, and the cable itself must be rated for the required video and data capabilities.
USB-A and USB-C data cables are equally important when a room uses a USB conferencing camera, speakerphone, audio bar, touch controller, or interactive display. A 4K USB camera needs enough USB bandwidth to transmit its video signal reliably. In most cases, a USB 3.x cable and a USB 3.x connection are the appropriate starting point. A USB 2.0 cable may allow a device to connect, but it can limit resolution, frame rate, or available camera features depending on the equipment.
Video Cables and Camera Cables Are Not the Same
One of the most common specification mistakes is treating 4K conferencing as a single cable requirement. It is usually two separate signal paths: the path that sends shared content to the room display and the path that brings camera, microphone, and speaker data to the conferencing computer or codec.
For example, a typical boardroom may use HDMI from a room PC to a 4K commercial display, plus USB 3.x from a 4K PTZ camera to the room PC. If the camera is mounted across the room, a standard passive USB cable may not reach reliably. The installation may require an active USB extension, USB-over-Cat cable system, or a camera with network-based video transport. The right answer depends on distance, room layout, and the conferencing platform.
A USB-C dock can simplify tabletop connectivity, but it does not eliminate these separate requirements. The dock may provide HDMI output for the display and USB ports for a camera or audio device, yet its capabilities still depend on the laptop, dock chipset, power delivery profile, and installed cable lengths. For high-use spaces, this is why tested room kits are preferable to mixing adapters from multiple sources.
Cable Length Changes the Recommendation
Short cable runs are straightforward. A certified passive HDMI cable is usually appropriate for a conference table, credenza, or wall display connection. As distances increase, signal loss becomes more likely, particularly with 4K 60Hz content.
For longer HDMI runs, active HDMI cables and fiber optic HDMI cables are often the better choice. Active cables use built-in electronics to maintain the signal and are usually directional, so installers must connect the source and display ends correctly. Fiber optic HDMI cables are well suited to longer routes through ceilings, walls, and large training rooms because they can carry high-bandwidth video over distances where passive copper HDMI becomes less dependable.
USB has tighter practical distance limits than HDMI. A short, high-quality USB 3.x cable is ideal for a camera positioned near the room computer. For cameras at the front of a classroom, auditorium, or larger conference room, use an extension solution specifically designed for USB conferencing devices. Generic USB extenders may support keyboard and mouse functions but fail to provide the bandwidth or stability a 4K camera needs.
HDBaseT and AV-over-IP systems can also be appropriate in larger facilities. These solutions can distribute video and control over structured cabling, which is valuable when equipment racks are located away from displays. Not every HDBaseT system supports the same 4K formats, color depth, or USB functions, so verify the specifications of the transmitter, receiver, and cabling as a complete system.
What to Specify for Common 4K Conference Room Setups
A small huddle room with a display-mounted video bar may need only a certified HDMI cable for the display connection and a short USB 3.x cable to the room computer. If users bring their own laptops, add a USB-C connection solution that supports video output and charging for the organization’s typical devices.
A medium classroom or conference room often needs a longer display cable, a dedicated 4K USB camera connection, and cable management that protects connectors from daily use. A fiber optic HDMI cable may be a worthwhile investment when the display is far from the equipment location. It costs more than a basic cable, but it can reduce troubleshooting calls and avoid opening walls later.
A large lecture hall, worship space, or divisible training room may require a more engineered approach. Cameras, displays, switchers, control systems, confidence monitors, and room PCs should be designed as an integrated AV system. In these environments, cable selection includes not only 4K resolution but also signal routing, redundant operation, control, audio integration, service access, and future expansion.
Check the Rating, Not Just the Connector
Two cables with the same HDMI or USB-C connector can perform very differently. The connector tells you what plugs in; the rating tells you what the cable can reliably carry. Look for certified HDMI performance labels, USB 3.x data capability where needed, and USB-C cables that explicitly support video if the connection will carry a laptop image.
Also consider power. Some USB-C cables handle data and video but provide limited charging capability. A conference room designed around single-cable laptop connectivity should confirm both the required power delivery wattage and the number of displays supported by the dock or hub. A presenter with a high-performance laptop may need more power than a basic USB-C cable setup can provide.
Adapters deserve the same scrutiny. A low-cost USB-C-to-HDMI adapter can become the weak point in an otherwise well-specified room. For institutional deployments, standardizing on tested adapters, cables, and docking hardware makes replacement easier and creates a more consistent experience across rooms.
Plan for the Room, Not Just the Resolution
4K conferencing is about more than getting a picture on screen. Text needs to remain readable from the back of the room, camera framing needs to look natural, and users need to connect without guessing which port or cable will work. That requires matching cable type, bandwidth, length, and equipment compatibility to the way the room will actually be used.
For a new installation or an upgrade, document every connection from source to display and from camera to conferencing host before purchasing cables. Protech Projection Systems can help organizations align displays, cameras, mounting, cabling, and installation requirements so the finished space supports clear collaboration rather than creating another support ticket.
