A projector that shows “No Signal” five minutes before a board meeting is rarely a display problem. Often, the issue is a damaged, mislabeled, improperly terminated, or incompatible cable buried behind a wall plate or under a conference table. Knowing how to test AV cables before installation helps schools, corporate IT teams, churches, and facilities departments prevent those disruptive, expensive callbacks.
The right method depends on the signal type and cable length. A basic continuity test can confirm whether conductors connect end to end, but it cannot prove that a 4K HDMI run will reliably carry video through an extender. For dependable results, combine visual inspection, cable-specific testing, and a live signal test using the actual source and display equipment.
Start With the Cable Type and Signal Requirement
Testing begins with identifying what the cable is expected to carry. HDMI, DisplayPort, USB-C, SDI, VGA, Ethernet, XLR, and speaker cable all fail differently and require different test approaches. Label both ends before testing, especially when multiple runs terminate in a rack, lectern, teacher station, or wall box.
For video cables, confirm the planned resolution, refresh rate, and distance before selecting a tester. A cable that works at 1080p may fail at 4K 60 Hz, particularly on long HDMI runs. Likewise, an SDI cable may pass a basic continuity test while still causing intermittent video errors when handling a high-bandwidth 12G-SDI signal.
This is where project requirements matter more than a generic pass or fail. A short HDMI patch cable in a classroom has a different performance demand than a 100-foot run feeding a projector in an auditorium. If the installation calls for 4K video over a long distance, an active optical HDMI cable or an AV extension system may be the more reliable choice than a passive copper cable.
How to Test AV Cables With a Visual Inspection
Before connecting any tester, inspect the cable carefully. This takes little time and catches many common failures. Look for crushed jacket sections, cuts, sharp bends, loose connector shells, corroded contacts, and strain damage where the cable meets each connector.
Check that pins are straight and present. On HDMI and DisplayPort connectors, even minor contact damage can cause handshake issues, flickering, or loss of audio. For XLR, BNC, and other locking connectors, make sure the connector latches firmly and does not rotate loosely. A connector that feels secure can still have a broken internal solder joint, but physical inspection is the fastest first filter.
Also check the cable marking. HDMI cables should state their performance category, while bulk cable should have an identifiable rating and length marking where applicable. In-wall installations should use properly rated cable, and plenum spaces require plenum-rated cable. A cable may function electrically but still be unsuitable for the installation environment.
Use a Cable Tester for Continuity and Wiring Faults

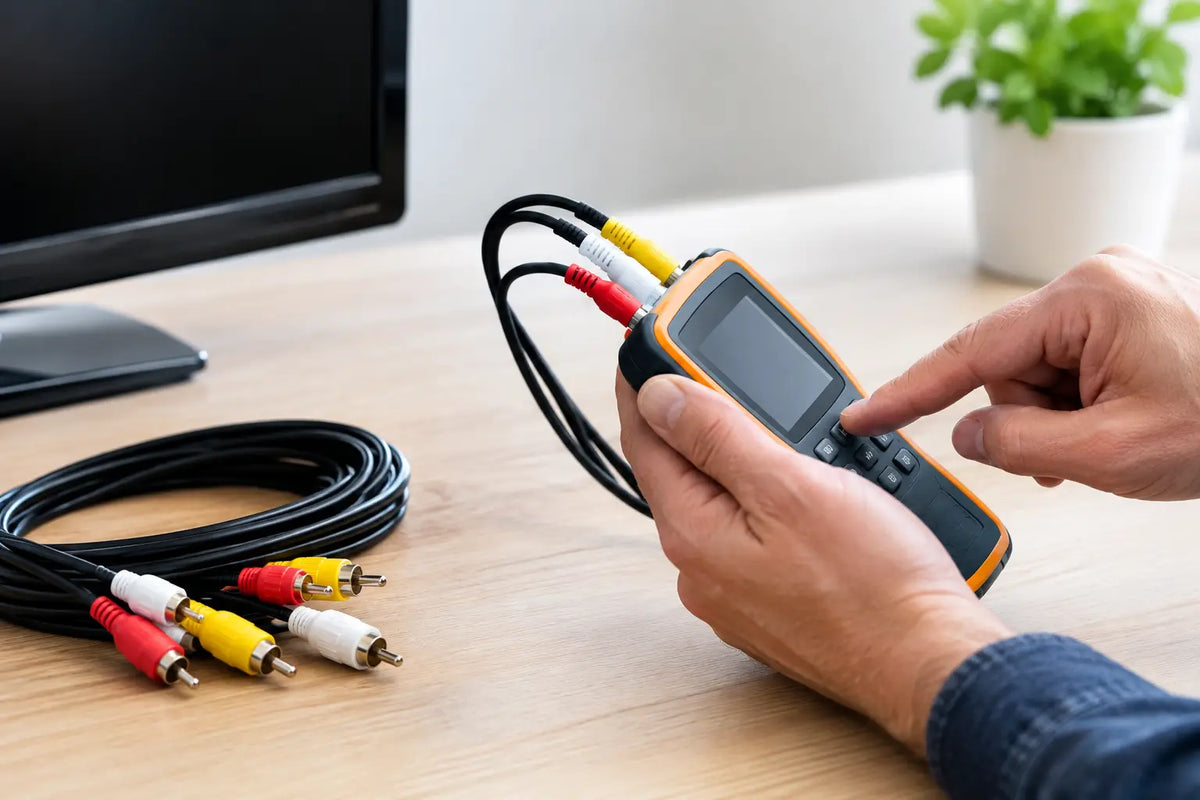

A cable tester is the most efficient tool for checking basic wiring integrity. Many AV technicians keep a modular tester with adapters for RJ45, XLR, BNC, RCA, and other common connector formats. The tester sends a signal through the cable and verifies that each conductor arrives at the expected pin on the far end.
For balanced audio cable, test all three XLR pins and confirm there are no shorts between them. A properly wired cable should preserve pin order from one connector to the other. For speaker cable, verify continuity and polarity so positive remains positive and negative remains negative. Reversed polarity may not stop sound entirely, but it can reduce bass response and create poor coverage when multiple loudspeakers operate together.
Ethernet cable used for AV-over-IP, control systems, HDBaseT, or networked conferencing should be tested for all eight conductors and correct pin sequence. A low-cost tester can identify an open pair or crossed wire. For permanent infrastructure, a certification-grade tester provides more useful information, including length, insertion loss, and bandwidth performance. That level of documentation is particularly valuable for schools, government facilities, and corporate projects with formal closeout requirements.
Continuity testing is valuable, but it has limits. It does not verify HDCP compatibility, EDID communication, video bandwidth, power delivery, or real-world signal stability. Treat a continuity pass as the first checkpoint, not final approval.
Verify Video Cables With a Live Signal Test
For HDMI, DisplayPort, USB-C video, and SDI, test the complete signal path whenever possible. Connect the intended source, cable, any adapters or extenders, and the actual display or projector. Then send the highest resolution and refresh rate the system is expected to use.
On an HDMI-equipped projector or interactive display, confirm that the image locks quickly and remains stable for at least several minutes. Watch for sparkles, brief blackouts, color shifts, dropped audio, or recurring handshake delays. These symptoms often point to a marginal cable, an adapter limitation, or a signal path that is too long for the selected product.
Test more than a static desktop image. Play motion video, switch resolutions, reconnect the source, and test audio if the cable carries audio to the display. If the system will support laptop users in a meeting room or classroom, test with the device types people will actually bring. A cable that behaves correctly with one computer may not handle another device’s output format, USB-C power needs, or content protection requirements.
For SDI, use a compatible source and monitor, then verify stable video at the deployment format. For example, a cable planned for a 4K production workflow should be tested at the required 12G-SDI rate, not only at HD-SDI. Long BNC runs can be sensitive to cable quality, connector condition, and termination.
Test Long Runs and Extension Systems as a Complete Assembly
Long-distance AV connections deserve more than a bench test. HDMI extenders, HDBaseT transmitters and receivers, fiber systems, switchers, wall plates, couplers, and adapters all add potential points of failure. Test them as a complete assembly before pulling cable through conduit or closing a ceiling.
Begin with a short known-good cable between the source and display. Once that connection works, add each component one at a time. This isolates the failure point quickly. If a projector works directly with a laptop but loses signal after an extender is added, inspect the extender’s power, cable category, termination, distance rating, and supported video format.
Pay close attention to directionality. Active HDMI cables and many fiber HDMI cables have a source end and a display end. Reversing them will prevent operation. Some USB-C and HDMI adapters are also directional or require external power, which should be confirmed during testing rather than discovered after installation.
When a system includes control, test that too. A display may receive video correctly while RS-232, network control, USB touchback, or CEC functions fail because of an incomplete cable path or incorrect configuration. In a classroom with an interactive flat panel, verifying touch, camera, audio, and content sharing together provides a much more useful result than testing video alone.
Troubleshoot a Failed Cable Test Methodically
When a cable fails, avoid replacing equipment at random. First, substitute a short, known-good cable. If the signal returns, the installed cable or extension path is the likely issue. If it does not, check source settings, display input selection, adapter compatibility, and device power.
Then isolate sections of the run. Test the cable directly where possible, bypass wall plates, couplers, switchers, and adapters. Wall plates and couplers are convenient, but each connection adds loss and another physical contact that can fail. In high-bandwidth 4K installations, reducing unnecessary connection points often improves reliability.
Intermittent faults deserve extra attention. Gently move connectors while monitoring the image or tester result, without stressing equipment ports. A signal that cuts in and out when a connector is touched may indicate a worn connector, fractured conductor, or poor termination. Replace suspect patch cables rather than trying to preserve a low-cost component that could cause future downtime.
Document Results Before the Room Goes Live
For multi-room deployments, record cable labels, lengths, test dates, test results, and the source/display format used. A simple record gives IT and facilities teams a faster starting point when a room changes or a problem appears months later. It also confirms that each cable was tested under the conditions it was purchased to support.
For larger classroom, conference room, worship, or auditorium projects, test cables before installation and again after final termination. The second test matters because pulling, dressing, and securing cable can introduce damage that was not present on the workbench.
Reliable AV starts with a signal path that has been proven, not assumed. When the cable, connectors, extender, source, and display are tested together before handoff, the room is better prepared for clear instruction, confident presentations, and meetings that begin on schedule.
