A display can have excellent image quality and still frustrate every person who uses it if a finger press lands an inch from the intended button. Knowing how to calibrate interactive displays helps schools, offices, churches, and government teams keep touch-enabled lessons, presentations, and meetings moving without interruptions.
Calibration aligns what users touch on the glass with what the display registers on screen. The process is usually quick, but results depend on more than selecting a calibration option. Screen mounting, display orientation, connected computers, protective overlays, firmware, and room conditions can all affect touch accuracy.
Start by Identifying the Touch System
Before changing settings, confirm whether you are working with an interactive flat panel display, an interactive projector, or a touch overlay. Each uses a different method to detect touch, and that determines where calibration should happen.
Most modern interactive flat panels use infrared touch frames, projected capacitive touch, or a similar built-in sensor system. These displays commonly include a calibration tool in the on-screen settings menu. In many cases, calibration is performed directly on the panel and applies to every input source.
An interactive projector works differently. Its camera, pen, or touch sensor must map the projected image to the wall or whiteboard. Here, physical alignment comes first. If the projector image is trapezoidal, cropped, or shifting on the surface, software calibration will not fully correct the issue.
A connected Windows computer can add another layer. If a display is used as a second monitor and touch controls the wrong screen, the problem may be display mapping rather than calibration. Identify and map the touchscreen correctly in the operating system before recalibrating it.
Prepare the Display Before Calibration
A few minutes of preparation prevents inaccurate results and repeat calibration calls. Make sure the display is fully installed, powered on, and showing its final image size and position. Do not calibrate a panel that will later be moved, rotated, or re-mounted.
Clean the screen with a display-safe microfiber cloth. Dust, residue, tape near the frame, or a poorly fitted screen protector can interfere with infrared sensors. On panels with an infrared touch bezel, inspect the edges carefully. An object crossing the sensor field can cause missed touches, false touches, or inconsistent tracking.
For interactive projectors, correct the image physically before opening the calibration tool. Center the projected image, fill the intended writing surface, and use the projector's mount adjustments wherever possible. Excessive keystone correction can reduce image geometry and make accurate touch alignment more difficult, especially near the corners.
Also disconnect or move items that may interfere with the display. Cables hanging over a sensor frame, magnets, labels, and strong sunlight on an infrared system can all create issues. In a classroom or training room, ask users to step back while calibration is in progress so no one accidentally touches the screen.
How to Calibrate Interactive Displays Step by Step
The exact menu labels vary by manufacturer, but the workflow is similar across most professional interactive displays.
1. Open the display's touch or calibration settings. On an interactive flat panel, this is usually available from the built-in settings menu, input settings, or touch settings. On an interactive projector, look for the manufacturer calibration application or projector setup menu.
2. Select the correct calibration mode. A quick mode may use four or five target points, while a detailed mode may use nine, 20, or more. Use the detailed option when accuracy matters for annotation, technical diagrams, whiteboarding, or small on-screen controls. A quick mode is often sufficient after a minor setup adjustment.

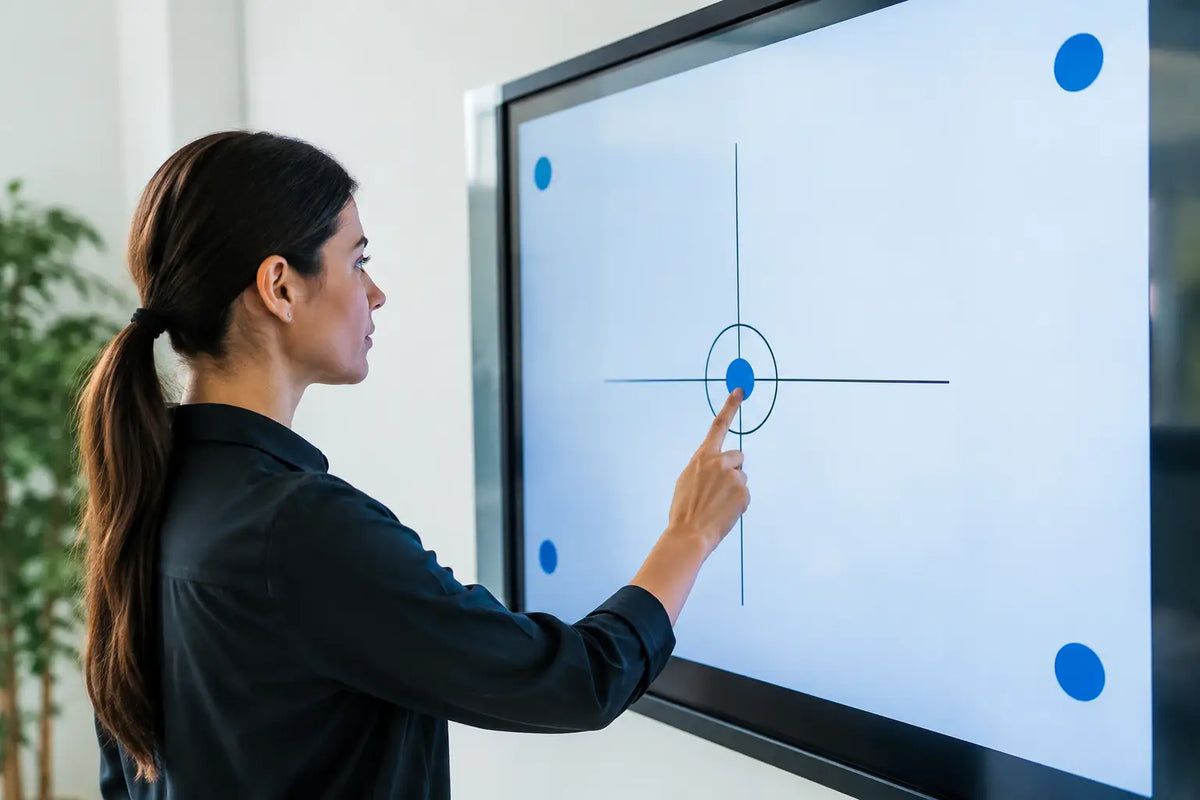

3. Touch each target precisely. Use the same input method people will use in the room. Calibrate finger touch with a fingertip, an active pen with the supplied pen, or a stylus with that stylus. Press the center of each target and release cleanly. Avoid resting your hand on the glass or touching the frame.
4. Complete the targets in order without rushing. The display records the relationship between each target and the physical touch point. If you miss one target, cancel and restart rather than trying to compensate on later points.
5. Save the calibration and test the full screen. Open a whiteboard app, browser, or annotation tool. Touch icons along all four corners, draw slow lines across the display, and test both center and edge locations. A successful calibration should feel consistent across the usable screen area.
On large displays, test from the normal user position. A teacher writing at the front of a classroom may approach the panel differently than an IT technician standing close to the screen. The touch point should remain accurate whether users select small controls, annotate slides, or drag content across the display.
Calibrating a Windows-Connected Interactive Display
If touch is offset only when using a Windows computer, verify that Windows recognizes the panel as the touchscreen display. In the Windows Control Panel, use the tablet or pen settings to identify the display. Follow the prompts and touch the screen that corresponds to the interactive panel.
Only then use the Windows calibration function if it is needed. Windows calibration is useful when the computer's touch mapping is incorrect, but it should not replace the panel manufacturer's built-in calibration process. If the panel works accurately in its internal Android interface but not on the connected PC, the issue is usually USB touch connection, display mapping, scaling, driver configuration, or the selected extended-display arrangement.
Check that the USB touch cable is connected between the panel and the computer. HDMI, DisplayPort, or USB-C may carry video, but many installations still require a separate USB connection for touch control. For USB-C installations, confirm that the port and cable support video, data, and adequate power for the intended setup.
When Calibration Does Not Fix the Problem
Repeated calibration is not the answer to every touch issue. A consistent offset across the entire screen often points to display mapping or image alignment. Inaccurate touch in one corner may indicate a mounting issue, sensor obstruction, or a damaged area of the touch frame.
If the display registers random touches, first inspect the bezel and screen perimeter for debris or anything pressing against the frame. Remove accessories that overlap the active area. Restart the display and connected computer, then test again before changing calibration settings.
If a projected image looks correct but interactive touch is inaccurate, check the projector mount for movement. Even a slight shift can throw off alignment. Verify that the interactive module, camera, or pen sensor has a clear view of the projected surface. Walls with texture, seams, glossy paint, or uneven whiteboards can also limit touch performance.
A protective glass layer or aftermarket screen film deserves special attention. Some accessories are compatible with capacitive touch but can reduce sensitivity; others may block or reflect infrared signals. Confirm that any overlay is approved for the display model before treating calibration as a software problem.
Build Calibration Into Your Room Maintenance Plan
Interactive displays do not need daily calibration in a stable installation. Once a panel is securely mounted and operating accurately, calibration should hold. Recalibrate after a display is relocated, its orientation changes, an interactive projector is adjusted, a major firmware update is applied, or users report consistent touch offset.
For schools and shared conference spaces, designate a simple check at the start of each term or before a major event. Test touch at the corners, confirm the active pen is charged if applicable, inspect cables, and confirm the connected room computer maps touch to the correct display. This small routine helps prevent a support issue from appearing five minutes before a class, board meeting, or training session.
It also helps to document the final configuration. Record the display input, computer connection method, touch USB port, mounting position, and any calibration mode used. Facilities and IT teams can then restore accurate operation more quickly when equipment is replaced or a room is reconfigured.
For a new deployment, the best calibration result starts with the right equipment and installation plan. Screen size, viewing distance, mounting height, room lighting, computer connectivity, and the number of simultaneous users all affect whether an interactive display will perform as expected. Protech Projection Systems can help match interactive display hardware and installation requirements to the way your teams teach, present, and collaborate.
A properly calibrated display should disappear into the work. When a teacher writes, a presenter advances a slide, or a meeting participant marks up a document, the technology should respond exactly where they touch and let the room stay focused on the message.
