A four-person room with a conference table, a wall display, and a laptop connection point can look simple on a floor plan. In practice, a corporate huddle room deployment example needs to solve several daily frustrations: employees joining calls late because the camera is not ready, remote attendees struggling to hear the room, and users wasting meeting time searching for the correct input. The right deployment makes a small room useful for quick stand-ups, client calls, project reviews, and hybrid collaboration without asking staff to become AV technicians.
The Room and Its Collaboration Goal
Consider a typical 12-by-14-foot corporate huddle room used by four to six people. It has glass walls on one side, an existing conference table, standard overhead lighting, and a single network connection near the display wall. The company uses Microsoft Teams and Zoom, but employees may also need to present locally from Windows laptops, Macs, and guest devices.
The objective is not to build a scaled-down boardroom. It is to create a dependable space where a user can walk in, connect or share wirelessly, start a video meeting, and be understood by remote participants. That calls for a system with fewer handoffs, clear cable management, and equipment sized for the room rather than selected solely by the largest specification.

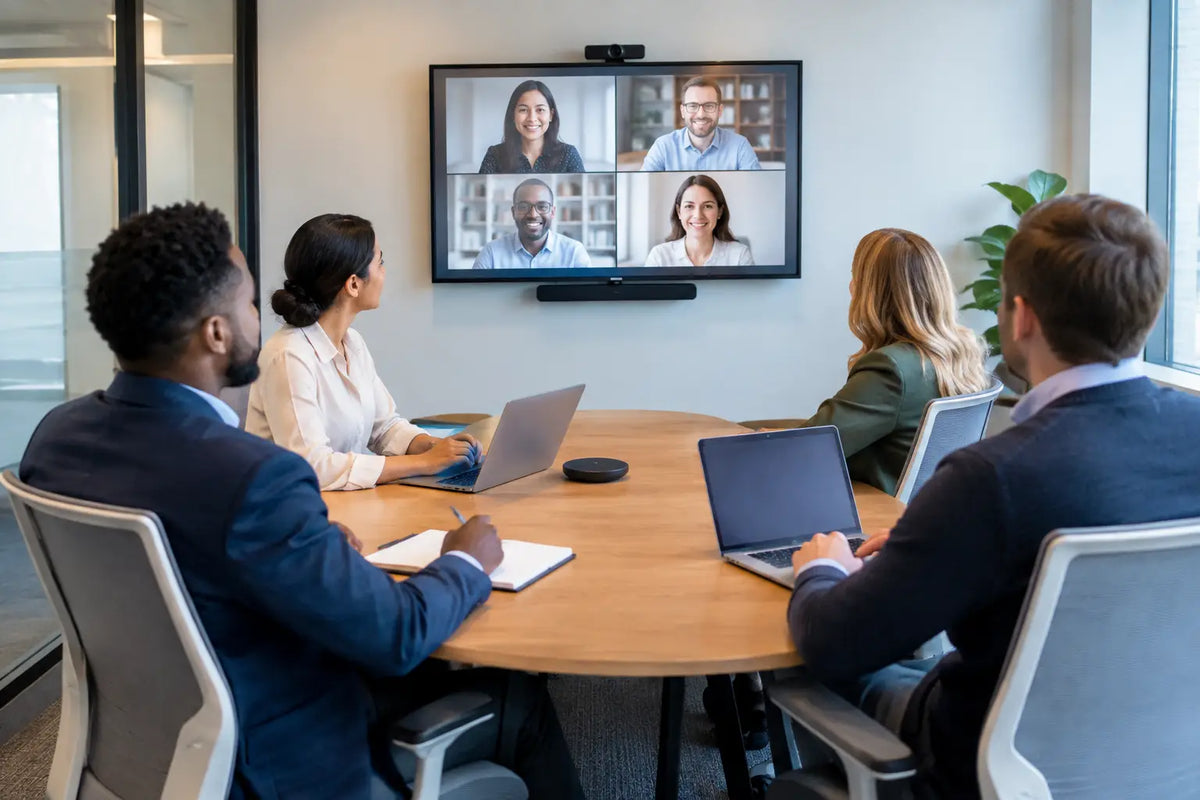

For this example, the deployment includes a 65-inch commercial display, an all-in-one video bar, wireless presentation capability, a room scheduling panel, and a compact AV connection package. This combination supports both scheduled meetings and spontaneous collaboration.
Corporate Huddle Room Deployment Example: The AV Package
A 65-inch 4K commercial display is a strong fit for this room size. At normal seating distances, it gives local participants enough screen area to view remote attendees alongside shared spreadsheets, dashboards, and presentation content. A 55-inch display may work when the farthest viewer is close to the screen, while a 75-inch model can be appropriate for a deeper room or a space that often holds six people. Bigger is not automatically better if it forces uncomfortable viewing angles in a narrow room.
The display should be mounted at a practical viewing height, with its center positioned close to seated eye level whenever possible. A low-profile commercial-grade wall mount keeps the installation secure and preserves floor space. For rooms where wall construction or glass partitions limit mounting options, a mobile cart or floor stand may be the more realistic choice, though it changes the room's clean, permanent appearance.
Below or above the display, an all-in-one video bar provides the camera, microphones, and speakers. For a four-to-six-person room, a camera with a wide field of view is usually more useful than extreme optical zoom. Look for automatic framing, beamforming microphones, and USB or native Teams Rooms and Zoom Rooms compatibility based on the organization’s meeting platform.
An all-in-one bar reduces cabling and installation time compared with separate camera, ceiling microphone, DSP, and speaker components. The trade-off is coverage. If the room has hard glass walls, exposed concrete, or constant HVAC noise, an integrated bar may need help from acoustic treatment, a table microphone, or a more advanced audio design.
Wireless Sharing and Wired Backup
Wireless presentation is often the feature employees notice first. It lets a user share content without passing cables around the table or interrupting a meeting to find an adapter. A wireless presentation system should support the devices the company actually uses, including Windows, macOS, and mobile devices if guest sharing is common.
A wired HDMI and USB-C connection should still be included at the table or nearby wall plate. Wired access is the practical backup for guests, high-resolution content, and situations where corporate network policies restrict wireless casting. Providing both options avoids a common deployment mistake: relying on one connection method and discovering it does not fit every user or every meeting.
The table connection point can include HDMI, USB-C with charging where appropriate, and a simple cable pass-through for future replacement. Keep cables short, labeled, and protected. A huddle room loses credibility quickly when users see loose adapters and cables hanging below the display.
The Signal Flow Should Be Easy to Support
The best system design is one that the IT team can diagnose without moving furniture or tracing unmarked cables. In this example, the room’s display, video bar, and wireless sharing device connect to a small switching and control solution behind the display. The system selects the active source automatically or with a small, clearly labeled control interface.
For organizations using a dedicated room computer, the Teams Rooms or Zoom Rooms appliance remains connected as the primary conferencing source. The display wakes when a meeting starts, and the video bar is ready without requiring users to select a camera or audio device from their laptops. Employees can then share a laptop screen into the call through the room platform or through the wireless presentation system.
Some smaller offices choose a bring-your-own-device design instead. That lowers initial hardware costs and allows users to run meetings from their own laptops, but it adds variability. Users must select the correct camera, microphone, and speaker each time. A dedicated room system costs more upfront, yet it generally delivers a more consistent experience in rooms used heavily throughout the week.
Installation Details That Prevent Daily Problems
A clean huddle room installation is about more than mounting a display. Power, network access, cable routes, display ventilation, and service access all affect long-term reliability. Equipment installed behind the display should remain reachable for firmware updates, troubleshooting, and replacement.
For this deployment, the installer confirms that the wall can support the display mount and that power is available behind the screen. If adding a new outlet is not feasible, surface raceway or a properly designed cable pathway may be required. Power cables should not be bundled carelessly with low-voltage signal cables, particularly over longer runs, because electrical interference can create intermittent issues.
Network planning matters as well. A hardwired network connection is preferred for the room computer, wireless presentation device, and scheduling panel. Wi-Fi can support some devices, but a video meeting room should not depend on a congested wireless network for its primary connection. IT should also confirm VLAN requirements, firewall rules, device management policies, and firmware update procedures before installation day.
The physical room deserves attention. Glass walls can produce reflections and audio bounce. Direct sunlight can wash out the display, while bright ceiling fixtures can make camera exposure inconsistent. Simple changes such as window shades, adjustable lighting, and acoustic panels can improve meeting quality more than upgrading a camera by one product tier.
Add Scheduling Only When It Solves a Real Need
A scheduling panel outside the room can show availability and allow employees to reserve the space at the door. It is especially useful when several huddle rooms sit along the same corridor or when room conflicts are frequent. The panel should integrate with the organization’s calendar system and display a clear status indicator from a distance.
For a single huddle room in a small office, a scheduling panel may not be the first priority. The budget may be better spent on a higher-quality video bar, better display, or professional installation. This is a good example of matching equipment to the operating reality of the office instead of adding features simply because they appear in larger conference rooms.
Commissioning Is Part of the Deployment
Once the equipment is installed, the room should be tested as users will actually use it. That means starting a Teams or Zoom call, joining from a remote device, presenting from Windows and Mac laptops, switching between wired and wireless sharing, and checking audio from every seat. Test the camera image with room lights on and off, and verify that remote participants can hear soft-spoken users at the far end of the table.
Create a one-page quick-start guide in plain language. It can explain how to start a scheduled meeting, share content, use the wired backup connection, and request support. If the room relies on a dedicated conferencing platform, the instructions should focus on the few actions users need rather than documenting every possible setting.
IT should also record model numbers, cable paths, network details, control settings, and warranty information. This documentation saves time when a device is replaced or when the organization rolls out the same design across multiple locations.
Planning for a Repeatable Rollout
This corporate huddle room deployment example can become a repeatable standard for offices, training areas, and regional branches. Standardizing the display size, conferencing bar, mount, connection method, and room control approach simplifies procurement, training, and support. It also gives purchasing teams a clearer way to compare quotes and manage replacements.
There will still be exceptions. An executive huddle room may need a premium camera and upgraded finish, while a training huddle space may benefit from an interactive flat panel display for annotation. Protech Projection Systems can help organizations evaluate those differences, source compatible AV equipment, and coordinate installation support without losing the consistency that makes multi-room deployments easier to manage.
A well-planned huddle room should disappear into the workday. When participants can see the content, hear every voice, and start a meeting without calling for help, the technology is doing exactly what the room was designed to do.
